Category
Milling machine
Type
mobile column
Made
Model

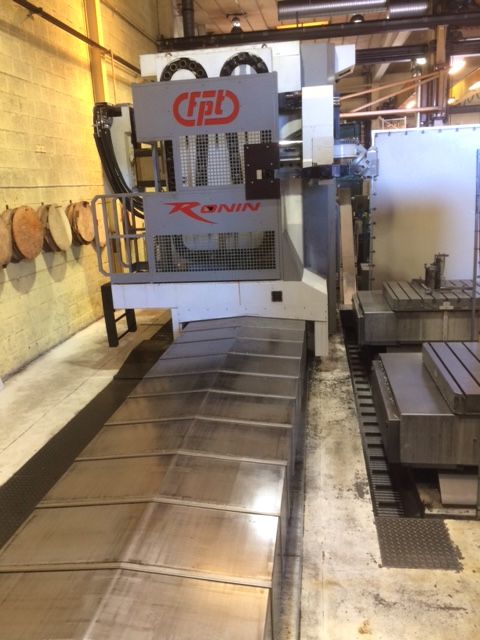

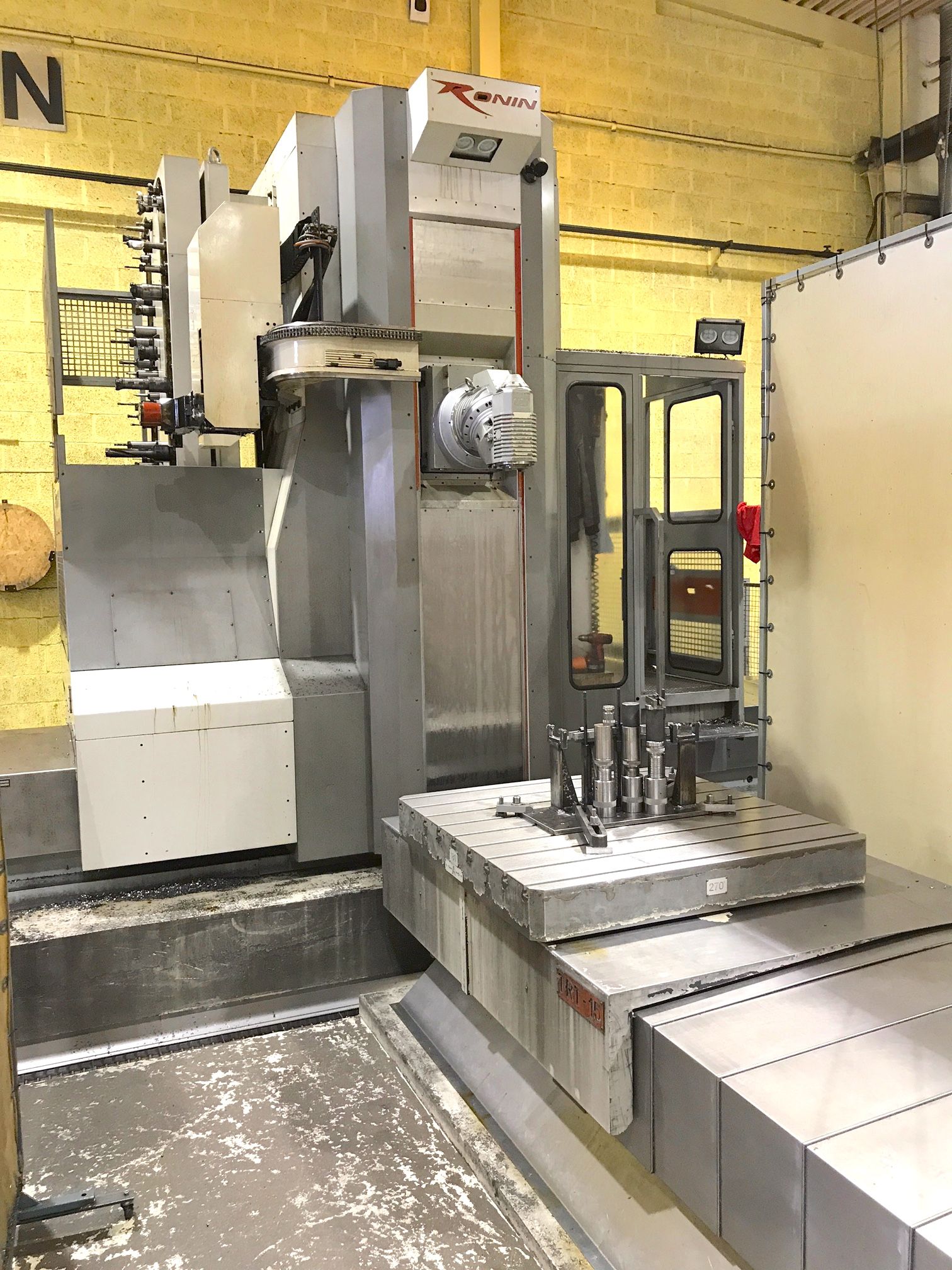

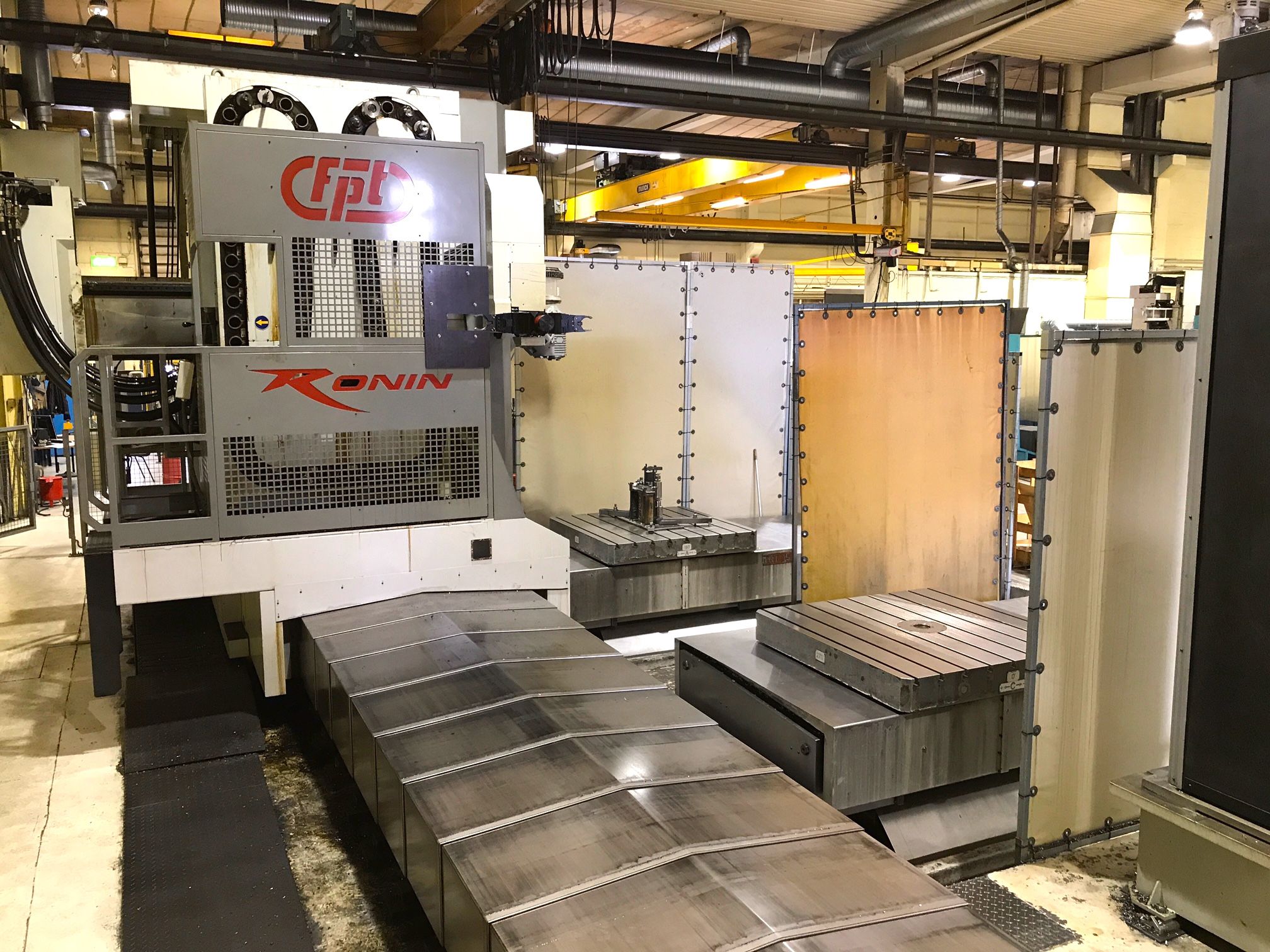

RONIN M80
Capacity
8000x2000x1500 mm314,96x78,74x59,06 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
8000 mm314,96 in
Vertical (Y)
2000 mm78,74 in
Cross RAM (Z)
1500 mm59,06 in
Table (V)
1500 mm59,06 in
Table 2 (V2)
1500 mm59,06 in
CNC
CNC

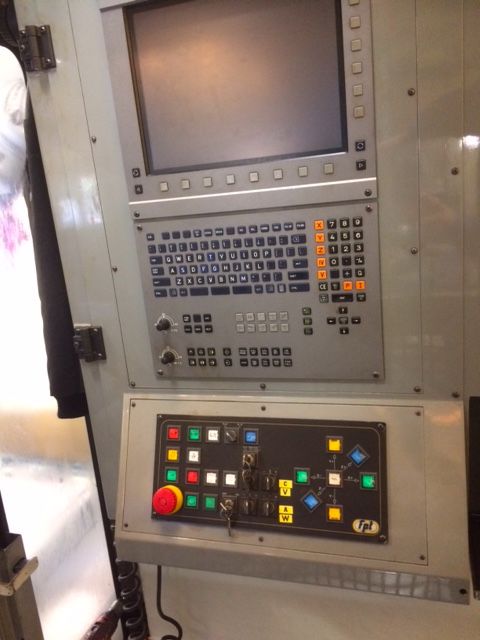

Heidenhain iTNC530 SP + HR410 Handwheel
Measuring system
Righe ottiche pressurizzate Heidenhain
Drives
SIEMENS
SPINDLE
Spindle power
49 Kw
Rotating speed
400-5000 Rpm
Torque
1180 Nm
Taper
ISO50 DIN69871
FEEDS
Rapid X
35 m/min1.377,95 ipm
Rapid Y
35 m/min1.377,95 ipm
Rapid Z
35 m/min1.377,95 ipm
Rapid V
12 m/min472,44 ipm
V
4 m/min157,48 ipm

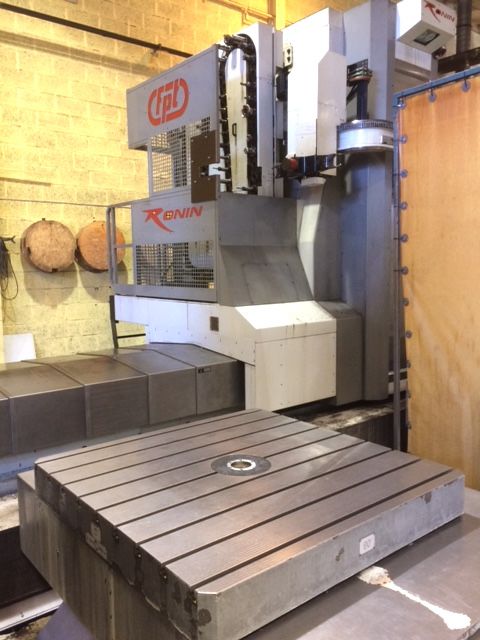

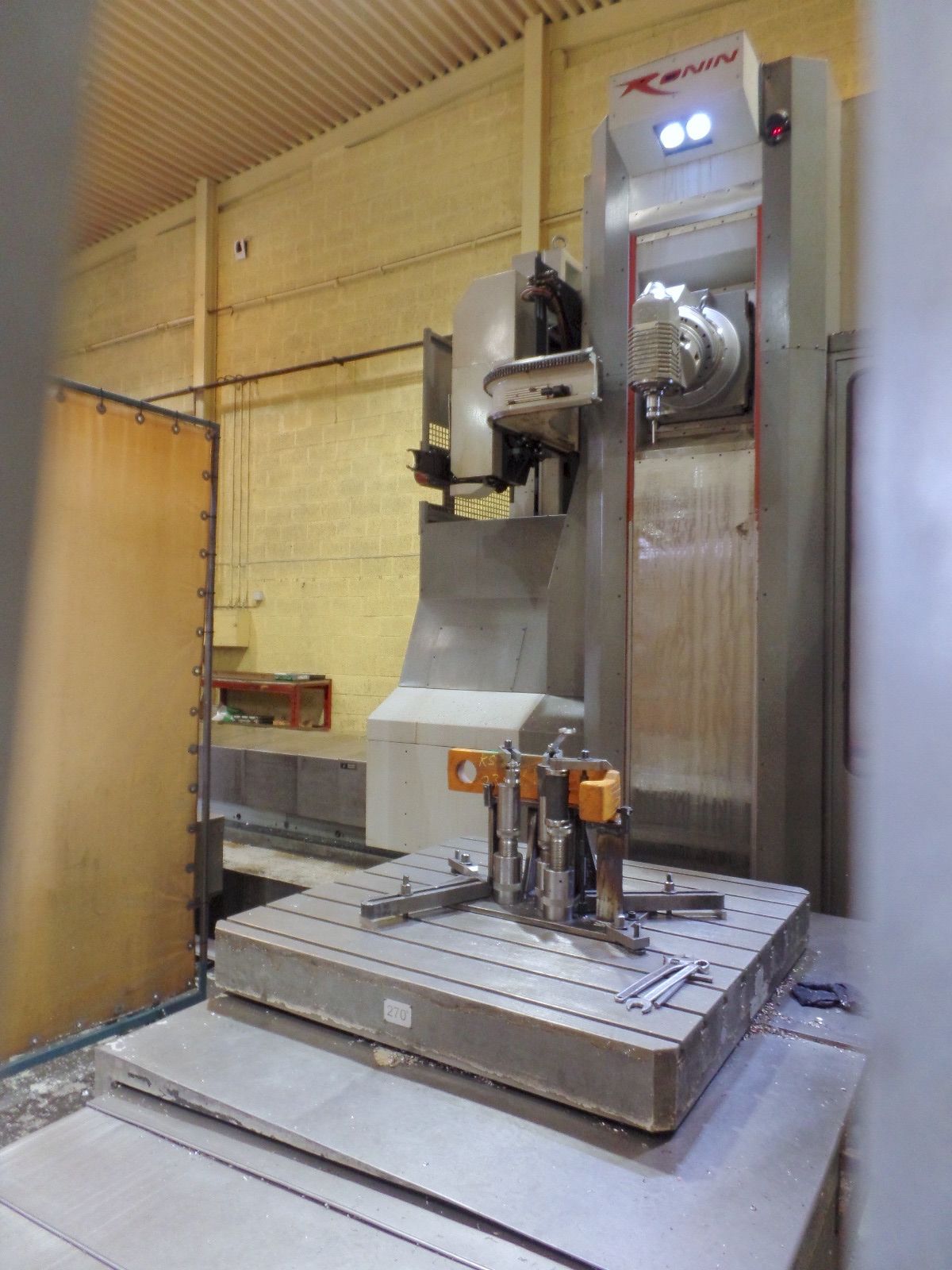

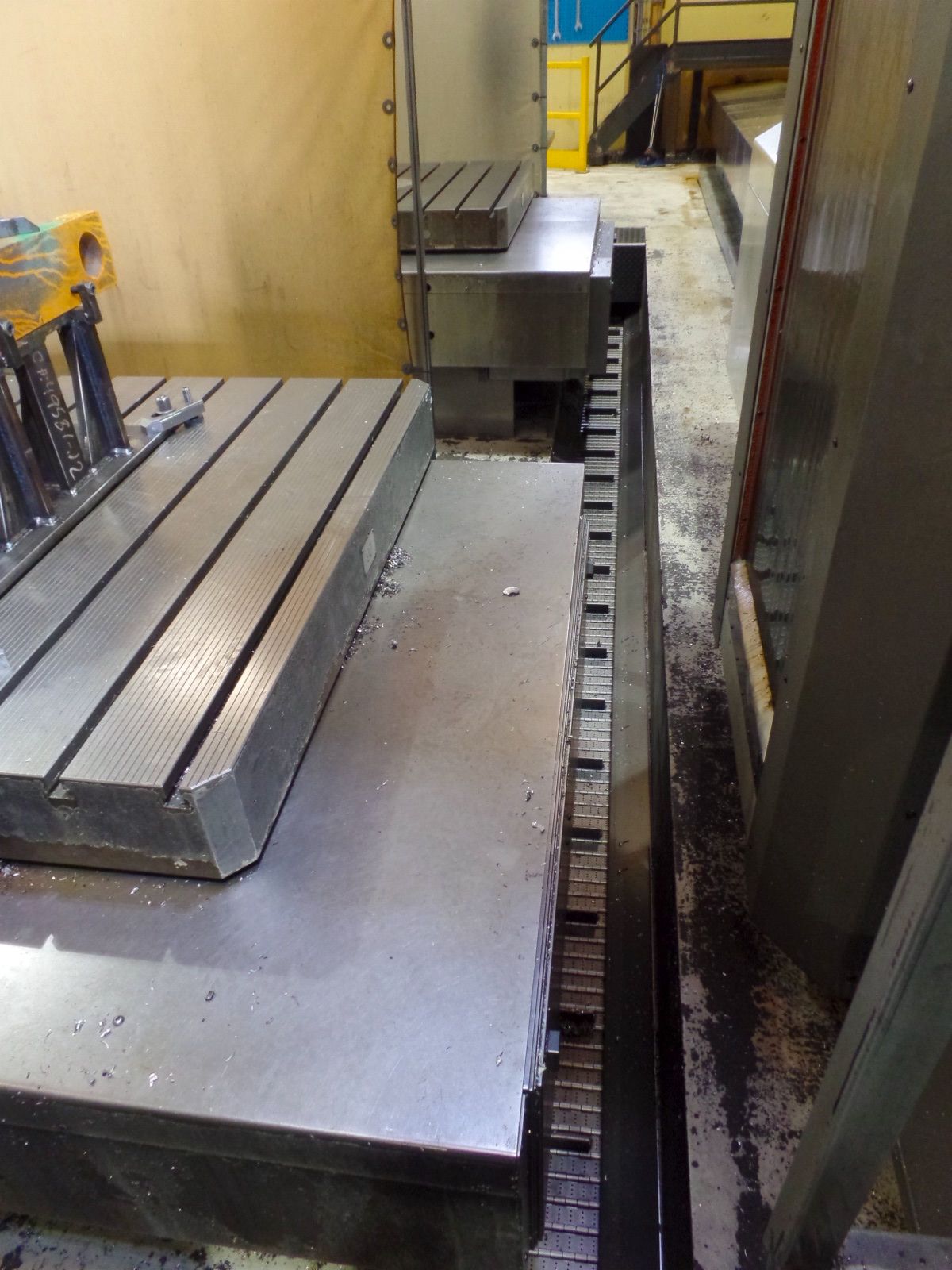

TABLE 1
Surface
1500x1500 mm59,06x59,06 in
Translation
1500 mm59,06 in
Accuracy (B axis)
0,0005 °
Capacity
15.000 Kg
Support
Hydrostatic
Rotating speed
1,5 Rpm o °/min
TABLE 2
Available upon request
No
Surface
1500x1500 mm59,06x59,06 in
Translation
1500 mm59,06 in
Accuracy (B axis)
0,0005 °
Capacity
15.000 Kg
Rotating speed
1,5 Rpm o °/min
PICK UP STATION FOR HEADS
Positions
3

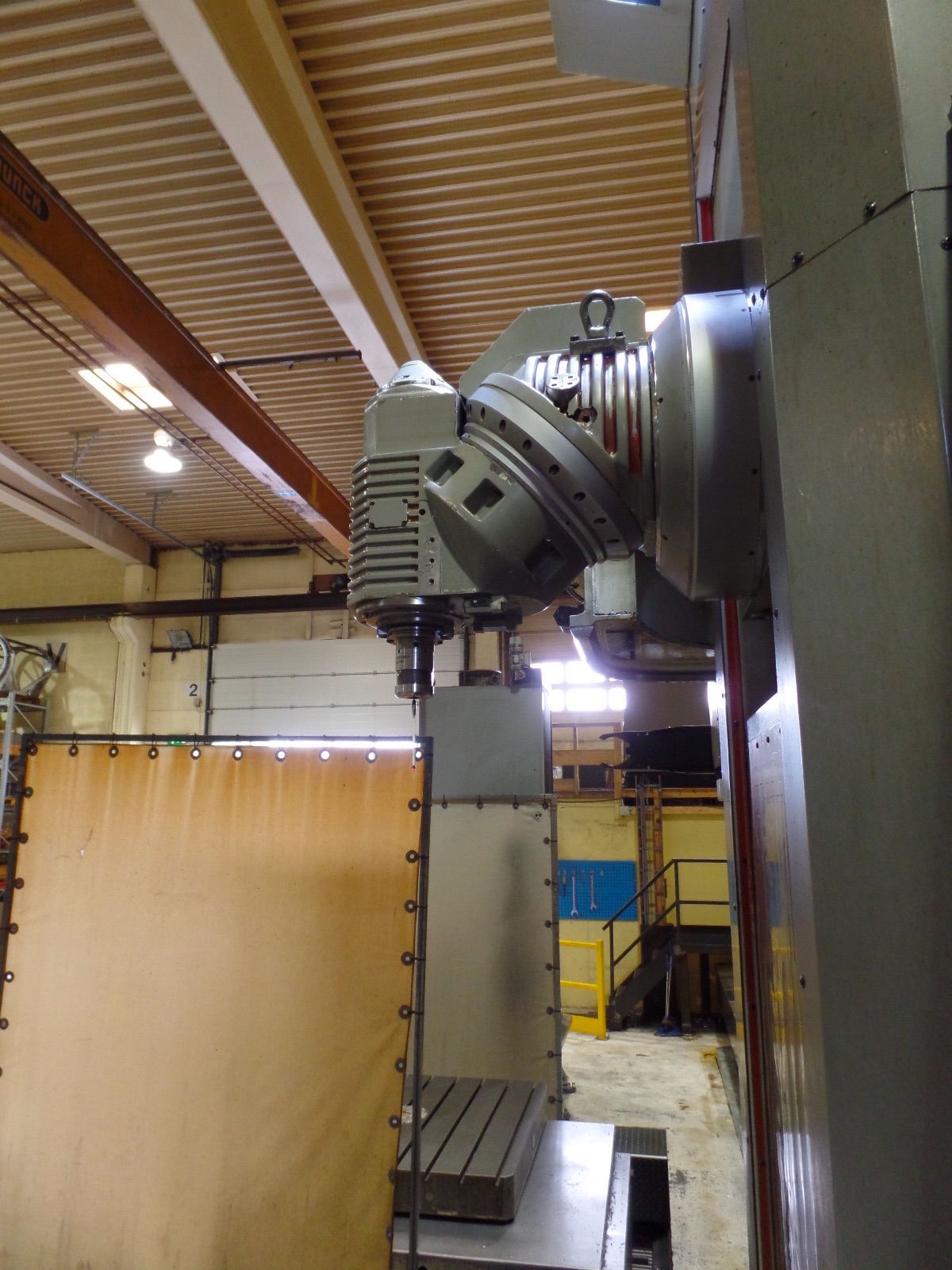

HEAD 1
Type
TUPCG5
Spindle taper
ISO50 DIN69871/69872
A axis
360.000x0,001 °
C axis
360.000x0,001 °
Max torque
1180 Nm
Max speed
400-5000 Rpm
Max power
49 Kw
Coolant
in/out 20Bar

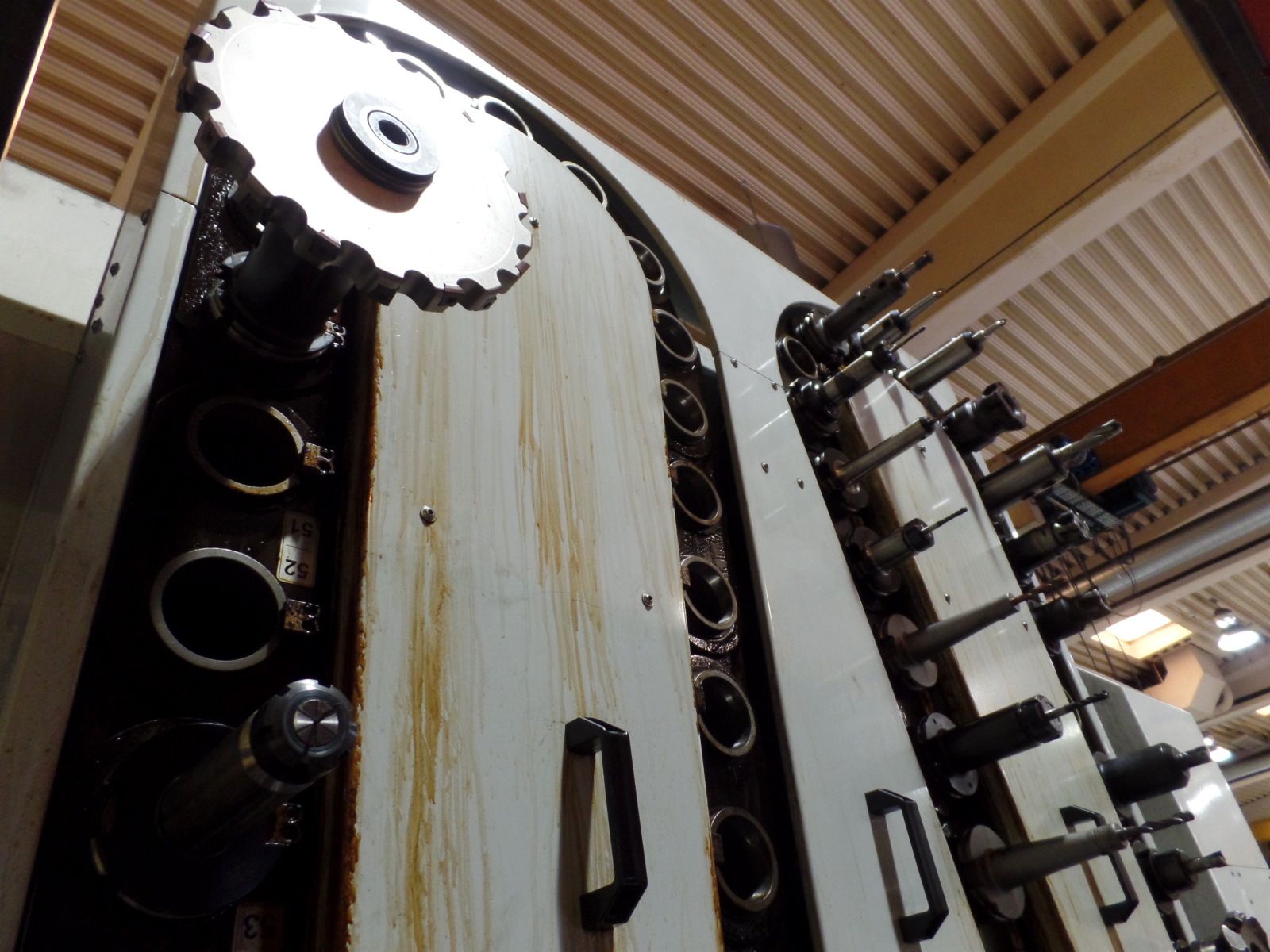

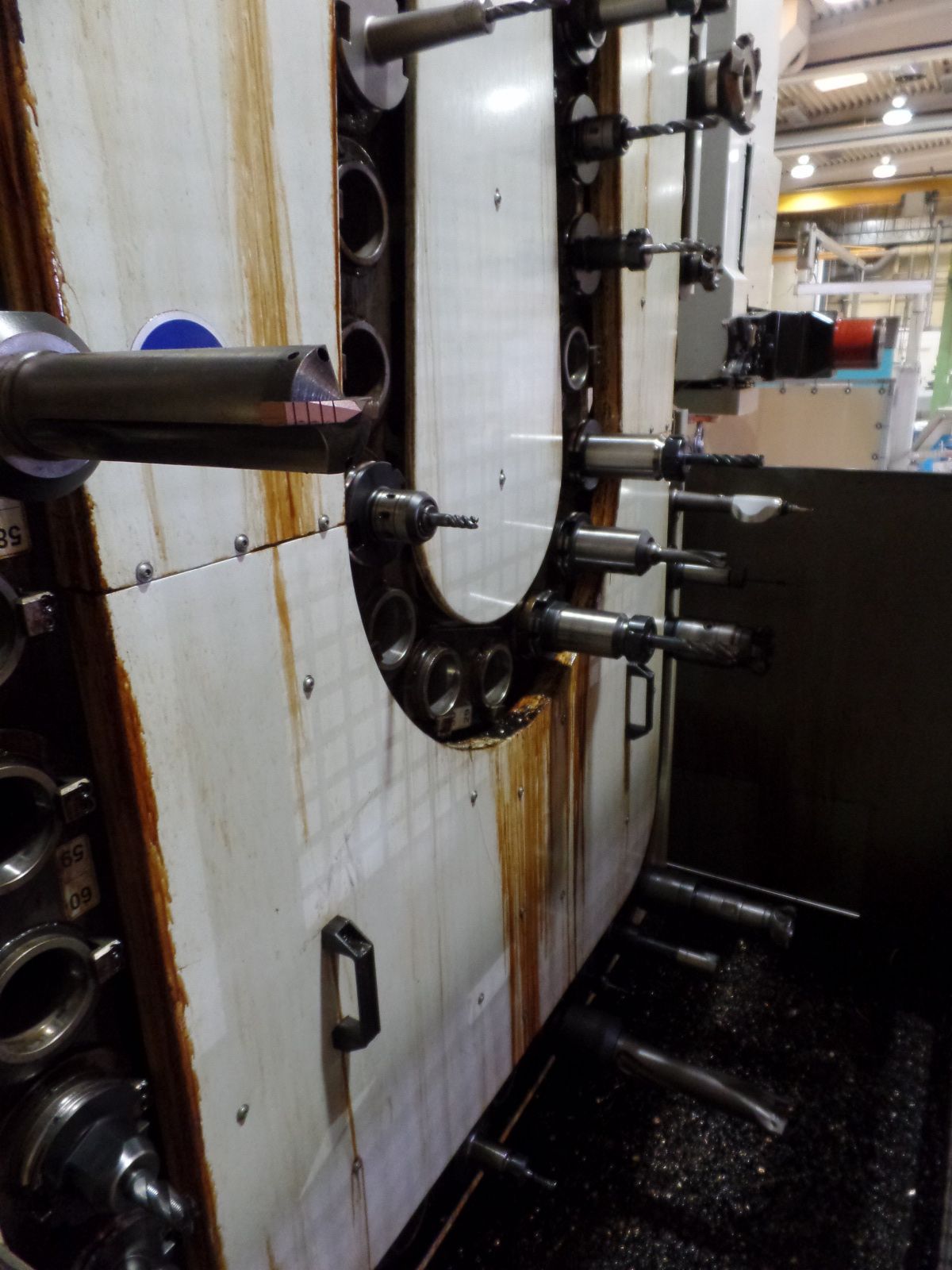

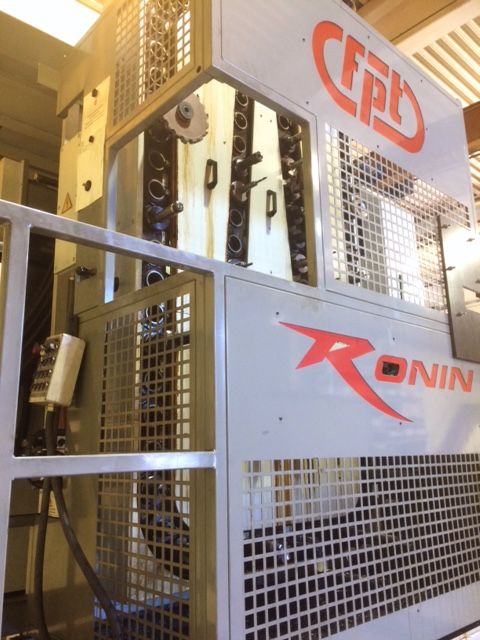

ATC
Positions
80
Max tool diameter
125 mm4,92 in
Max diam with free adiacent space
230 mm9,06 in
Max tool lenght
400 mm15,75 in
Max tool weight
20 Kg
Tool taper
ISO50 DIN69871
Position
max weight on the chain 800Kg
HEAD 2
Available upon request
No
Max torque
1180 Nm
Max speed
5000 Rpm
Max power
49 Kw
EXTRA
Total power supply
70 Kw
Tooling included
Static RTCP software in the space, Pick up station, ATC80, 2 TRT15, Chips conveyor, Touch probe
High Pressure
20 Bar, 28L/min, 1200Lt
Filtration unit
1200 Lt tank with 30µm filter in first stage and 10µm in second stage
Chiller
ues

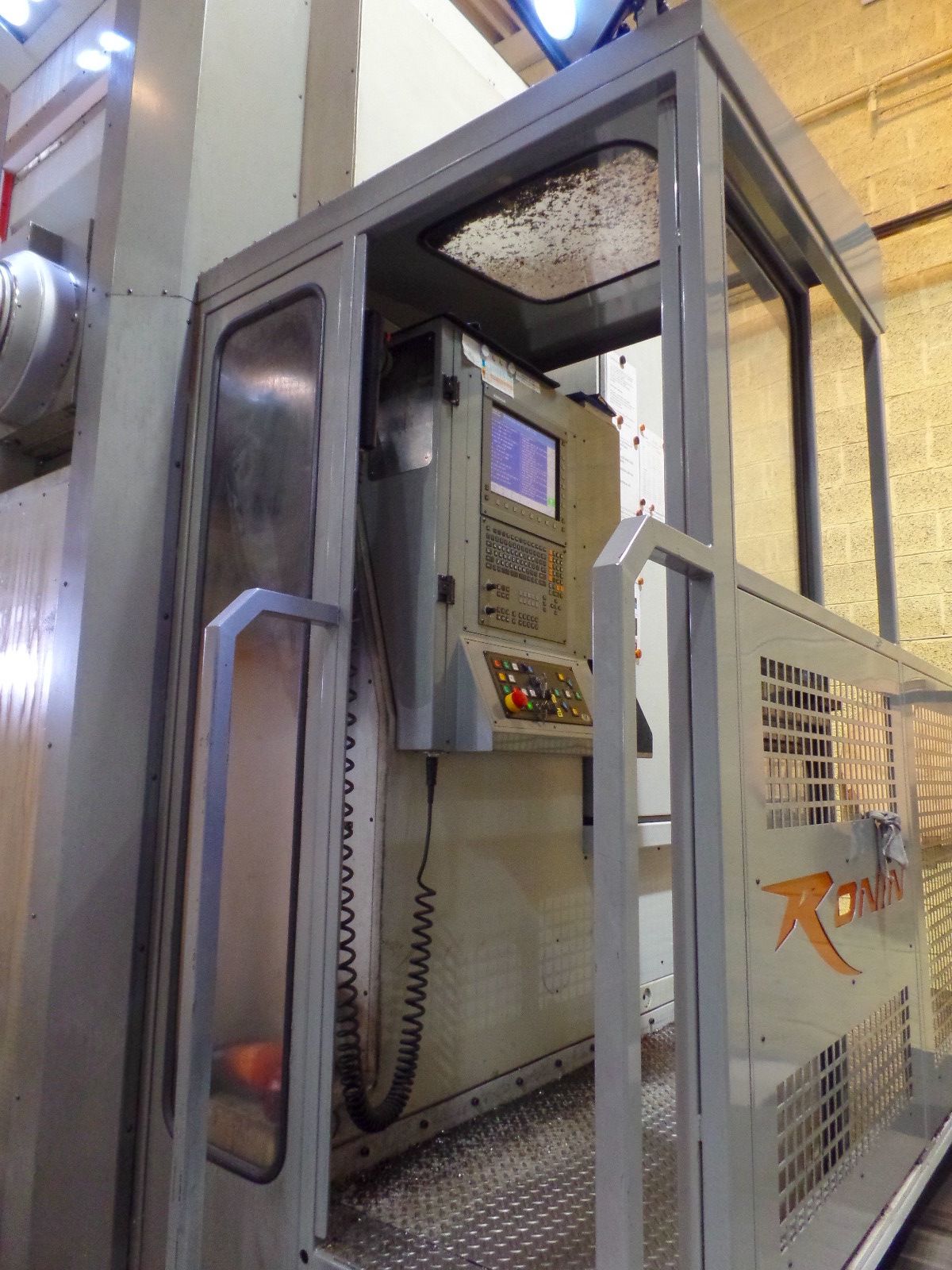

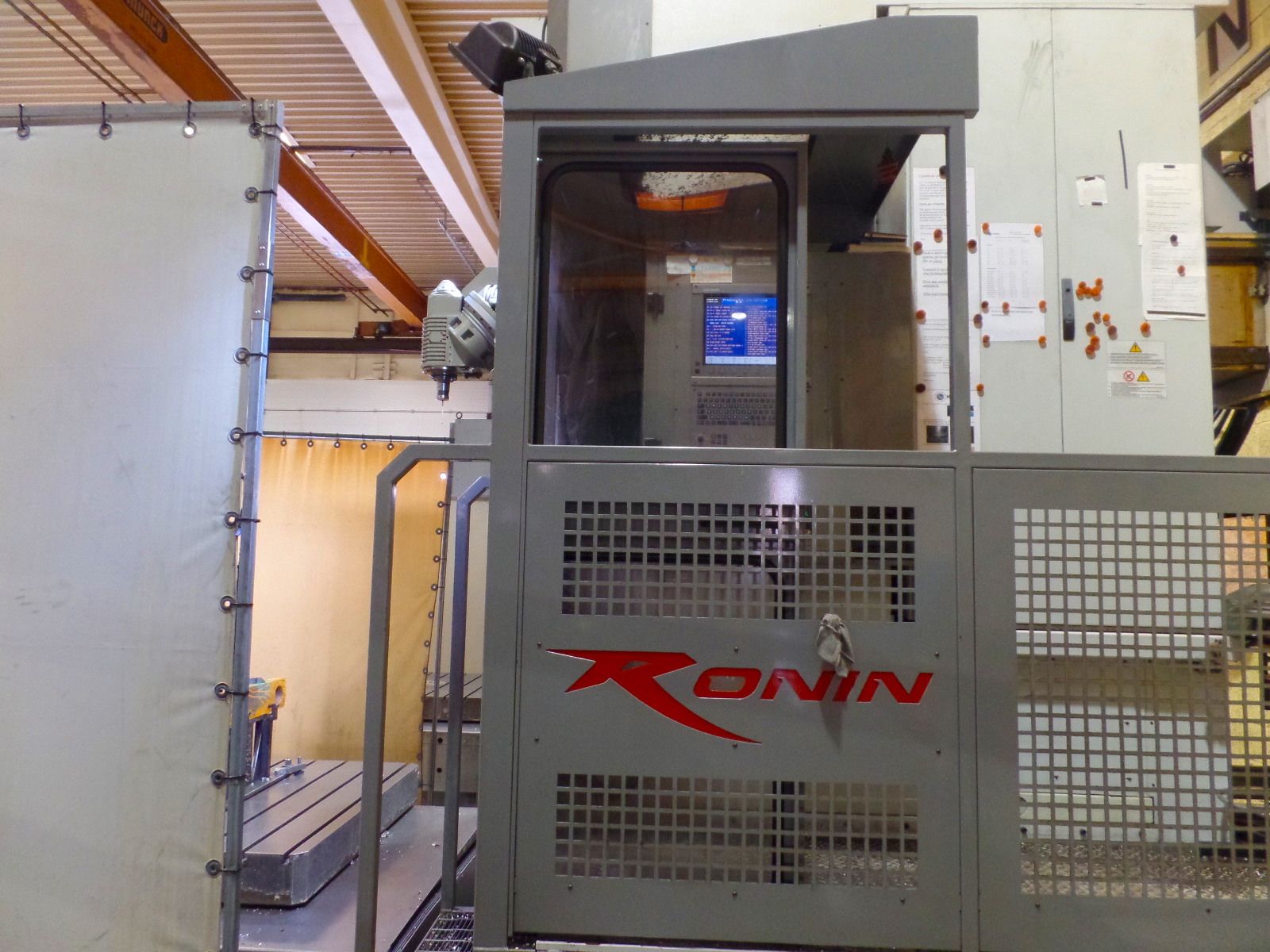

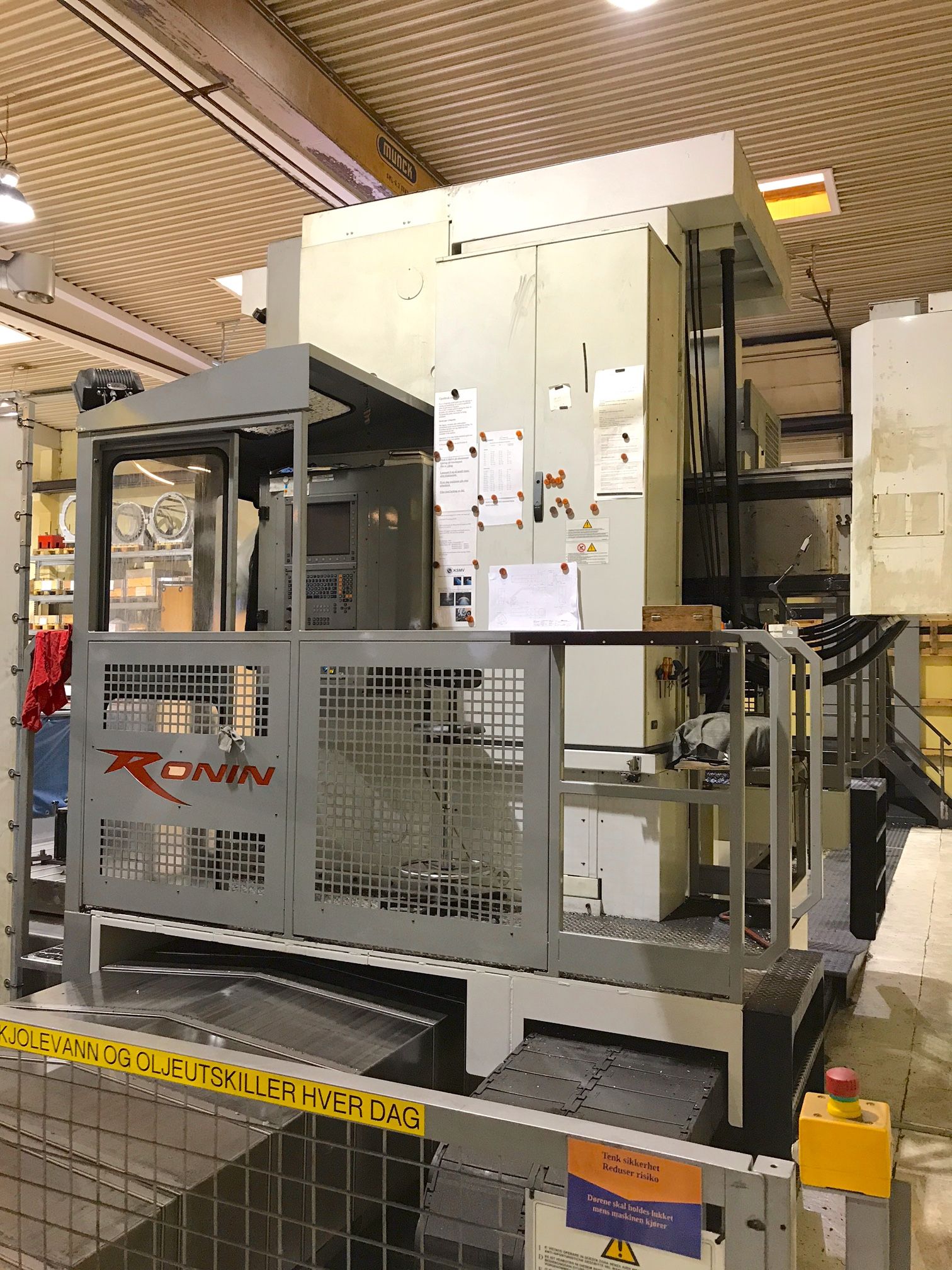

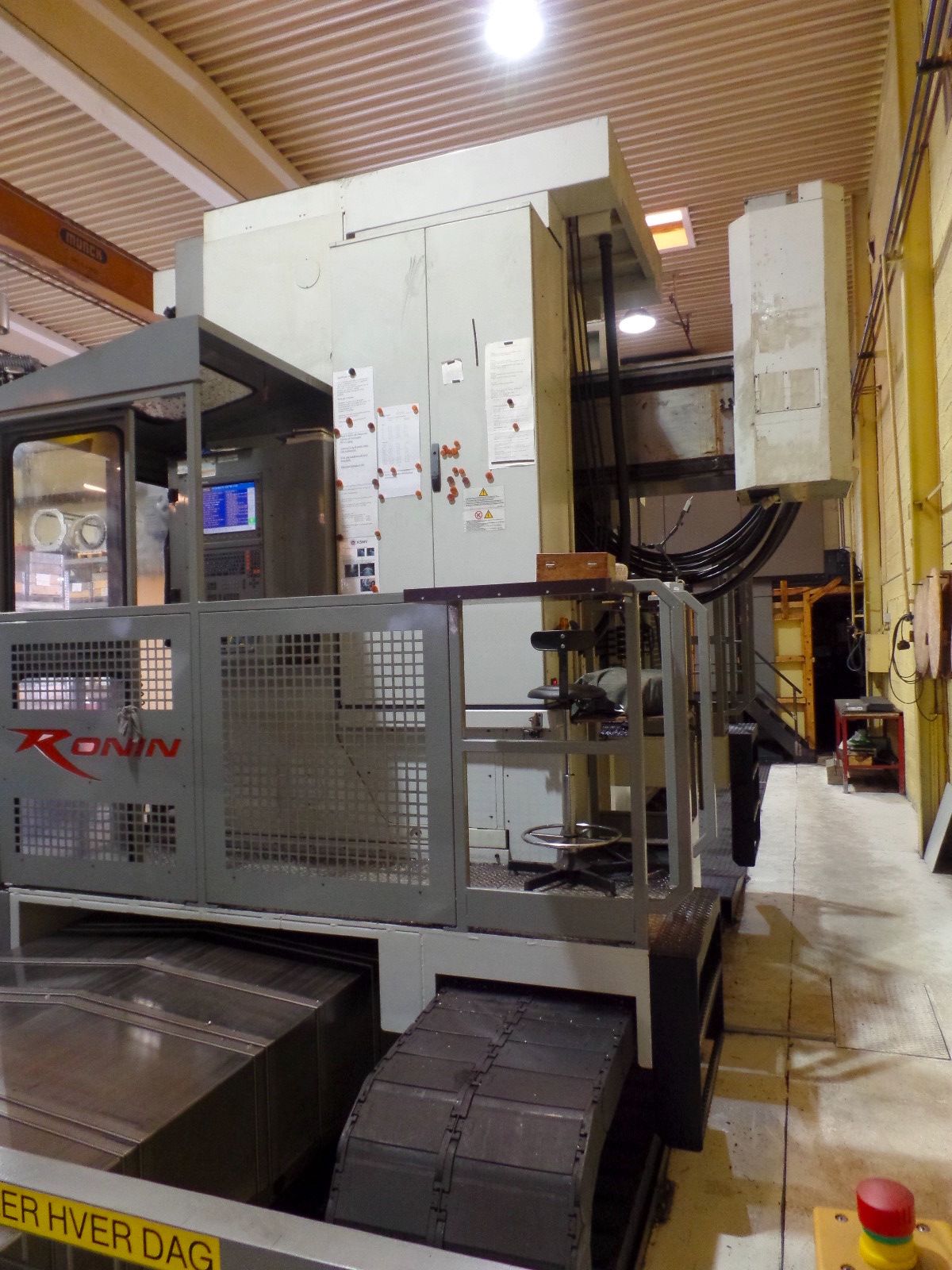

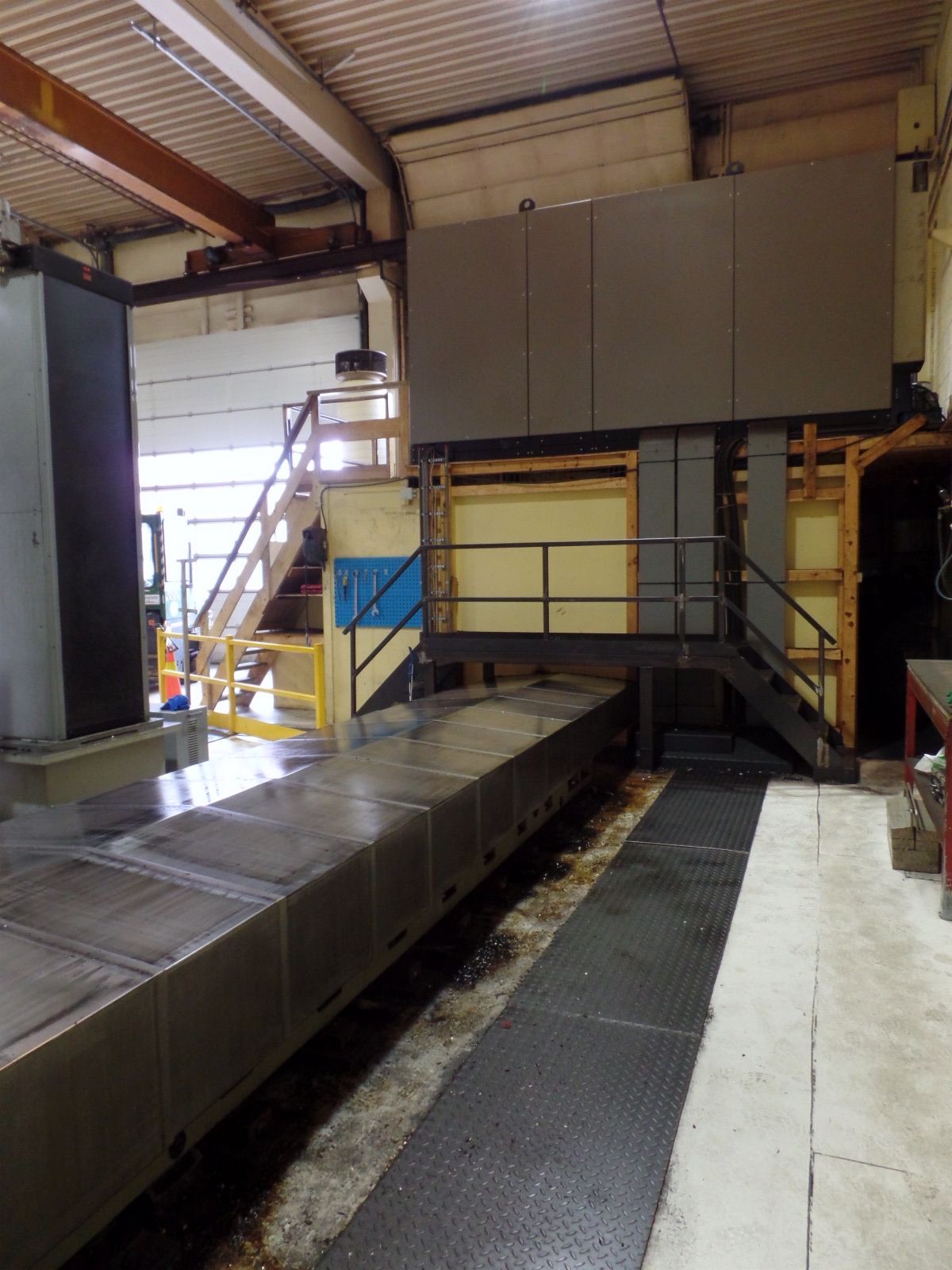

Mobile operator platform
fissa
Workpiece touch probe
Heidenhain Touch Probe
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes
Housing
perimetrale
Chip conveyor
yes
Availability
pronta
Available under power
si
Floor space
13500x9627 mm531,50x379,01 in
