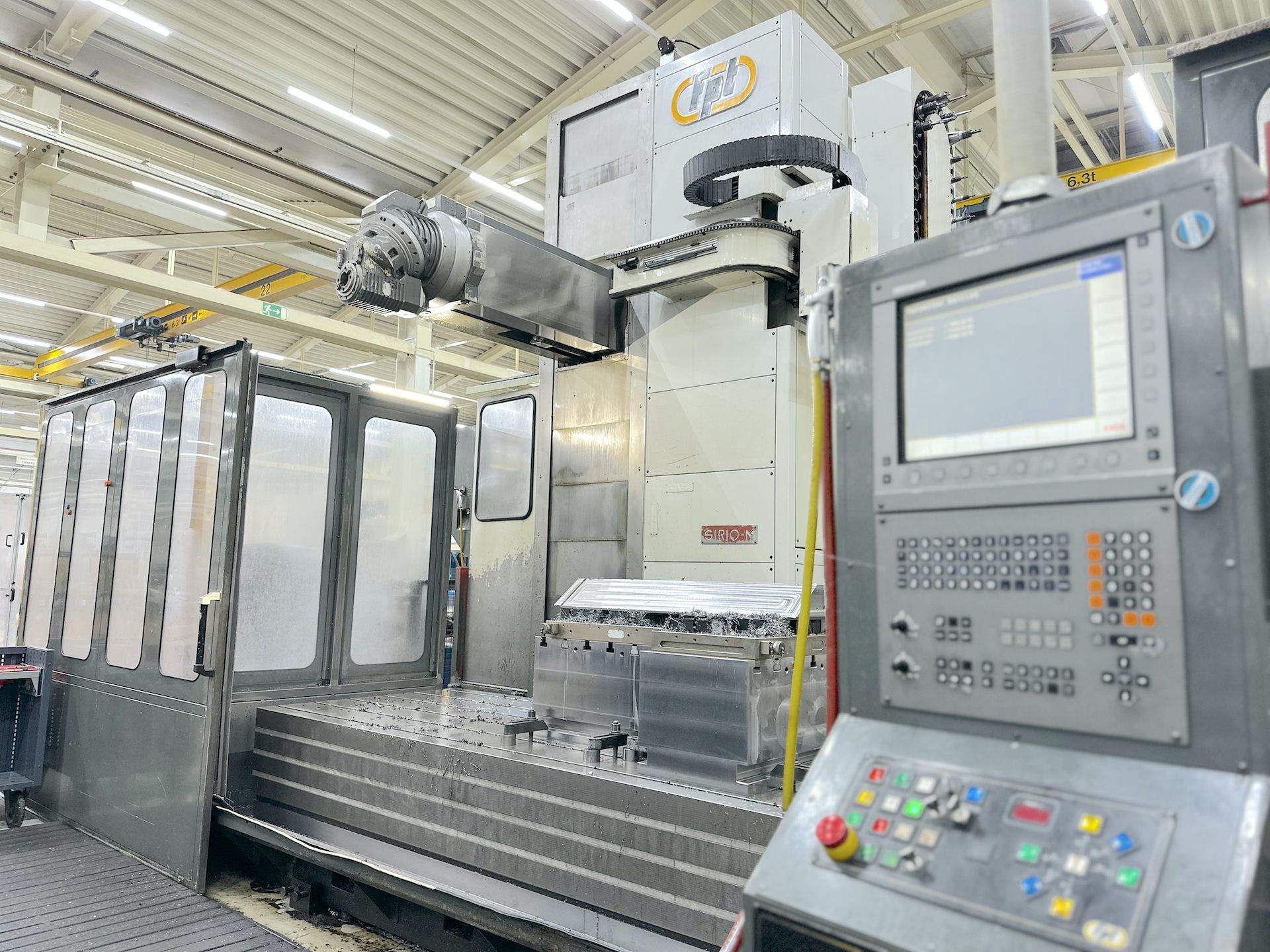

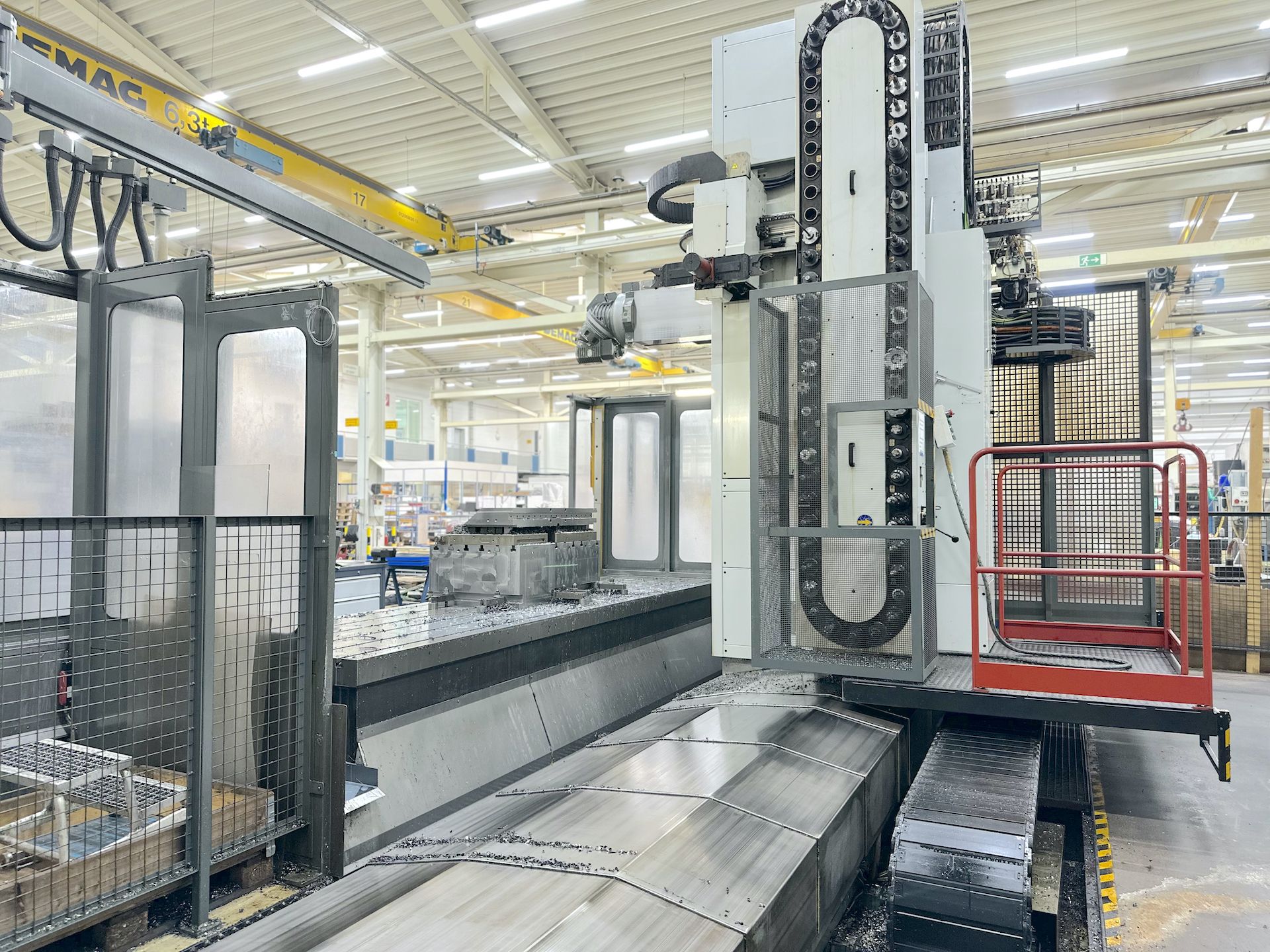

Category
Milling machine
Type
mobile column
Made
Model
SIRIO M40
Capacity
4000x2000x1200 mm157,48x78,74x47,24 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
4000 mm157,48 in
Vertical (Y)
2000 mm78,74 in
Cross RAM (Z)
1200 mm47,24 in
FEEDS
Rapid X
15 m/min590,55 ipm
Rapid Y
15 m/min590,55 ipm
Rapid Z
15 m/min590,55 ipm

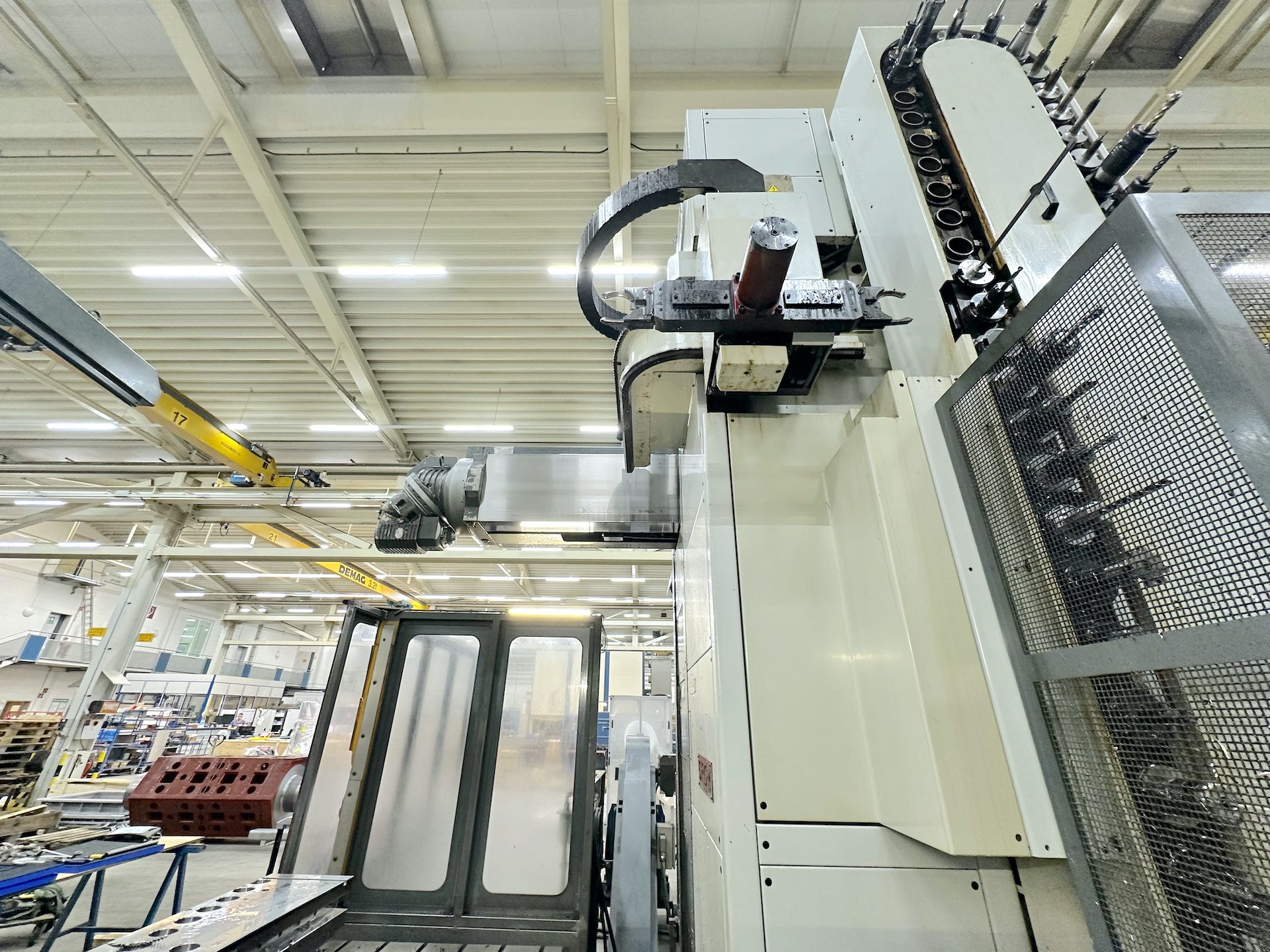

ATC
Positions
60
Max tool weight
20 Kg
Max tool diameter
125 mm4,92 in
Max diam with free adiacent space
230 mm9,06 in
Max tool lenght
400 mm15,75 in
Tool taper
ISO50 DIN69871/69872
FIXING TABLE
Floorspace (LxWxH)
4500x1200x750 mm177,17x47,24x29,53 in
T slots number
6x22H7

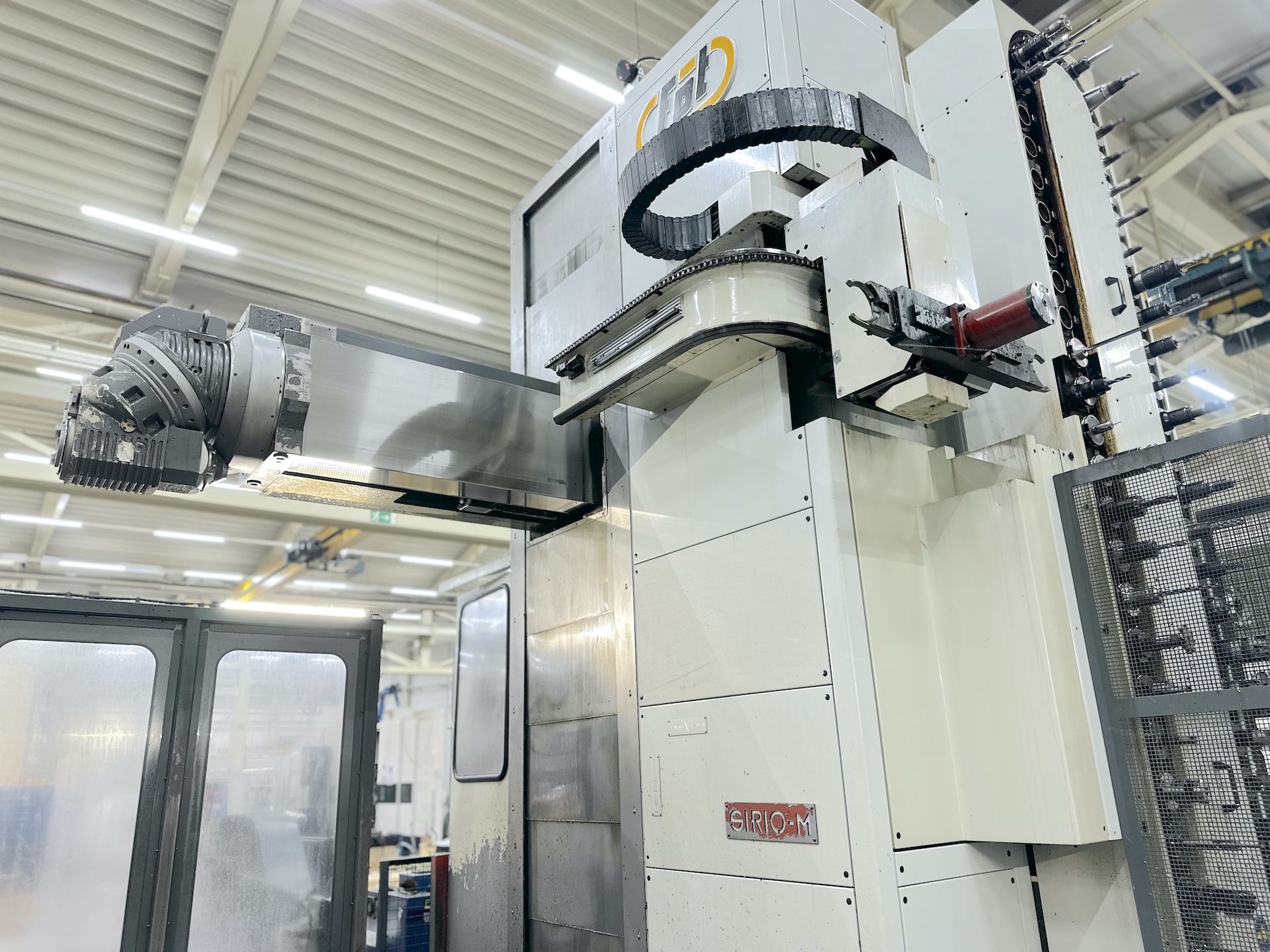

HEAD 1
Type
TUPCG-CSA
Spindle taper
ISO50
A axis
360.000x0,001 °
C axis
360.000x0,001 °
Max torque
1340 Nm
Max speed
250-4000 Rpm
Max power
28/35 Kw
Coolant
CTS20Bar

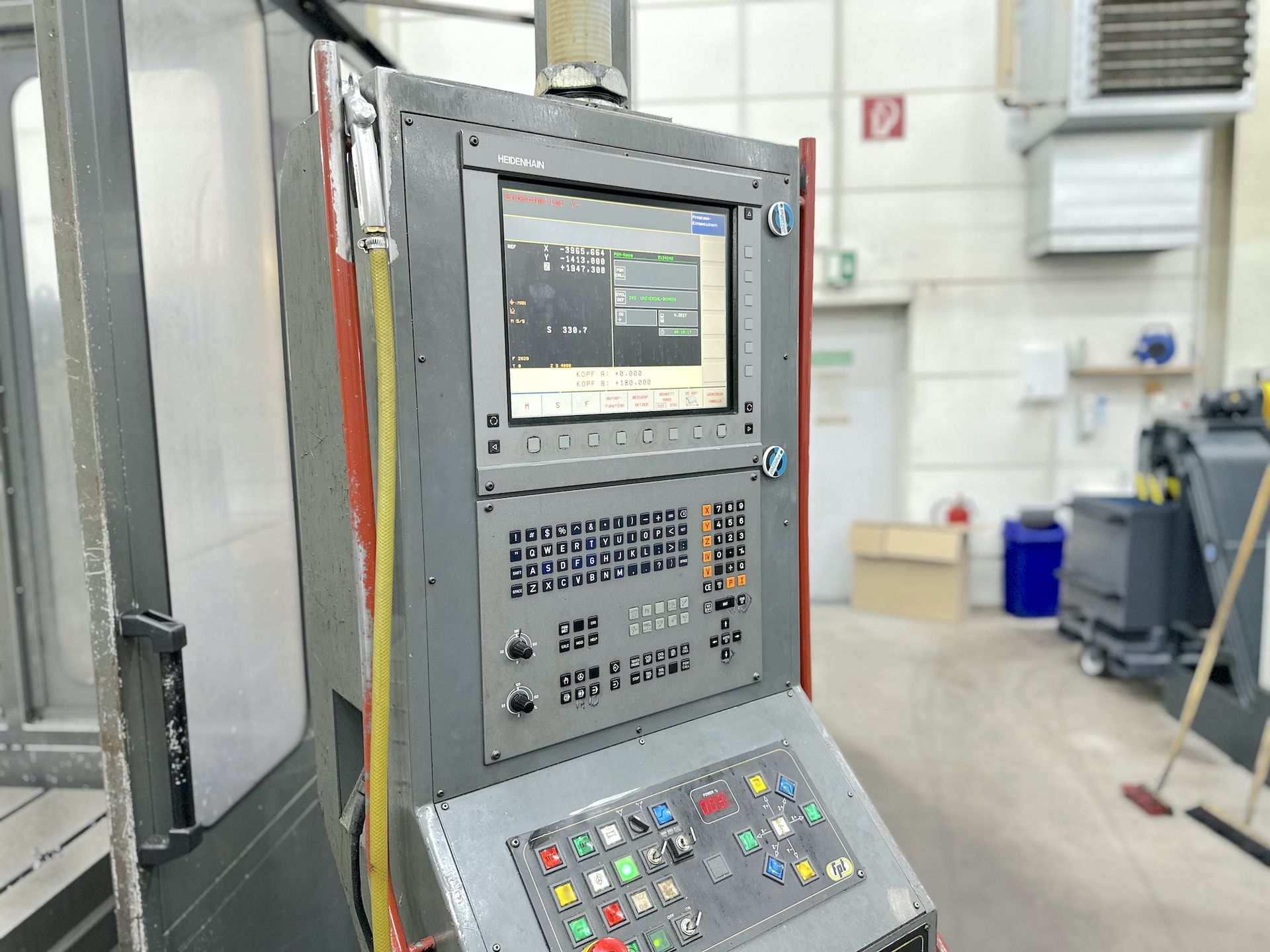

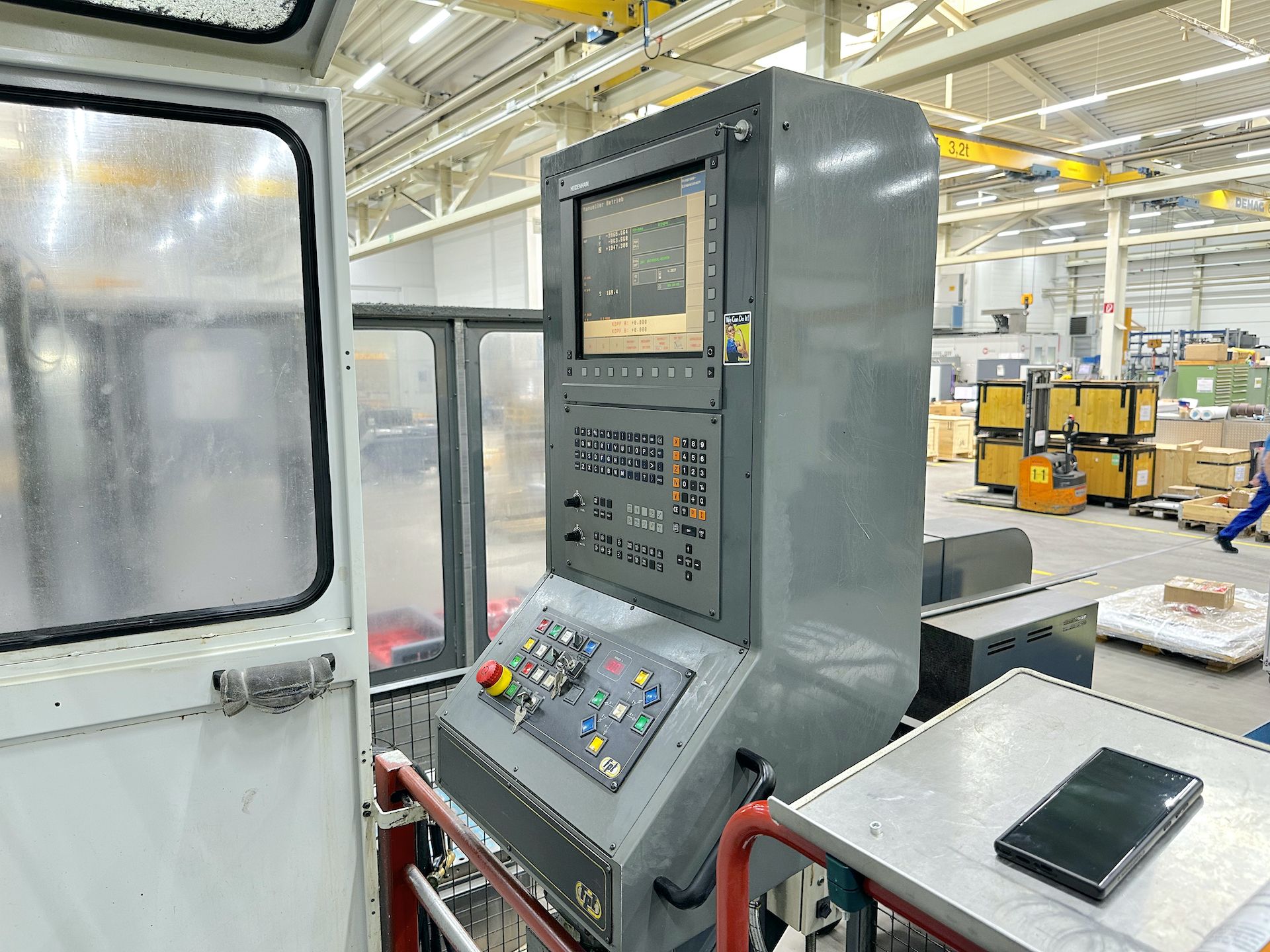

CNC
CNC
Heidenhain TNC530i + HR410
Notes
doppio controllo (su pedana operatore + esterno), RTCP Statico,
Measuring system
Tastatore Heidenhain
EXTRA

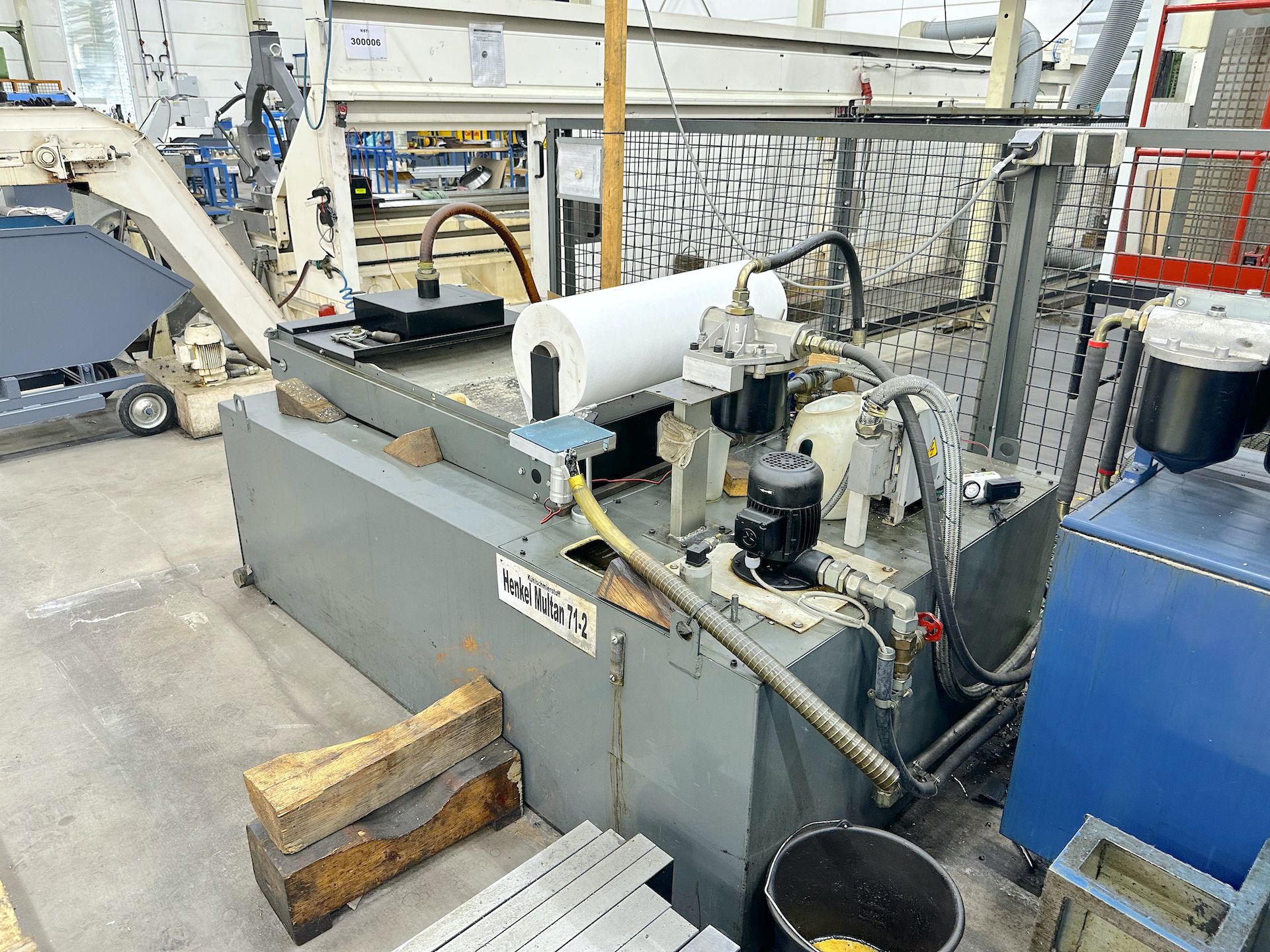

Filtration unit
Vasca filtro a carta 10µm, 1200litri 28lit/min
Chip conveyor
Si, laterale

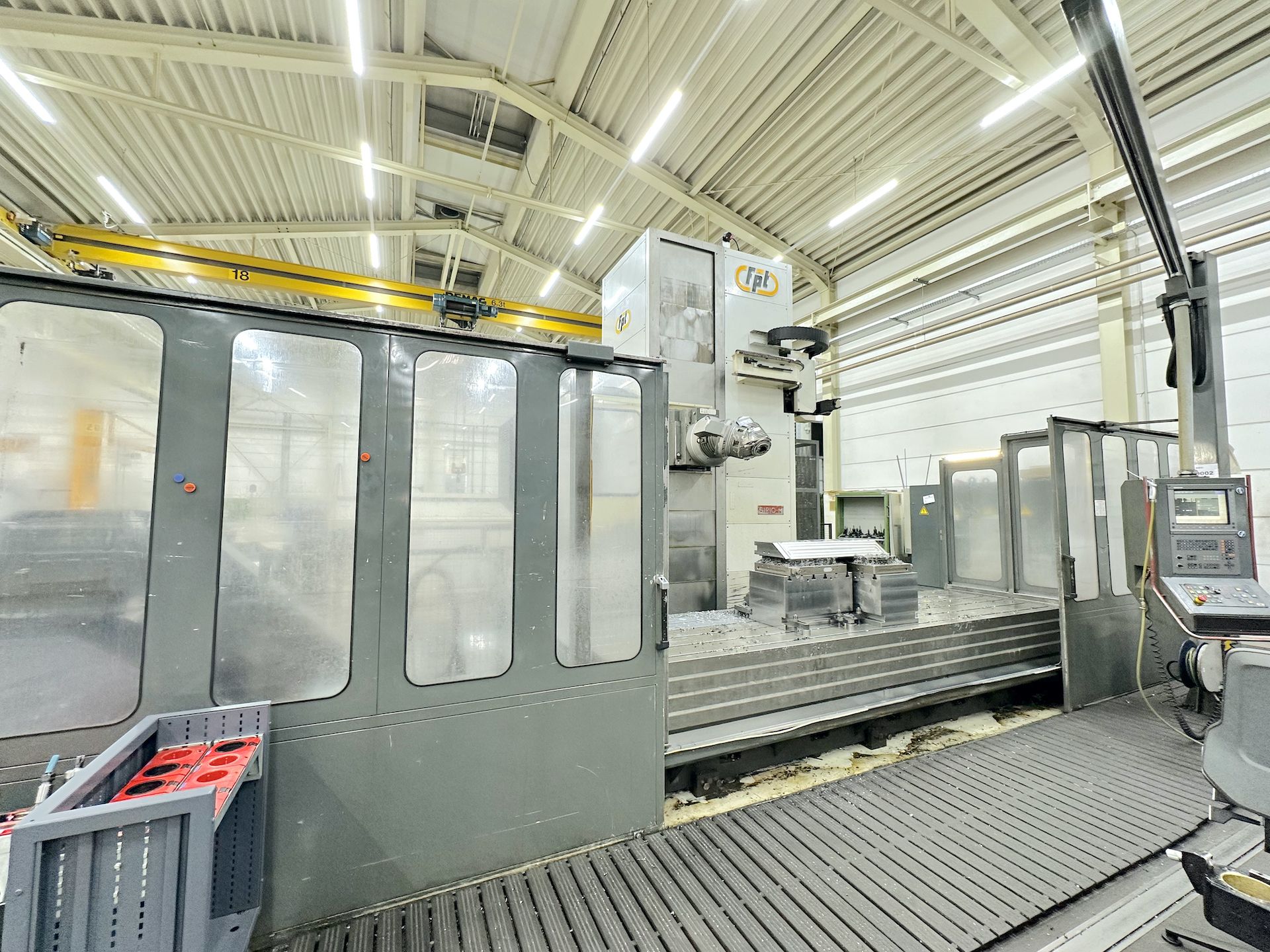

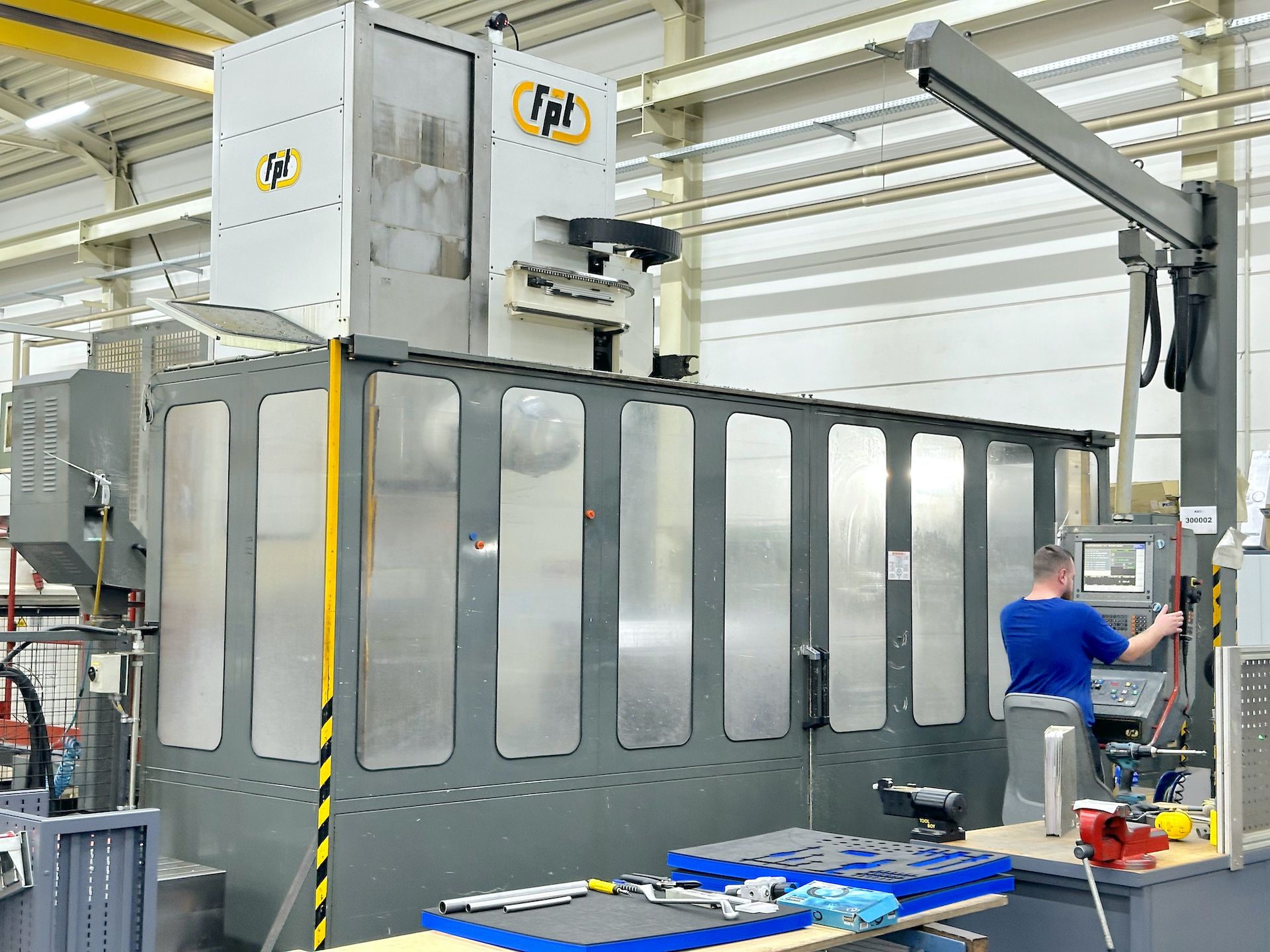

Housing
recinzione perimetrale area di lavoro H2000mm + 2 porte scorrevoli frontali H3600mm
Workpiece touch probe
Heidenhain

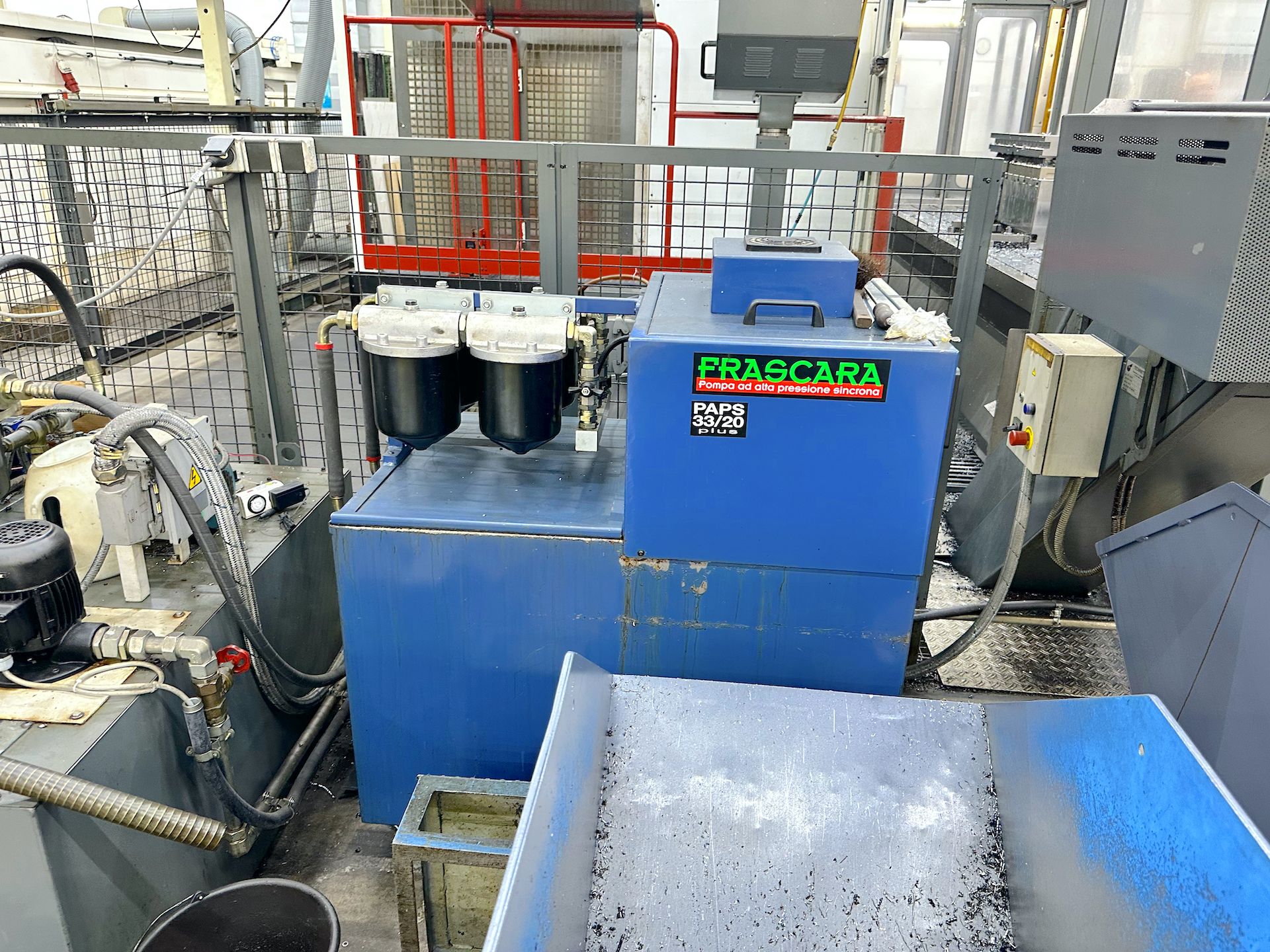

High Pressure
20Bar CTS
Floor space
8800(+1850mm evacuatore)x6000x4852 mm346,46(+72,83mm evacuatore)x236,22x191,02 in
