Category
Milling machine
Type
mobile column
Made
Model
QUARTZ 3000
Capacity
3000x1600x1200 mm118,11x62,99x47,24 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
3000 mm118,11 in
Vertical (Y)
1600 mm62,99 in
Cross RAM (Z)
1200 mm47,24 in

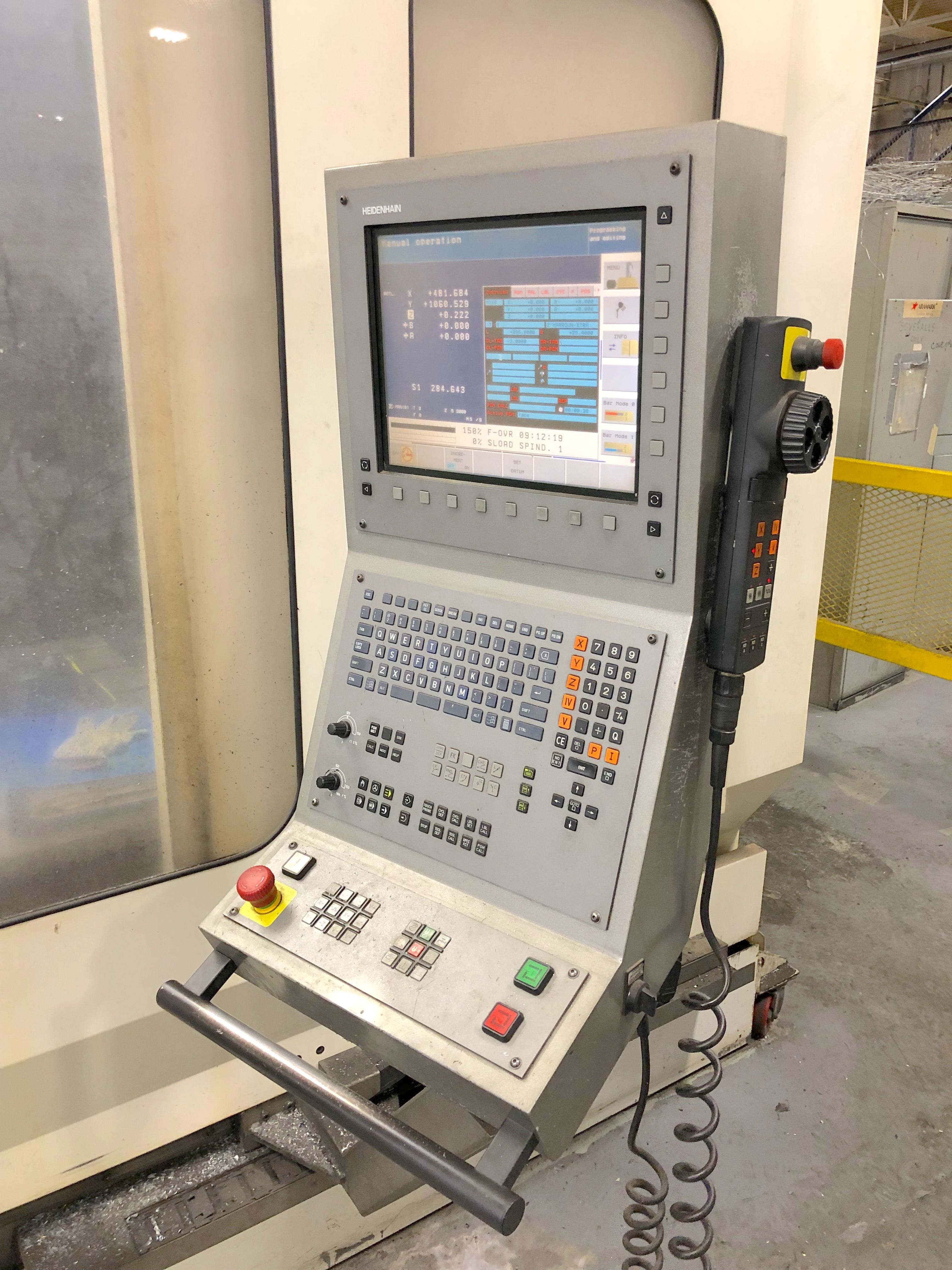

CNC
CNC
Heidenhain TNC530
Drives
Siemens
SPINDLE
Spindle power
22/30 Kw
Rotating speed
0 - 6000 Rpm
Torque
400 Nm
Taper
ISO50
FEEDS
Rapid X
30 m/min1.181,10 ipm
Rapid Y
30 m/min1.181,10 ipm
Rapid Z
30 m/min1.181,10 ipm
X
15 m/min590,55 ipm
Y
15 m/min590,55 ipm
Z
15 m/min590,55 ipm

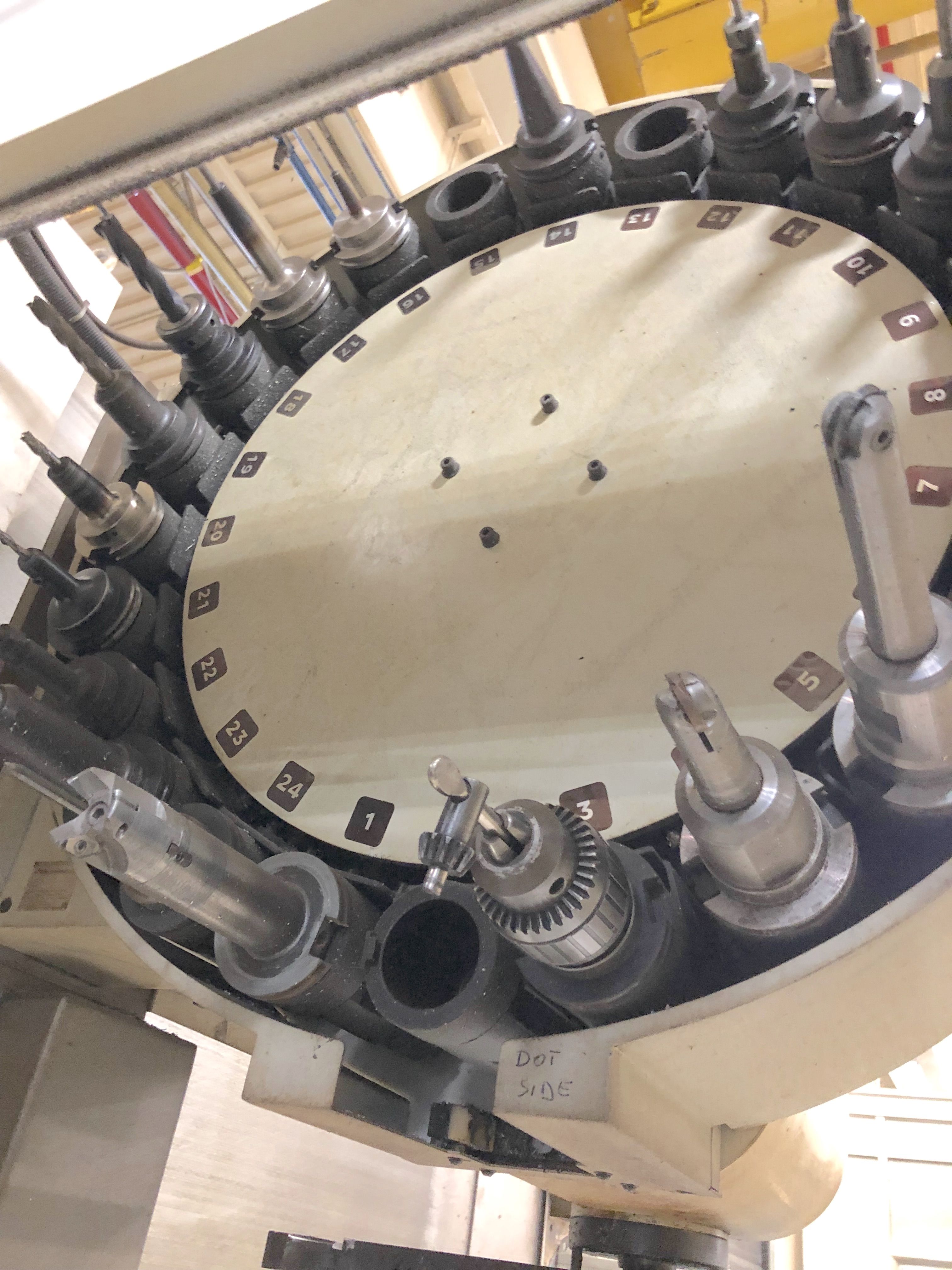

ATC
Positions
24
Tool taper
ISO50
Max tool diameter
110 mm4,33 in
Max diam with free adiacent space
200 mm7,87 in
Max tool weight
35 Kg
Max tool lenght
400 mm15,75 in
FIXING TABLE
Floorspace (LxWxH)
3500x1000 mm137,80x39,37 in
Capacity
5500 Kg/mq
T slots number
6x22mm

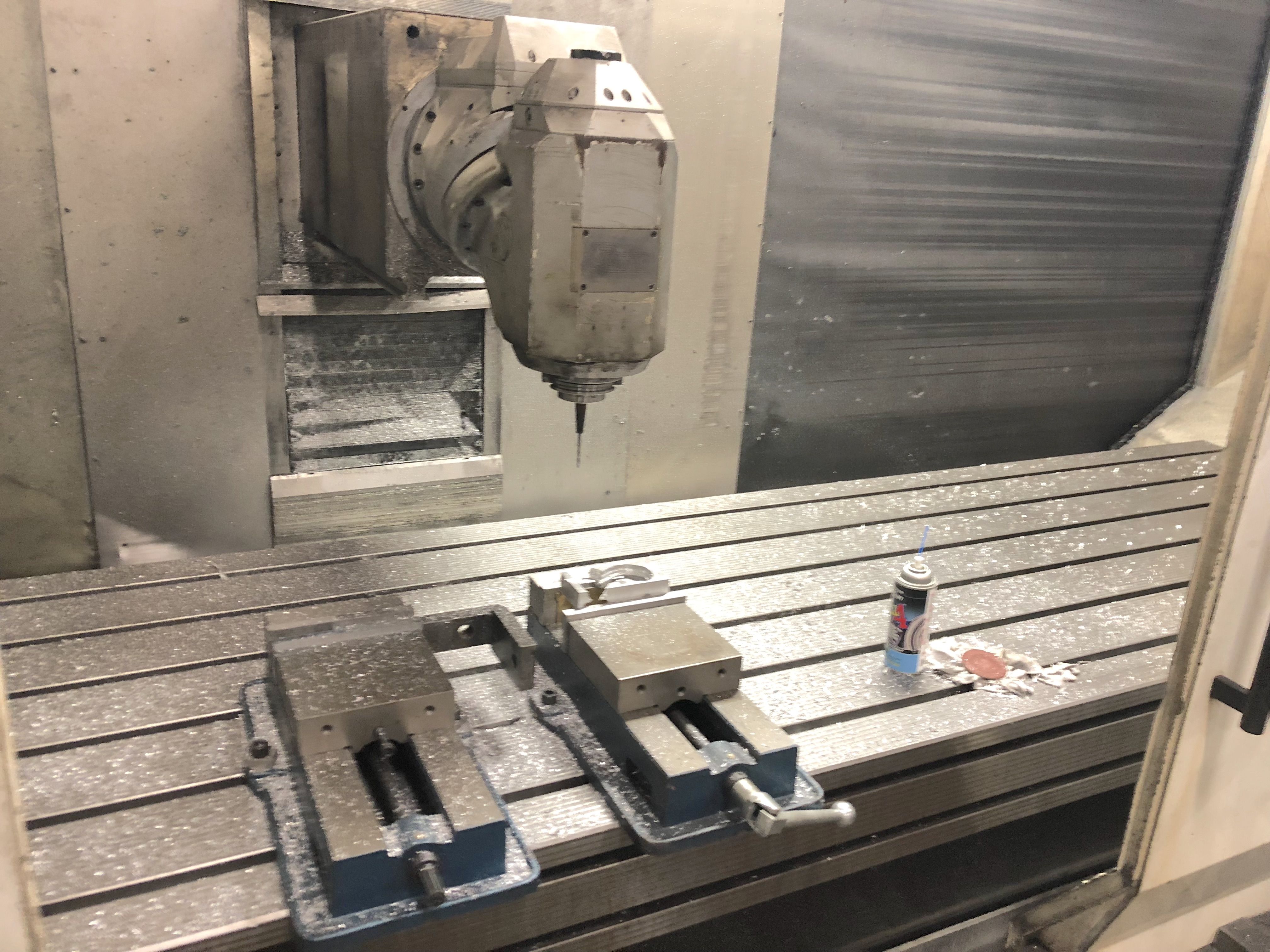

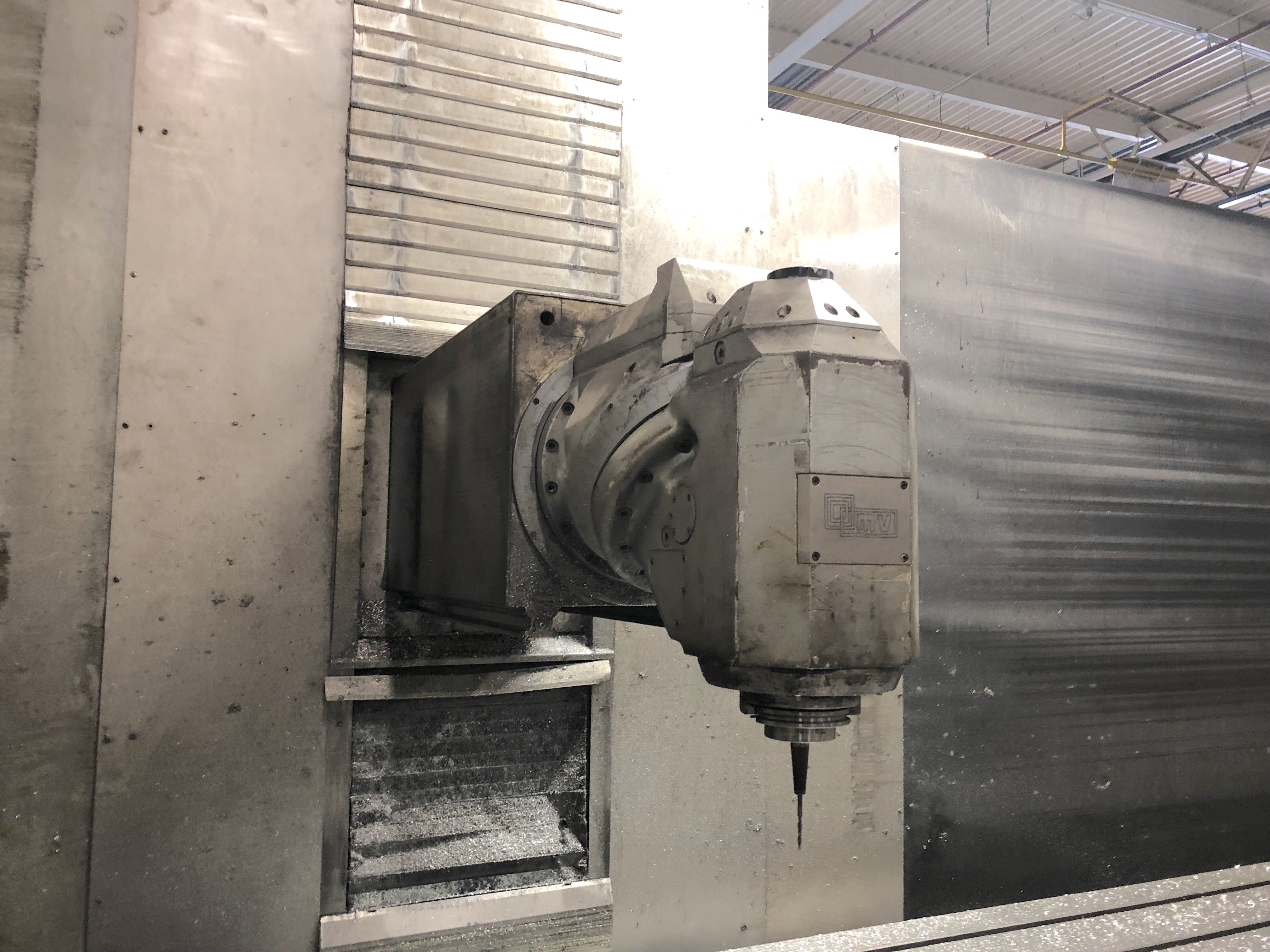

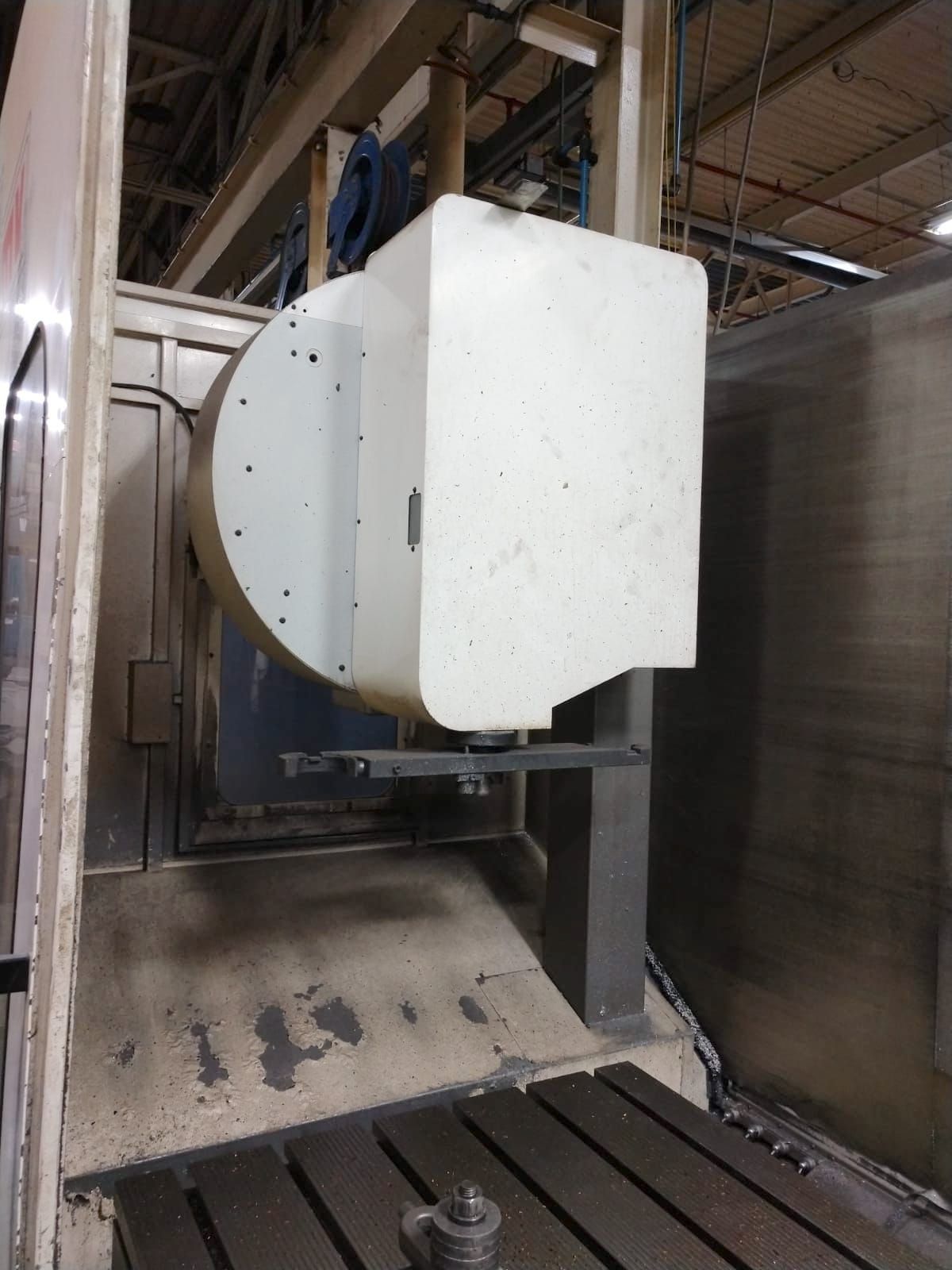

HEAD 1
Max speed
6000 Rpm
Max torque
400 Nm
Max power
30 Kw
Spindle taper
ISO50
A axis
360.000x0,001 °
C axis
360.000x0,001 °
Type
TUC millesimale a posizionamento continuo
EXTRA
Housing
perimetrale
Floor space
5117x4958x3355 mm201,46x195,20x132,09 in
Machine total weight
≈25.000 Kg
Total power supply
≈50kVA Kw
CE Certification
Yes
Electrical drawings
No
Maintenance & Use books
Yes
Chip conveyor
si
