Category
Milling machine
Type
mobile column
Made
Model
ML90 /6000
Capacity
6000x2000x1200 mm236,22x78,74x47,24 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
6000 mm236,22 in
Vertical (Y)
2000 mm78,74 in
Cross RAM (Z)
1200 mm47,24 in
CNC
CNC
SELCA S4045
SPINDLE
Rotating speed
6000 Rpm
Taper
ISO50
Spindle power
30 Kw
Gearbox
2 gamme

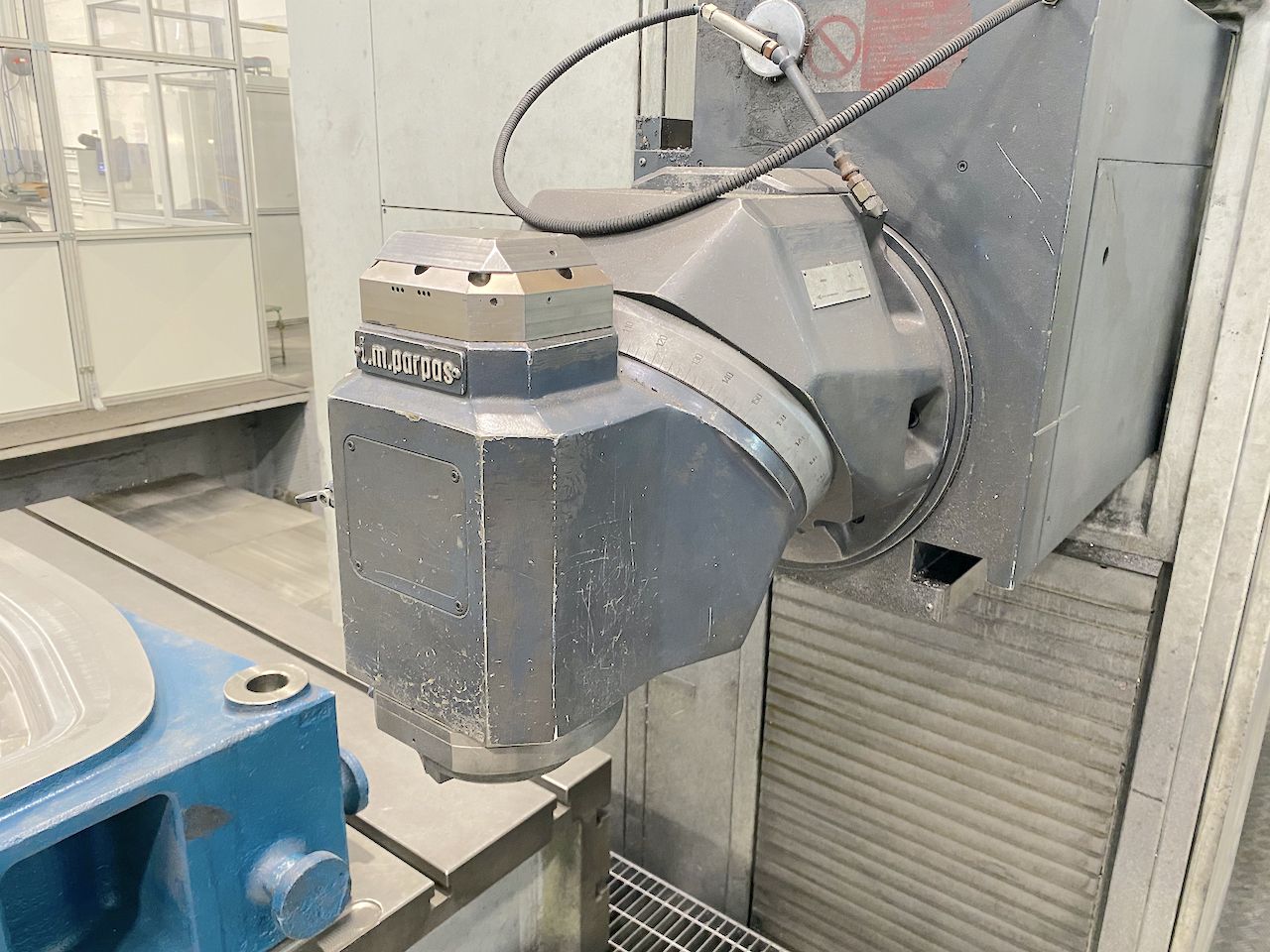

HEAD 1
Type
Birotativa automatica
Spindle taper
ISO50
A axis
144x2,5 °
C axis
144x2,5 °
Max speed
6000 Rpm
Max power
30 Kw
FEEDS
Rapid X
10 m/min393,70 ipm
Rapid Y
10 m/min393,70 ipm
Rapid Z
10 m/min393,70 ipm
TABLE 1
Surface
7000x2000 mm275,59x78,74 in
EXTRA
Total power supply
90KVA Kw
Floor space
10995x5800x4345 mm432,87x228,35x171,06 in

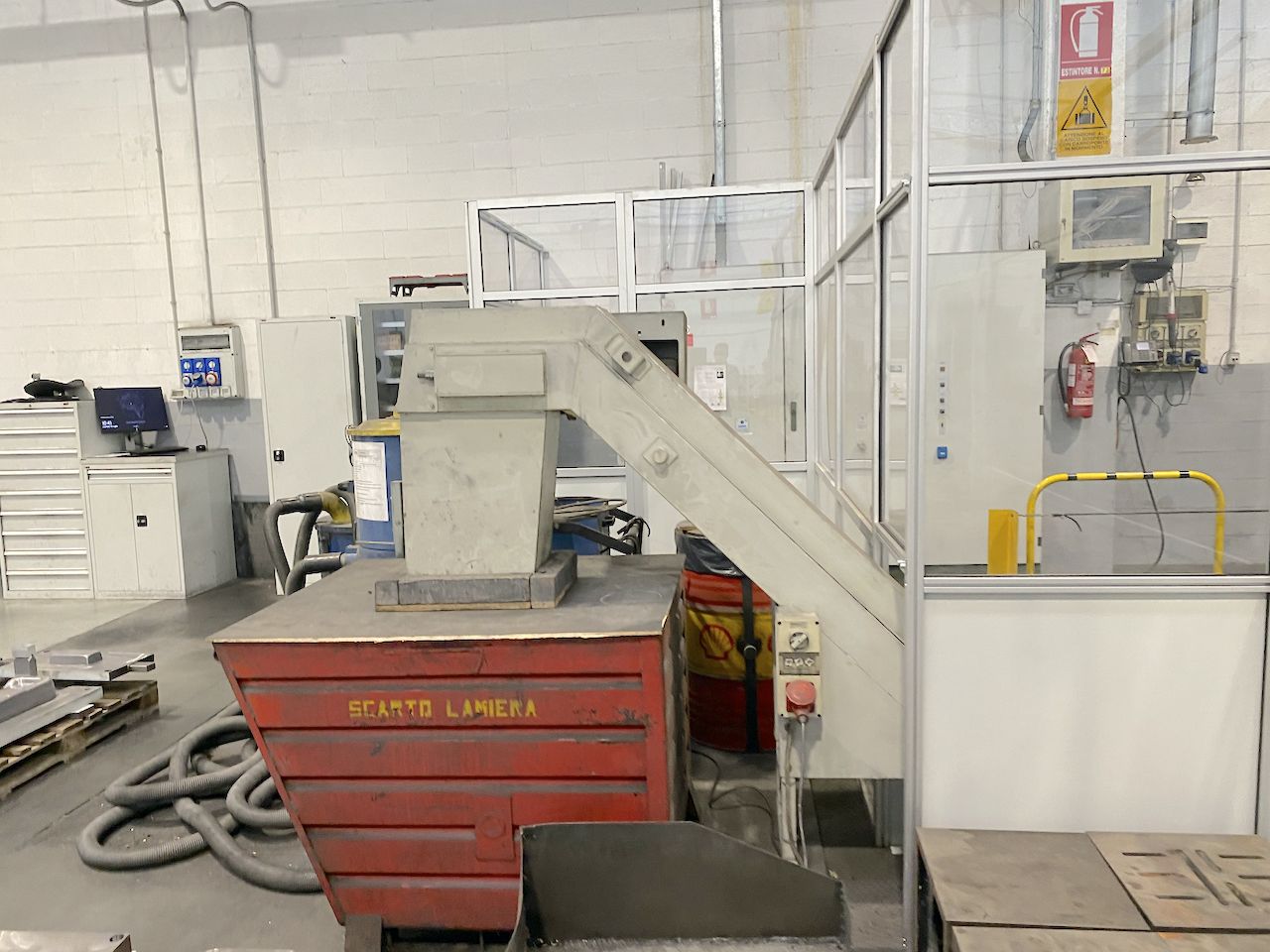

Chip conveyor
Si

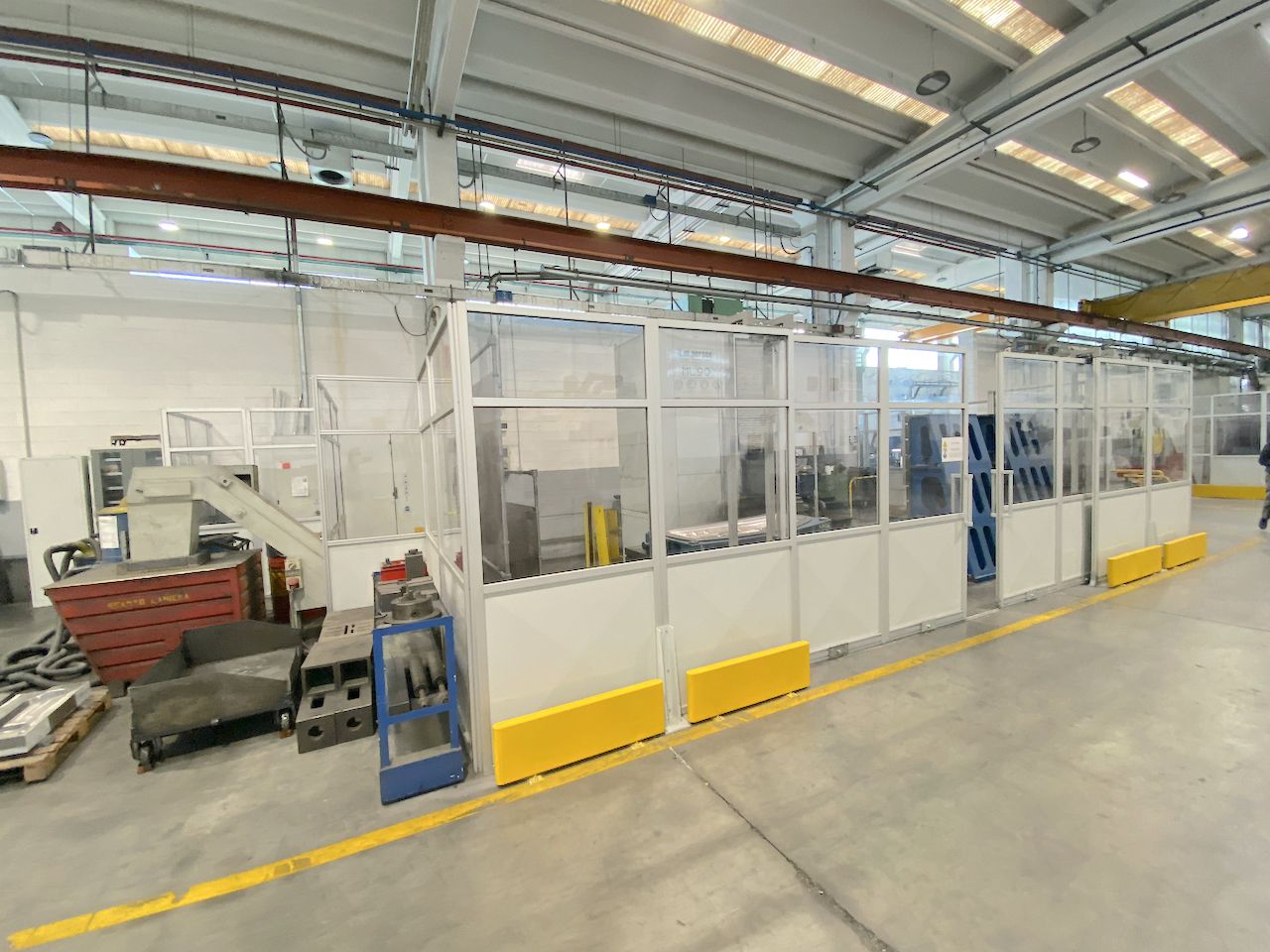

Housing
Perimetrale
