Category
Milling machine
Type
mobile column
Made

FPT

Model
SIRIO M40
Capacity
4000x2000x1200 mm157,48x78,74x47,24 in

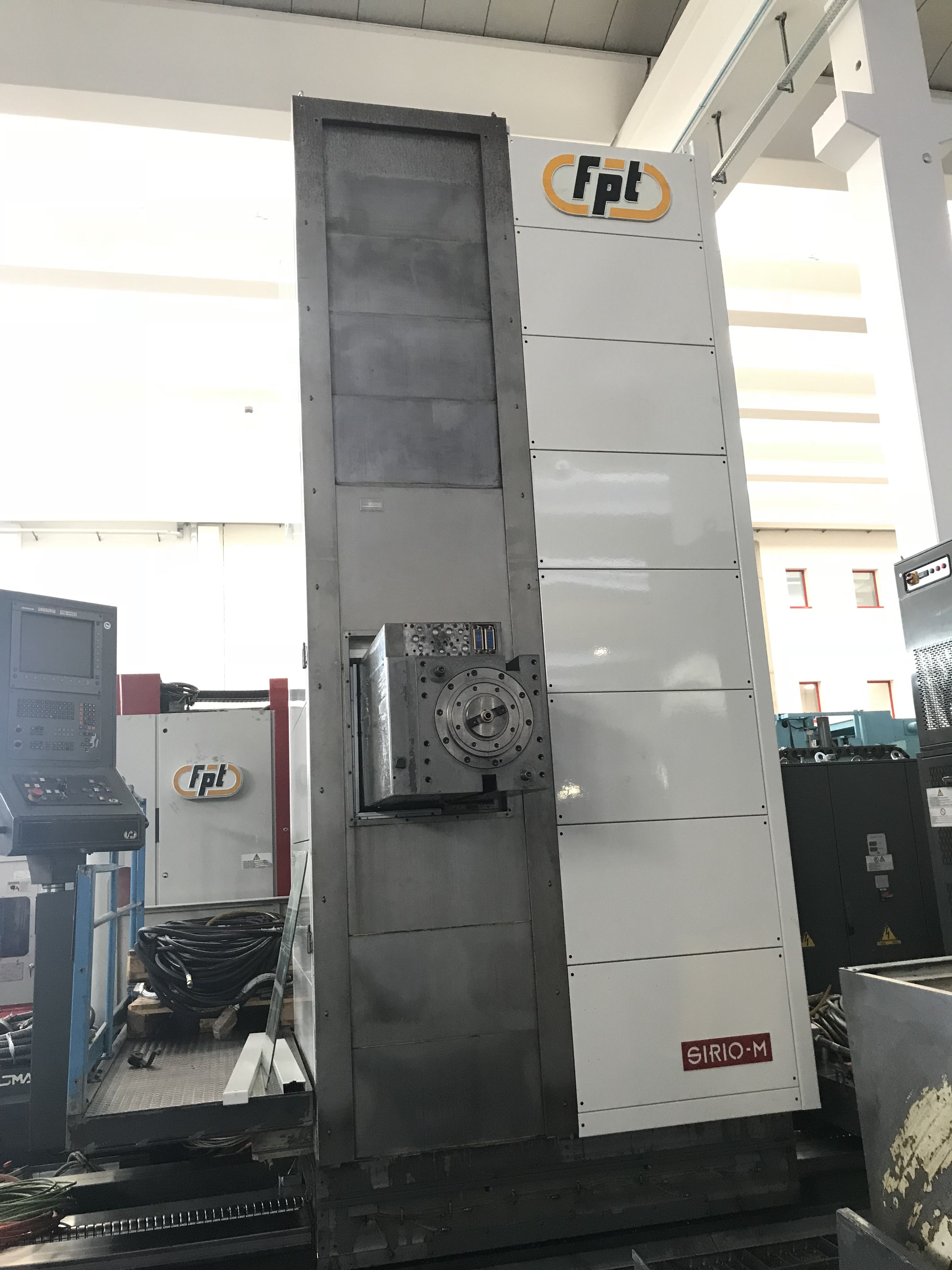

FPT SIRIO M40
All the machines are available subject to prior sale
Gallery - 2 photos
Gallery - 2 photos
View video
Data sheet

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
4000 mm157,48 in
Axes support
hydrostatic
Cross RAM (Z)
1200 mm47,24 in
Vertical (Y)
2000 mm78,74 in
FEEDS
Rapid Z
15 m/min590,55 ipm
Rapid Y
15 m/min590,55 ipm
Rapid X
15 m/min590,55 ipm
Z
6 m/min236,22 ipm
Y
6 m/min236,22 ipm
X
6 m/min236,22 ipm
SPINDLE
Spindle power
(S1/S2) 28/35 Kw
Taper
ISO50
Rotating speed
250-4000 Rpm
Torque
(S1/S6) 1070/1340 Nm
Gearbox
2 gamme meccaniche
HEAD 1
Coolant
internal / external
Notes
Testa birotativa automatica / universal birotative head
Max speed
4000 Rpm
C axis
360.000x0,001 °
A axis
360.000x0,001 °
Spindle taper
ISO50
Type
FPT TUPC
Max torque
1340 Nm
Max power
28/35 Kw
HEAD 2
Available upon request
No
Max torque
1340 Nm
Max speed
4000 Rpm
Max power
28/35 Kw
CNC
Drives
Siemens
CNC
Heidenhain iTNC530
PICK UP STATION FOR HEADS
Positions
disponibile su richiesta
EXTRA
Total power supply
60 Kw
Chiller
si
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes
Housing
perimetrale
Chip conveyor
su
Availability
Ottobre 2017
Available under power
yes
Floor space
11000x8060x4122 mm433,07x317,32x162,28 in
Machine total weight
30200 Kg
Workpiece touch probe
Renishaw MP3 radio
High Pressure
1200
Tooling included
testa automatica universale 0,001°x0,001° - Prolunga Mandrino 400mm
Filtration unit
1200L
