Category
Turning Machine
Type
CNC
Made
Model
HD3/140 L
Capacity
ø2000x8000 mmø78,74x314,96 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Max diameter on bed
2000 mm78,74 in
Max diameter on cross-slide
1550 mm61,02 in
Max working lenght
8000 mm314,96 in
Bed width
1400 mm55,12 in
Guide-ways number
3
Max weight between centres
25.000 Kg
Max weight on steadies
Lunetta chiusa 10.000Kg + Lunetta a C 8.000 Kg

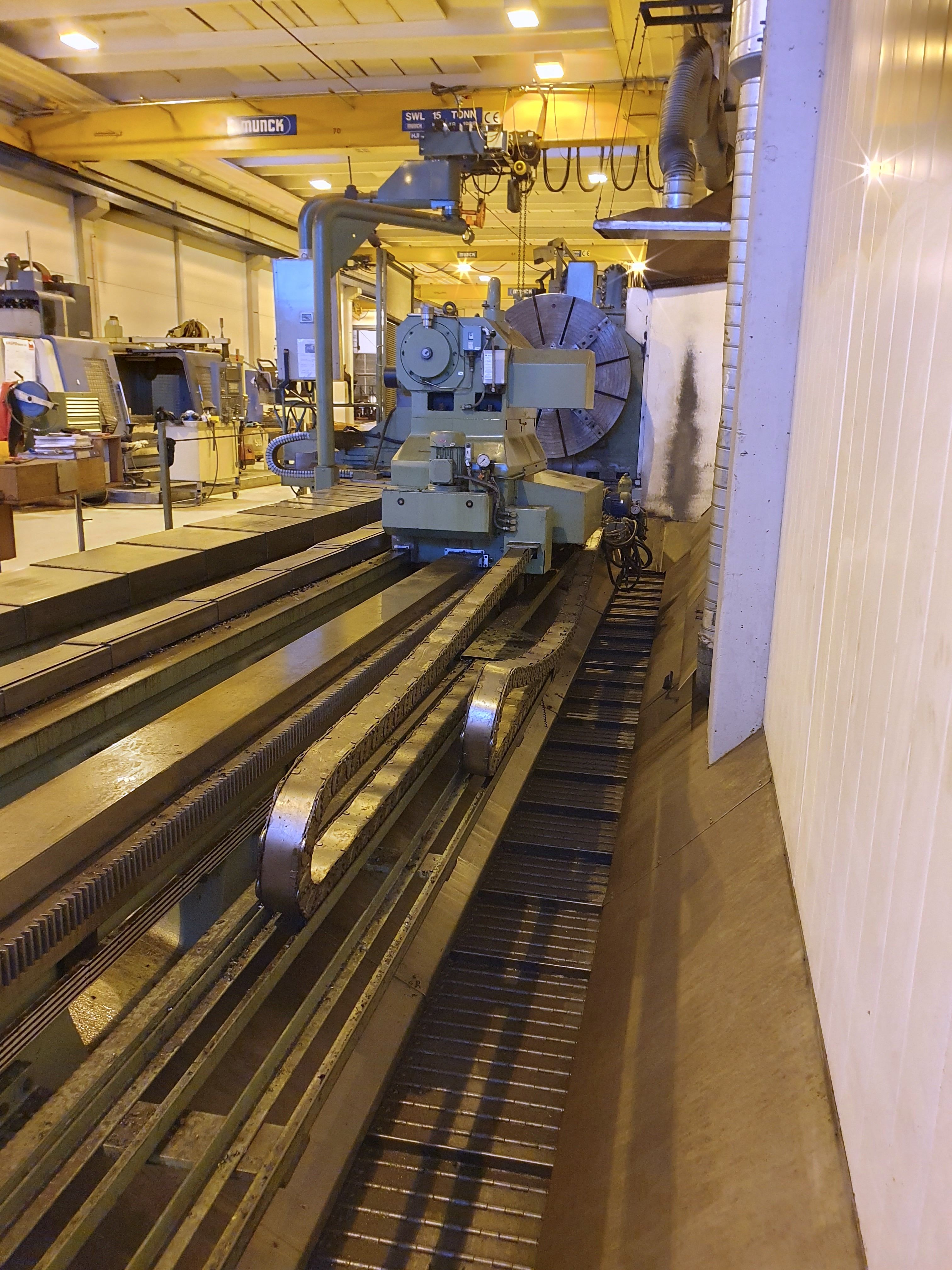

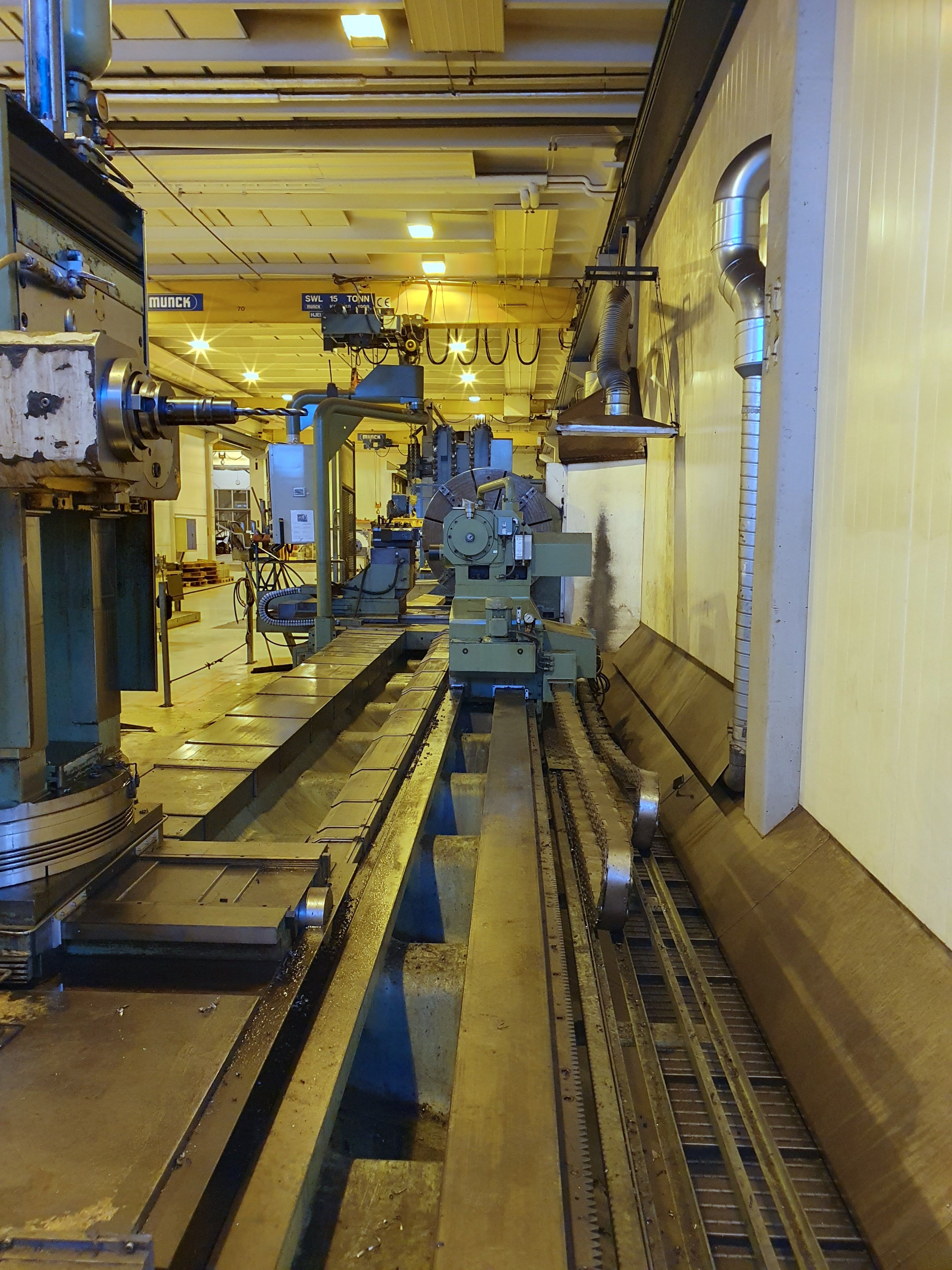

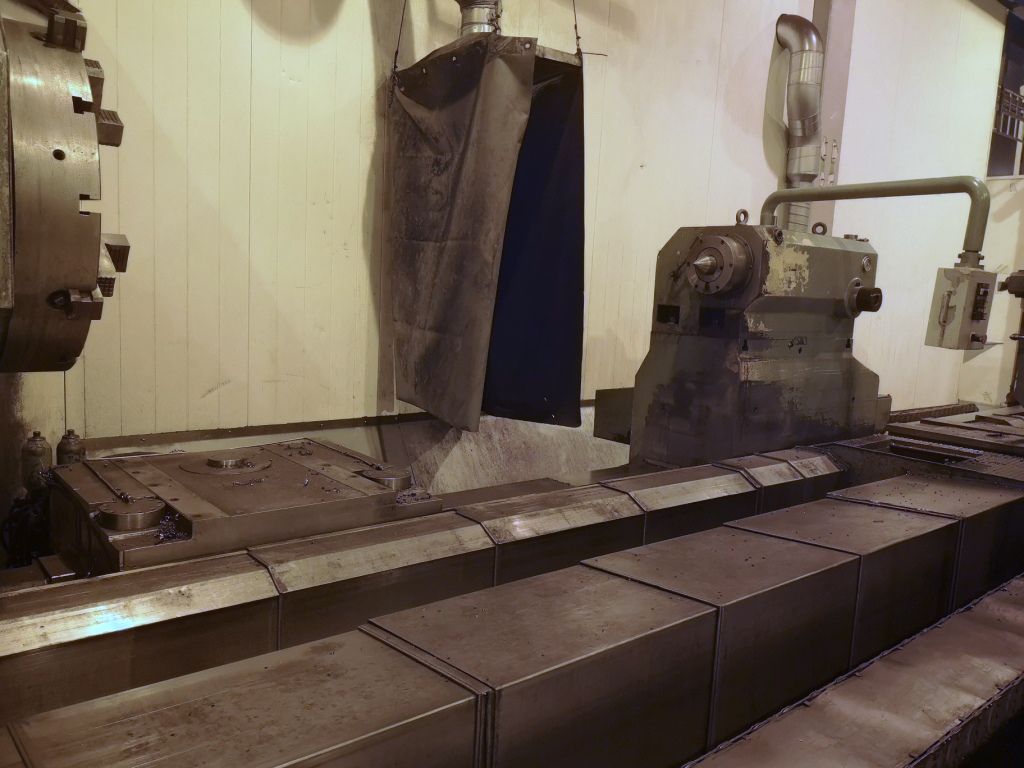

FLAT BED
Guide-ways number
3
Bed width
1400 mm55,12 in

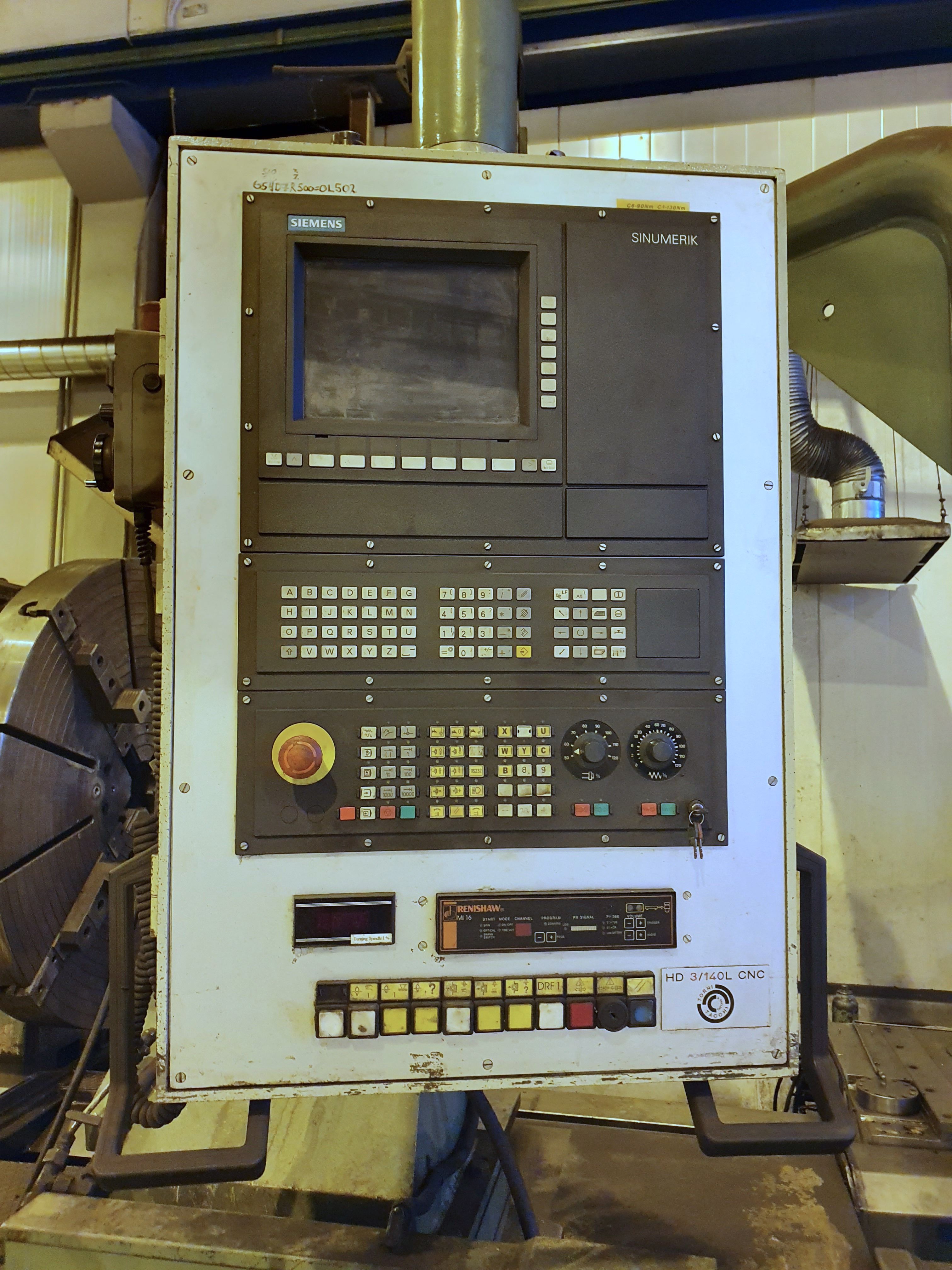

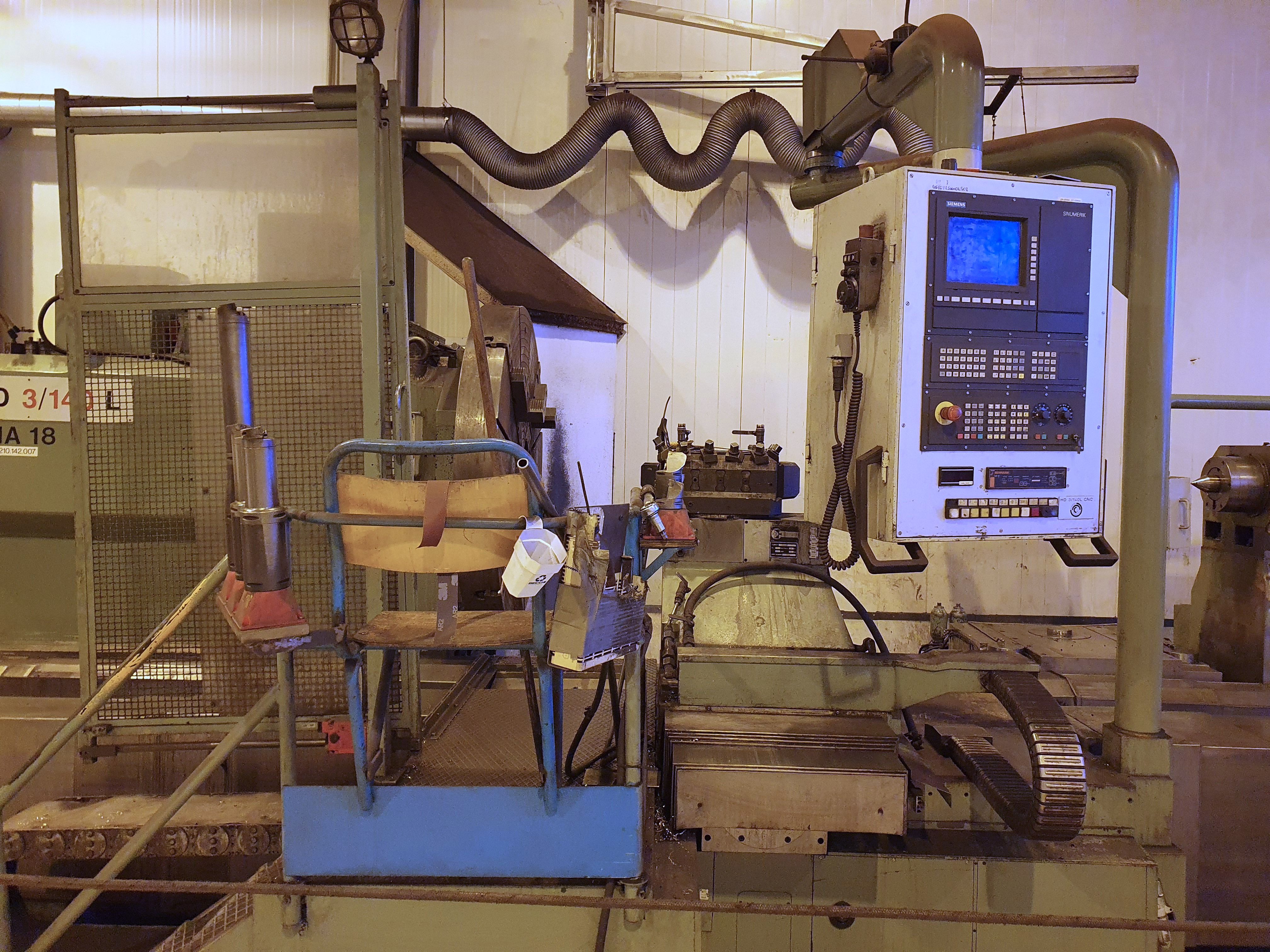

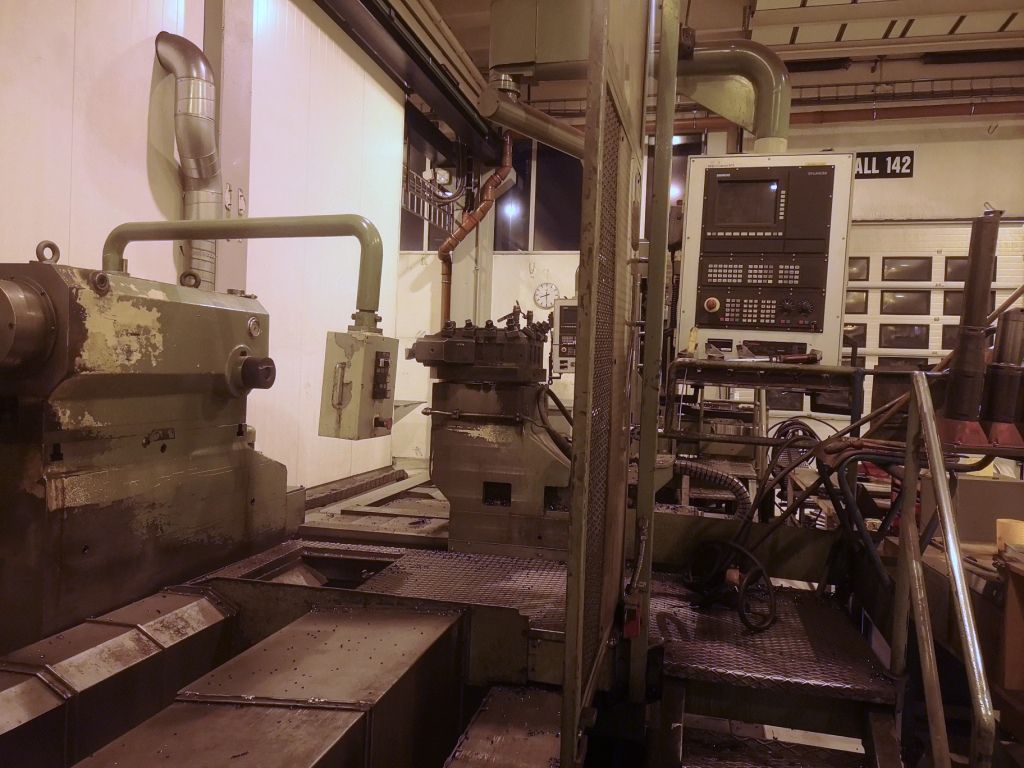

CNC
CNC
doppio controllo Siemens 840C

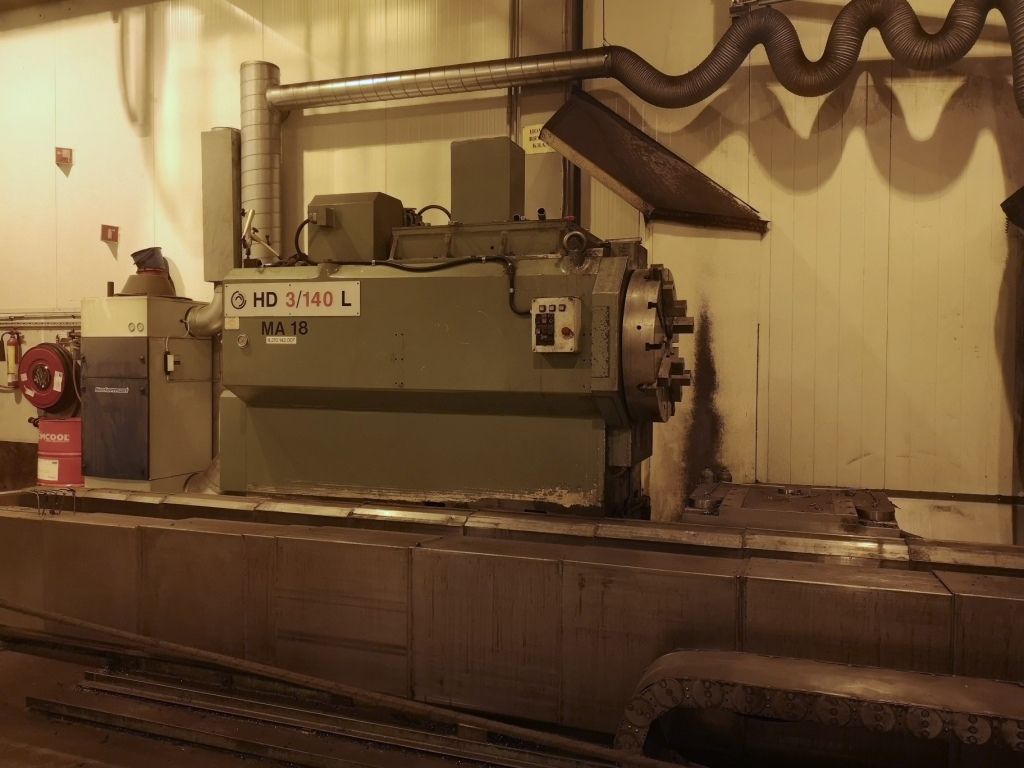

MAIN SPINDLE
Max rotation speed
360 rpm
Spindle nose
20” DIN55026
Spindle hole
150 mm5,91 in

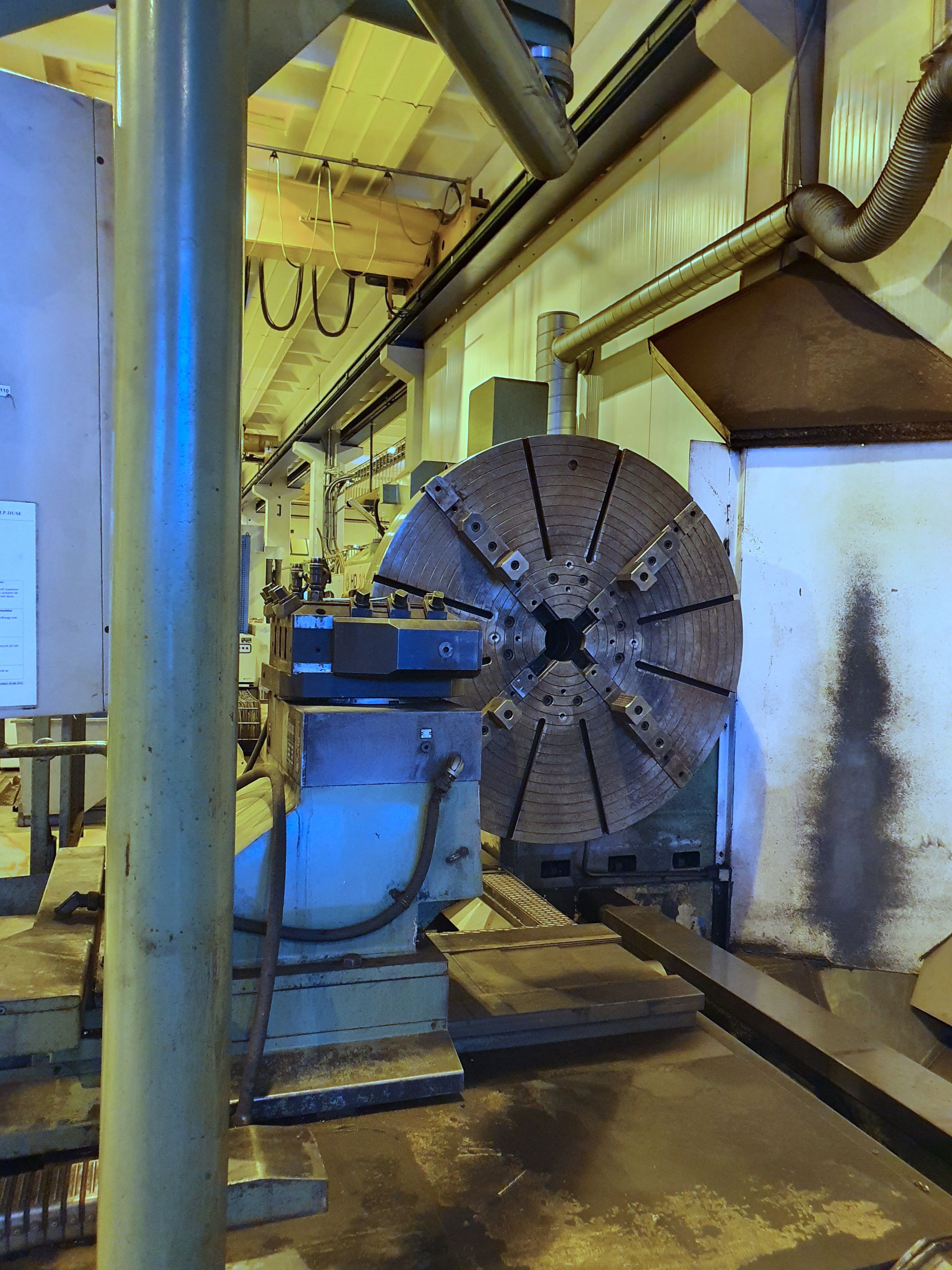

Chuck diameter
4 griffe ø1500 mm0,16 griffe ø59,06 in
Max power
95 Kw
Max torque
45000 Nm
Accuracy (C axis)
0,001 °
Gearbox
3
Notes
Asse C continuo, 0,001°, indipendente

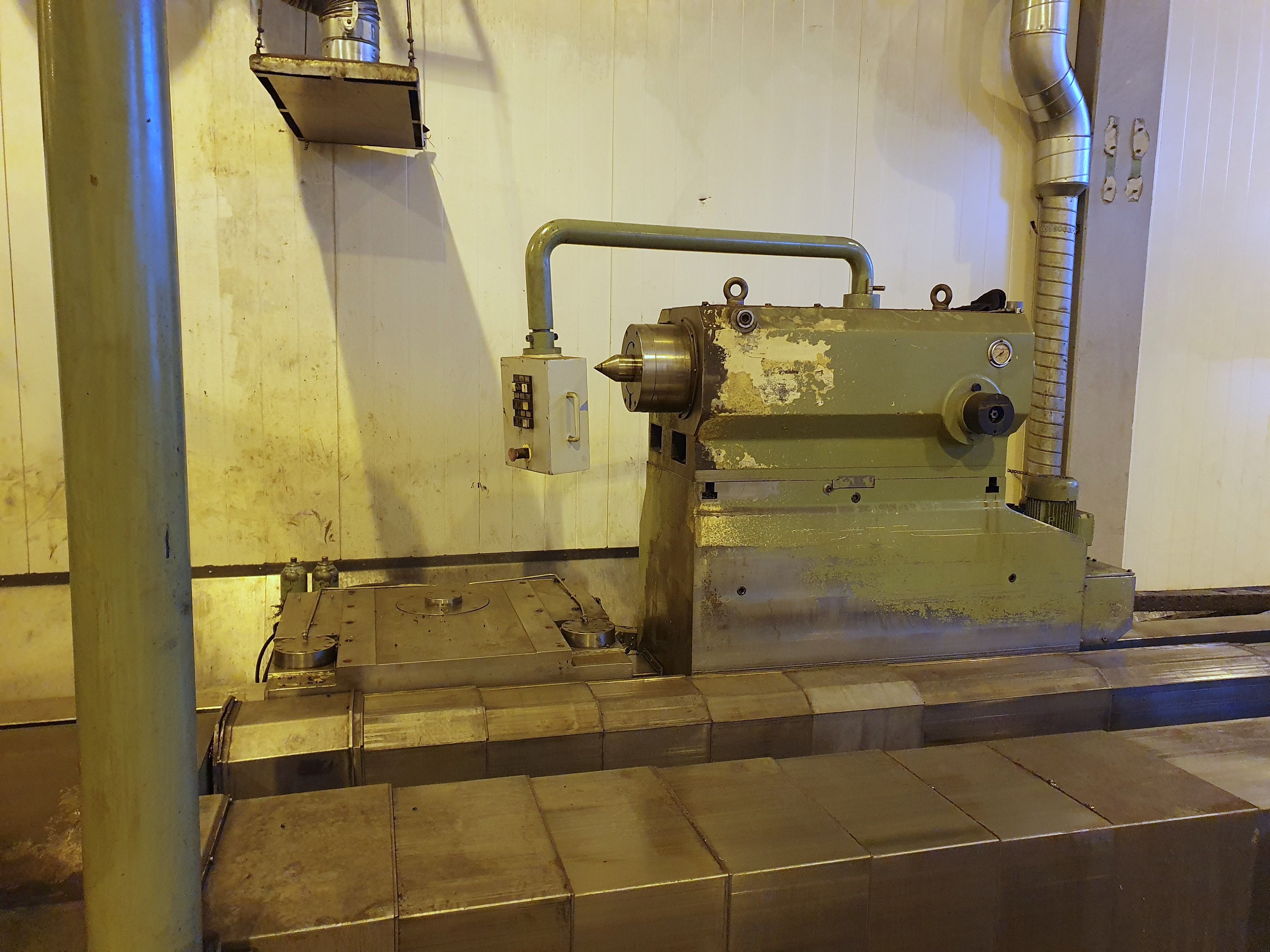

TAILSTOCK
Quill diameter
260 mm10,24 in
Quill stroke
200 mm7,87 in
Taper
Metric 80
Rapid feed B
2,5 m/min98,43 ipm

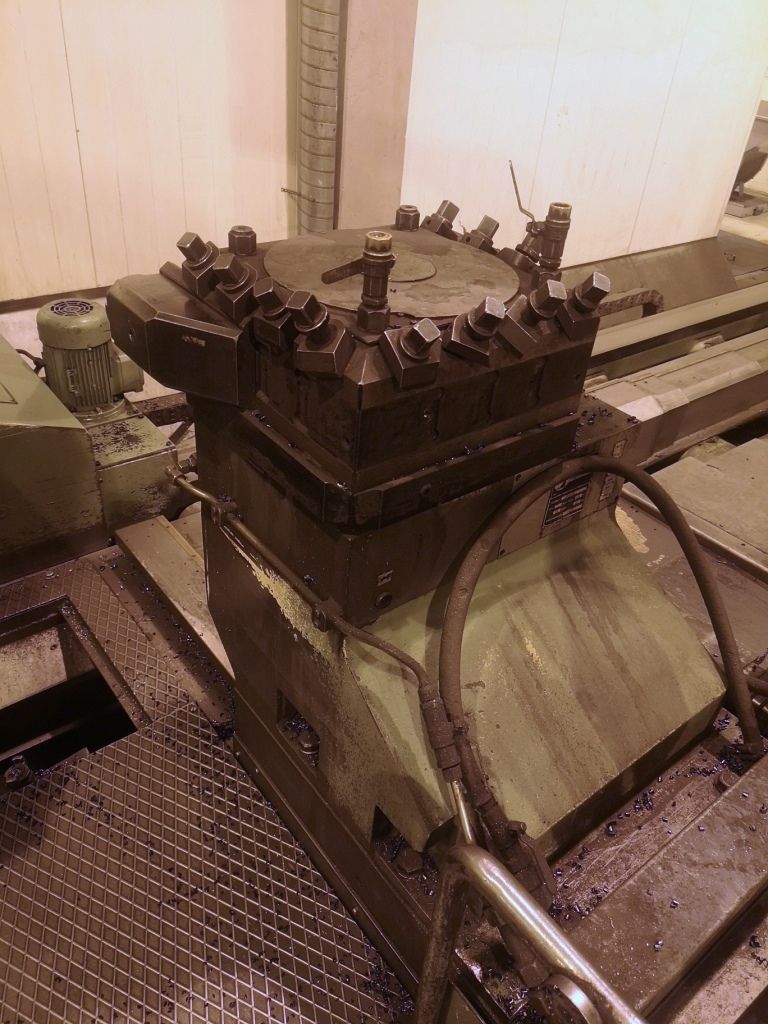

Positions number
4
Axis stroke X
900 mm35,43 in
Rapid feed X
6 m/min236,22 ipm
Axis stroke Z
8000 mm314,96 in
Rapid feed Z
6 m/min236,22 ipm

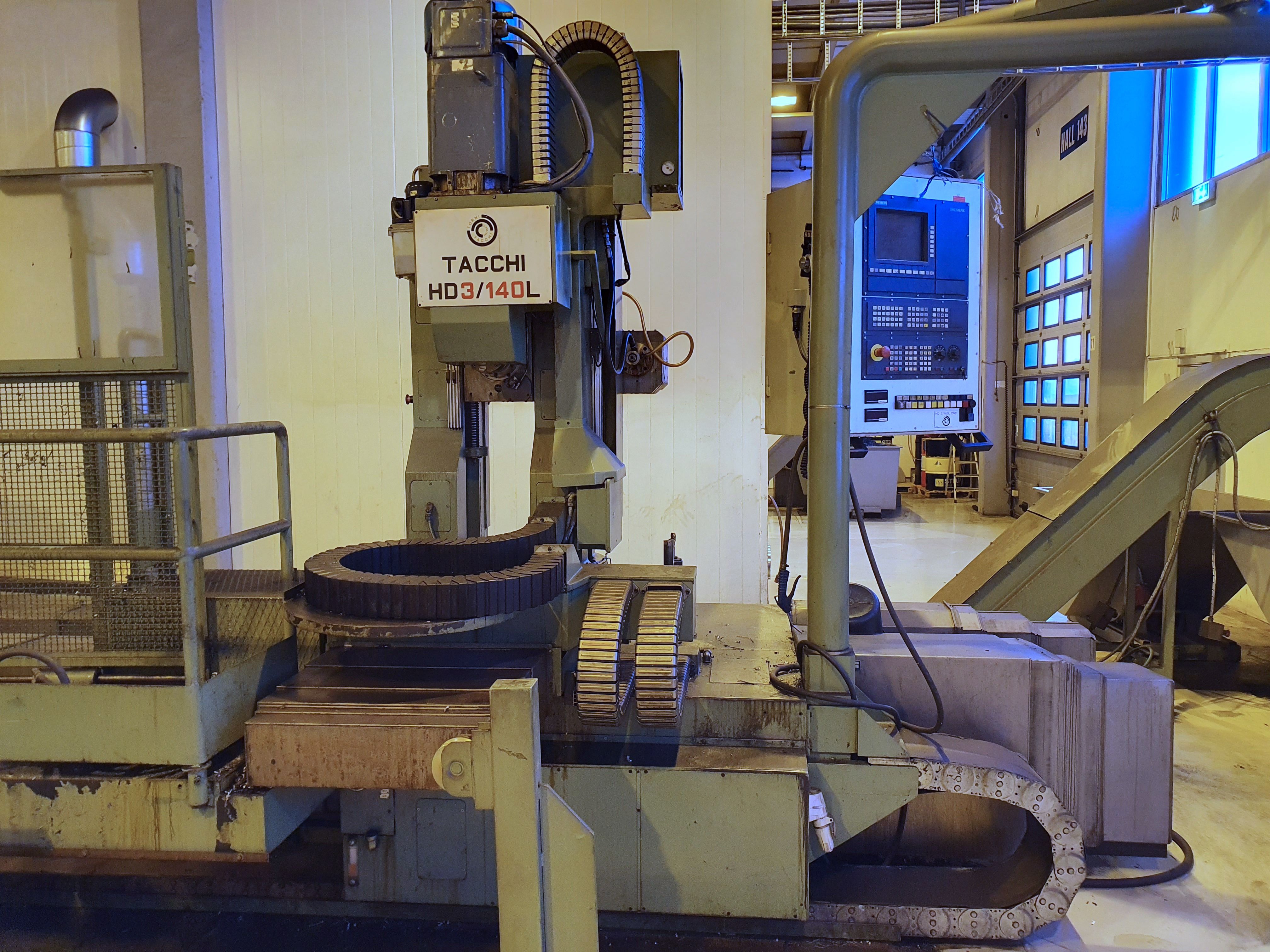

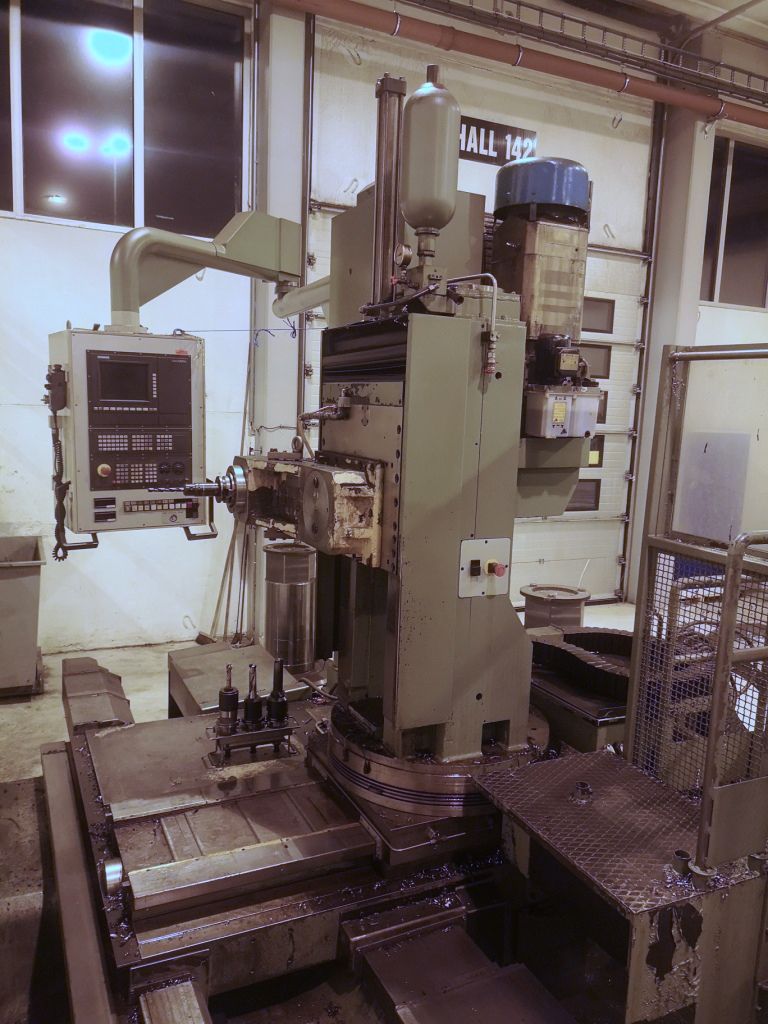

TURRET 2
Driven tools speed
1800 rpm
Driven tools power
22 Kw
Driven tools torque
2800 Nm
Axis stroke Y2
500 mm19,69 in
Positions number
asse B 360.000x0,001°
Axis stroke X2
900 mm35,43 in
Rapid feed X2
6 m/min236,22 ipm
Rapid feed Y2
6 m/min236,22 ipm
Axis stroke Z2
8000 mm314,96 in
Rapid feed Z2
6 m/min236,22 ipm

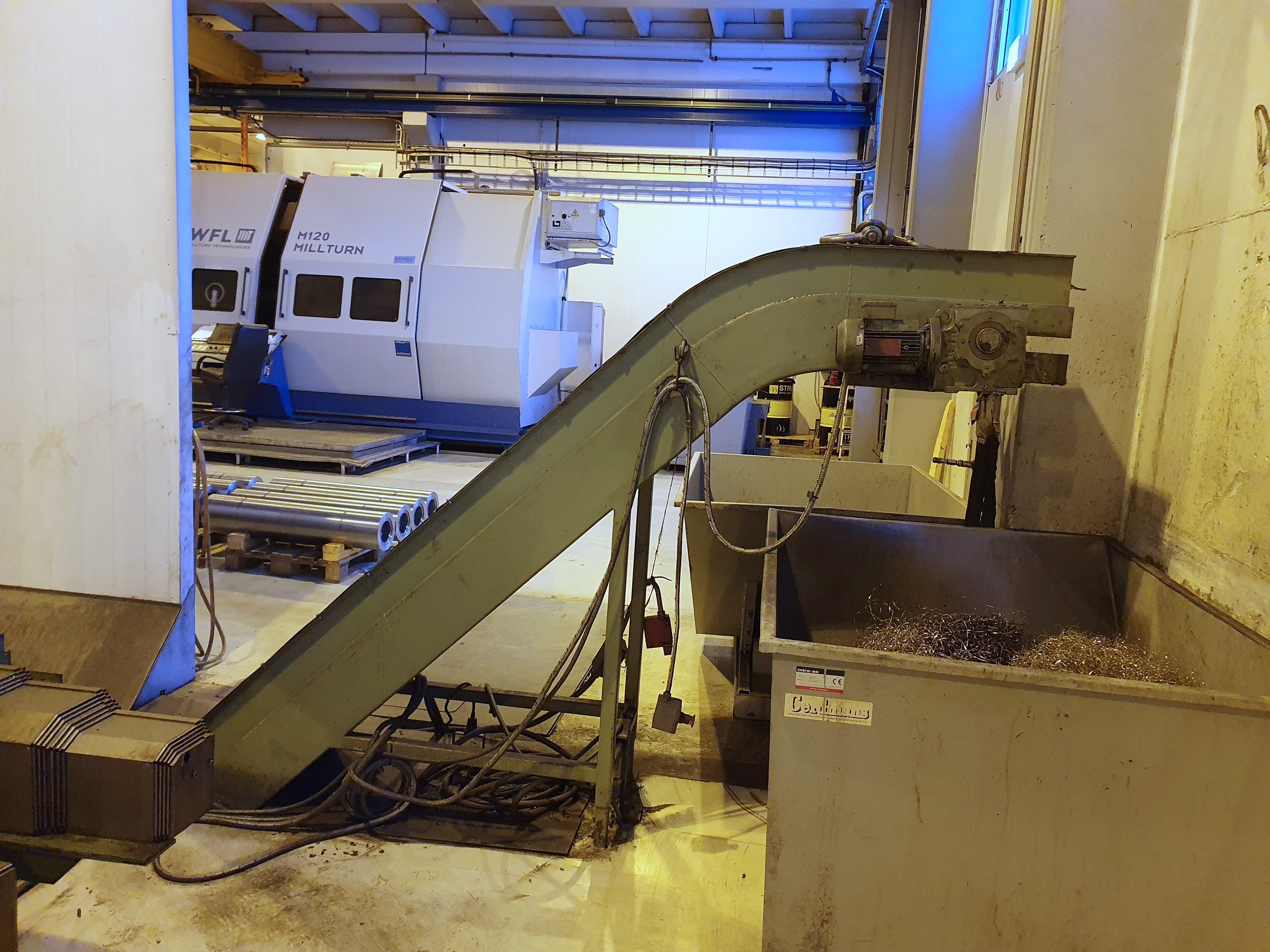

EXTRA
Hydraulic steady
150-500mm con carro indipendente

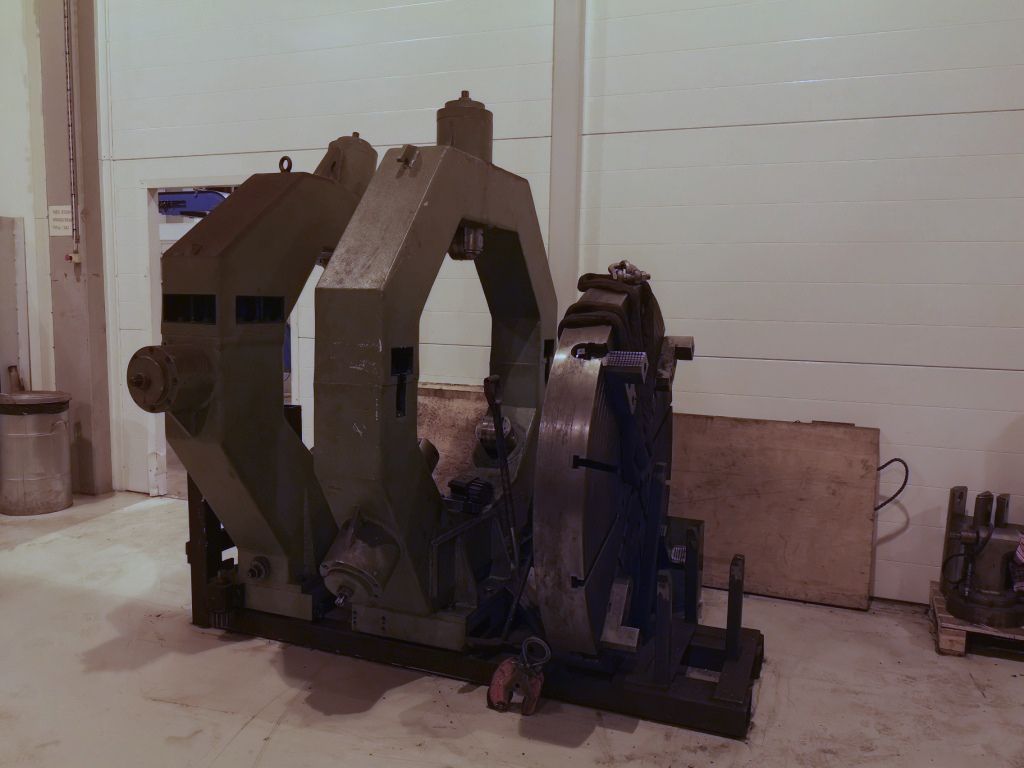

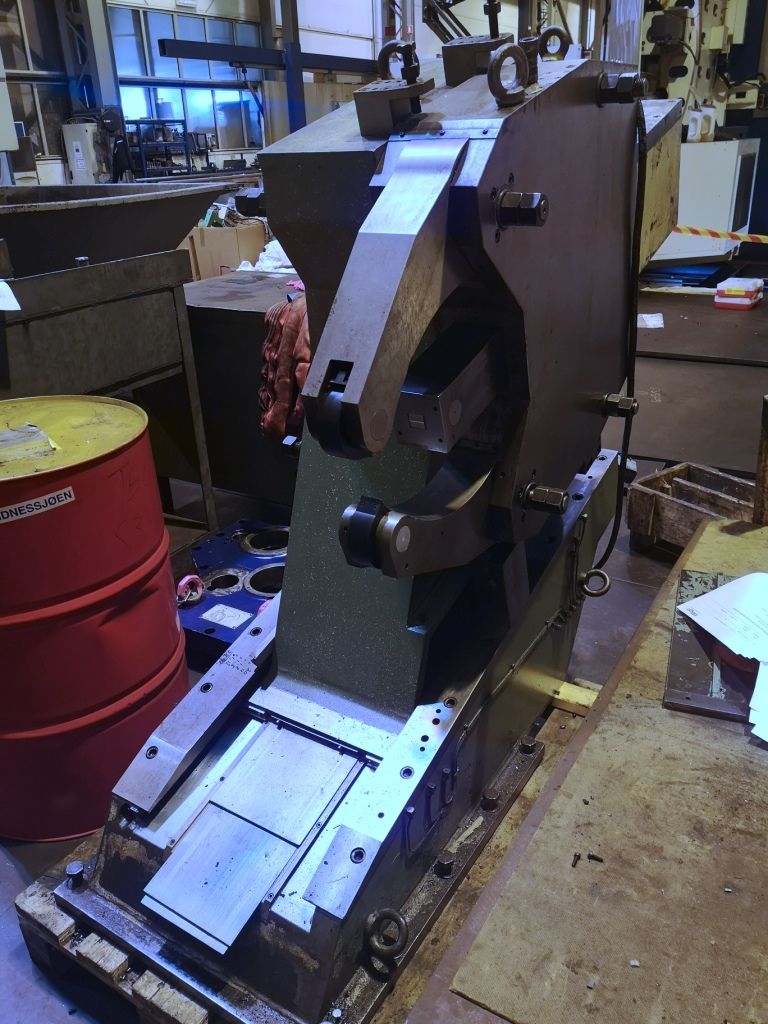

Open steadies
lunetta a C ø500-900mm 8.000Kg

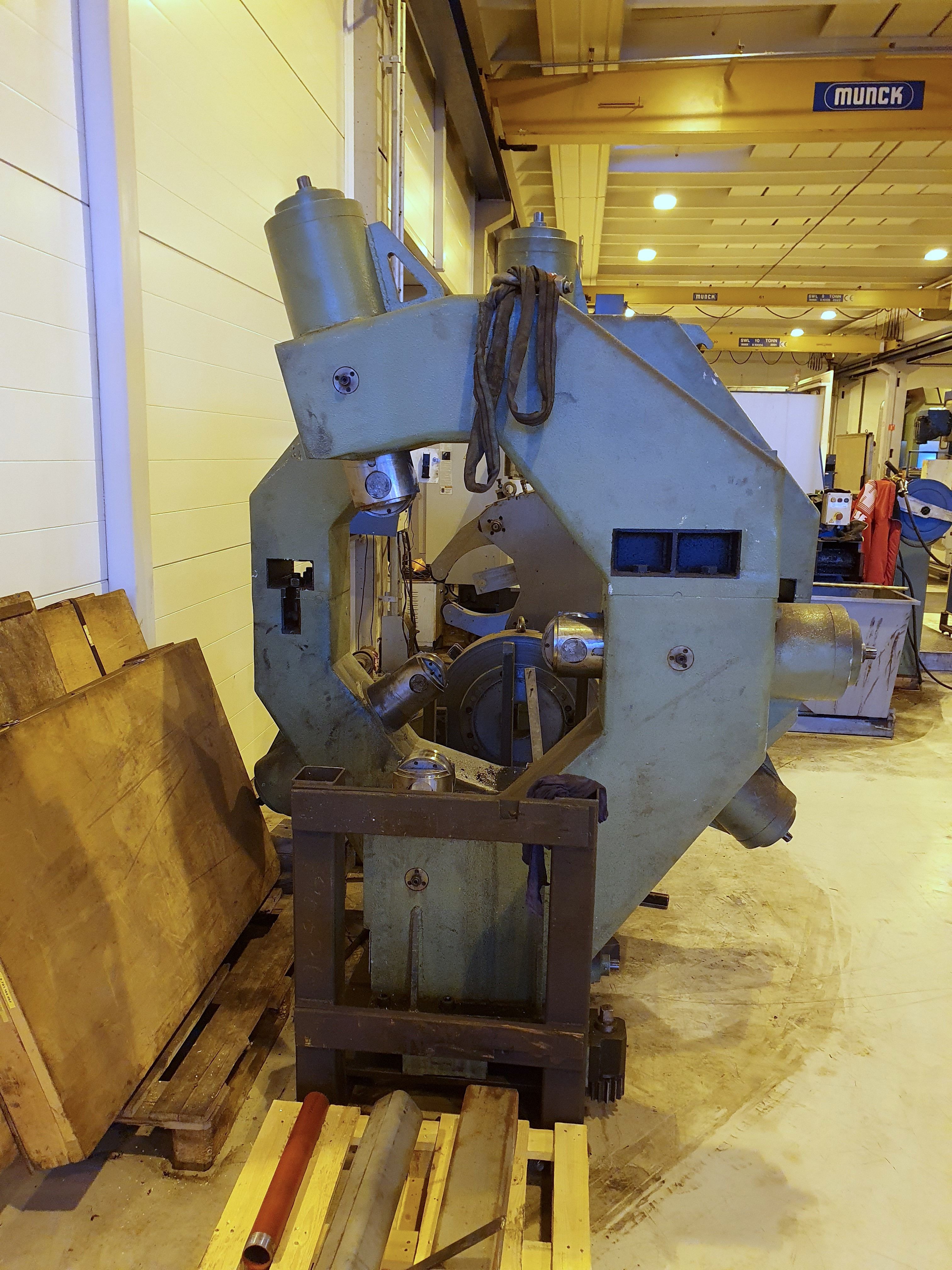

Closed steadies
lunetta chiusa ø800-1200mm 10.000Kg
Platform
4griffe ø1500mm
Coolant pump
1500litri, per carro Tornitura 3 Bar 100lt/min, per carro fresatura 15bar 100lt/min
Carriage
700mm
