Category
Turning Machine
Type
CNC
Made
Model
NZ1500T2Y
Capacity
ø320/52x260 mmø12,60/2,05x10,24 in
Technical specifications
Metric
Imperial

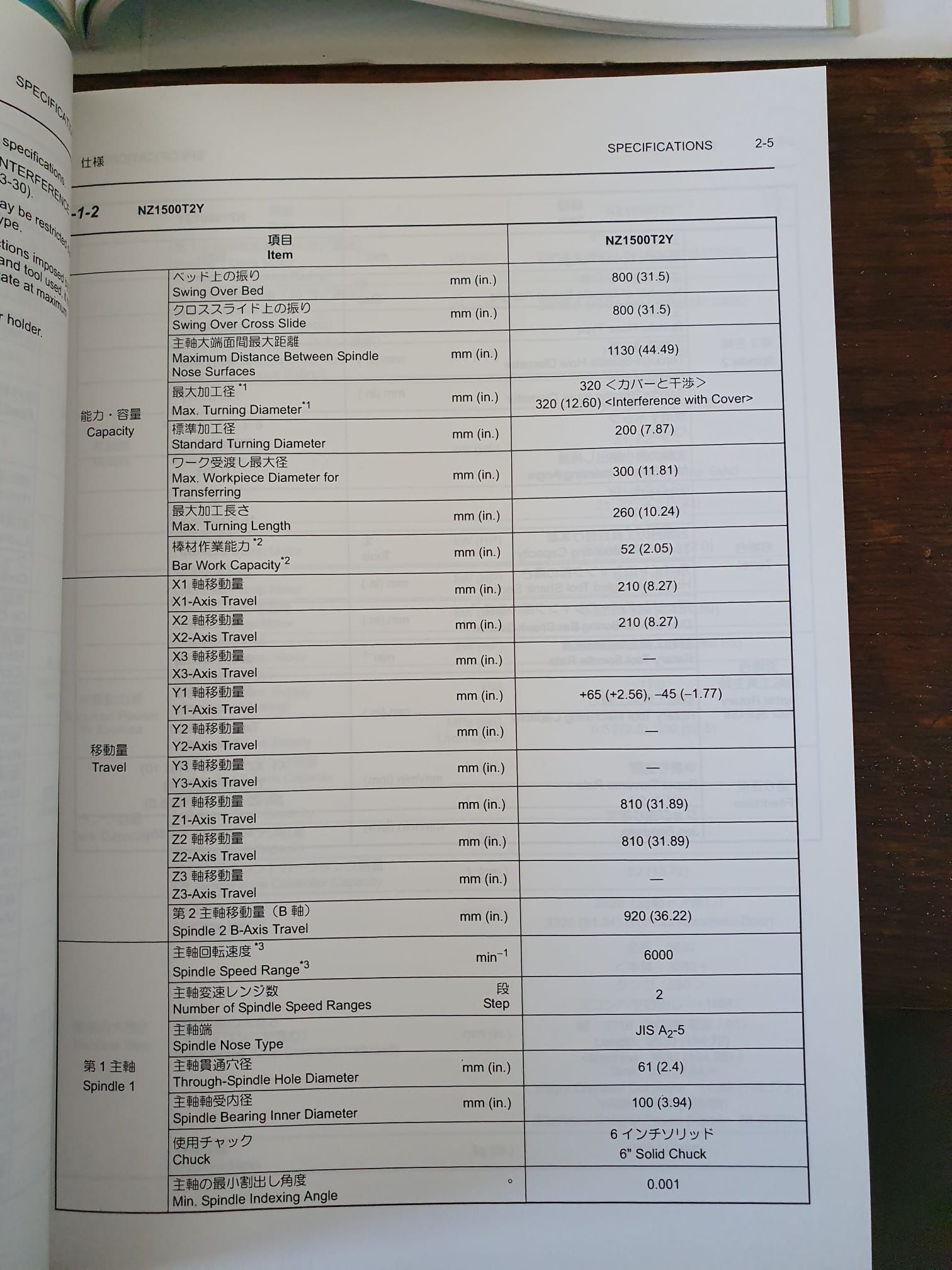

WORKING CAPACITY
Max bar working diameter
52 mm2,05 in
Max turning diameter
320 mm12,60 in
Notes
max swing 800mm - distanza mandrini 1130mm
MAIN SPINDLE
Max rotation speed
6000 rpm
Spindle nose
ASA5”
Spindle hole
61 mm2,40 in
Internal bearing diameter
100 mm3,94 in
Accuracy (C axis)
0,001 °
C axis speed
6000 Rpm
Max power
22 Kw

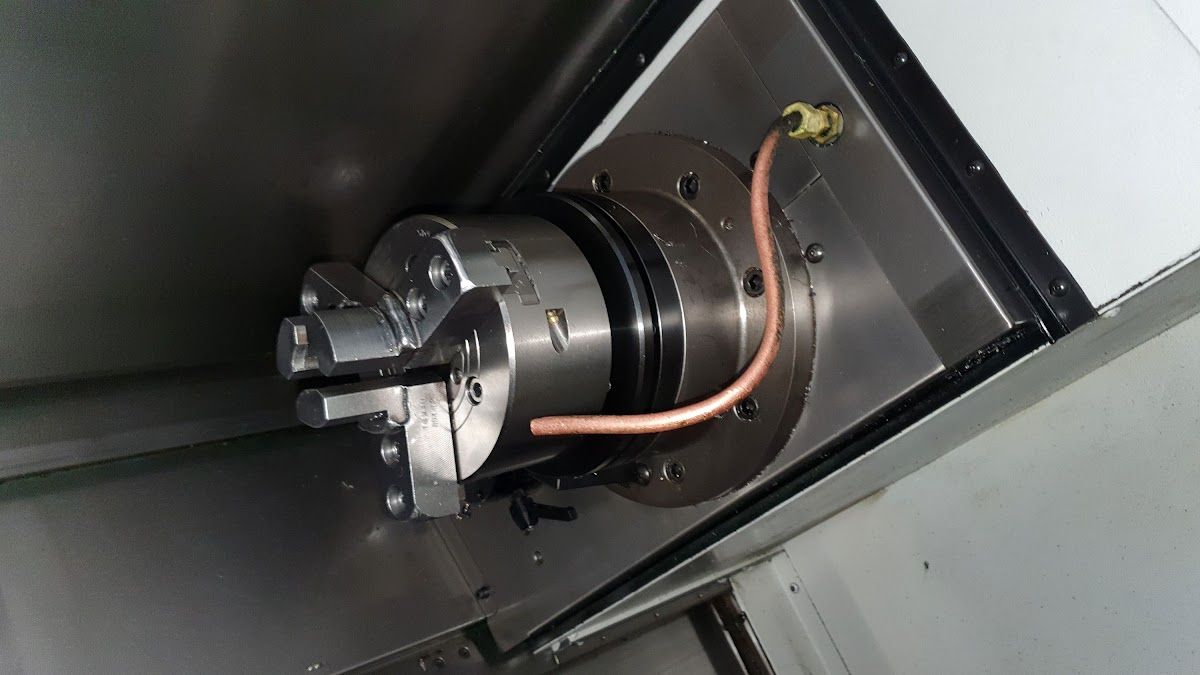

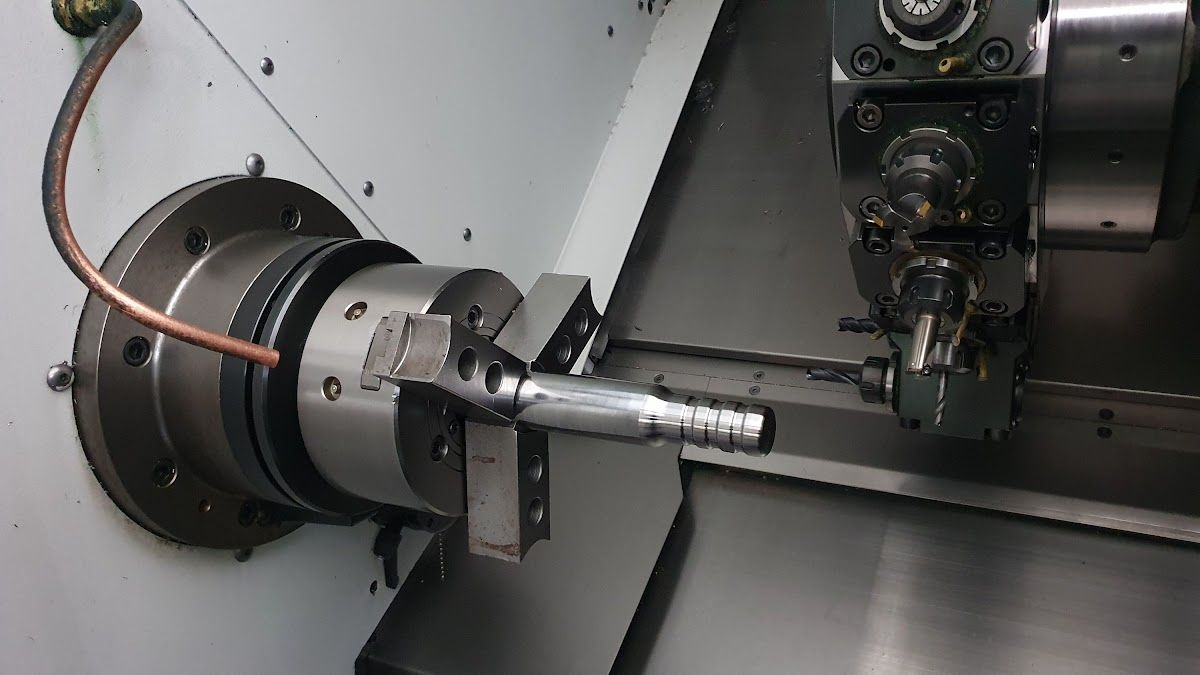

SUBSPINDLE
Max rotation speed
6000 rpm
Spindle nose
ASA5”
Spindle hole
61 mm2,40 in
Internal bearing diameter
100 mm3,94 in
Max power
22 Kw
Accuracy (C axis)
0,001 °
C axis speed
6000 Rpm
Automatic B axis positioning
920 mm36,22 in
Chuck diameter
152,4 mm6,00 in

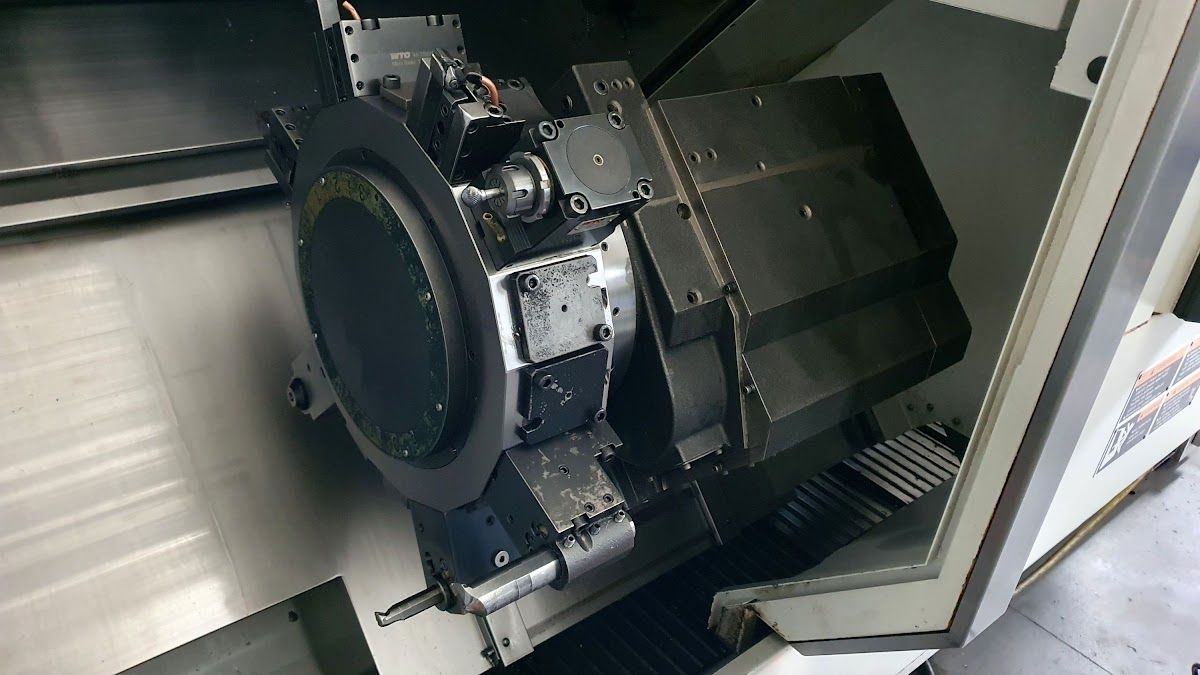

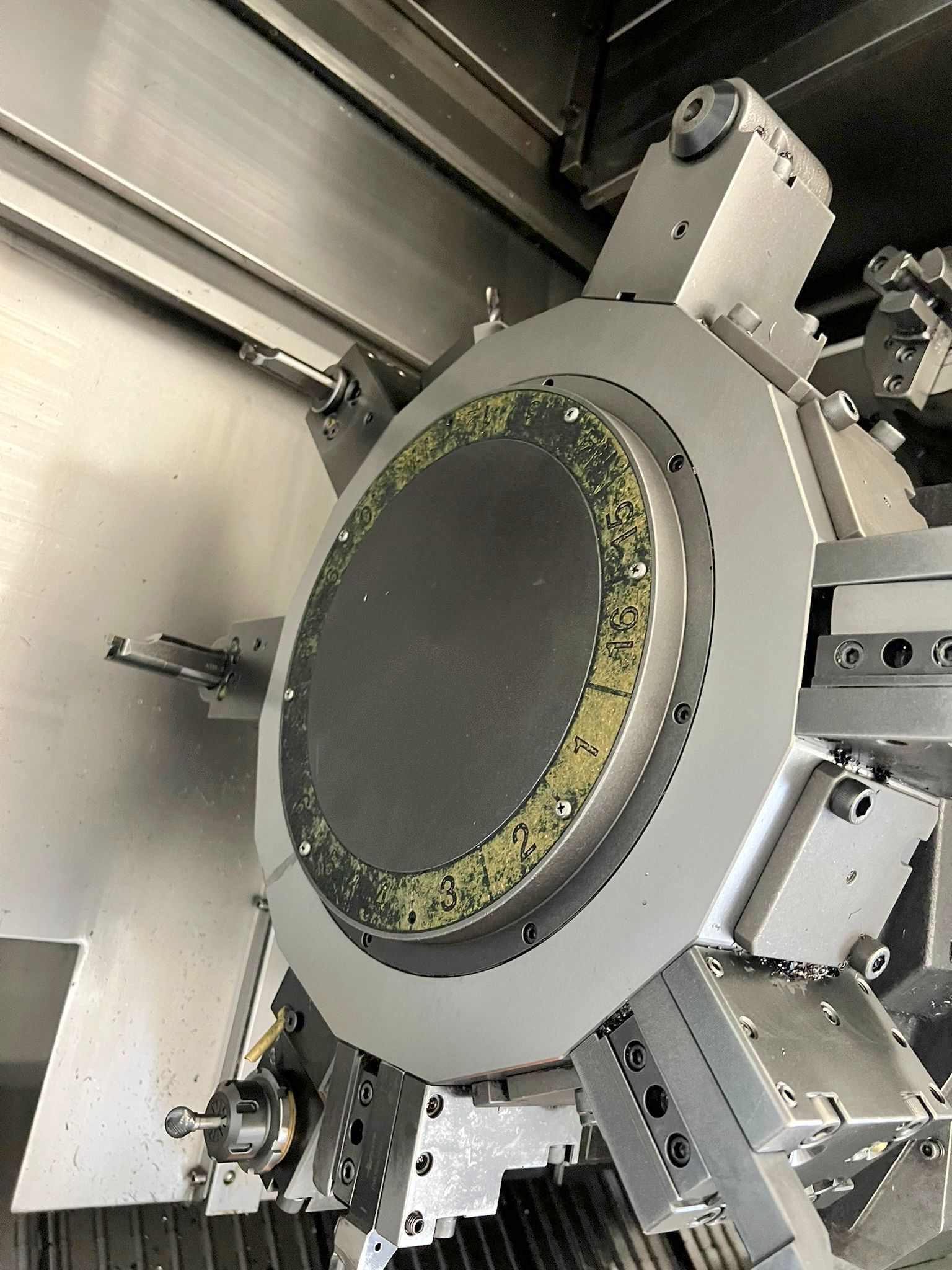

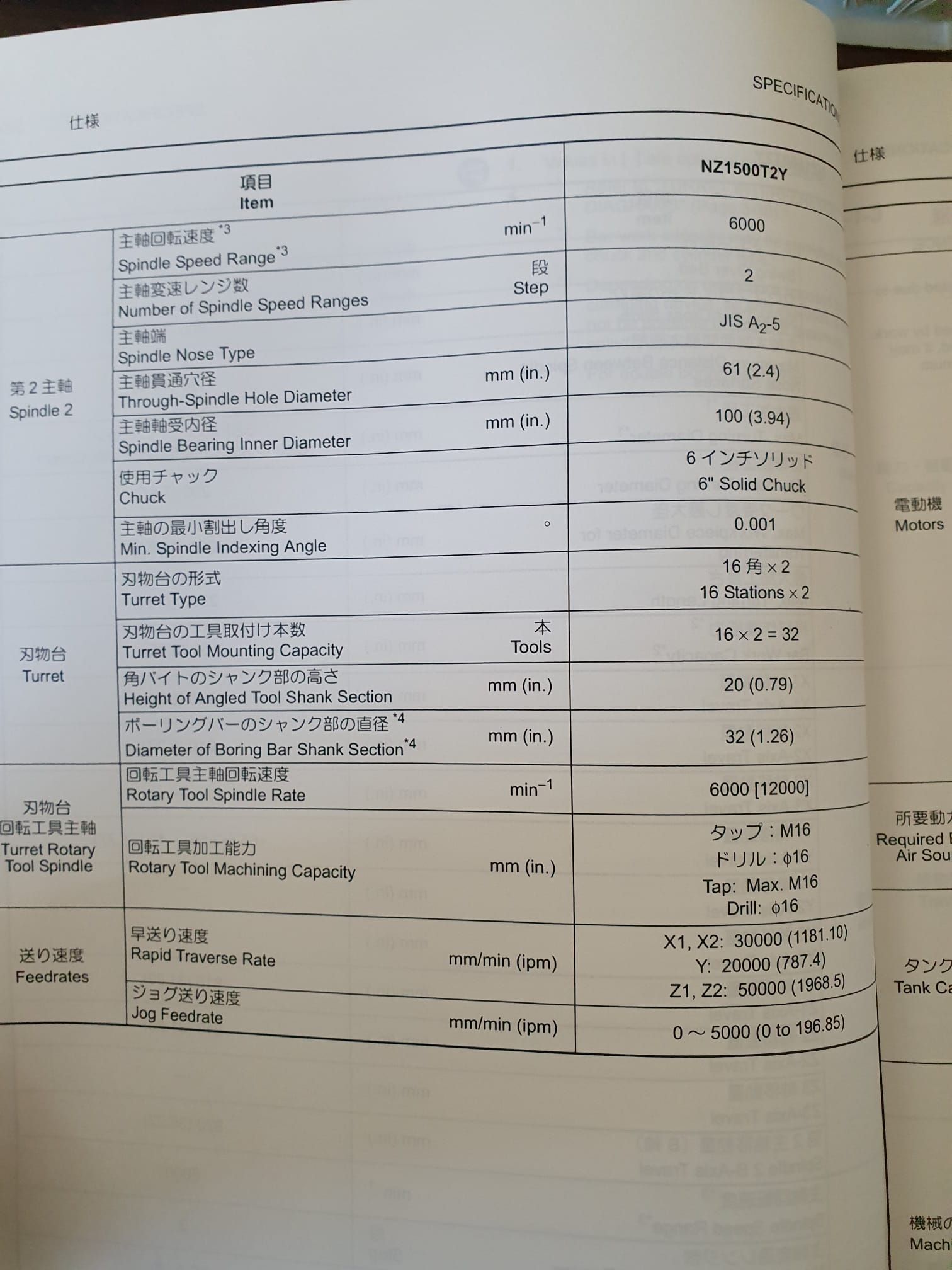

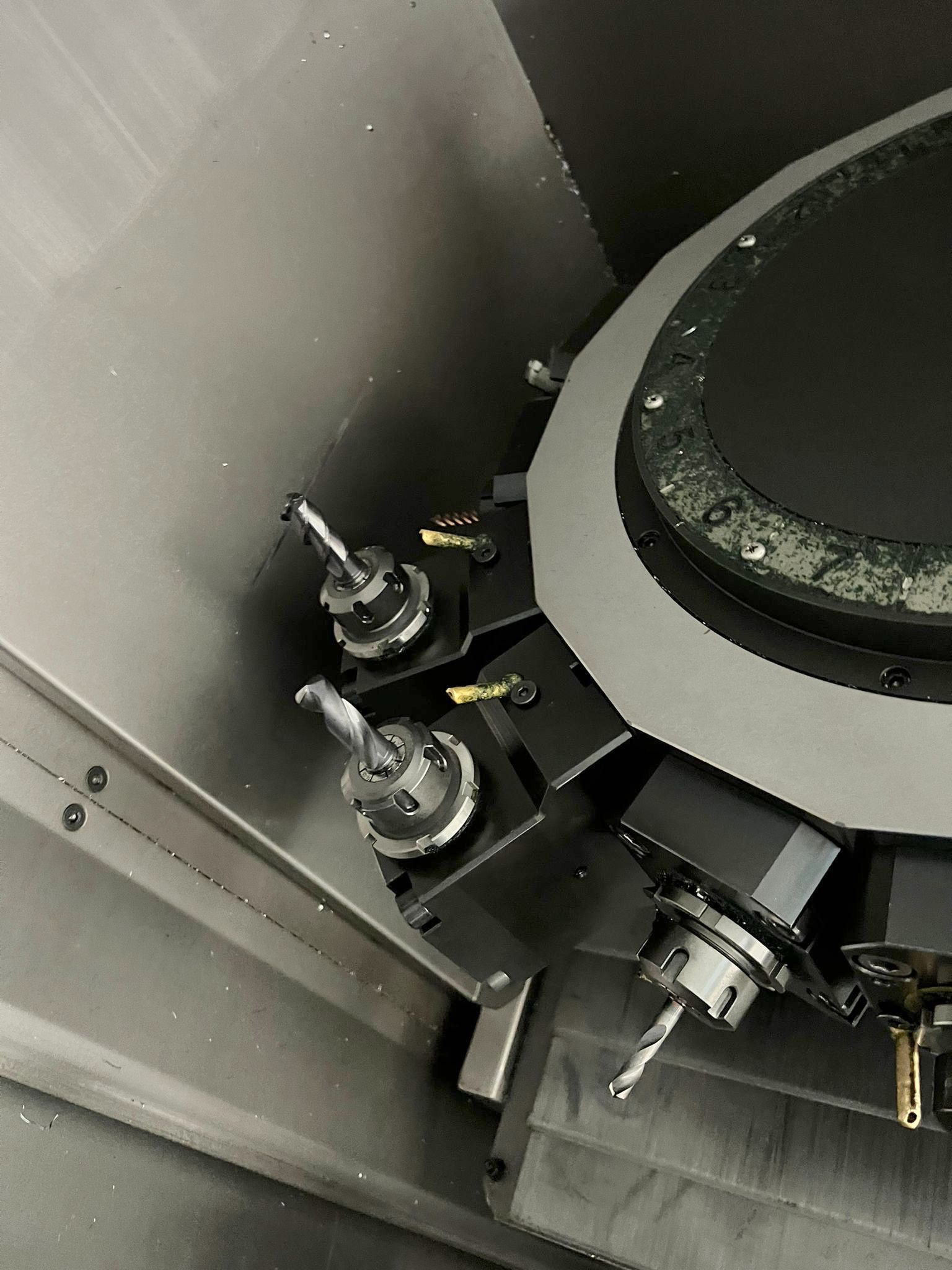

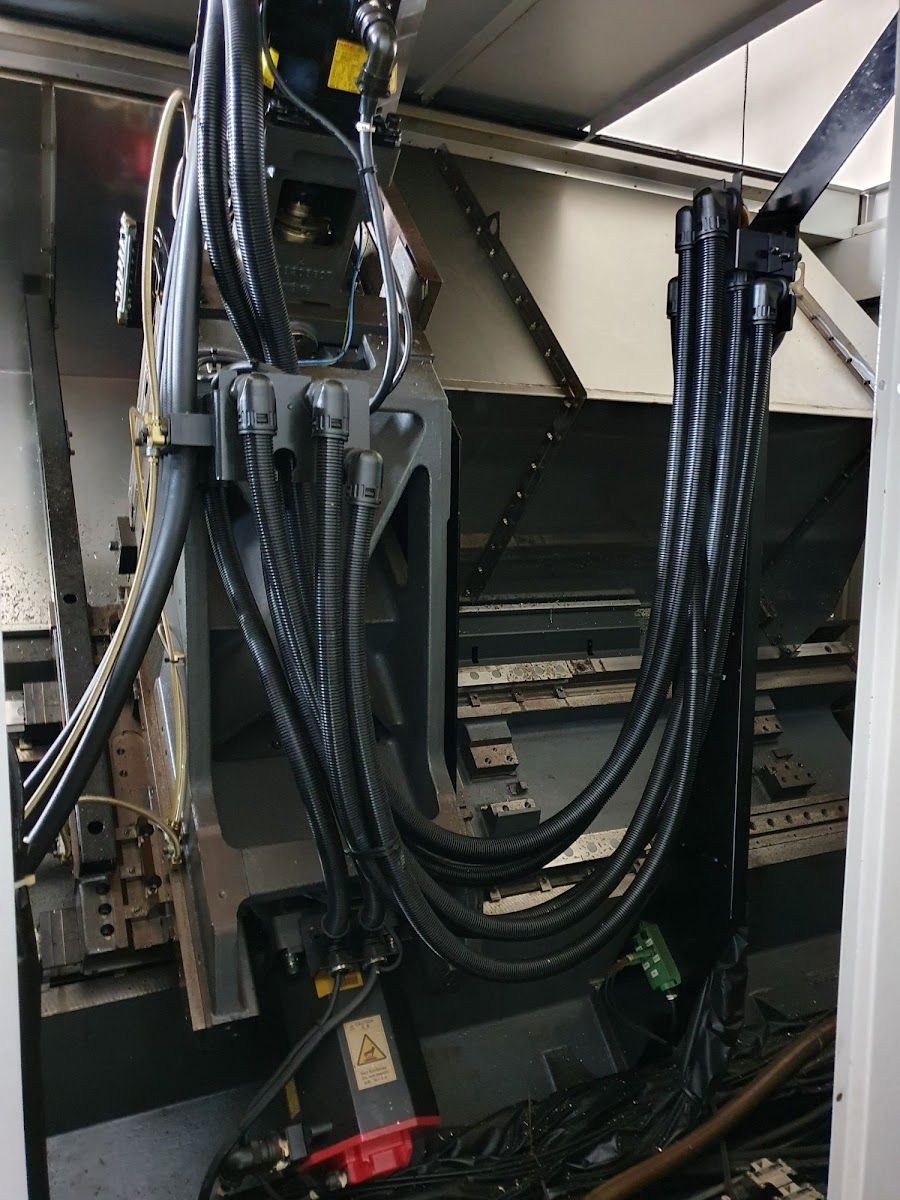

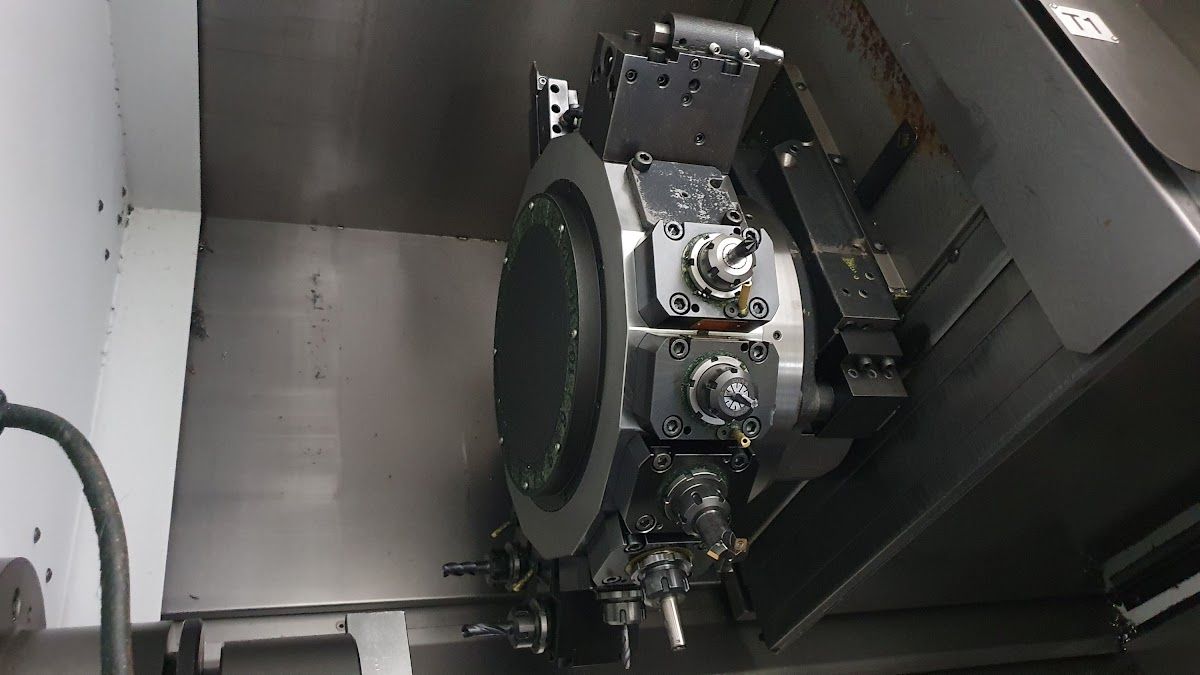

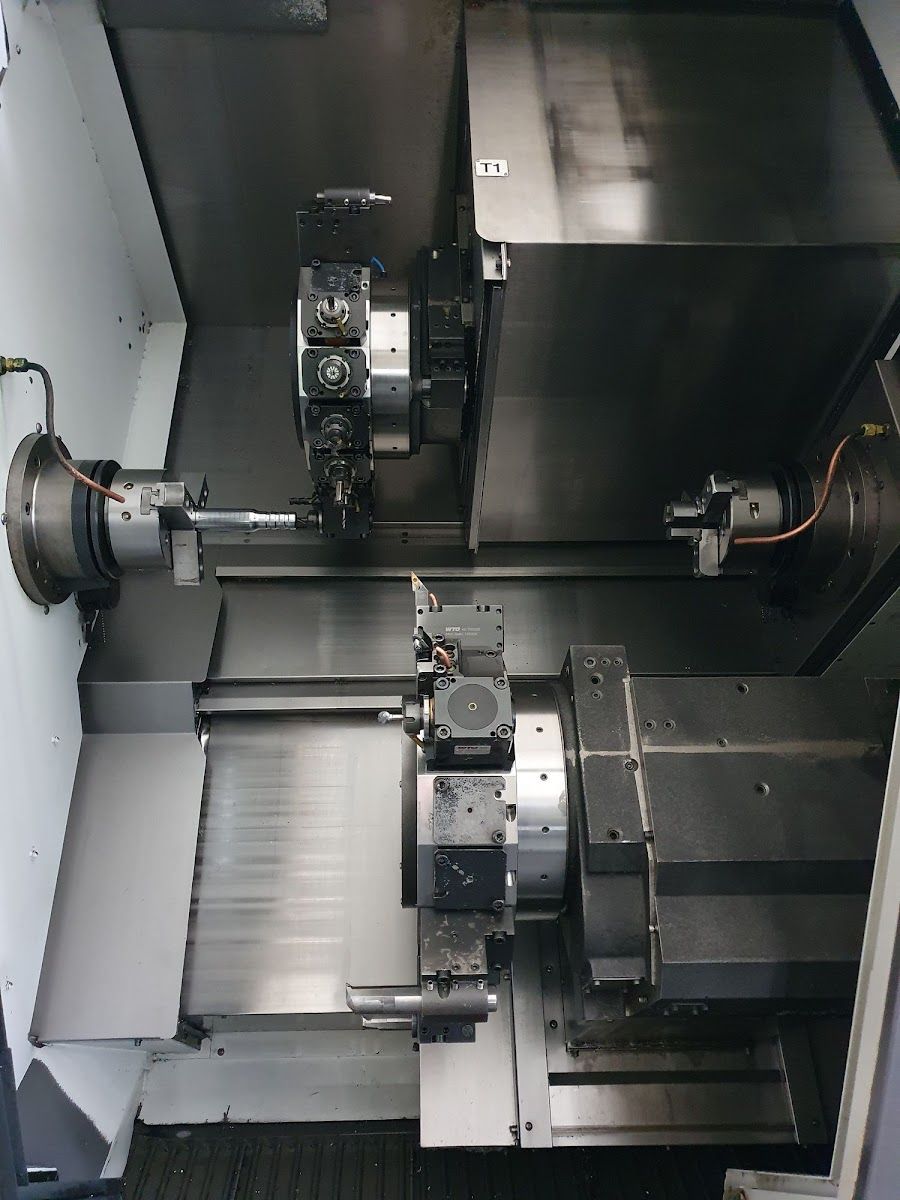

TURRET 1
Positions number
16
Axis stroke Y1
+65 / -45 mm+2,56 / -1,77 in
Axis stroke X1
210 mm8,27 in
Axis stroke Z1
810 mm31,89 in
Driven tools power
7,5 Kw
Driven tools speed
6000 rpm
Rapid feed X1
30 m/min1.181,10 ipm
Rapid feed Z1
50 m/min1.968,50 ipm
Rapid feed Y1
20 m/min787,40 ipm
Number of driven stations
16

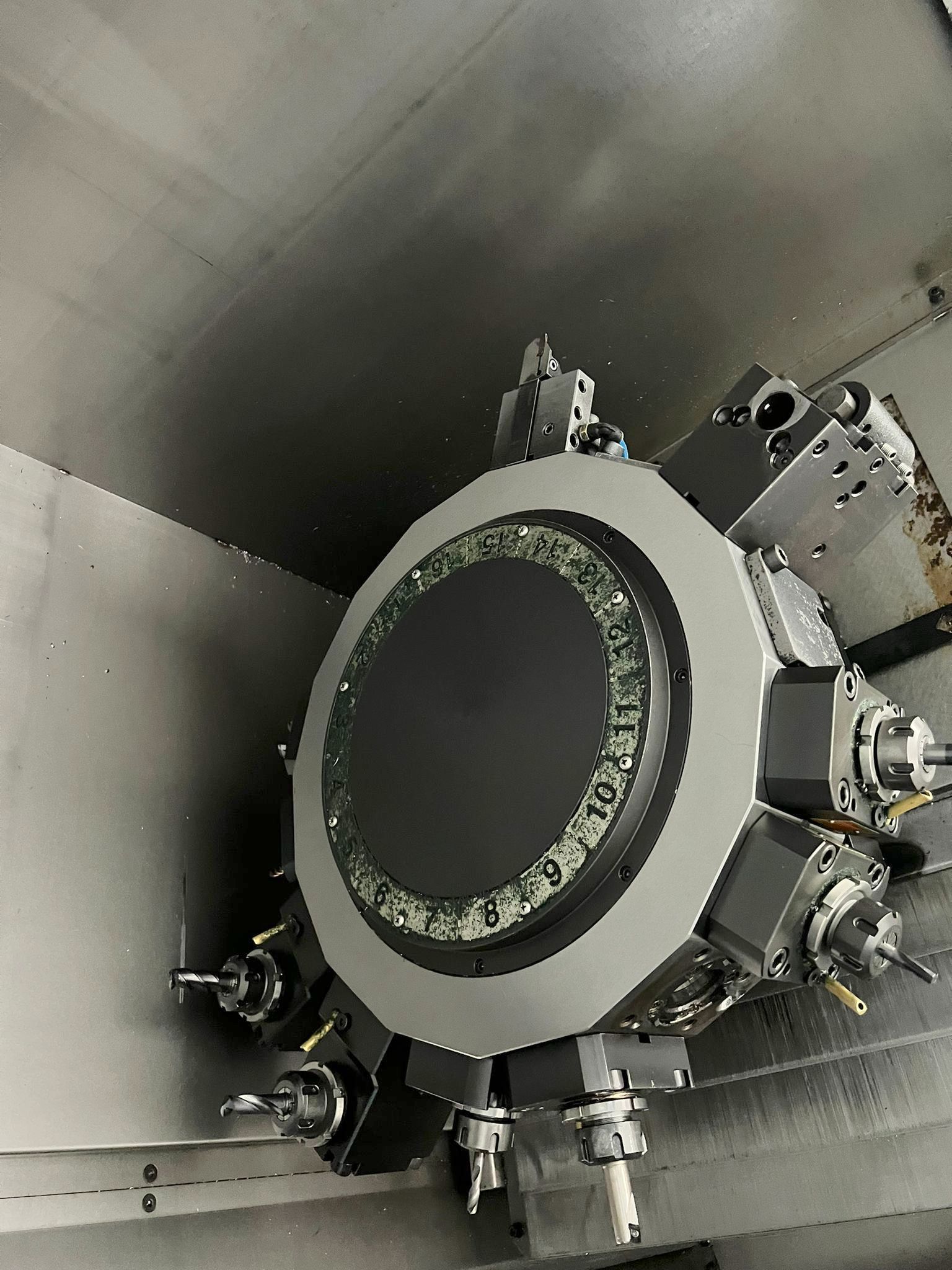

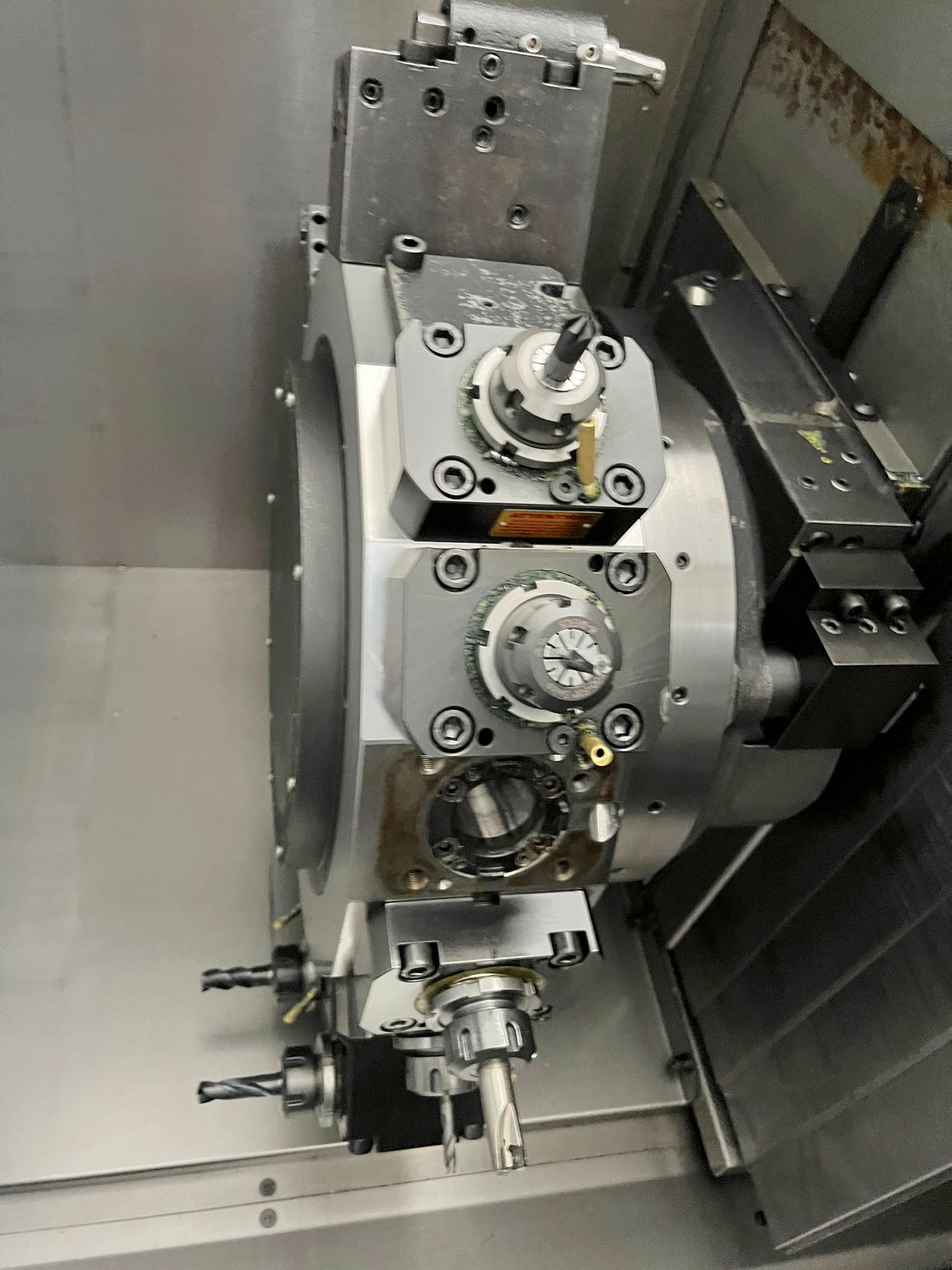

TURRET 2
Positions number
16
Number of driven stations
16
Driven tools speed
6000 rpm
Driven tools power
7,5 Kw
Axis stroke X2
210 mm8,27 in
Rapid feed X2
30 m/min1.181,10 ipm
Axis stroke Z2
810 mm31,89 in
Rapid feed Z2
50 m/min1.968,50 ipm

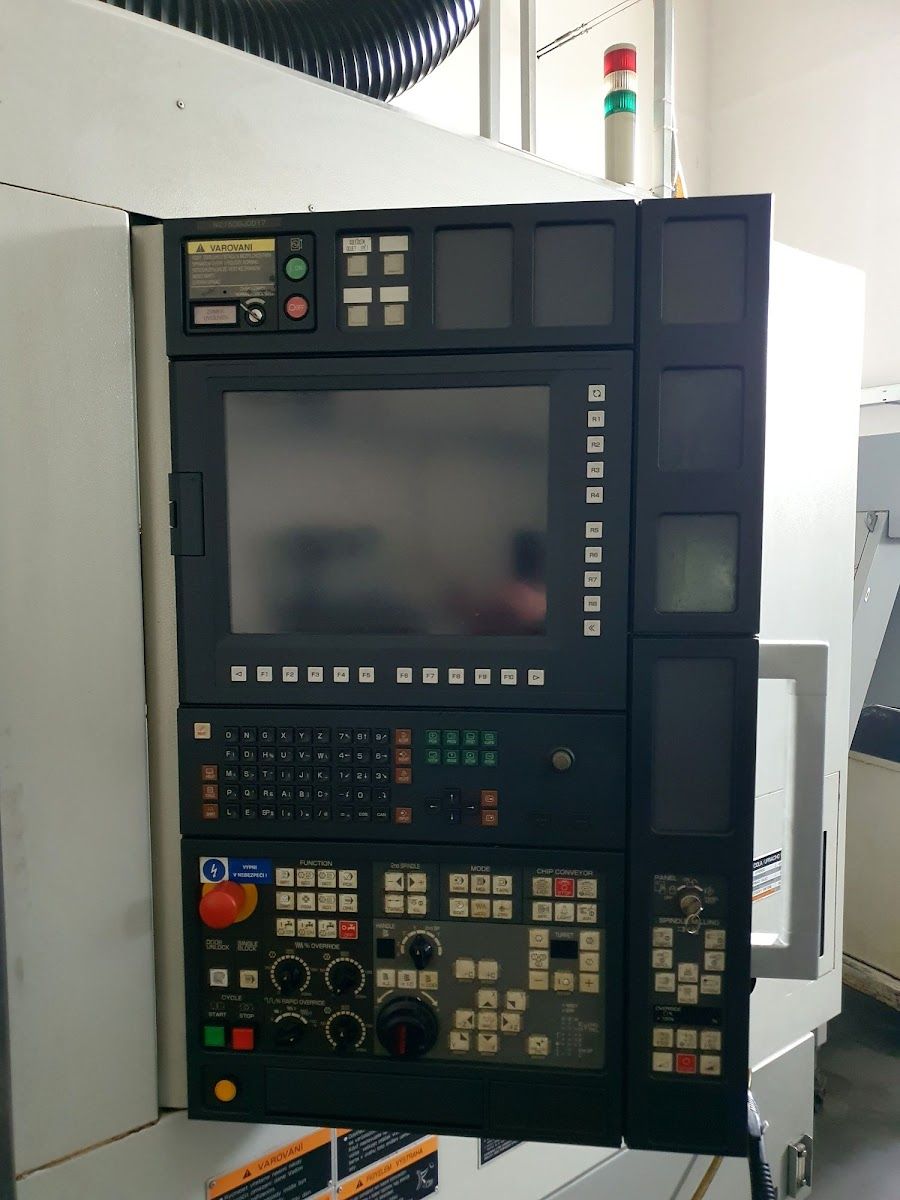

CNC
Drives
Fanuc
CNC
MSX701 MAPPS III
EXTRA

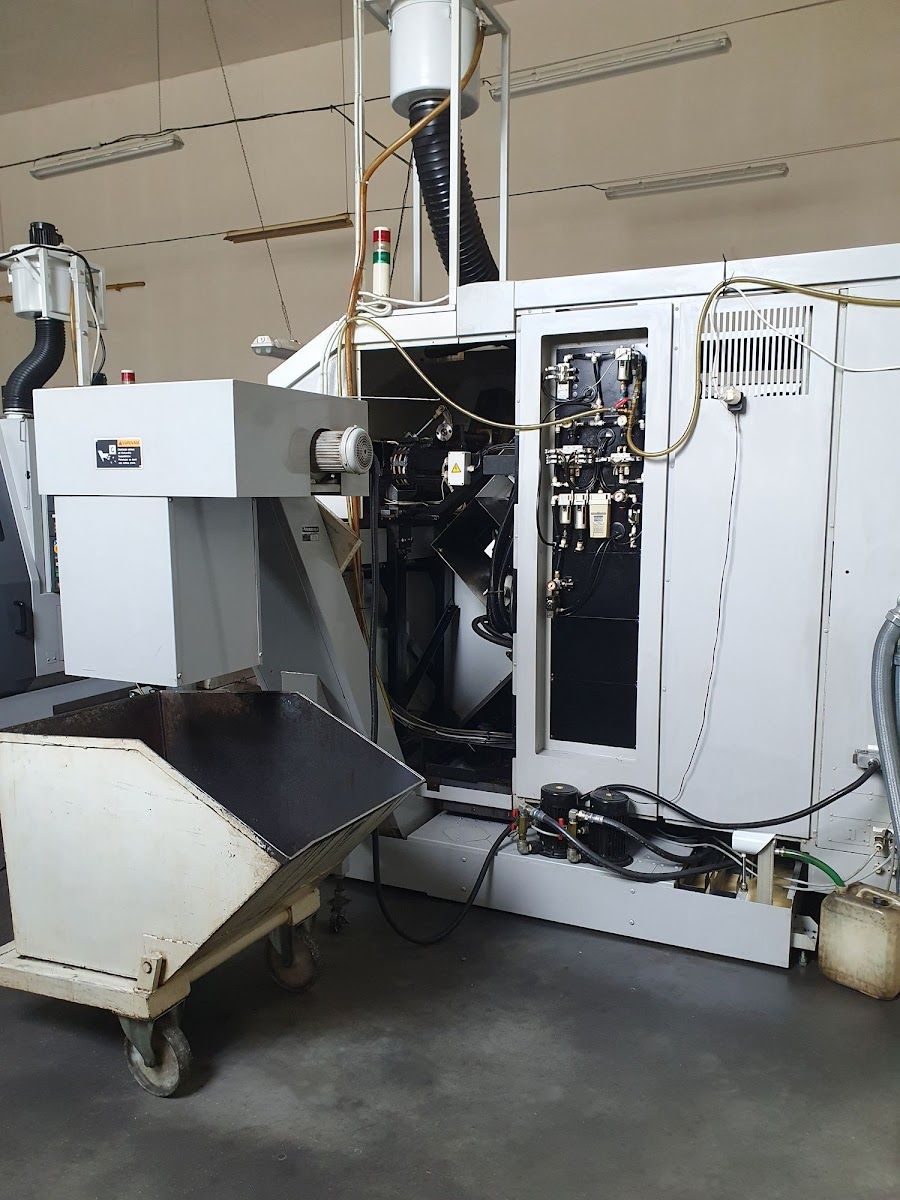

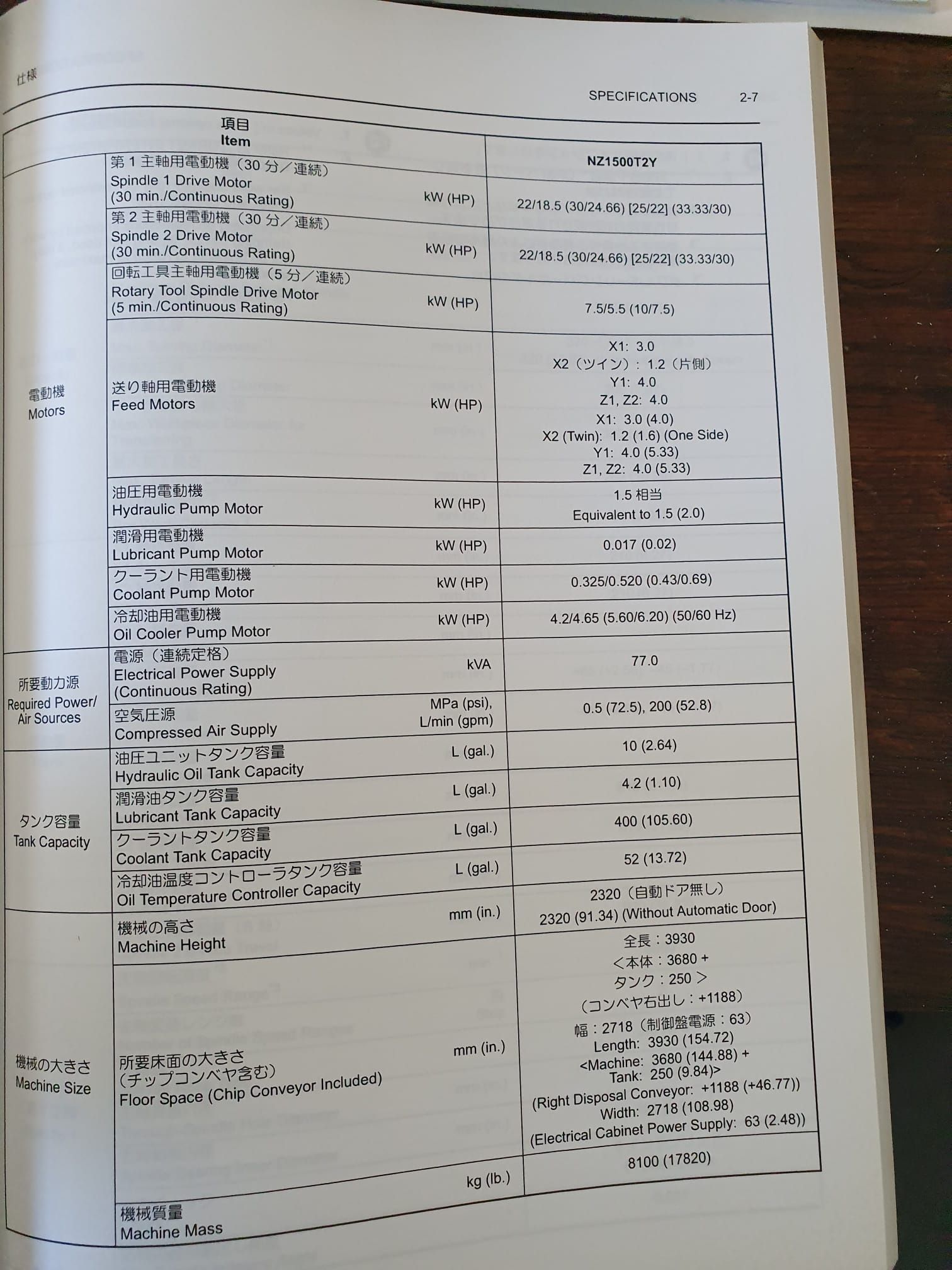

Floor space
3930x2710 mm154,72x106,69 in
Machine total weight
8100 Kg
Total power supply
77 kVA Kw
Tool presetter
si
Bar feeder
si
Driven toolholders
2
