Technical specifications
Metric
Imperial
WORKING CAPACITY
Max bar working diameter
45 mm1,77 in
Max turning diameter
220 mm8,66 in
Max working lenght
380 mm14,96 in

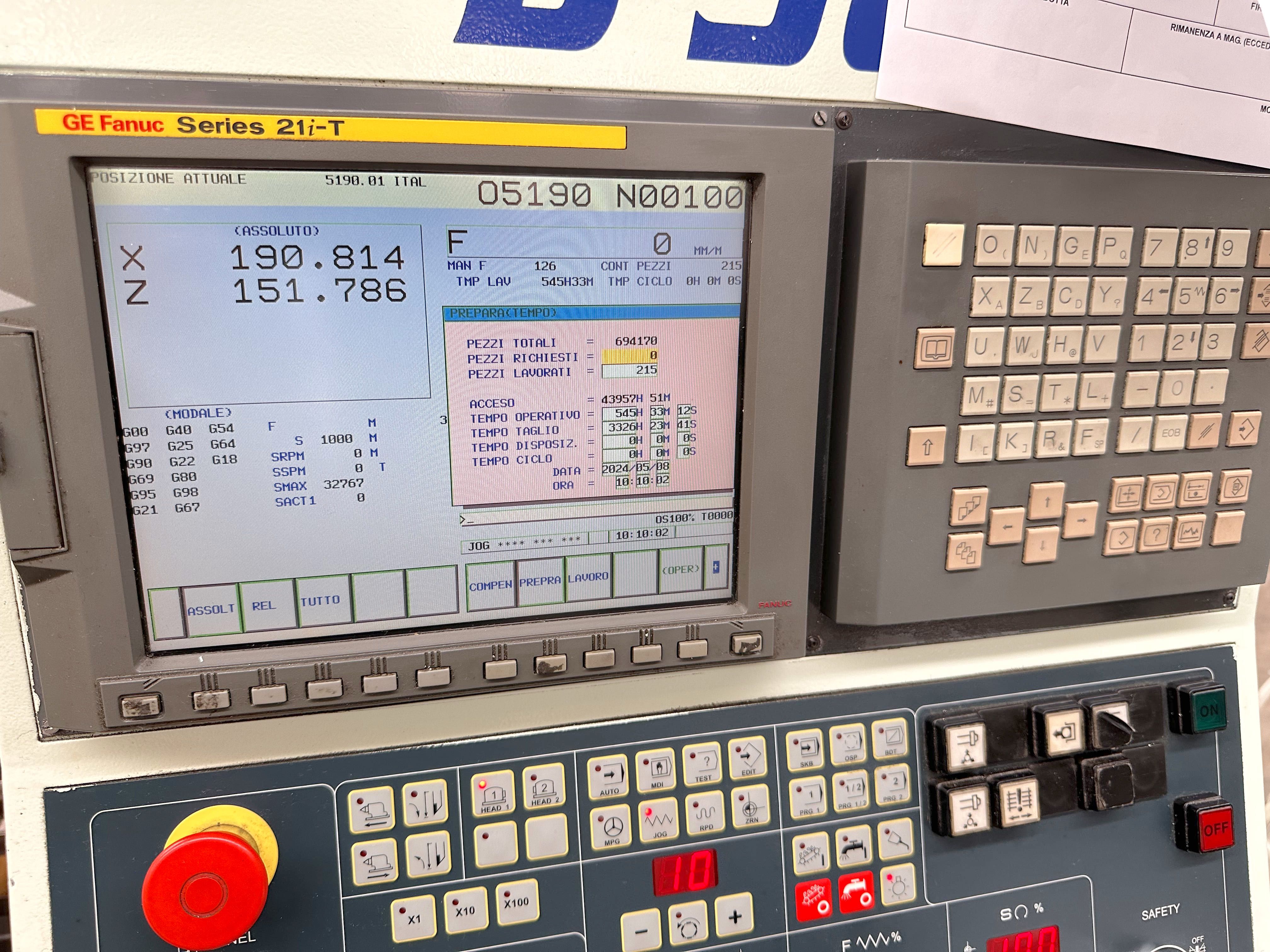

CNC
CNC
Fanuc 21i-T

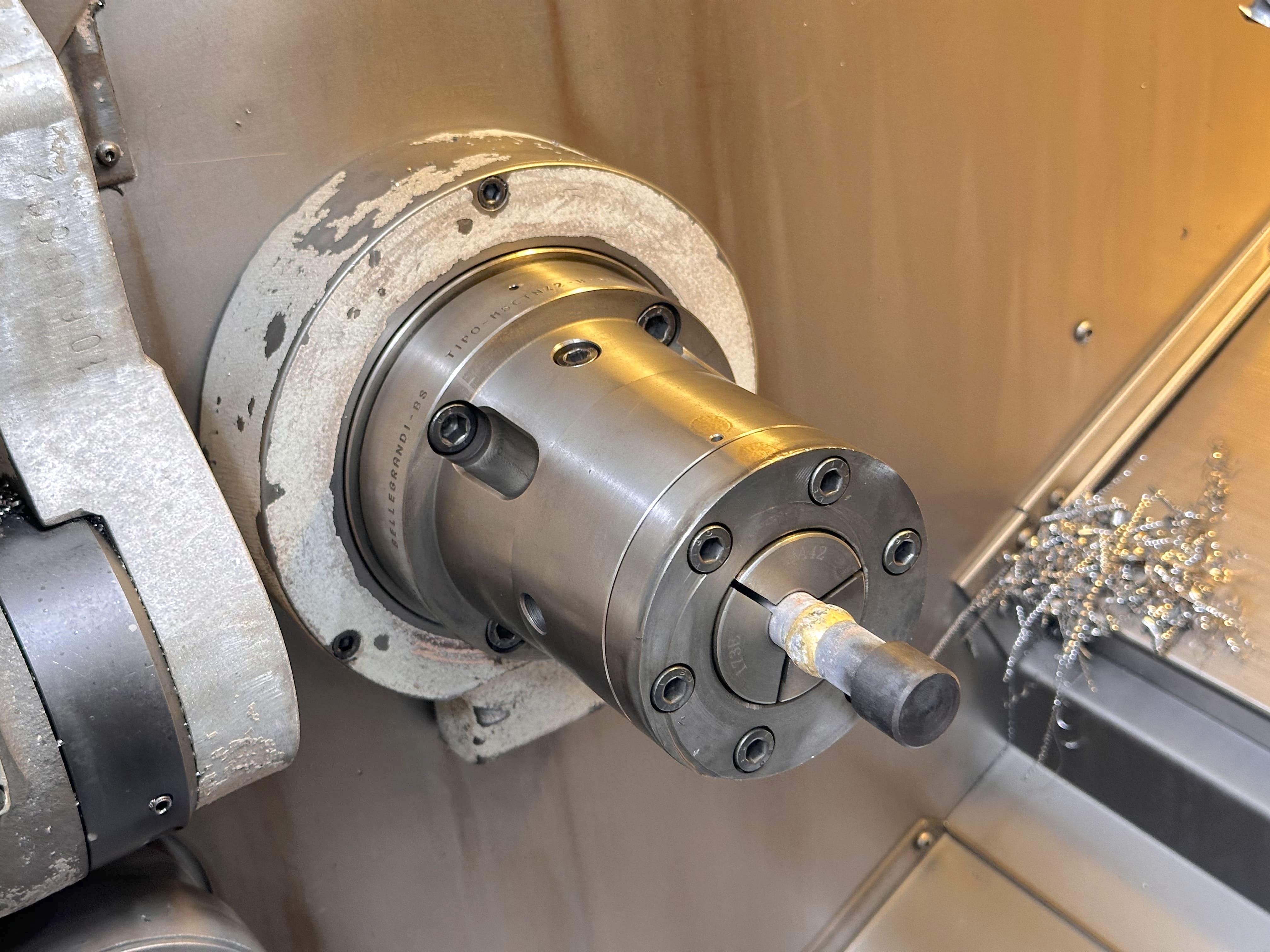

MAIN SPINDLE
Max rotation speed
5000 rpm
Spindle nose
ASA5”
Spindle hole
55 mm2,17 in
Internal bearing diameter
90 mm3,54 in
Max power
15 Kw

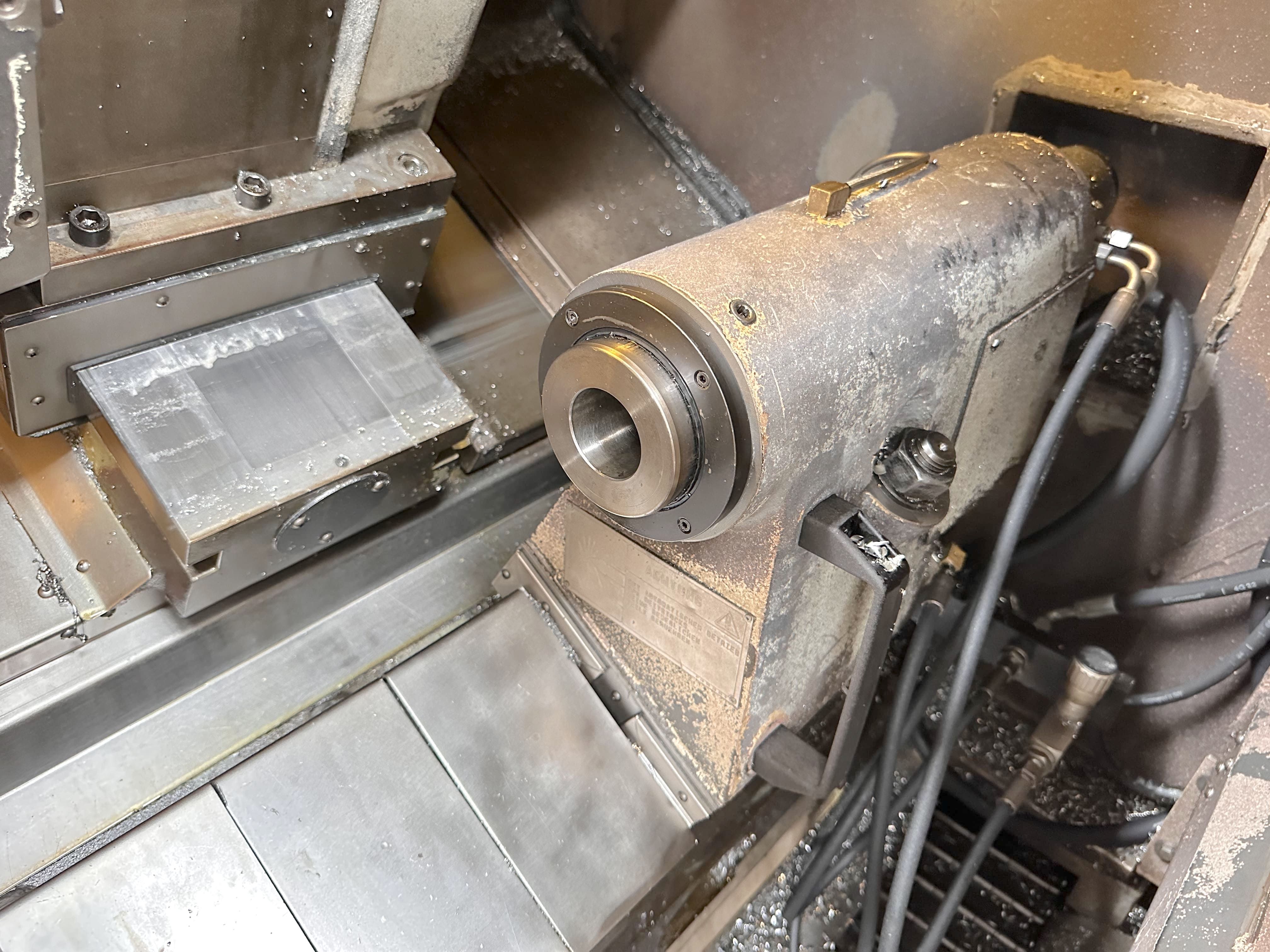

TAILSTOCK
Quill diameter
85 mm3,35 in
Quill stroke
100 mm3,94 in
Taper
CM4
Axis stroke B
manuale 380 mmmanuale 14,96 in

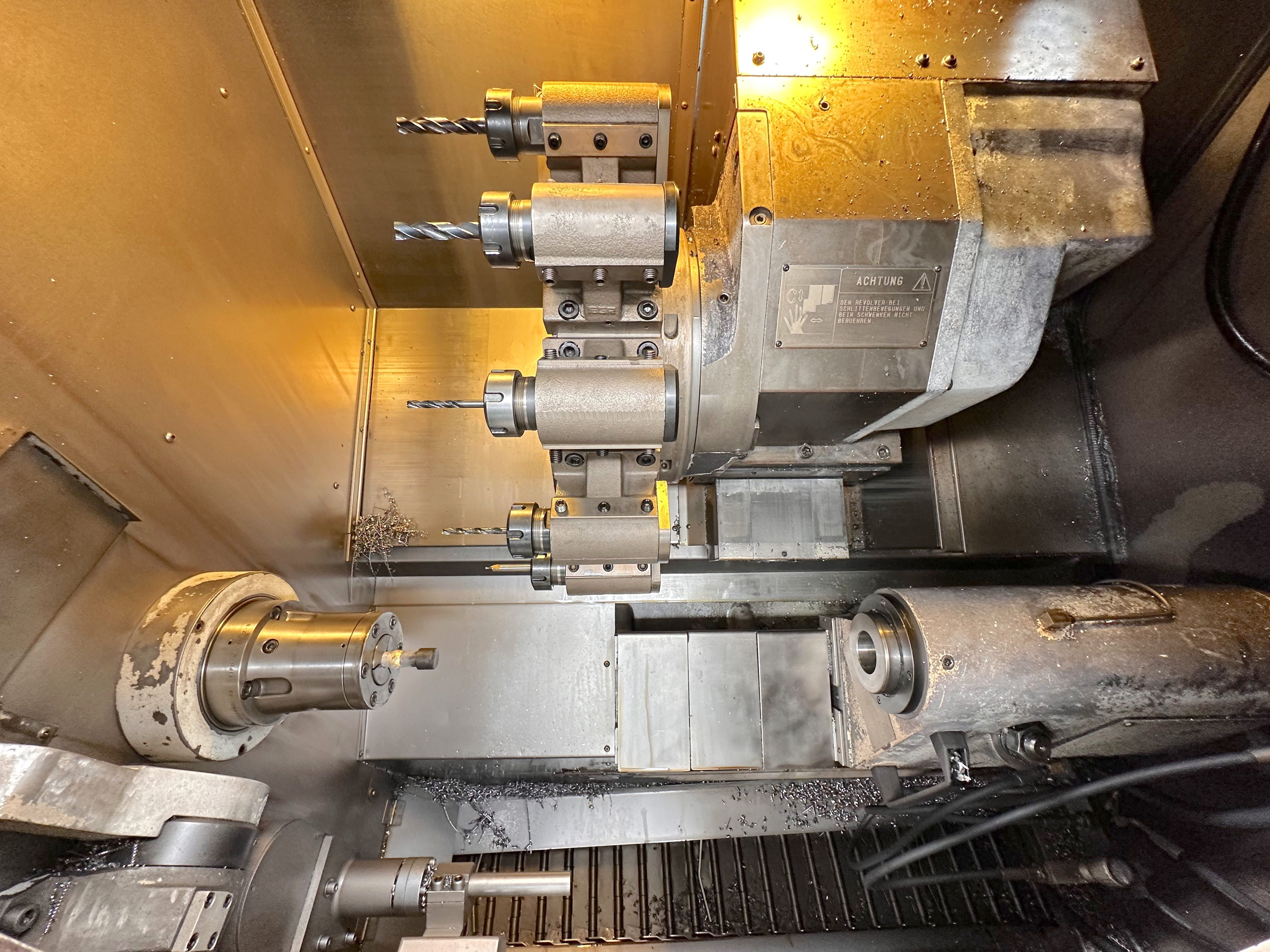

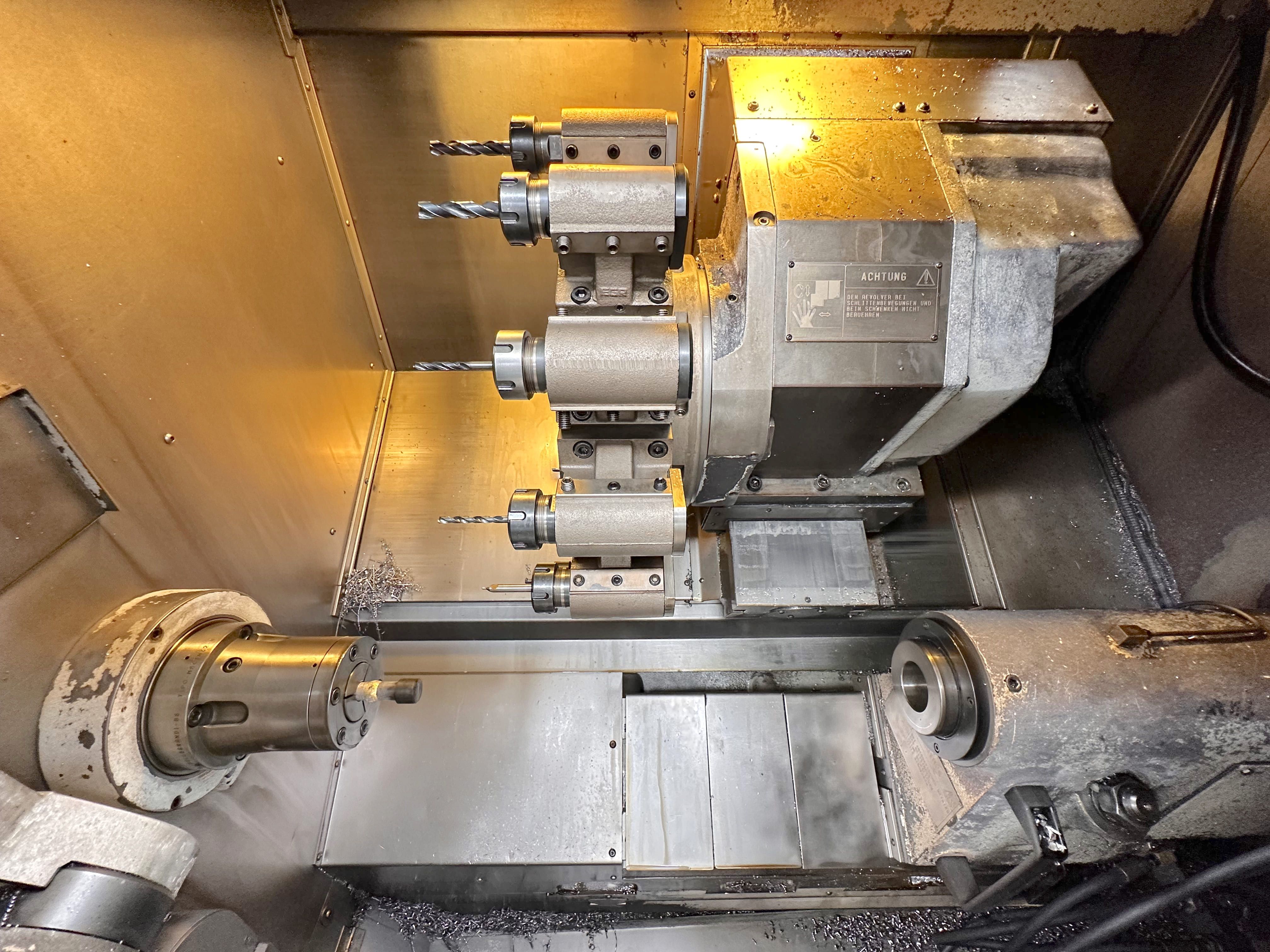

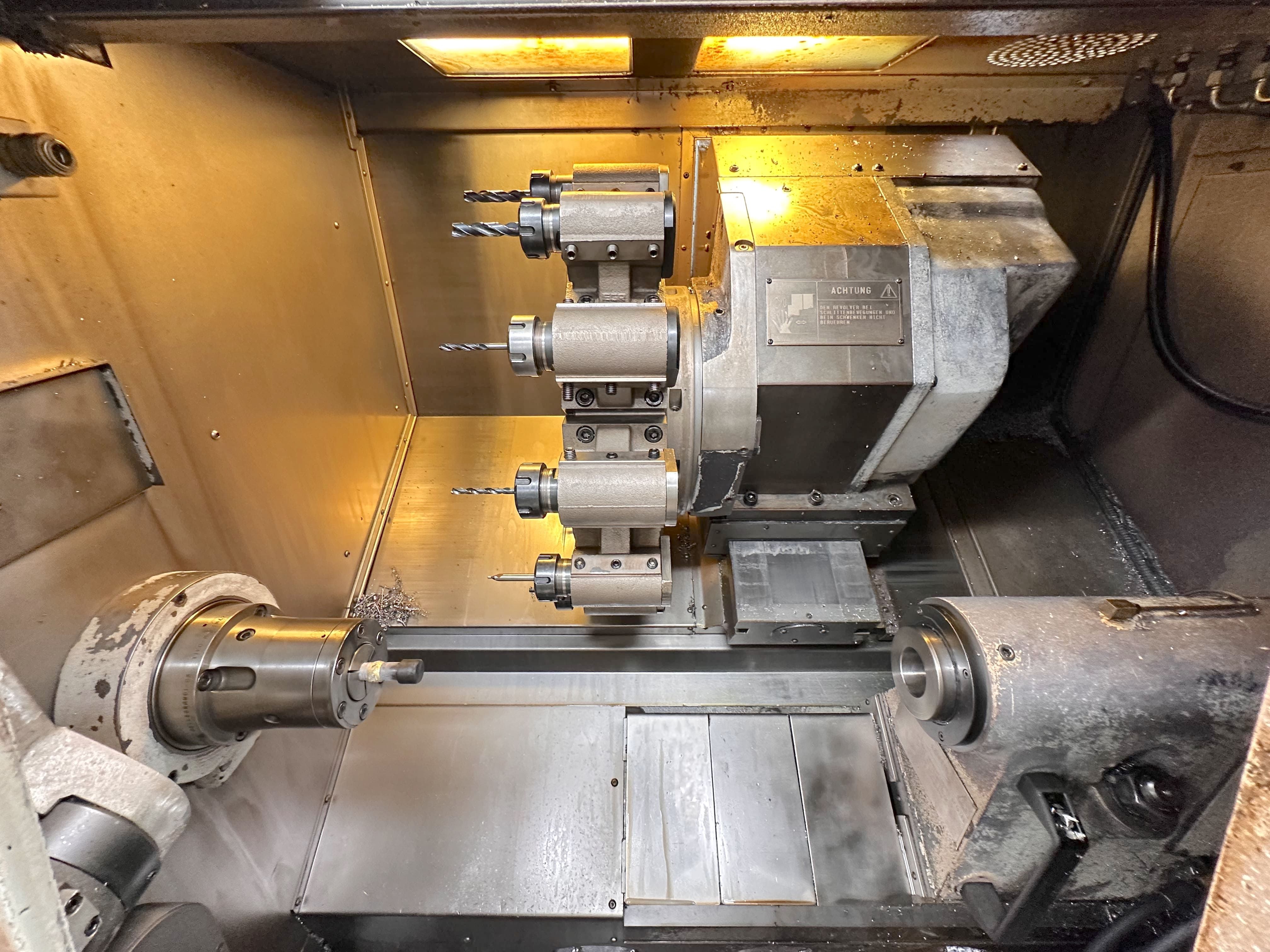

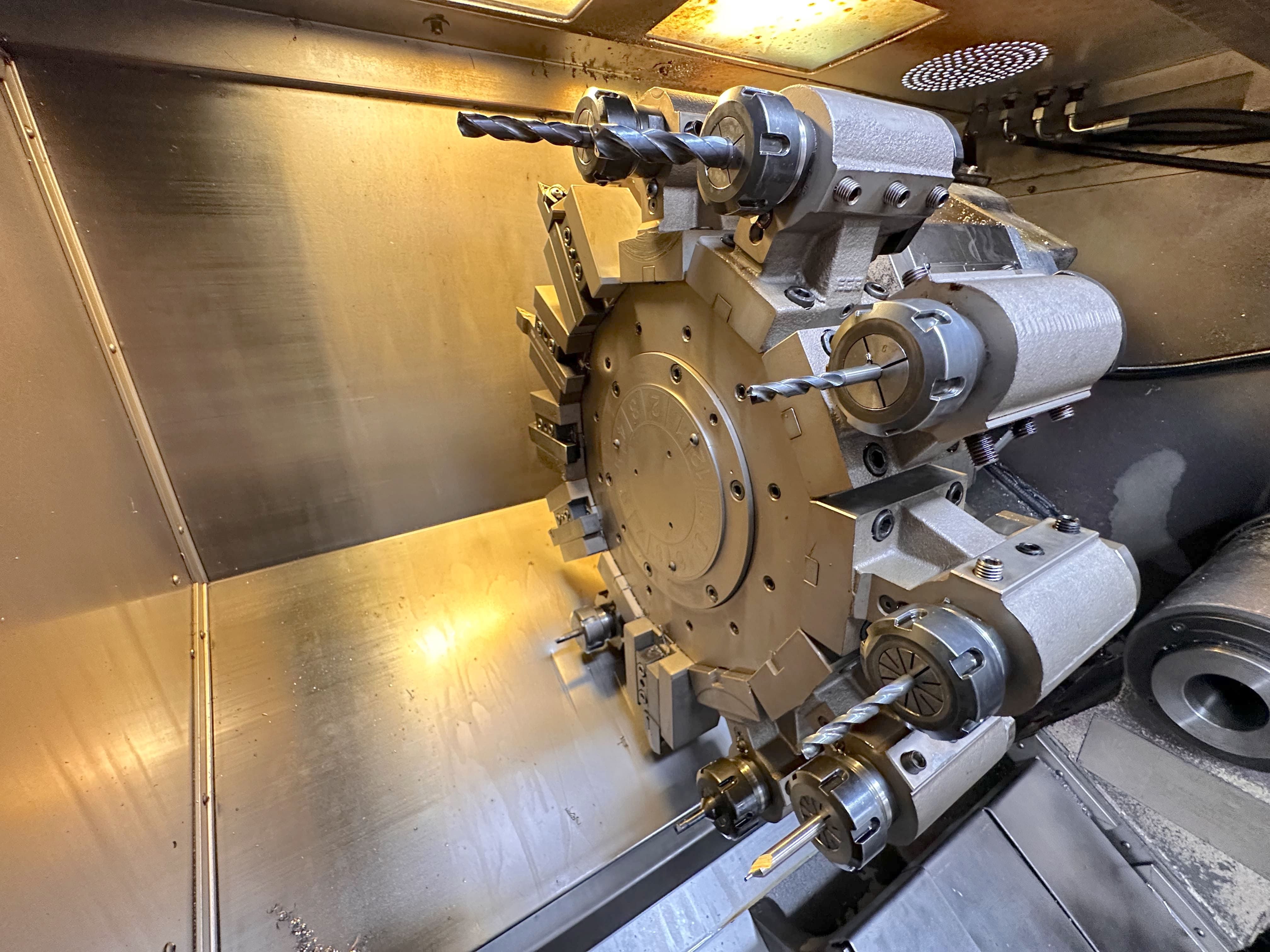

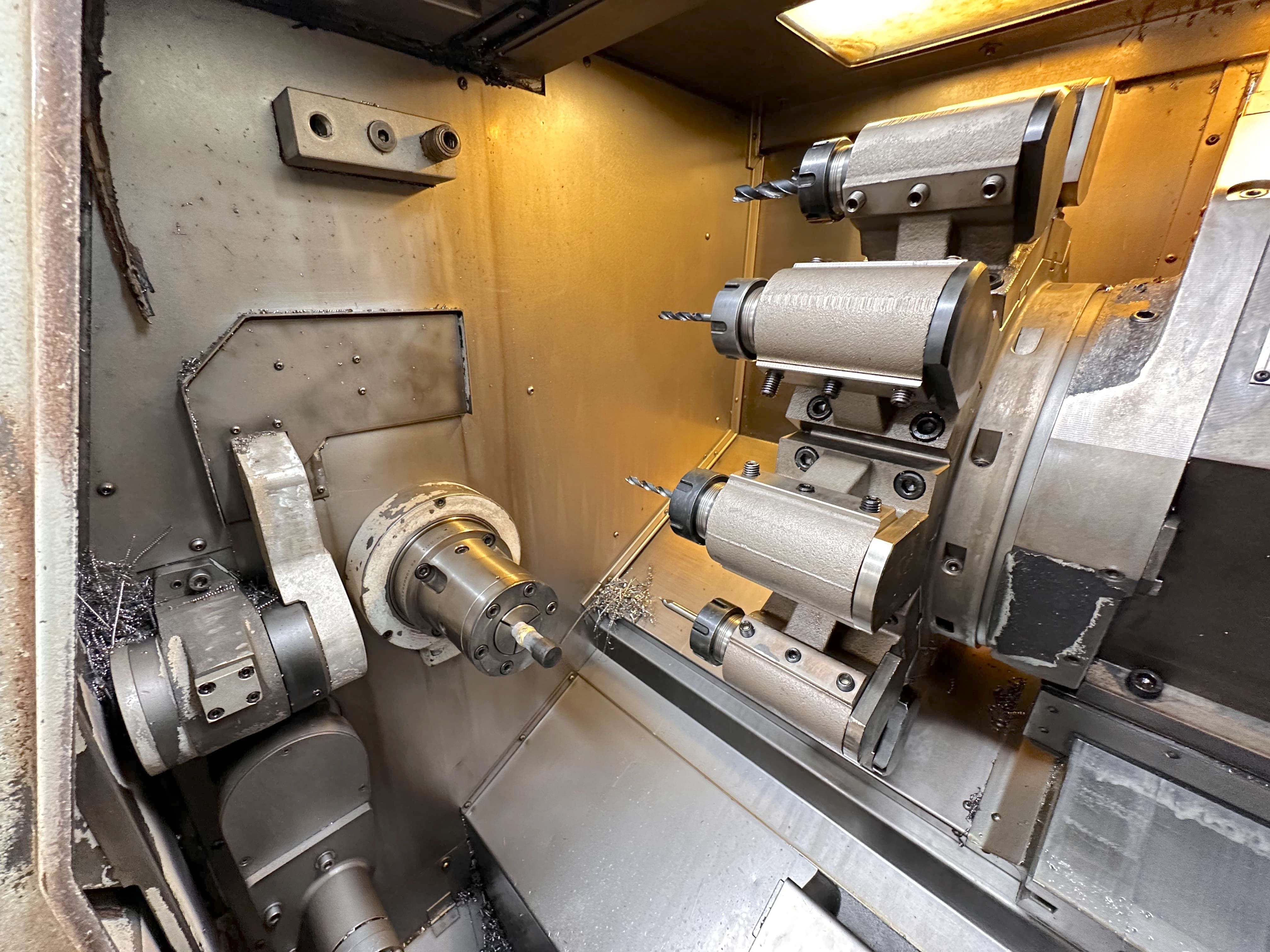

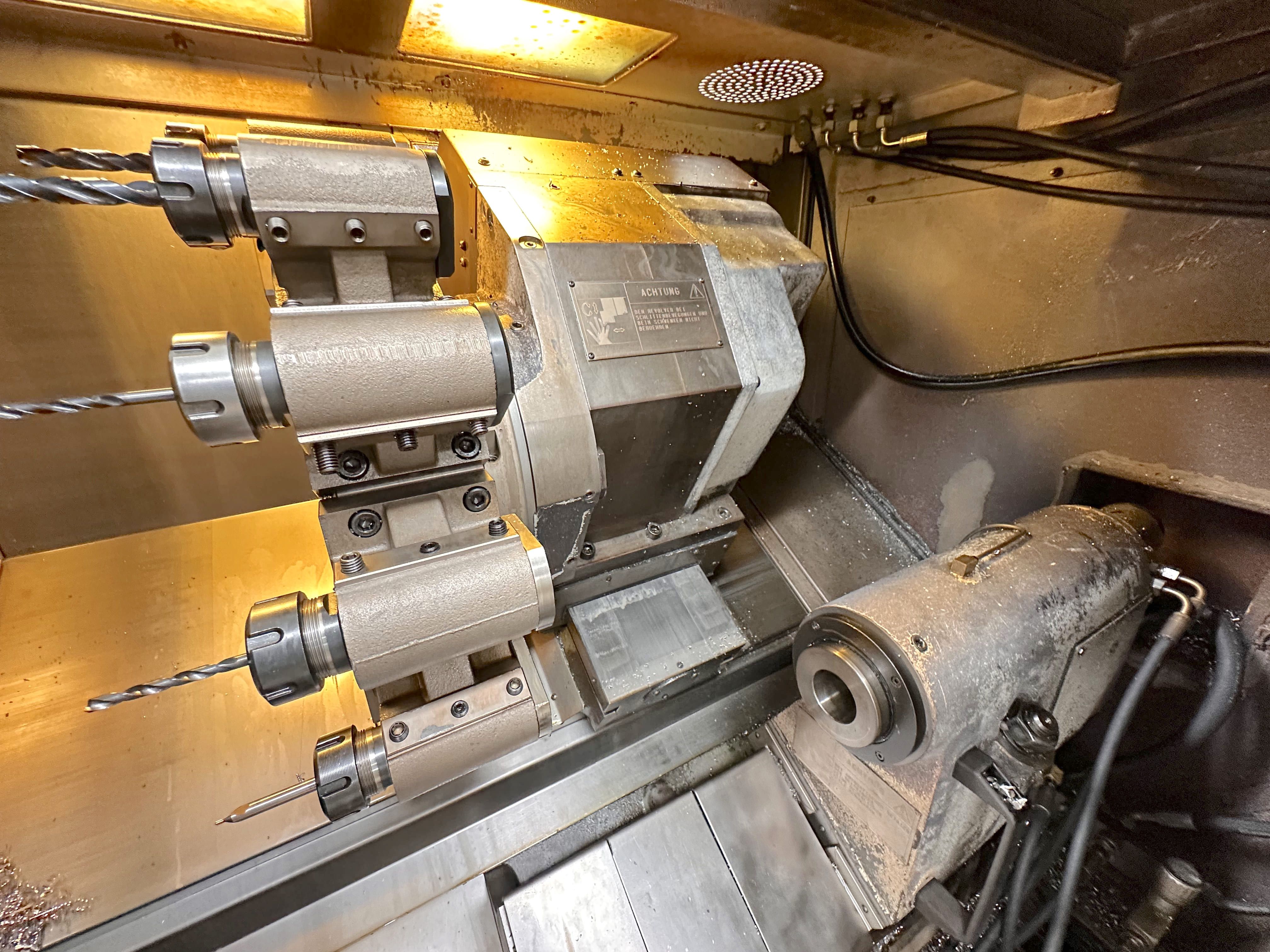

TURRET 1
Positions number
12
Rotation time (1 pos)
0,15 sec.
Axis stroke X1
160 mm6,30 in
Axis stroke Z1
380 mm14,96 in
Rapid feed X1
20 m/min787,40 ipm
Rapid feed Z1
24 m/min944,88 ipm
EXTRA
Machine total weight
3800 Kg
Floor space
3650x1760x1700 mm143,70x69,29x66,93 in

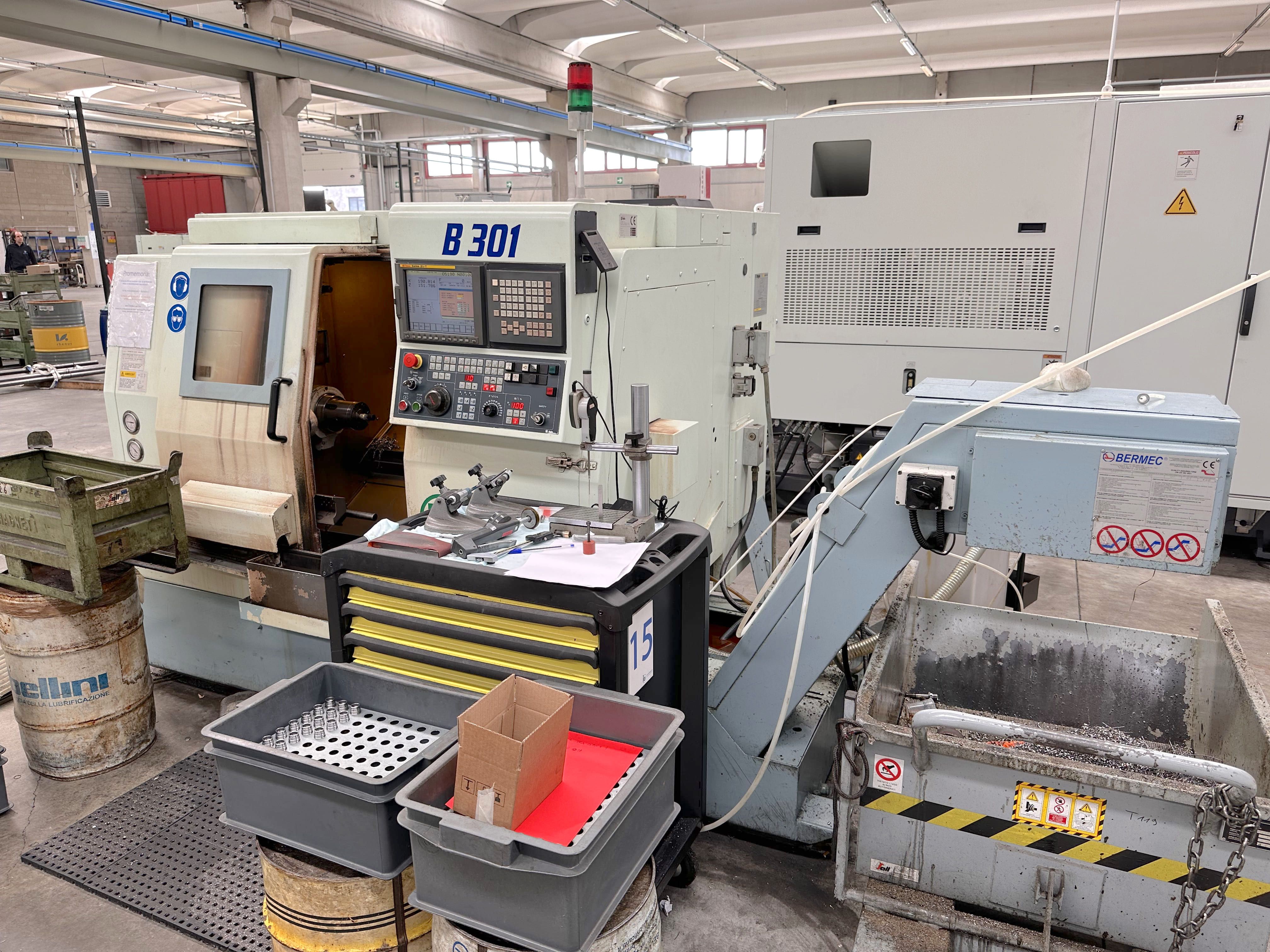

Chip conveyor
si
