Category
Turning Machine
Type
CNC
Made
Model
B470YSM ASA8"
Capacity
ø80/240x250 mmø3,15/9,45x9,84 in

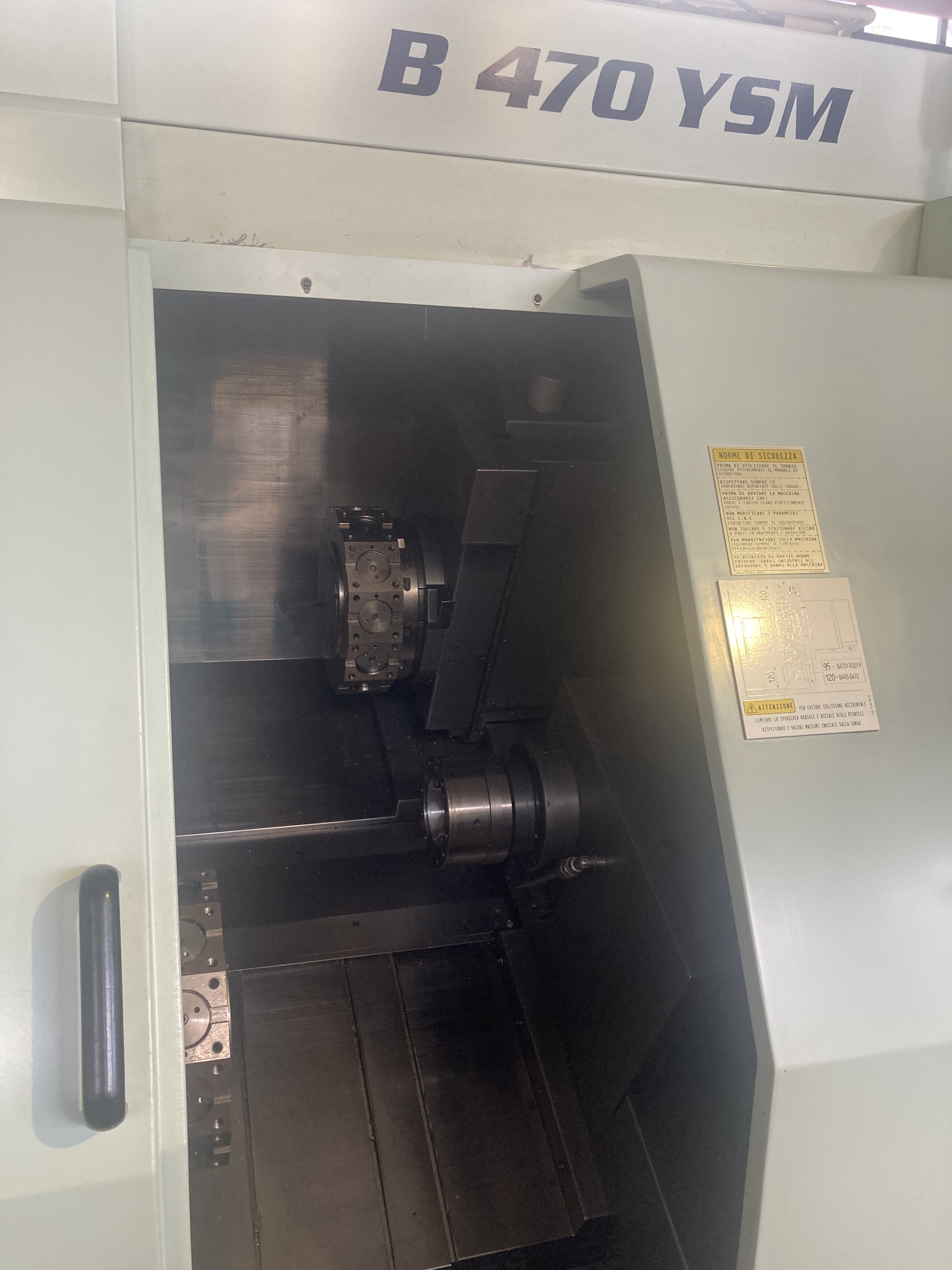

BIGLIA B470YSM
All the machines are available subject to prior sale
Enable notifications

Technical specifications

Metric Imperial
WORKING CAPACITY
Max bar working diameter
80 mm3,15 in
Max turning diameter
240 mm9,45 in
Max working lenght
250 mm9,84 in

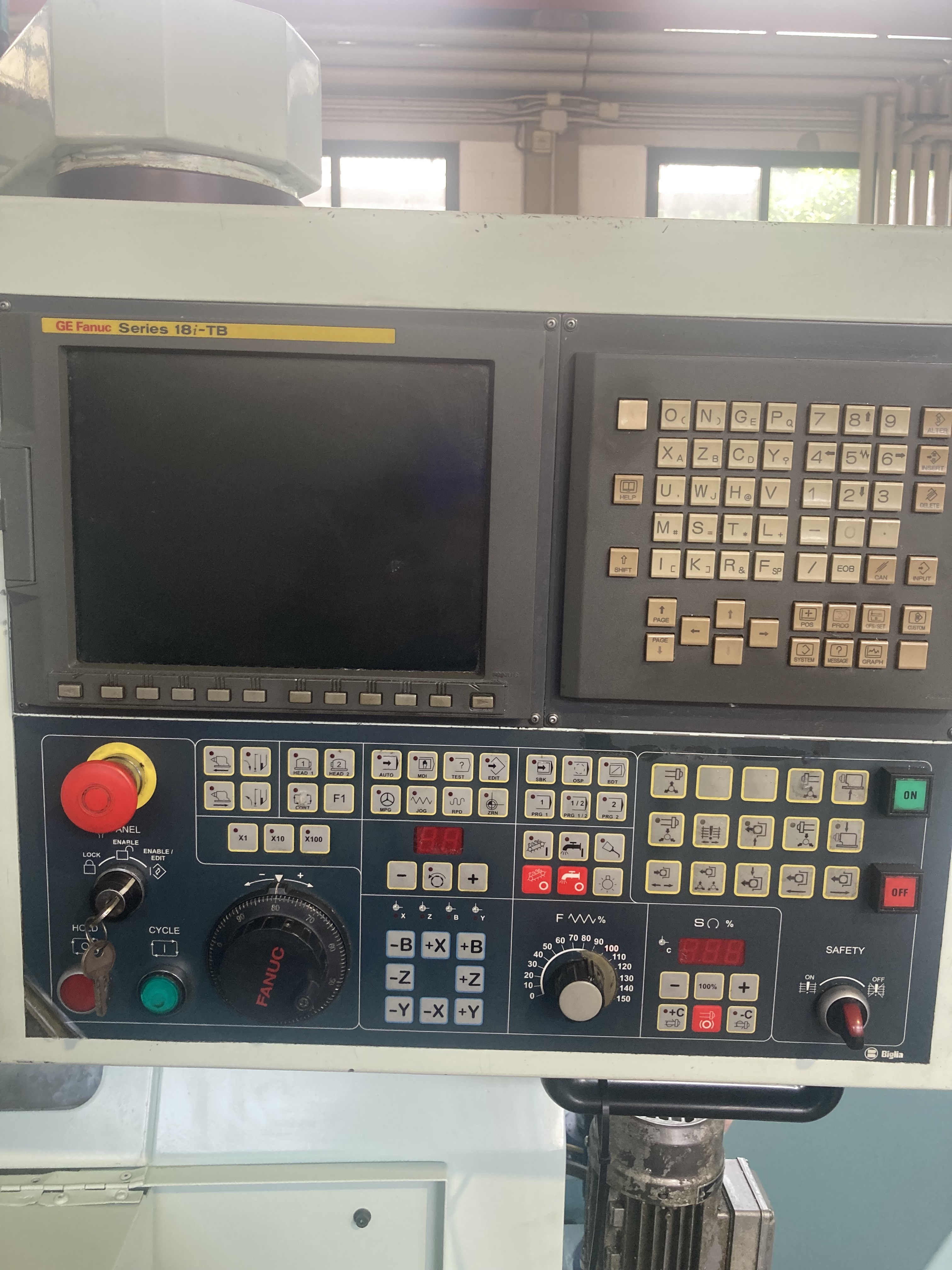

CNC
CNC
Fanuc 18i-TB
MAIN SPINDLE
Max rotation speed
3200 rpm
Spindle nose
ASA8”
Spindle hole
92 mm3,62 in
Internal bearing diameter
130 mm5,12 in
Max power
26 Kw
Accuracy (C axis)
0,001 °
C axis speed
80 Rpm
SUBSPINDLE
Max rotation speed
4000 rpm
Spindle nose
ASA5”
Spindle hole
55 (45 utile) mm2,17 (1,77 utile) in
Internal bearing diameter
80 mm3,15 in
Max power
11 Kw
Accuracy (C axis)
0,001 °
Automatic B axis positioning
420 mm16,54 in
Rapid feed B
30 m/min1.181,10 ipm
TURRET 2
Positions number
12
Rotation time (1 pos)
0,15 sec.
Number of driven stations
12
Driven tools speed
4000 rpm
Driven tools power
3,7 Kw
Axis stroke X2
160 mm6,30 in
Rapid feed X2
12 m/min472,44 ipm
Axis stroke Z2
240 mm9,45 in
Rapid feed Z2
20 m/min787,40 ipm
EXTRA

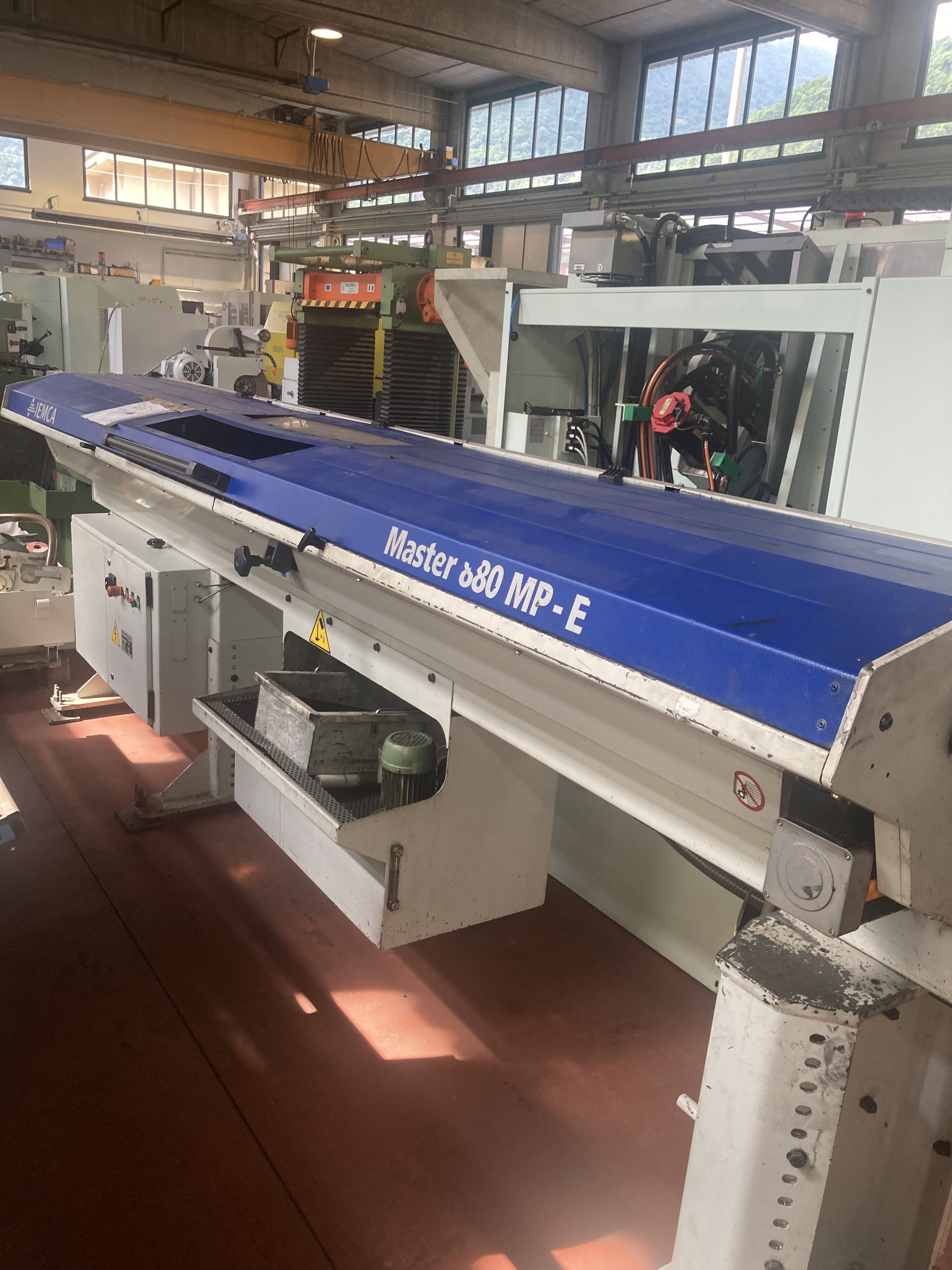

Bar feeder
IEMCA MASTER 880MP
Floor space
4107x2128x2204 mm161,69x83,78x86,77 in
Machine total weight
7200 Kg
Workpieces conveyor belt
Yes
Chip conveyor
si
Workpiece espulsion robot
si

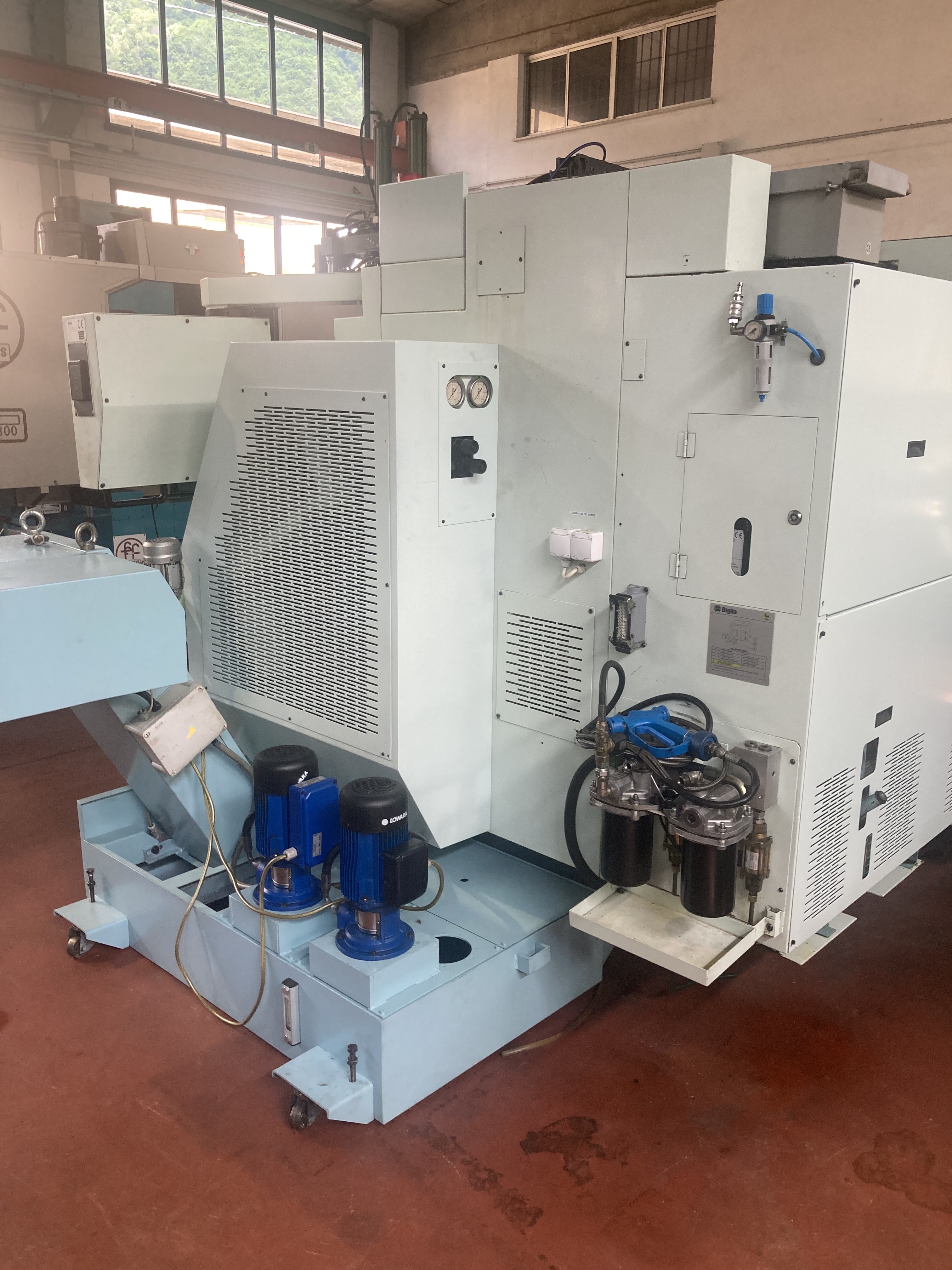

Coolant pump
si
