Category
Turning Machine
Type
CNC
Made
Model
HD3 105L
Capacity
ø1200x11000 mmø47,24x433,07 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Max bar working diameter
160 mm6,30 in
Max diameter on bed
1200 mm47,24 in
Max working lenght
11000 mm433,07 in
Guide-ways number
3
Max weight between centres
12.000 Kg
Max diameter on cross-slide
800 mm31,50 in
Max weight on steadies
16.000 Kg

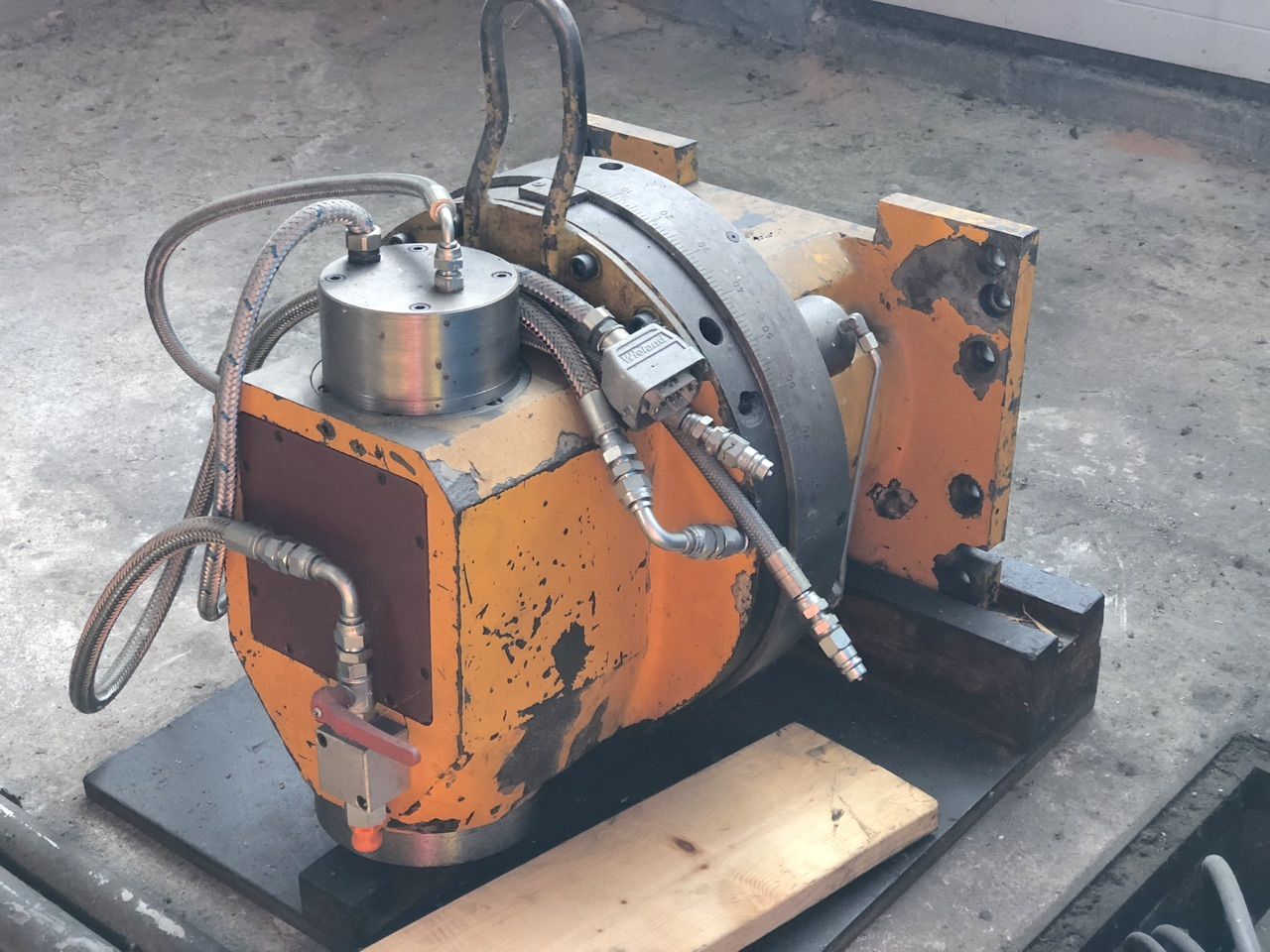

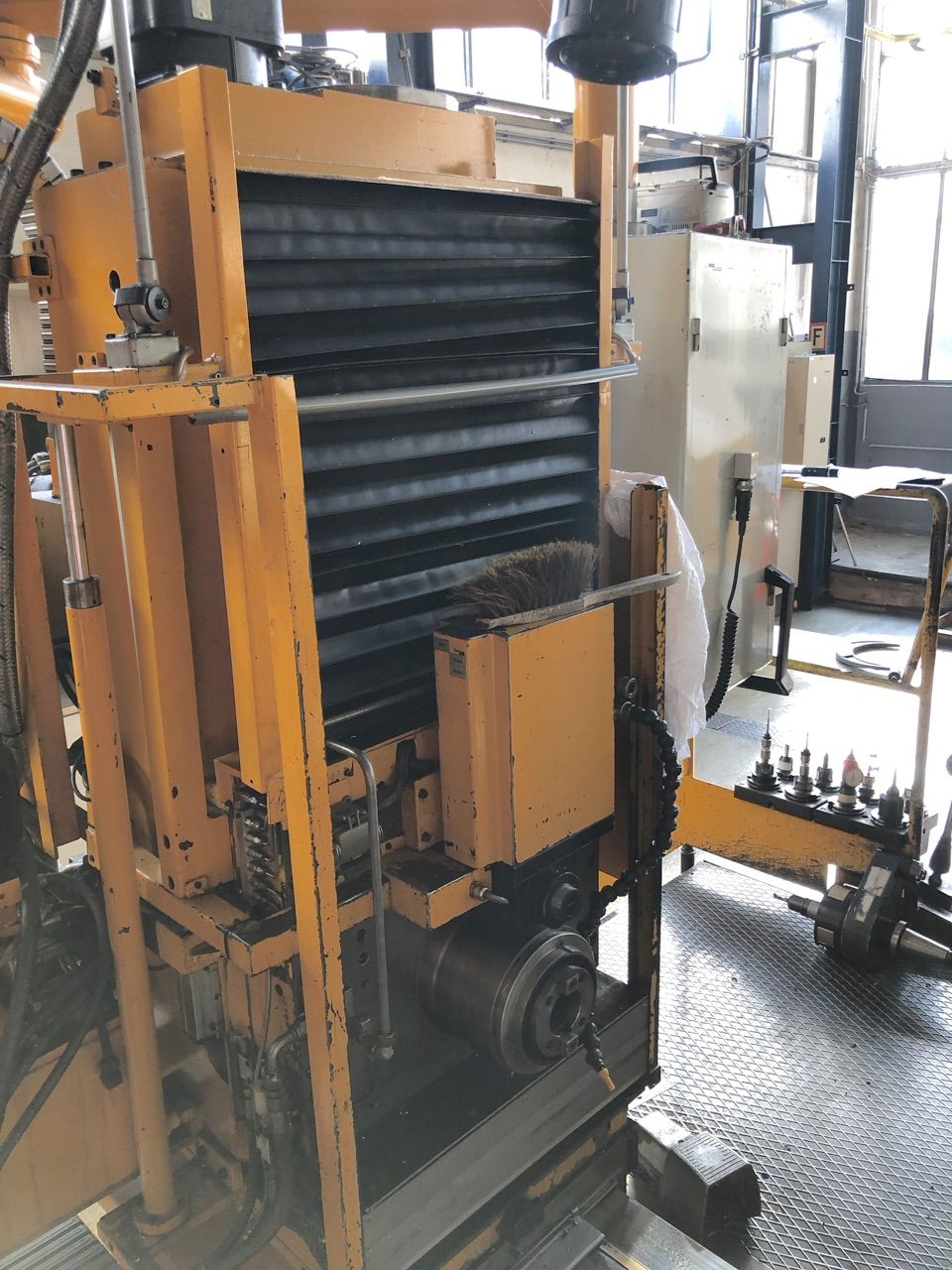

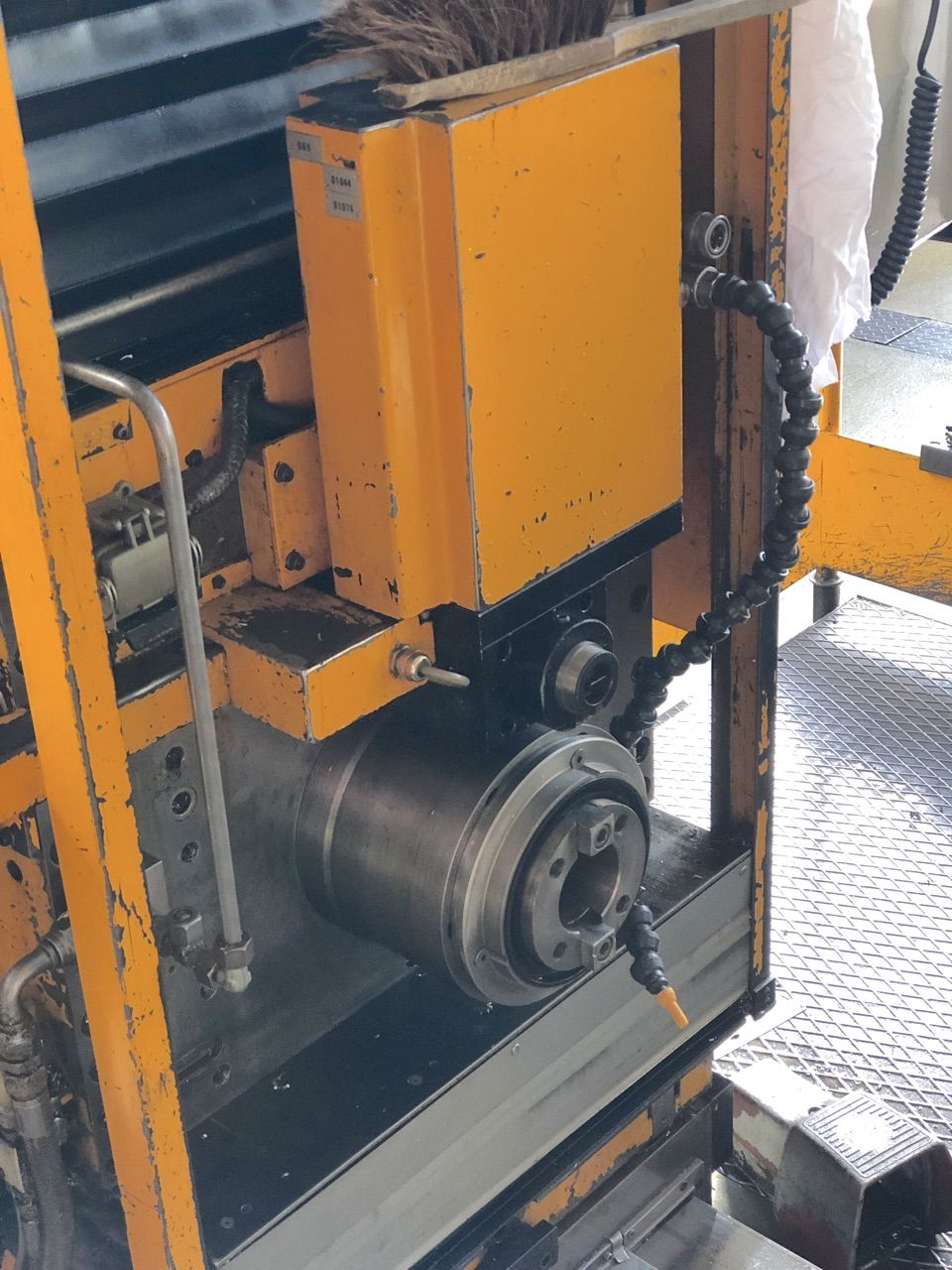

MILLING UNIT
Y
+550/-130 mm+21,65/-5,12 in

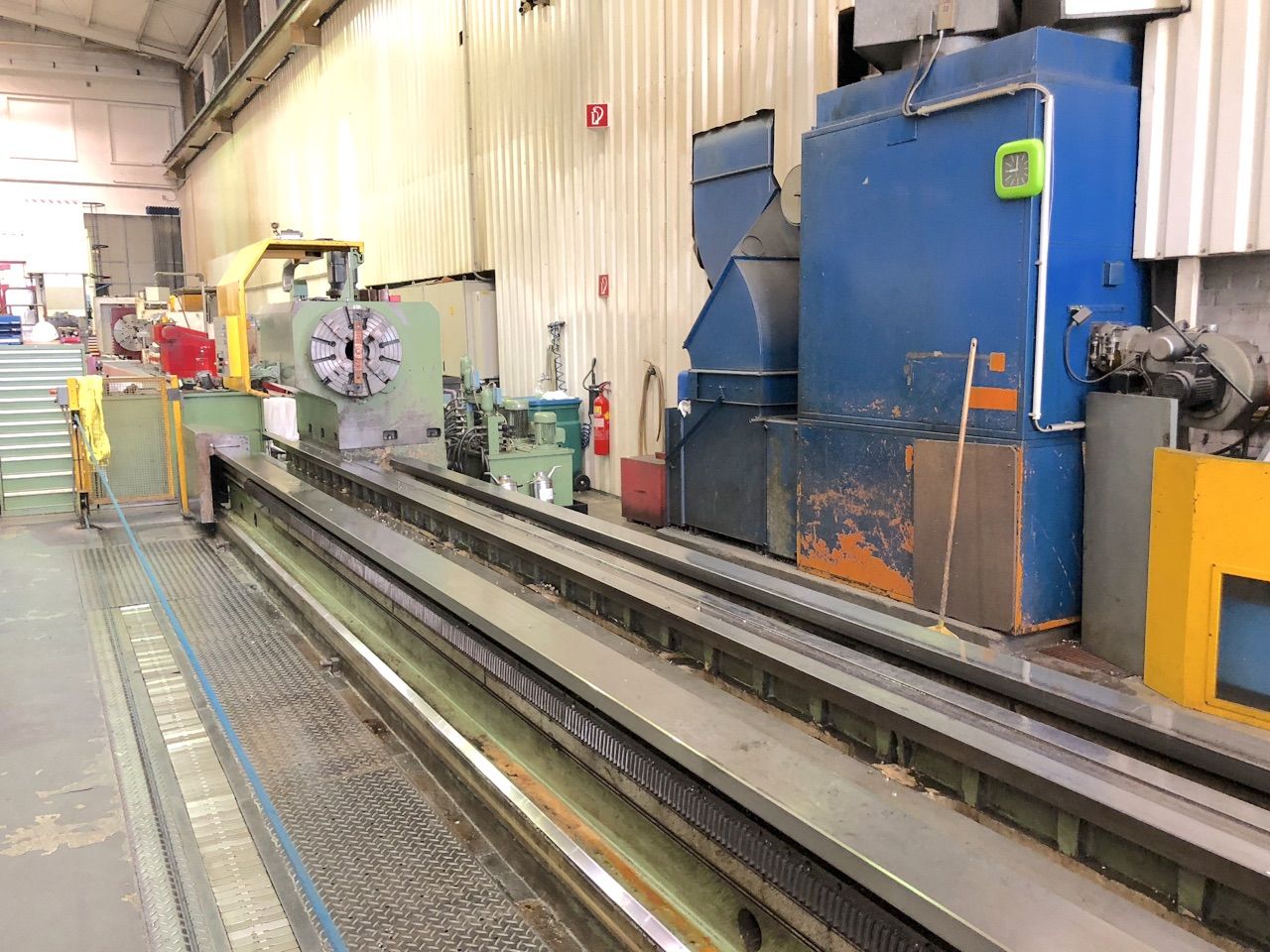

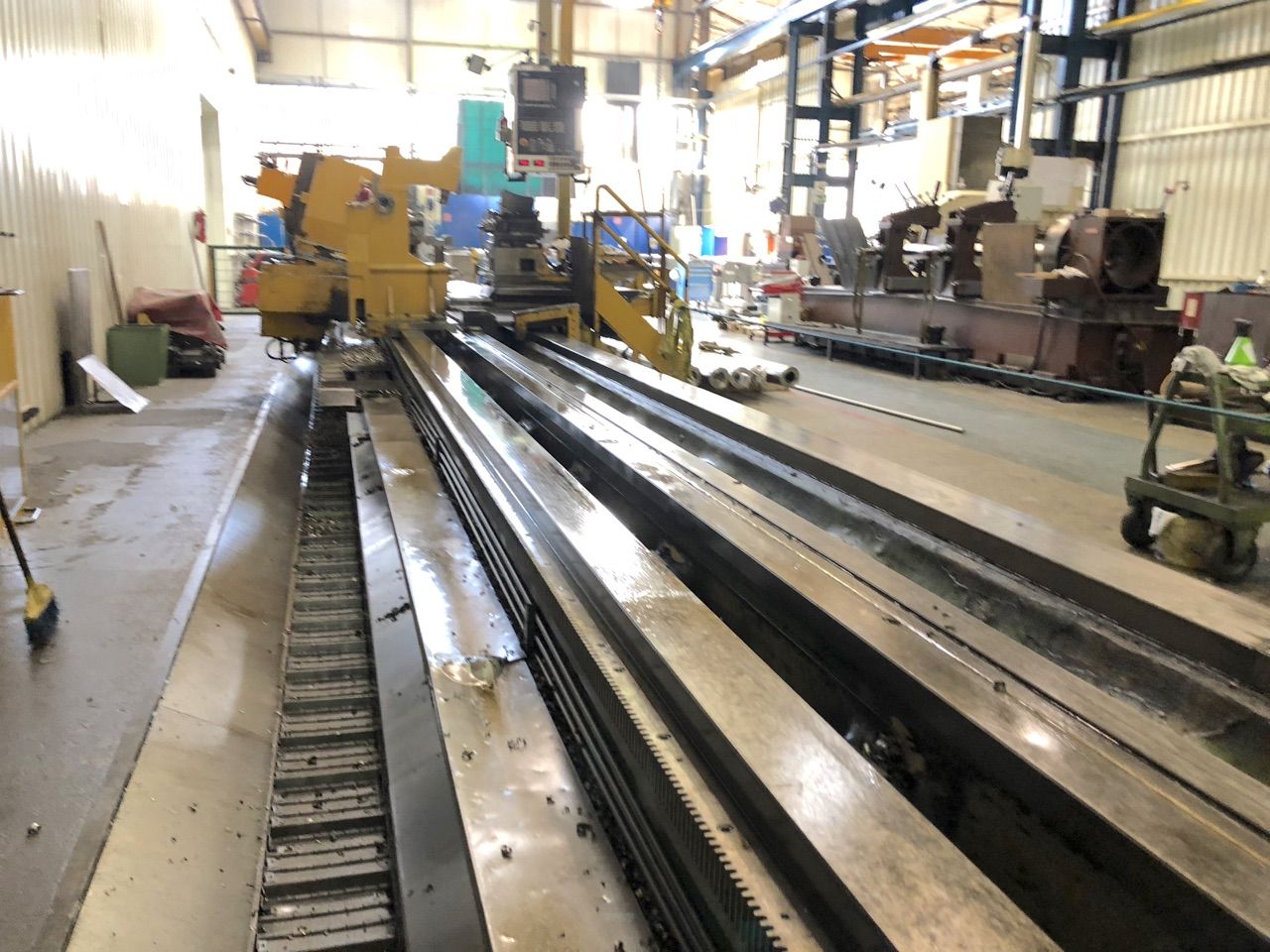

FLAT BED
Guide-ways number
3
Bed width
1050 mm41,34 in

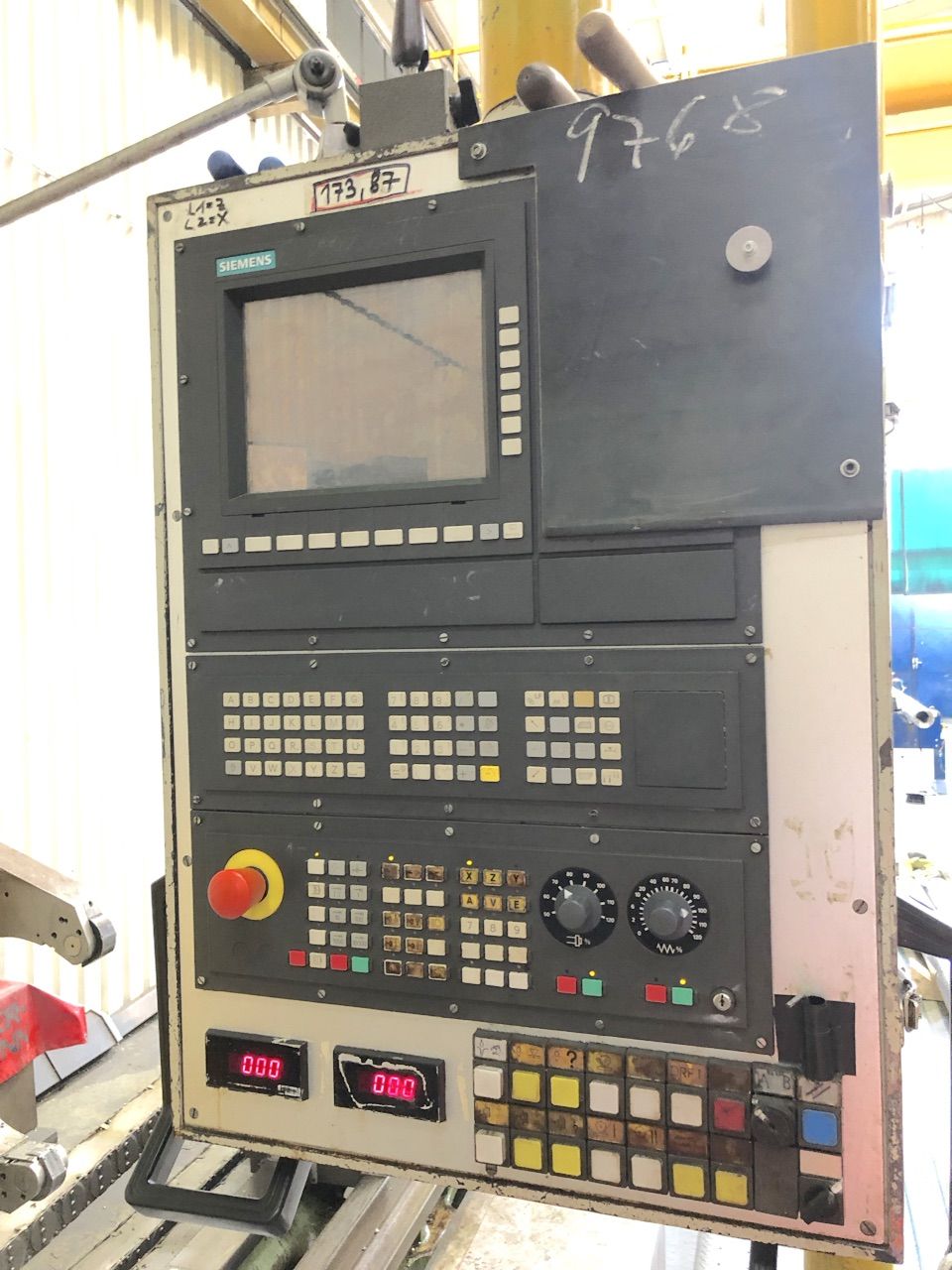

CNC
CNC
SIEMENS 840D
Drives
Siemens Sinumerik
MAIN SPINDLE
Accuracy (C axis)
0,001 °
Spindle hole
120 mm4,72 in
Spindle nose
ASA15”
Max rotation speed
720 rpm
Max torque
13000 Nm
Max power
55 Kw
Chuck diameter
600 mm23,62 in
Positions number
4

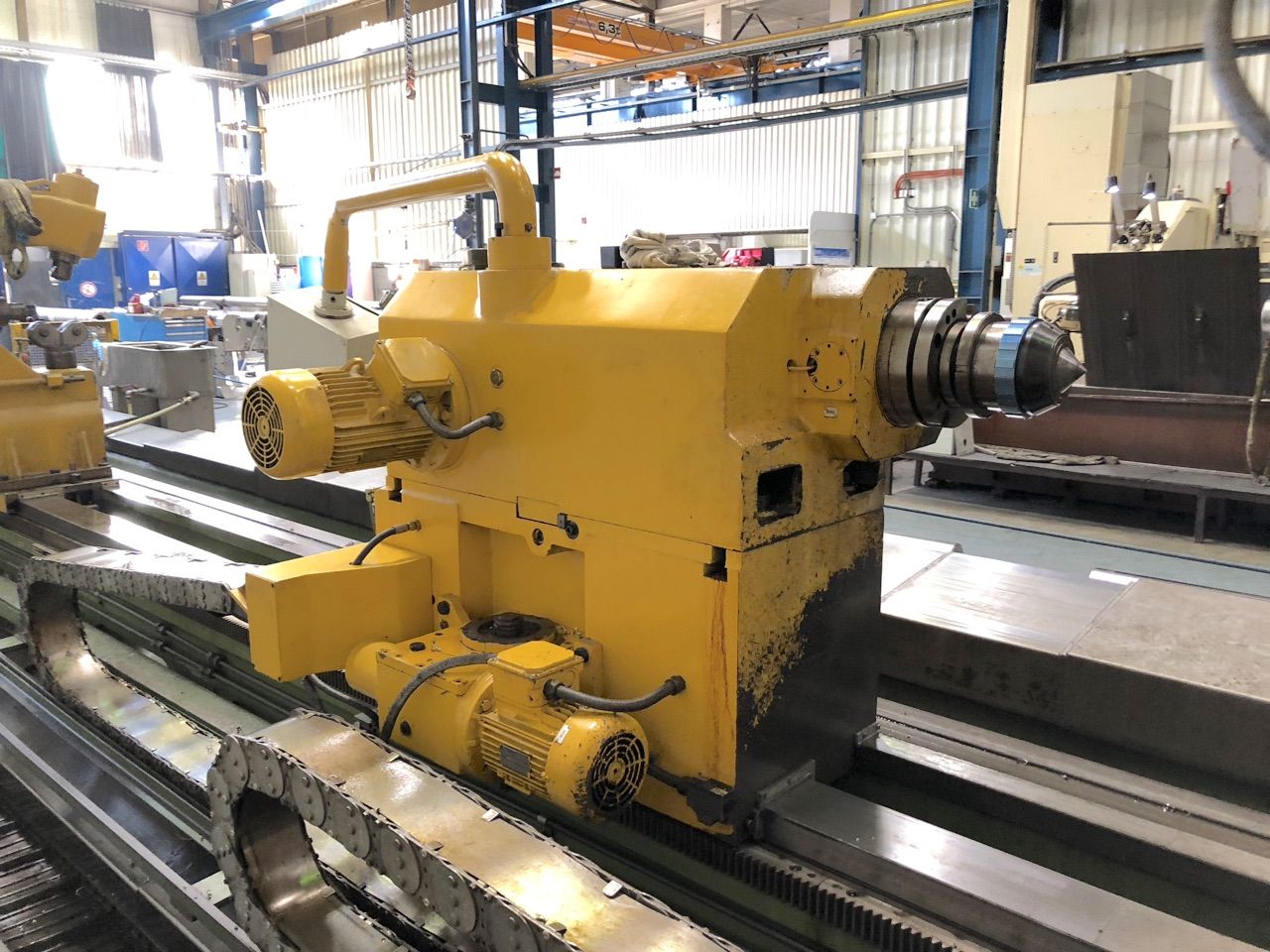

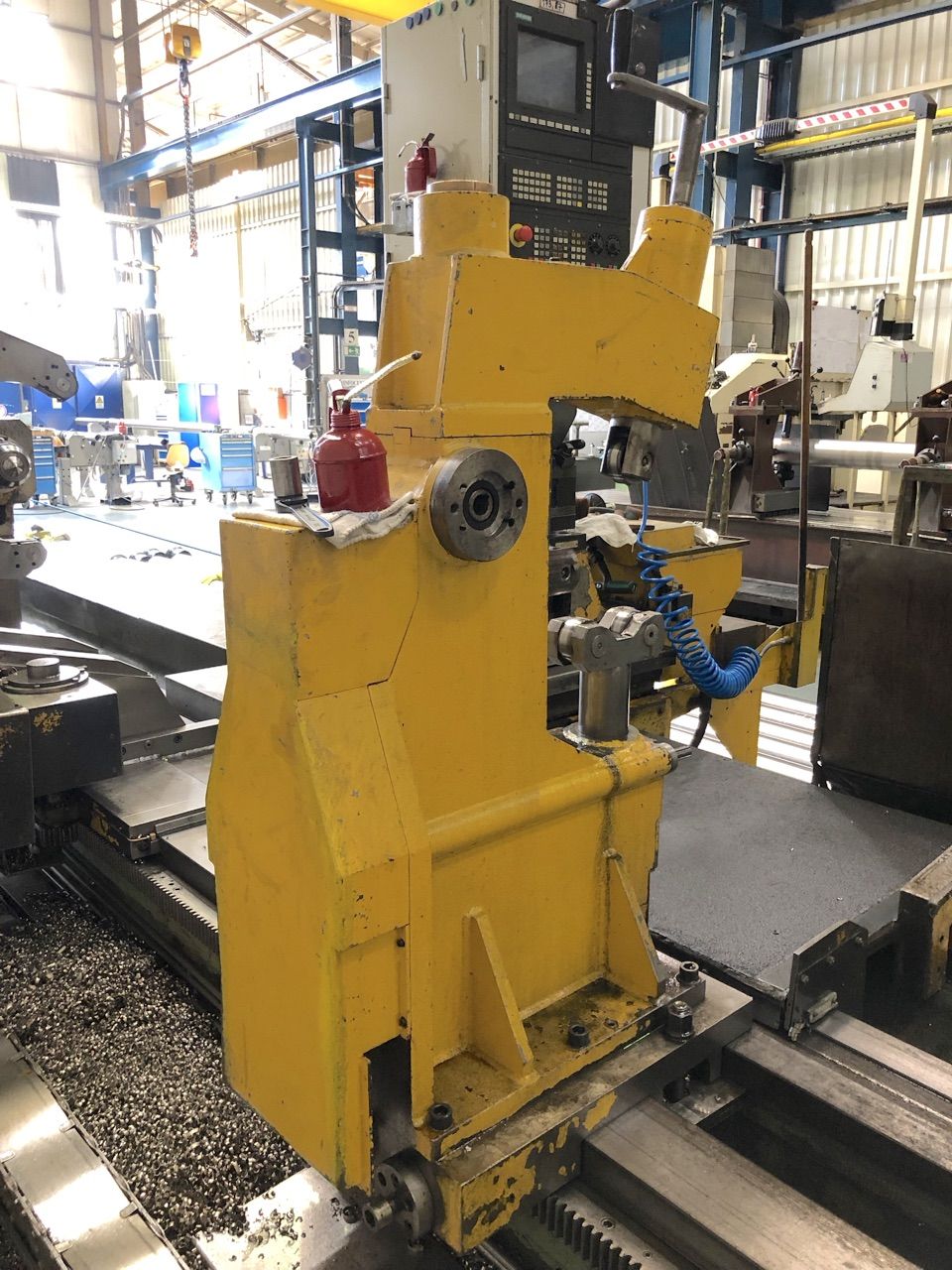

TAILSTOCK
Quill diameter
215 mm8,46 in
Quill stroke
300 mm11,81 in
Taper
CM6
EXTRA
Machine total weight
60000 Kg

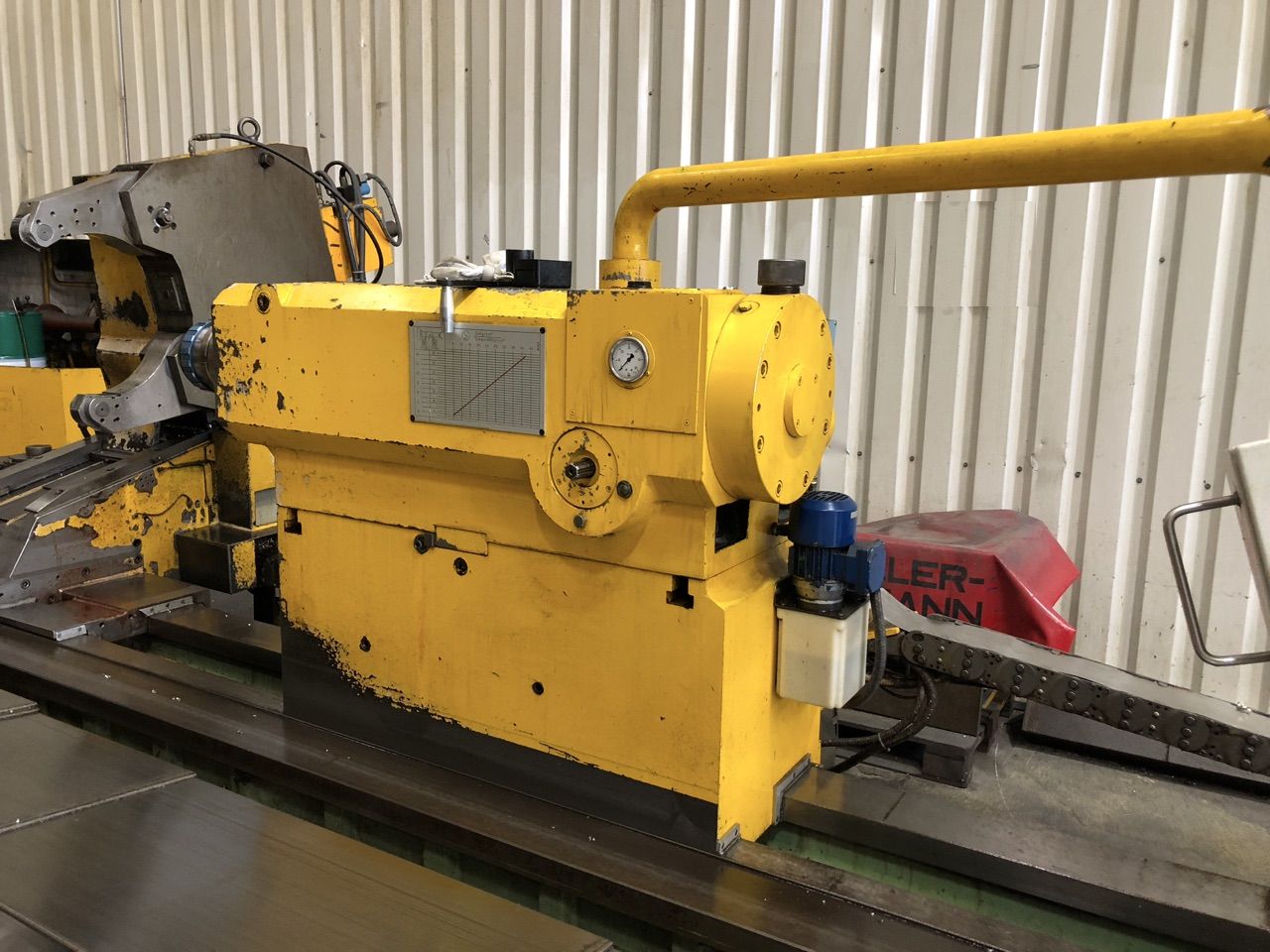

Hydraulic steady
1 - indipendente SMW Autoblock ø45/350mm

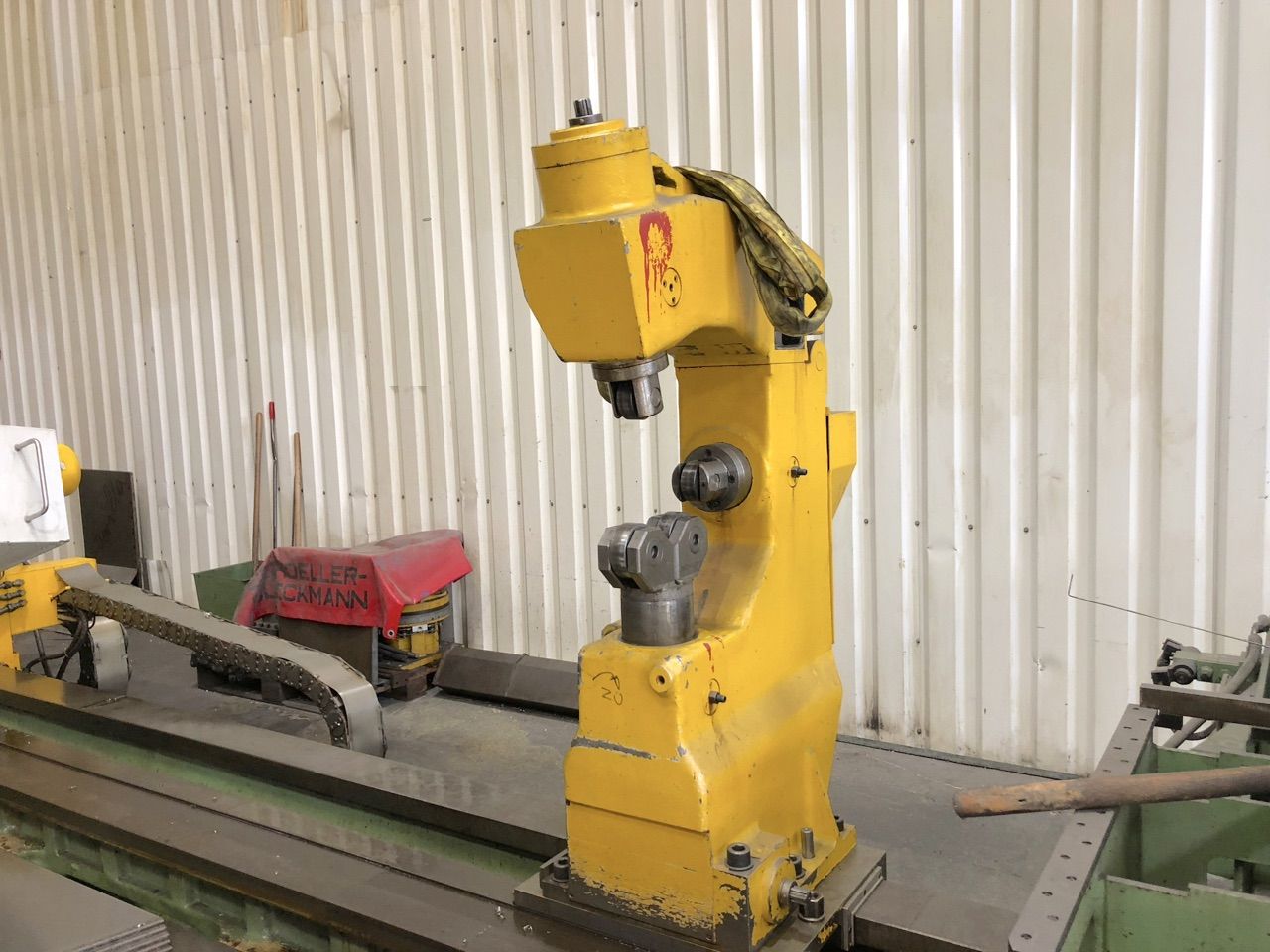

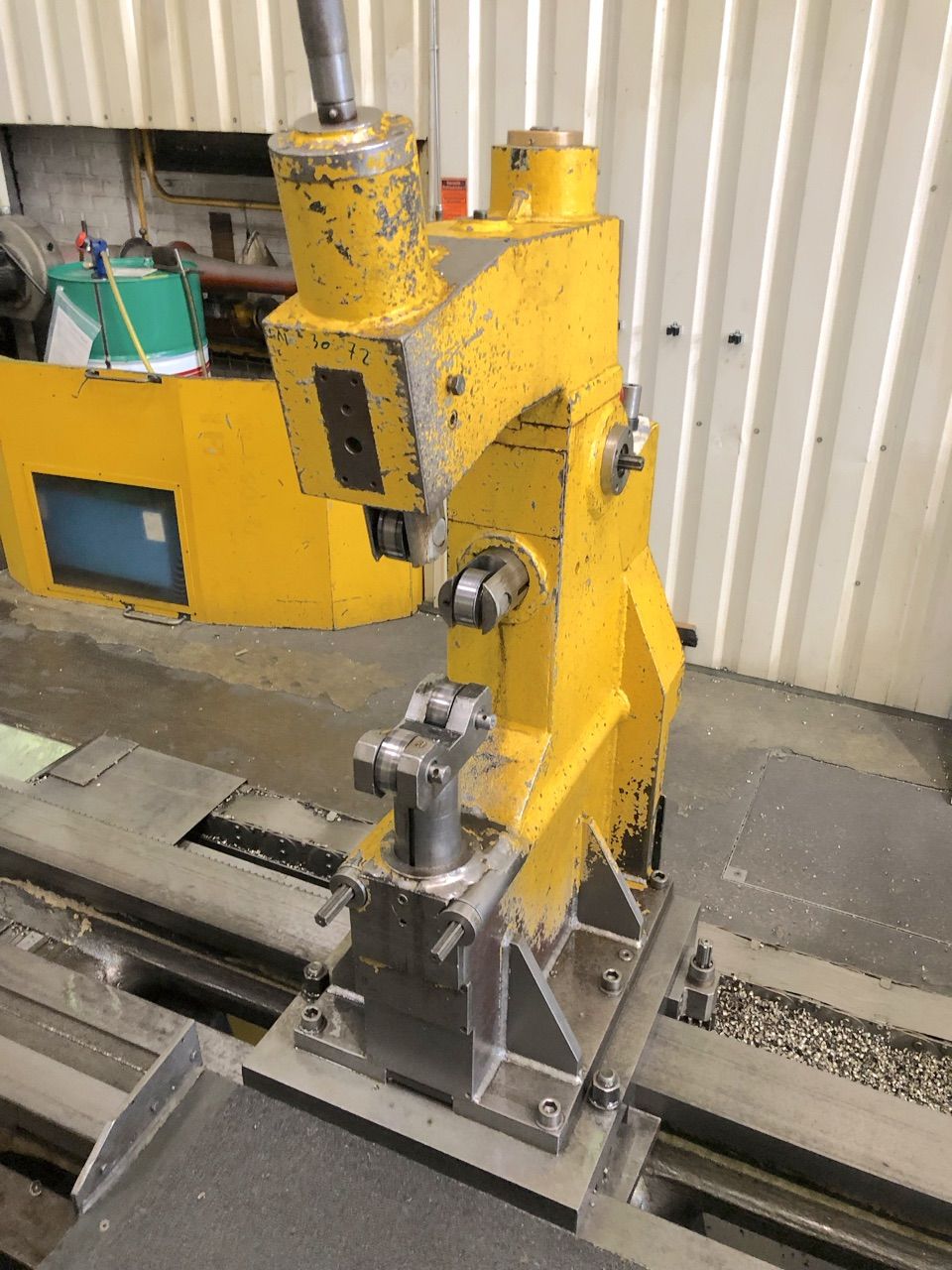

Open steadies
2 a C 60-400mm, portata 2000kg cad
Platform
1

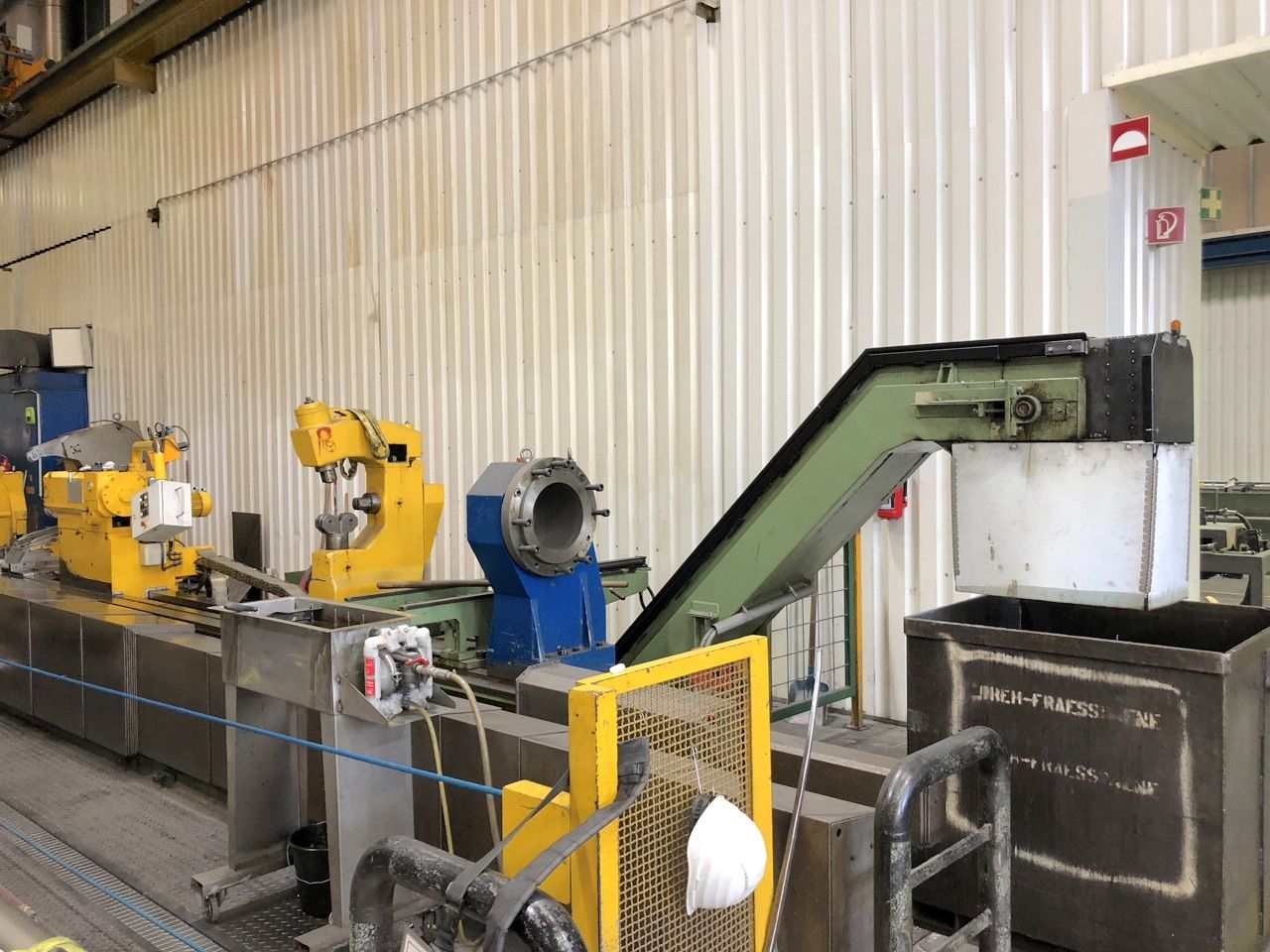

Chip conveyor
si
Availability
Pronta
Available under power
Yes
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes
