Category
Turning Machine
Type
CNC
Made
Model

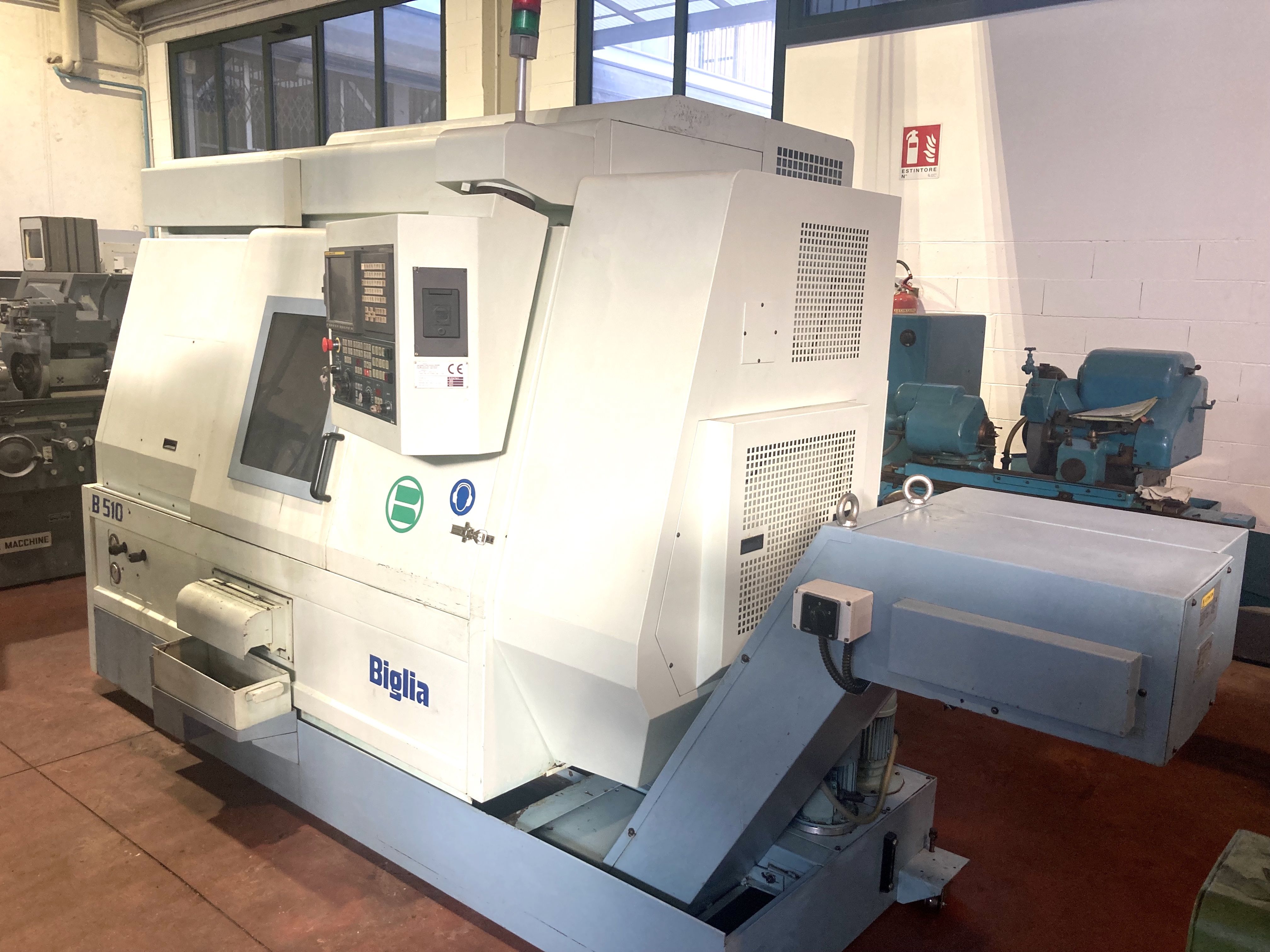

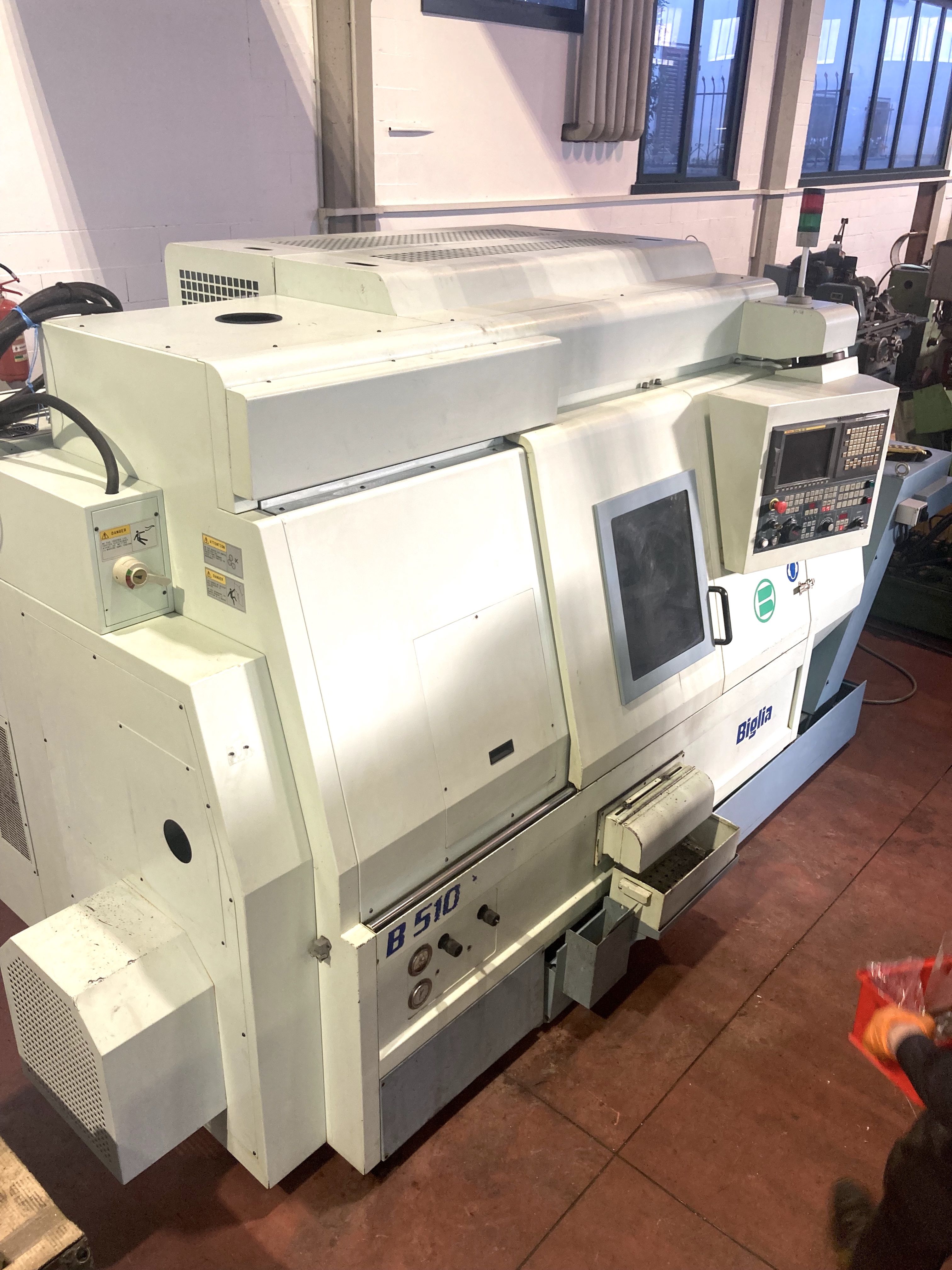

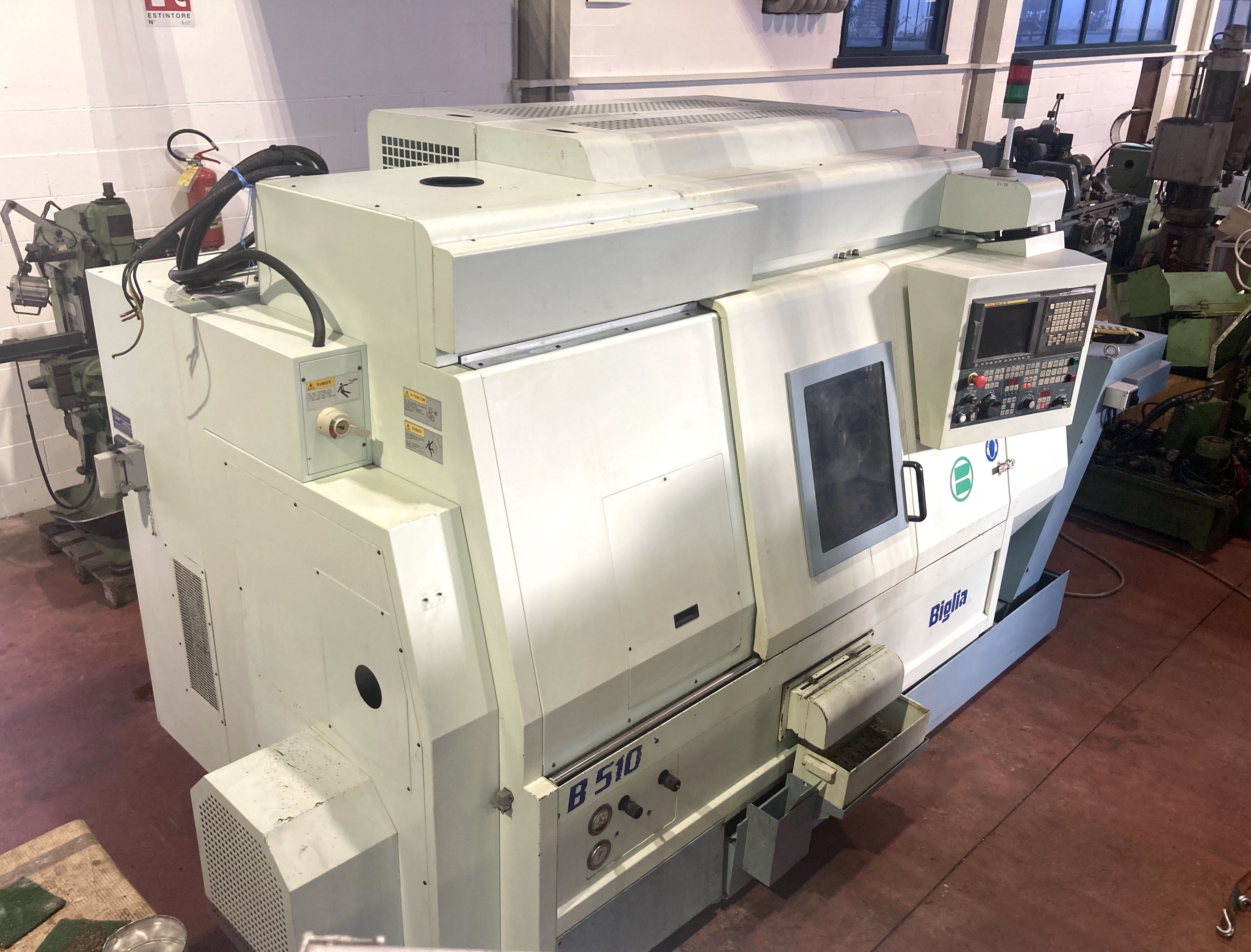

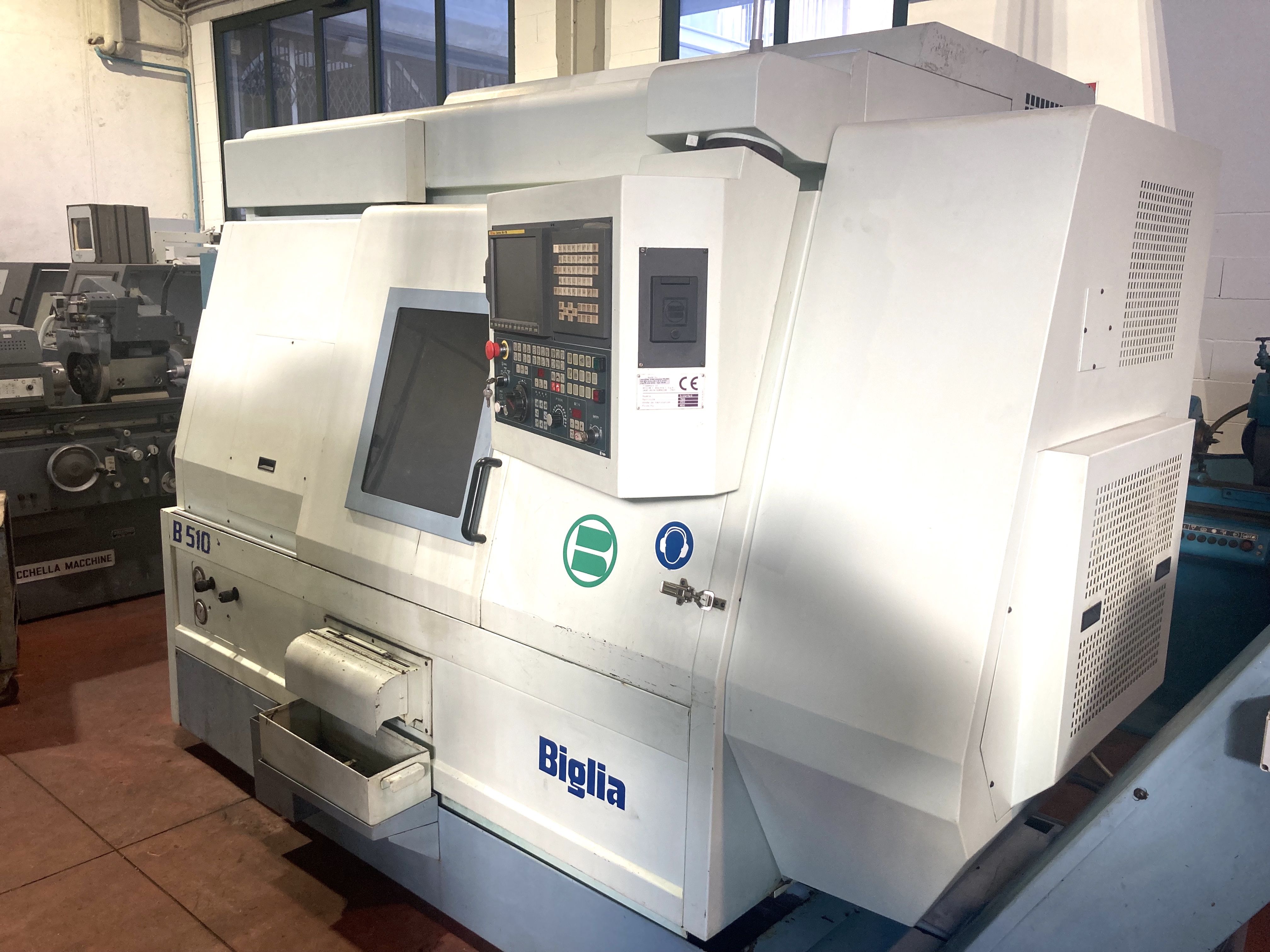

B 510 YB-8
Capacity
ø80/320x510 mmø3,15/12,60x20,08 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Max bar working diameter
80 mm3,15 in
Max turning diameter
320 mm12,60 in
Max working lenght
510 mm20,08 in
Max diameter on bed
520 mm20,47 in
CNC
CNC
Fanuc 18iT
Notes
Biglia Easy Cicle, Poligonatura
MAIN SPINDLE
Max rotation speed
3200 rpm
Spindle nose
ASA8”
Spindle hole
92 mm3,62 in
Internal bearing diameter
130 mm5,12 in
Max power
22/26 Kw
Accuracy (C axis)
0,001 °
C axis speed
100 Rpm
TAILSTOCK
Quill diameter
85 mm3,35 in
Quill stroke
100 mm3,94 in
Taper
CM4
Axis stroke B
500 mm19,69 in
Rapid feed B
12 m/min472,44 ipm
TURRET 2
Positions number
12
Rotation time (1 pos)
0,15 sec.
Number of driven stations
12
Driven tools speed
3000 rpm
Driven tools power
3,7 Kw
Axis stroke X2
210 mm8,27 in
Rapid feed X2
12 m/min472,44 ipm
Axis stroke Z2
510 mm20,08 in
Axis stroke Y2
120mm (+/-60) mm4,72mm (+/-2,36) in
Rapid feed Y2
6 m/min236,22 ipm
EXTRA
Machine total weight
4500 Kg
Floor space
4000x1940x1765 mm157,48x76,38x69,49 in
Chip conveyor
si

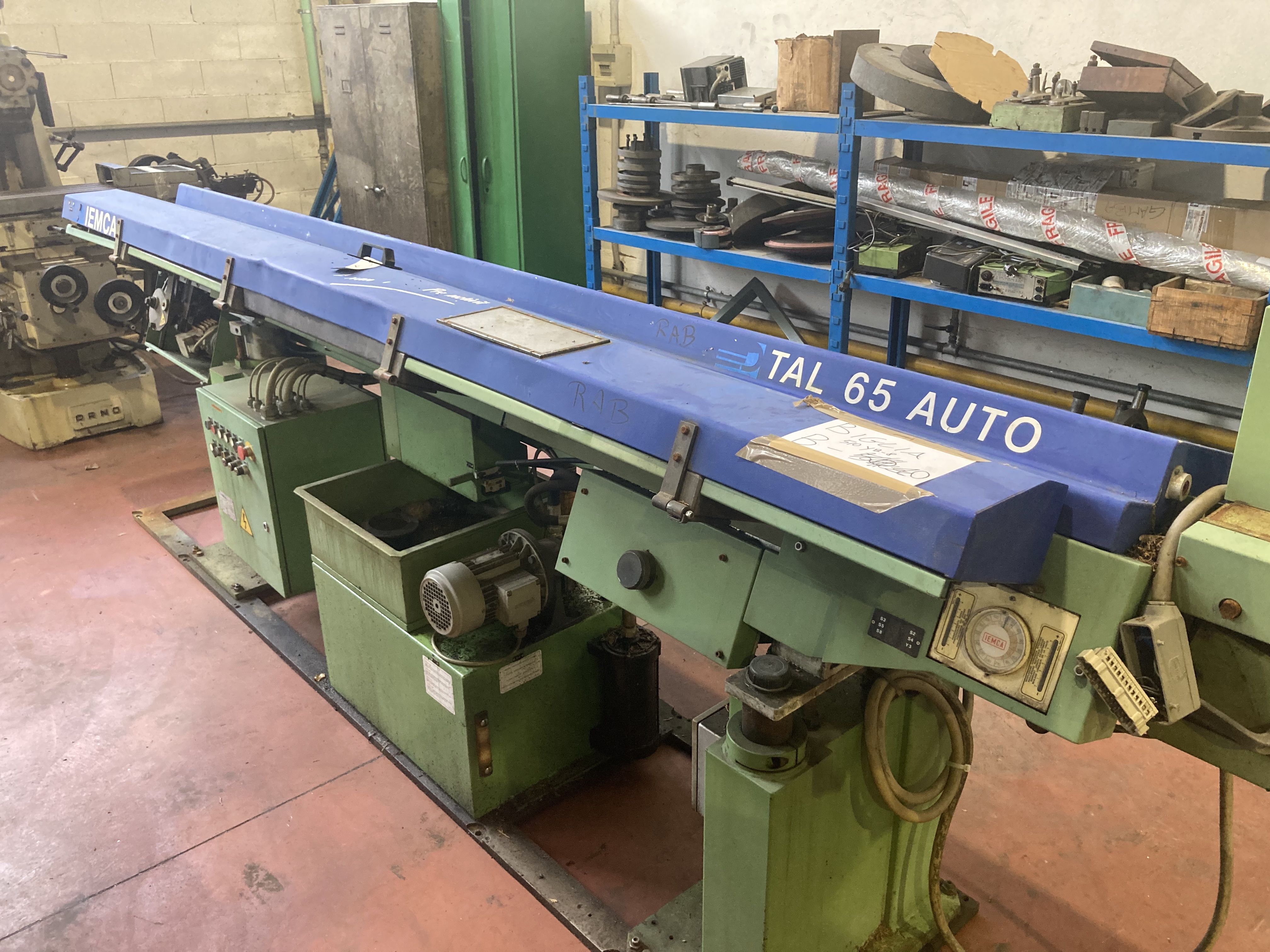

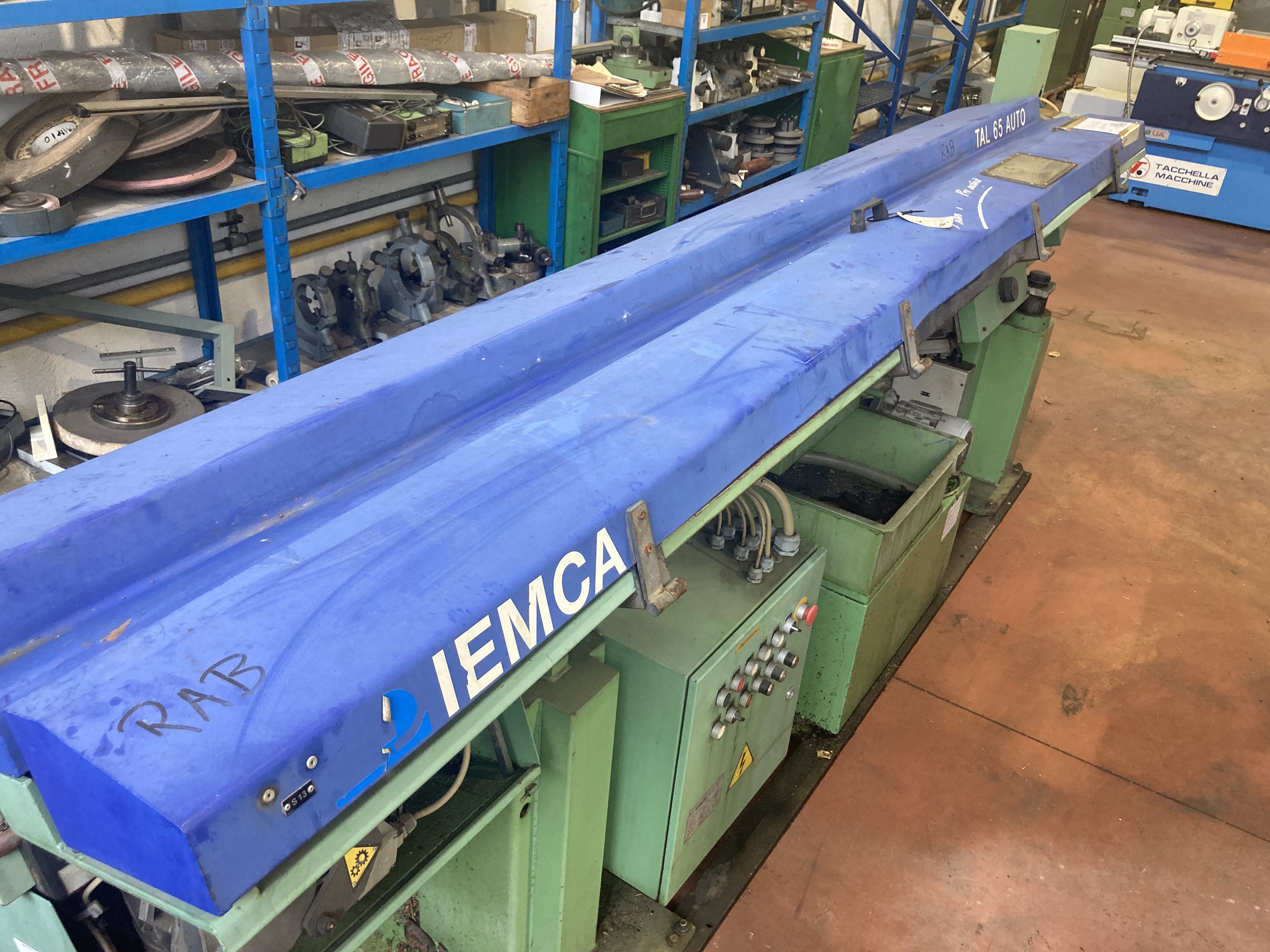

Bar feeder
IEMCA TAL AUTO65
