Technical specifications
Metric
Imperial
WORKING CAPACITY
Max diameter on bed
660 mm25,98 in
Max diameter on cross-slide
460 mm18,11 in
Max working lenght
3000 mm118,11 in

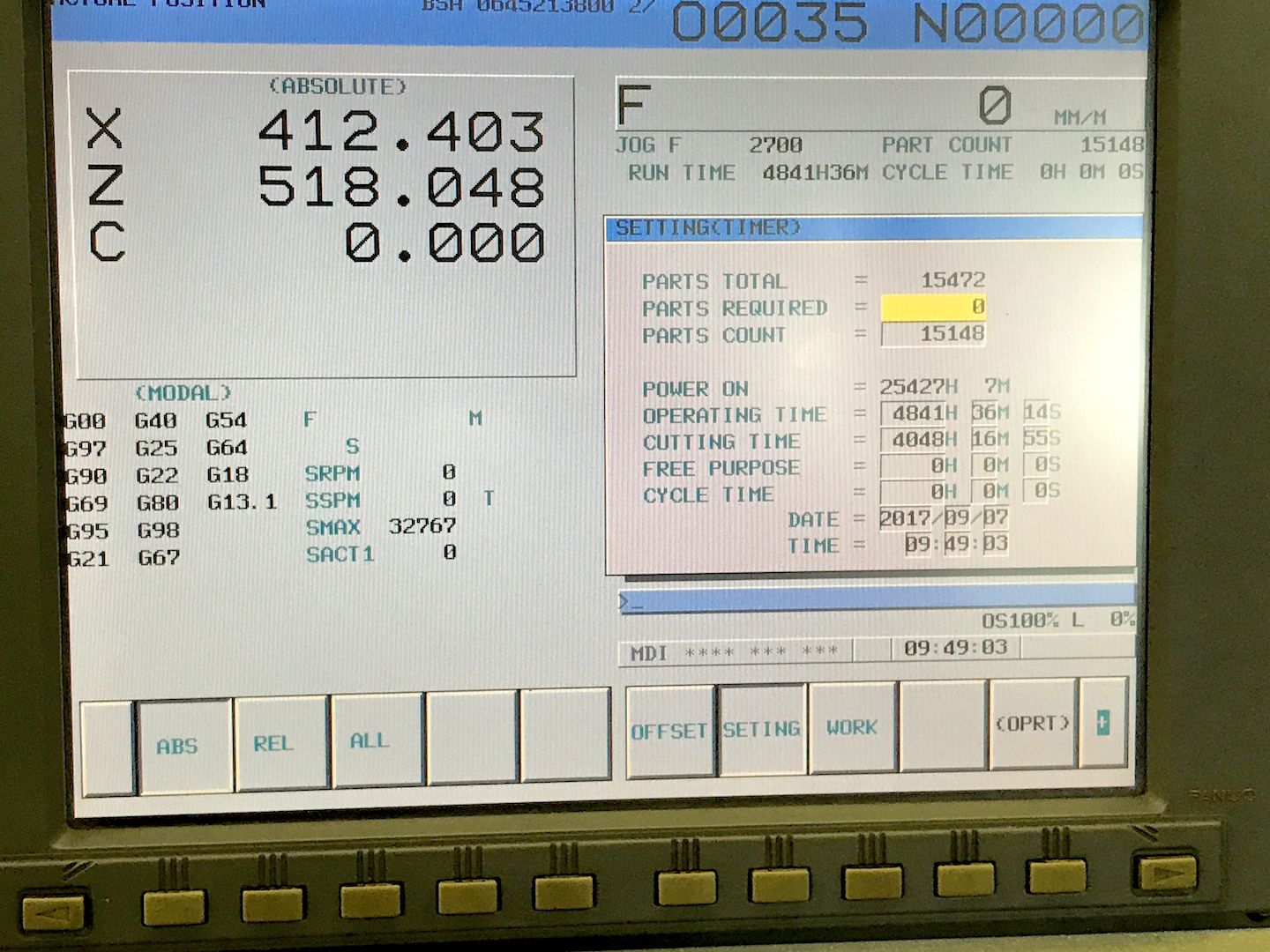

CNC
CNC
Fanuc 21i- T
Notes
Manual Guide
MAIN SPINDLE
Max rotation speed
170-2700 rpm
Spindle nose
A2-8”
Spindle hole
105 mm4,13 in
Internal bearing diameter
140 mm5,51 in
Chuck diameter
400 mm15,75 in
Max power
28/35 Kw
Max torque
1570/1965 Nm
Accuracy (C axis)
0,001 °
TAILSTOCK
Axis stroke B
2950 mm116,14 in

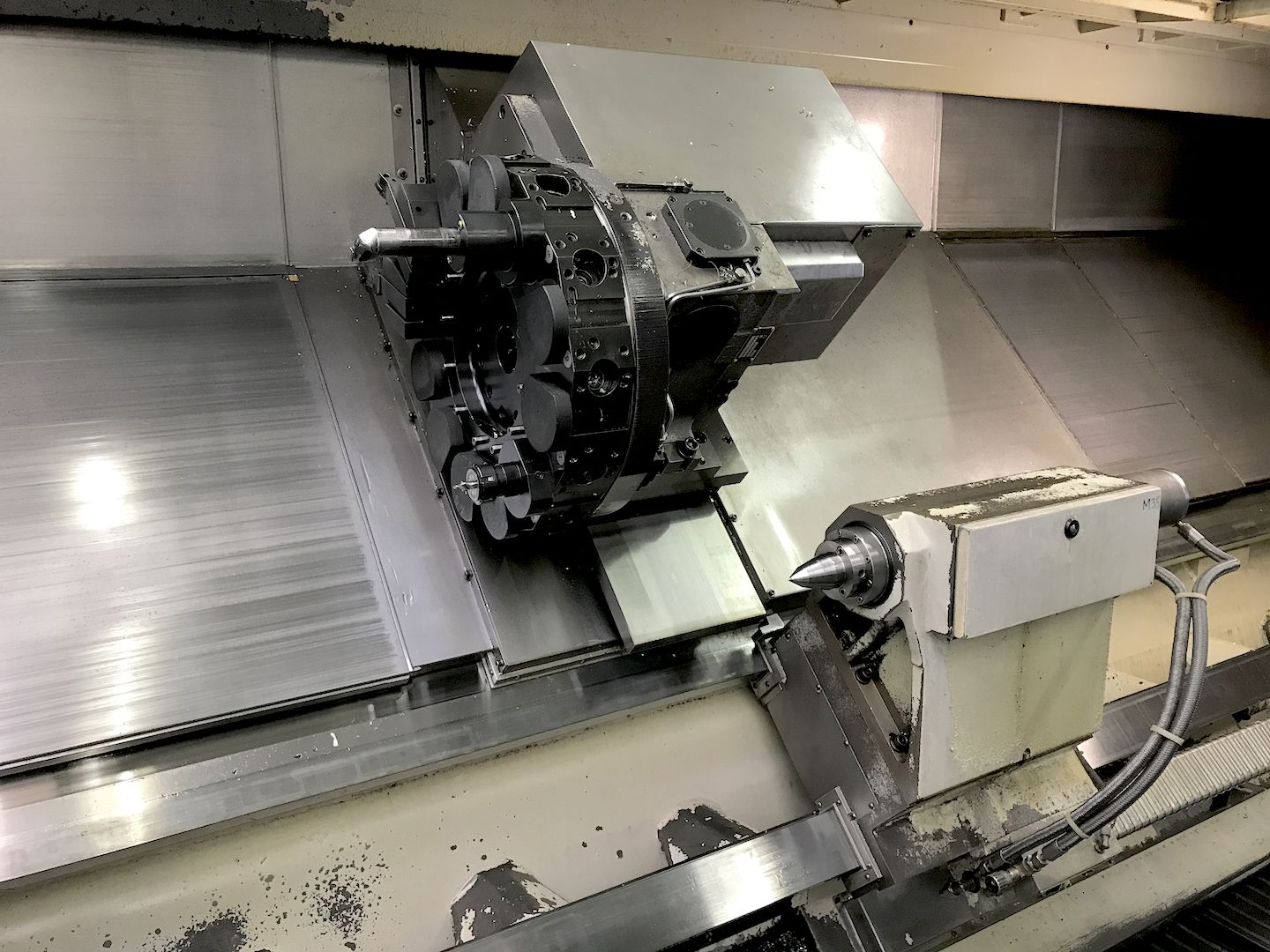

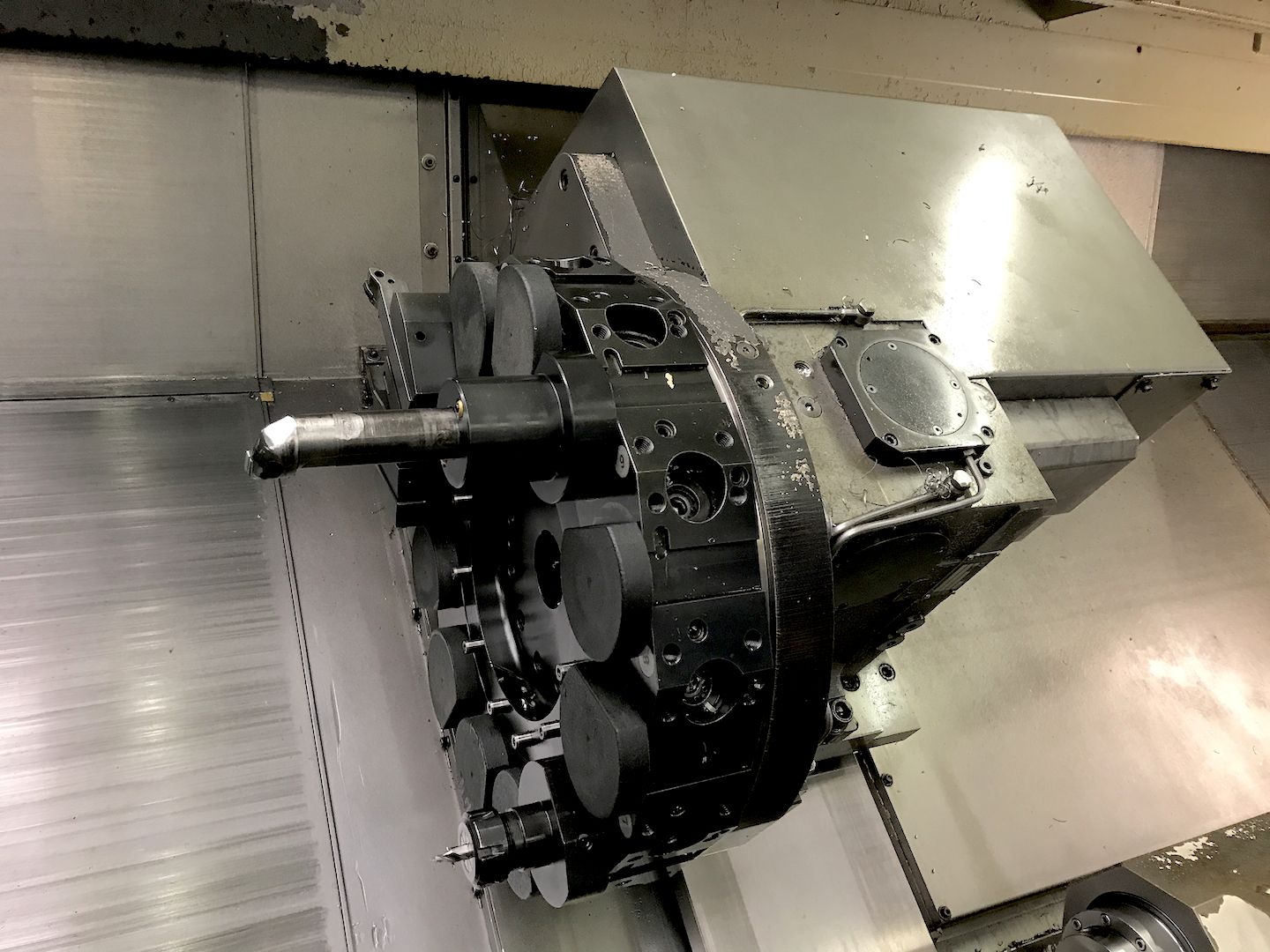

Positions number
12
Number of driven stations
12
Driven tools power
5,5 Kw
Axis stroke X
370 mm14,57 in
Rapid feed X
15 m/min590,55 ipm
Axis stroke Z
3000 mm118,11 in
Rapid feed Z
20 m/min787,40 ipm
EXTRA
Total power supply
50 Kw
Machine total weight
10000 Kg
Floor space
4990x1700x2200 mm196,46x66,93x86,61 in
Hydraulic steady
Morari 280mm

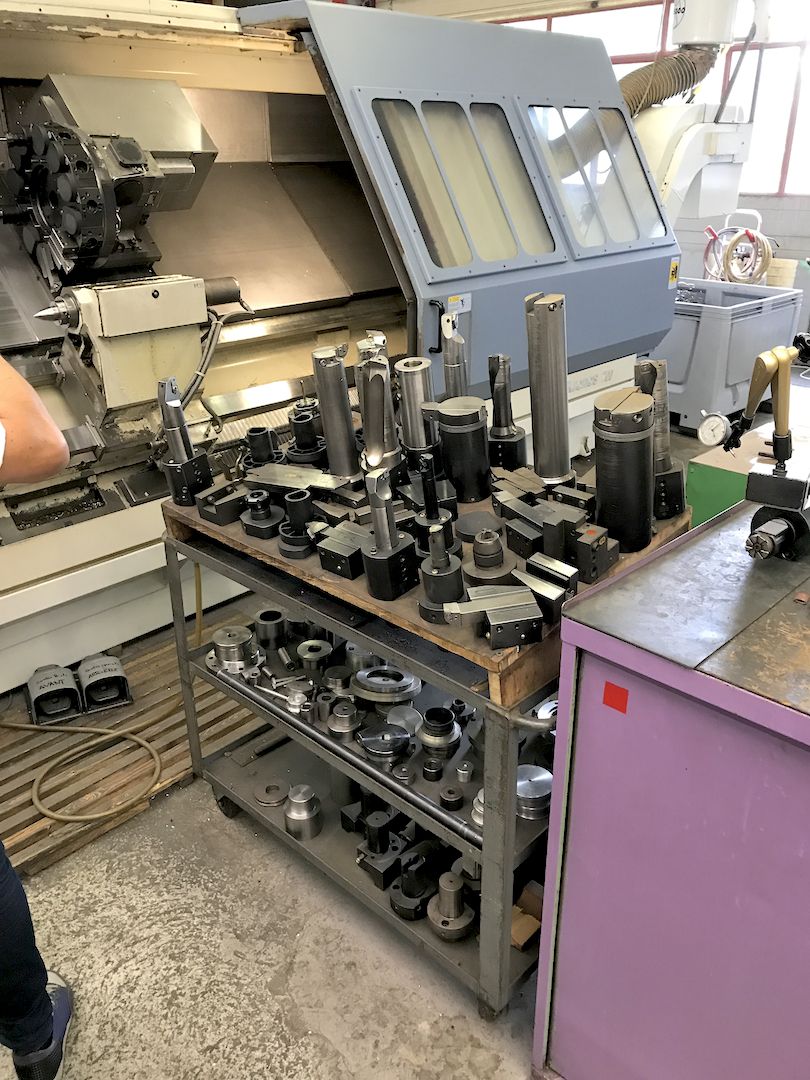

Fixed toolholders
yes
Driven toolholders
yes
Autocentering chuck
yes

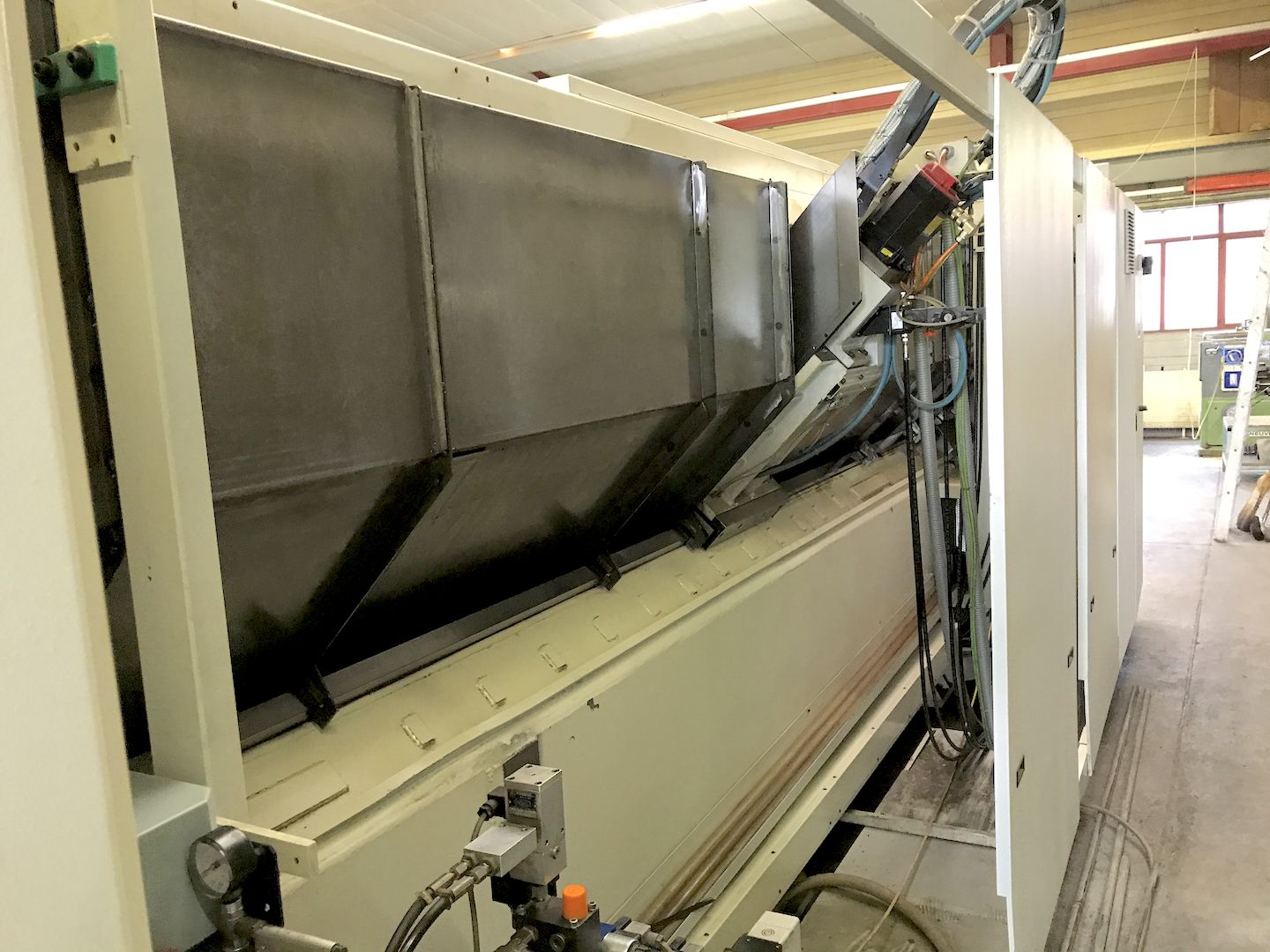

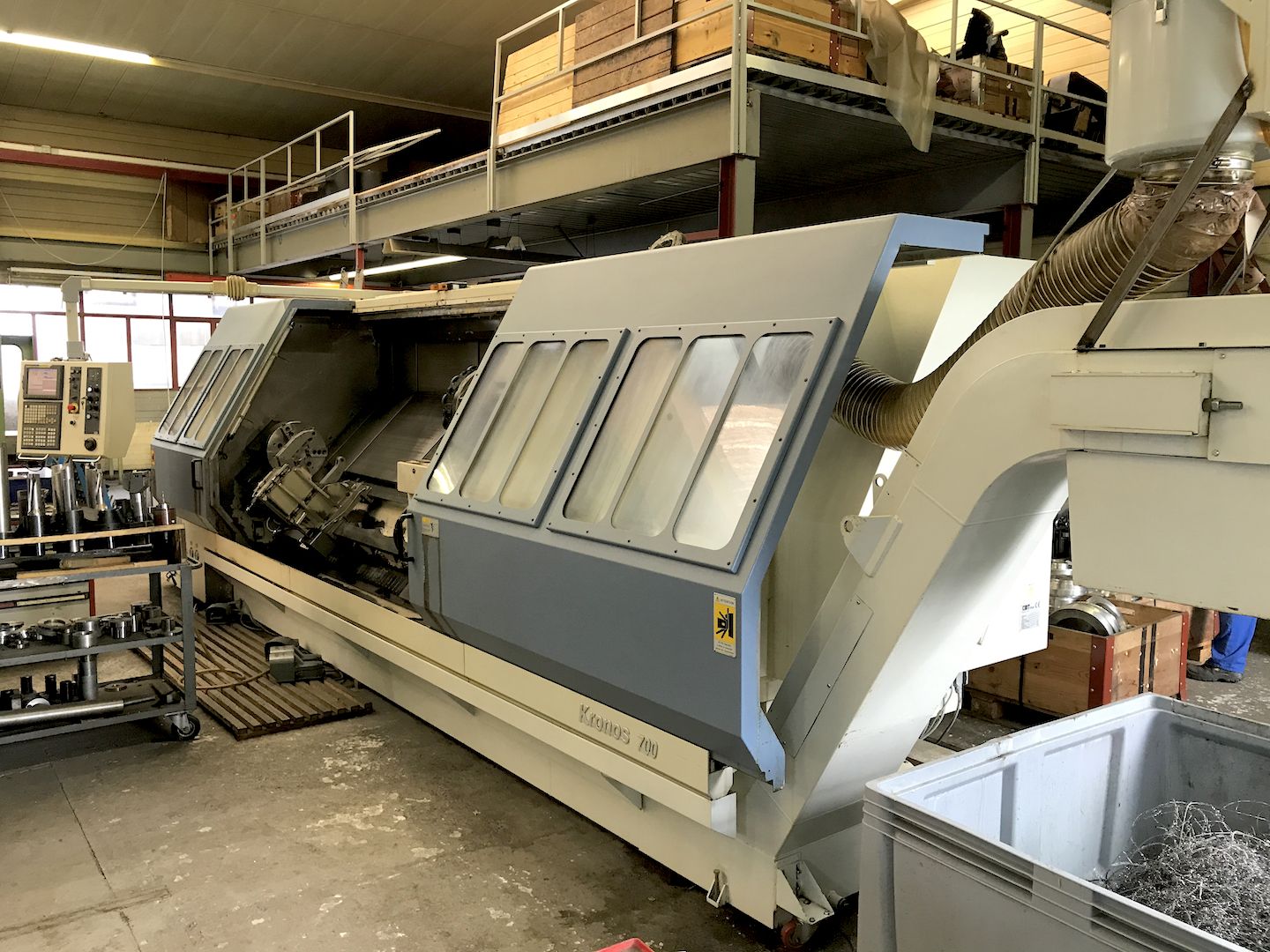

Chip conveyor
si
Coolant pump
si
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes
Protections
integrali
Availability
pronta
Available under power
Yes
