Category
Turning Machine
Type
CNC
Made
Model

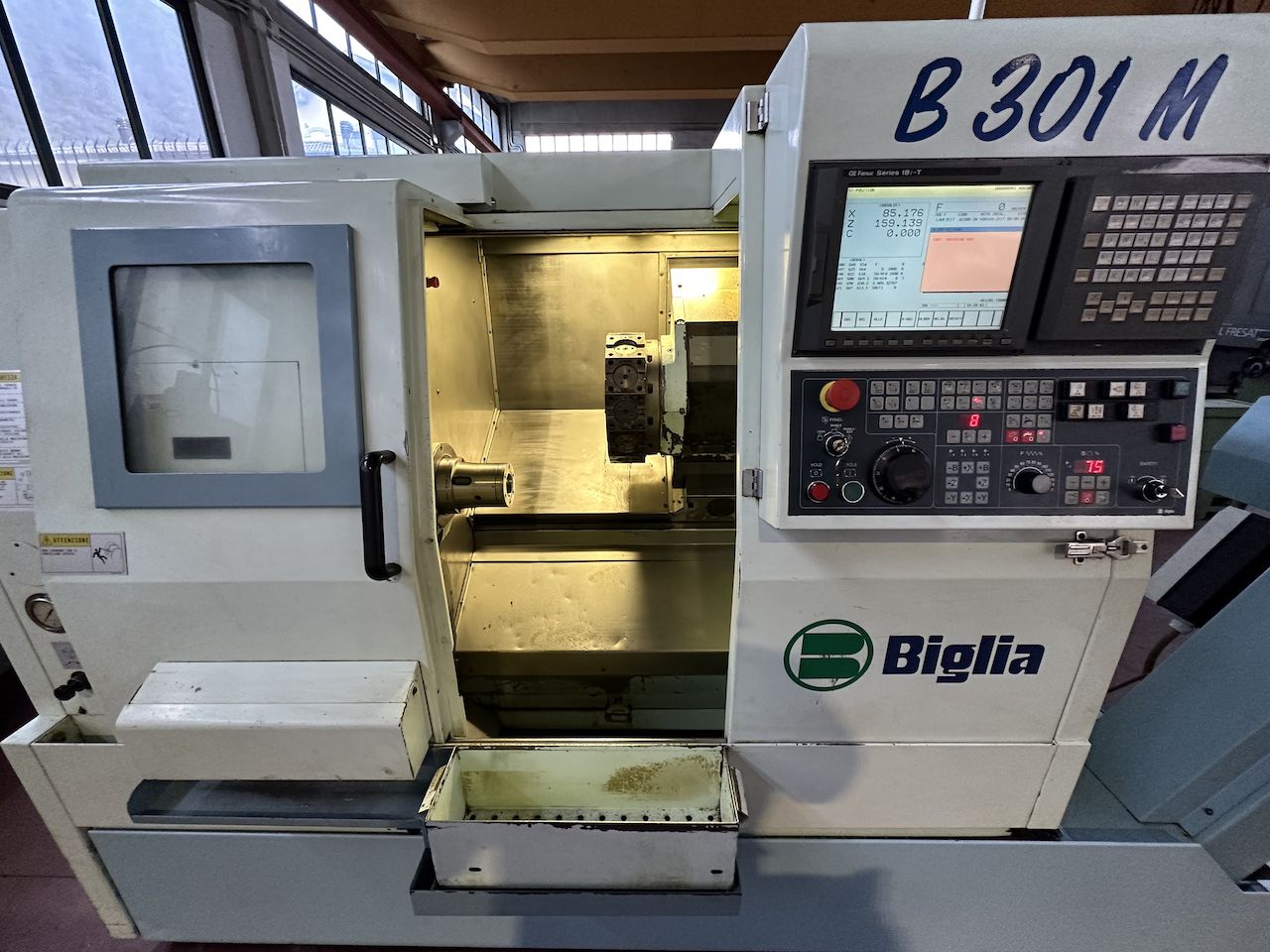

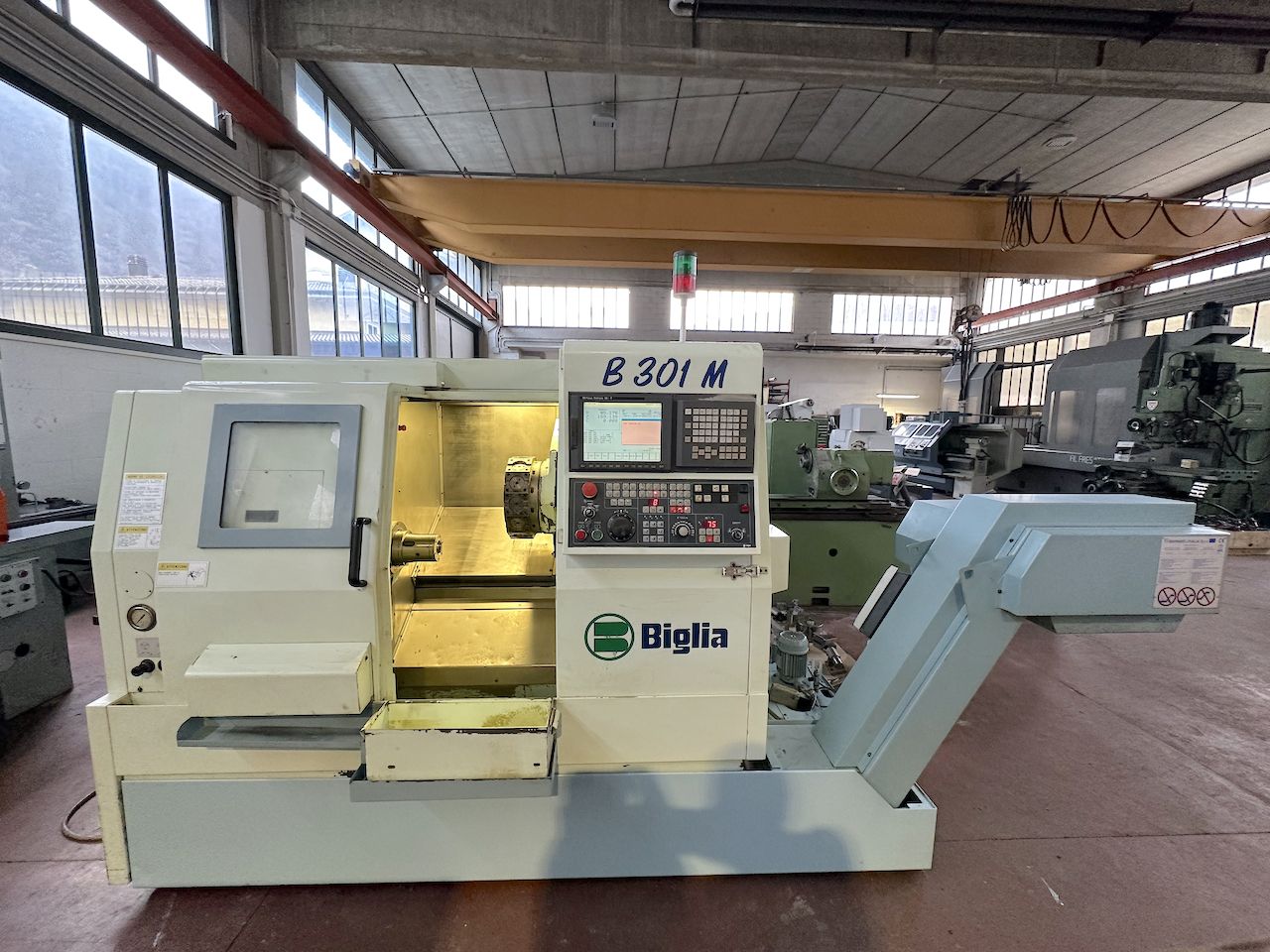

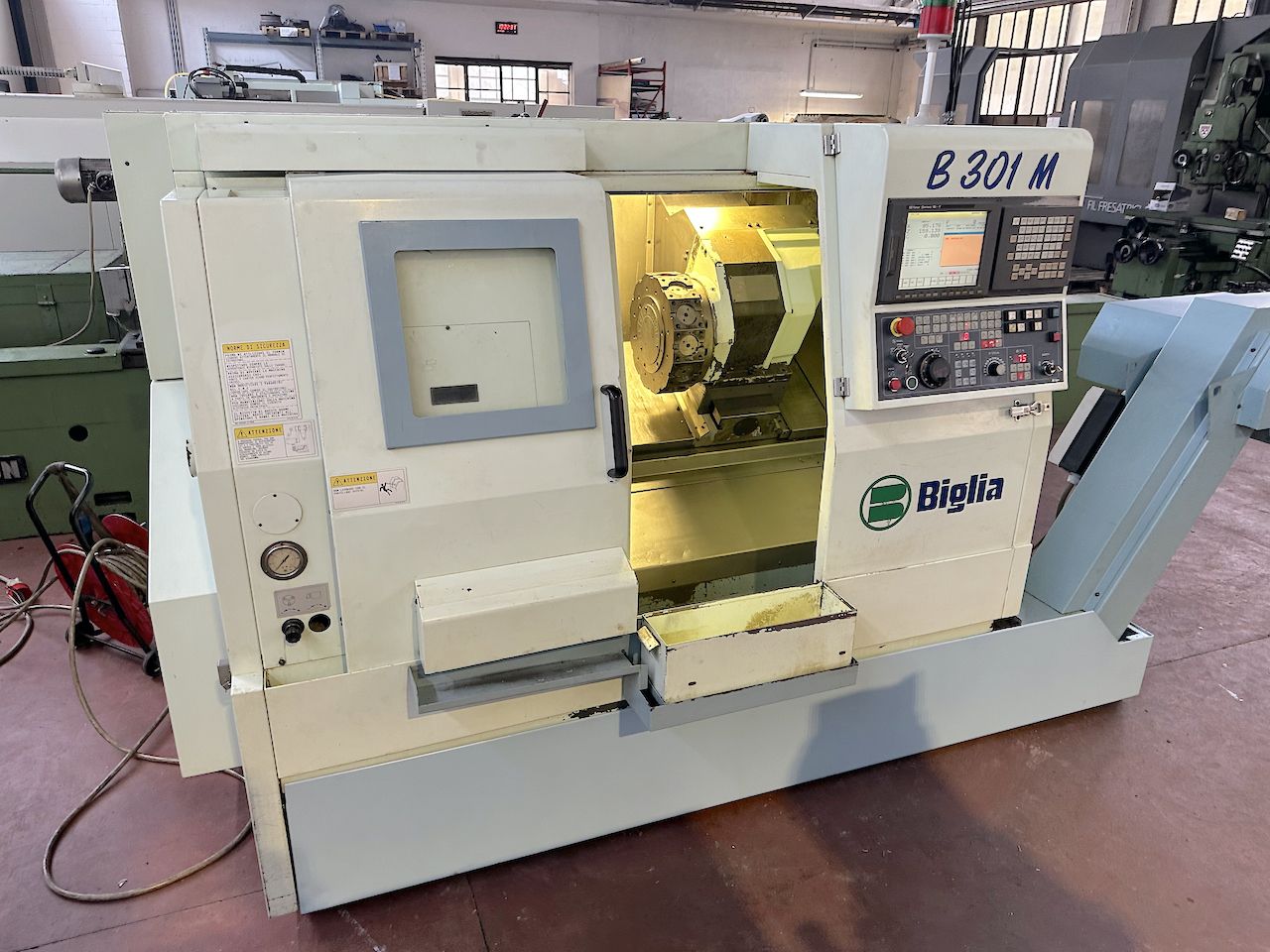

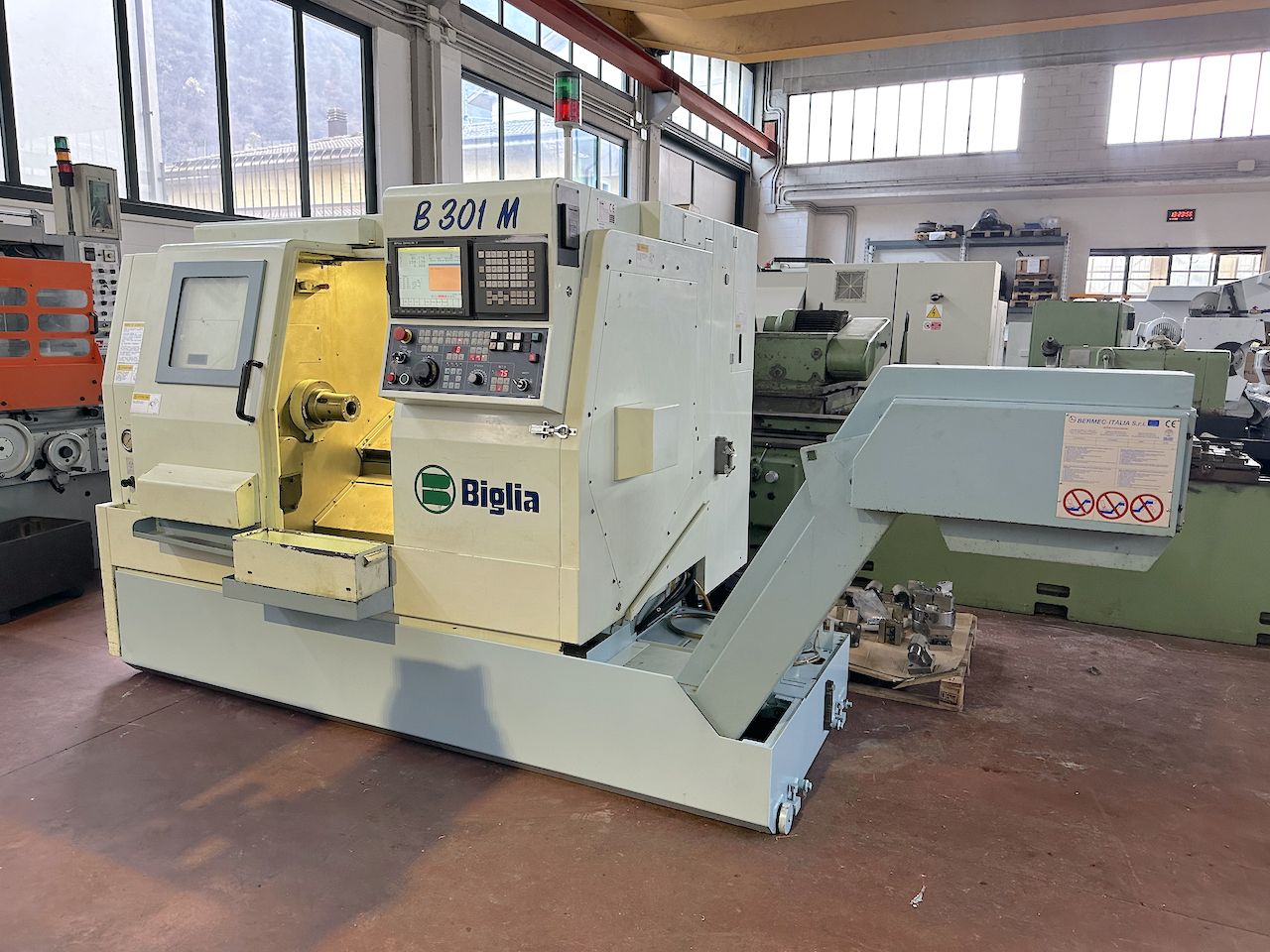

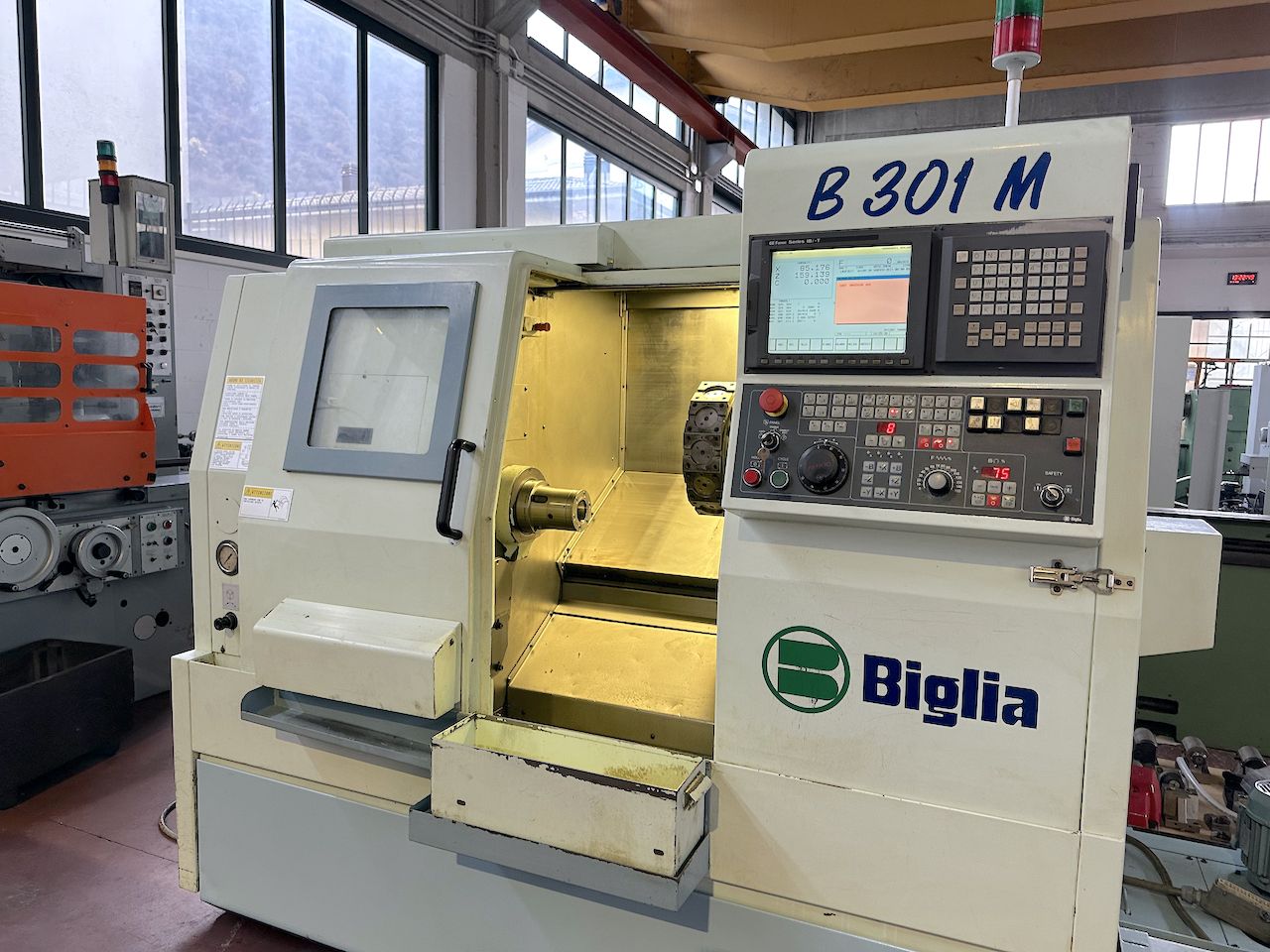

B 301 M
Capacity
ø45/220x380 mmø1,77/8,66x14,96 in

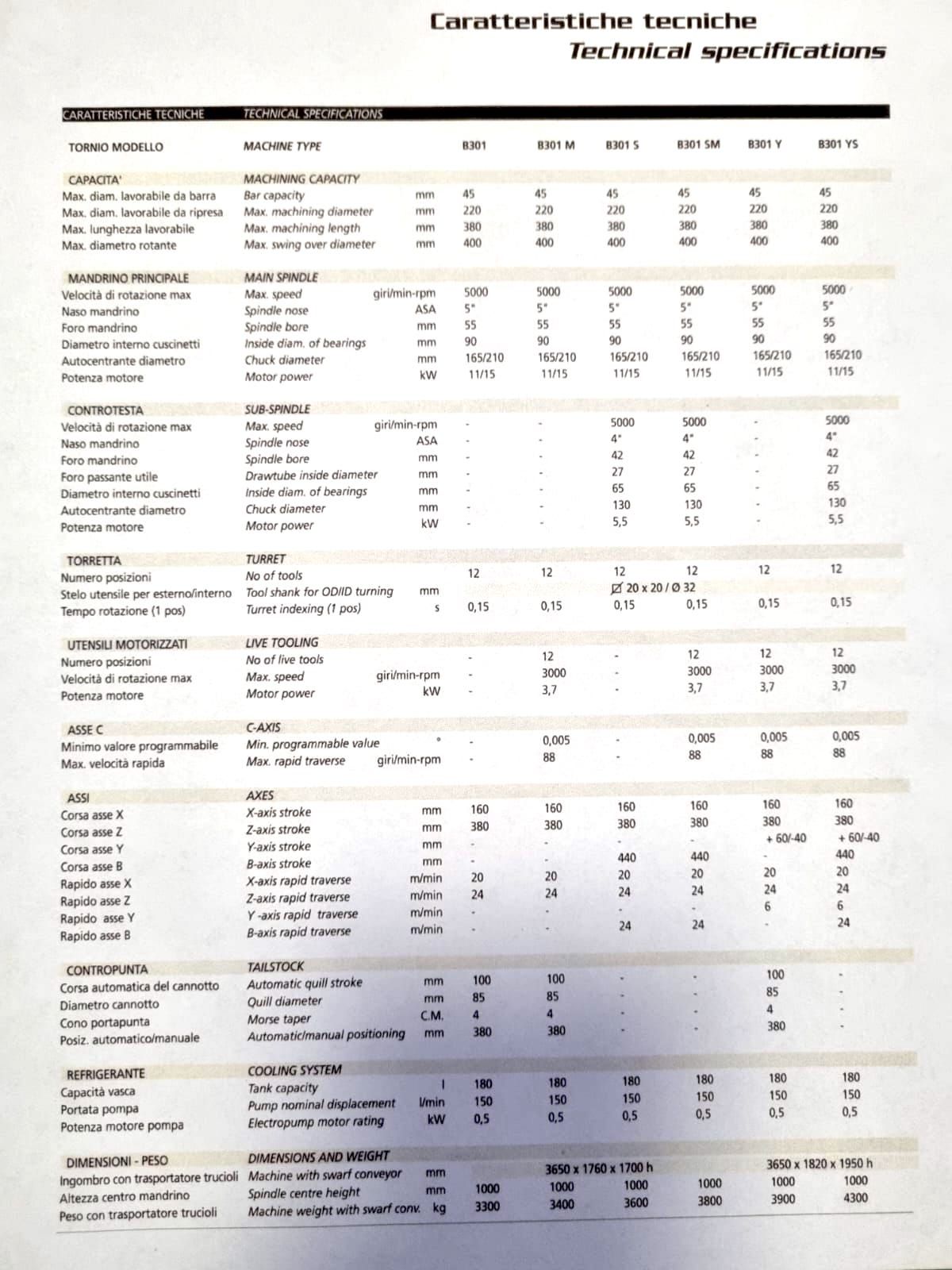

Technical specifications
Metric
Imperial
WORKING CAPACITY
Max bar working diameter
45 mm1,77 in
Max turning diameter
220 mm8,66 in
Max working lenght
380 mm14,96 in

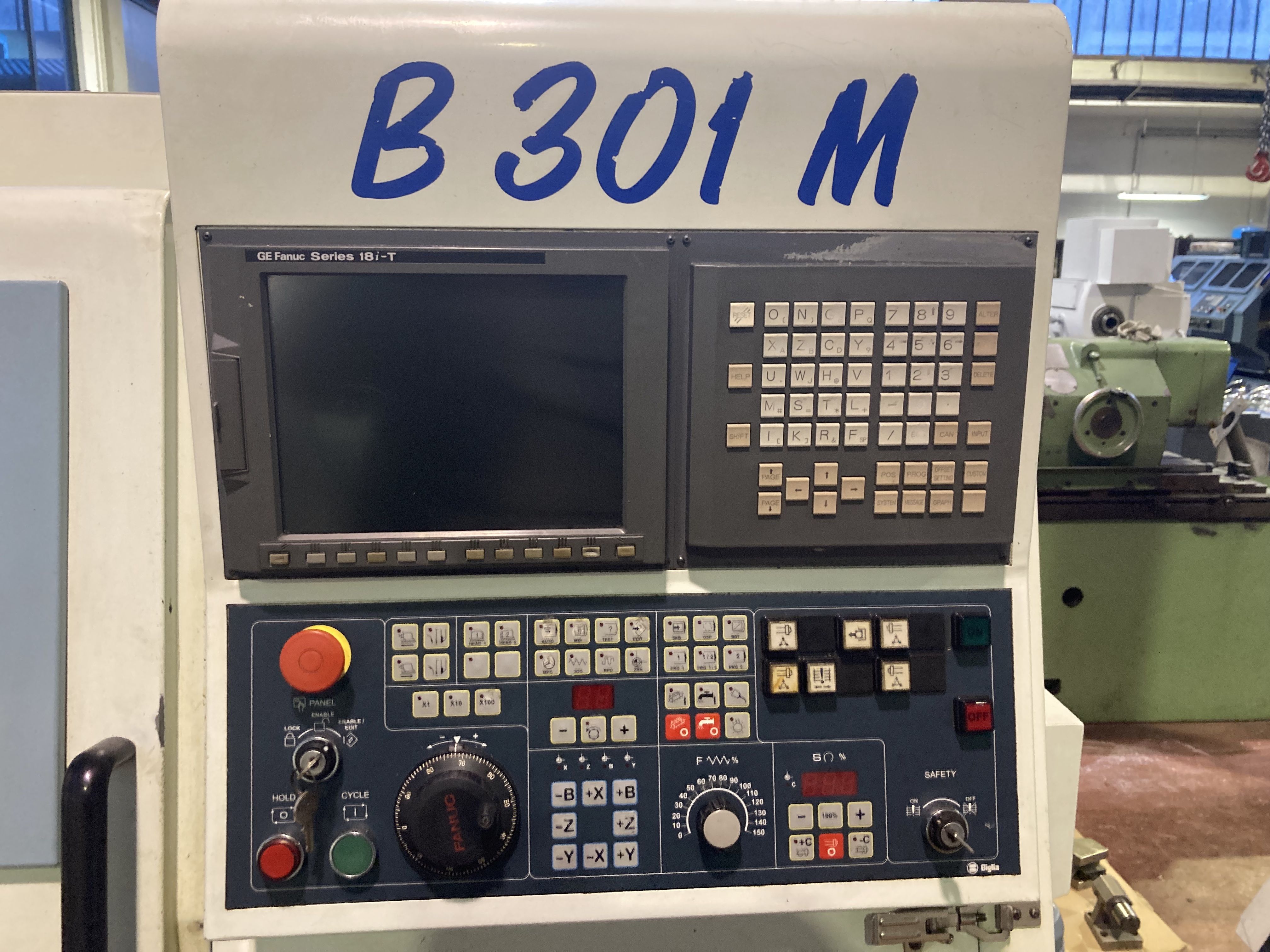

CNC
CNC
Fanuc 18
MAIN SPINDLE
Max rotation speed
5000 rpm
Spindle nose
ASA5”
Spindle hole
55 mm2,17 in
Internal bearing diameter
90 mm3,54 in
Max power
11/15 Kw
Accuracy (C axis)
0,005 °
C axis speed
88 Rpm

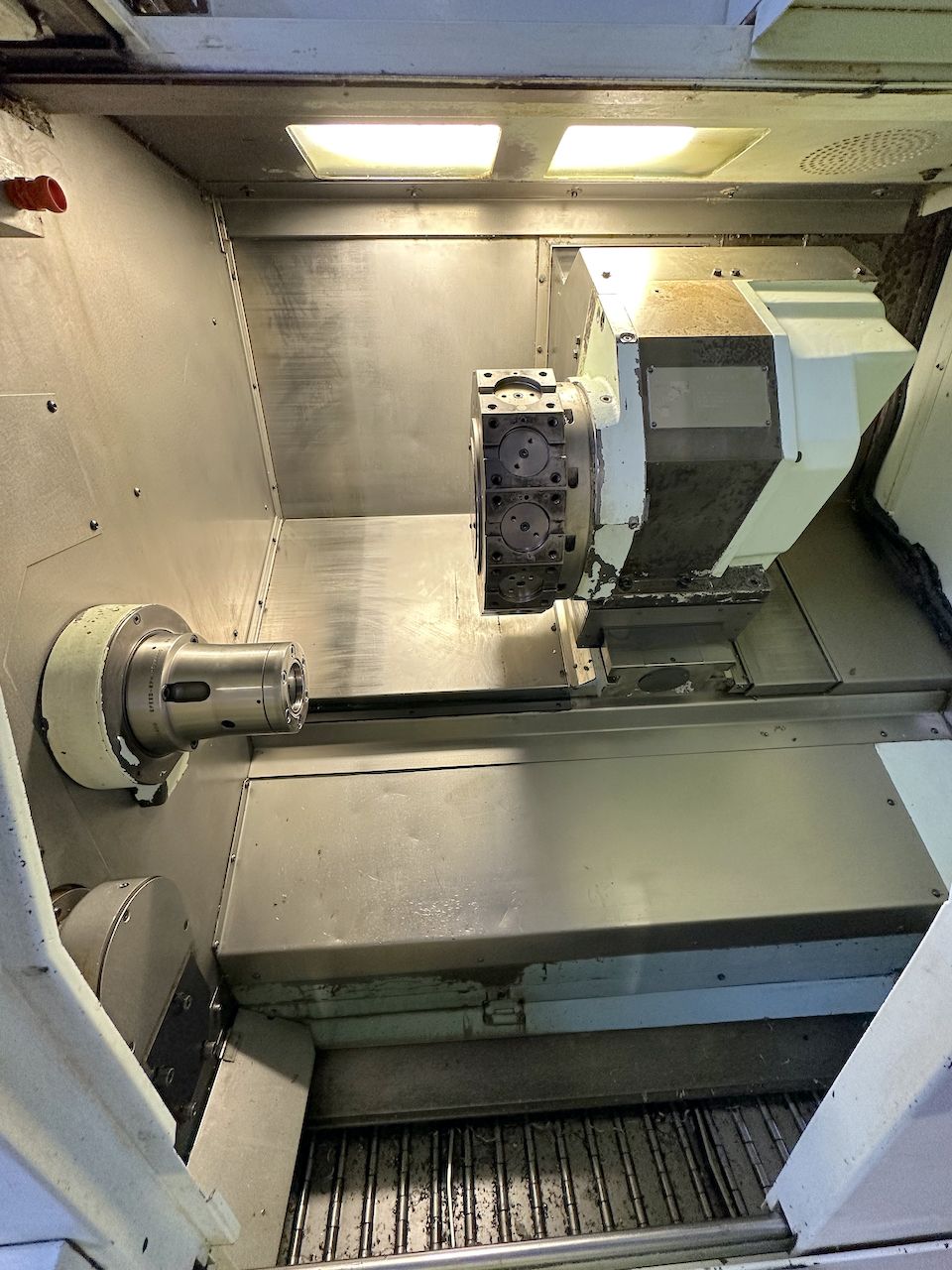

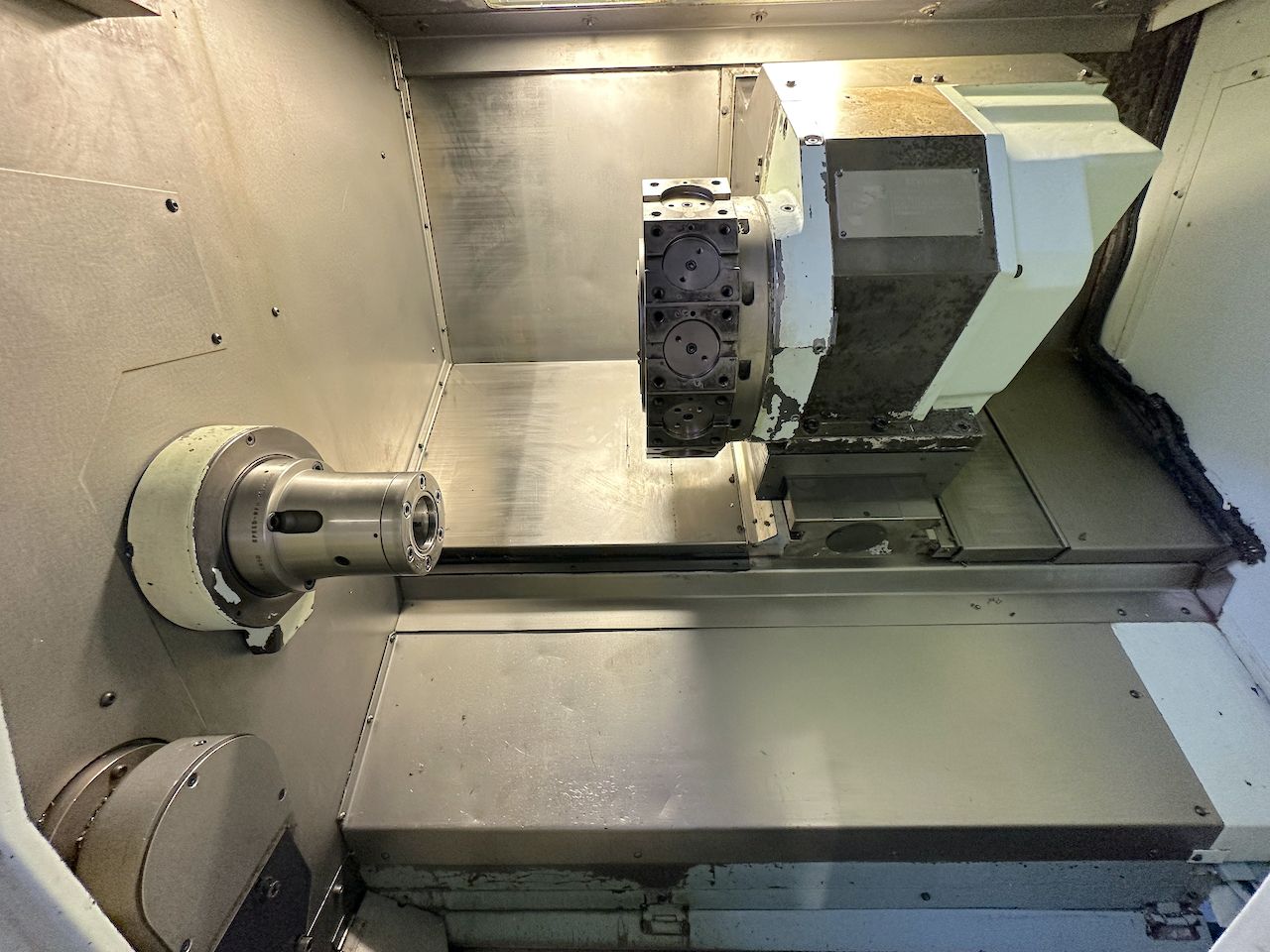

TURRET 2
Positions number
12
Rotation time (1 pos)
0,15 sec.
Number of driven stations
12
Driven tools speed
3000 rpm
Driven tools power
3,7 Kw
Axis stroke X2
160 mm6,30 in
Axis stroke Z2
380 mm14,96 in
Rapid feed X2
20 m/min787,40 ipm
Rapid feed Z2
24 m/min944,88 ipm
EXTRA
Floor space
3650x1760x1700 mm143,70x69,29x66,93 in
Machine total weight
3600 Kg
CE Certification
Yes
