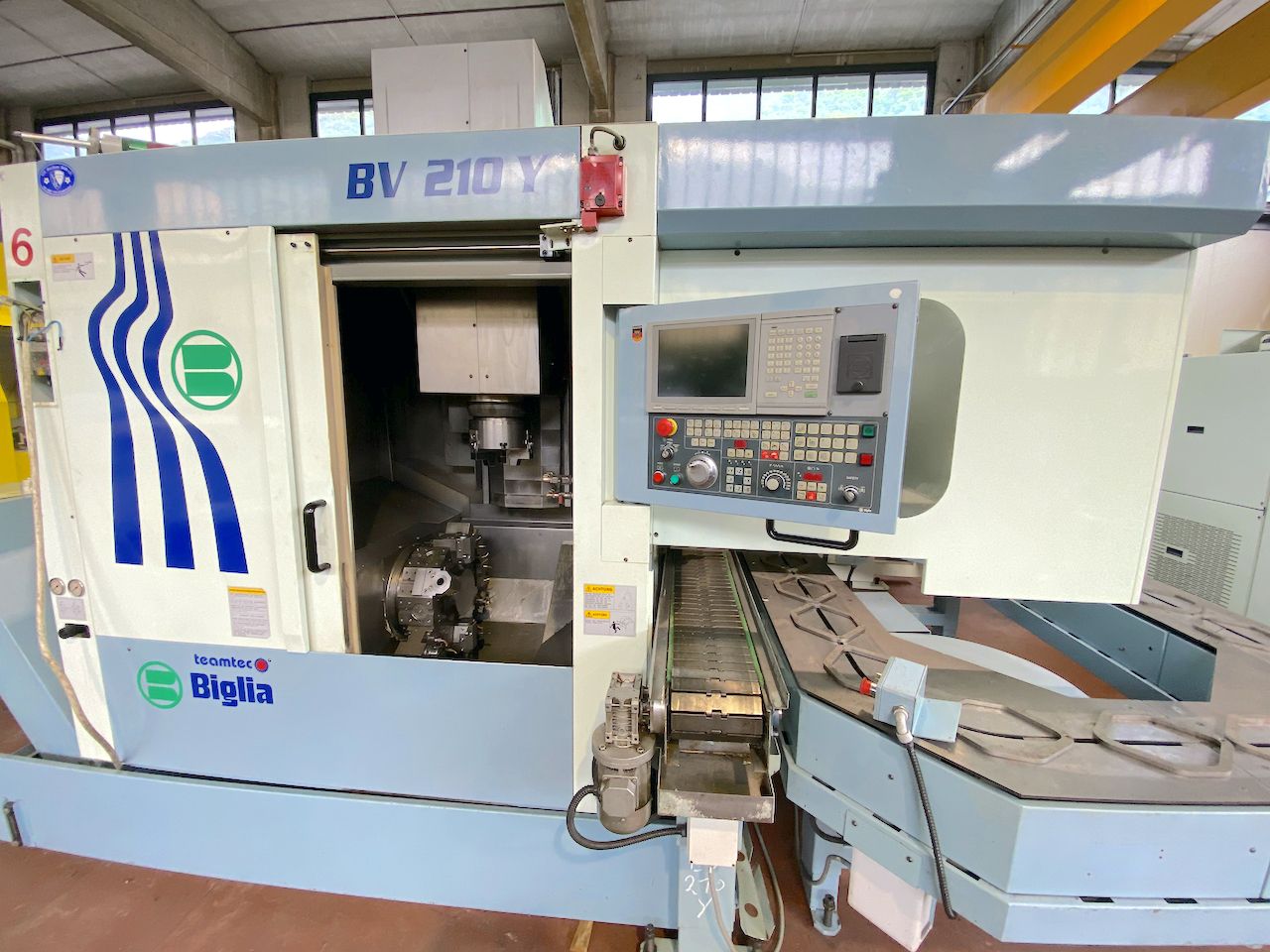

Technical specifications
Metric
Imperial
WORKING CAPACITY
Max turning diameter
210 mm8,27 in
Max working lenght
265 mm10,43 in
CNC
CNC
Mitsubishi MELDAS 65S-L
MAIN SPINDLE
Max rotation speed
4500 rpm
Spindle nose
ASA6”
Internal bearing diameter
100 mm3,94 in
Chuck diameter
250 mm9,84 in
Max power
7,5/11 Kw
Max torque
143/210 Nm
Accuracy (C axis)
0,001 °
C axis speed
200 Rpm

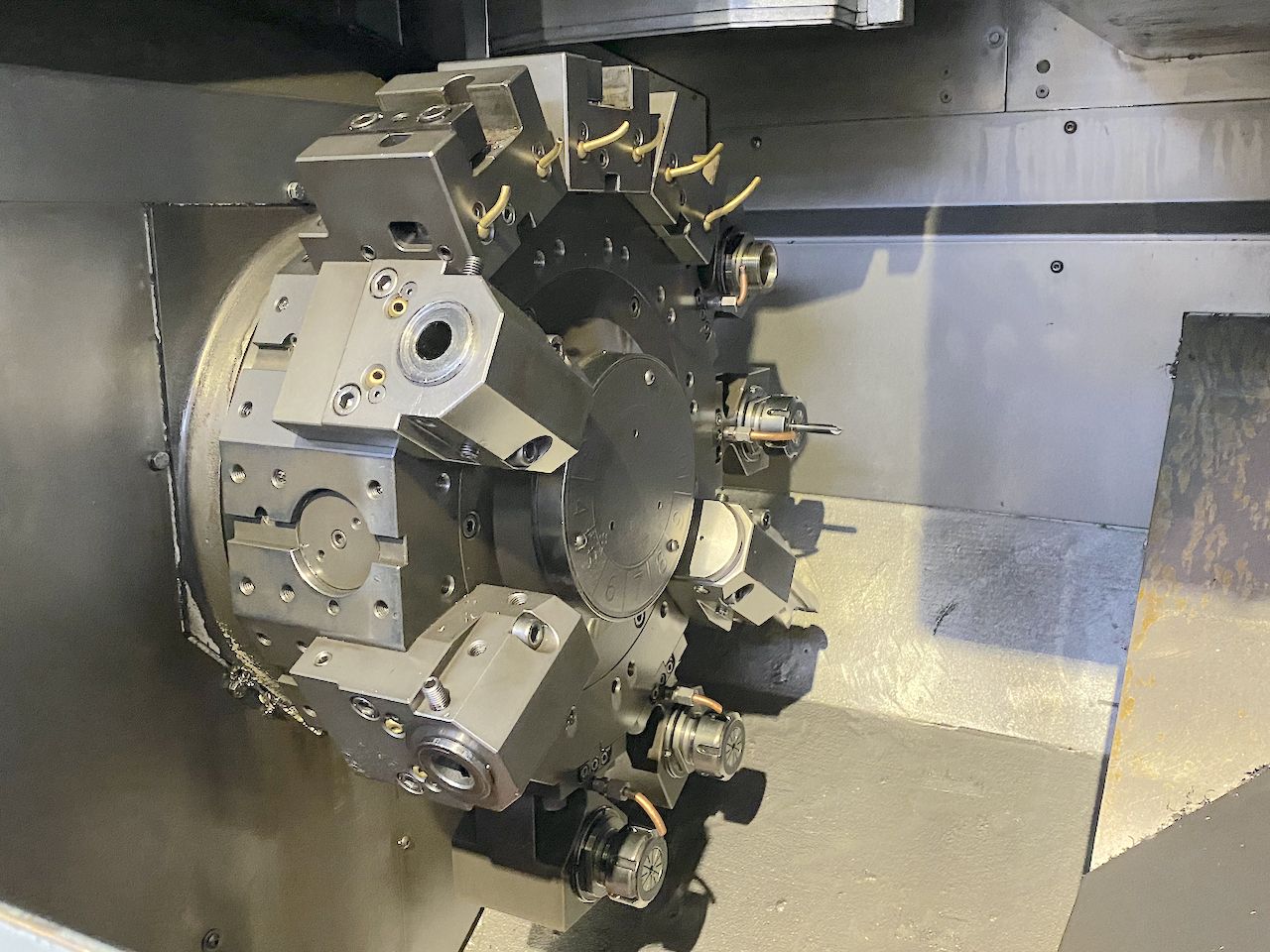

Positions number
12
Rotation time (1 pos)
0,1 sec.
Number of driven stations
12
Driven tools power
2,2/3,7 Kw
Driven tools torque
28/47 Nm
Axis stroke Y
+/-75 mm+/-2,95 in
Rapid feed Y
18 m/min708,66 ipm
Axis stroke X
275 mm10,83 in
Rapid feed X
48 m/min1.889,76 ipm
Axis stroke Z
370 mm14,57 in
Rapid feed Z
36 m/min1.417,32 ipm
EXTRA
Total power supply
28 Kw
Machine total weight
5900 Kg
Floor space
4335x2095x2675 mm170,67x82,48x105,31 in
Workpiece espulsion robot
si

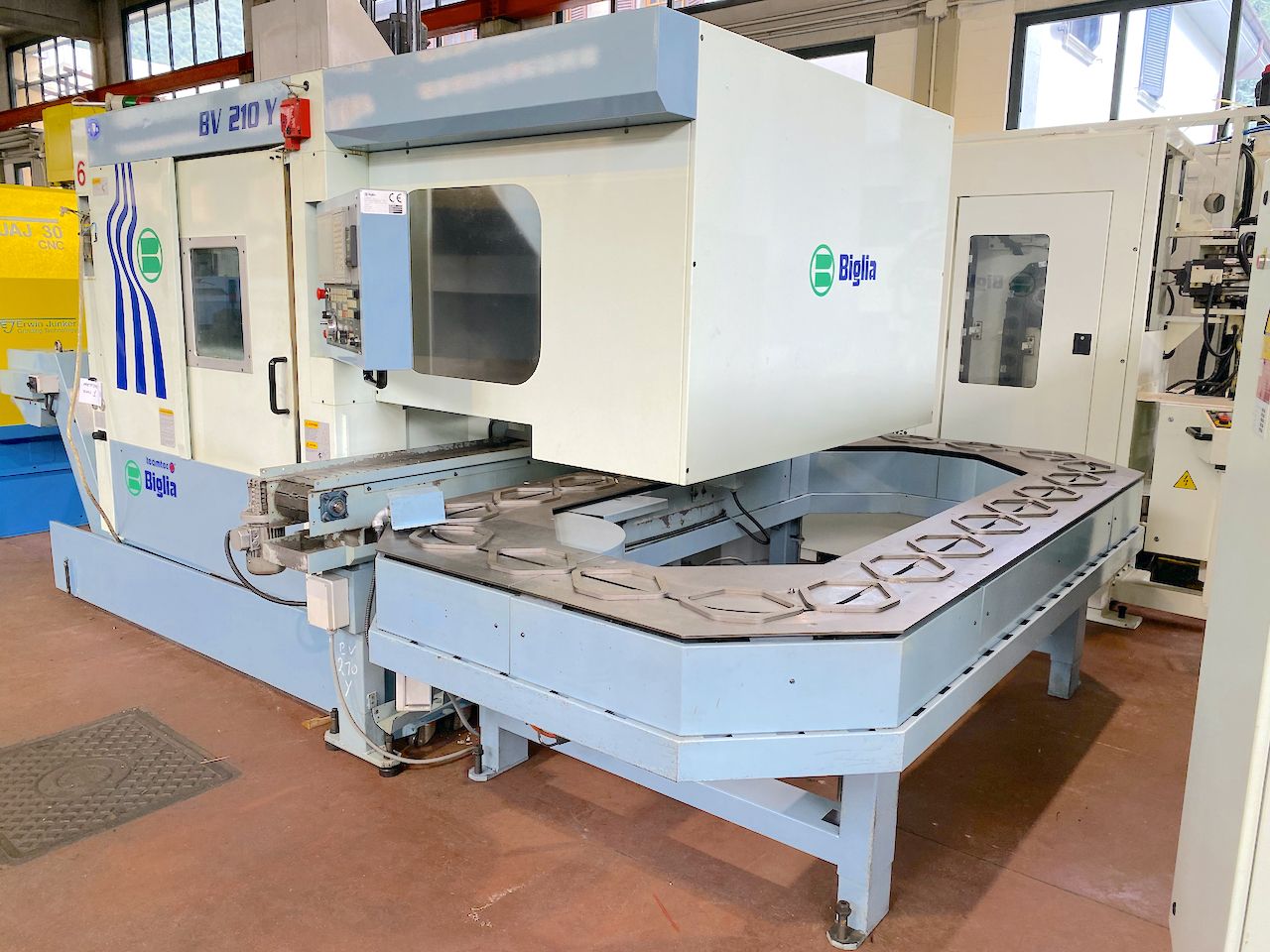

Workpieces conveyor belt
Yes
Chip conveyor
si
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes
