Technical specifications
Metric
Imperial
WORKING CAPACITY
Max bar working diameter
65 mm2,56 in
Max turning diameter
240 mm9,45 in
Max working lenght
320 mm12,60 in
CNC
CNC

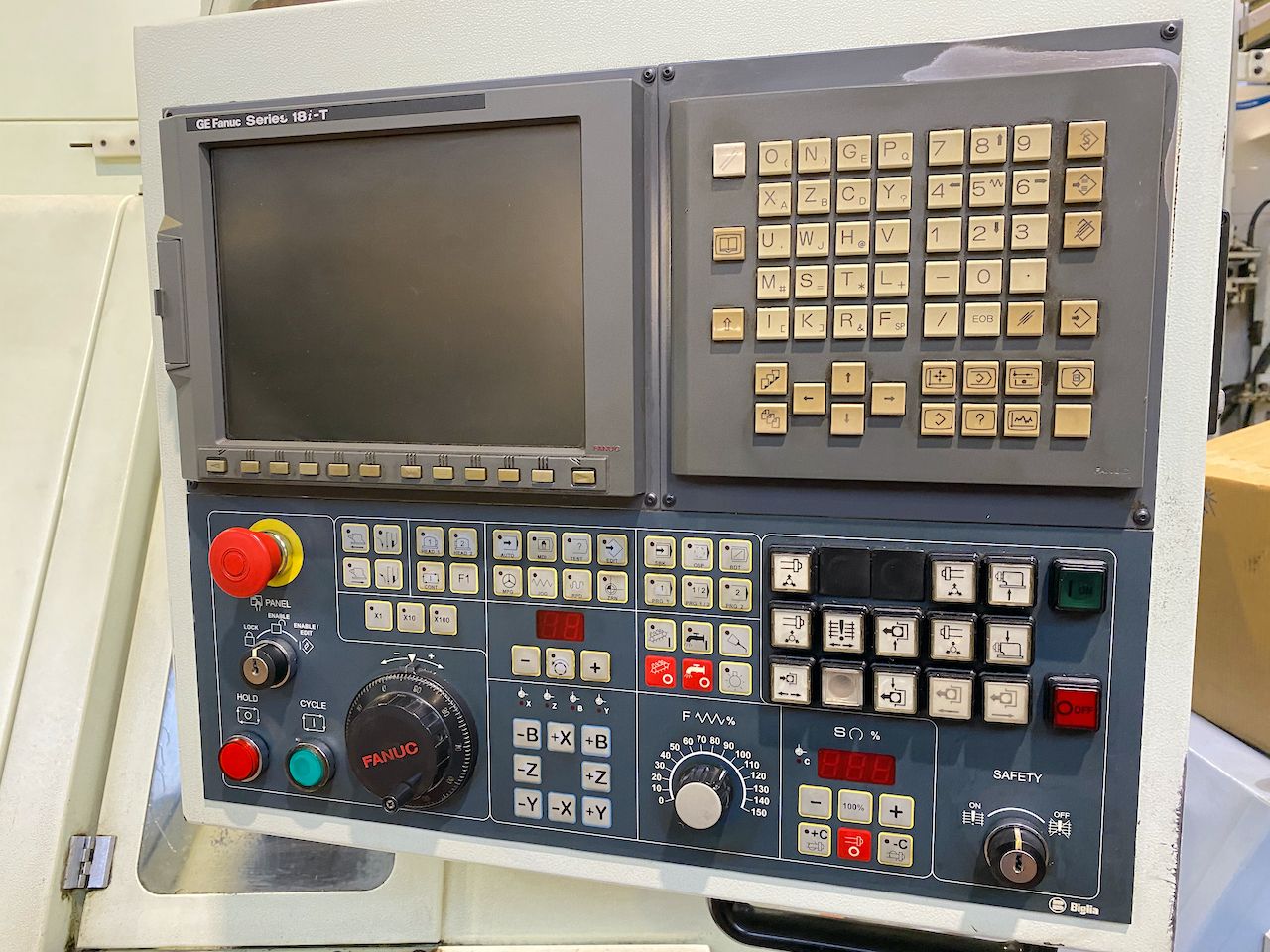

Fanuc 18i-TB
MAIN SPINDLE
Max rotation speed
4000 rpm
Spindle nose
ASA6”
Spindle hole
80 mm3,15 in
Internal bearing diameter
110 mm4,33 in

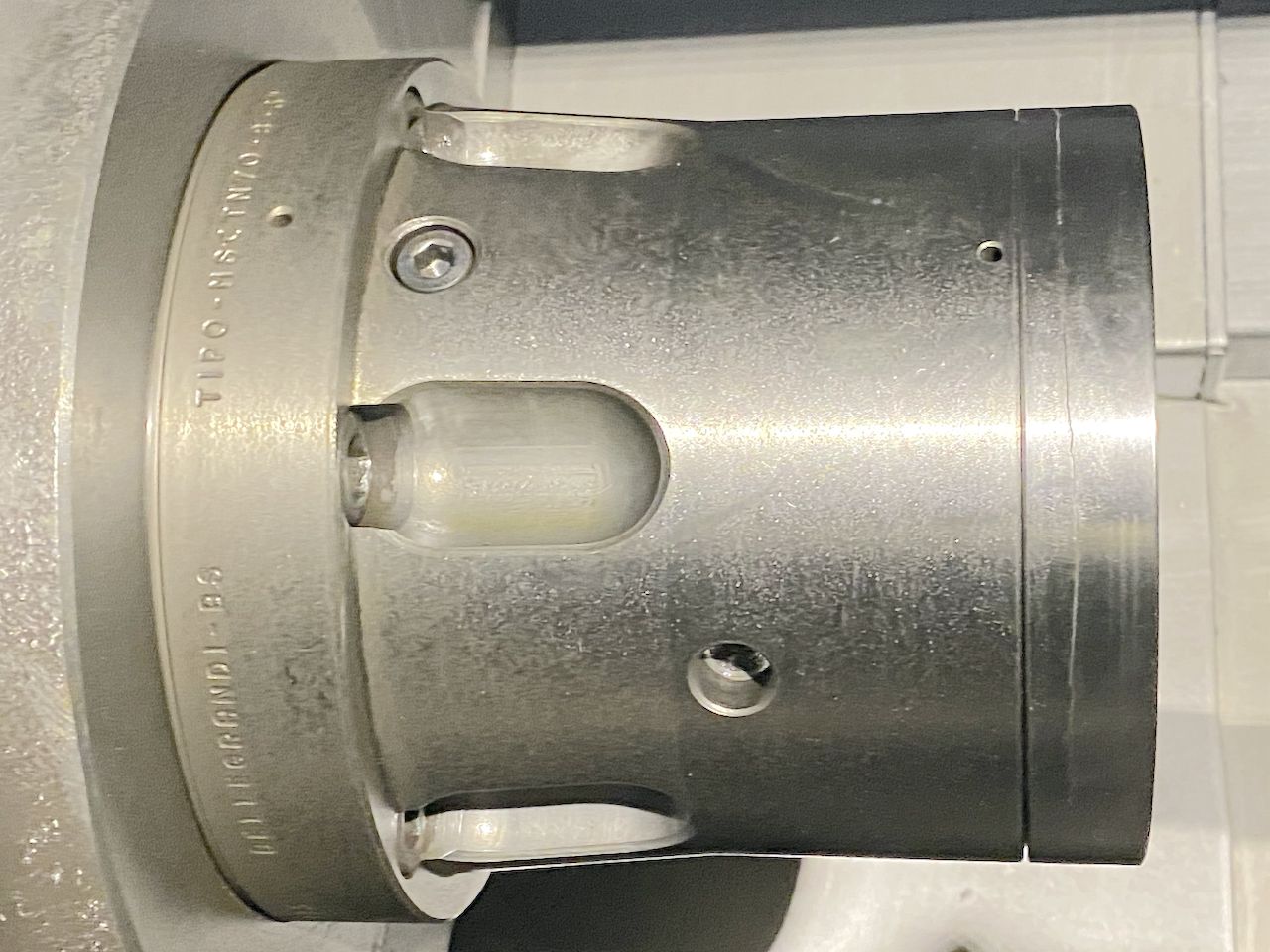

Chuck diameter
160 mm6,30 in
Max power
26 Kw
SUBSPINDLE
Max rotation speed
4000 rpm
Spindle nose
ASA5”
Spindle hole
55 (passaggio 45) mm2,17 (passaggio 1,77) in
Internal bearing diameter
80 mm3,15 in

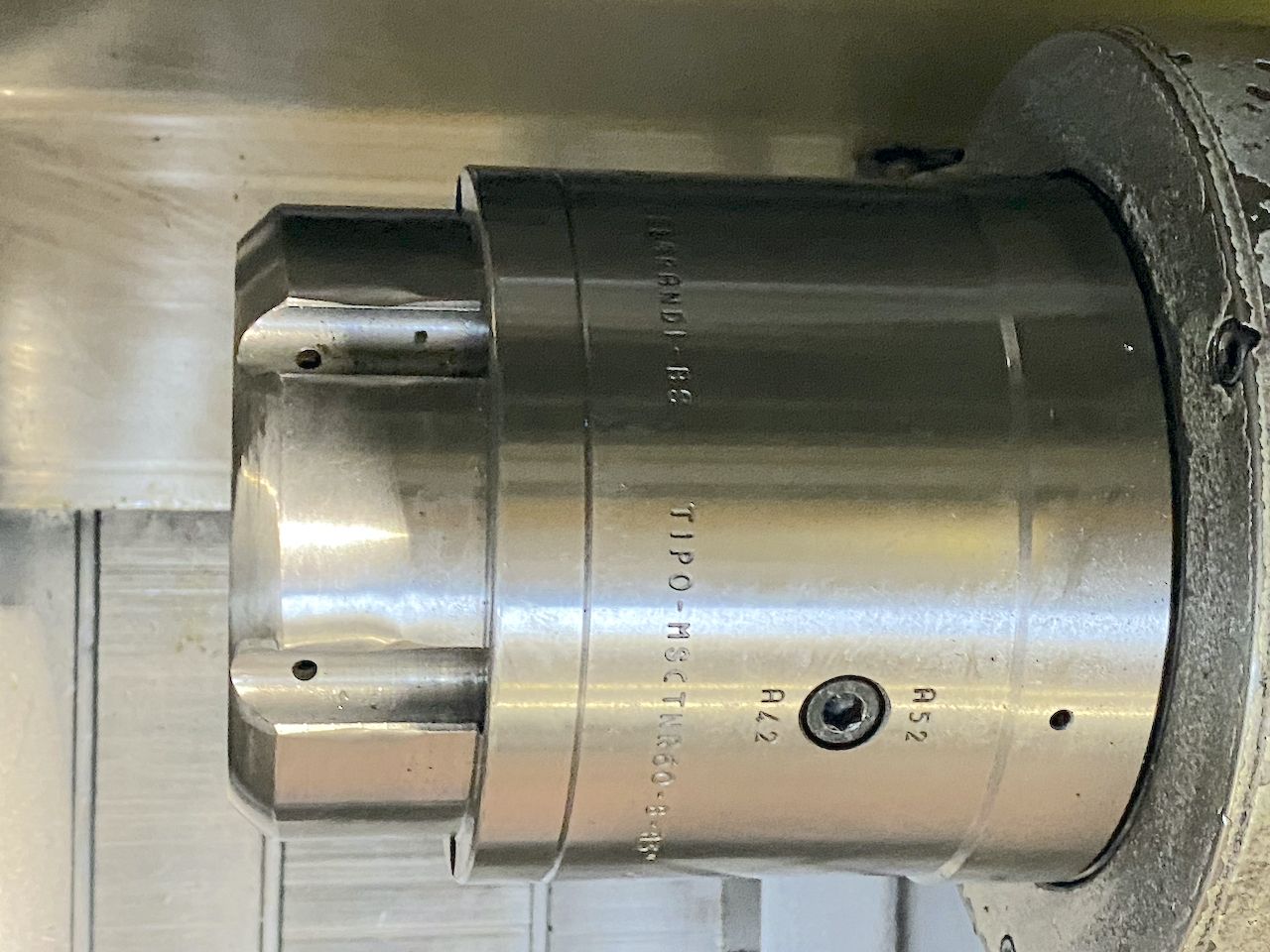

Chuck diameter
165 mm6,50 in
Max power
11 Kw
Positions number
12
Rotation time (1 pos)
0,15 sec.
Axis stroke X
160 mm6,30 in
Rapid feed X
20 m/min787,40 ipm
Axis stroke Z
390 mm15,35 in
Rapid feed Z
24 m/min944,88 ipm
TURRET 2
Positions number
12
Rotation time (1 pos)
0,15 sec.
Axis stroke X2
160 mm6,30 in
Rapid feed X2
12 m/min472,44 ipm
Axis stroke Z2
240 mm9,45 in
Rapid feed Z2
20 m/min787,40 ipm
EXTRA
Machine total weight
6500 Kg
Floor space
4150x2100x2200 mm163,39x82,68x86,61 in
Bar feeder
IEMCA MASTER 880MP
Maintenance & Use books
Yes

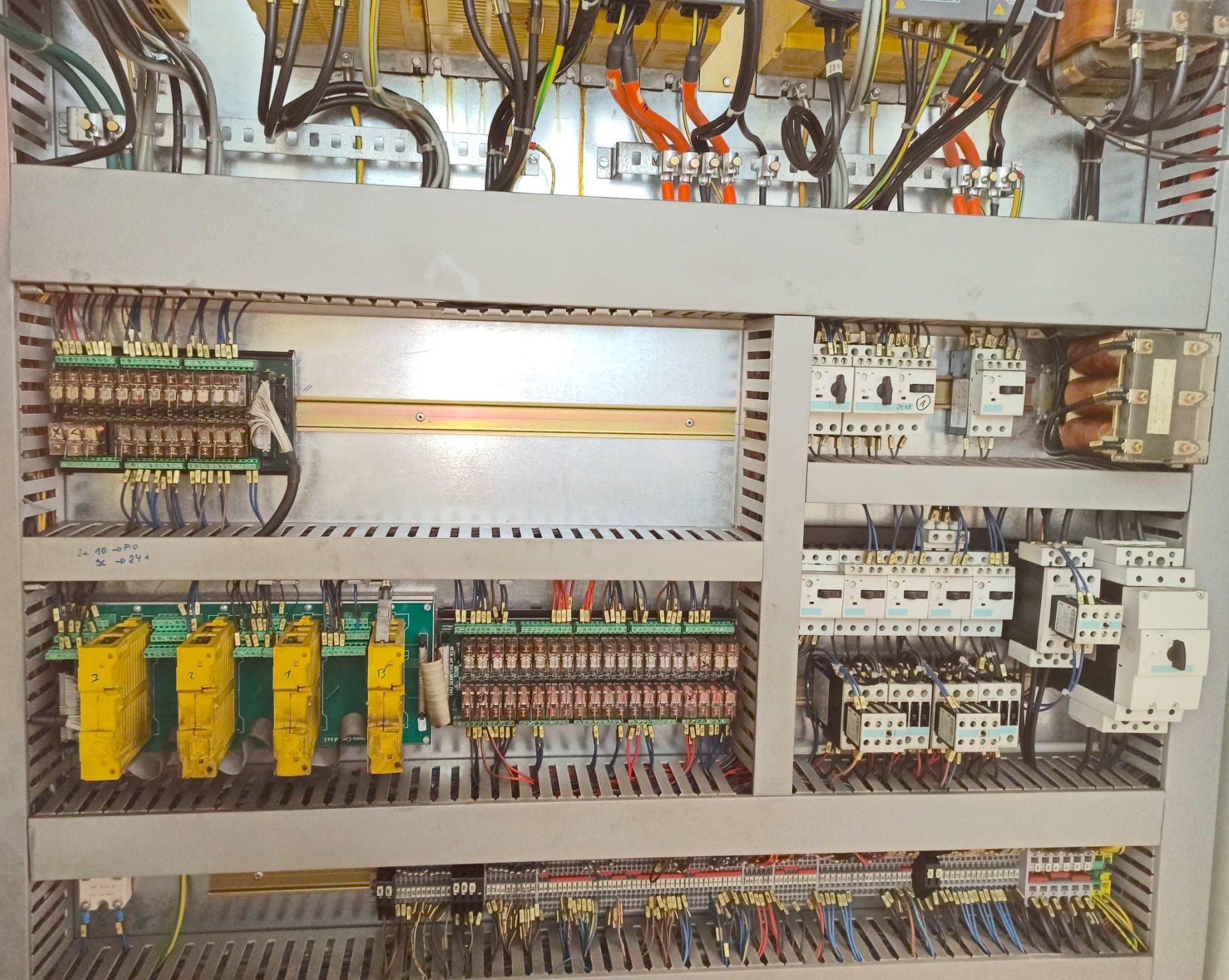

Electrical drawings
Yes
CE Certification
Yes
