Category
Turning Machine
Type
CNC
Made
Model

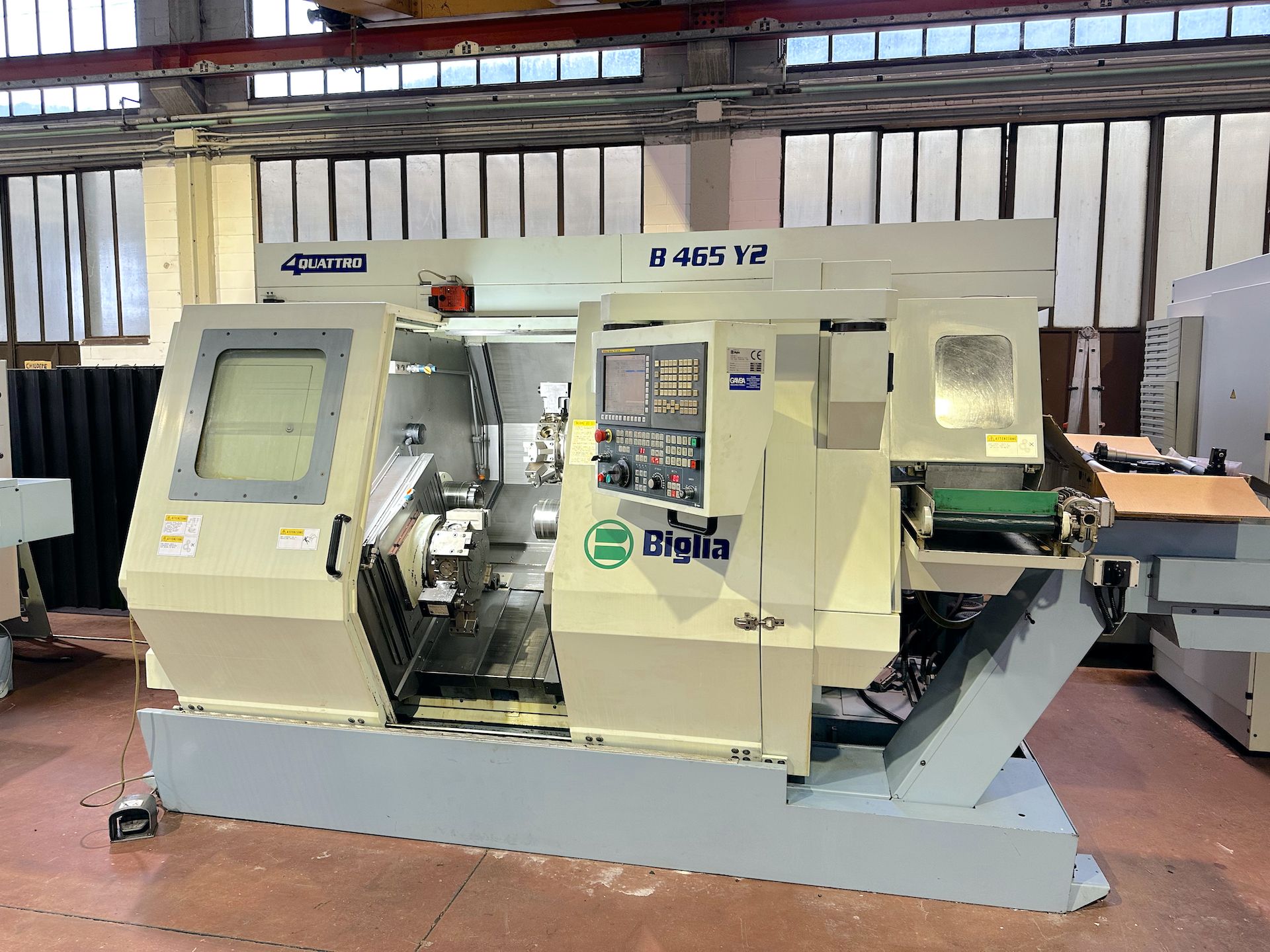

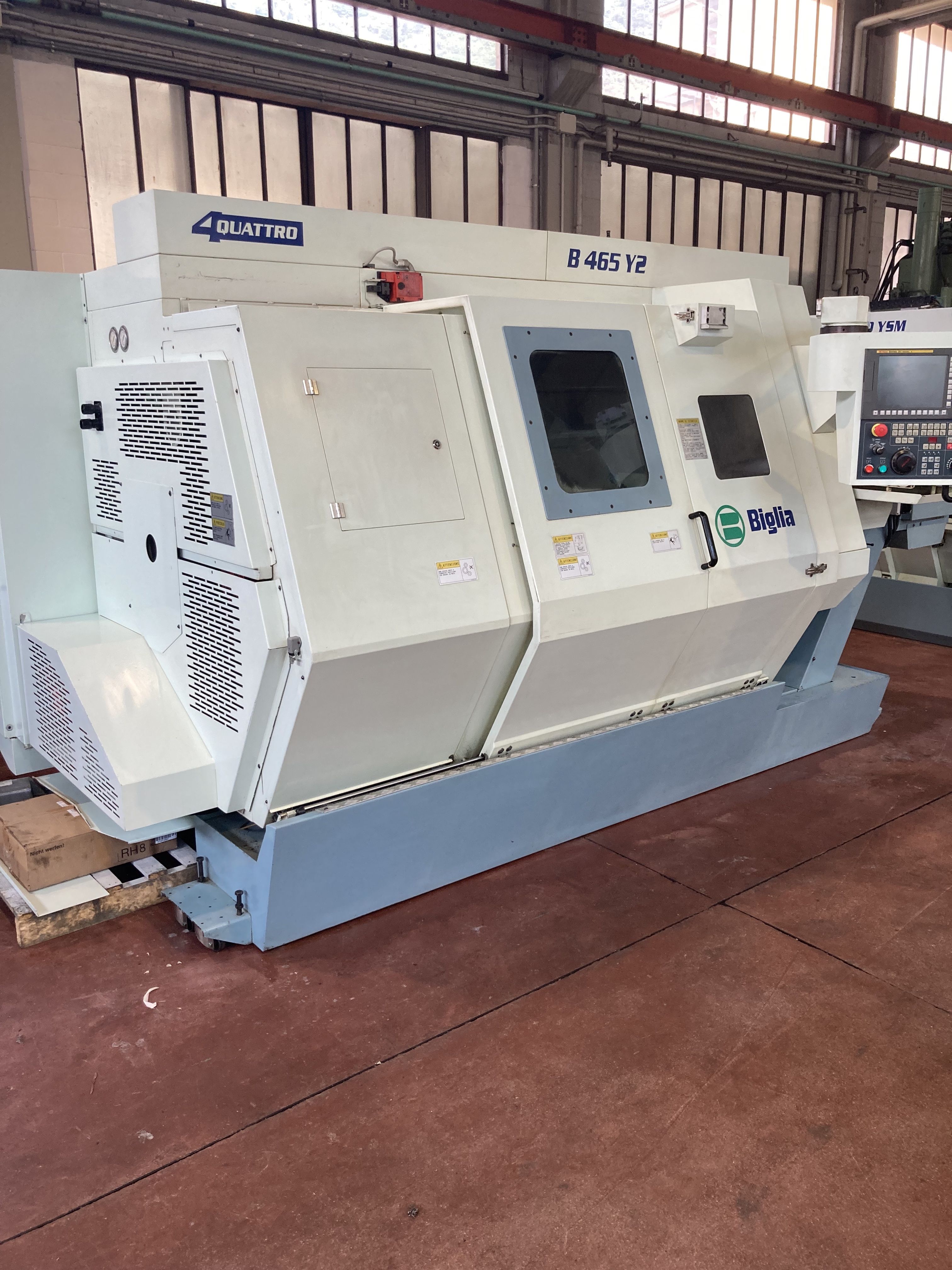

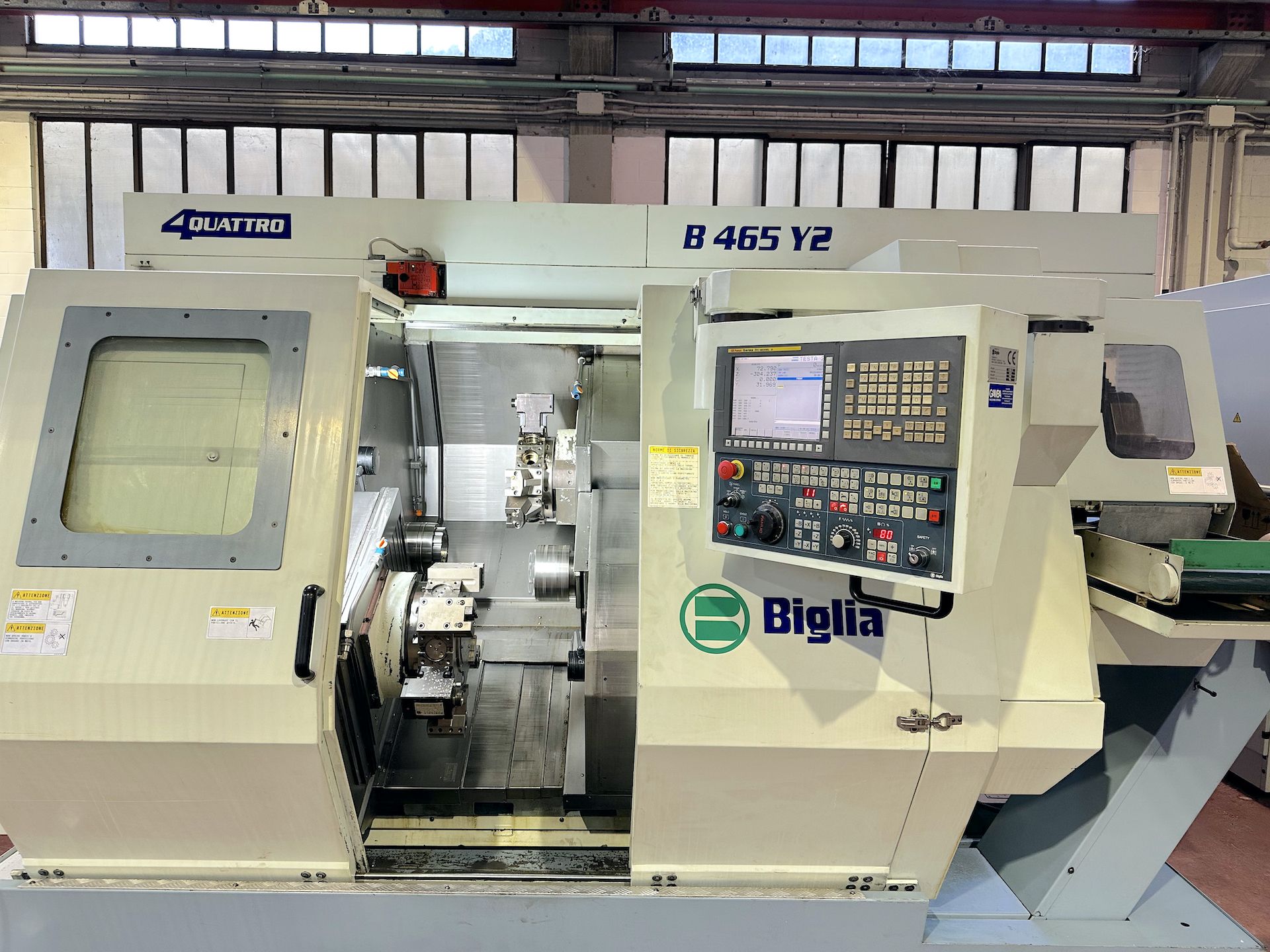

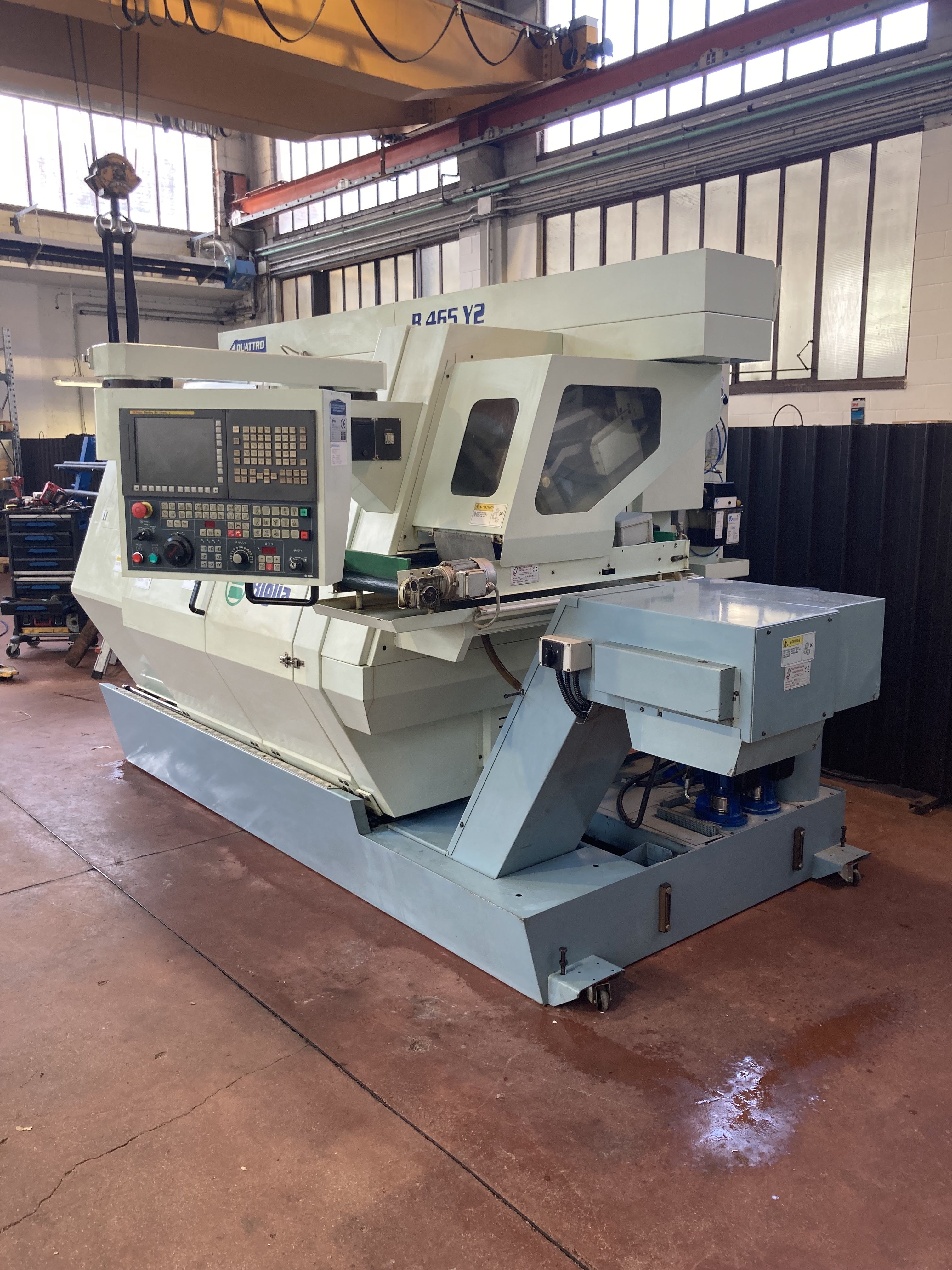

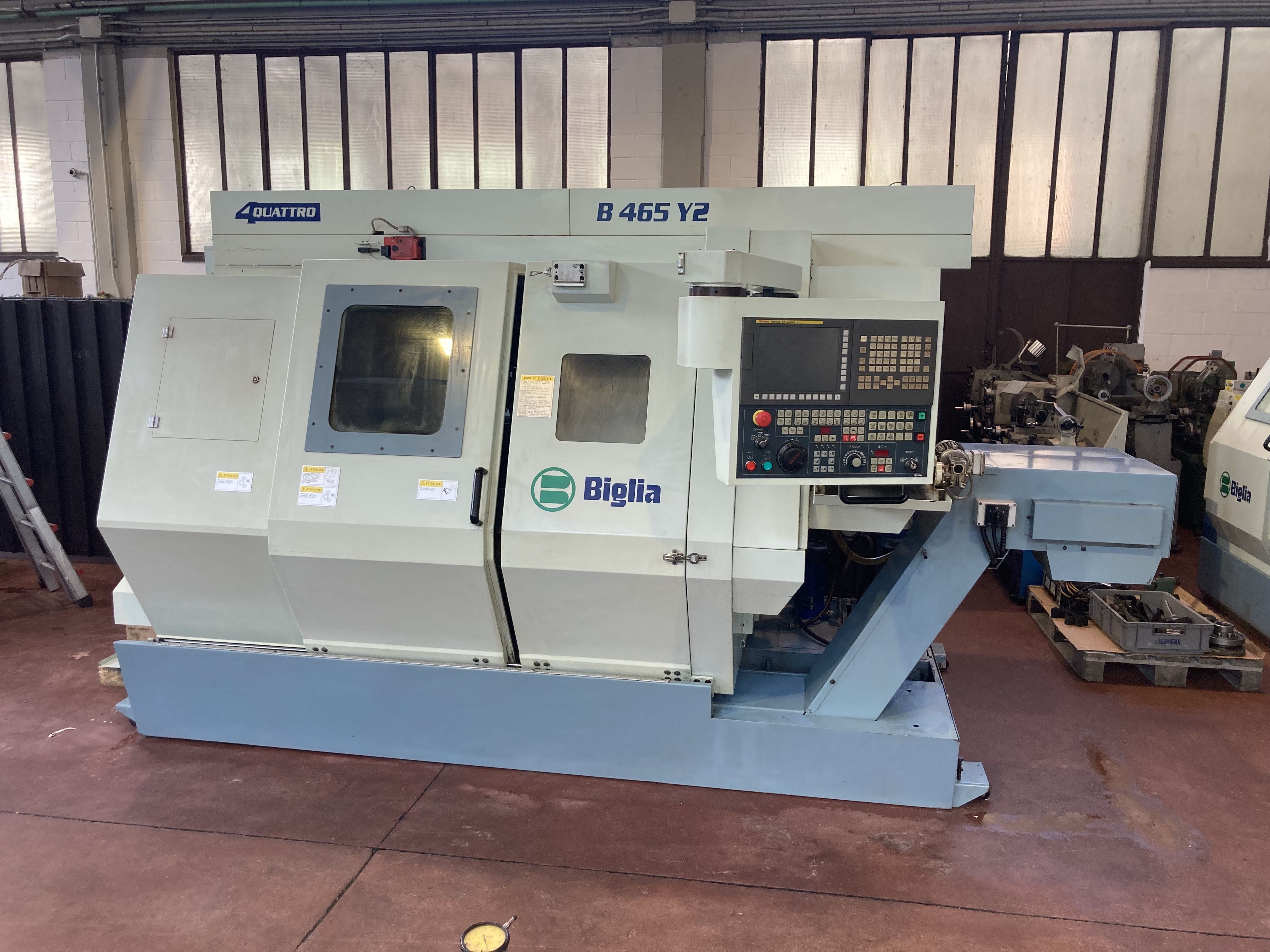

B465Y2
Capacity
ø65/230x250(320) mmø2,56/9,06x9,84(12,60) in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Max bar working diameter
65 mm2,56 in
Max turning diameter
230 mm9,06 in
Max working lenght
250 (320) mm9,84 (12,60) in
CNC
CNC
Fanuc 31i-T
Notes
Manual Guide, Poligonatura, SBS

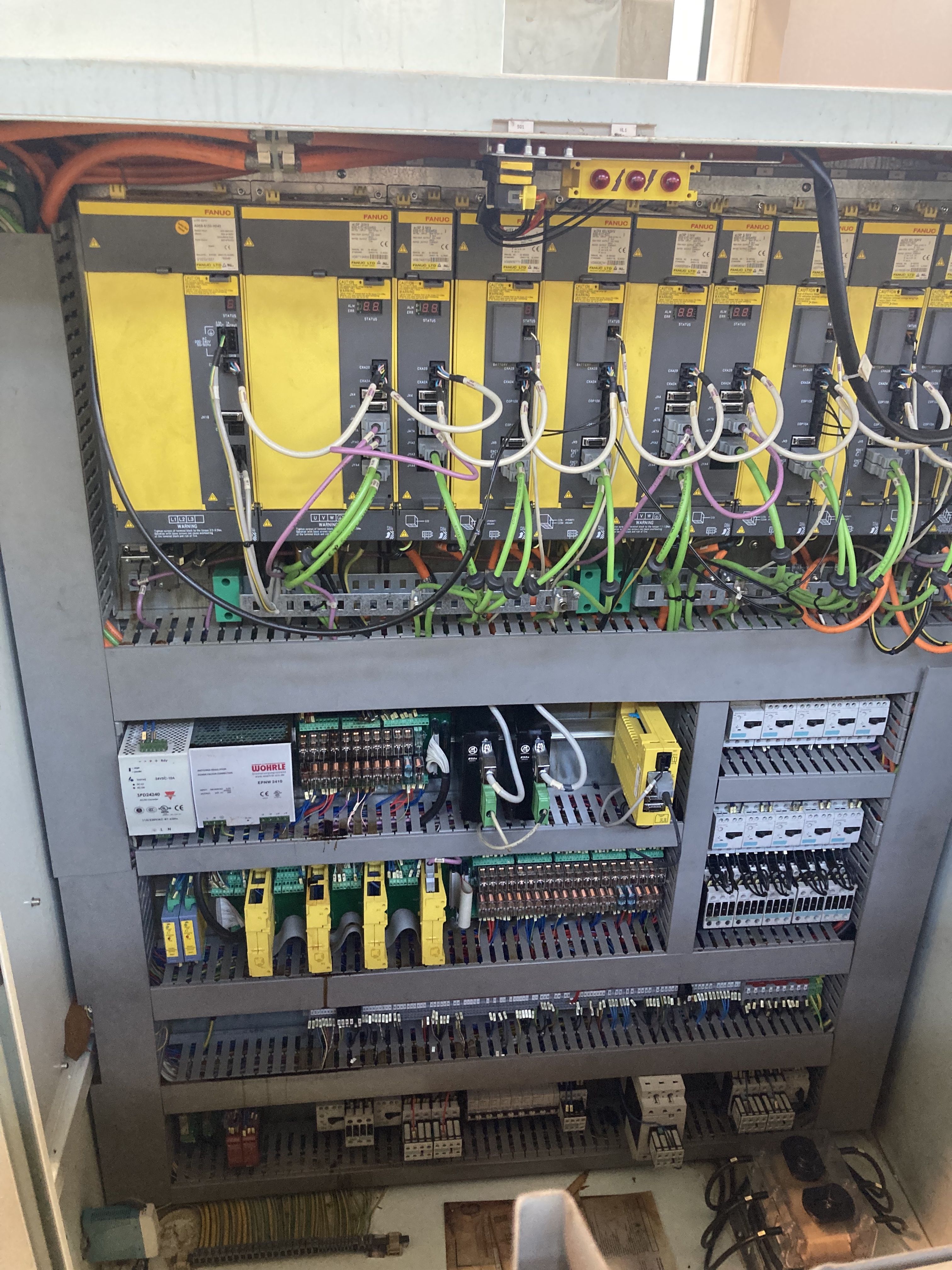

Drives
Fanuc
MAIN SPINDLE
Max rotation speed
4000 rpm
Spindle nose
ASA6”
Spindle hole
80 mm3,15 in
Internal bearing diameter
110 mm4,33 in
Chuck diameter
165/210 mm6,50/8,27 in
Max power
26 Kw
Accuracy (C axis)
0,001 °
SUBSPINDLE
Max rotation speed
5000 rpm
Spindle nose
ASA5”
Spindle hole
55 (45 passaggio) mm2,17 (1,77 passaggio) in
Internal bearing diameter
80 mm3,15 in
Chuck diameter
165 mm6,50 in
Max power
11 Kw
Accuracy (C axis)
0,001 °
Automatic B axis positioning
disassamento 115mm / corsa 420 mmdisassamento 4,53mm / corsa 16,54 in
Rapid feed B
30 m/min1.181,10 ipm

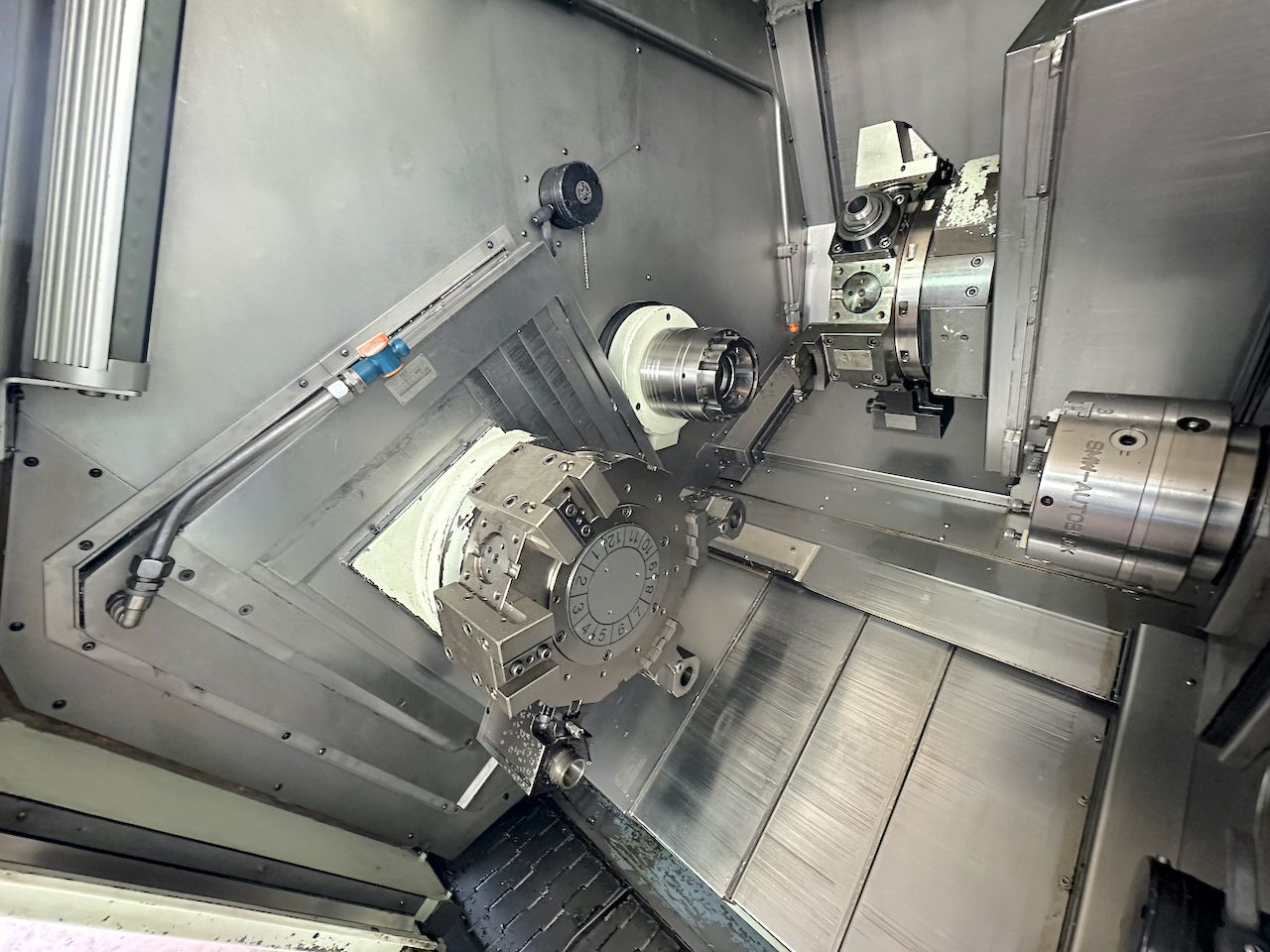

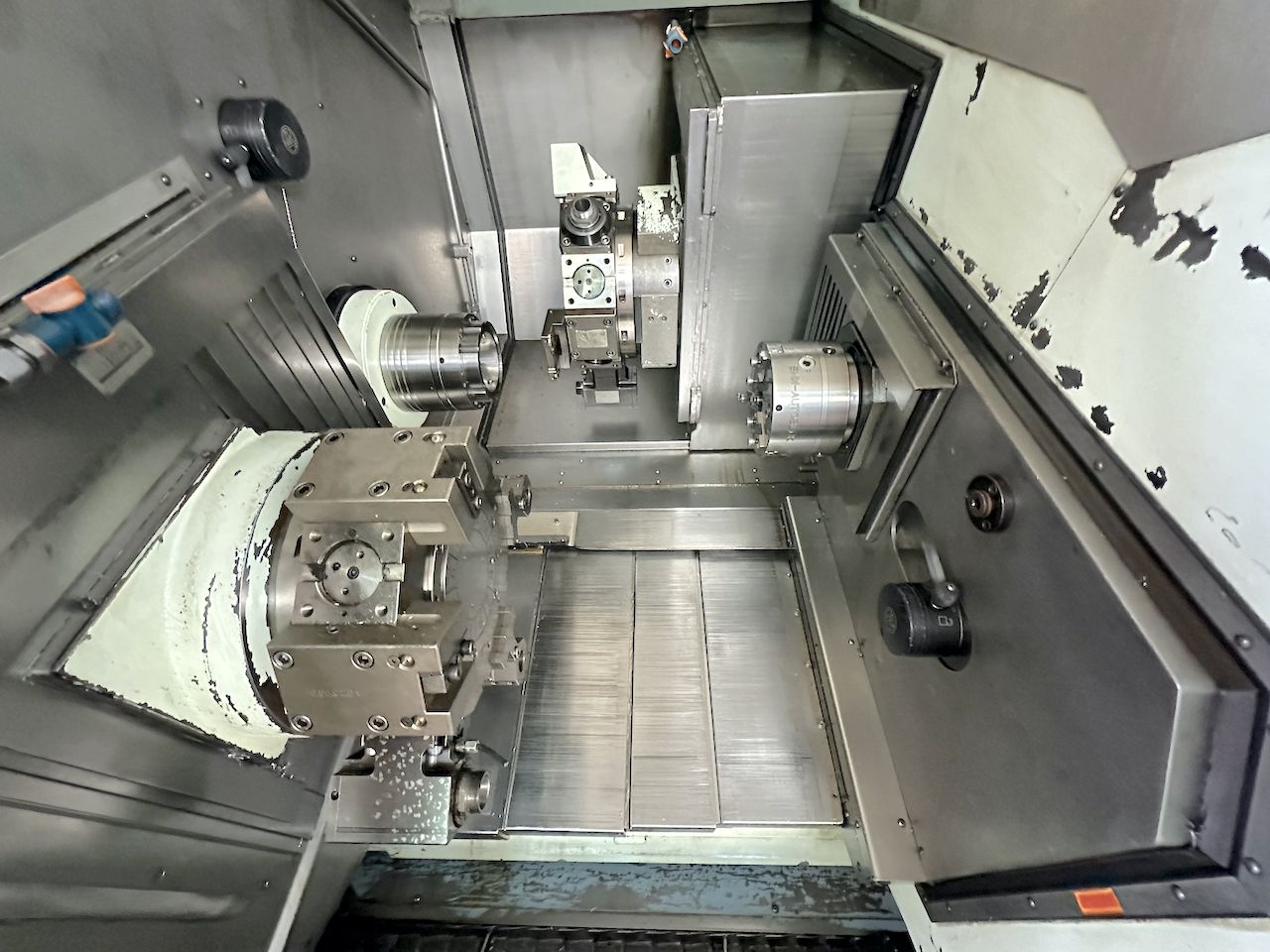

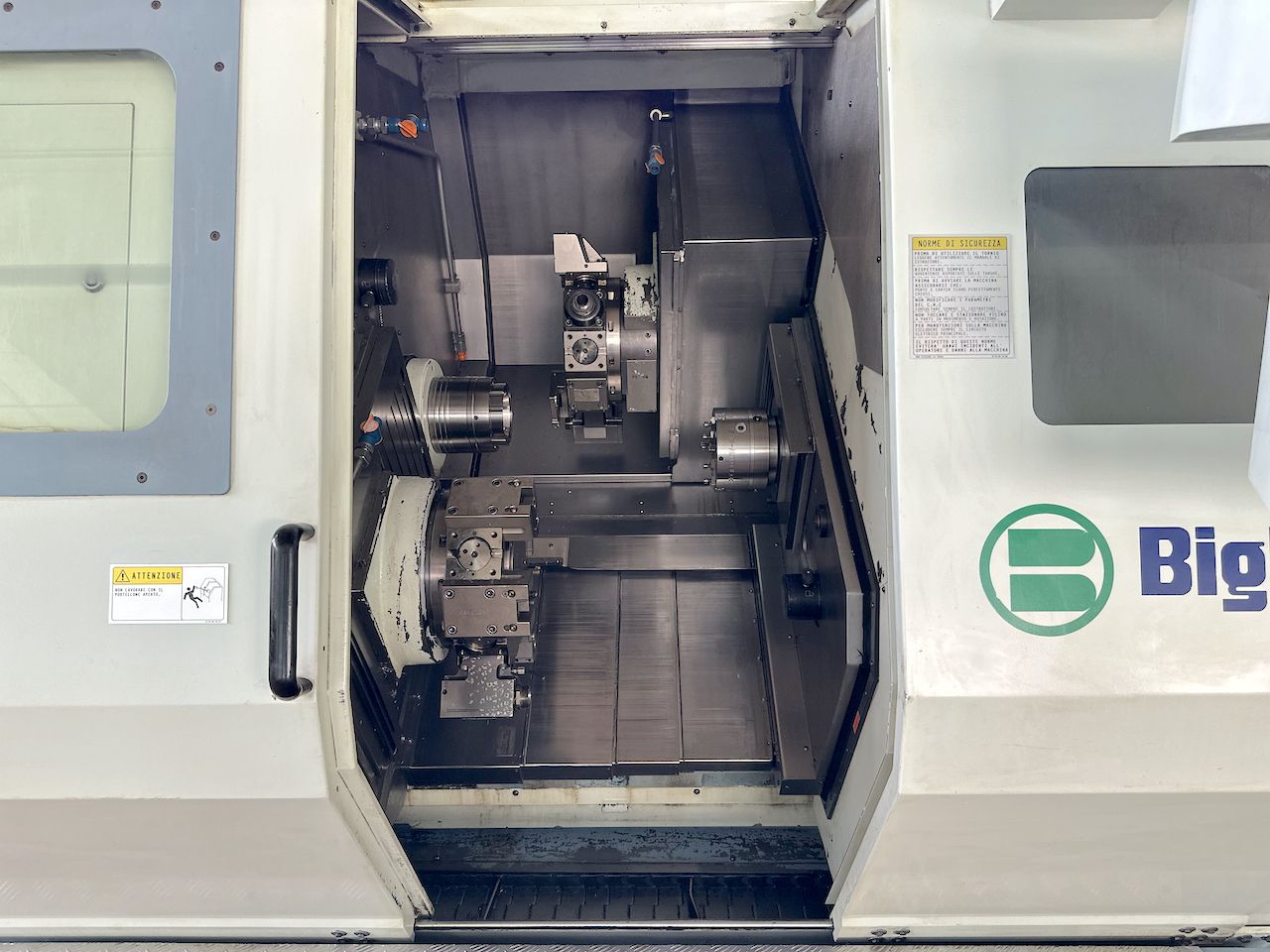

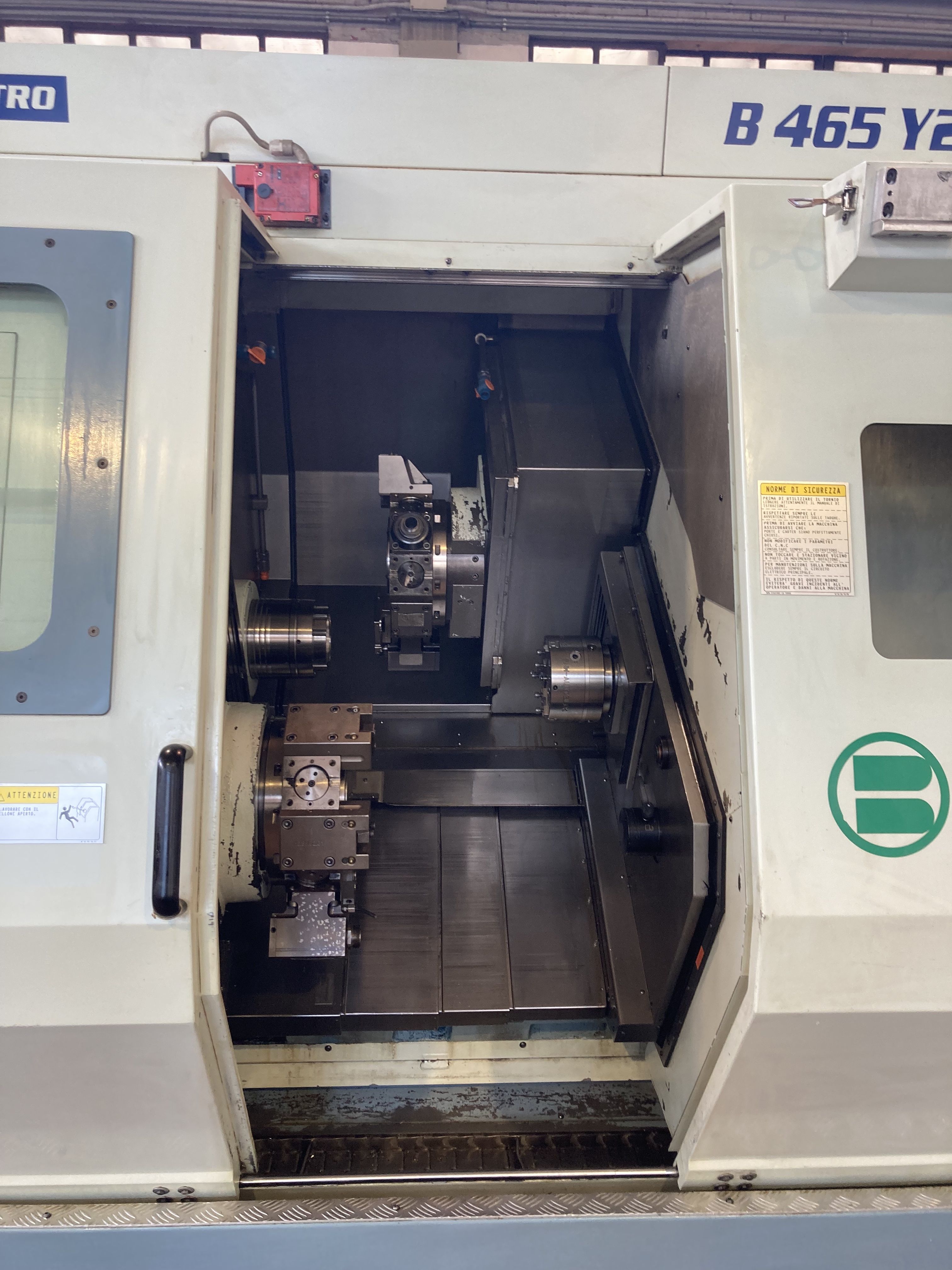

TURRET 1
Rotation time (1 pos)
0,15 sec.
Driven tools speed
4000 rpm
Driven tools power
3,7 Kw
Axis stroke X1
170 mm6,69 in
Rapid feed X1
18 m/min708,66 ipm
Axis stroke Z1
390 mm15,35 in
Rapid feed Z1
30 m/min1.181,10 ipm
Axis stroke Y1
90 (+40/-50) mm3,54 (+1,57/-1,97) in
Rapid feed Y1
9 m/min354,33 ipm
TURRET 2
Positions number
12
Rotation time (1 pos)
0,15 sec.
Number of driven stations
12
Driven tools speed
4000 rpm
Driven tools power
3,7 Kw
Axis stroke X2
170 mm6,69 in
Rapid feed X2
18 m/min708,66 ipm
Axis stroke Z2
390 mm15,35 in
Rapid feed Z2
30 m/min1.181,10 ipm
Axis stroke Y2
90 (+40/-50) mm3,54 (+1,57/-1,97) in
Rapid feed Y2
9 m/min354,33 ipm
EXTRA

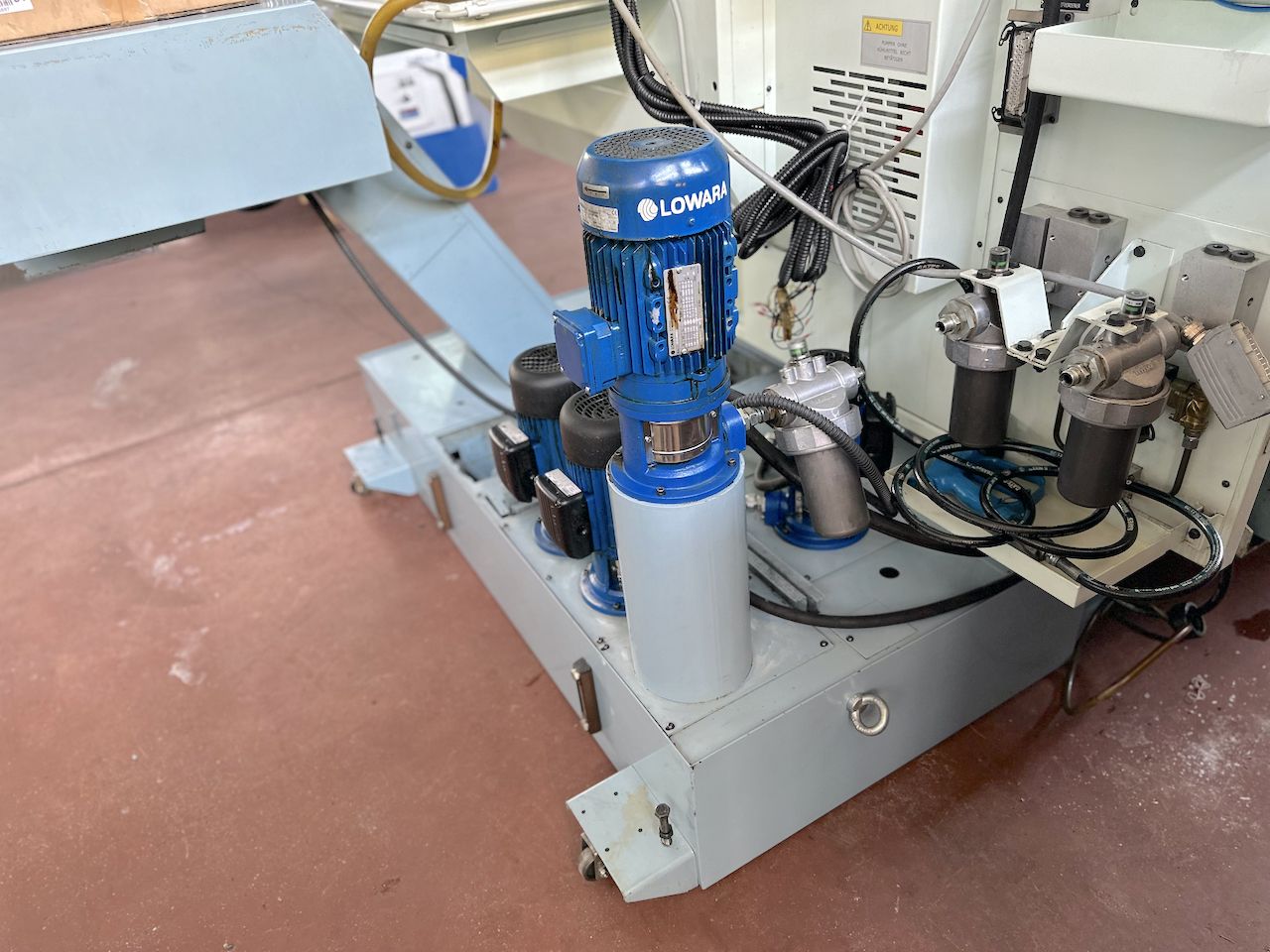

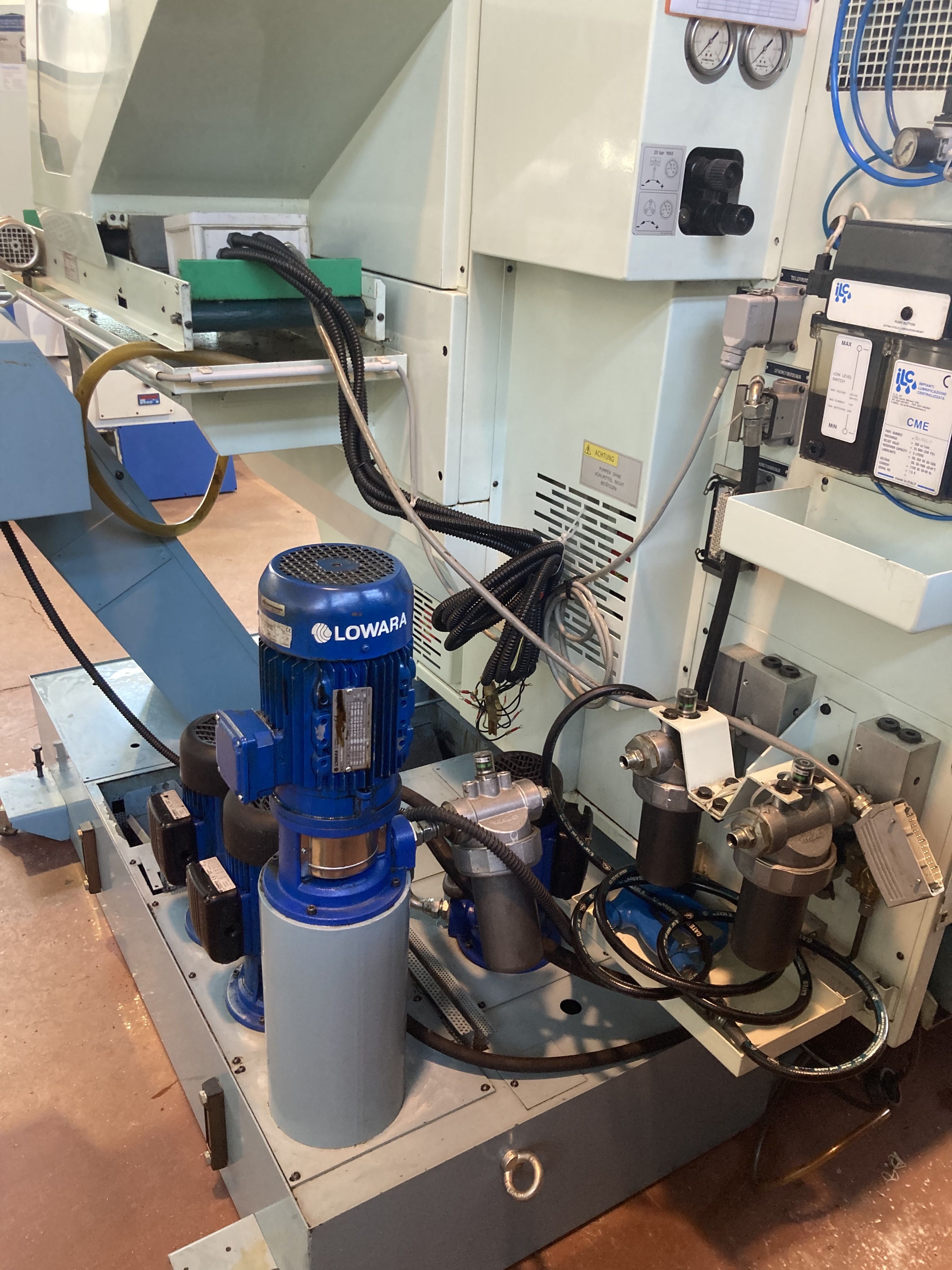

Coolant pump
18Bar 350lt.
Tool presetter
2

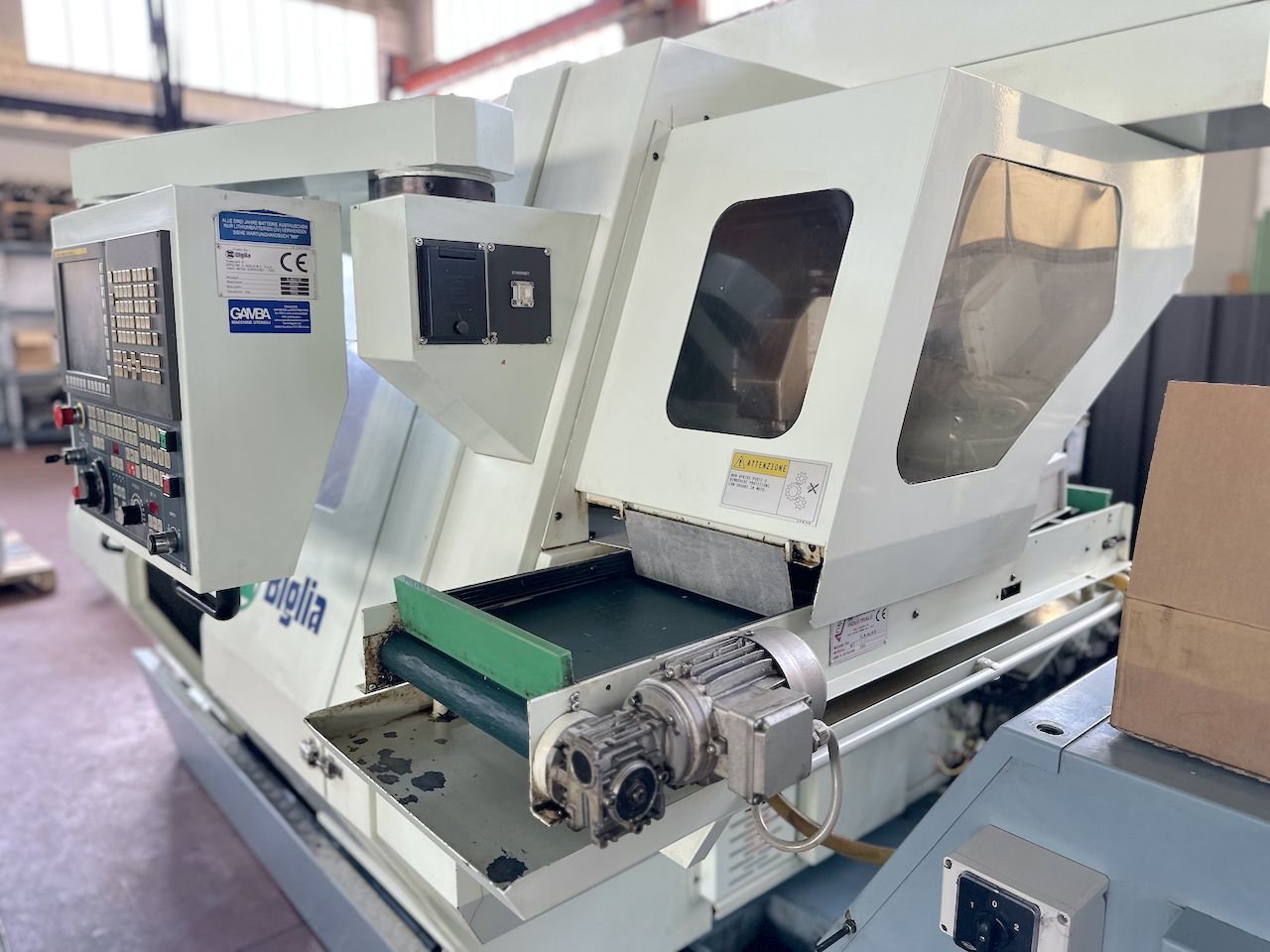

Workpieces conveyor belt
Yes
Chip conveyor
si
Workpiece espulsion robot
si
Machine total weight
7400 Kg
Floor space
4400x2150x2200 mm173,23x84,65x86,61 in
