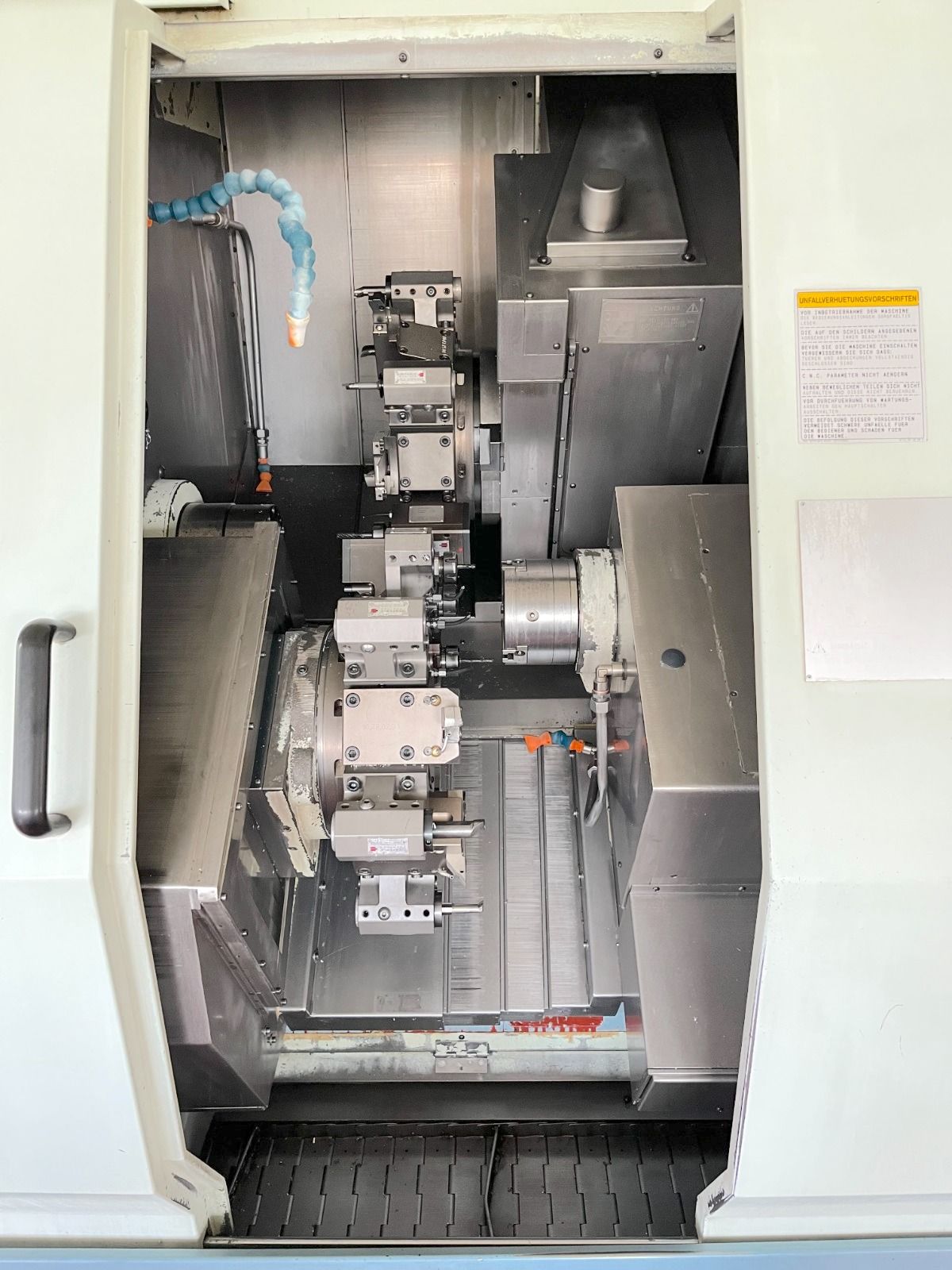

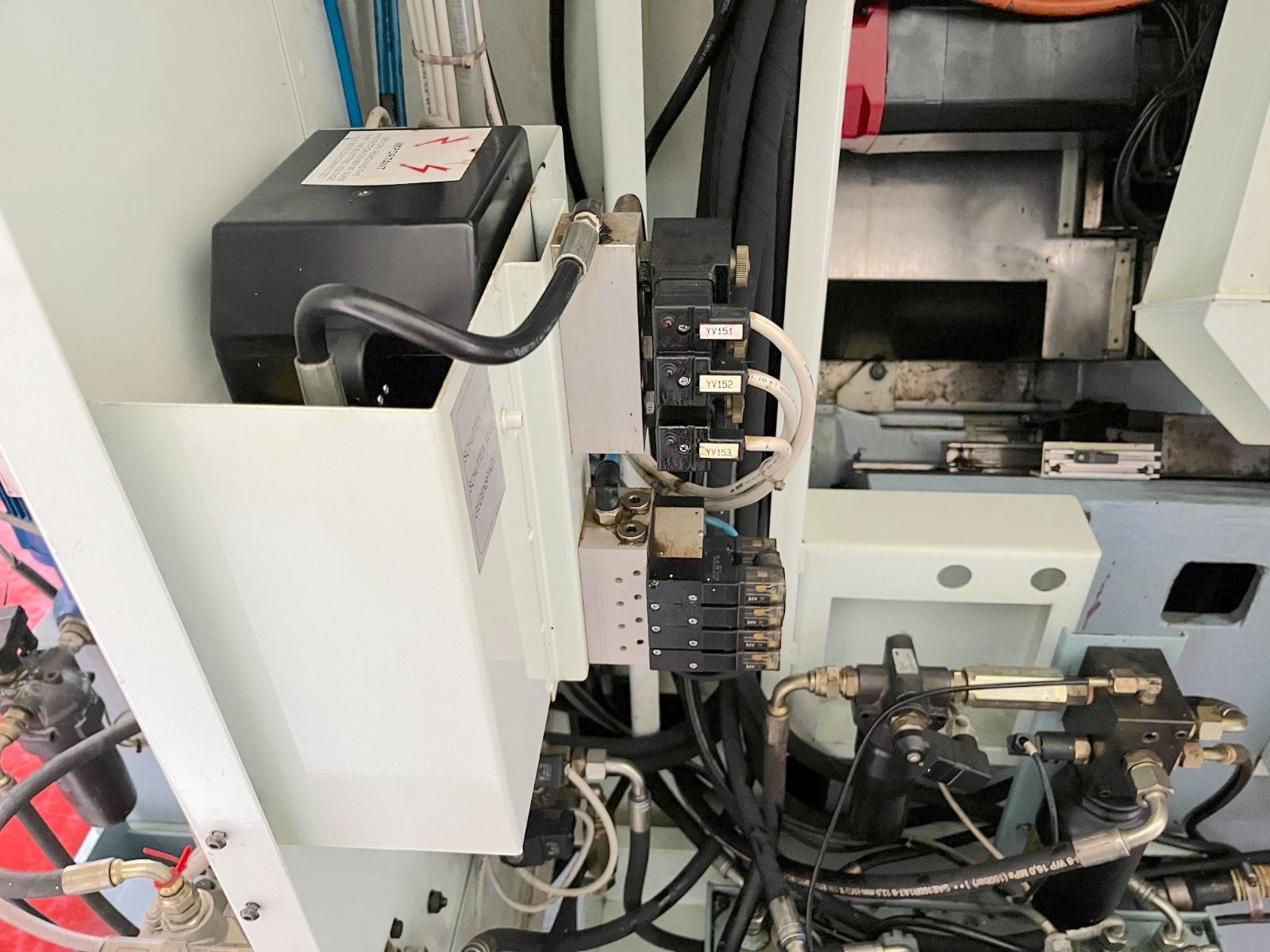

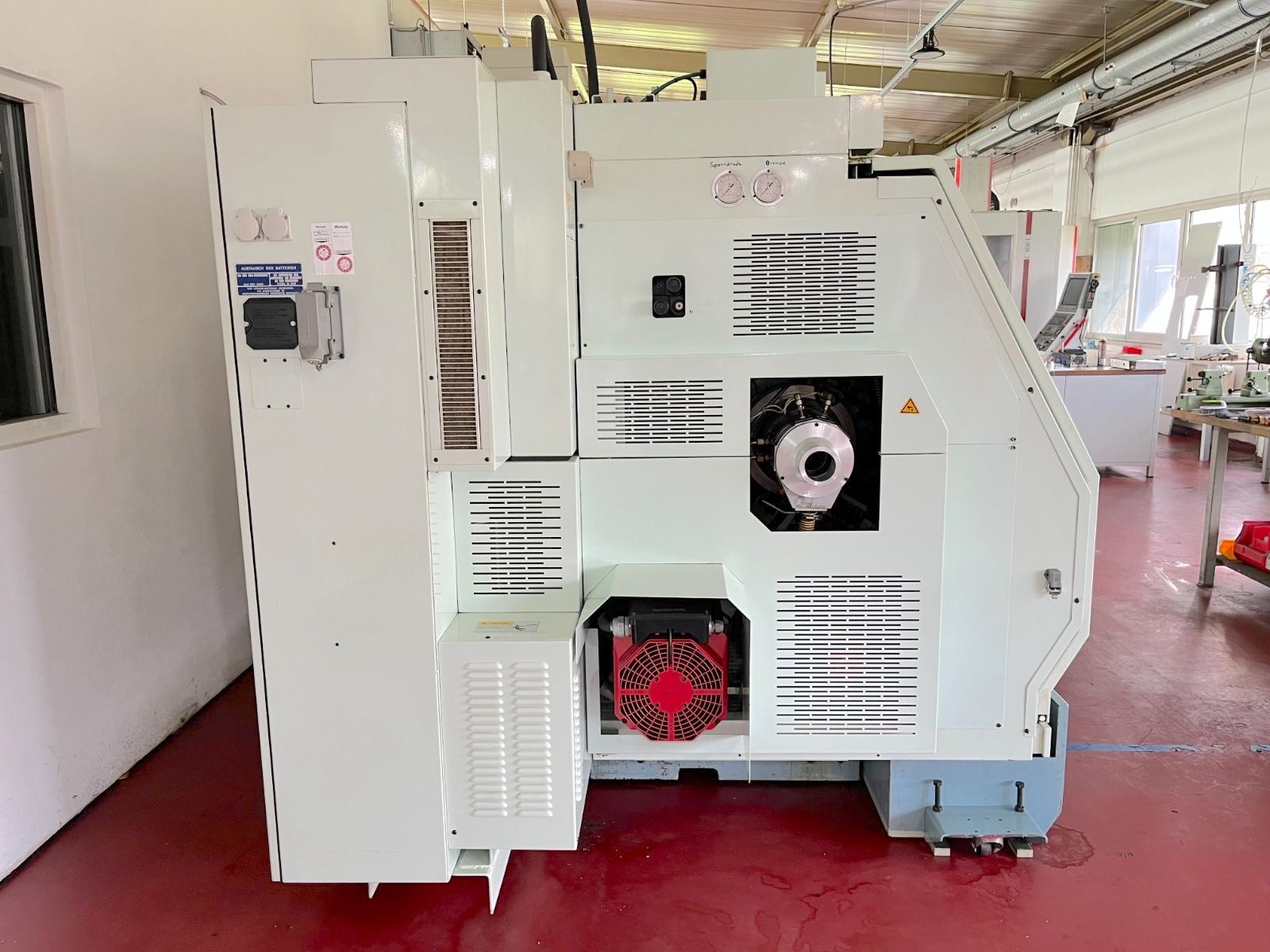

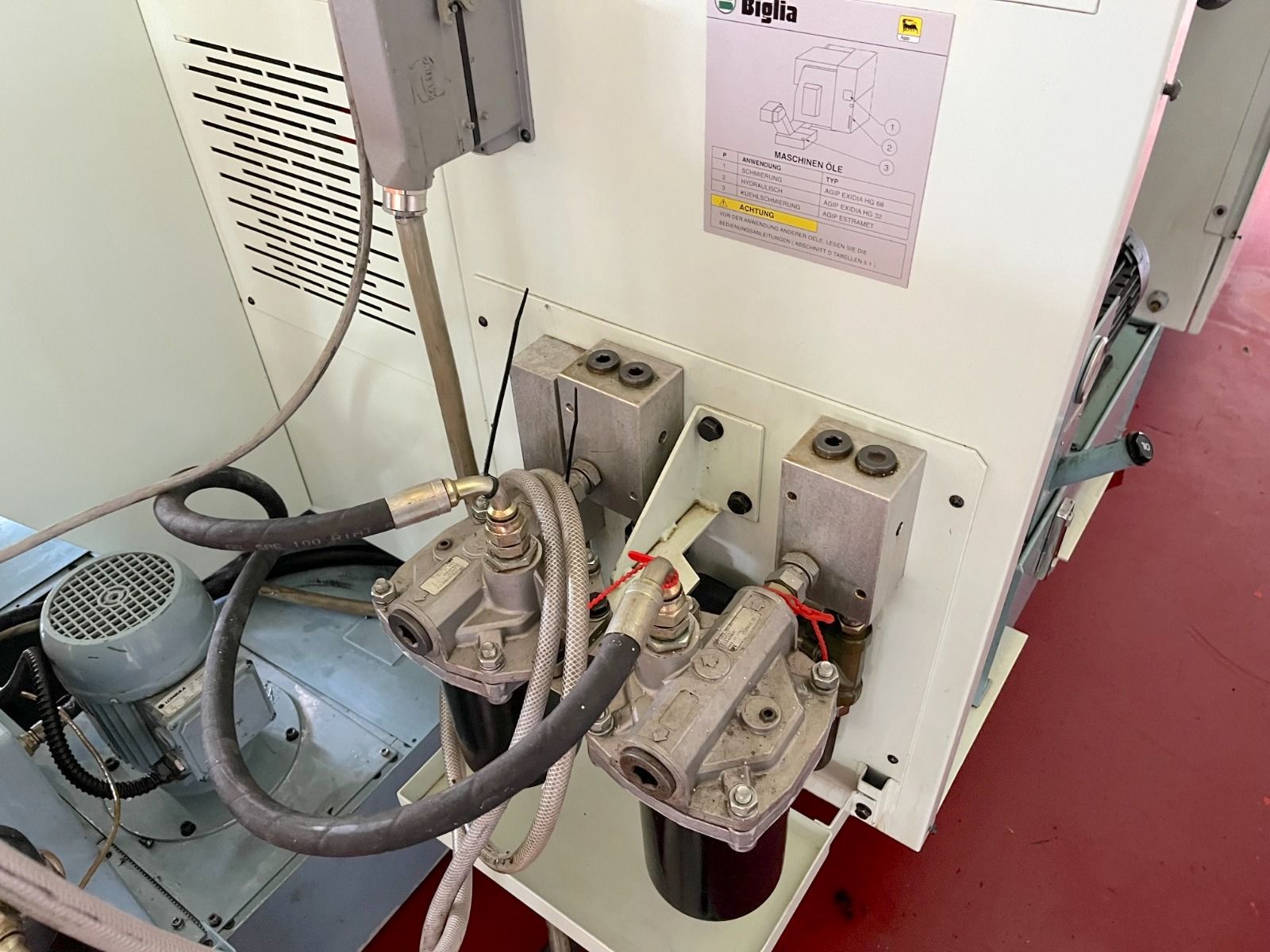

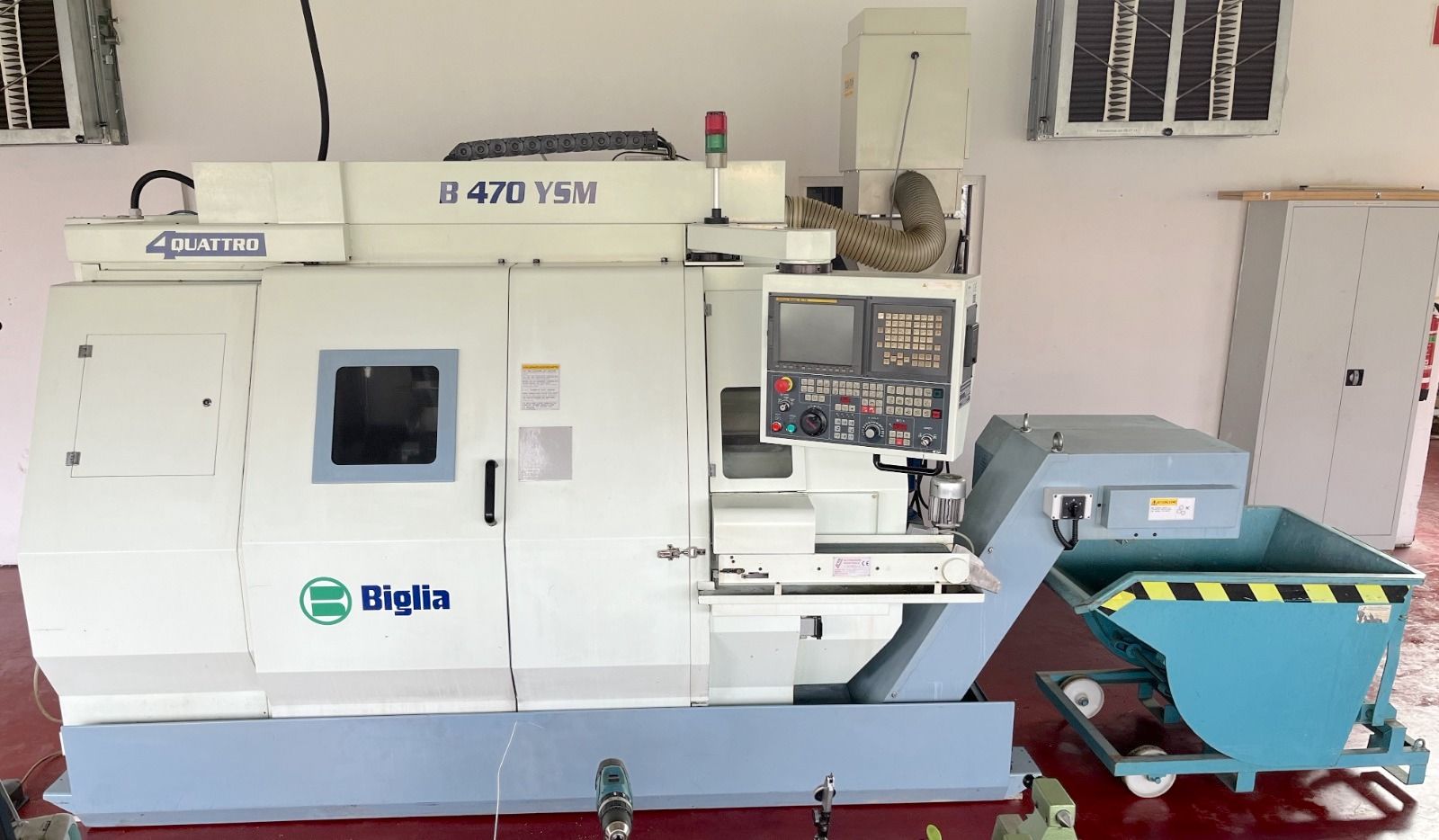

Technical specifications
Metric
Imperial
WORKING CAPACITY
Max turning diameter
Volteggio 520mm / Tornibile 240 mm mmVolteggio 20,47mm / Tornibile 9,45 mm in

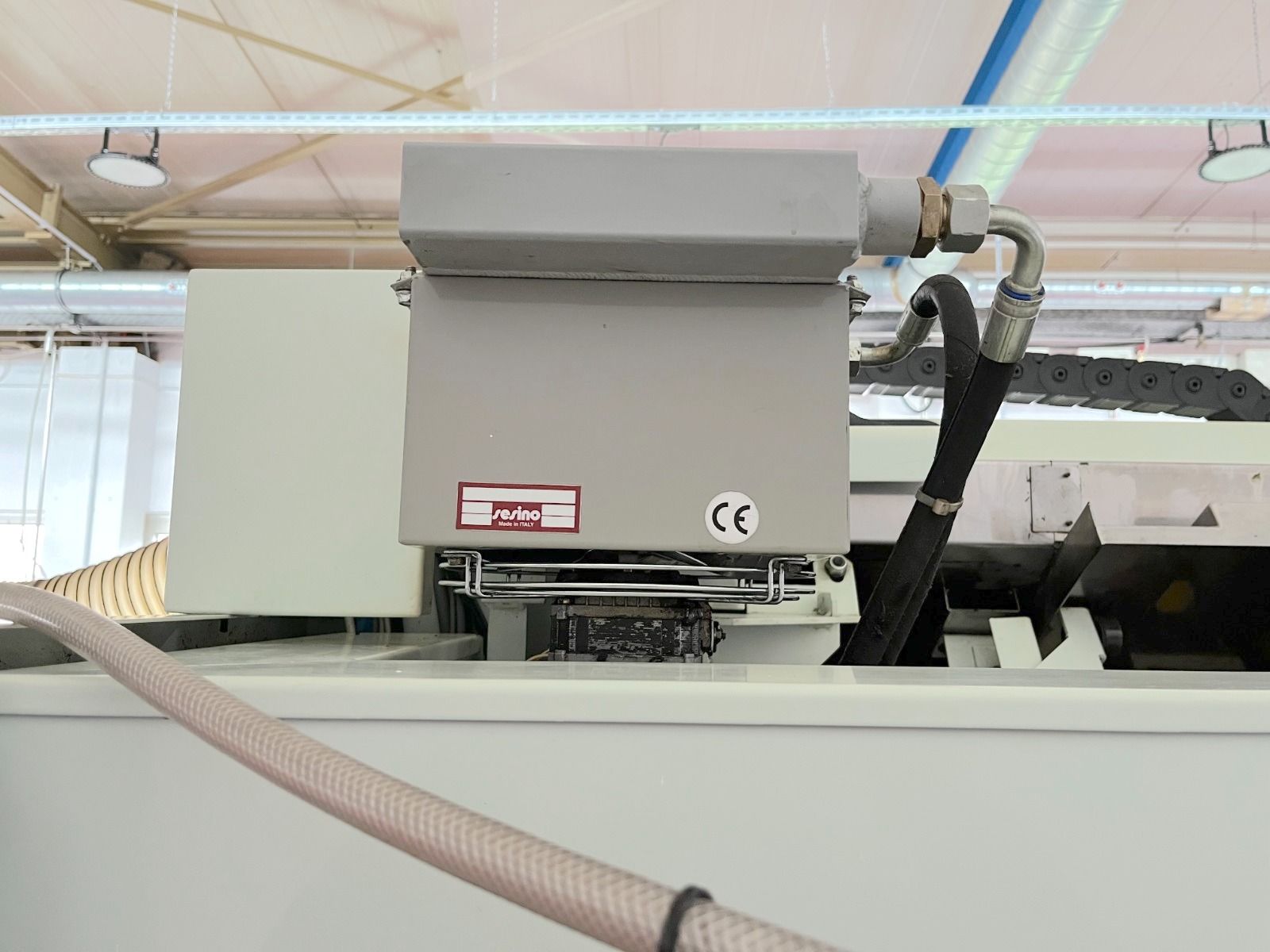

Max bar working diameter
68 mm2,68 in
Max working lenght
250 mm9,84 in

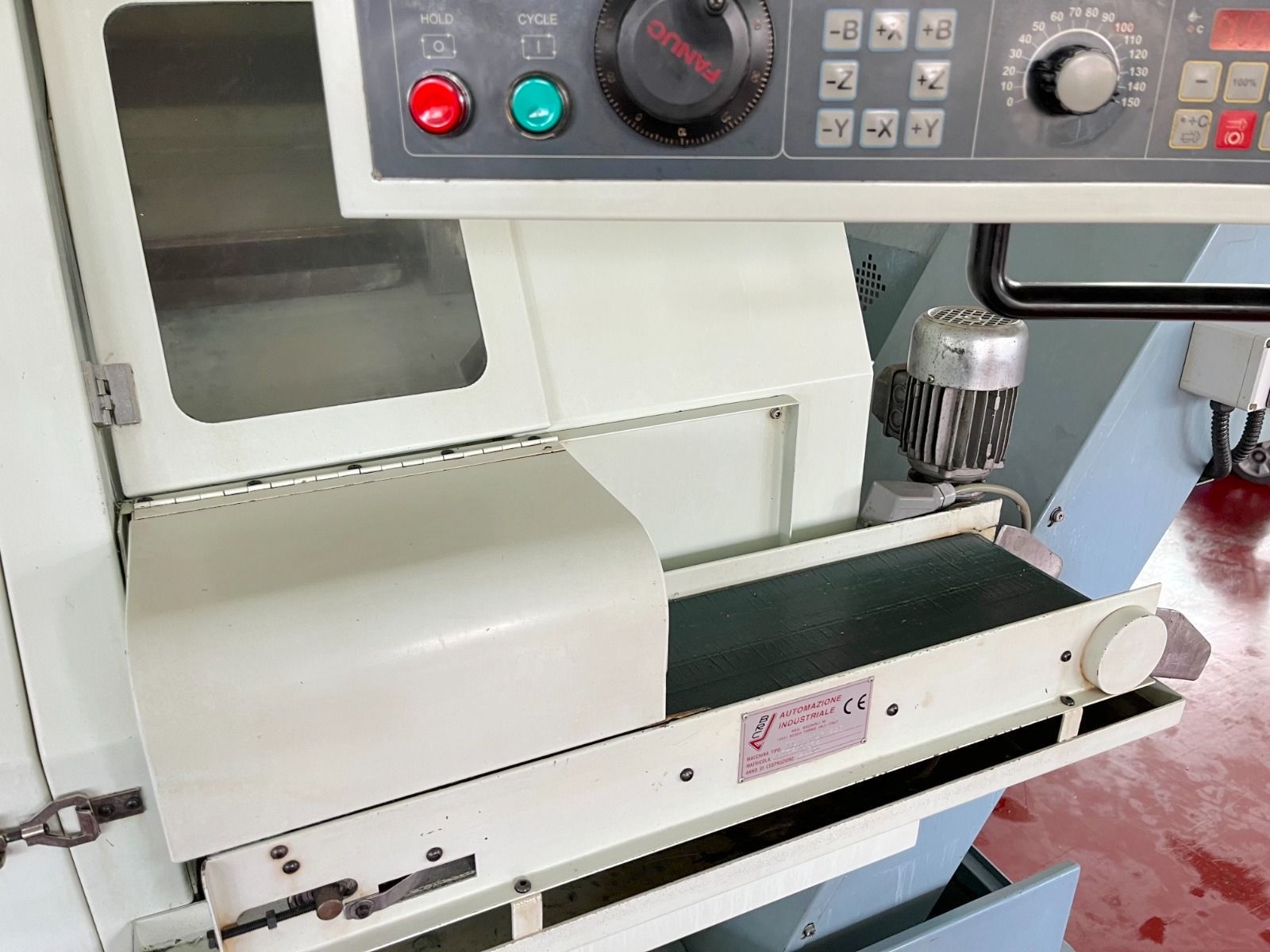

CNC
CNC

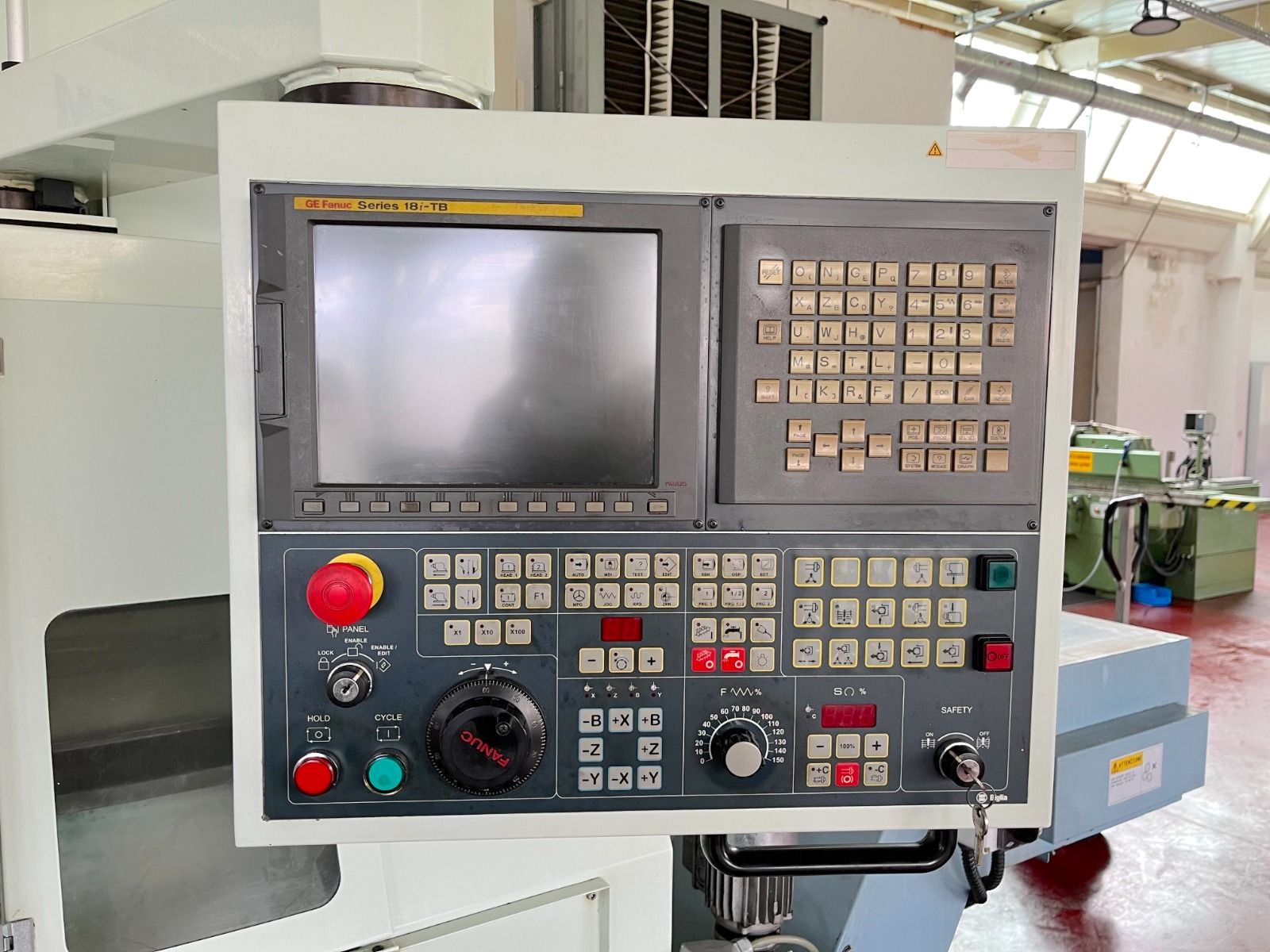

Fanuc 18i-TB

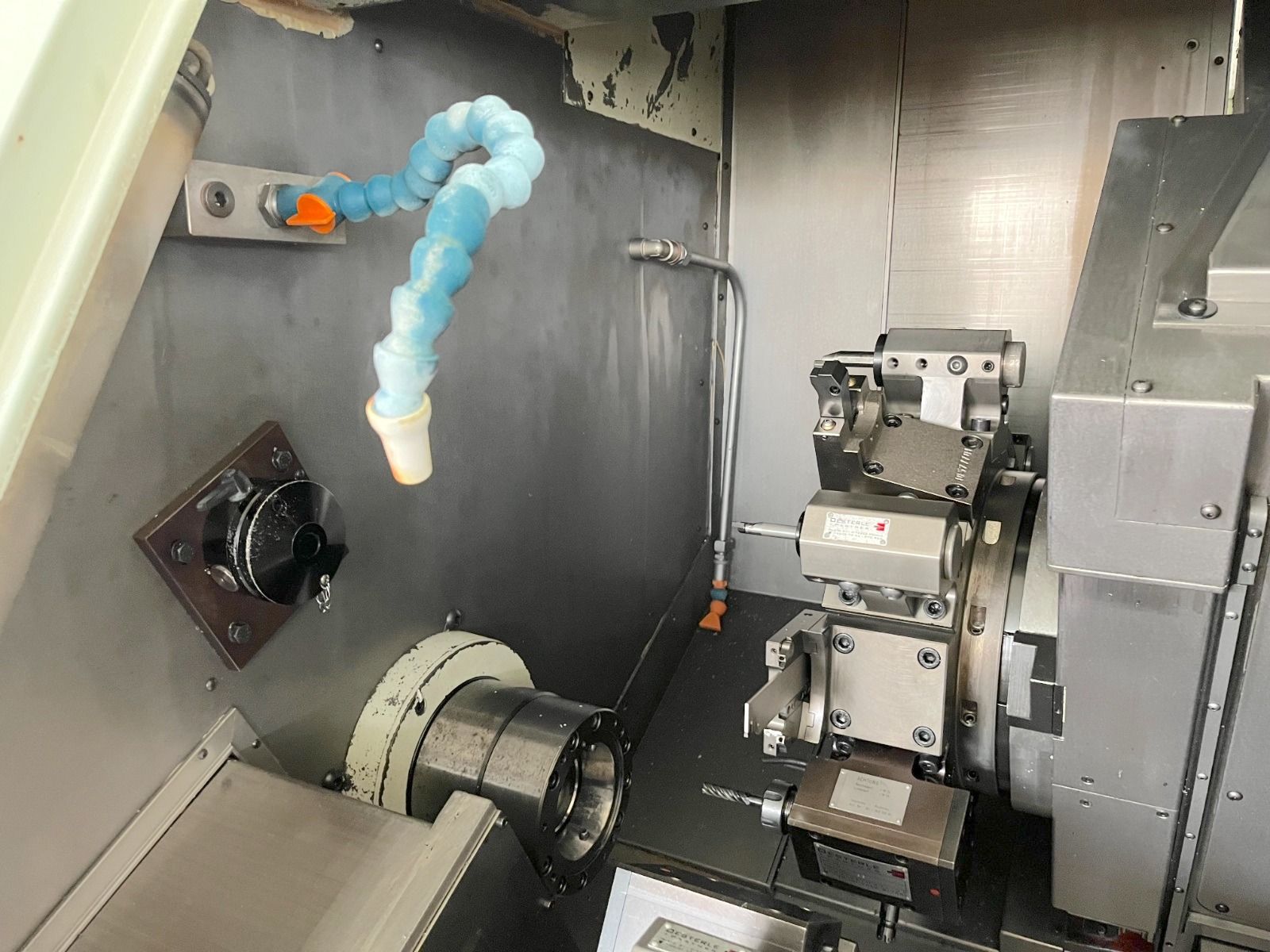

MAIN SPINDLE
Max rotation speed
4000 rpm
Spindle nose
ASA6”
Spindle hole
80 (passaggio barra 68mm) mm3,15 (passaggio barra 2,68mm) in
Internal bearing diameter
110 mm4,33 in
Max power
26 Kw
Accuracy (C axis)
0,001 °

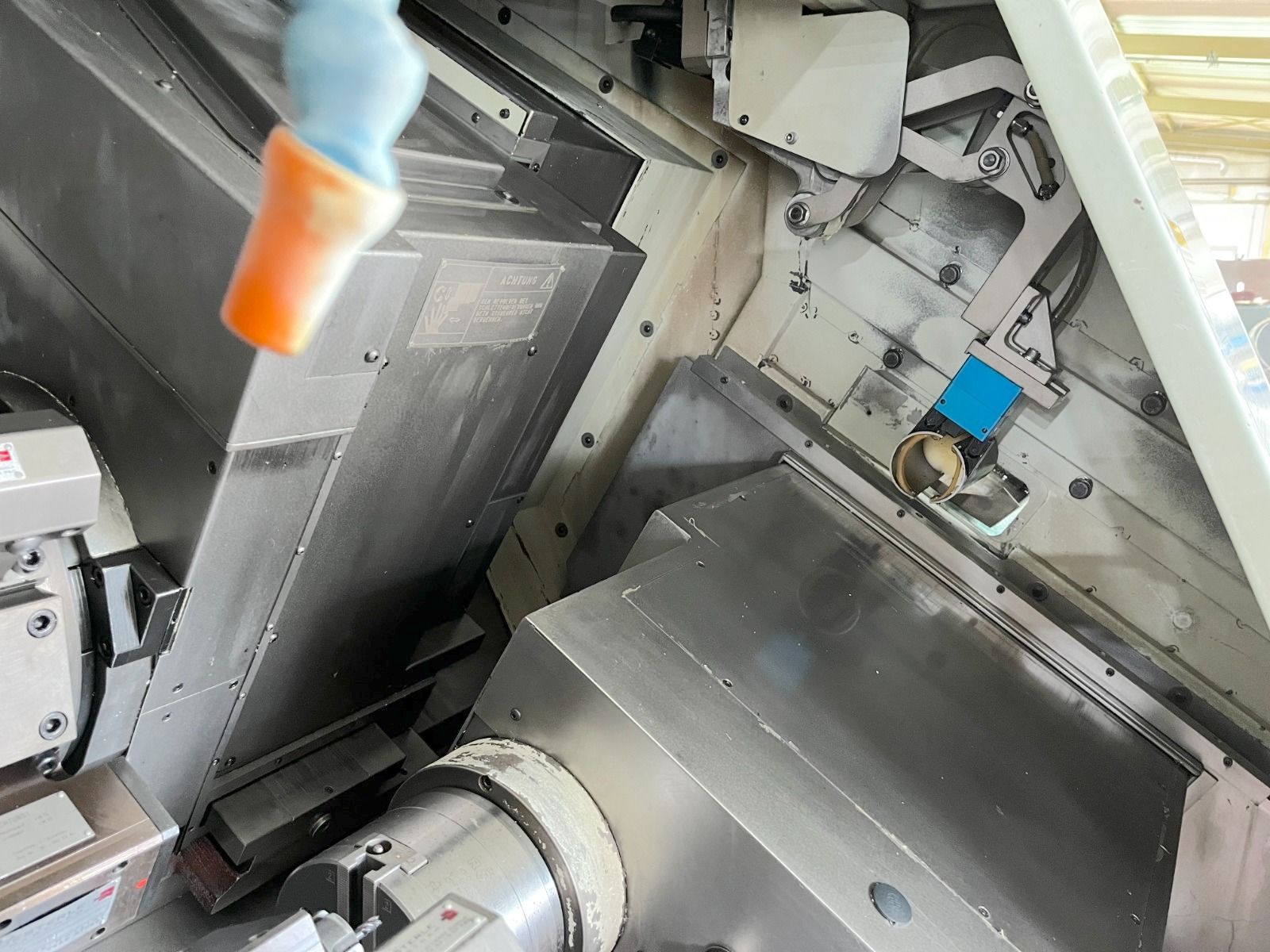

SUBSPINDLE
Max rotation speed
4000 rpm
Spindle nose
ASA5”
Spindle hole
55 (passaggio barra 45mm) mm2,17 (passaggio barra 1,77mm) in
Internal bearing diameter
80 mm3,15 in
Max power
11 Kw
Accuracy (C axis)
0,001 °

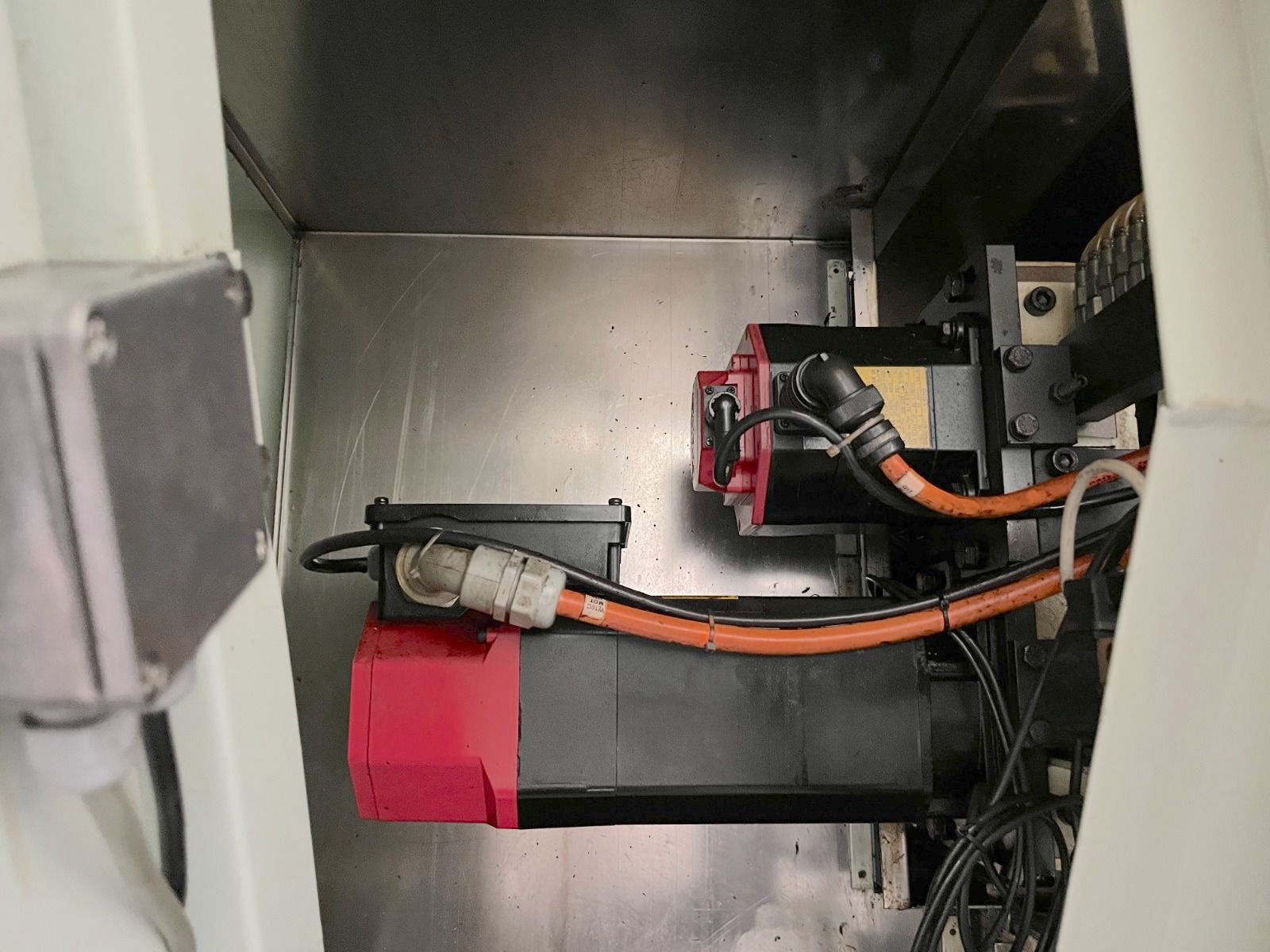

Rapid feed B
30 m/min1.181,10 ipm

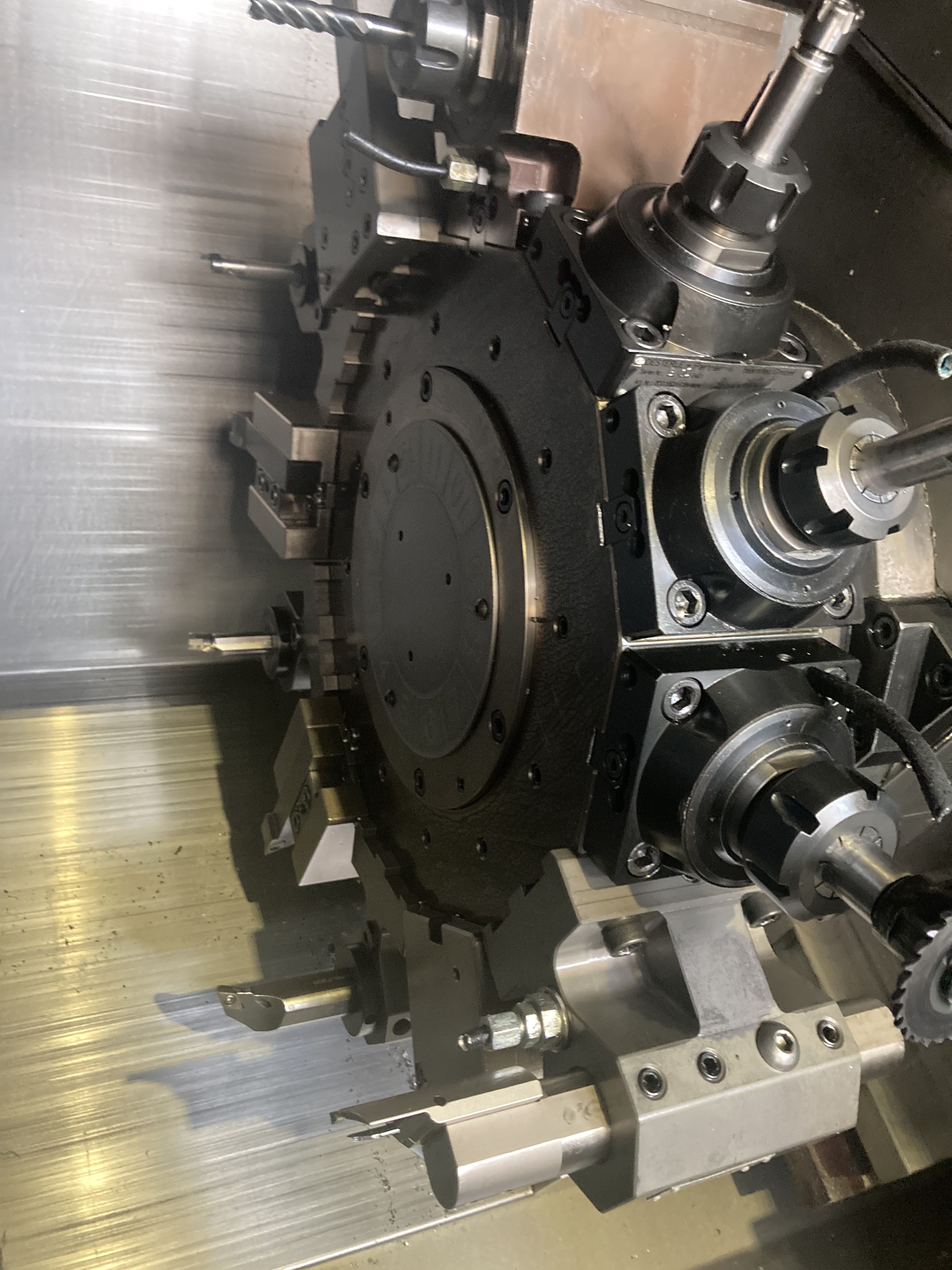

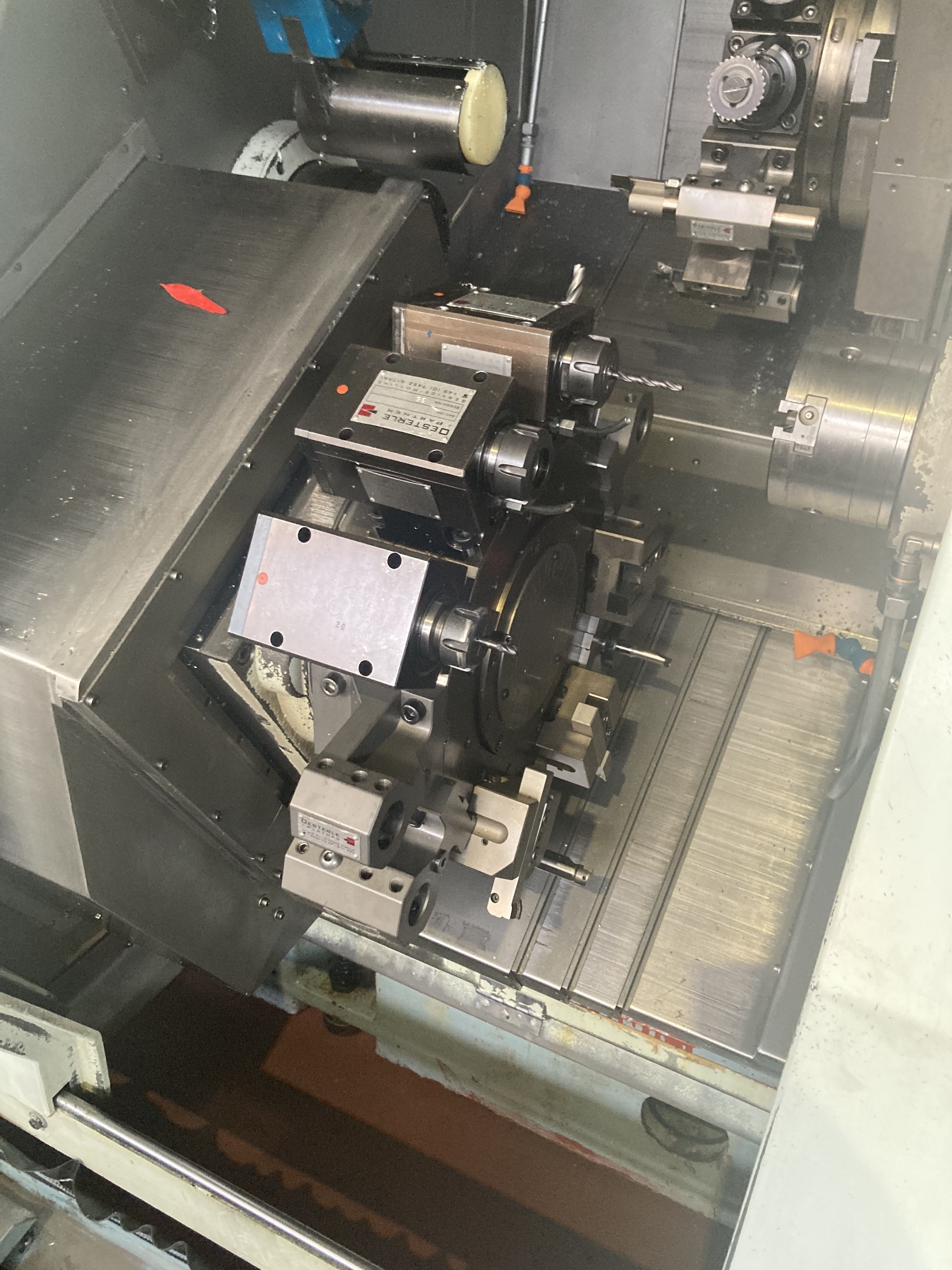

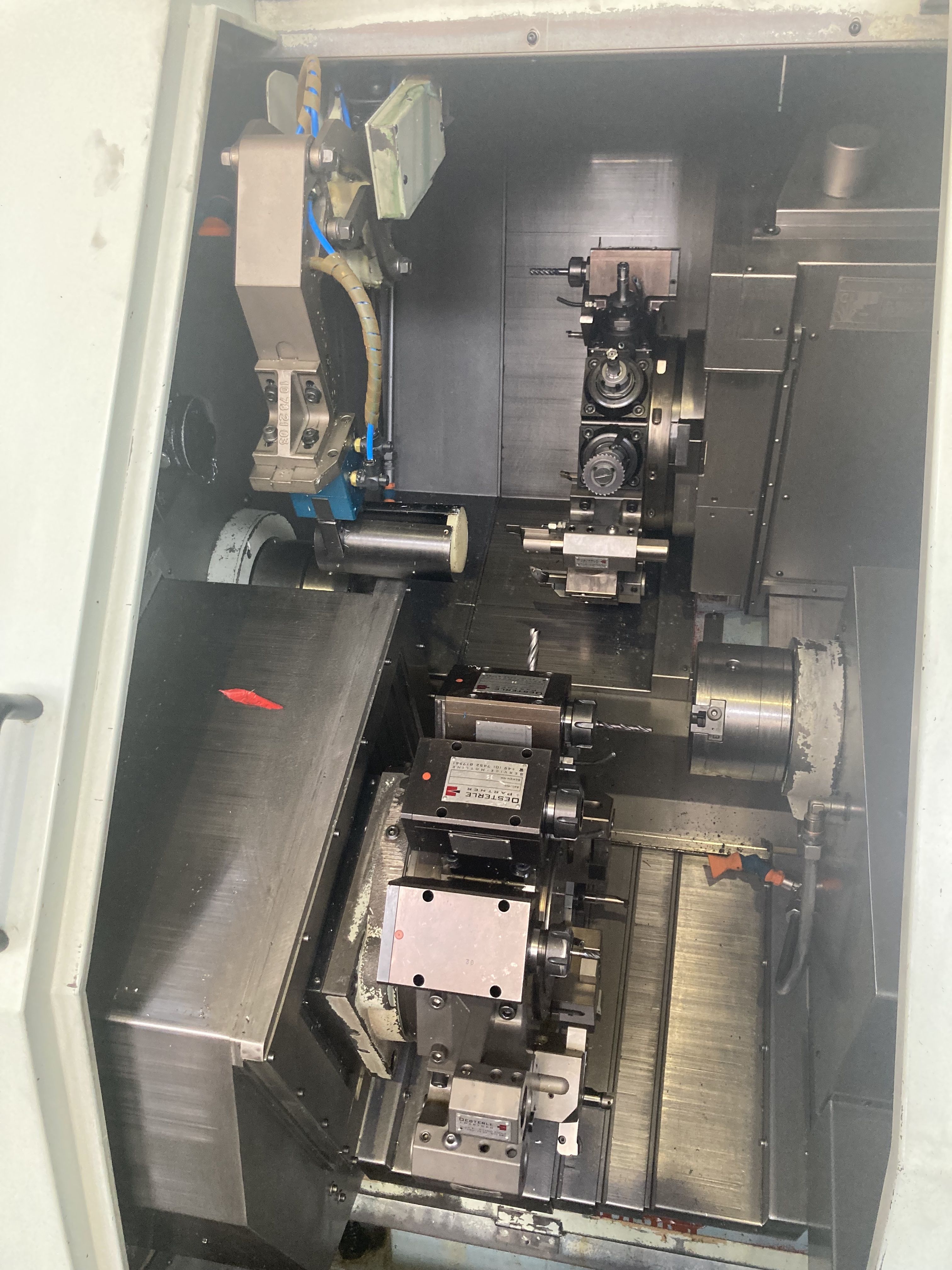

TURRET 1
Rotation time (1 pos)
0,15 sec.
Driven tools speed
4000 rpm
Driven tools power
3,7 Kw
Axis stroke X1
160 mm6,30 in
Rapid feed X1
20 m/min787,40 ipm
Axis stroke Z1
390 mm15,35 in
Rapid feed Z1
24 m/min944,88 ipm
Axis stroke Y1
100 mm3,94 in
Rapid feed Y1
6 m/min236,22 ipm
TURRET 2
Positions number
12
Rotation time (1 pos)
0,15 sec.
Number of driven stations
12
Driven tools speed
4000 rpm
Driven tools power
3,7 Kw
Axis stroke X2
160 mm6,30 in
Rapid feed X2
12 m/min472,44 ipm
Axis stroke Z2
240 mm9,45 in
Rapid feed Z2
20 m/min787,40 ipm

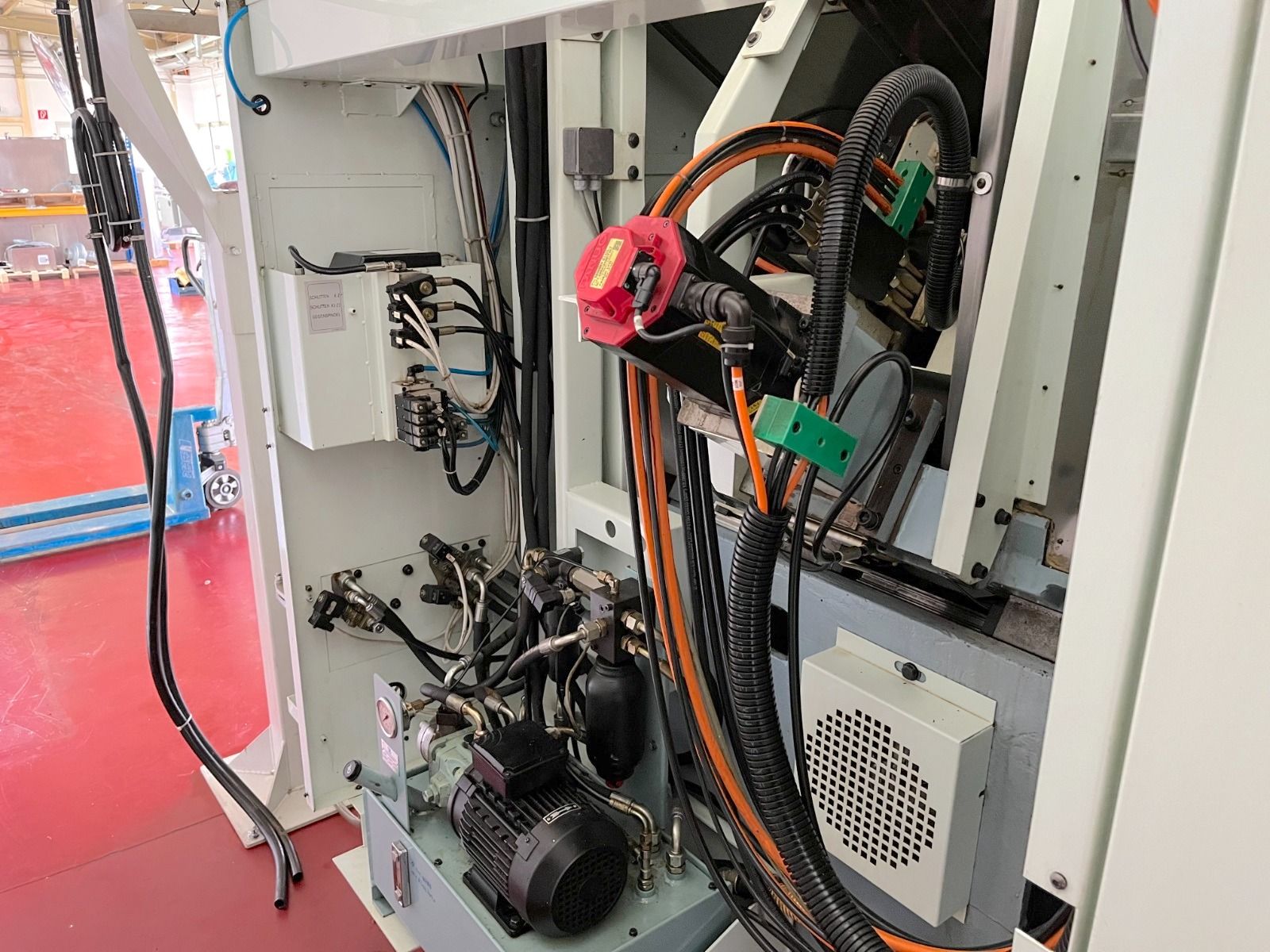

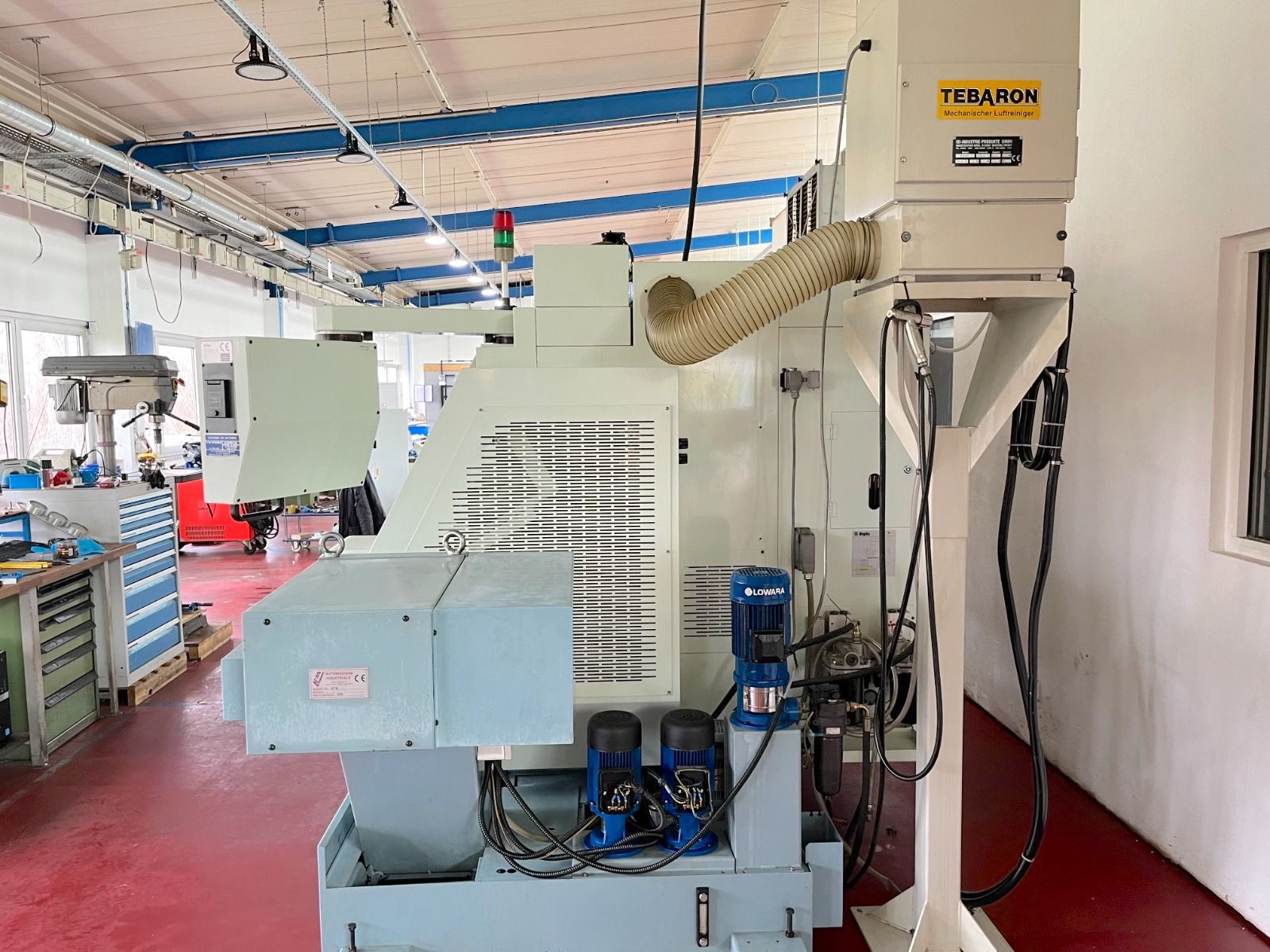

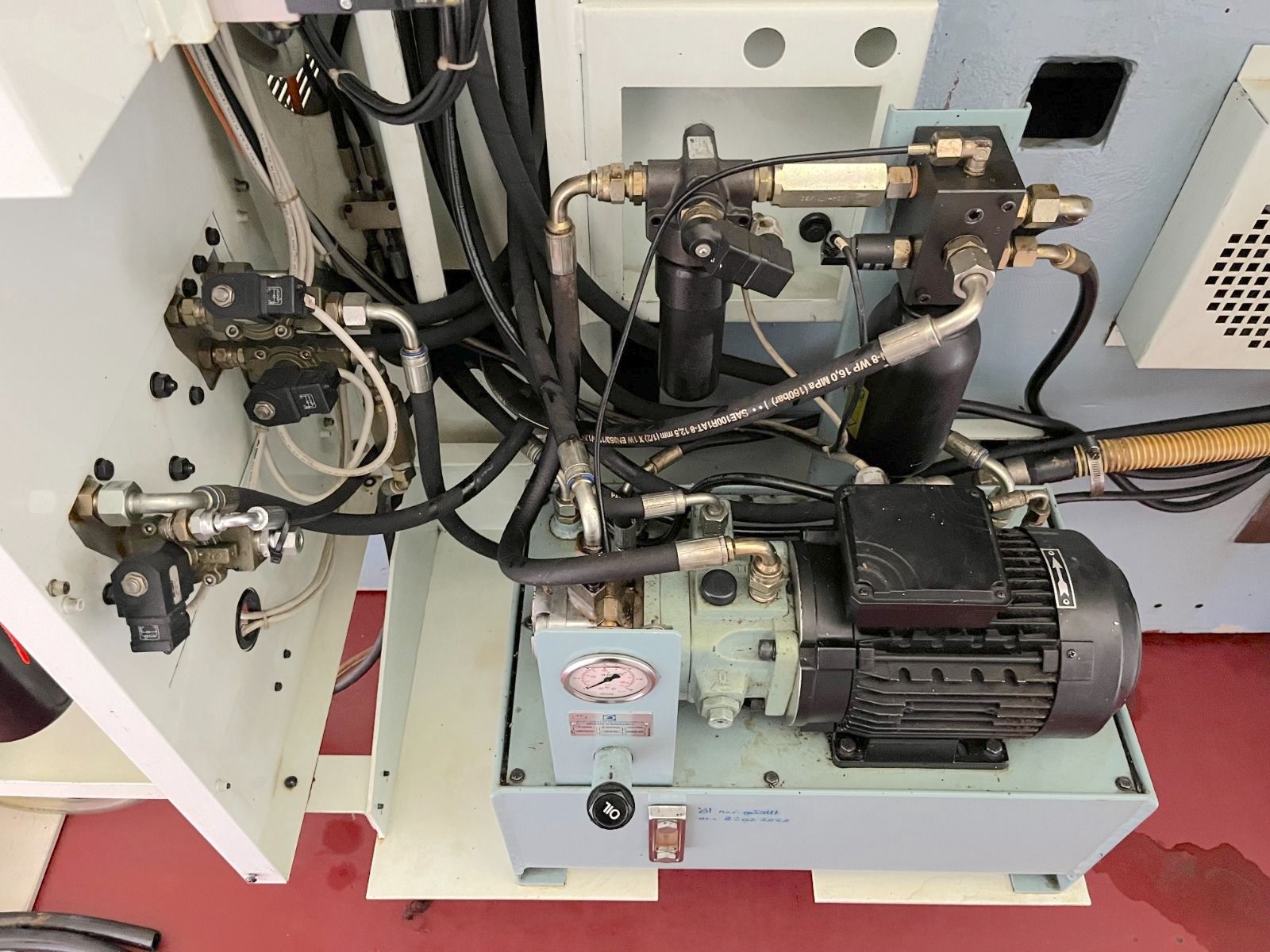

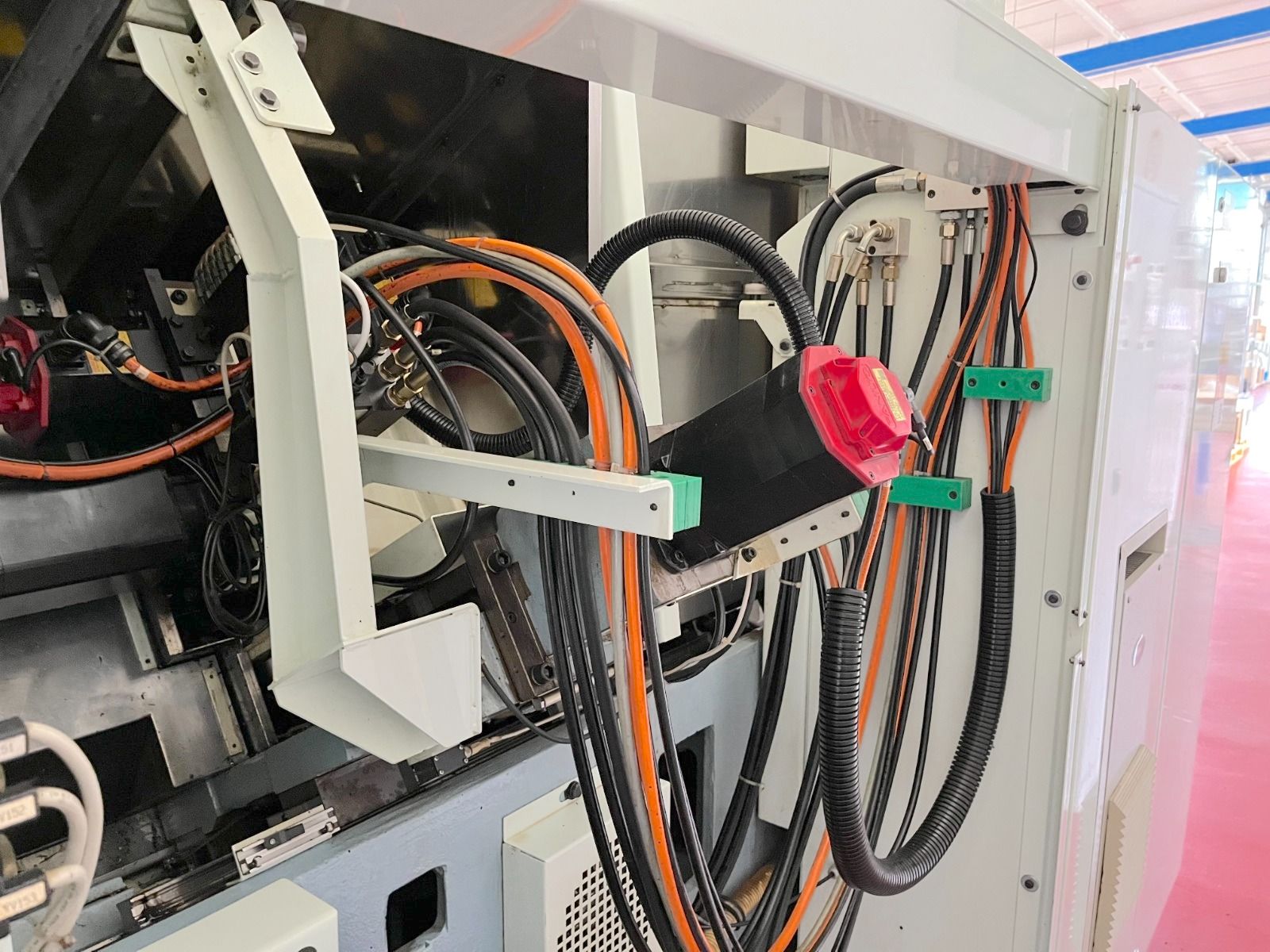

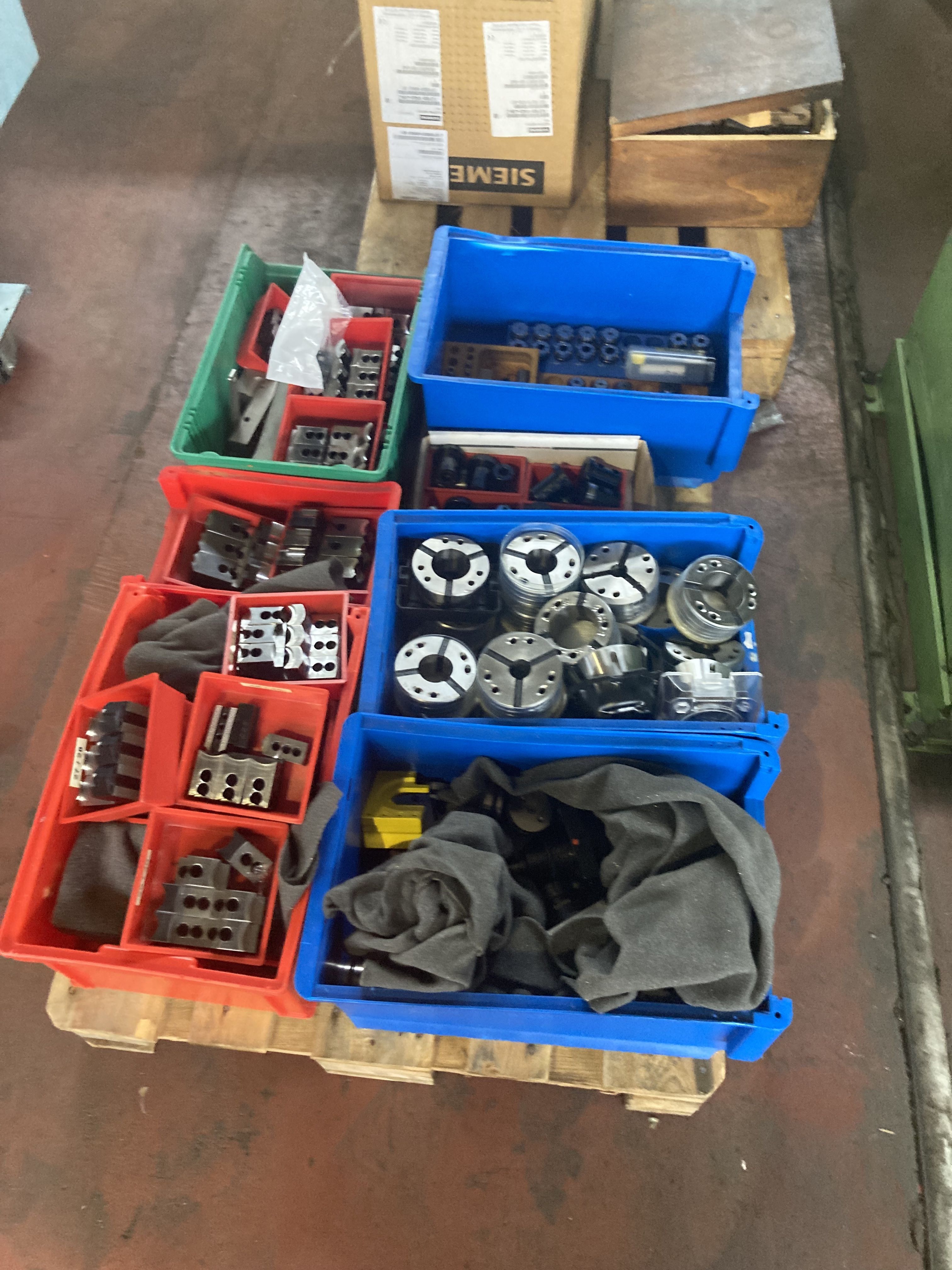

EXTRA
Machine total weight
6900 Kg
Floor space
4150x2100x2200 mm163,39x82,68x86,61 in
