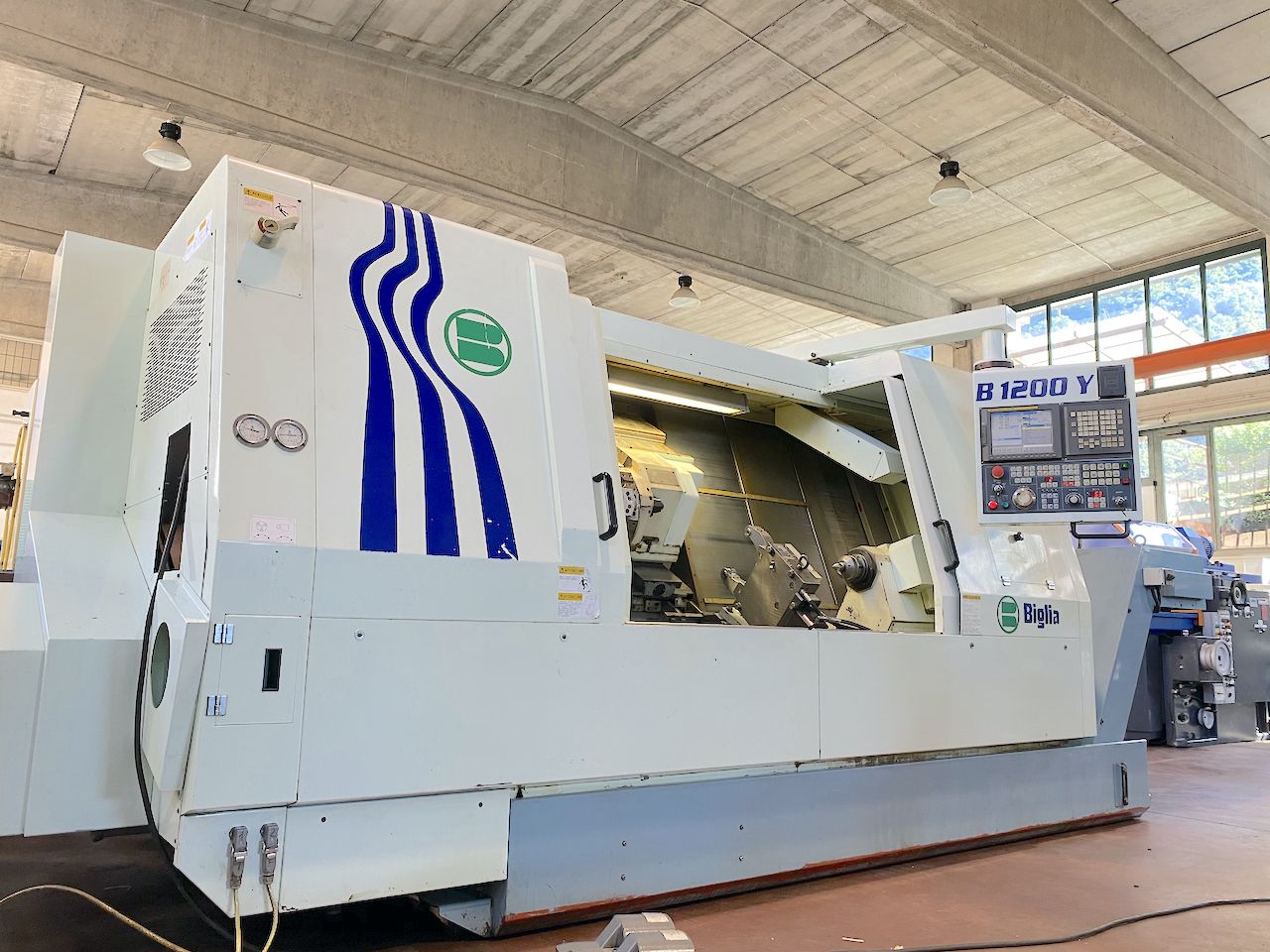

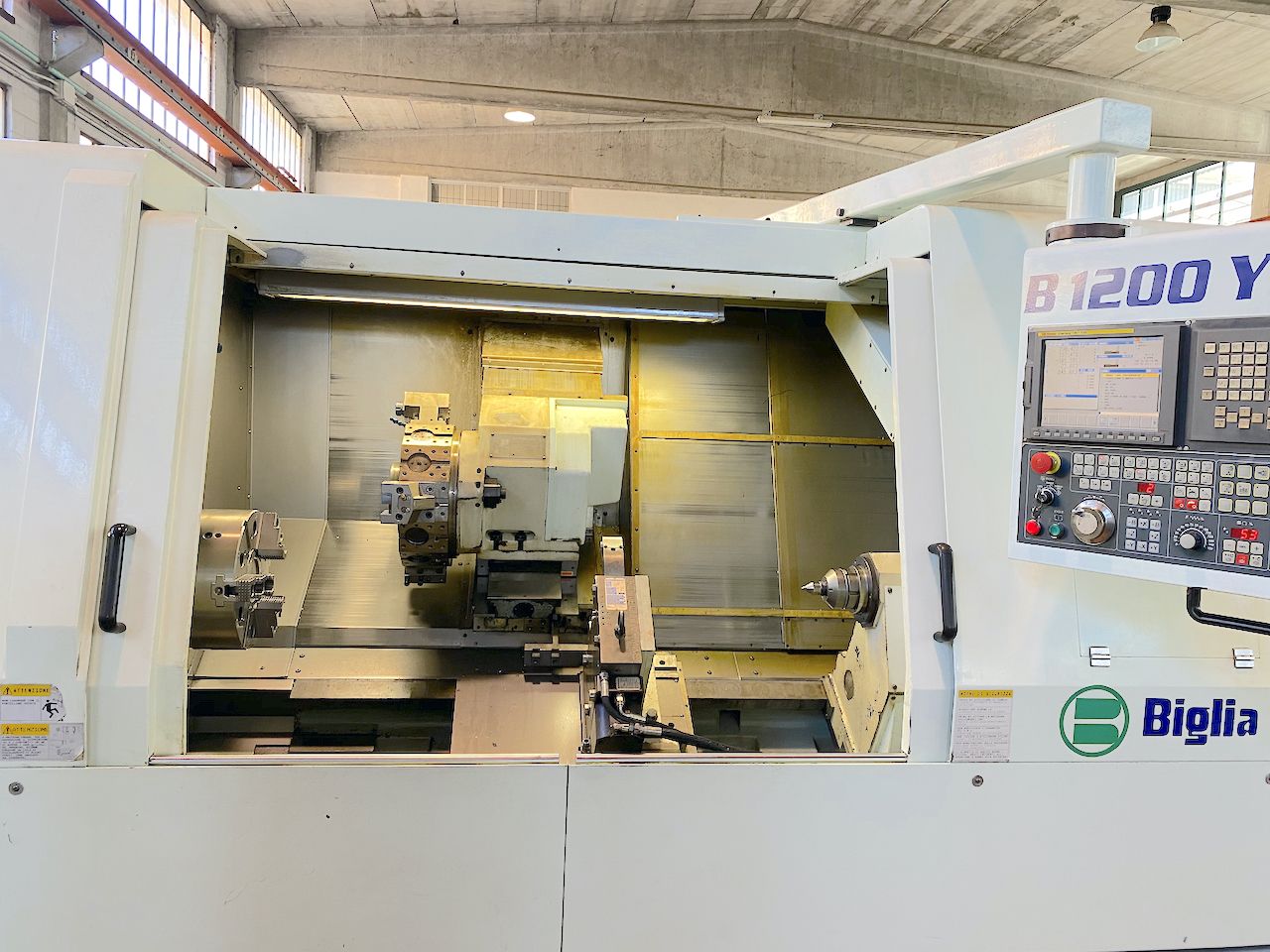

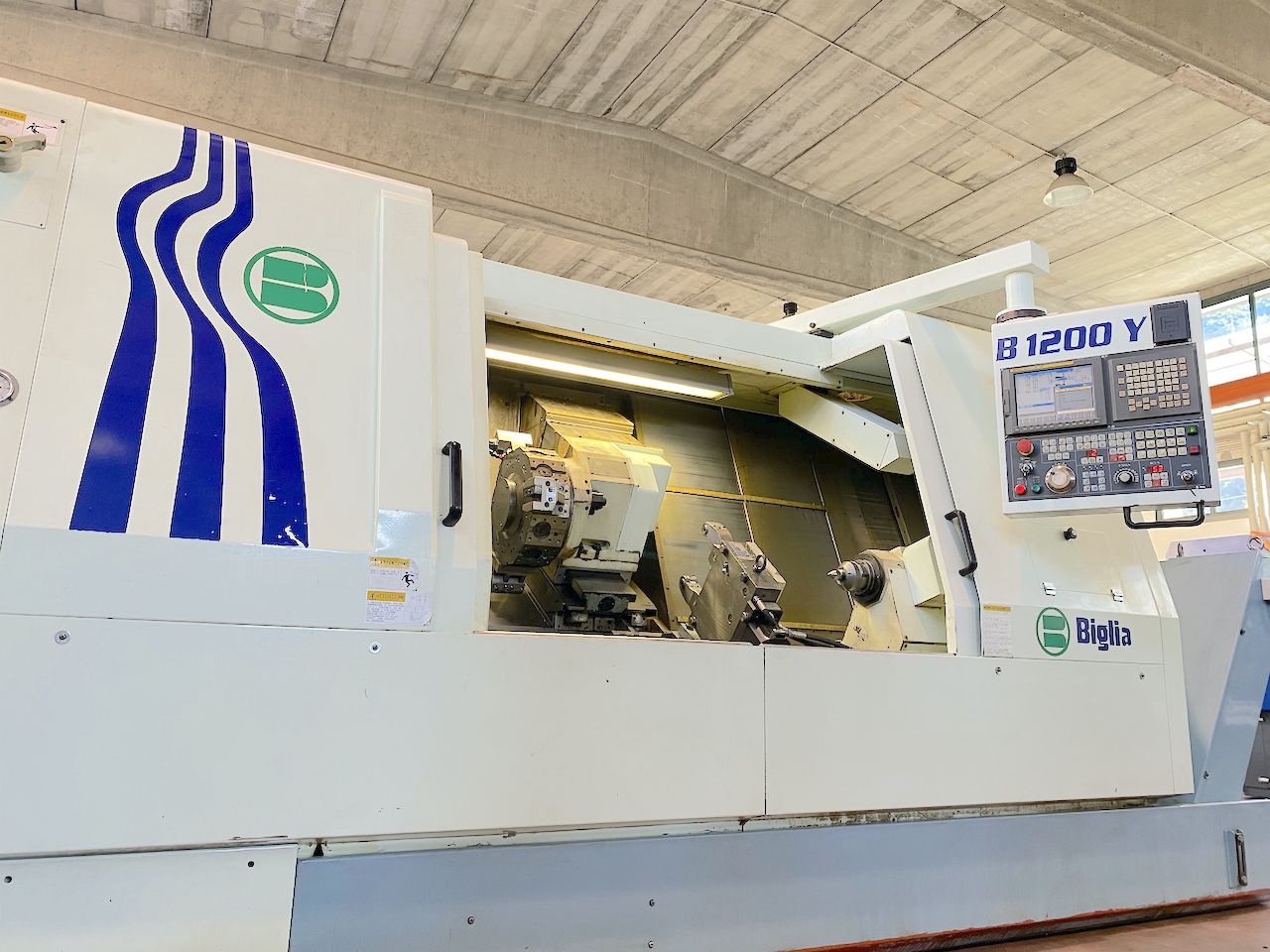

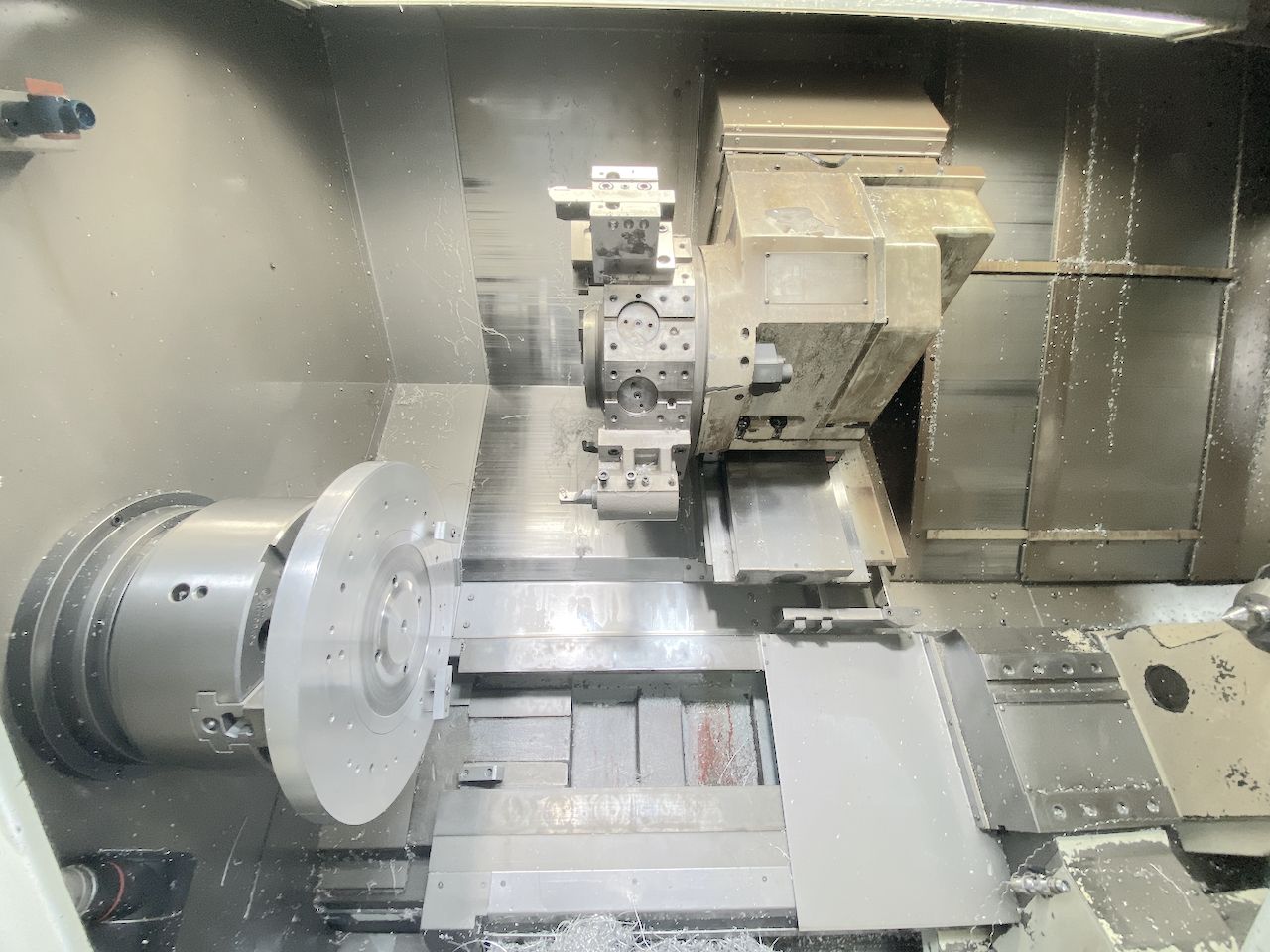

Technical specifications
Metric
Imperial
WORKING CAPACITY
Max bar working diameter
92 mm3,62 in
Max turning diameter
410 mm16,14 in
Max diameter on bed
700 mm27,56 in
Max working lenght
1315 mm51,77 in

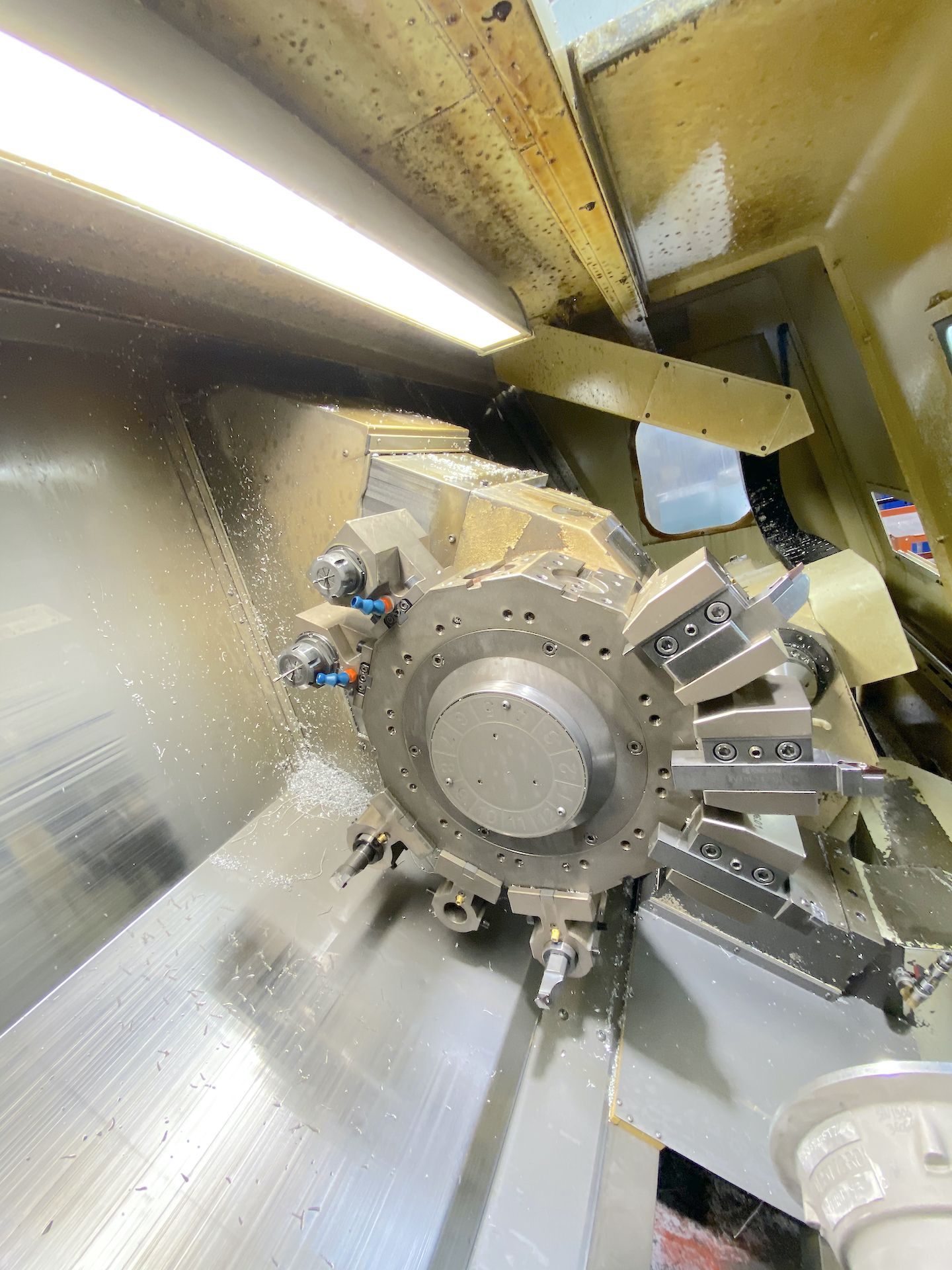

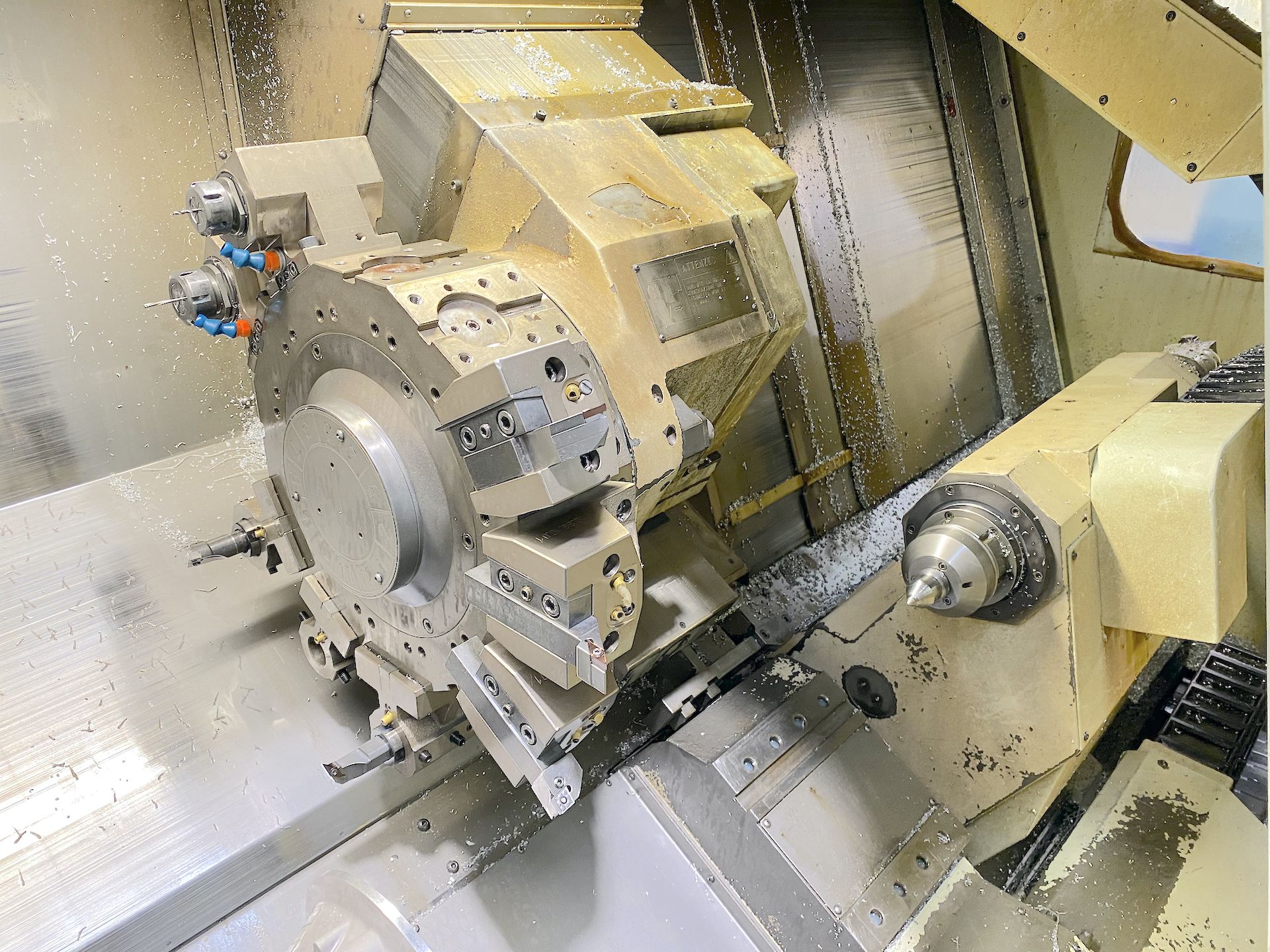

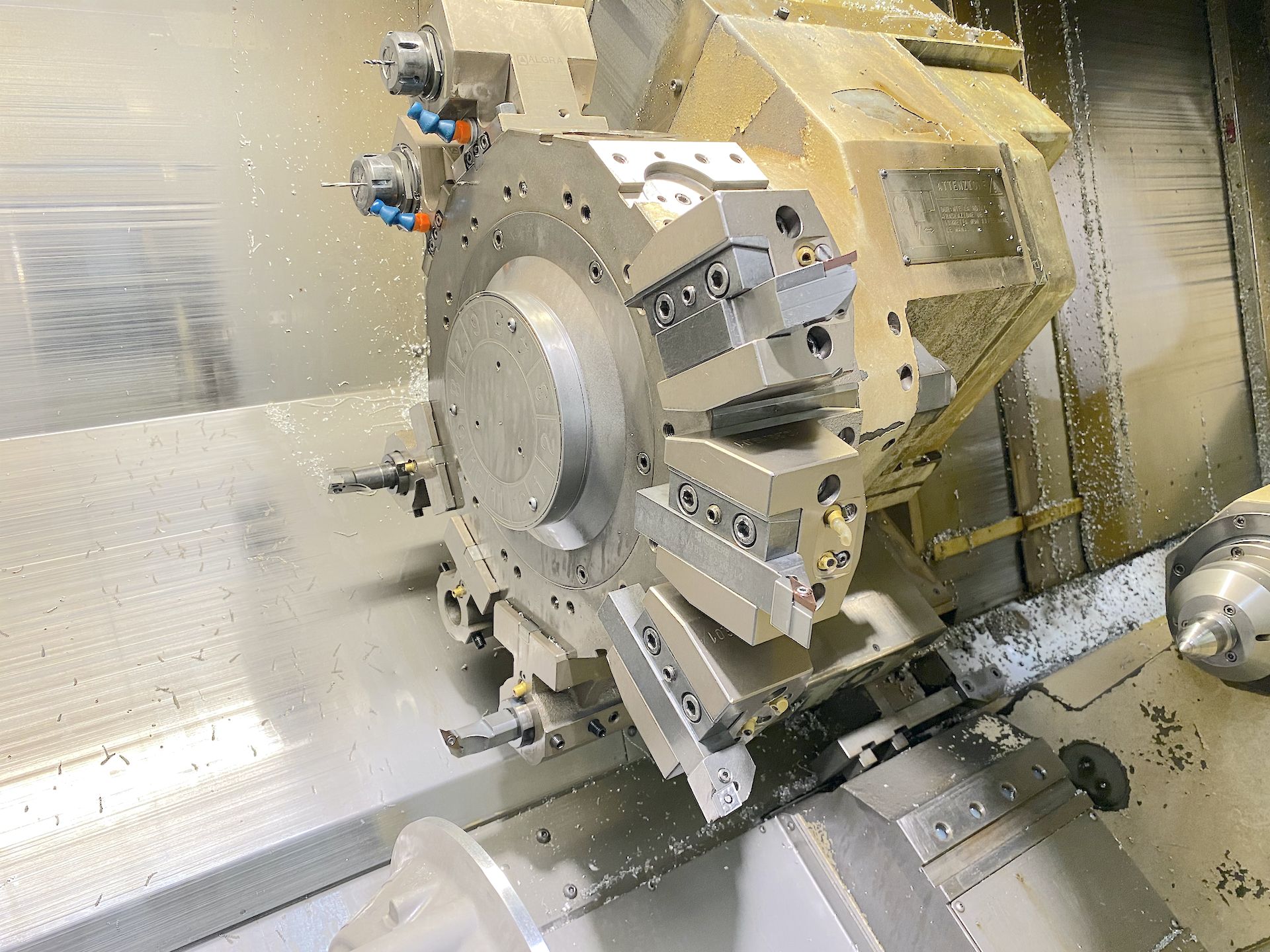

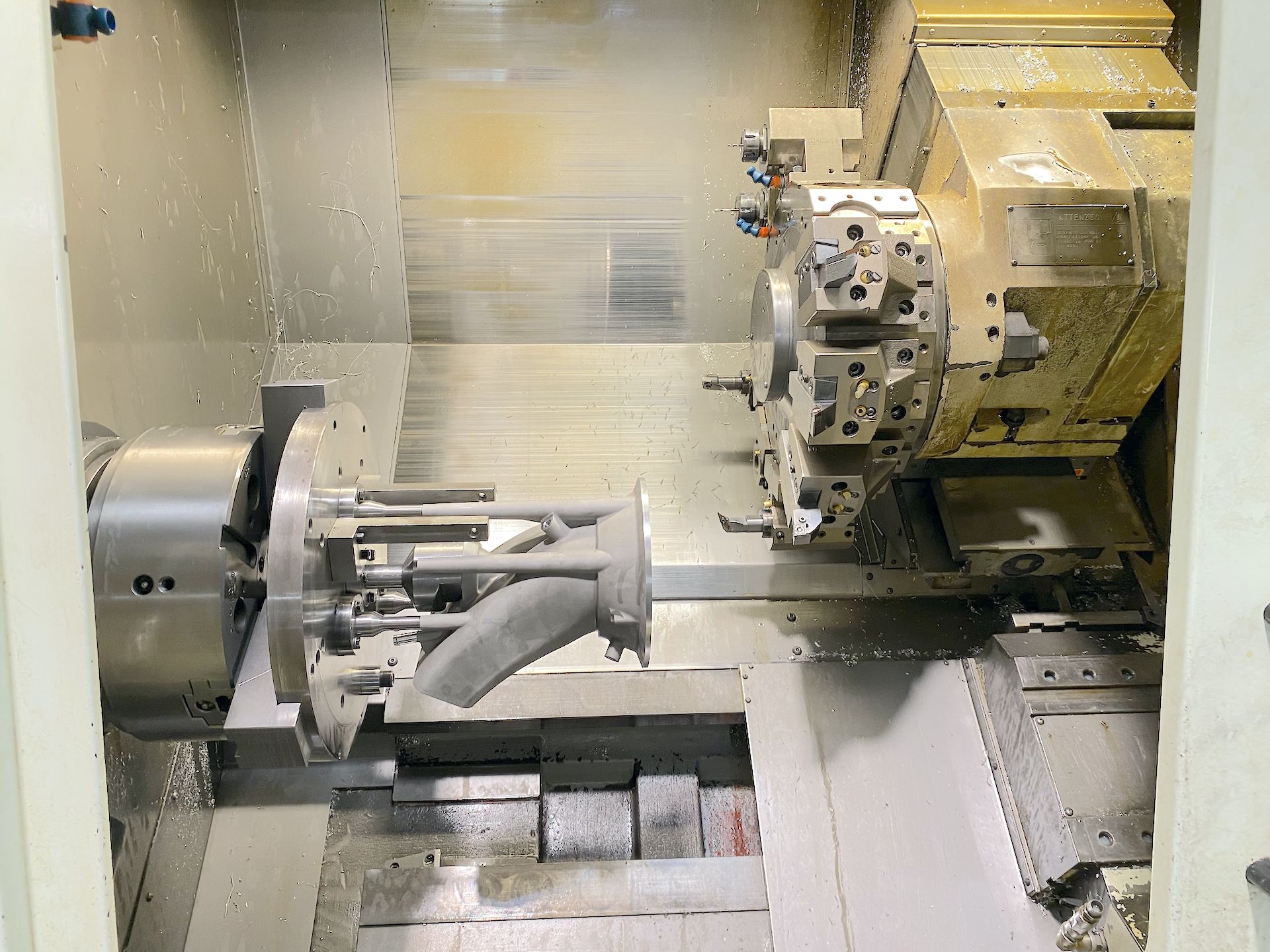

Positions number
12
Number of driven stations
12
Driven tools power
5,5 Kw
Driven tools torque
70 Nm
Driven tools speed
4000 rpm
Rotation time (1 pos)
0,15 sec.
Axis stroke X
255 mm10,04 in
Rapid feed X
20 m/min787,40 ipm
Axis stroke Z
1315 mm51,77 in
Rapid feed Z
24 m/min944,88 ipm
Axis stroke Y
110 (+60/-50) mm4,33 (+2,36/-1,97) in
Rapid feed Y
7,5 m/min295,28 ipm

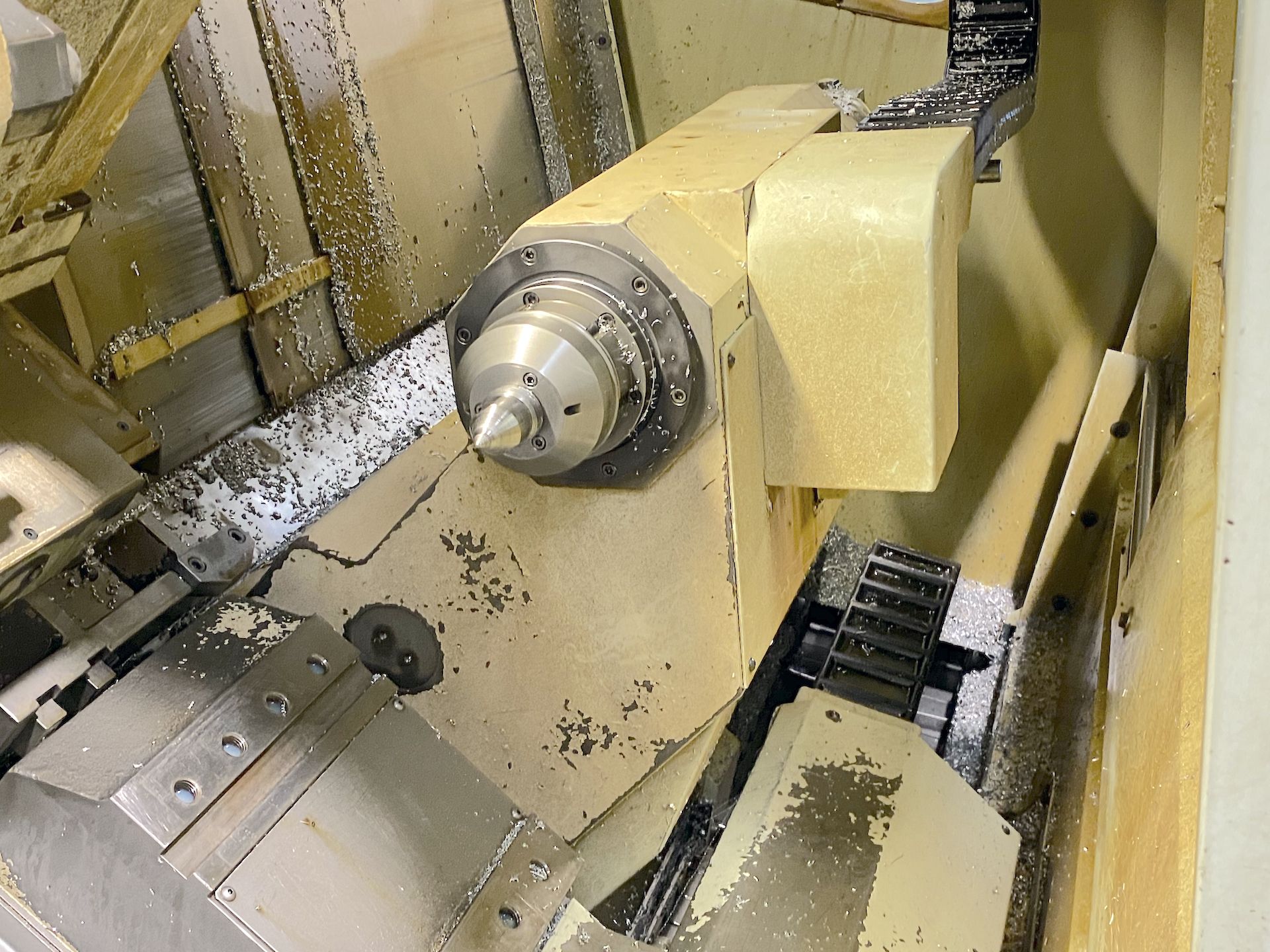

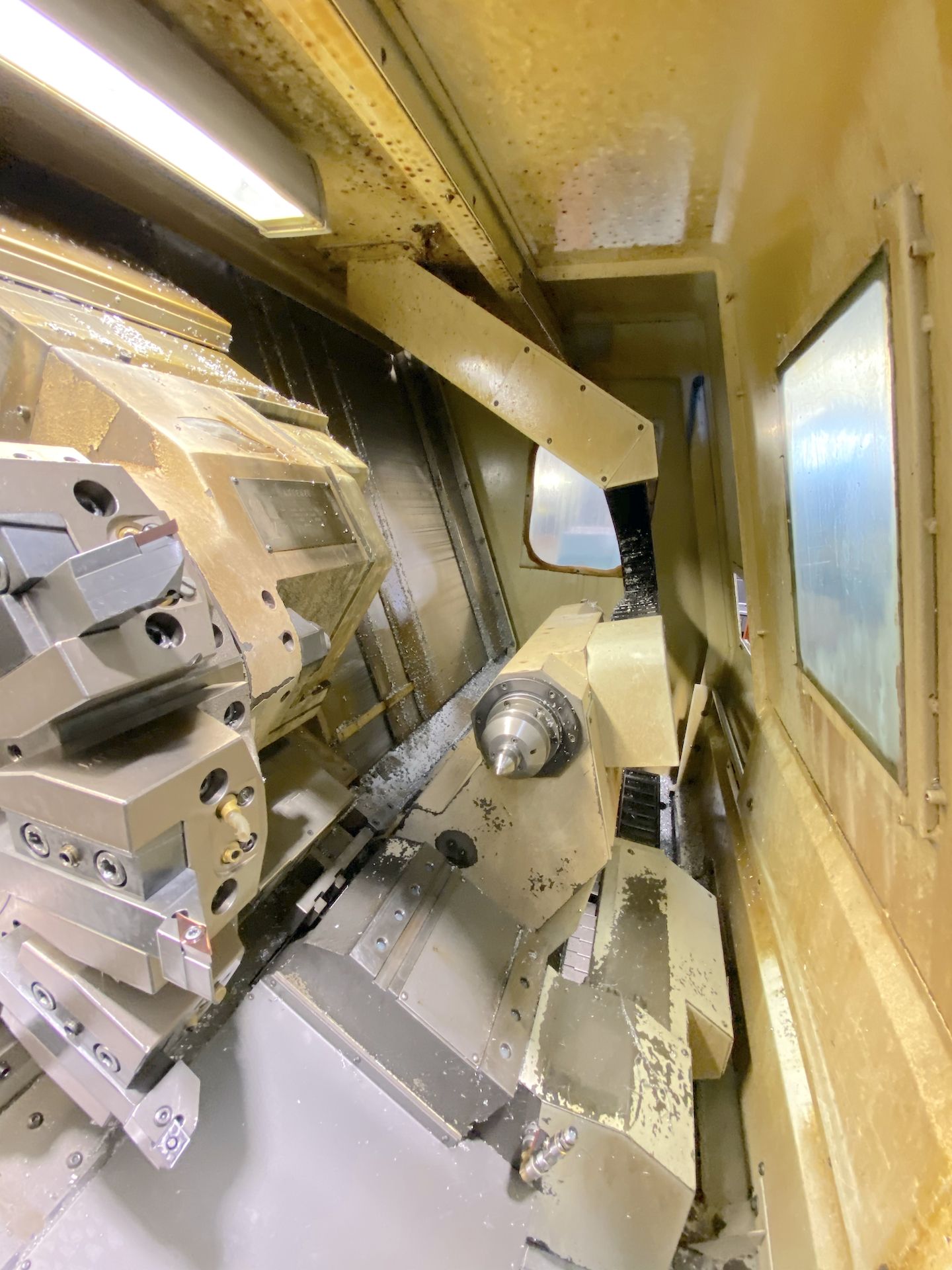

TAILSTOCK
Quill diameter
115 mm4,53 in
Quill stroke
150 mm5,91 in
Taper
CM5
Axis stroke B
1200 mm47,24 in

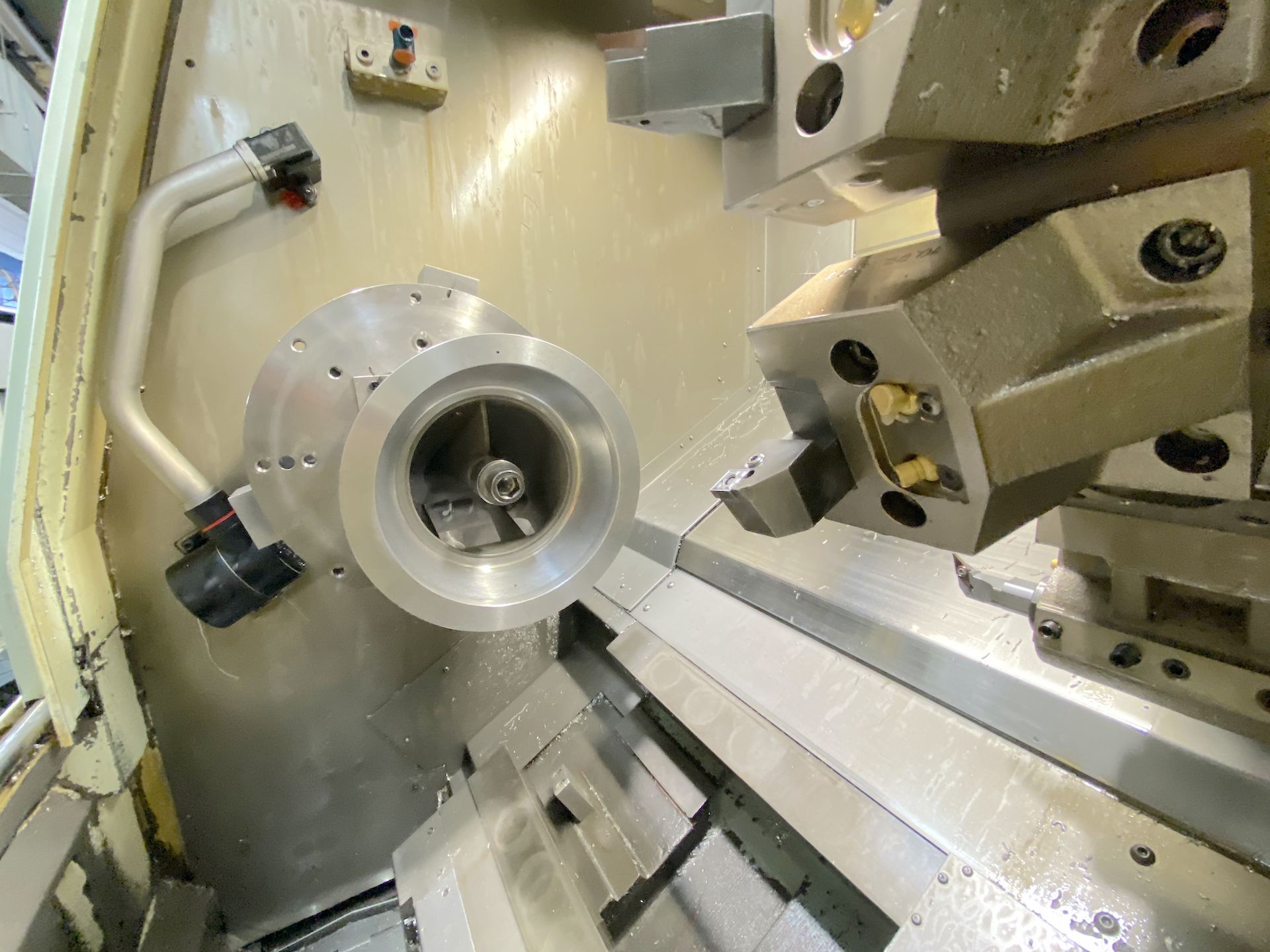

MAIN SPINDLE
Max rotation speed
2800 rpm
Spindle nose
ASA8”
Spindle hole
111 mm4,37 in
Internal bearing diameter
150 mm5,91 in
Chuck diameter
315 mm12,40 in
Max power
30 Kw
Max torque
776 Nm
Accuracy (C axis)
0,001 °
C axis speed
100 Rpm
Gearbox
Elettronico

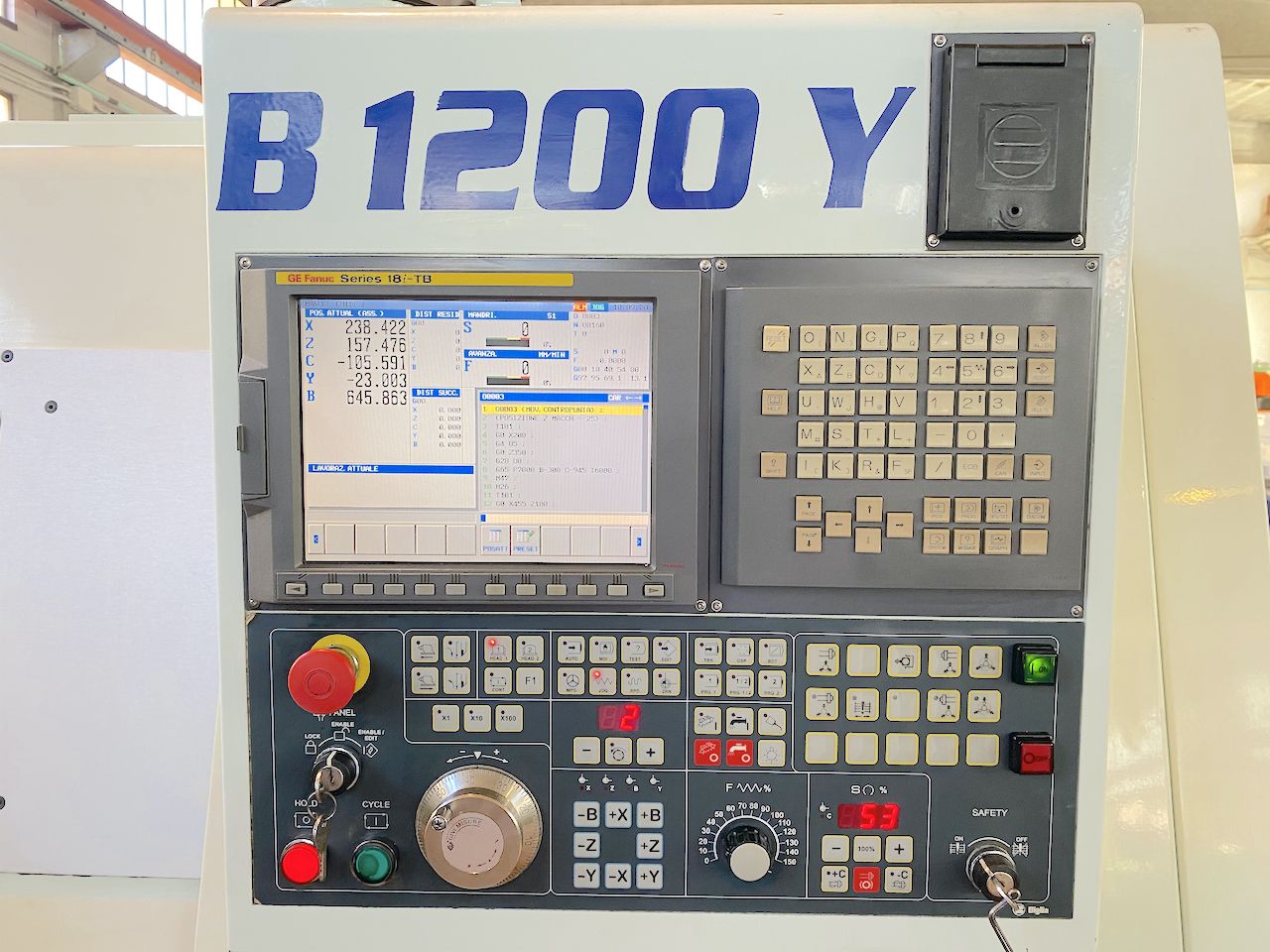

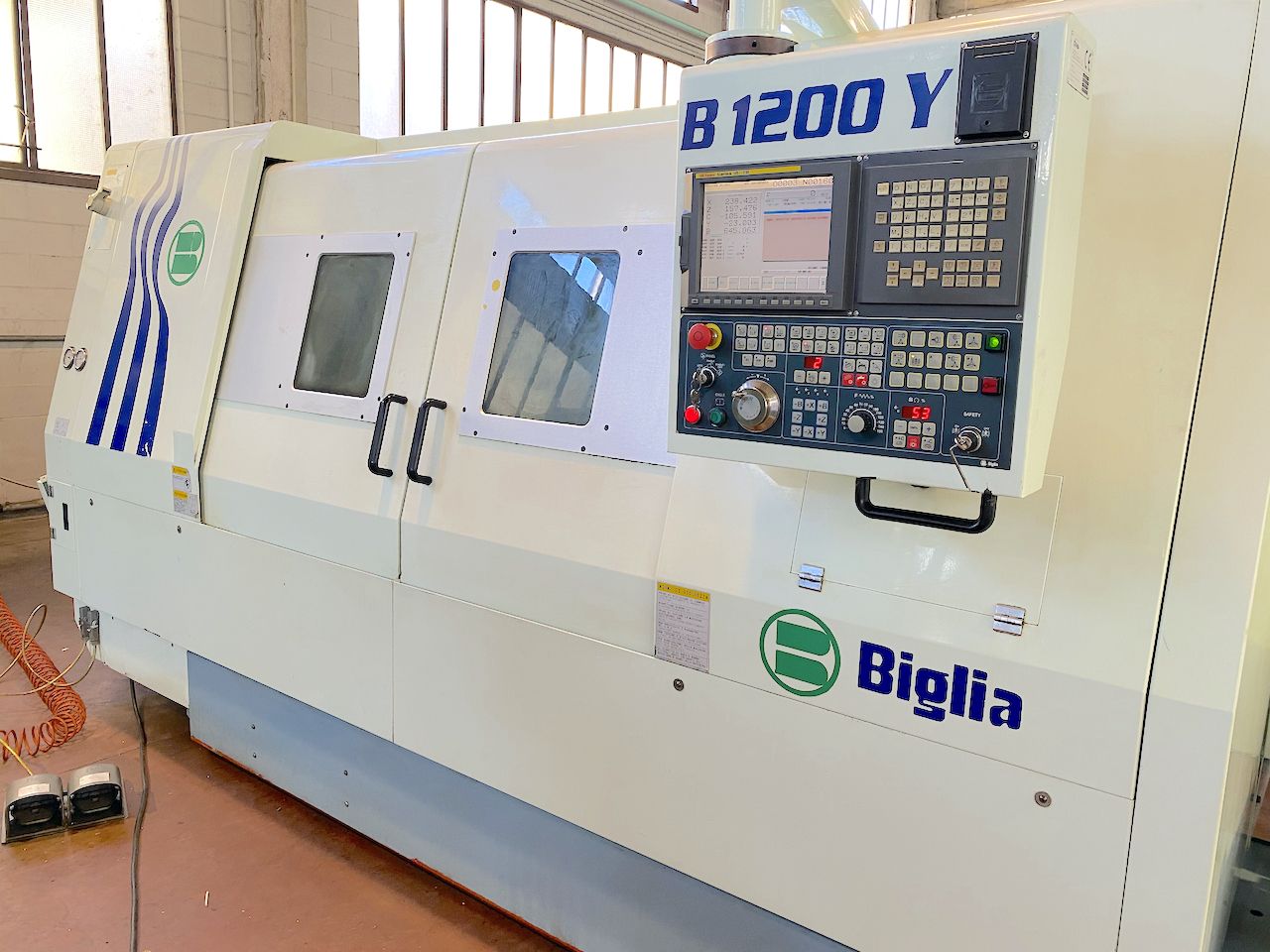

CNC
CNC
Fanuc 18i-TB
Notes
Manual Guide
EXTRA

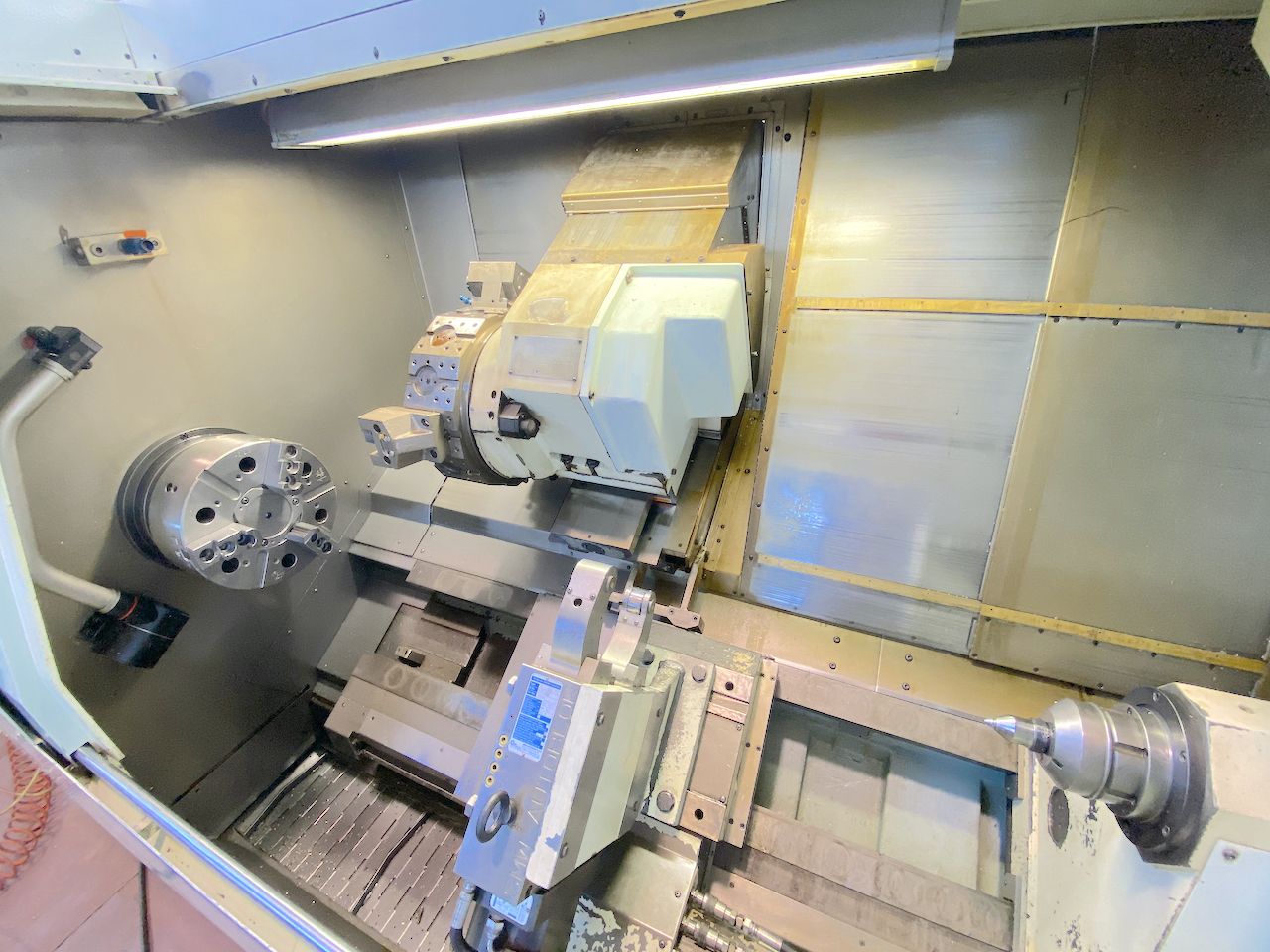

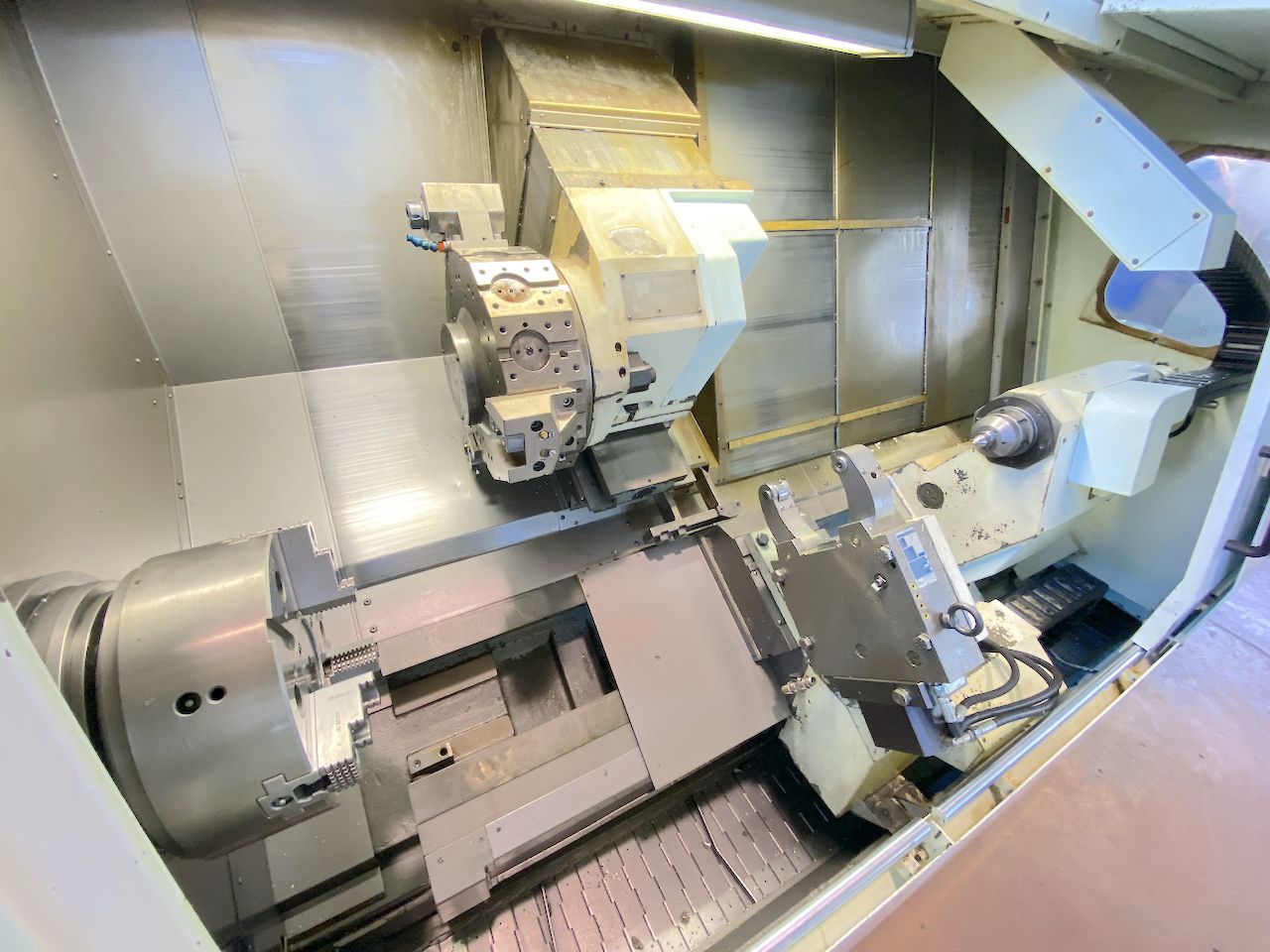

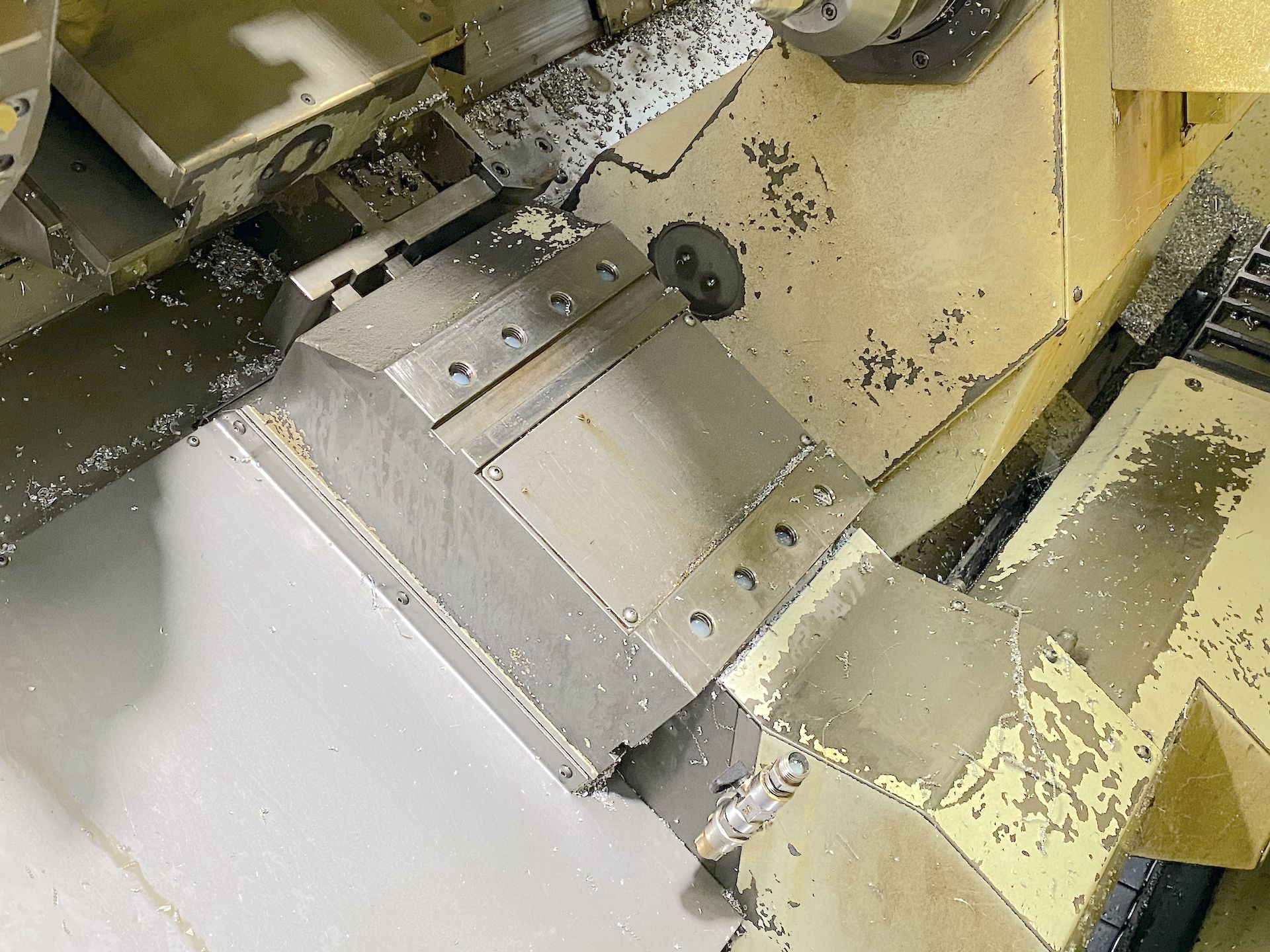

Hydraulic steady

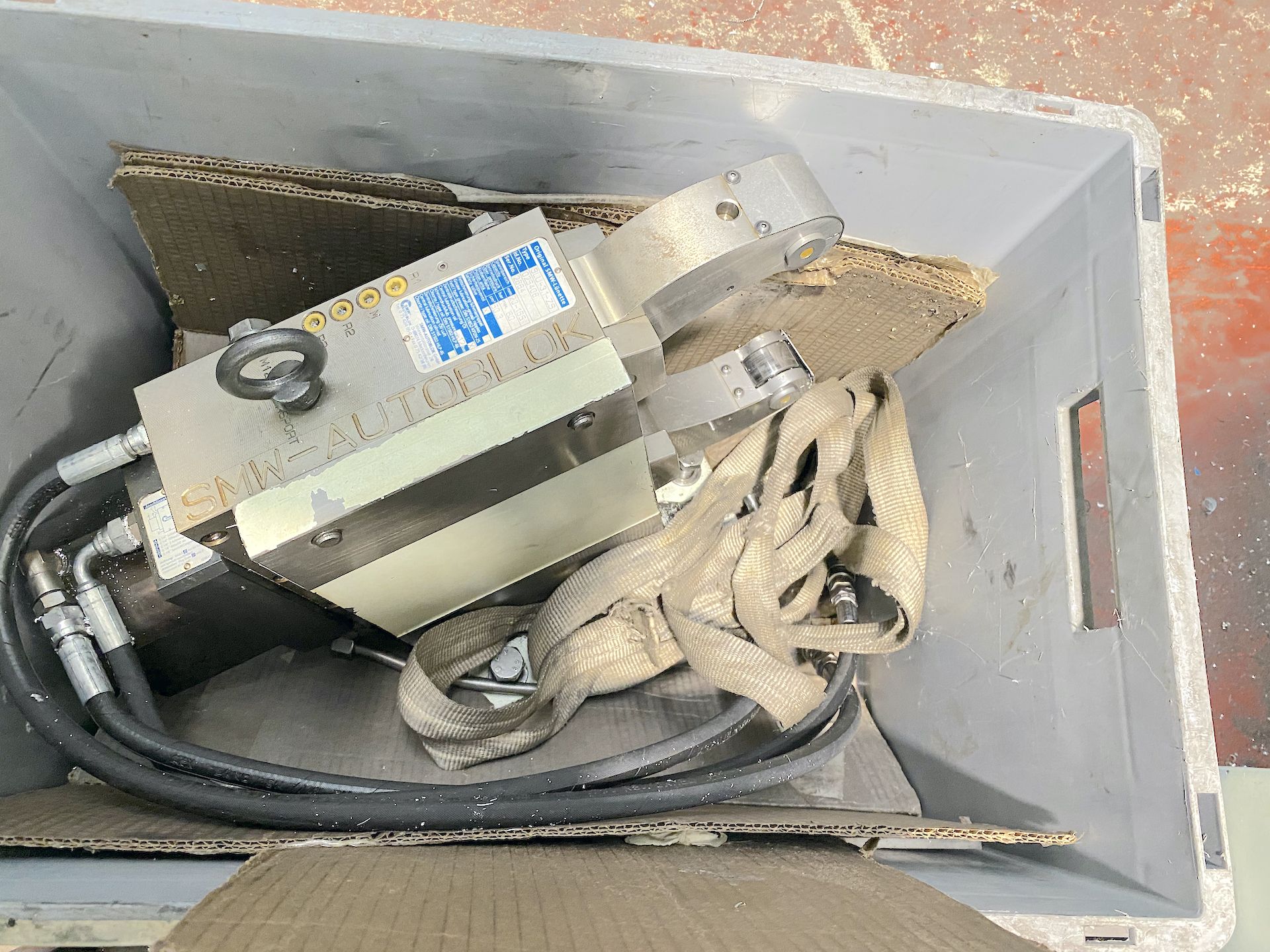

Lunetta a seguire (asse B) automatica SMW AUTOBLOCK SLU3.1 ZS 20-165mm
Machine total weight
7250 Kg
Floor space
5100x2000x2100 mm200,79x78,74x82,68 in
Fixed toolholders
2
Driven toolholders
2
Autocentering chuck
3.jaws ø315mm PB ø95mm
Tool presetter
SI
Chip conveyor
SI

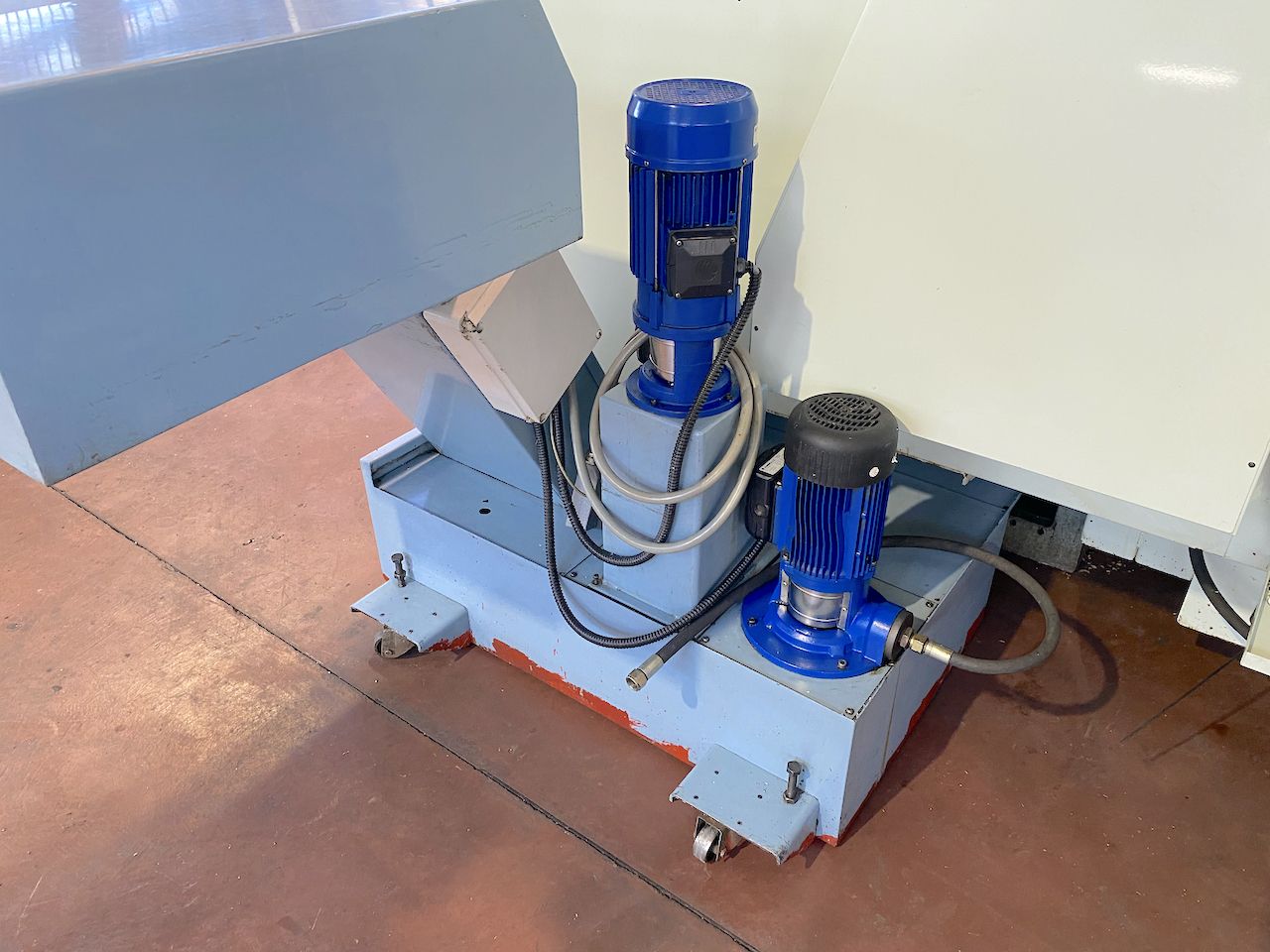

Coolant pump
18 bar per alta e bassa pressione
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes
Available under power
Yes
