Category
Turning Machine
Type
CNC
Made
Model

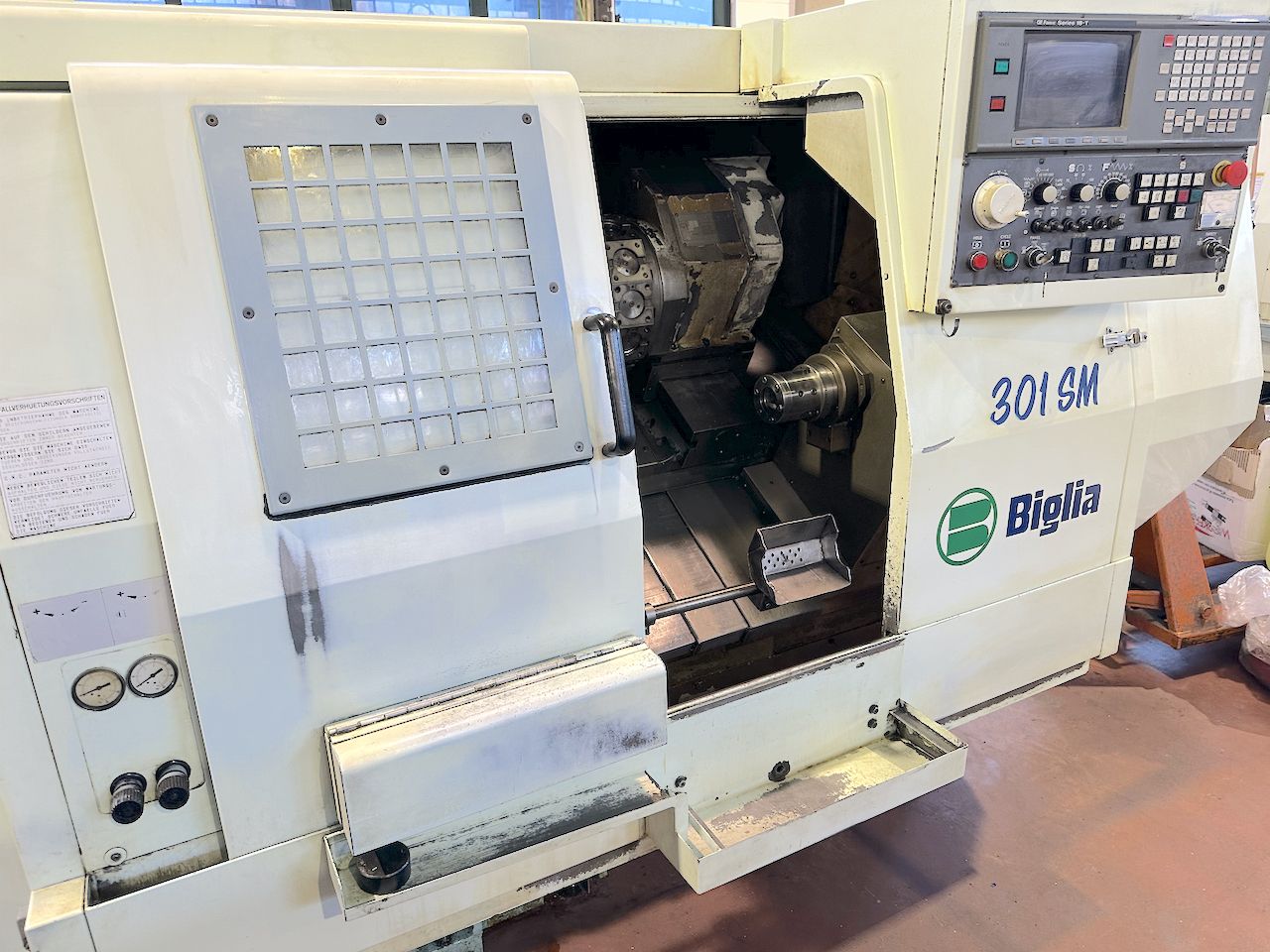

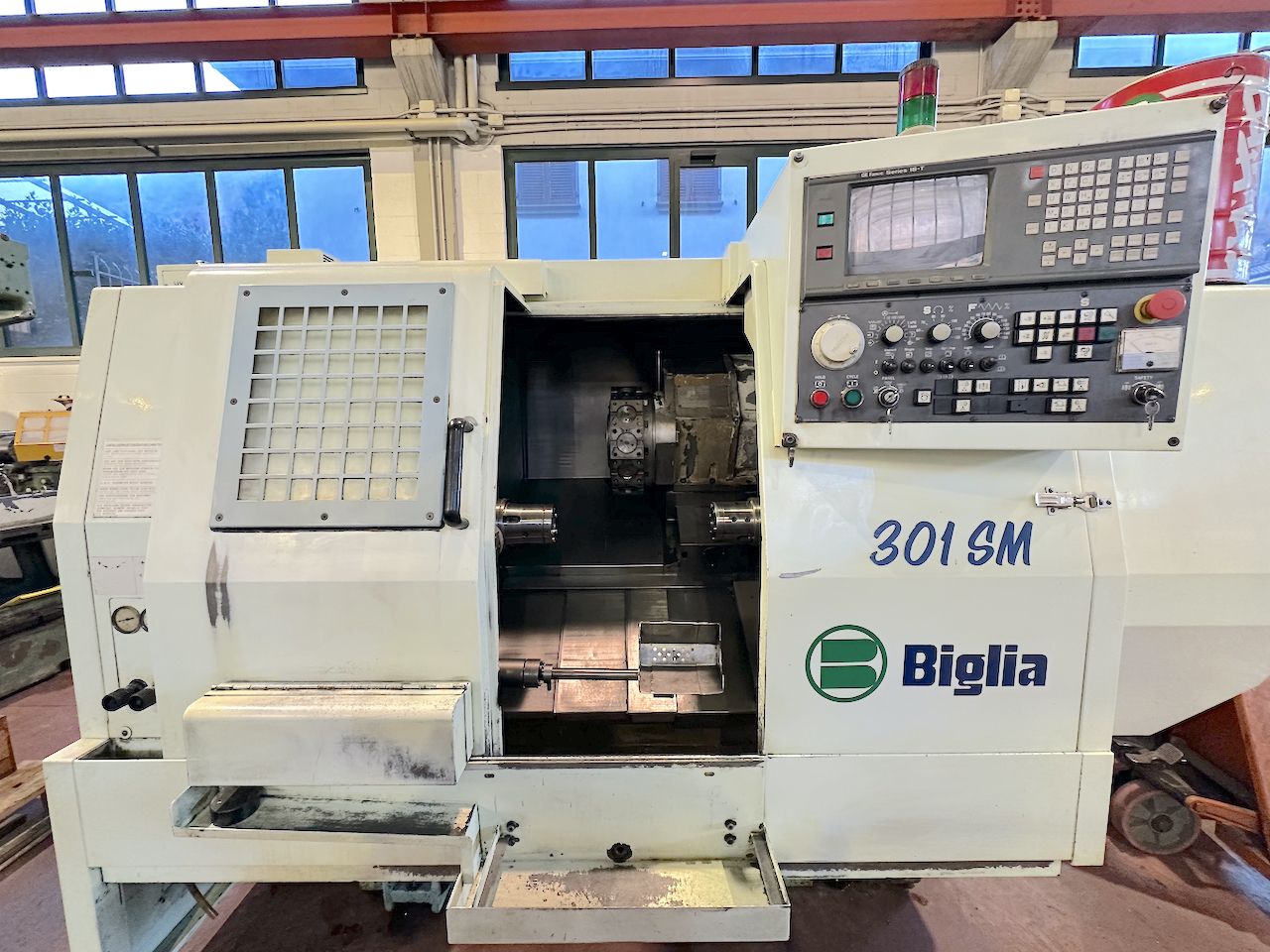

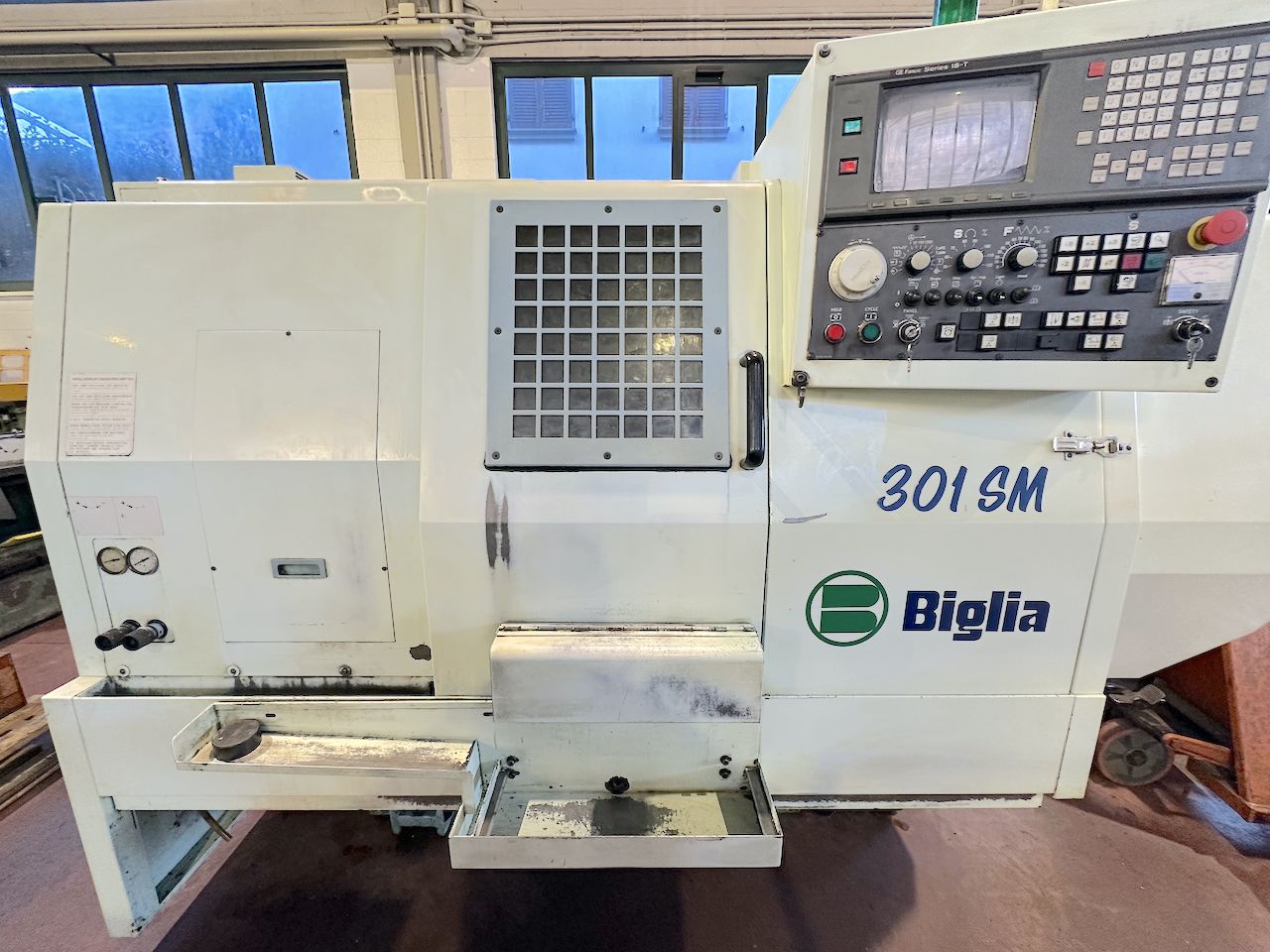

B 301 SM
Capacity
ø42/200x380 mmø1,65/7,87x14,96 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Max bar working diameter
45 mm1,77 in
Max turning diameter
220 mm8,66 in
Max working lenght
380 mm14,96 in

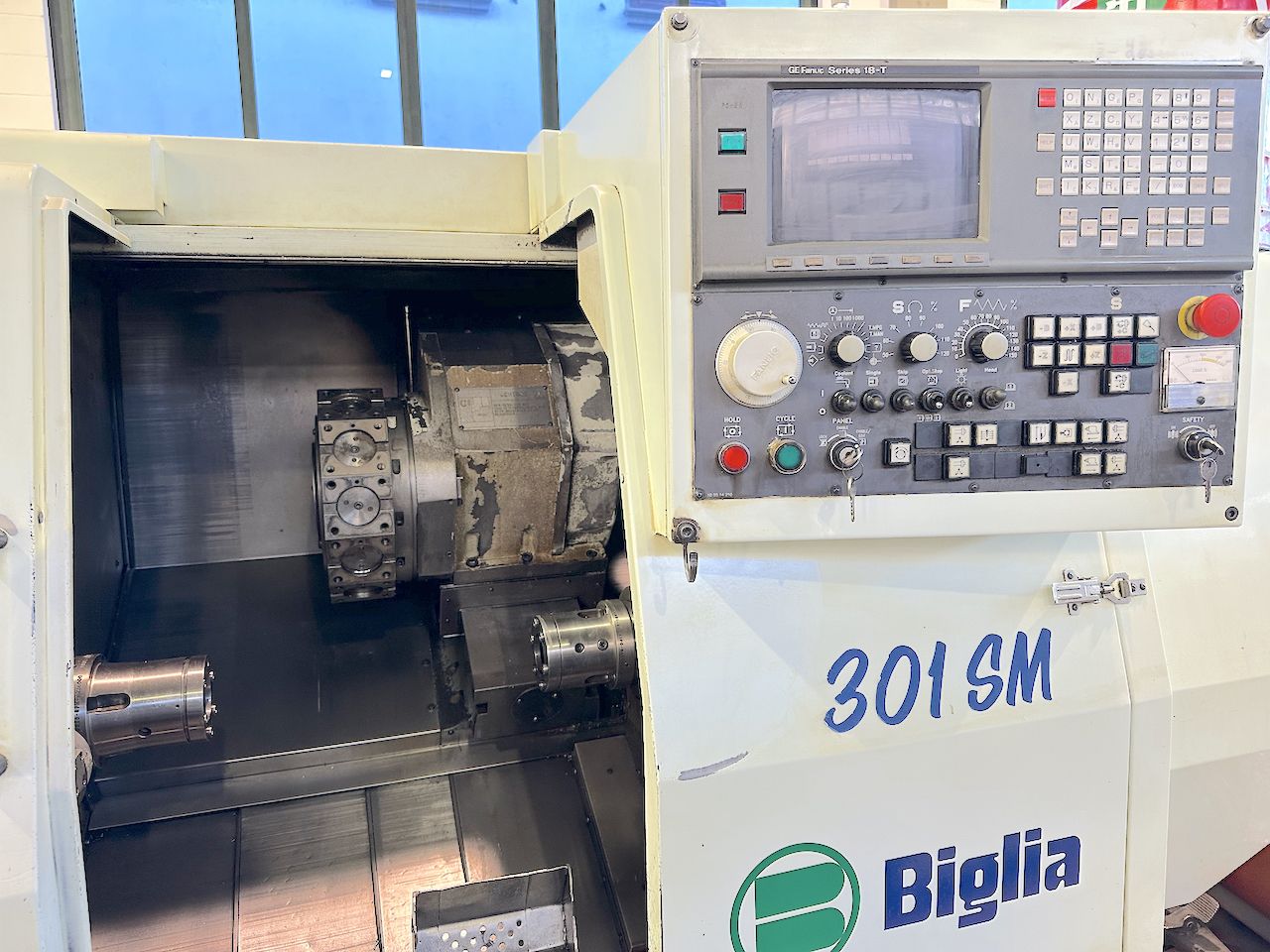

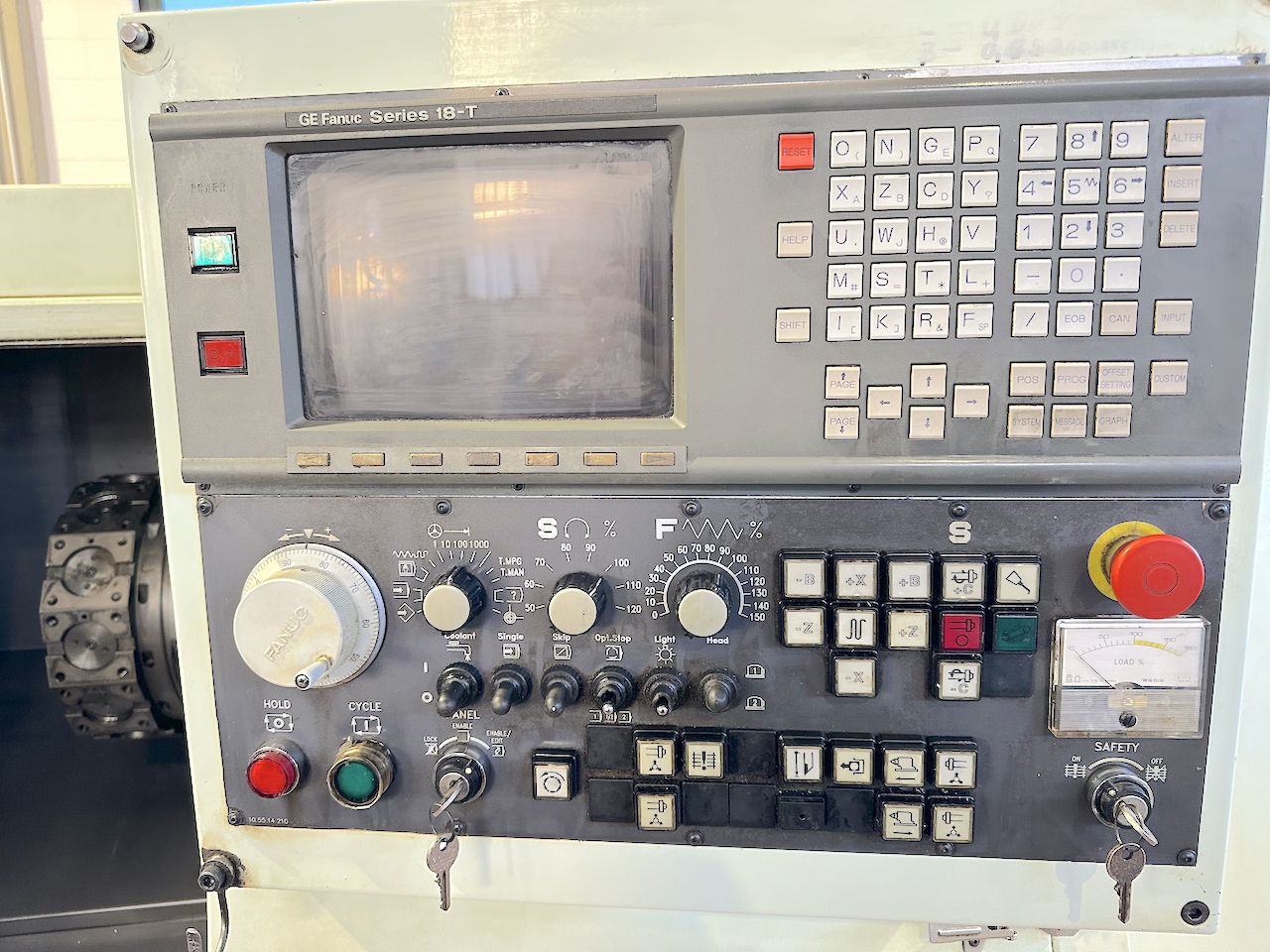

CNC
CNC
Fanuc18-T

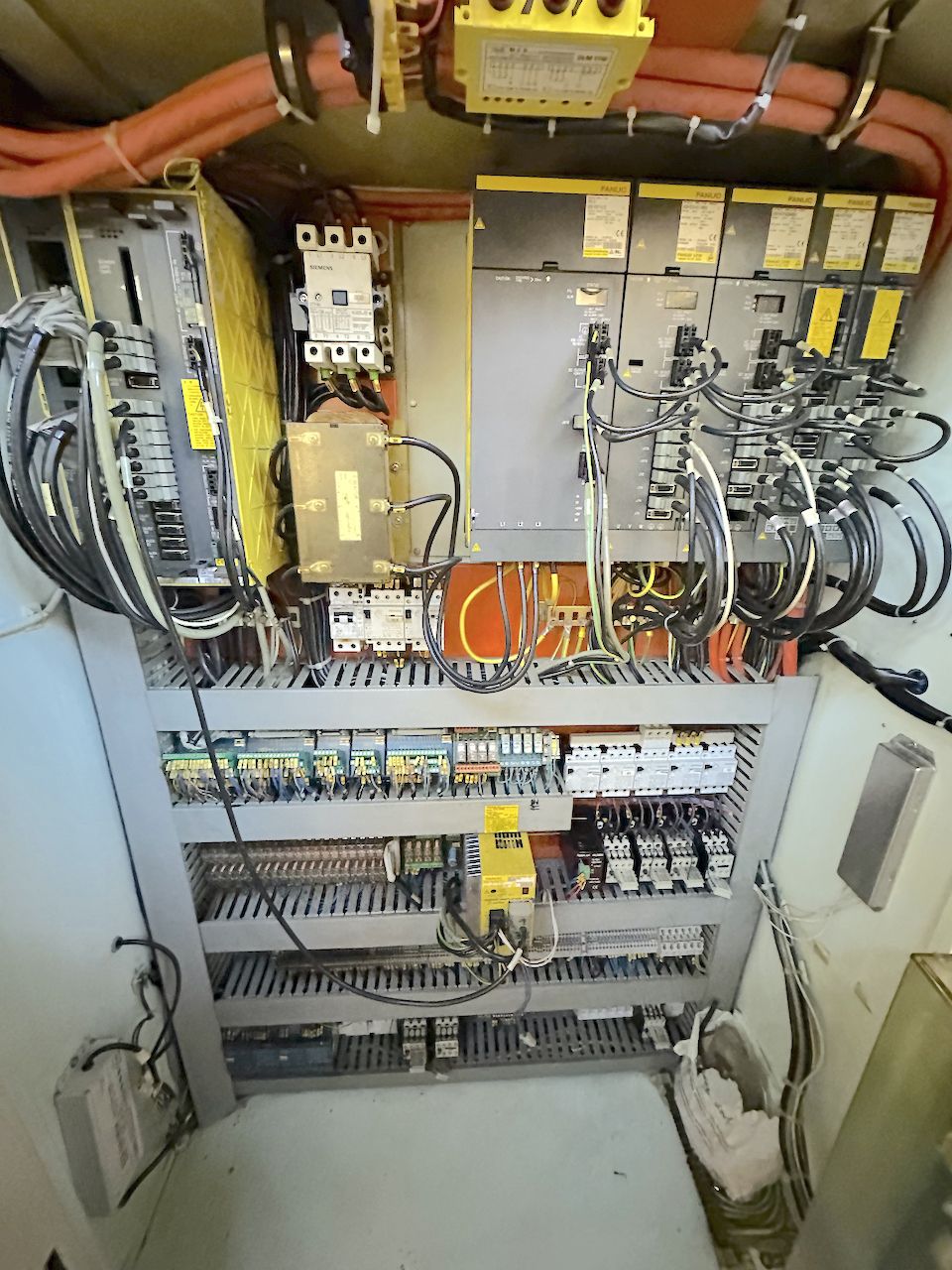

Drives
Fanuc

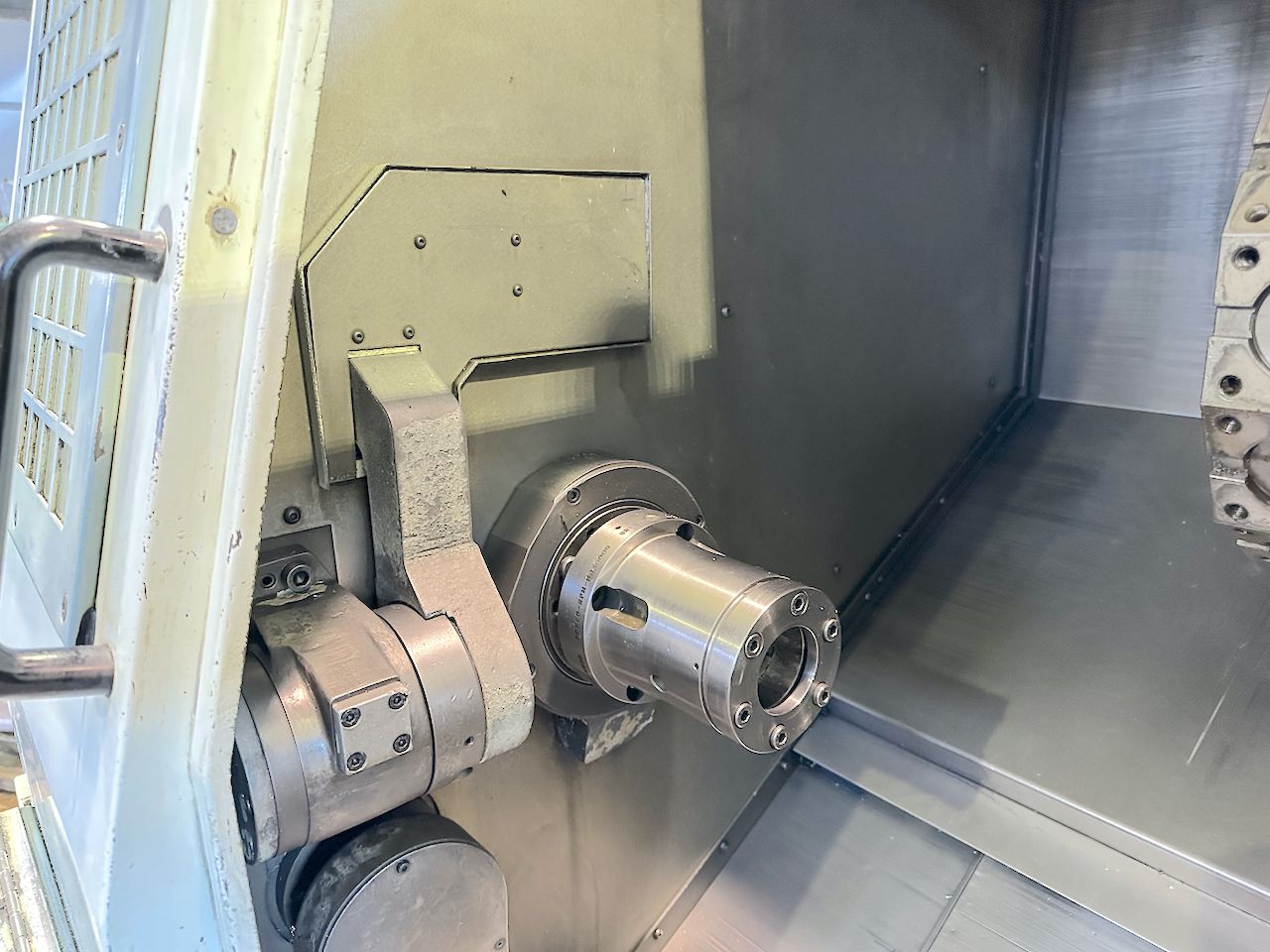

MAIN SPINDLE
Max rotation speed
100-5000 rpm
Spindle nose
ASA5”
Spindle hole
52 mm2,05 in
Internal bearing diameter
80 mm3,15 in
Max power
11/15 Kw
Chuck diameter
165 mm6,50 in

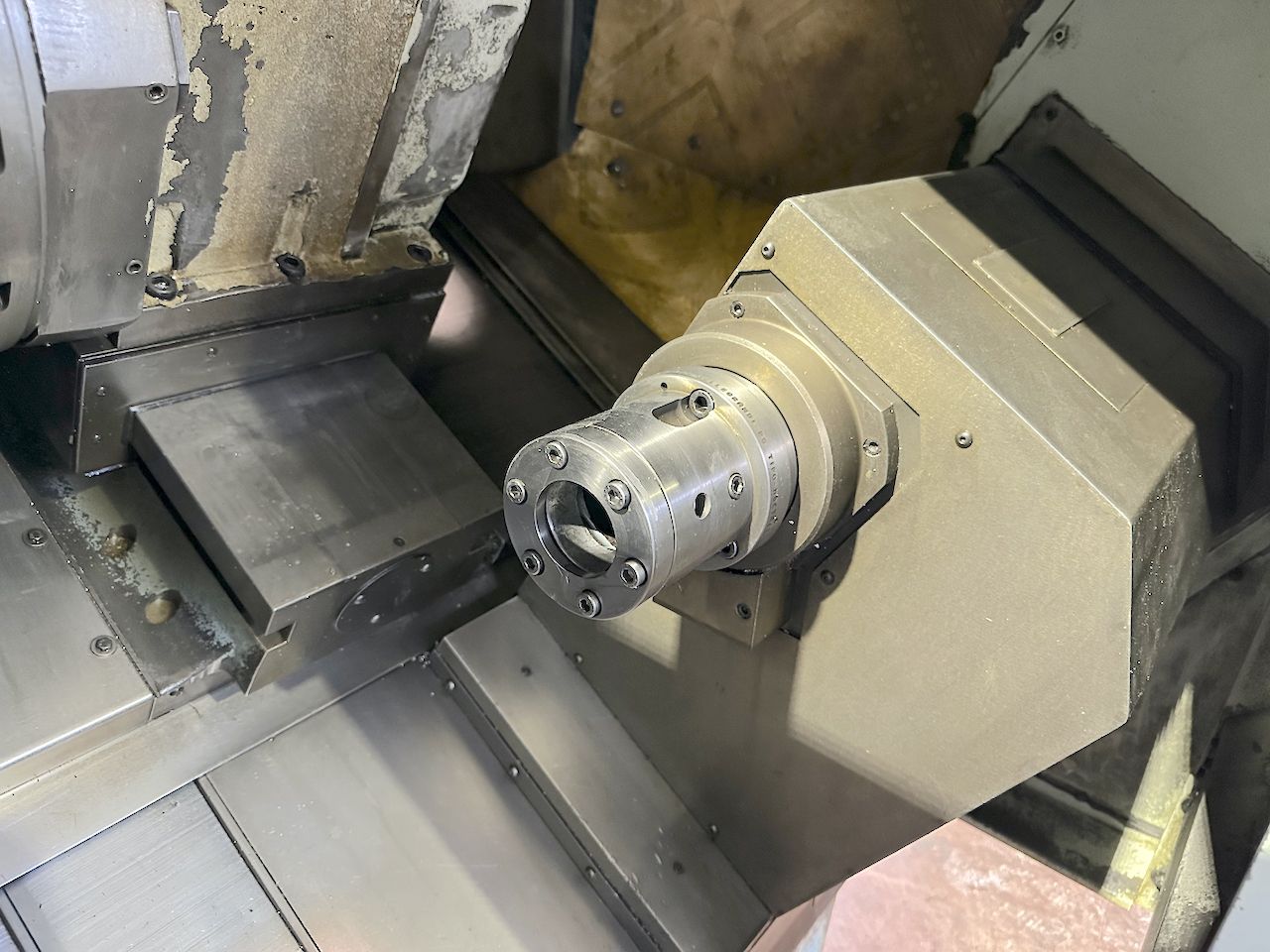

SUBSPINDLE
Max rotation speed
5000 rpm
Spindle nose
ASA4”
Spindle hole
42 mm1,65 in
Internal bearing diameter
65 mm2,56 in
Chuck diameter
130 mm5,12 in
Max power
3,7/5,5 Kw
TURRET 2
Positions number
12
Rotation time (1 pos)
0,2 sec.
Number of driven stations
12
Driven tools speed
50-4000 rpm
Axis stroke X2
160 mm6,30 in
Axis stroke Z2
380 mm14,96 in
Driven tools power
3,7 Kw
EXTRA
Floor space
3260x1754x1680 mm128,35x69,05x66,14 in
Machine total weight
3800 Kg
