Category
Press
Type
Die Spotting
Made
Model
PPS 250T
Capacity
3000x2200mm / 250Tons mm118,11x86,61mm / 9,84Tons in
Technical specifications
Metric
Imperial
WORKING CAPACITY

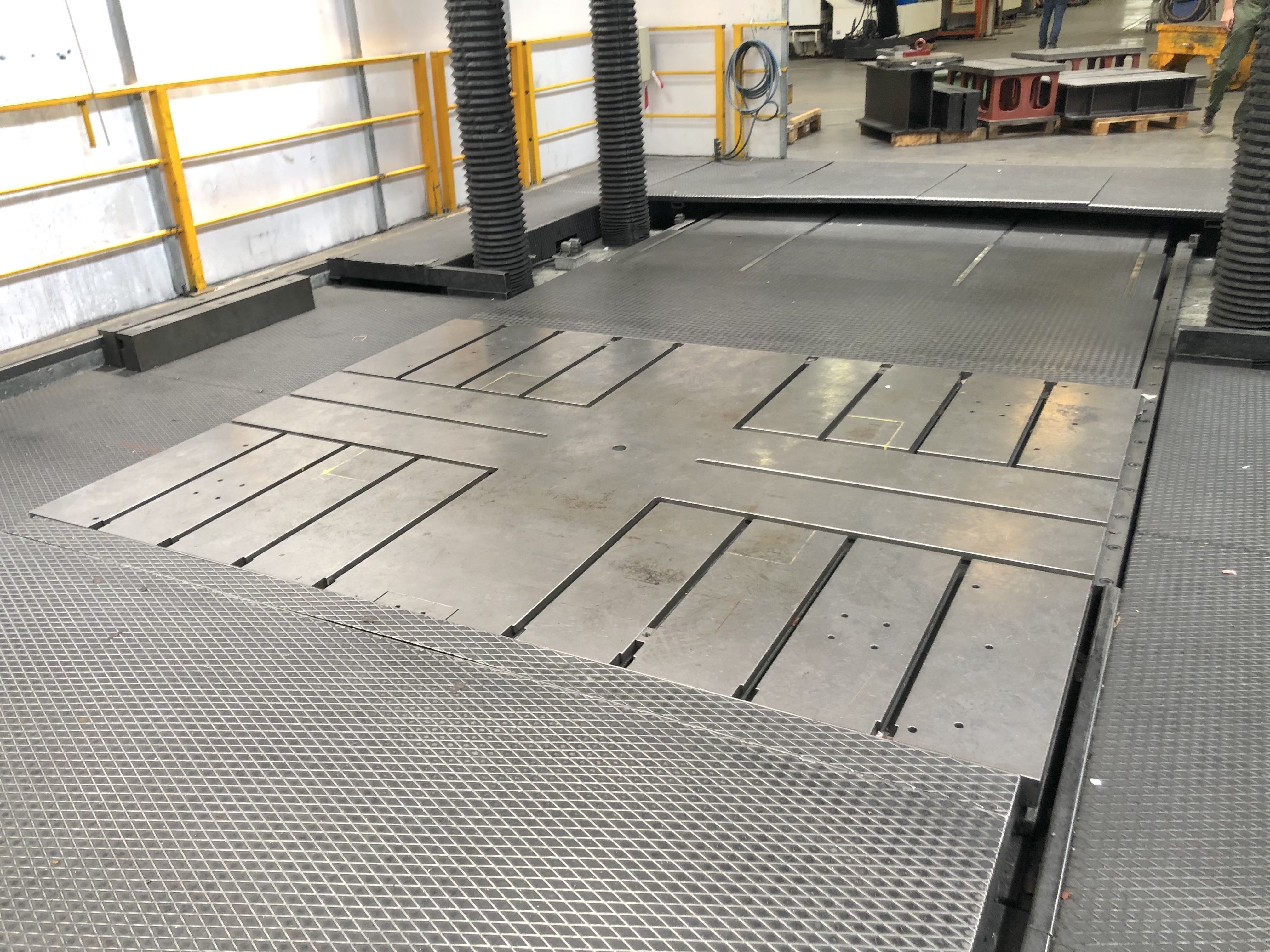

Floorplates size (LxWxH)
3000x2200 mm118,11x86,61 in
Column distance
3300 mm129,92 in
Max distance beween plates
2600 mm102,36 in
Max weight on lower plate
65.000 Kg
Max weight on upper plate
30.000 Kg
Max closing strenght
2500 kN
Max opening strenght
890 kN
Upper table overturning
90 °
Notes
piano inferiore corsa 2400
FEEDS
Approach speed
115 mm/sec
Working speed
5 mm/sec
Return speed
50 mm/sec
EXTRA
Total power supply
22 Kw
Machine weight
80.000 kg
The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy cannot be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
