Category
Press
Type
Die Spotting
Made
Model
GR4
Capacity
1600x2000 mm62,99x78,74 in

Technical specifications

Metric Imperial
WORKING CAPACITY

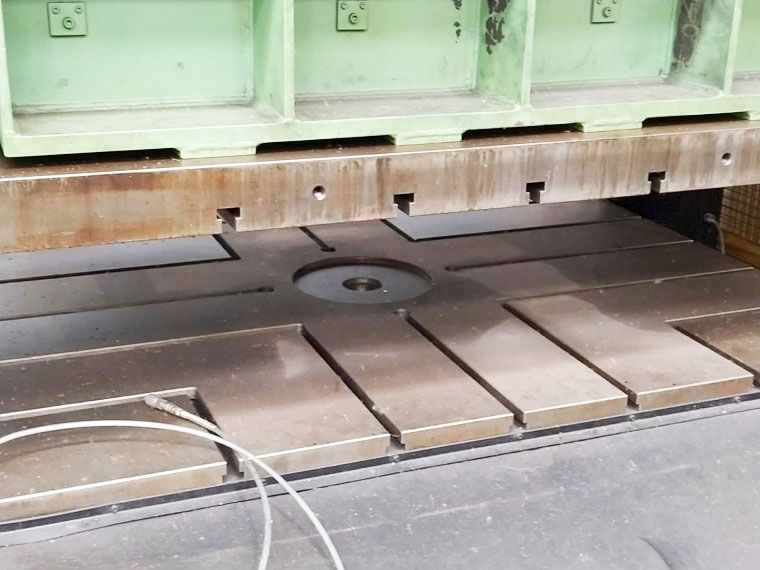

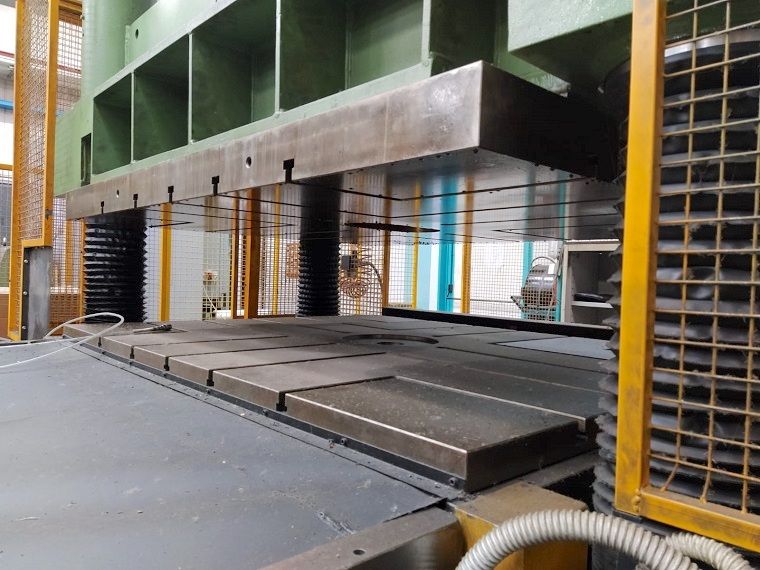

Floorplates size (LxWxH)
1600x2000 mm62,99x78,74 in
Max distance beween plates
1500 mm59,06 in
Min discance between plates
400 mm15,75 in
Upper table overturning
110 °
Max weight on lower plate
40000 Kg
Max weight on upper plate
15000 Kg
Max closing strenght
200 kN
EXTRA
Floor space
5260x2920x4280 mm207,09x114,96x168,50 in
Total power supply
30 Kw
The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy cannot be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
