Technical specifications
Metric
Imperial
WORKING CAPACITY
Floorplates size (LxWxH)
1200x1000 mm47,24x39,37 in
Column distance
1100x1300 mm43,31x51,18 in
Max distance beween plates
1200 mm47,24 in
Min discance between plates
250 mm9,84 in
Lower table overturning
70 °
Upper table overturning
100 °
Max closing strenght
800 kN
Max opening strenght
170 kN
Max weight on lower plate
7000 Kg
Max weight on upper plate
3500 Kg
FEEDS
Approach speed
50-65 mm/sec
Working speed
8 mm/sec
Return speed
35-50 mm/sec
CNC
CNC

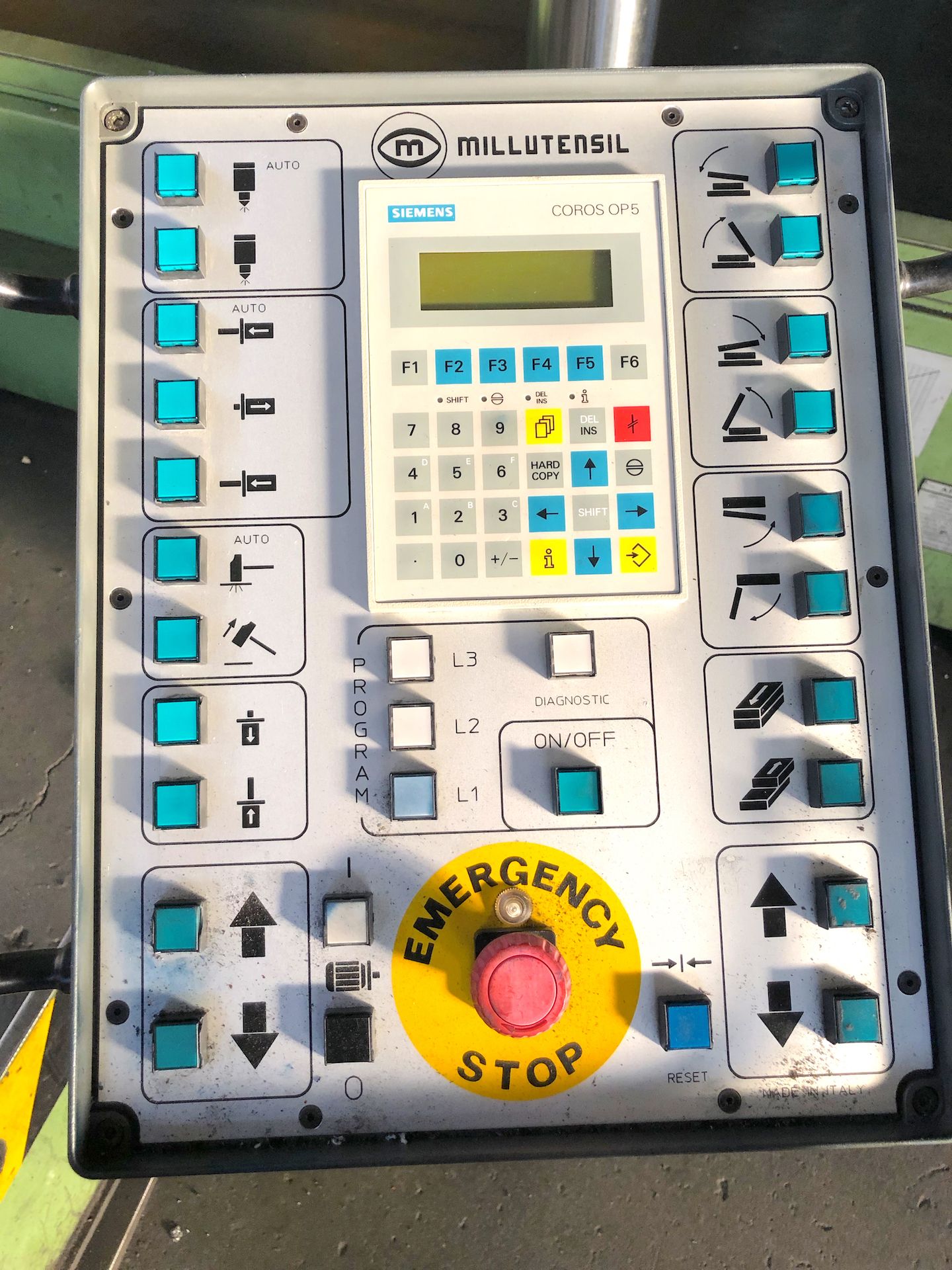

SIEMENS COROS OP5
EXTRA
Floor space
2600x4550x3680 mm102,36x179,13x144,88 in
Colpo d’ariete
Yes
Machine weight
11000 kg
Total power supply
8,2 Kw
