Category
Press
Type
Die Spotting
Made
Model
MIL162
Capacity
1600x1300mm 100Ton mm62,99x51,18mm 3,94Ton in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Floorplates size (LxWxH)
1600x1300 mm62,99x51,18 in
Max weight on lower plate
16000 Kg
Max weight on upper plate
8000 Kg
Max closing strenght
1000 kN
Max opening strenght
250 kN
Upper table overturning
100 °
Lower table overturning
+/-70 °
FEEDS
Approach speed
65-80 mm/sec
Working speed
8 mm/sec
Return speed
35-50 mm/sec
CNC
CNC

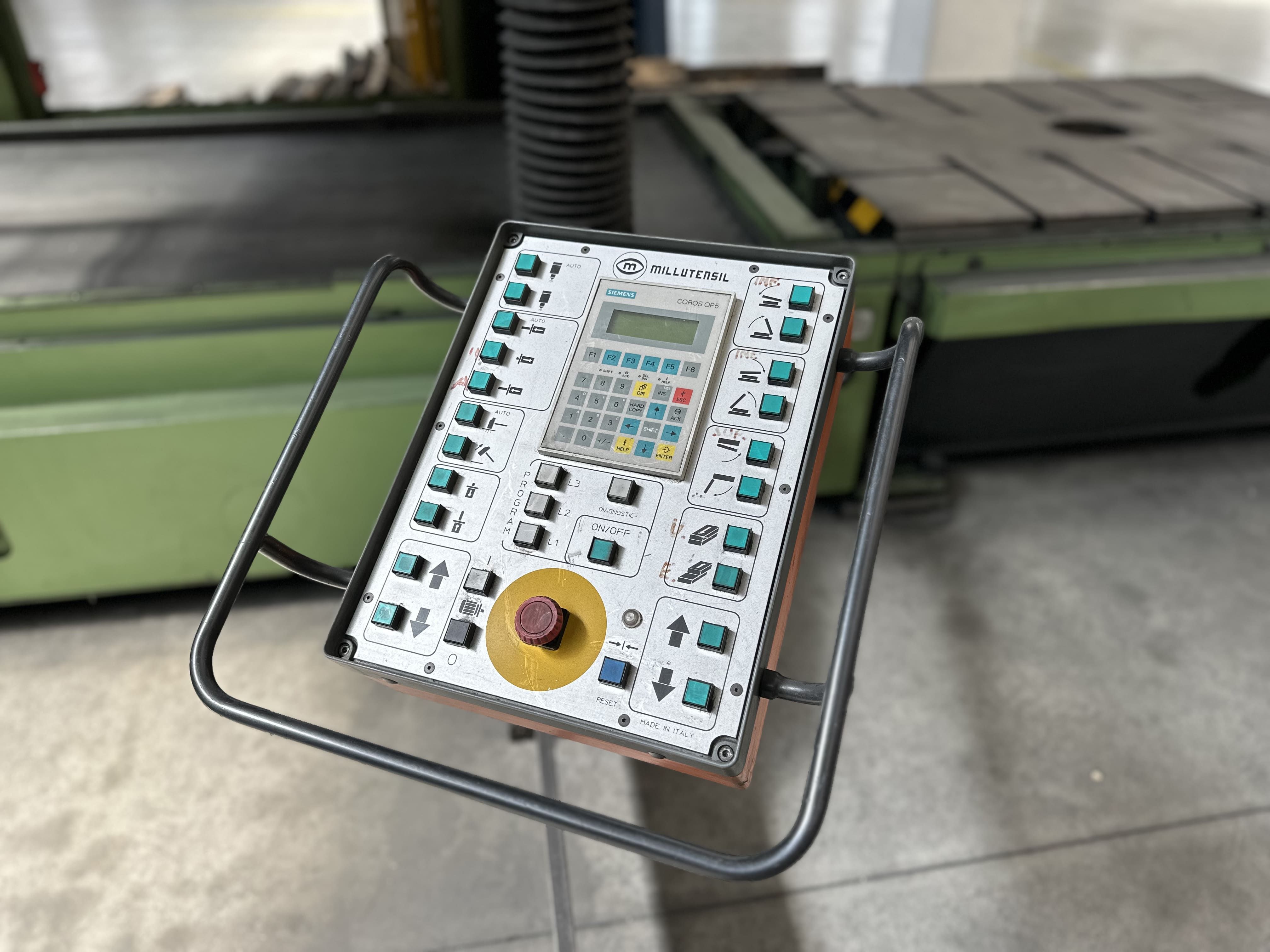

PLC SIEMENS COROS OP5
EXTRA
Total power supply
11 Kw
Machine weight
18000 kg
Notes
right table exit
Floor space
5310x3000x4100 mm209,05x118,11x161,42 in
