Category
Milling machine
Type
mobile column
Made
Model

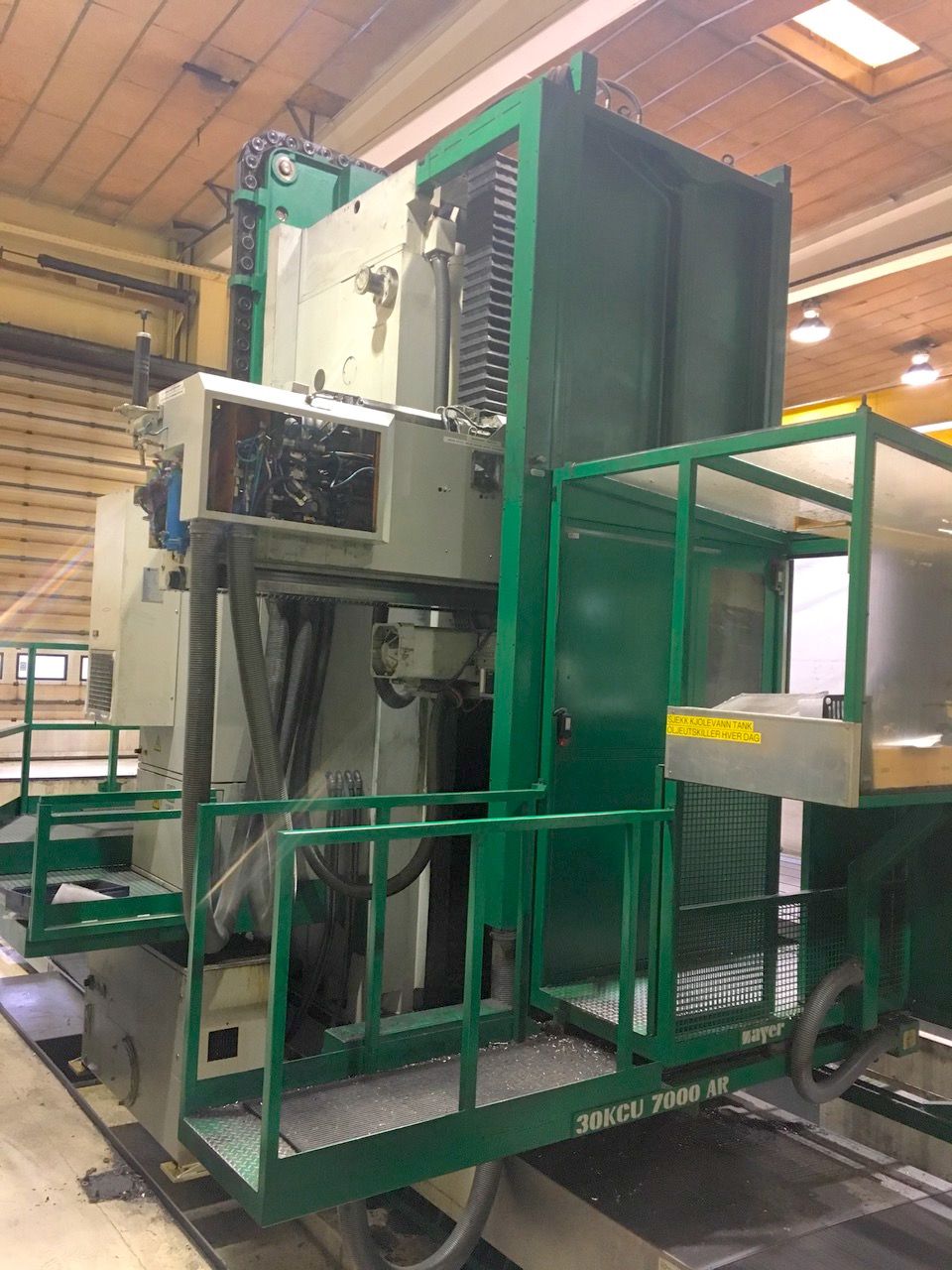

30KCU7000 AR
Capacity
7000x2500x1500 mm275,59x98,43x59,06 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
7000 mm275,59 in
Vertical (Y)
2500 mm98,43 in
Cross RAM (Z)
1500 mm59,06 in
Table (V)
1500 mm59,06 in
SPINDLE
Rotating speed
6-4500 Rpm
Spindle power
37 Kw
Taper
ISO50

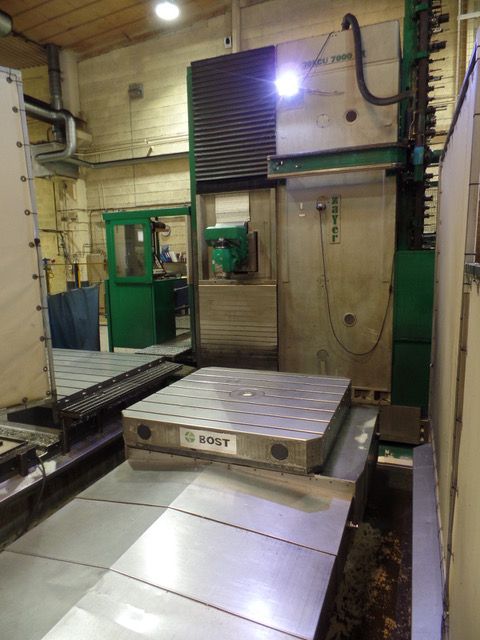

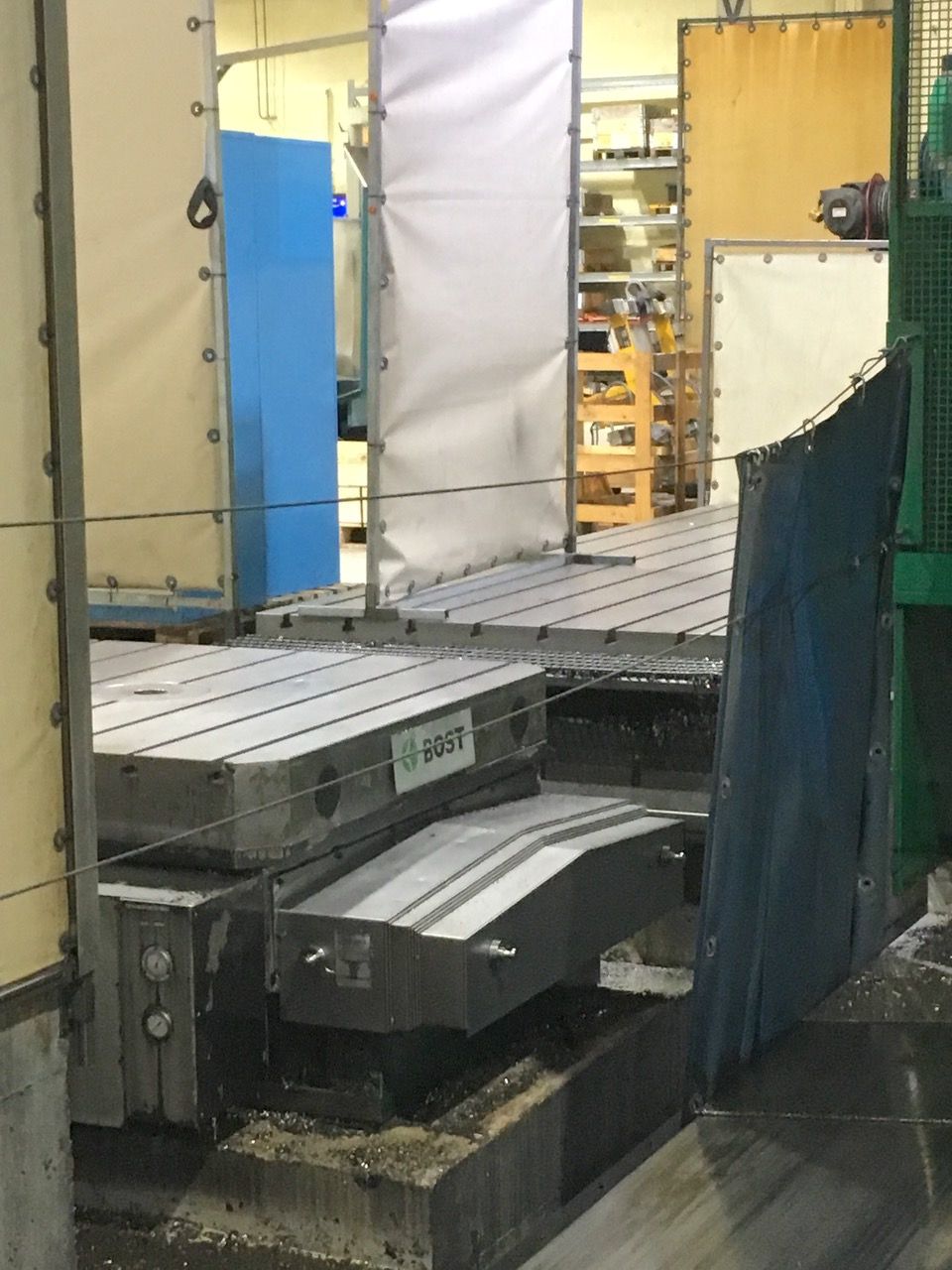

TABLE 1
Support
Hydrostatic
Rotating speed
3 Rpm o °/min
Surface
1800x1800 mm70,87x70,87 in
Translation
1500 mm59,06 in
Accuracy (B axis)
0,001 °
Capacity
15.000 Kg
Available upon request
Yes
HEAD 1
Max power
37 Kw
Type
Universale Automatica
Spindle taper
ISO50
A axis
360.000x0,001 °
C axis
360.000x0,001 °
Max speed
4500 Rpm
Coolant
20Bar interni
FEEDS
B
3 Rpm
Rapid X
20 m/min787,40 ipm
Rapid Y
20 m/min787,40 ipm
Rapid Z
20 m/min787,40 ipm
X
10 m/min393,70 ipm
Y
10 m/min393,70 ipm
Z
10 m/min393,70 ipm

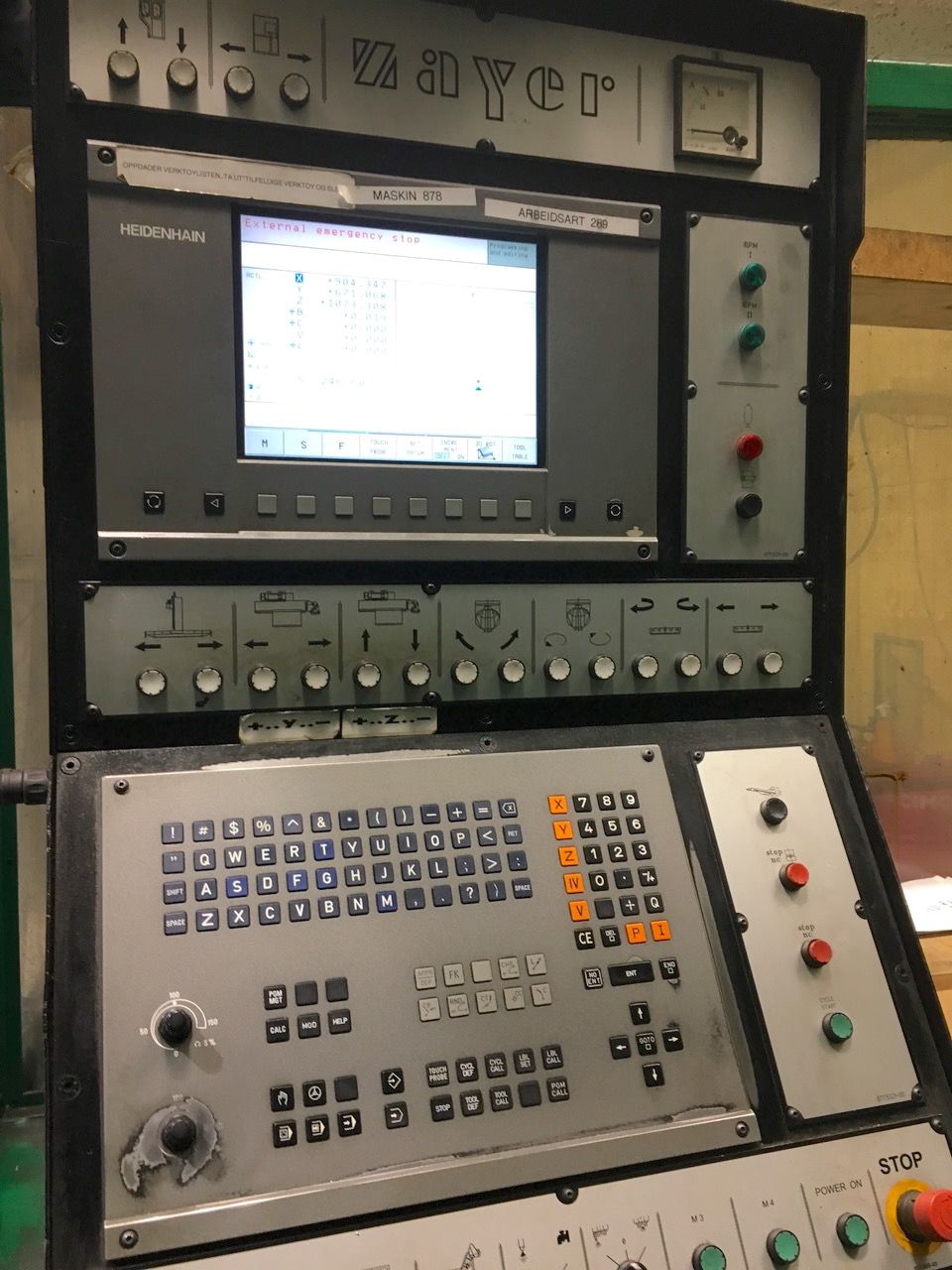

CNC
CNC

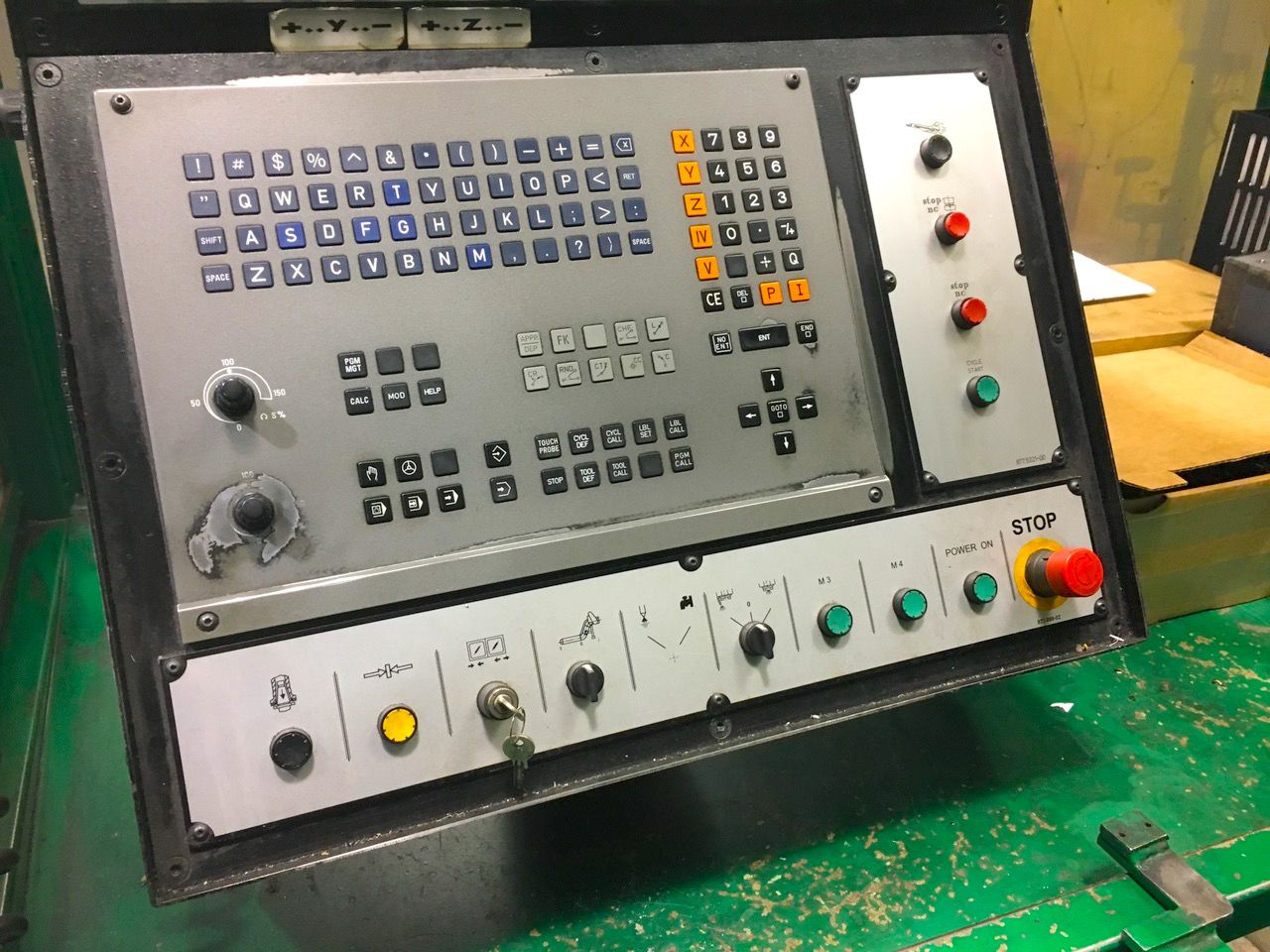

Heidenhain iTNC530M+HR410
ATC
Positions
80
Tool taper
ISO50 DIN69871

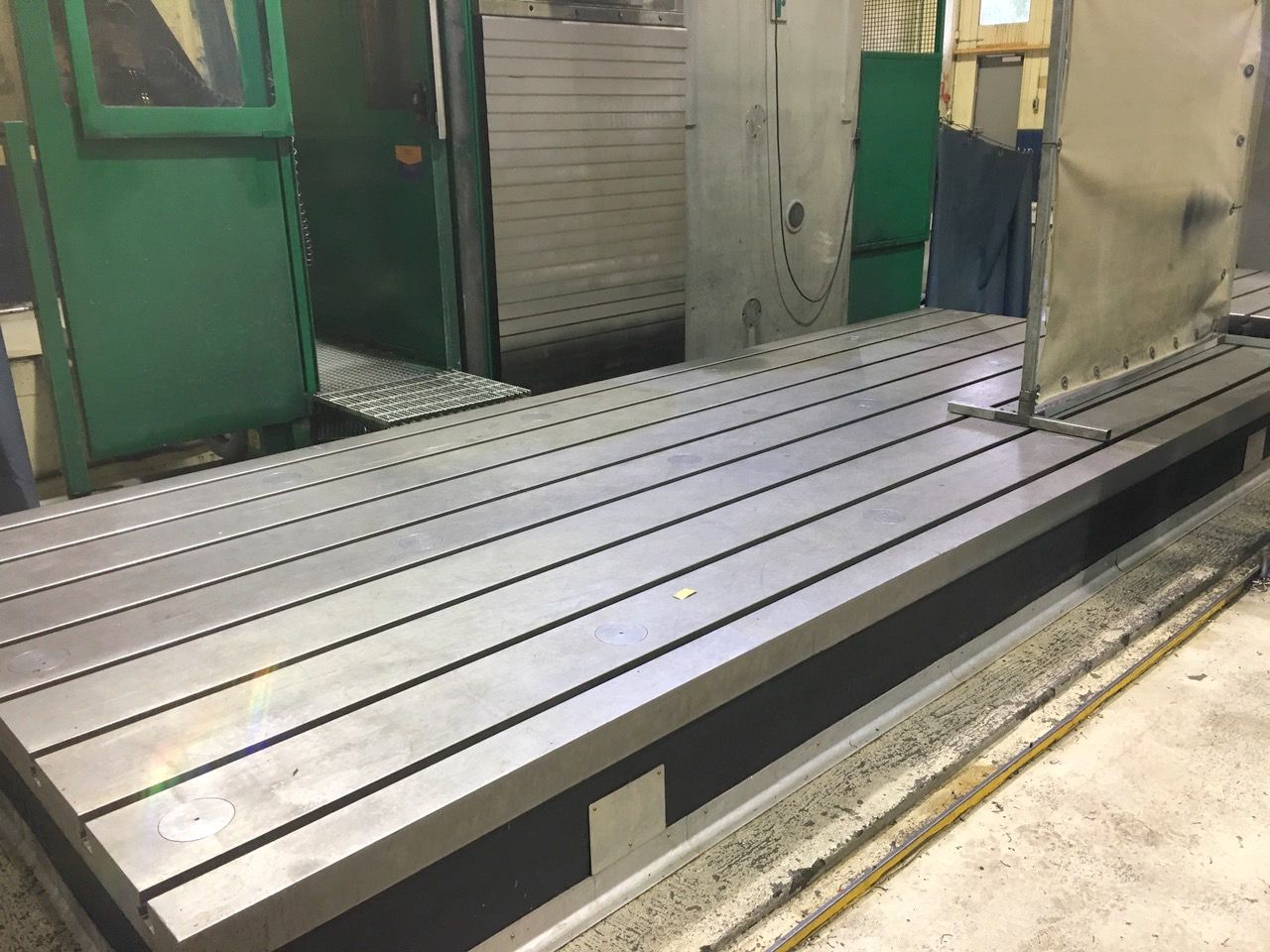

FIXING TABLE
Available upon request
Yes
Floorspace (LxWxH)
5000x2000x350 mm196,85x78,74x13,78 in
T slots number
n.8 interasse 250mm
EXTRA
Floor space
12700x9400x6200 mm500,00x370,08x244,09 in
Filtration unit
si
High Pressure
1440lt - 20 Bar
Chiller
si

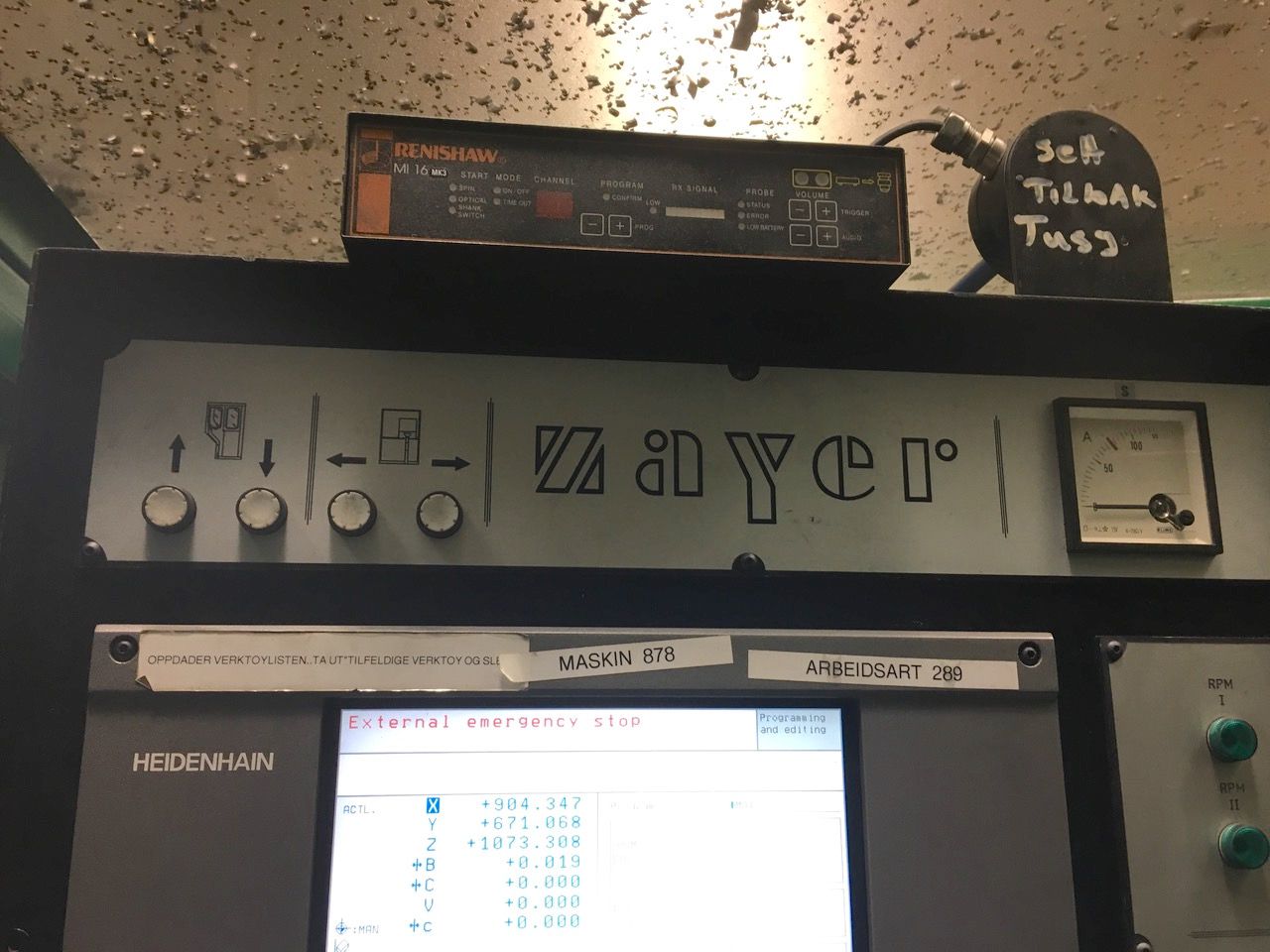

Workpiece touch probe
Renishaw MP16
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes
Chip conveyor
si
Availability
pronta

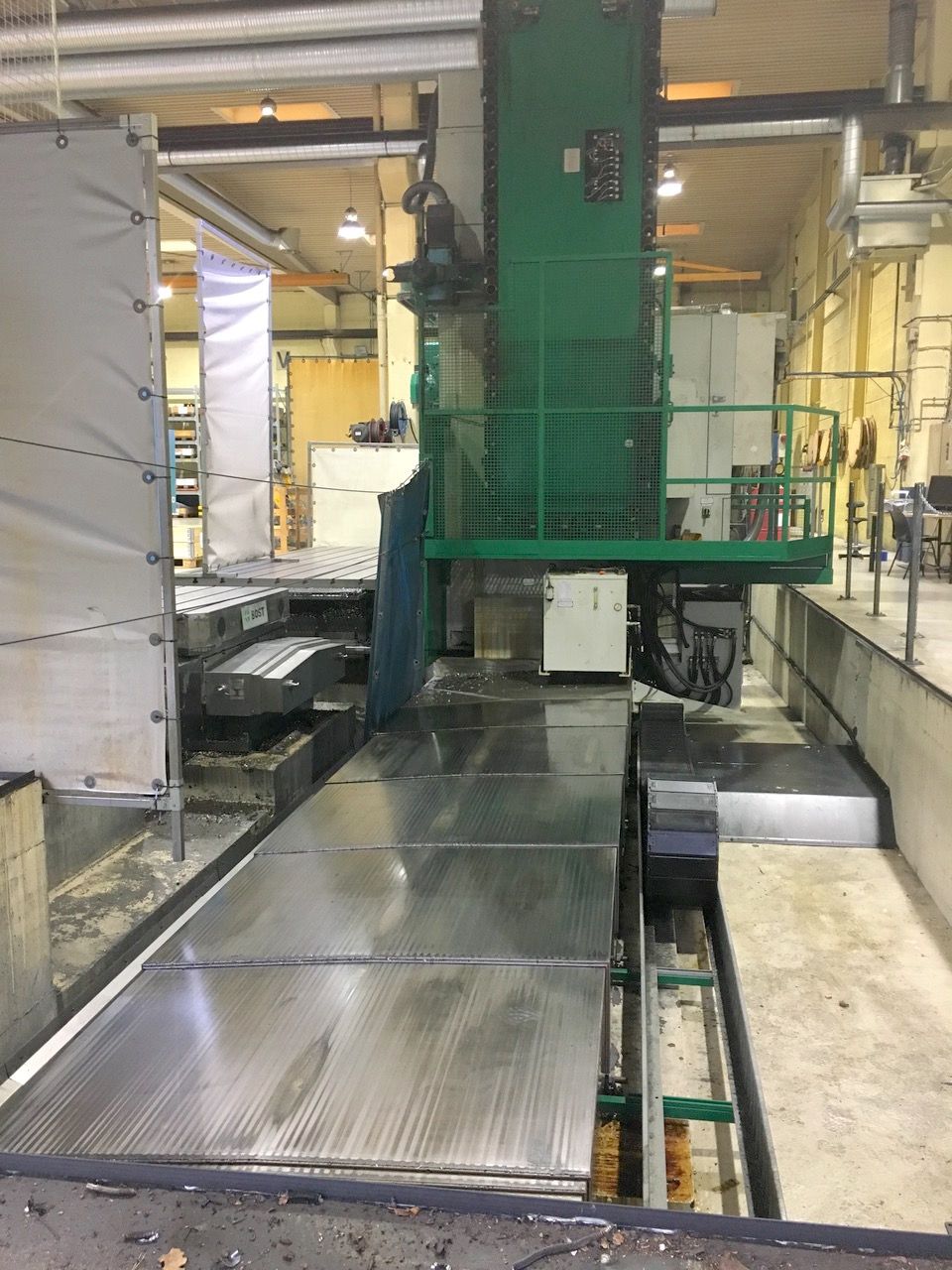

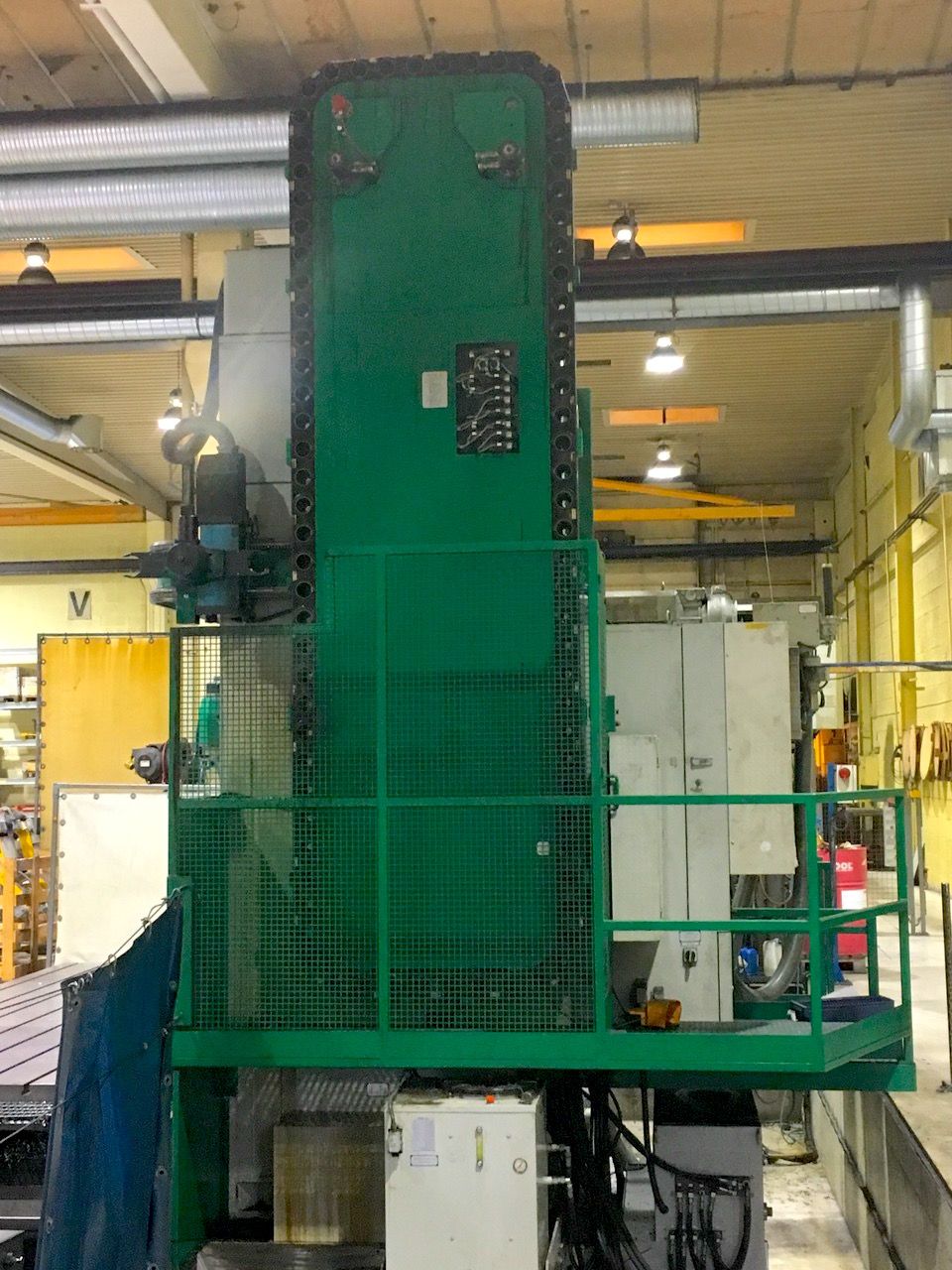

Mobile operator platform
indipendente, corsa verticale 2000mm
