Category

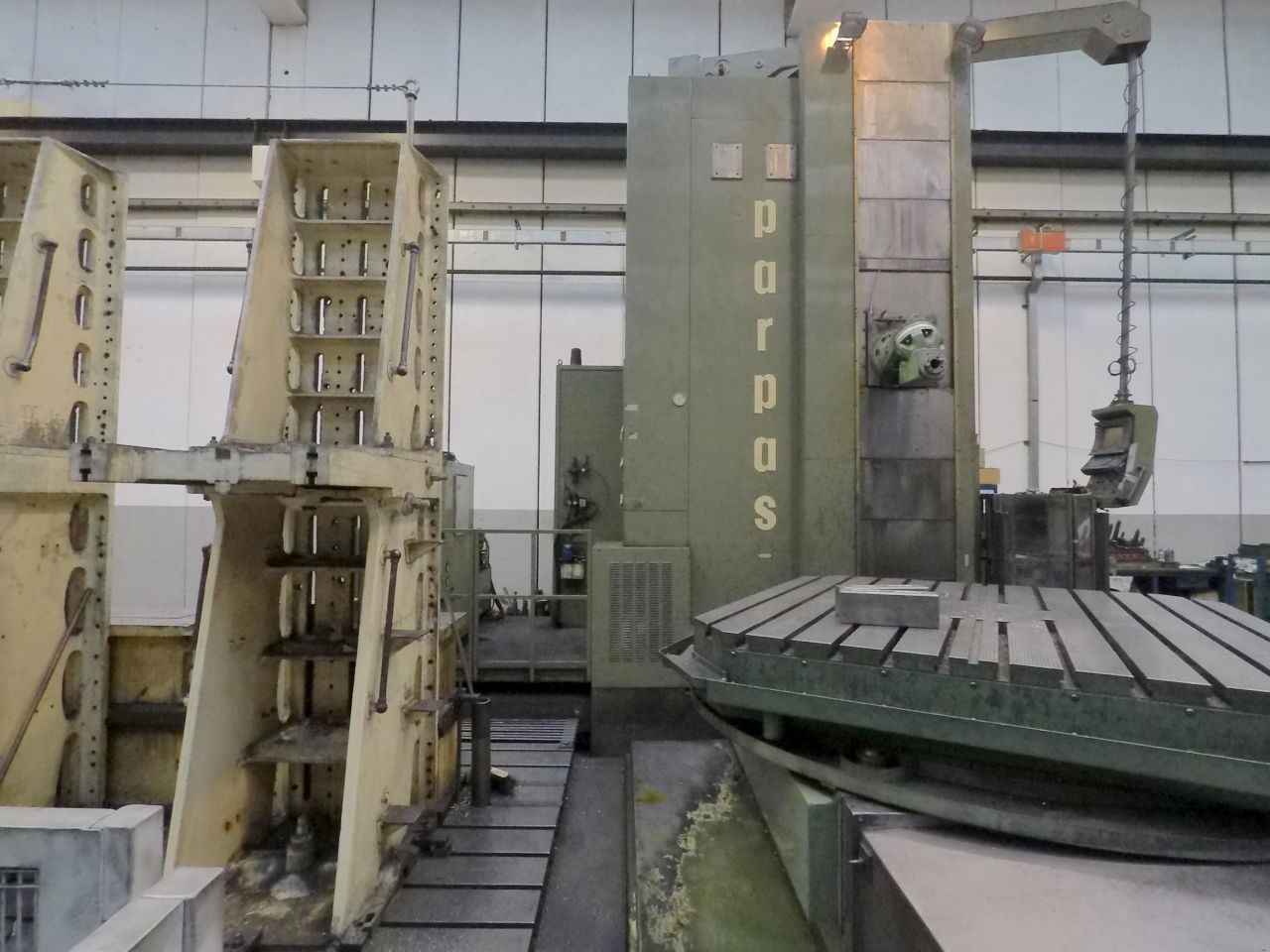

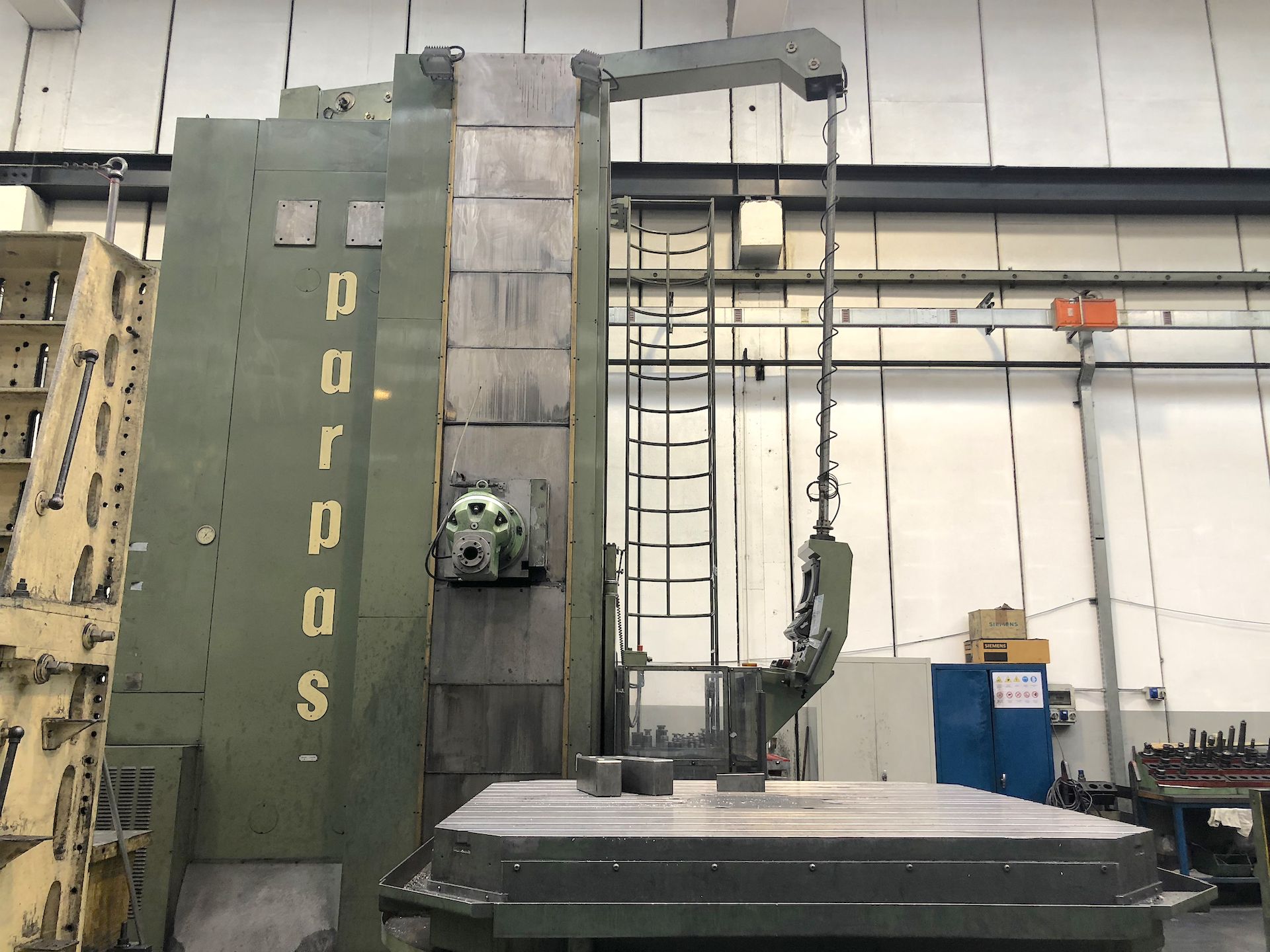

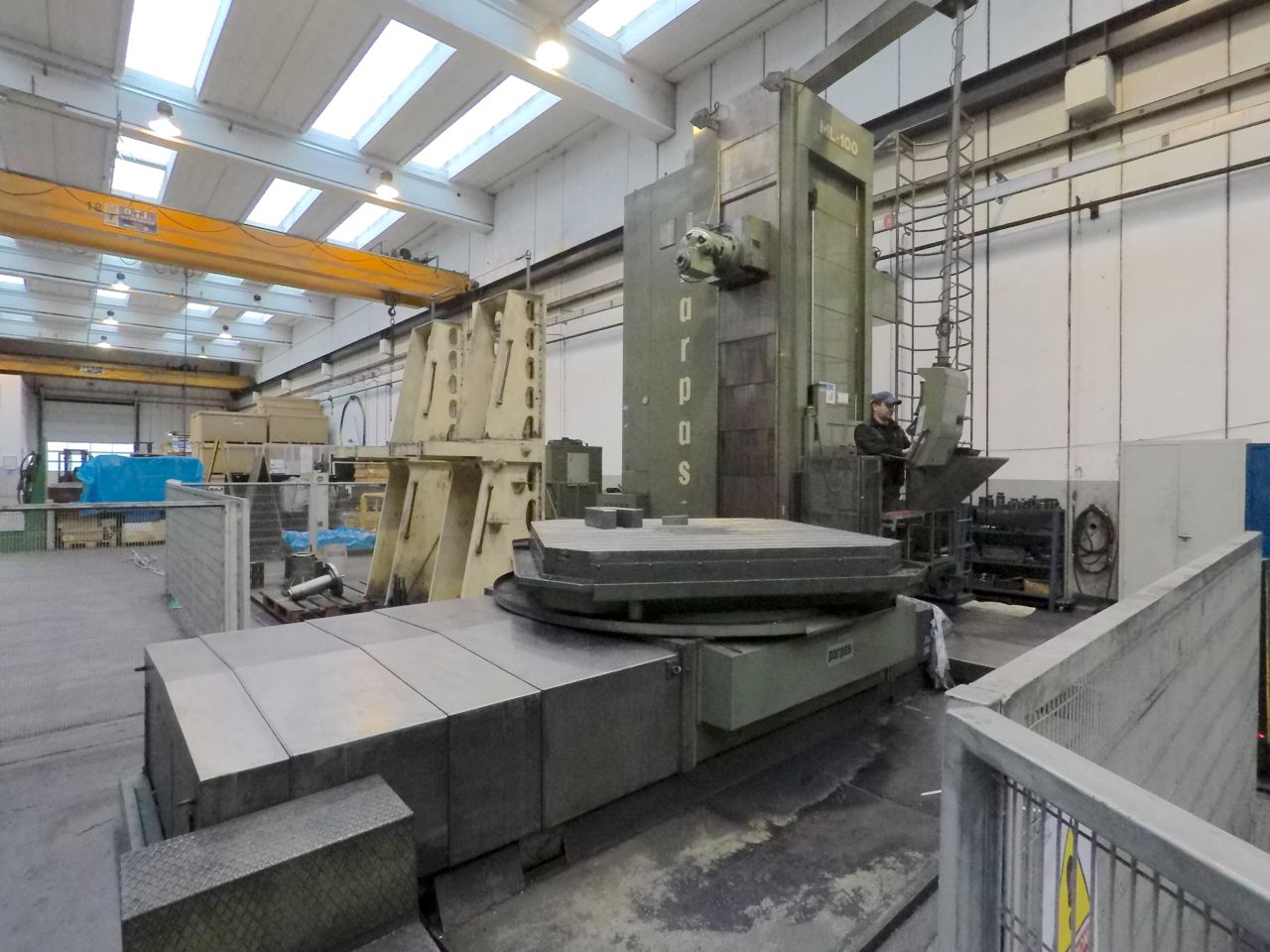

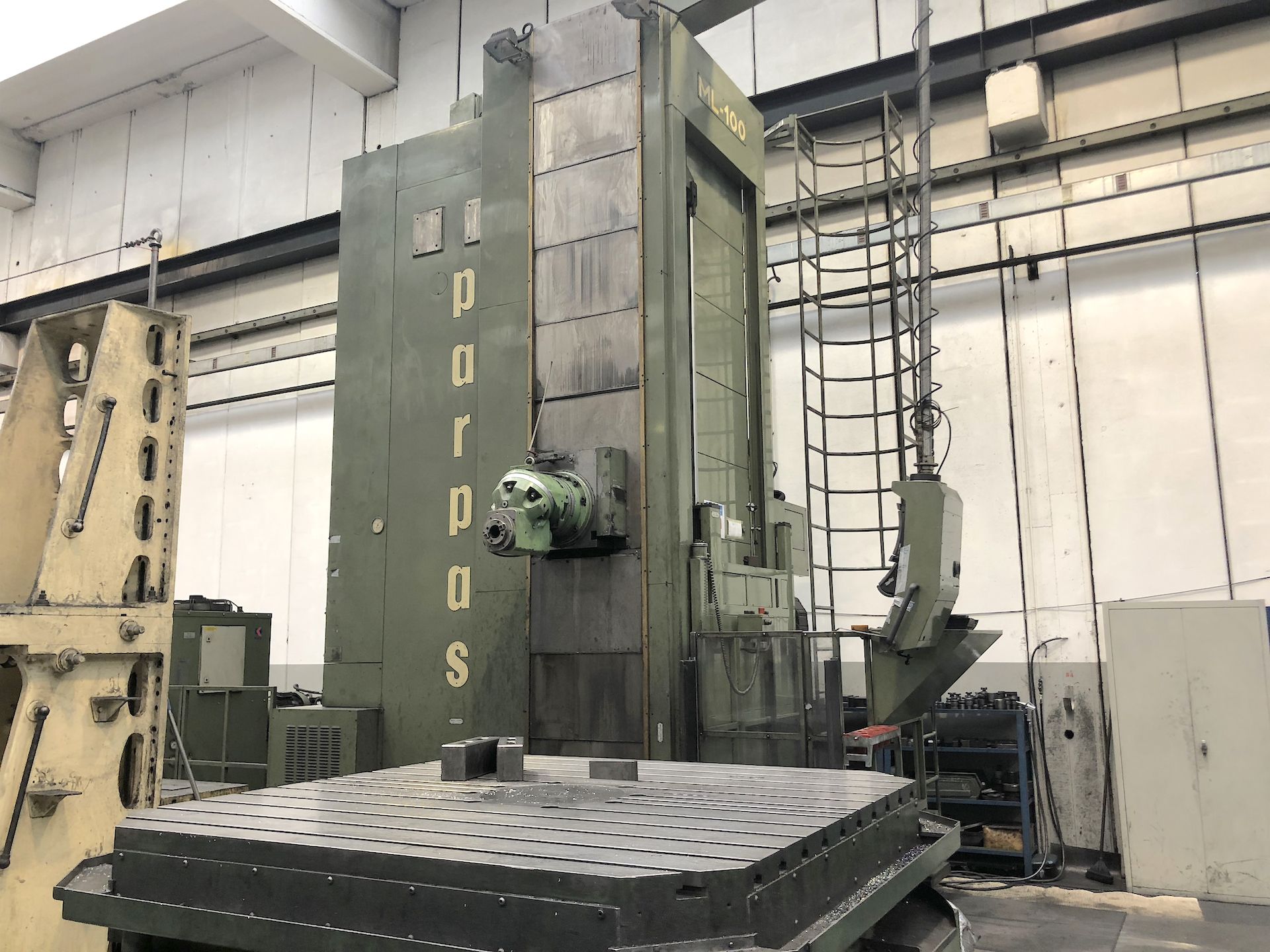

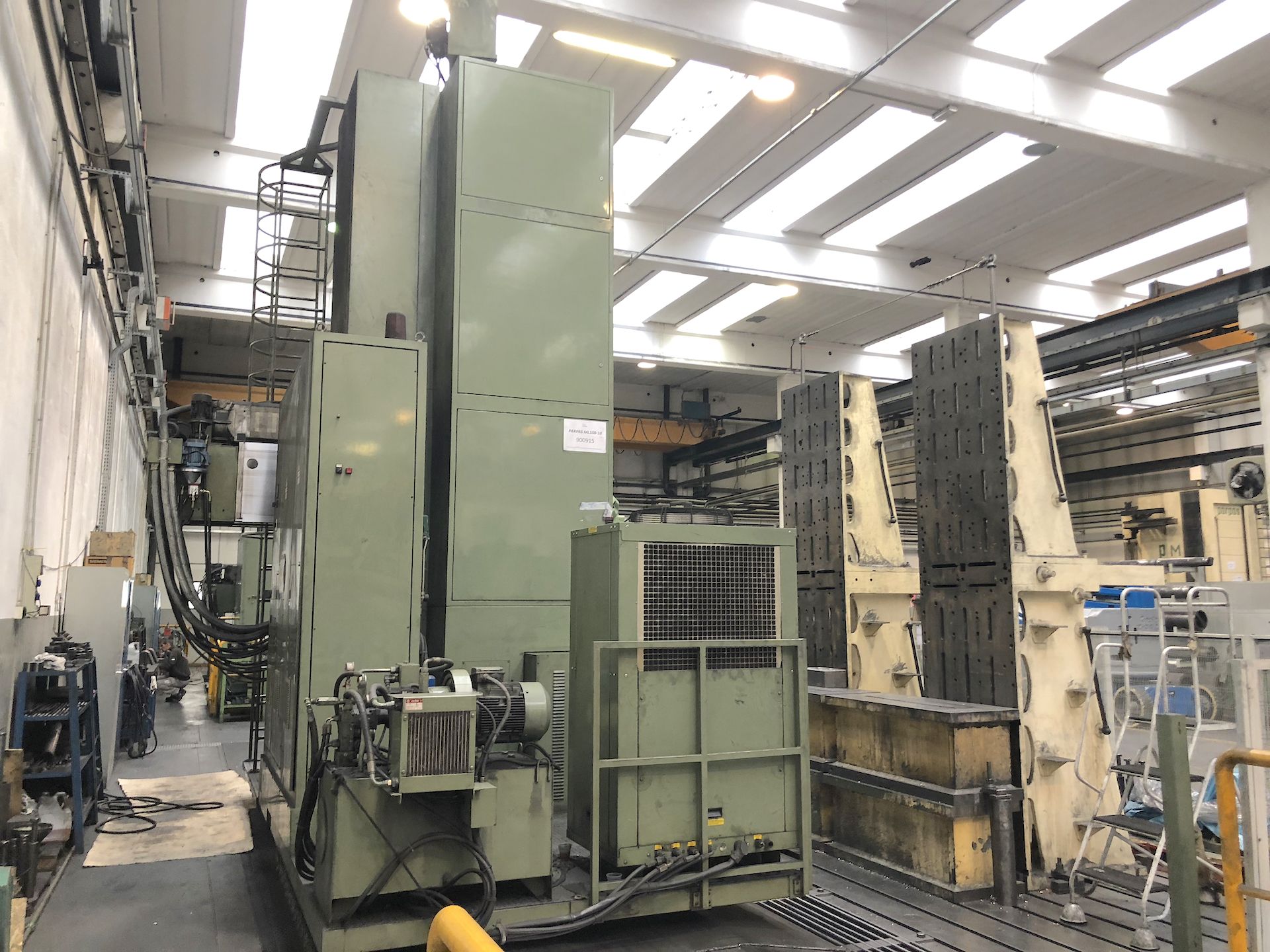

Milling machine
Type
mobile column
Made
Model

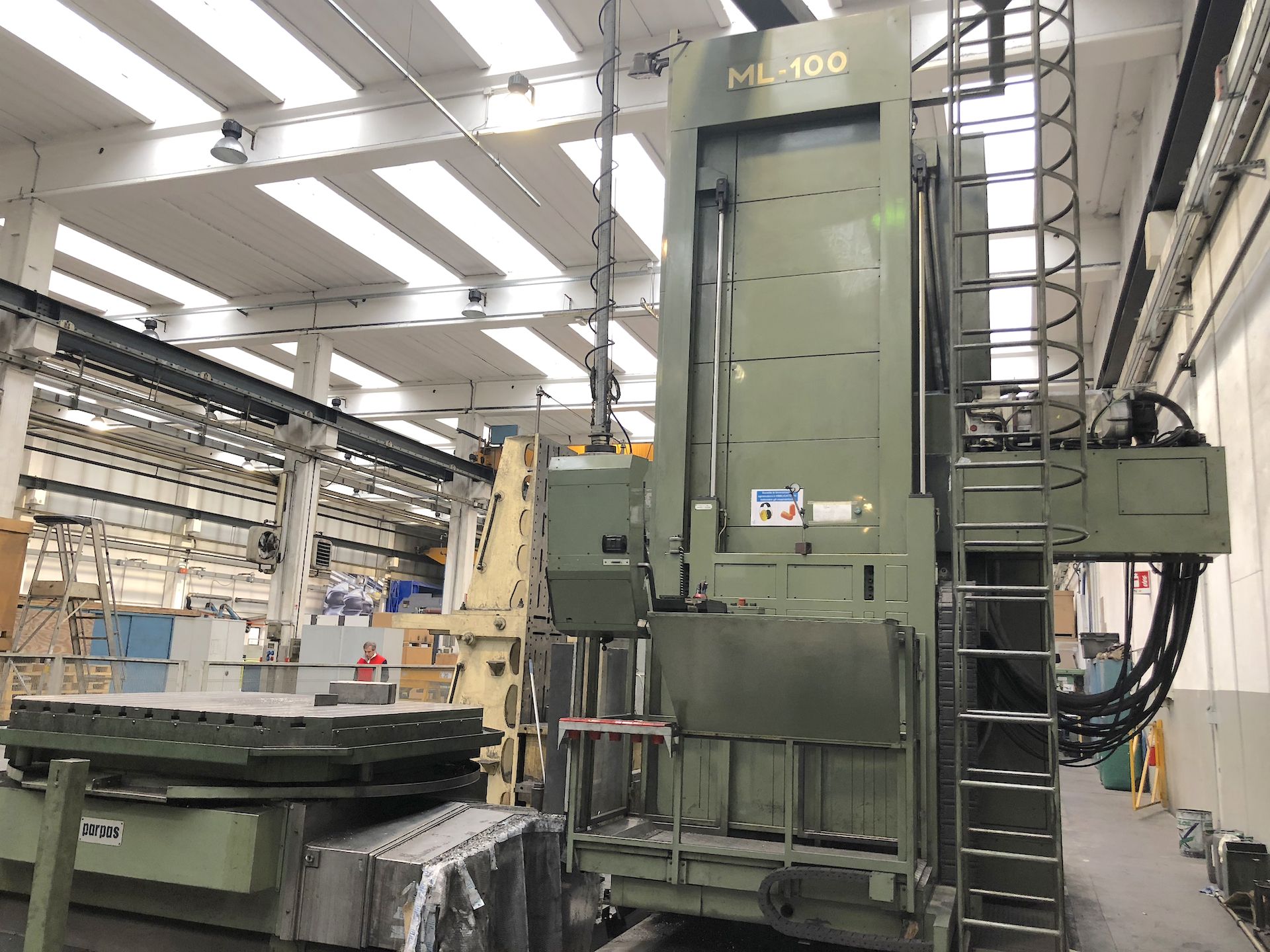

ML100 / 8000
Capacity
8000x3000x1250 mm314,96x118,11x49,21 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
8000 mm314,96 in
Vertical (Y)
3000 mm118,11 in
Cross RAM (Z)
1250 mm49,21 in
Table (V)
1500 mm59,06 in
Axes support
idrostatico
CNC
Measuring system
Righe ottiche Heidenhain

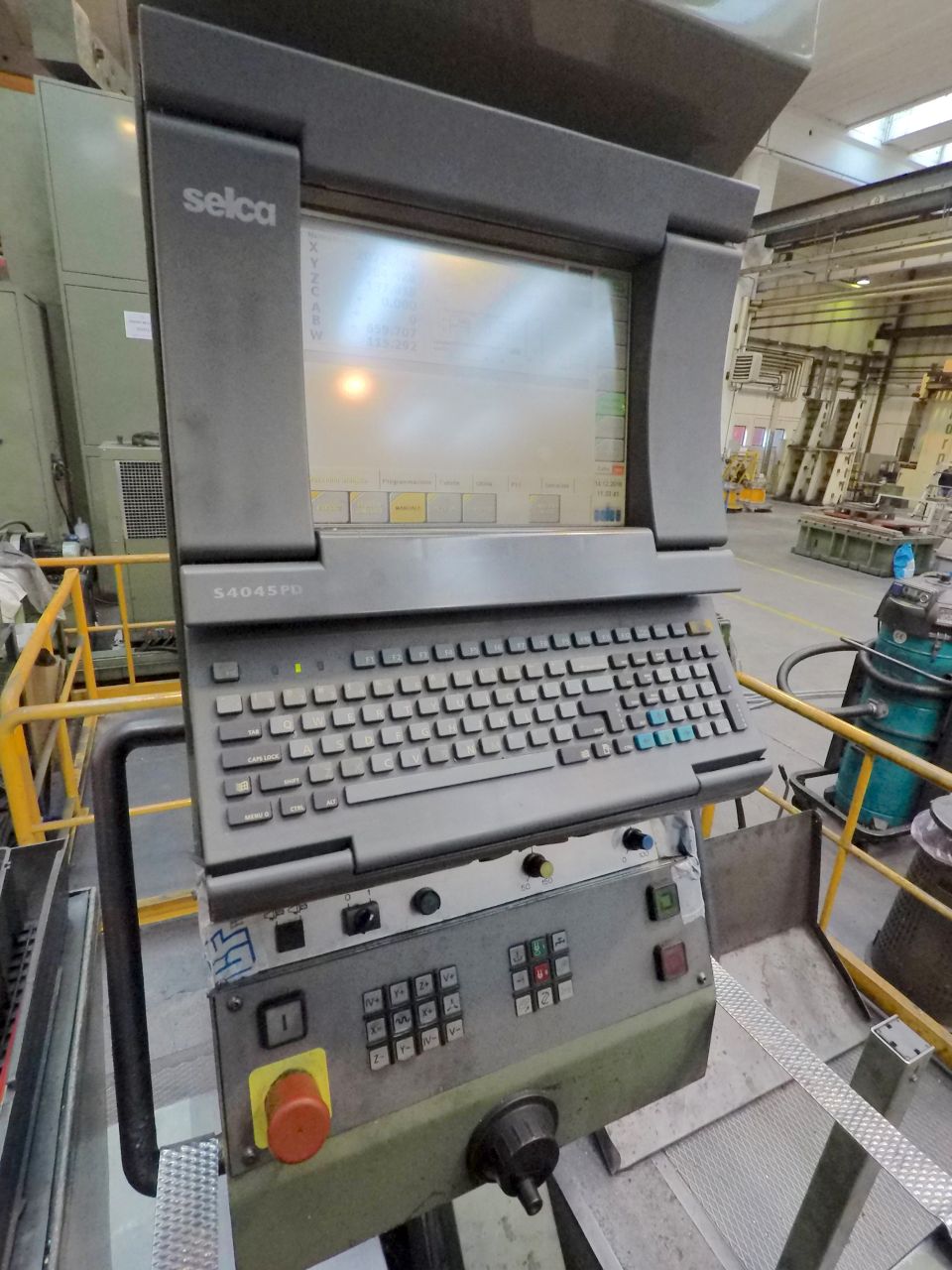

CNC

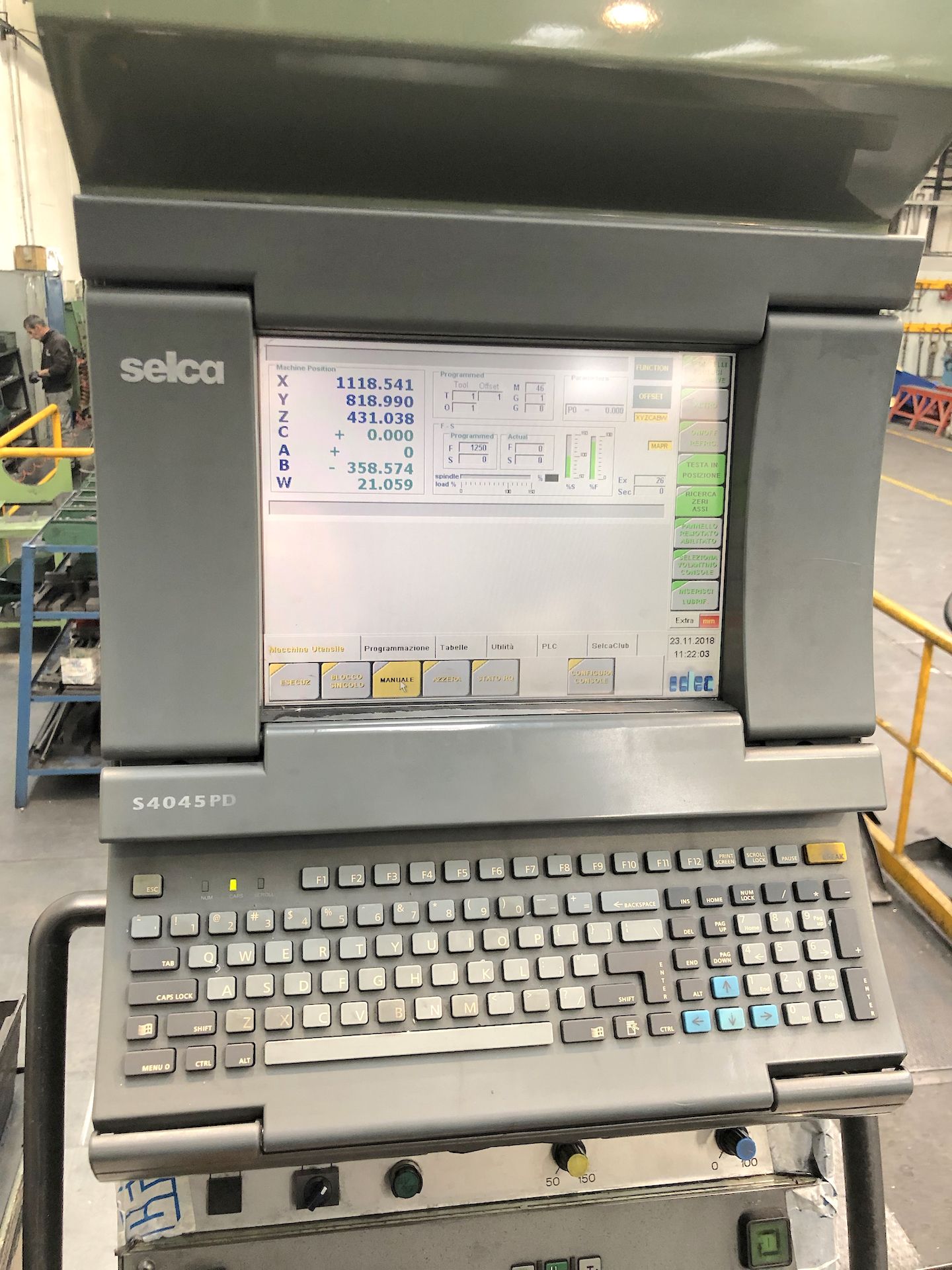

SELCA 4045PD
Drives
SIEMENS SINUMERIK

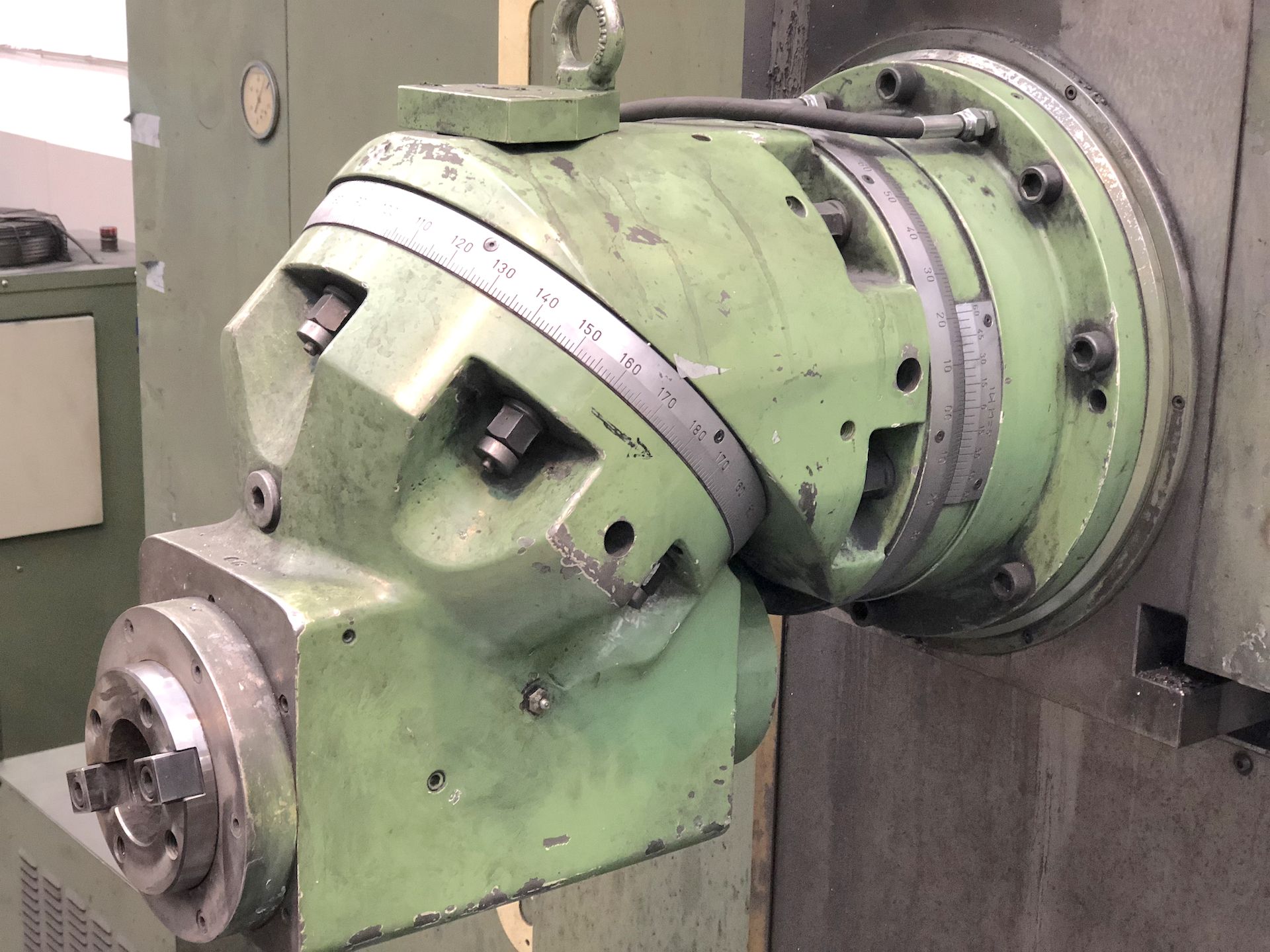

HEAD 1
Max power
37 Kw
Type
Birotativa
Spindle taper
ISO50
A axis
manuale °
C axis
a posizionamento continuo 360.000x0,001 °
Max speed
3000 Rpm
Coolant
esterno
TABLE 1
Rotating speed
2 Rpm o °/min
Surface
2000x2000 mm78,74x78,74 in
Translation
1500 mm59,06 in
Accuracy (B axis)
0,002 °
Capacity
25.000 Kg
Support
idrostatico
SPINDLE
Spindle power
37 Kw
Rotating speed
3000 Rpm
Gearbox
300-1200 / 1200-3000
Taper
ISO50
HEAD 2
Available upon request
No
Max speed
3000 Rpm
EXTRA
Floor space
15800x10340x6460 mm622,05x407,09x254,33 in
Machine total weight
≈63000 Kg
Mobile operator platform
si
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes

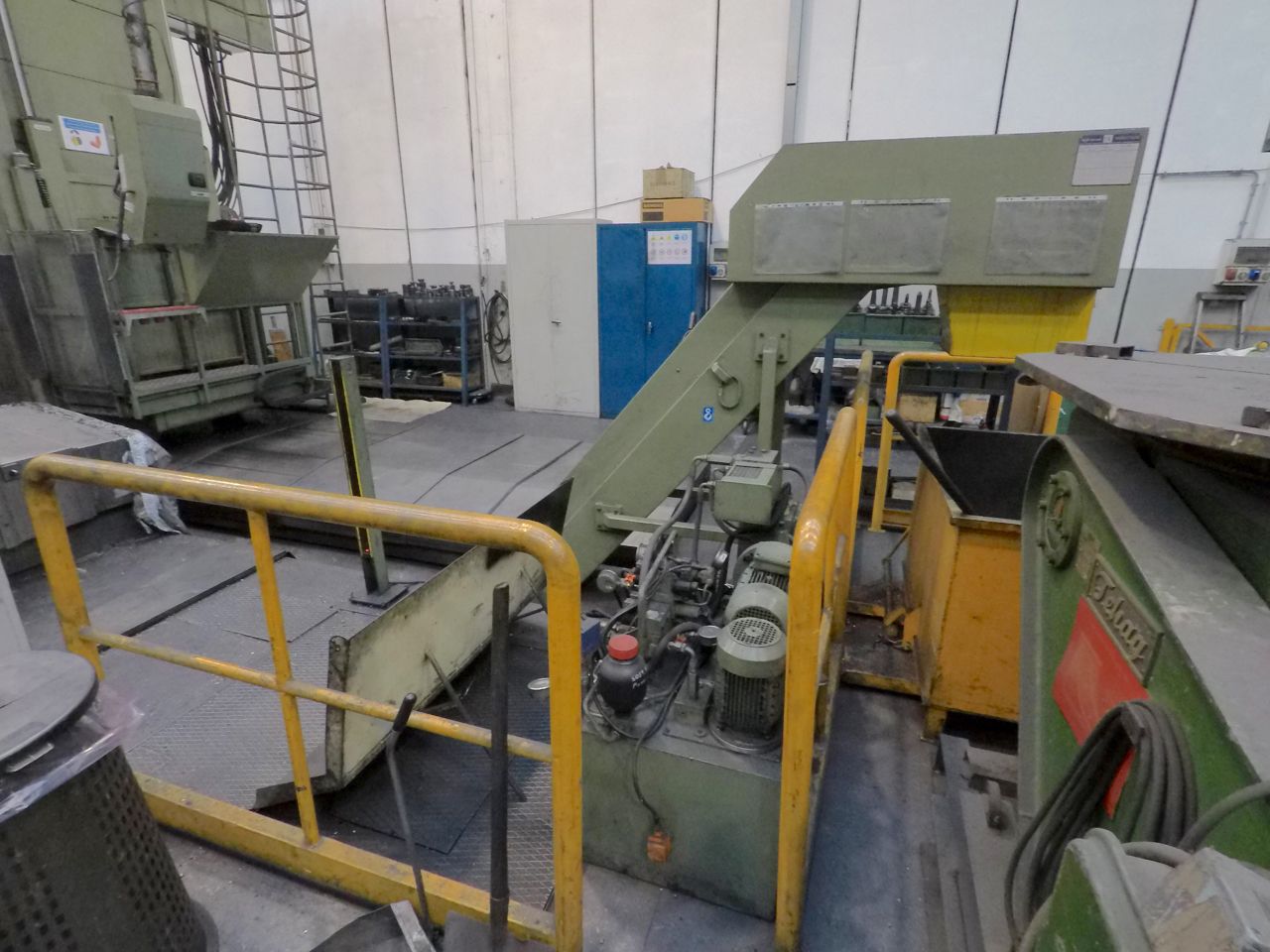

Chip conveyor
si
Availability
pronta
The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy cannot be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
