Category
Milling machine
Type
mobile column
Made
Model
FBM300
Capacity
3000x1500x1000 mm118,11x59,06x39,37 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
3000 mm118,11 in
Vertical (Y)
1500 mm59,06 in
Cross RAM (Z)
1000 mm39,37 in

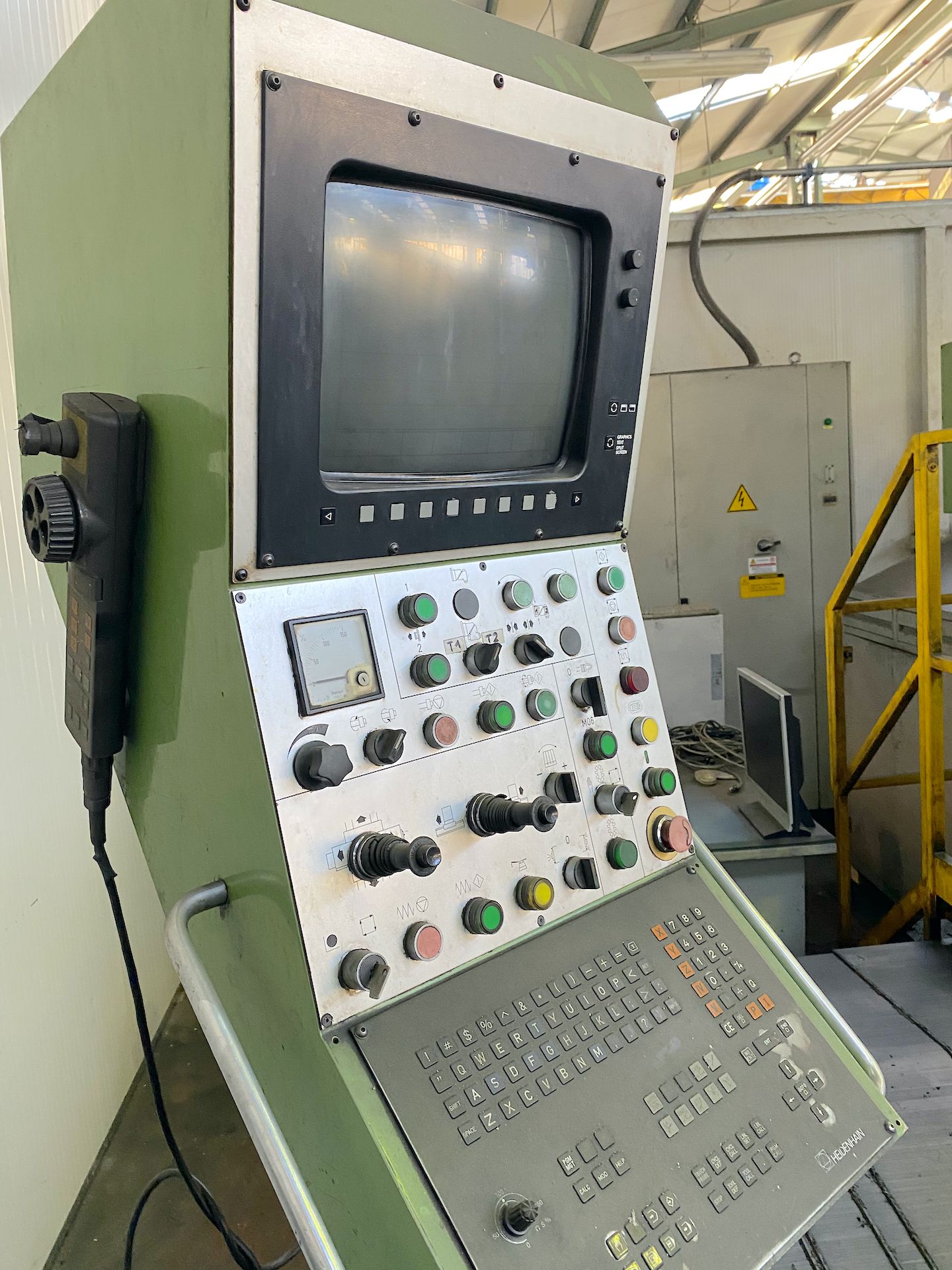

CNC
CNC
Heidenhain TNC426CA
Measuring system
Righe Ottiche
Drives
Siemens
Notes
Volantino Heidenhain HR332 remoto, predisposizione cicli per lavoro in pendolare
SPINDLE
Spindle power
33 Kw
Rotating speed
3000 Rpm
Taper
ISO 50
Gearbox
ZF 10-200Rpm / 200-3000Rpm
FEEDS
Rapid X
10 m/min393,70 ipm
X
5-10 m/min196,85-393,70 ipm
Y
5-10 m/min196,85-393,70 ipm
Z
5-10 m/min196,85-393,70 ipm
Rapid Y
10 m/min393,70 ipm
Rapid Z
10 m/min393,70 ipm

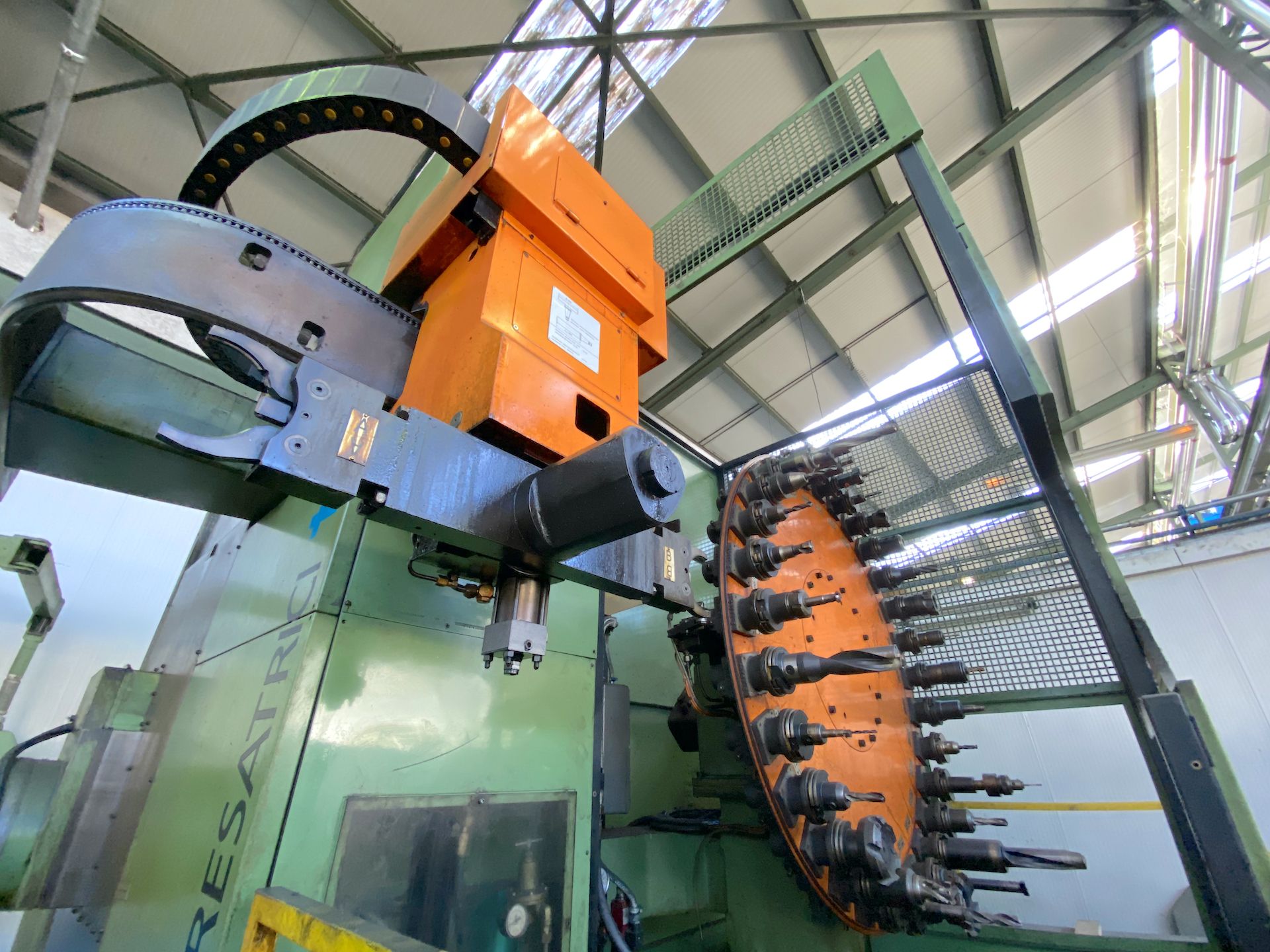

ATC
Positions
30
Max tool diameter
120 mm4,72 in
Max tool lenght
500 mm19,69 in
Max tool weight
25 Kg
Position
Orizzontale/Verticale
Max diam with free adiacent space
400 mm15,75 in
Tool taper
ISO50 DIN69871

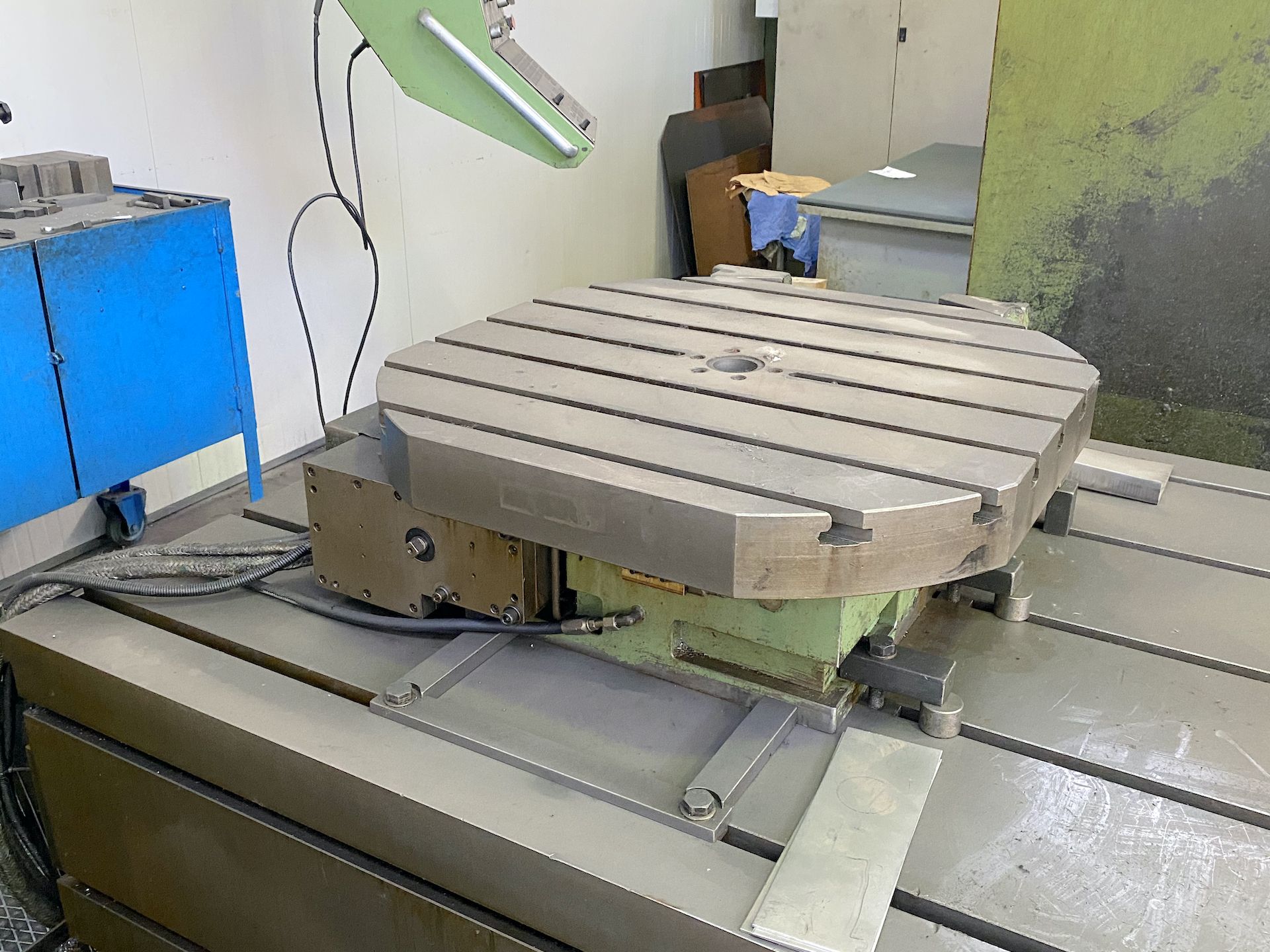

TABLE 1
Surface
700x700xh278 mm27,56x27,56xh10,94 in
Capacity
3500 Kg
Accuracy (B axis)
360000 °
Rotating speed
10 Rpm o °/min
Notes
ENCODER HAIDENHAIN,POSSIBILITA’ MONTAGGIO VERTICALE/ORIZZONTALEMOTORE SIEMENS,ROTAZIONE CONTROLLATA CNC,5 CAVE A T 18MM H8
Available upon request
Yes

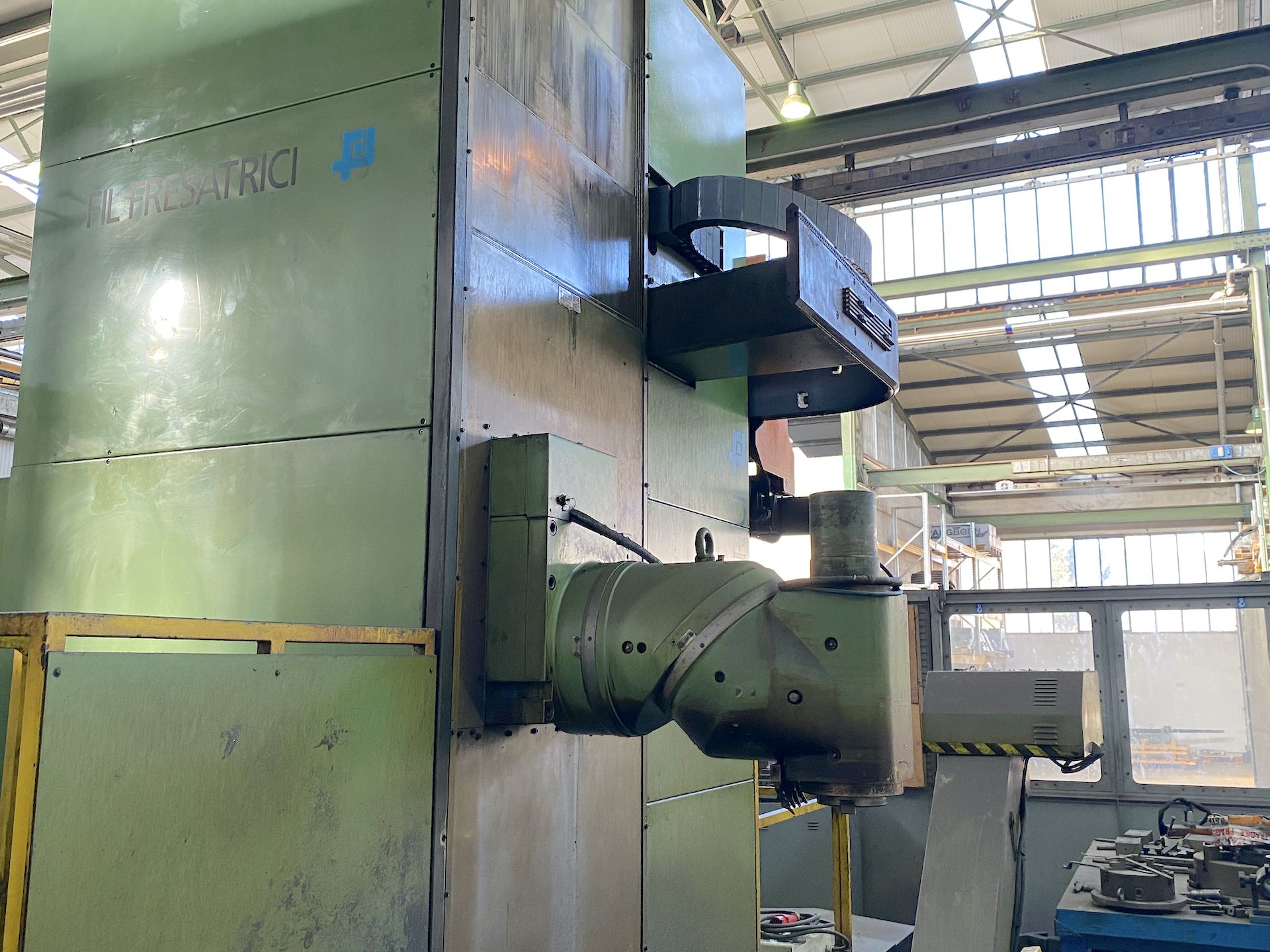

HEAD 1
Spindle taper
ISO 50
Type
BIROTATIVA AUTOMATICA
A axis
2,5 °
C axis
2,5 °
Max speed
3000 Rpm
Max power
33 Kw
Coolant
INTERNO 30lt/min
FIXING TABLE
Floorspace (LxWxH)
3500x1200x800 mm137,80x47,24x31,50 in
Capacity
25000 Kg/mq
T slots number
5x22mm H8
EXTRA
Tooling included
Tavola girevole controllata in continuo, volantino remotato CNC, Carenatura perimetrale
High Pressure
Si, 30lt/min, vasca da 300litri
Filtration unit
Si
Housing
SI
Chip conveyor
SI
Availability
PRONTA
CE Certification
Yes
Maintenance & Use books
Yes
Electrical drawings
Yes
Workpiece touch probe
Heidenhain TS220
