Category

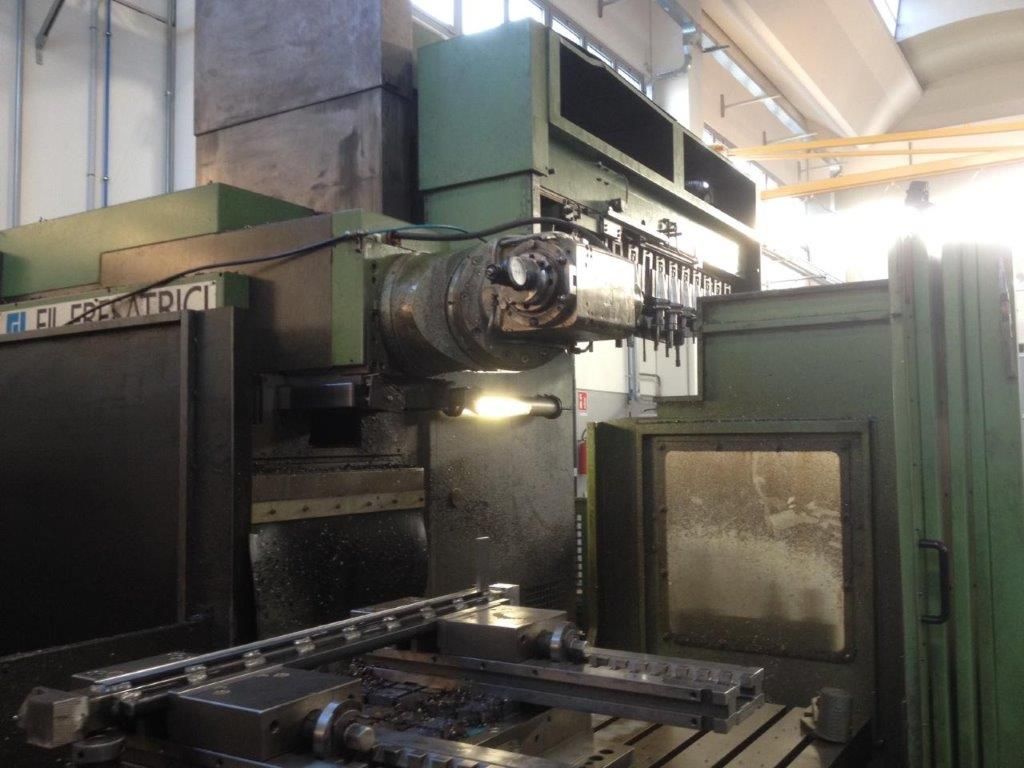

Milling machine
Type
mobile column
Made
Model
FSM 300
Capacity
3000x1500x1000 mm118,11x59,06x39,37 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
3000 mm118,11 in
Vertical (Y)
1500 mm59,06 in
Cross RAM (Z)
1000 mm39,37 in
CNC
CNC
SELCA 3045P
Drives
Siemens
HEAD 1
Type
Birotativa automatica
A axis
2,5° °
C axis
2,5° °
Max speed
4000 Rpm
Max power
23 Kw
SPINDLE
Taper
BT 50
FEEDS
Rapid X
12 m/min472,44 ipm
Rapid Y
12 m/min472,44 ipm
Rapid Z
12 m/min472,44 ipm
ATC
Positions
24
Max tool diameter
120 mm4,72 in
Max tool weight
15 Kg
Max tool lenght
350 mm13,78 in
Max diam with free adiacent space
350 mm13,78 in
EXTRA
Total power supply
30 Kw
The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy cannot be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
