Category

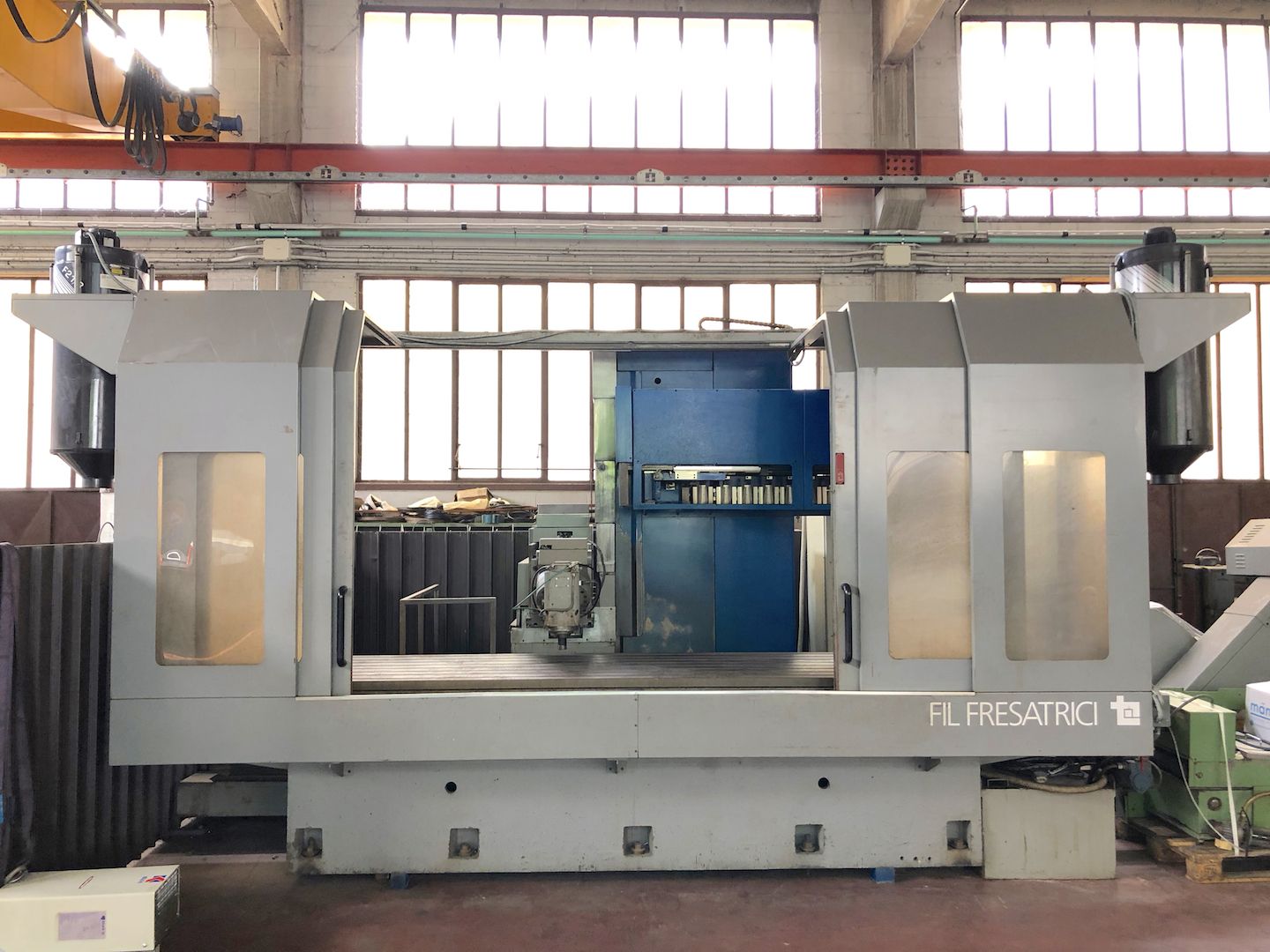

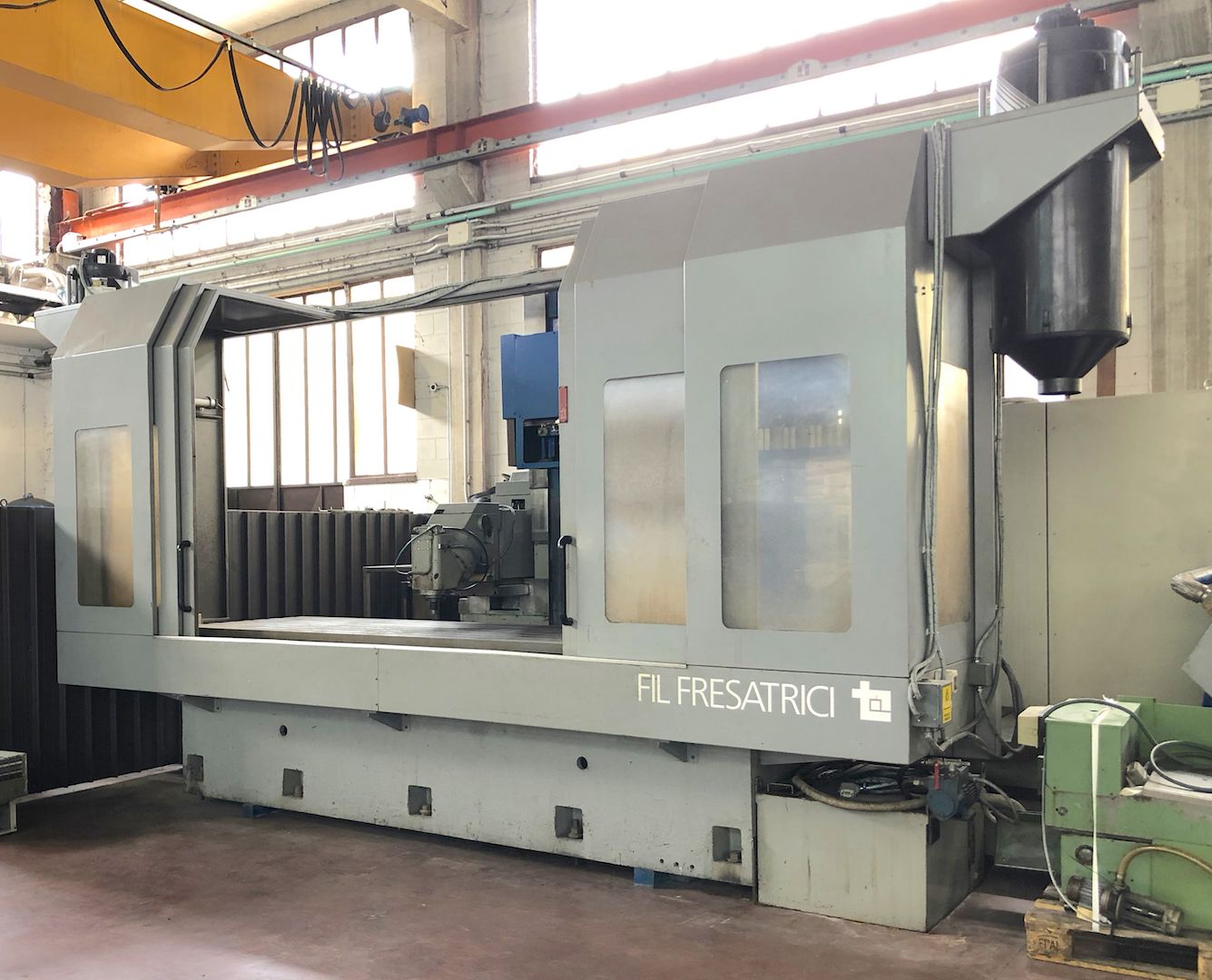

Milling machine
Type
mobile column
Made
Model
FSM 300
Capacity
3000x1000x1100 mm118,11x39,37x43,31 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
3000 mm118,11 in
Vertical (Y)
1100 mm43,31 in
Cross RAM (Z)
1000 mm39,37 in
CNC
CNC

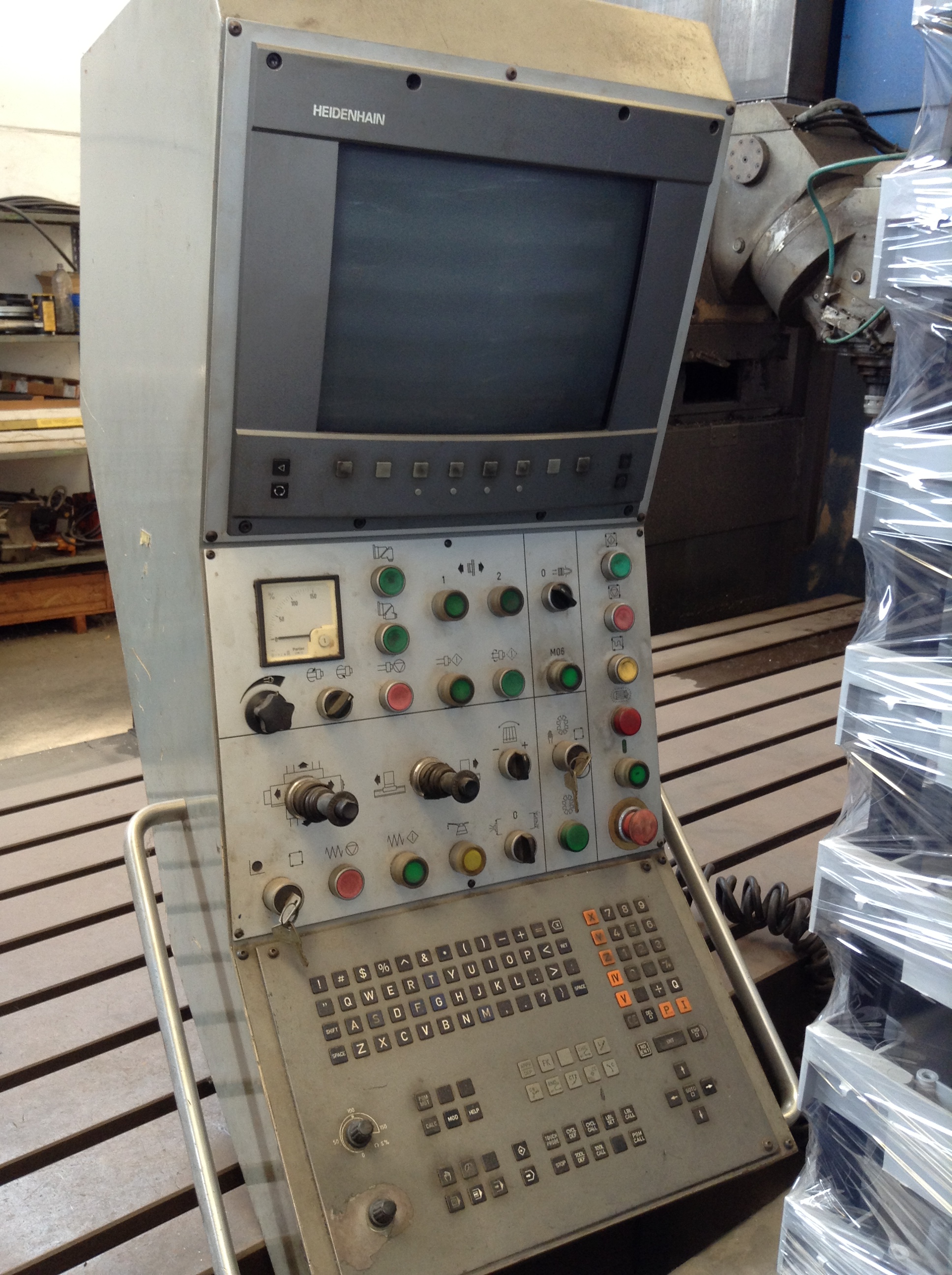

Heidenhain TNC430
SPINDLE
Spindle power
16,5 Kw
Rotating speed
50-4000 Rpm
Taper
ISO50 DIN69871
Gearbox
50-215 / 215-4000
FEEDS
Rapid X
10 m/min393,70 ipm
Rapid Y
10 m/min393,70 ipm
Rapid Z
10 m/min393,70 ipm
ATC
Positions
24
Max tool diameter
120 mm4,72 in
Max diam with free adiacent space
200 mm7,87 in
Max tool lenght
300 mm11,81 in
Max tool weight
15 Kg
Tool taper
ISO50 DIN69871

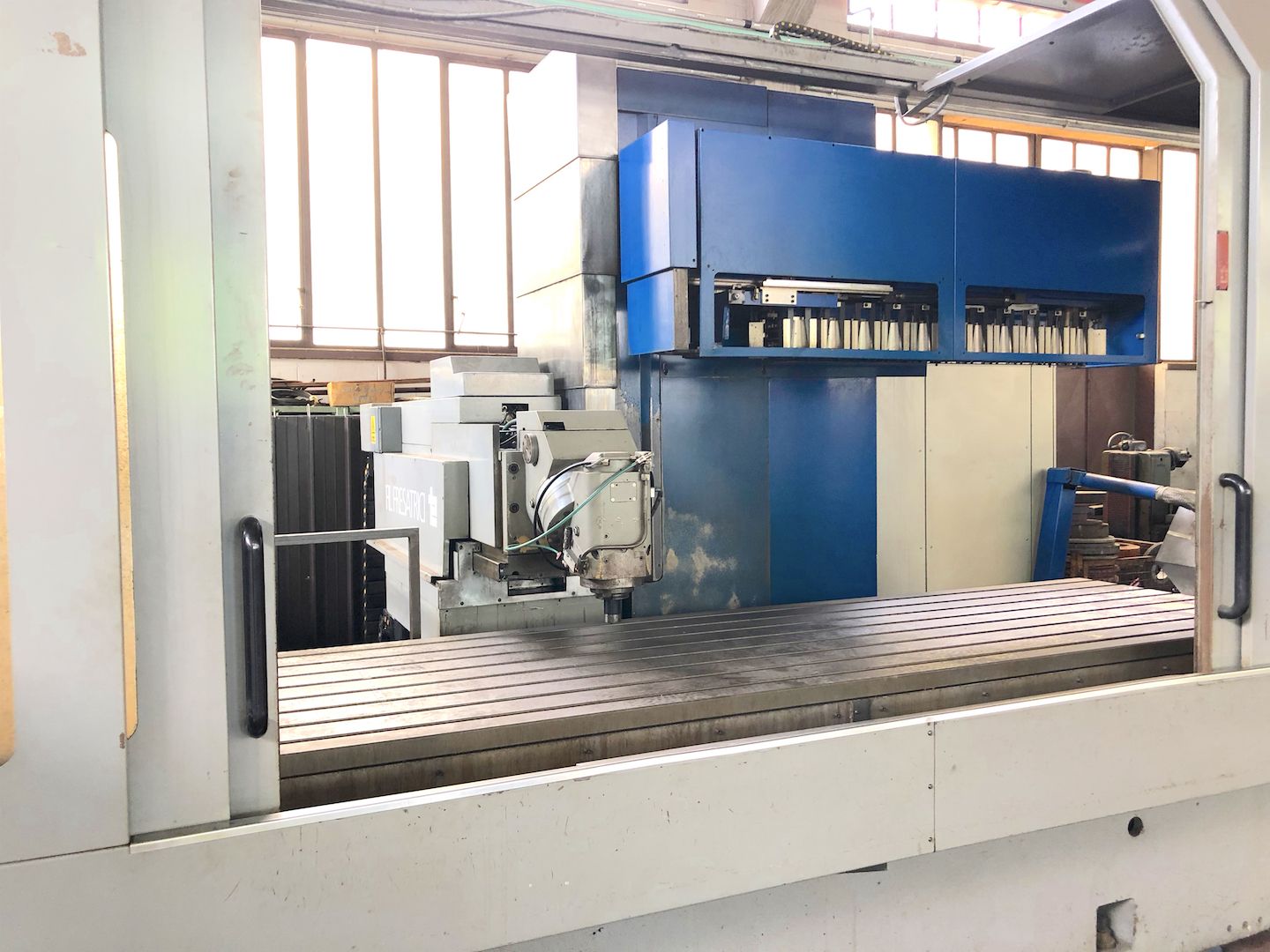

FIXING TABLE
Floorspace (LxWxH)
3500x1000x950 mm137,80x39,37x37,40 in
Capacity
20.000 Kg/mq
T slots number
8

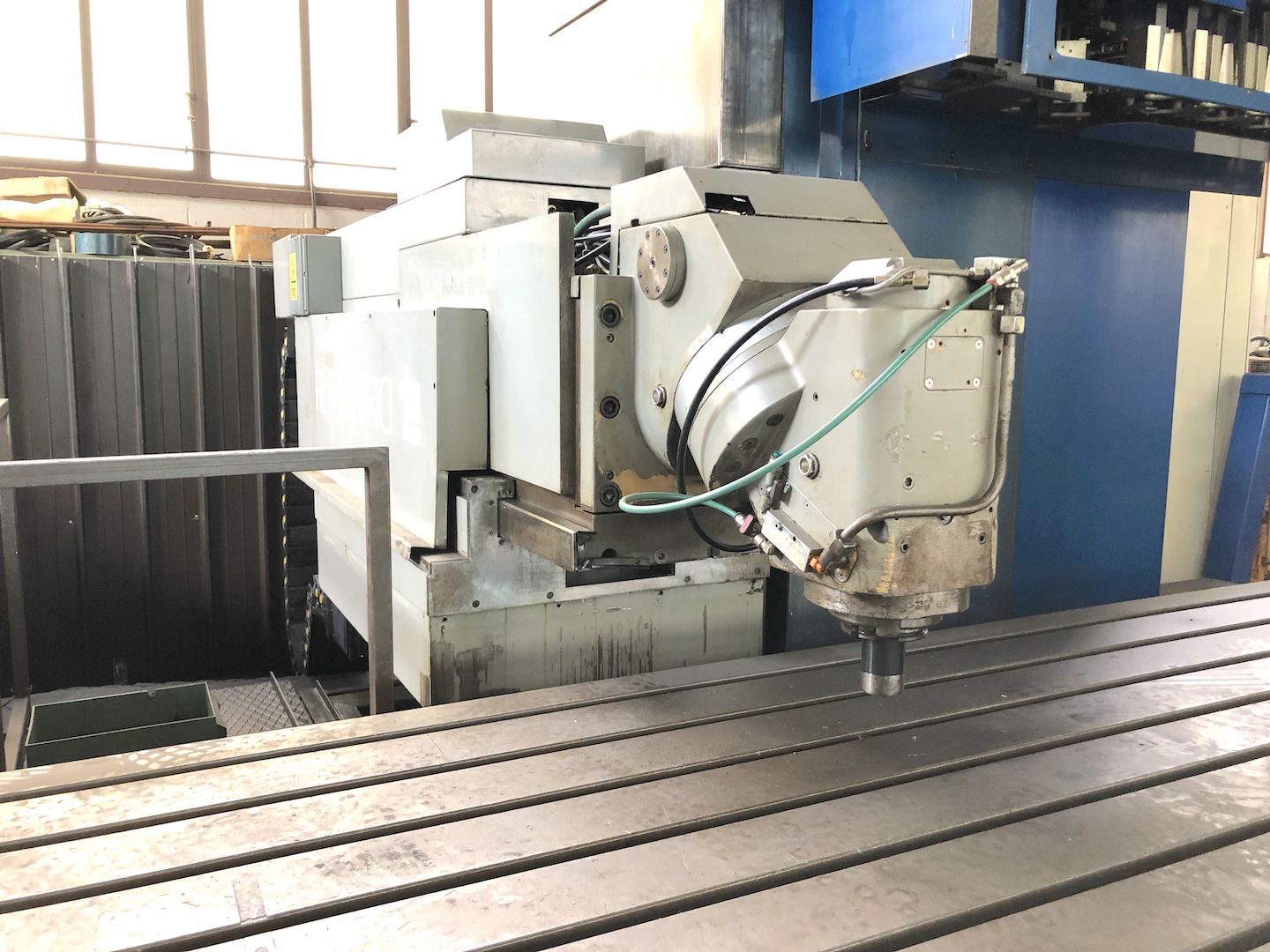

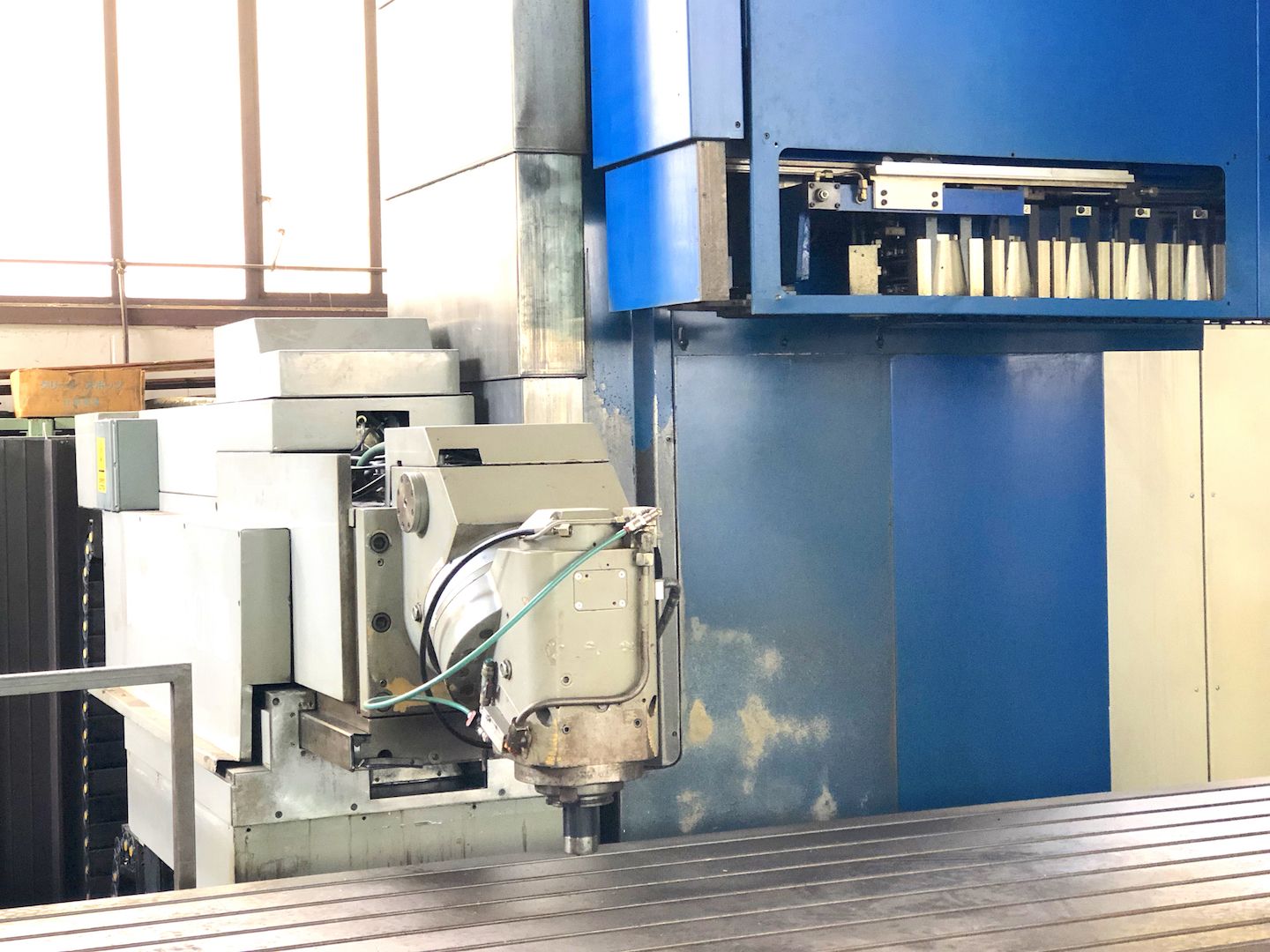

HEAD 1
A axis
180 °
Spindle taper
ISO50
Max speed
4000 Rpm
Type
TA45/2 Orizzontale/Verticale automatica
EXTRA
Machine total weight
25350 Kg
Housing
integrale
Maintenance & Use books
Yes

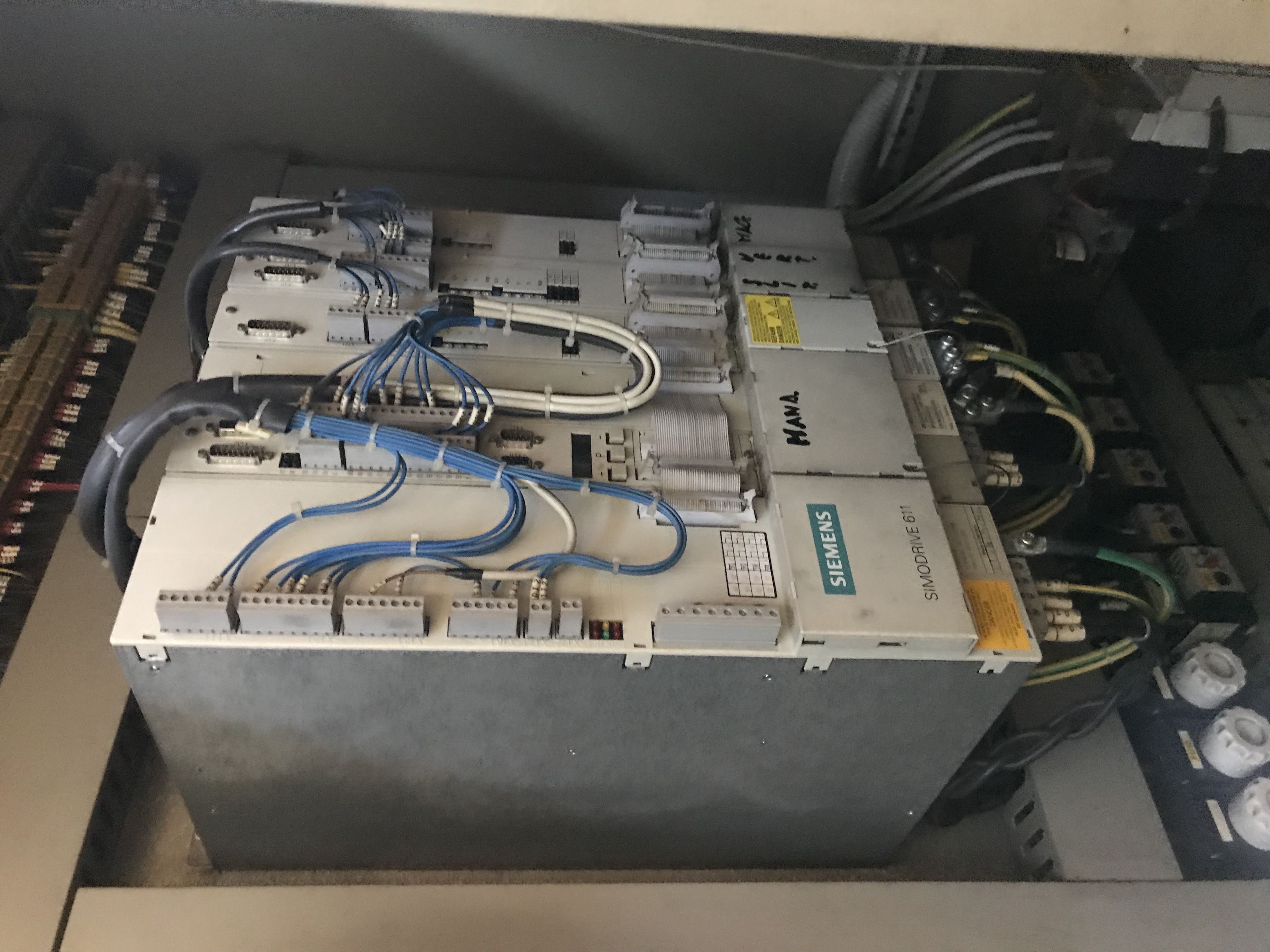

Electrical drawings
Yes
CE Certification
Yes
Chip conveyor
longitudinale
Mist extractor
2
Availability
pronta
Available in stock
si
Chiller
si
Floor space
7480x4257x3240 mm294,49x167,60x127,56 in
