Category
Milling machine
Type
mobile column
Made
Model
M3-C AGILE
Capacity
4000x2650x1250+1500 mm157,48x104,33x49,21+59,06 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
4000 mm157,48 in
Vertical (Y)
2650 mm104,33 in
Cross RAM (Z)
1250 mm49,21 in
Table (V)
1500 mm59,06 in

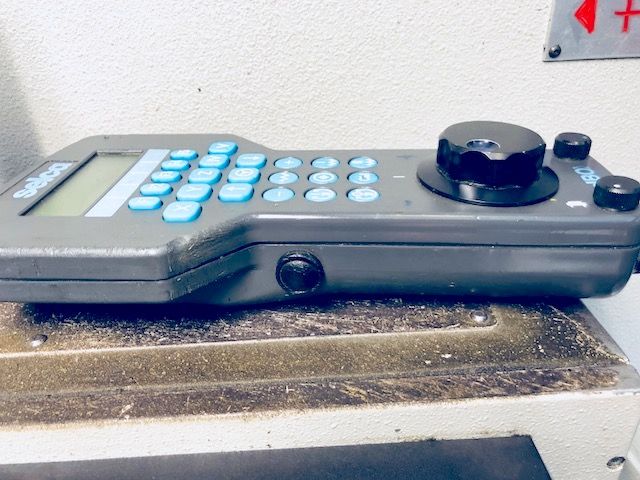

CNC
CNC
SELCA S4060D
FEEDS
Rapid X
20 m/min787,40 ipm
Rapid Y
20 m/min787,40 ipm
Rapid Z
20 m/min787,40 ipm
Rapid V
6 m/min236,22 ipm
ATC
Positions
80 (75 ISO50 + 5 HSK63E)
Max tool diameter
125 (ISO50) / 60 (HSK63E) mm4,92 (ISO1,97) / 2,36 (HSK2,48E) in
Max diam with free adiacent space
240 (ISO50) / 60 (HSK63E) mm9,45 (ISO1,97) / 2,36 (HSK2,48E) in
Max tool lenght
400 (ISO50) / 180 (HSK63E) mm15,75 (ISO1,97) / 7,09 (HSK2,48E) in
Max tool weight
28 (ISO50) / 5 (HSK63E) Kg
Tool taper
75xISO50 + 5xHSK63E
TABLE 1
Surface
2500x2000 mm98,43x78,74 in
Translation
1500 mm59,06 in
Accuracy (B axis)
0,002 °
Capacity
30.000 Kg
Rotating speed
0-12,000 (°/min) Rpm o °/min
Notes
8 cave a T 22mm

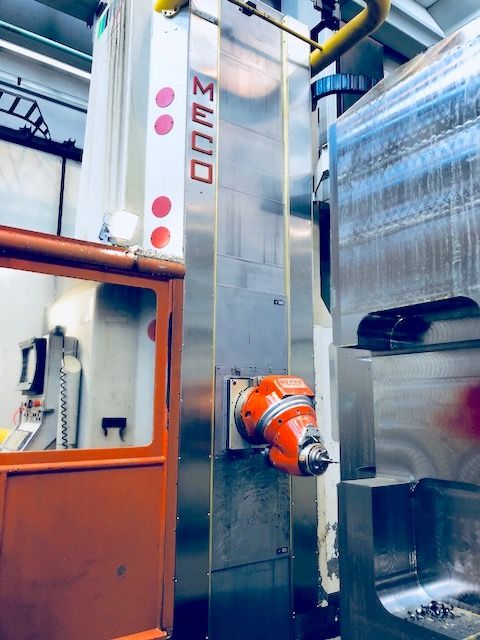

HEAD 1
Coolant
12 Bar interni - 6 bar esterni
Type
TCB6 birotativa continua automatica
Spindle taper
ISO50
A axis
360.000x0,001 °
C axis
360.000x0,001 °
Max torque
650(S1) Nm
Max speed
15-6.000 Rpm
Max power
30 Kw
HEAD 2
Available upon request
No
Max torque
30 Nm
Max speed
500-20.000 Rpm
Max power
22 Kw
PICK UP STATION FOR HEADS
Positions
2
SPINDLE
RAM section
450x450 mm17,72x17,72 in
Spindle power
30 Kw
Gearbox
15-440 / 440-6.000
Rotating speed
15-6.000 Rpm
Torque
650 Nm
Taper
ISO50
Notes
Refrigerante interno mandrino
EXTRA
Tool presetter
BLUM Mirco200 + Software sostituzione utensili usurati
Chiller
Kelvin MCF7000
High Pressure
12Bar(int)+6Bar(ext)
Filtration unit
doppia vasca (raccolta+filtragigo) 1000+1000 litri
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes
Housing
Perimetrale integrale
Chip conveyor
si
Availability
pronta
Available under power
si
