Category
Milling machine
Type
mobile column
Made
Model

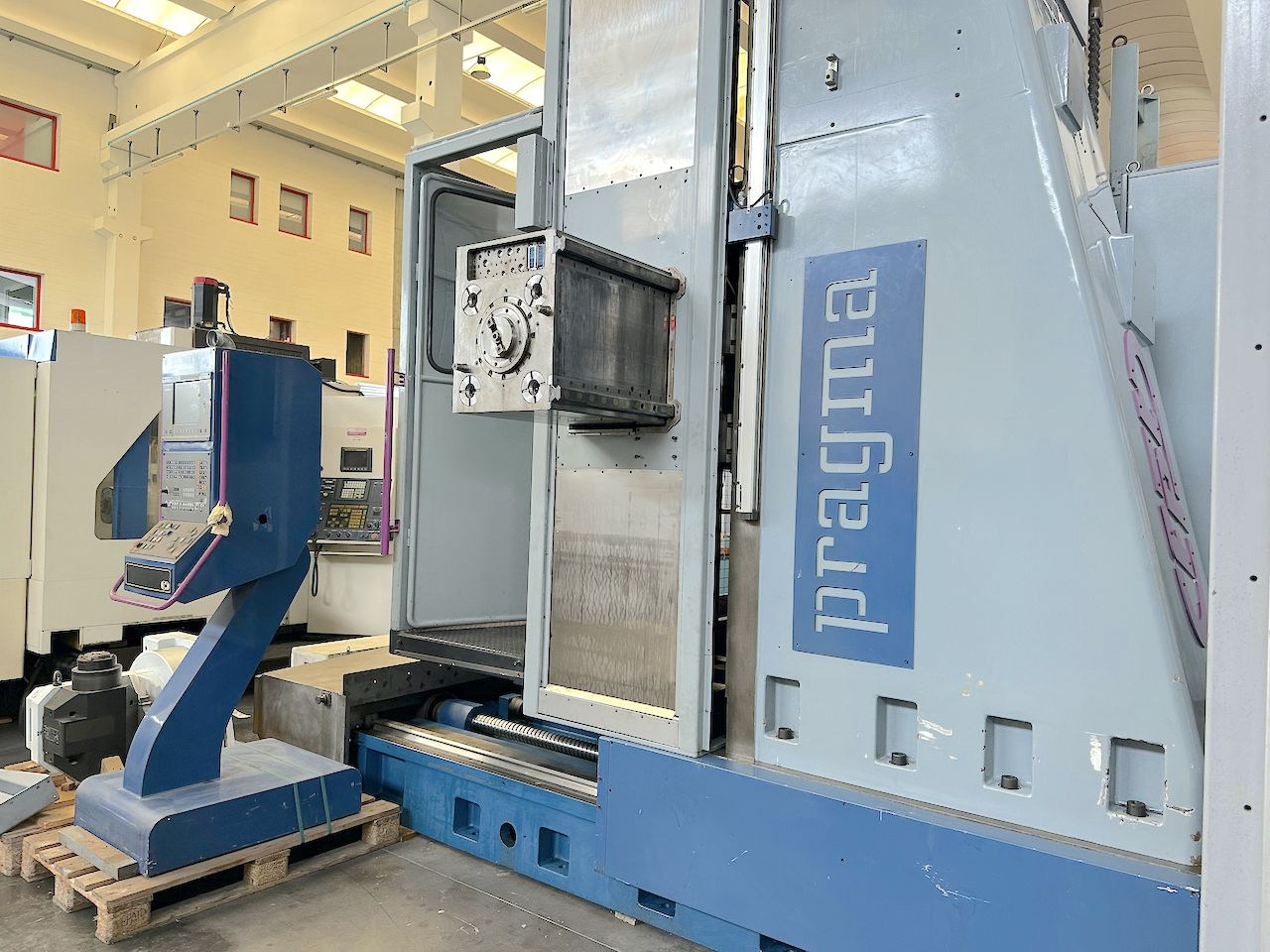

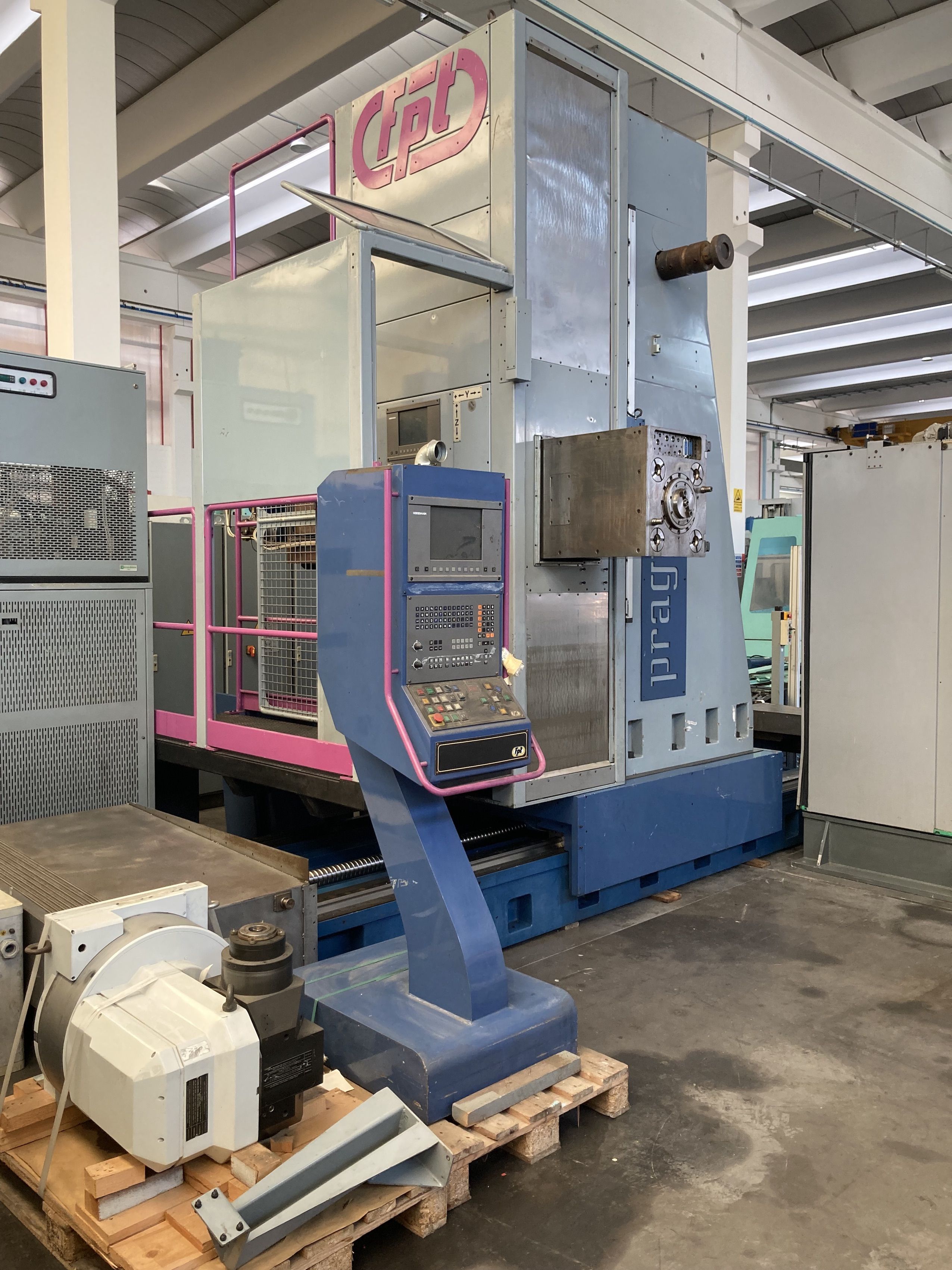

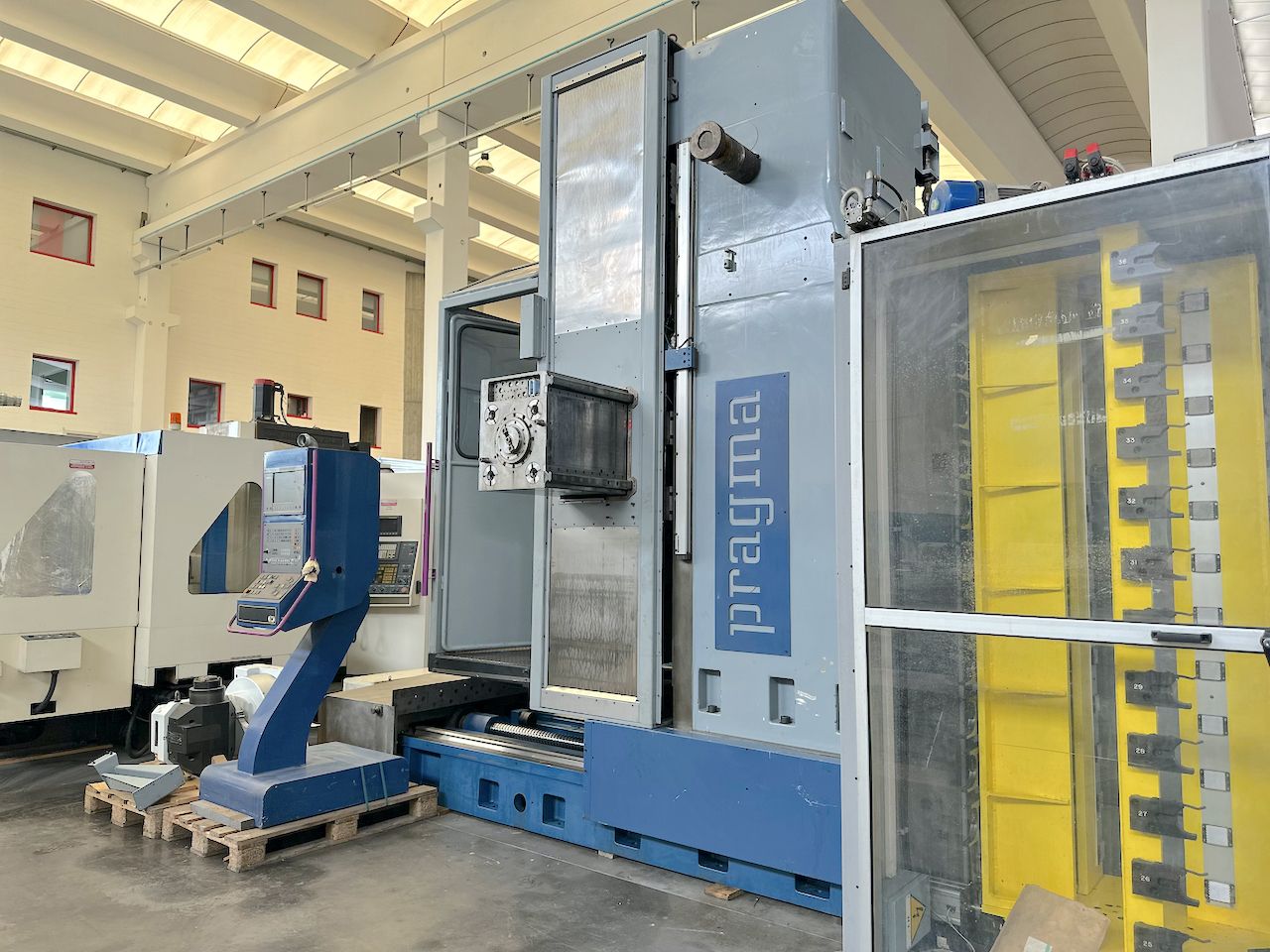

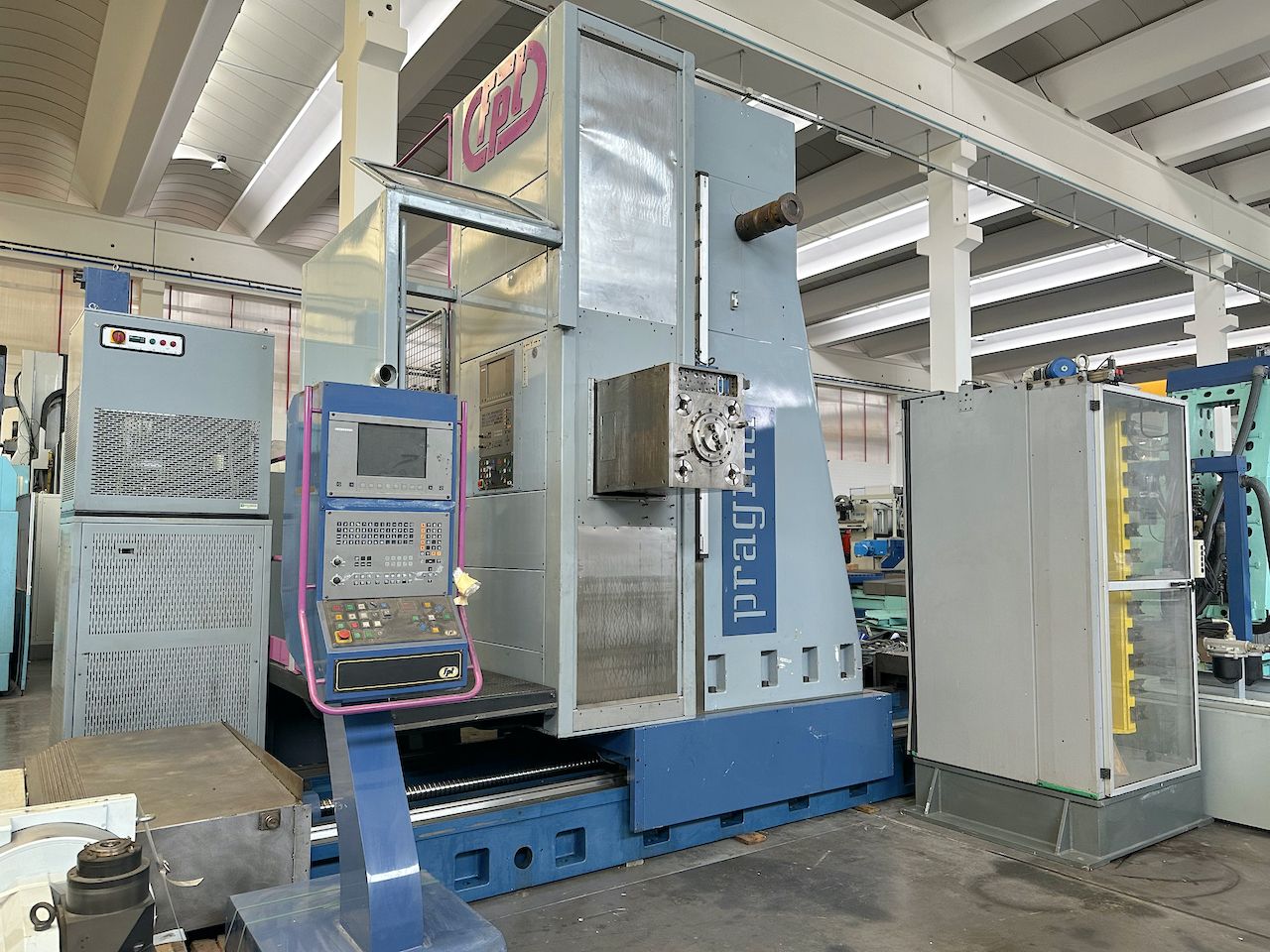

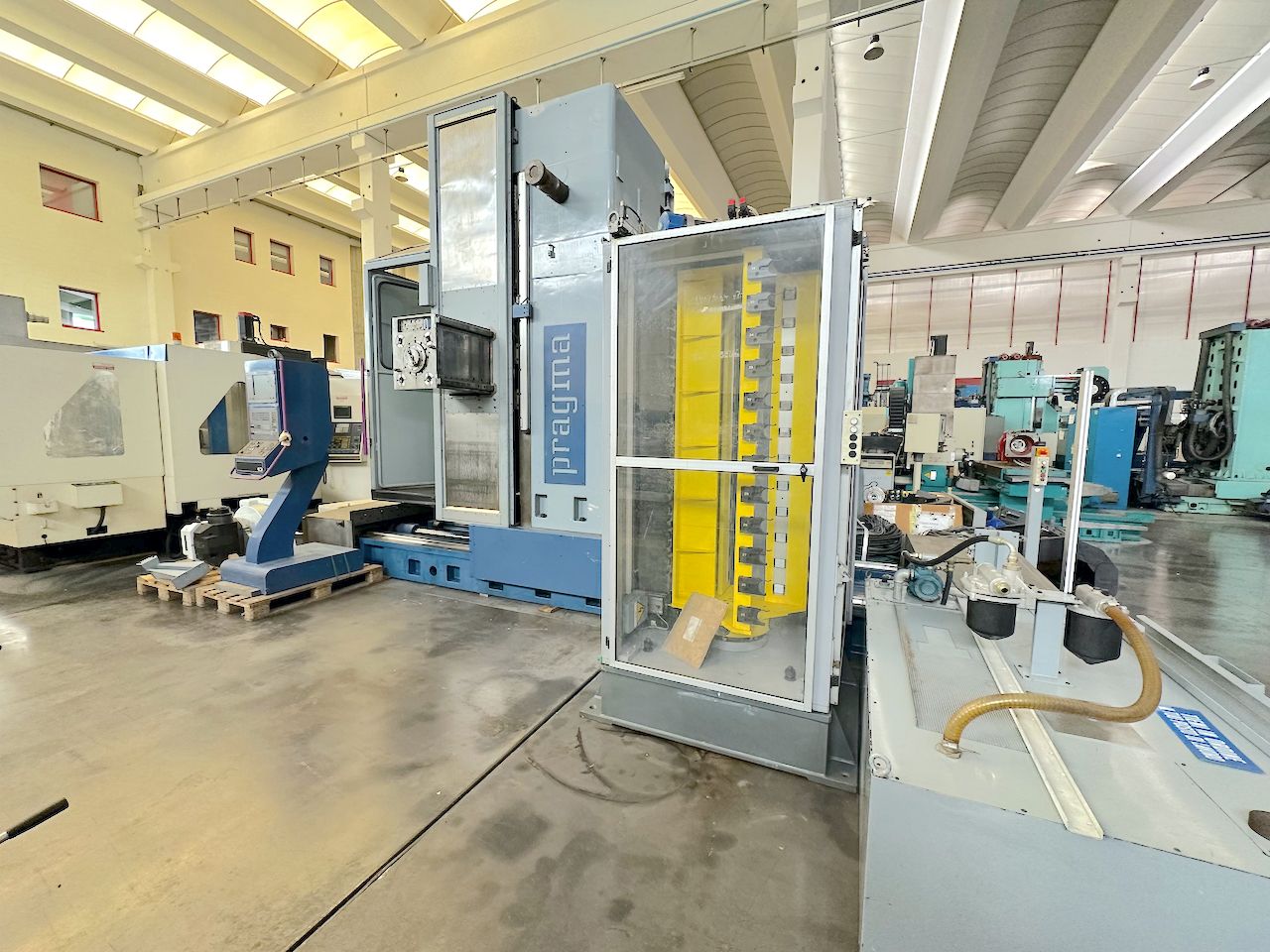

Pragma M30
Capacity
3000x1250x1600 mm118,11x49,21x62,99 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
3000 mm118,11 in
Vertical (Y)
1600 mm62,99 in
Cross RAM (Z)
450X530 mm17,72X20,87 in
CNC
CNC

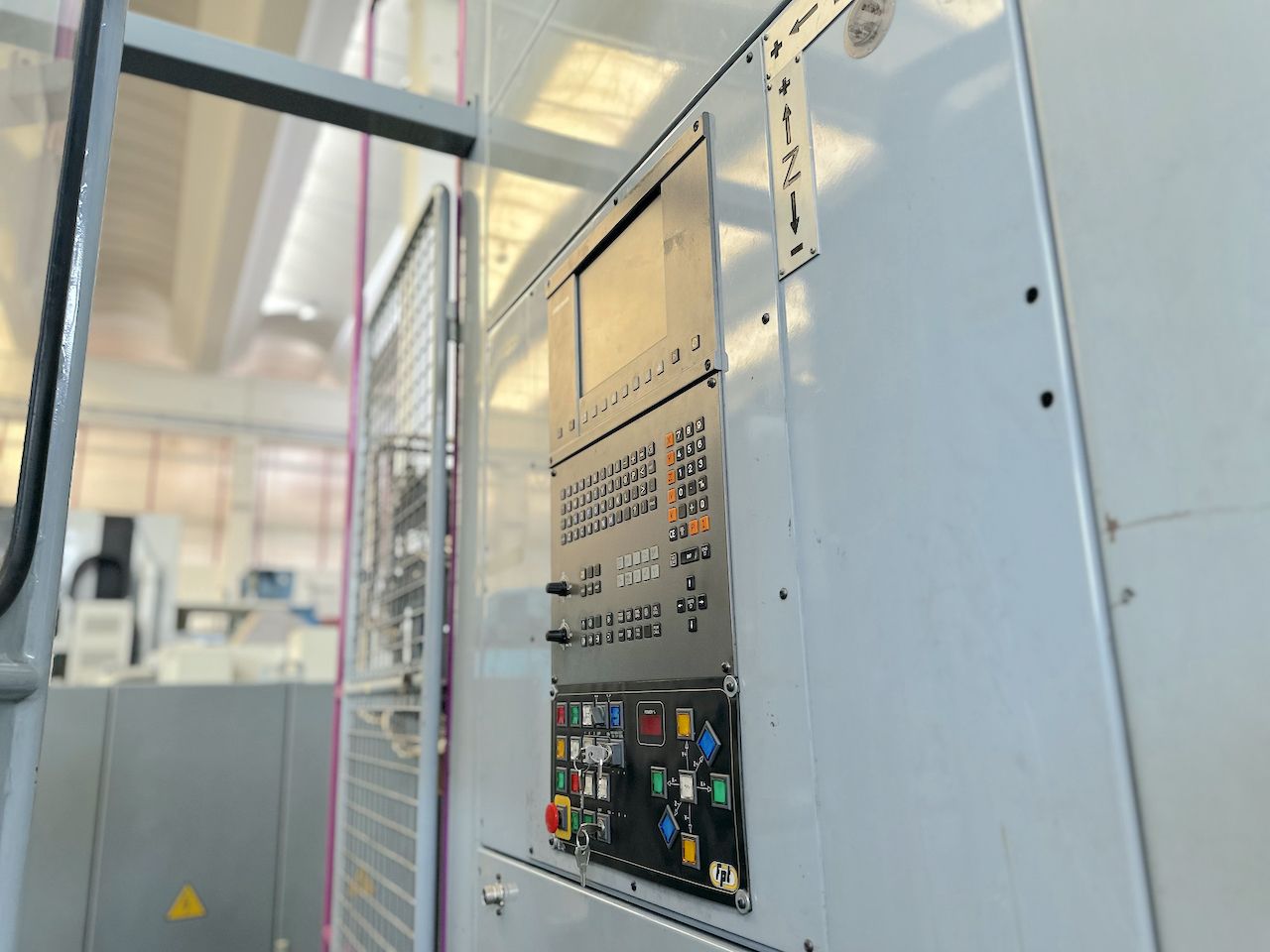

heidenhain 430 (doppio)
Drives

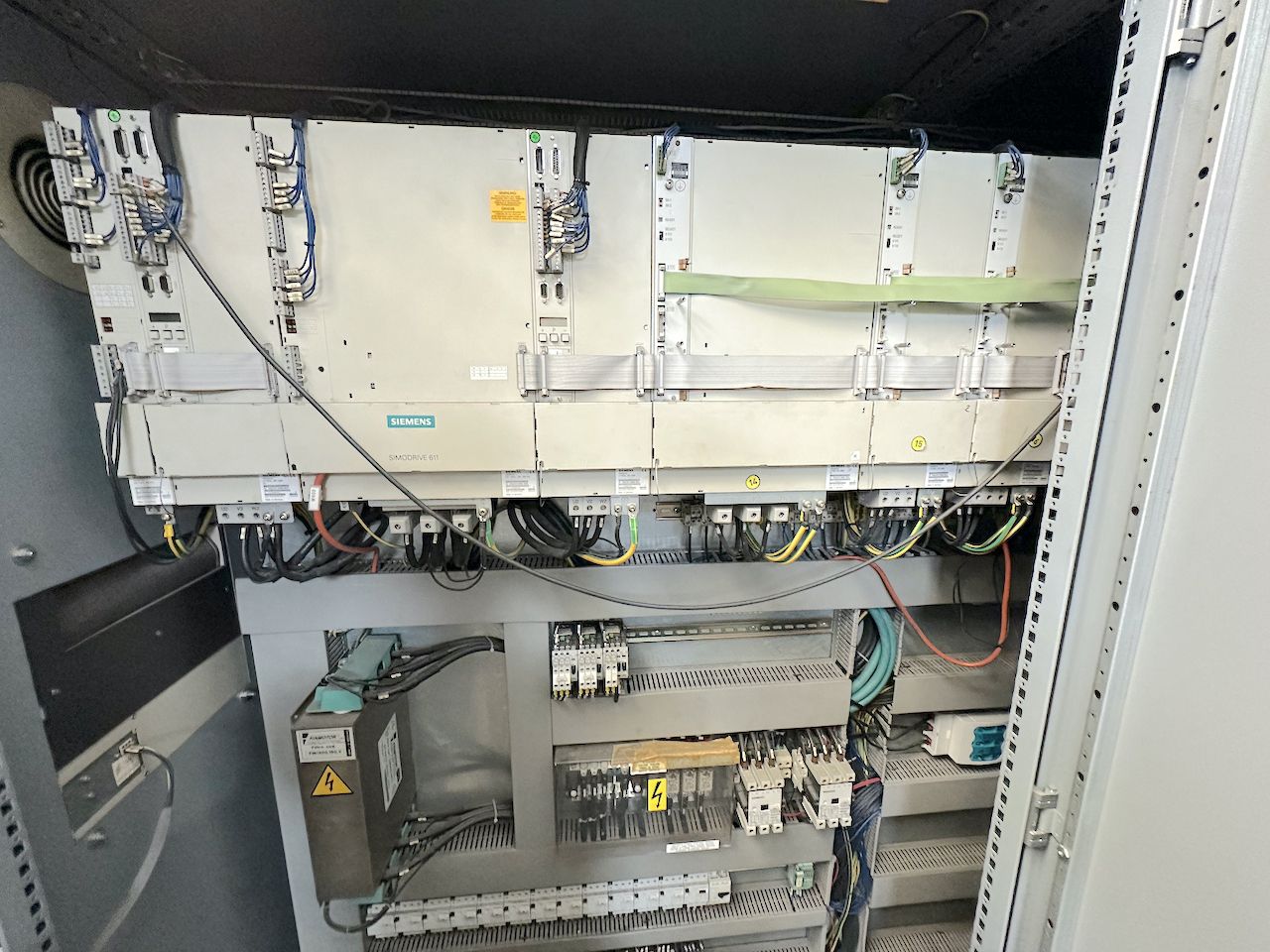

Siemens Simodrive 611
SPINDLE

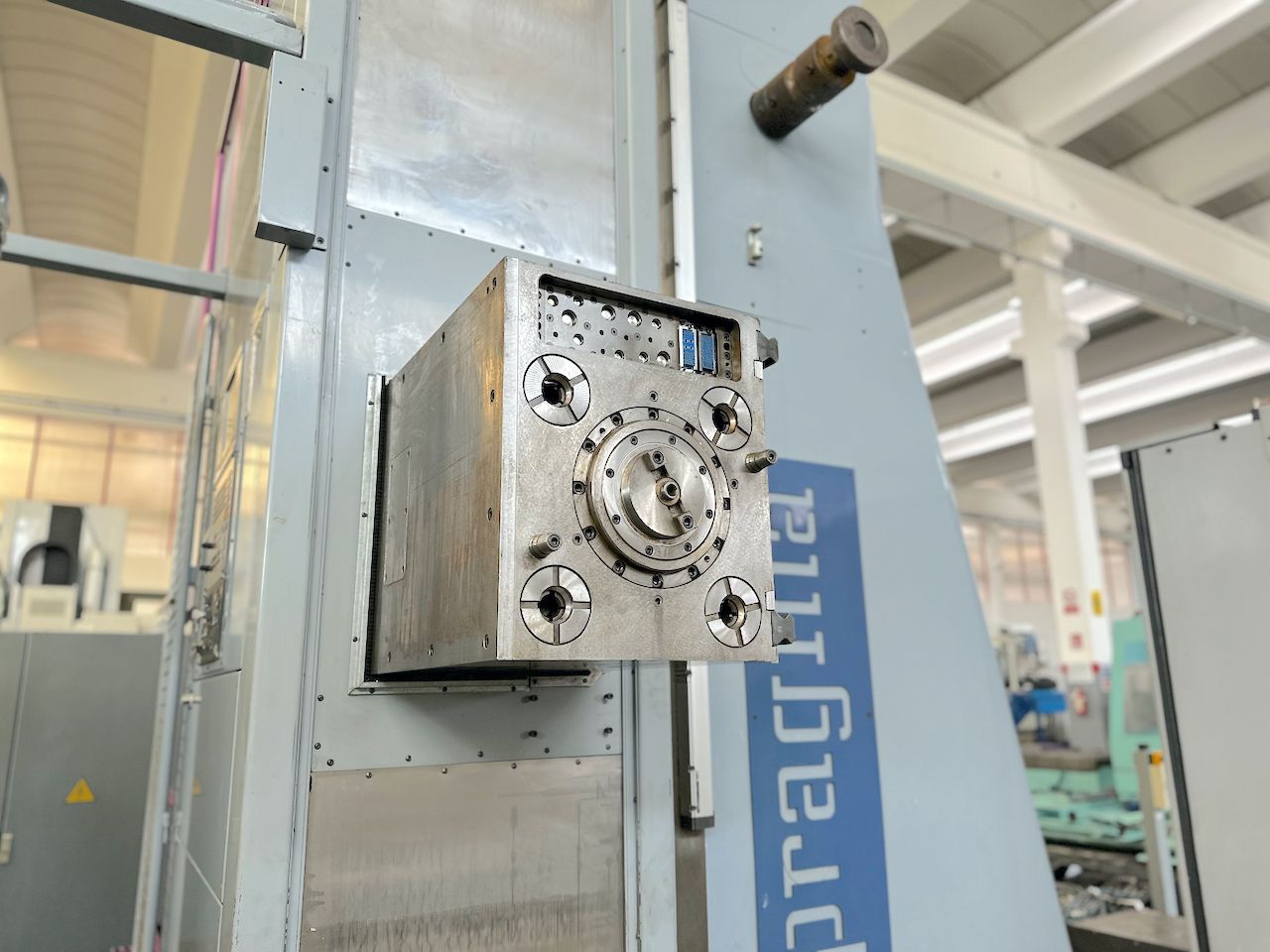

RAM section
450x530 mm17,72x20,87 in

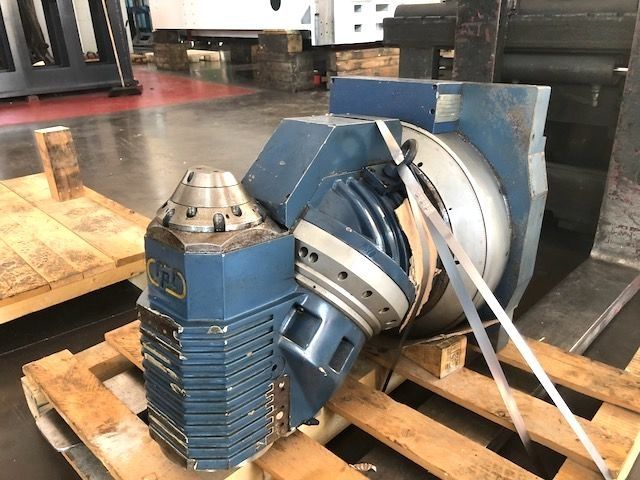

HEAD 1
Spindle taper
HSKA 63
Available upon request
Yes
Type
BIROTATIVA ORTOGONALE ”TEAMO CSA”
A axis
1 °
C axis
1 °
Max speed
18000 Rpm
Notes
IN OPZIONE 2°TESTA BIROTATIVA MILLESIMALE ”TUPCG”ISO50-5000 RPM
FEEDS
Rapid X
30 m/min1.181,10 ipm
Rapid Y
30 m/min1.181,10 ipm
Rapid Z
30 m/min1.181,10 ipm
X
15 m/min590,55 ipm
Y
15 m/min590,55 ipm
Z
15 m/min590,55 ipm
EXTRA
Maintenance & Use books
Yes
Electrical drawings
Yes
Availability
PRONTA
Available in stock
SI
Relevant updates made on the machine
MAI INSTALLATA
