Category
Milling machine
Type
mobile column
Made
Model
CS500 Agile
Capacity
5000x1700x1000 mm196,85x66,93x39,37 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
5000 mm196,85 in
Vertical (Y)
1700 mm66,93 in
Cross RAM (Z)
1000 mm39,37 in

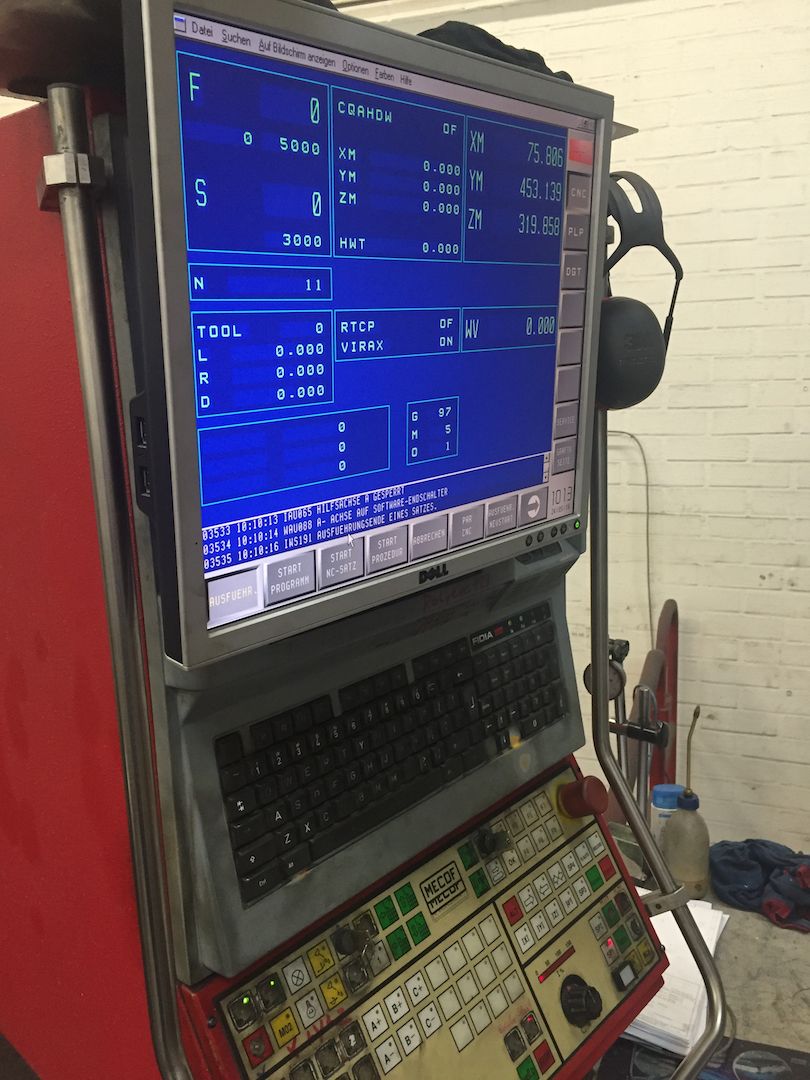

CNC
CNC
FIDIA M2

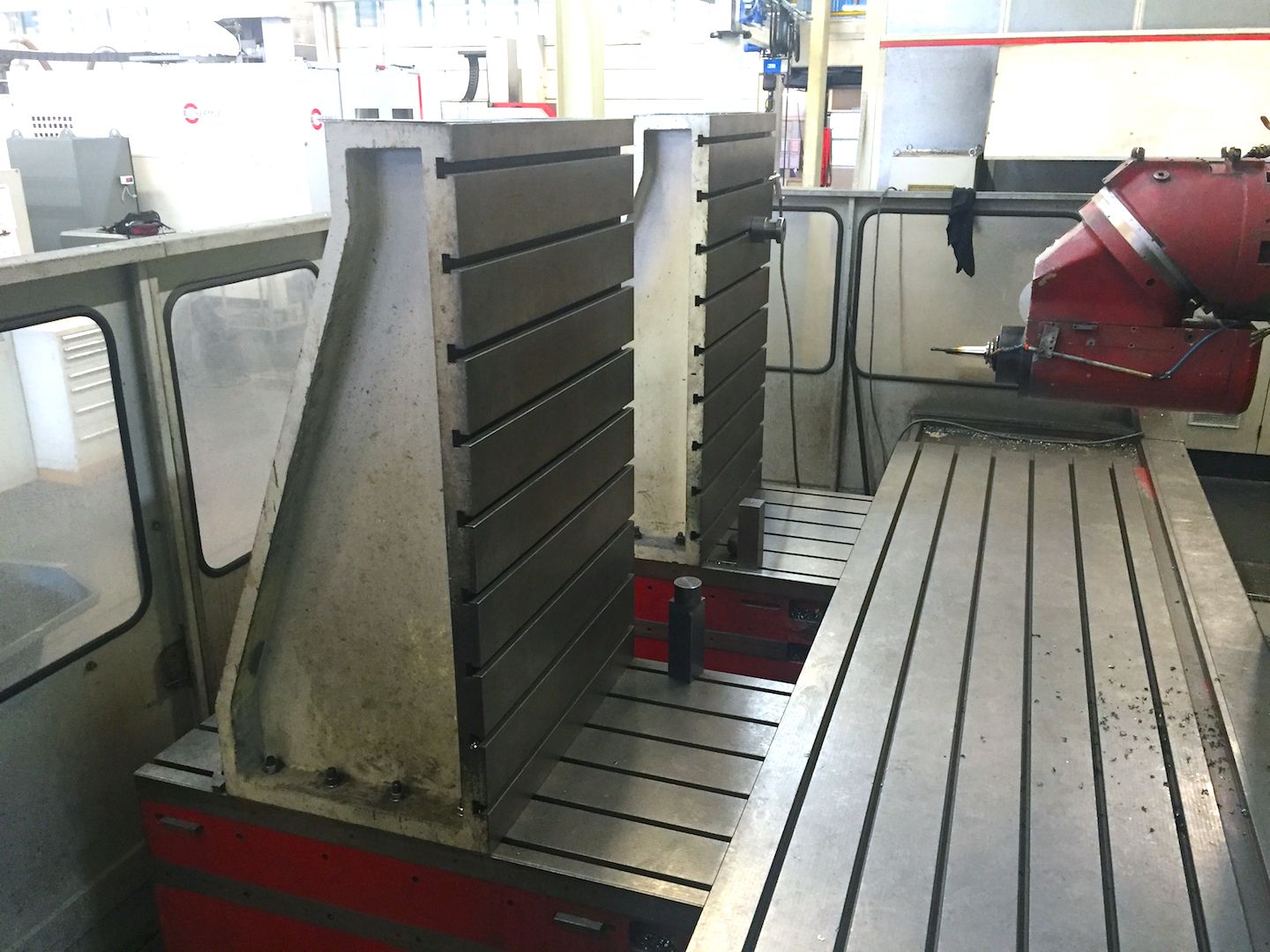

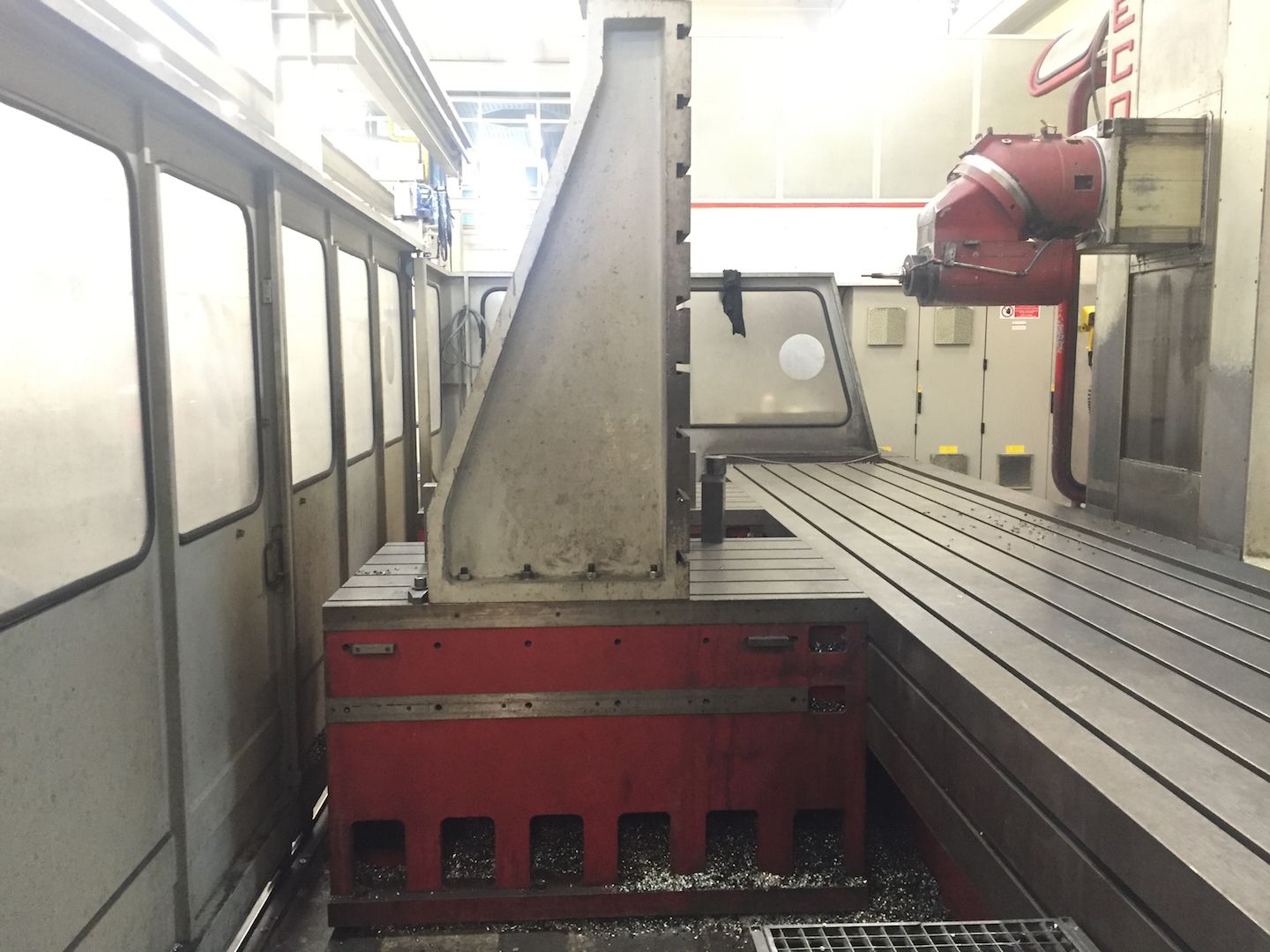

FIXING TABLE
Floorspace (LxWxH)
6300x1090x900 mm248,03x42,91x35,43 in
T slots number
6x22
Capacity
8 Kg/mq

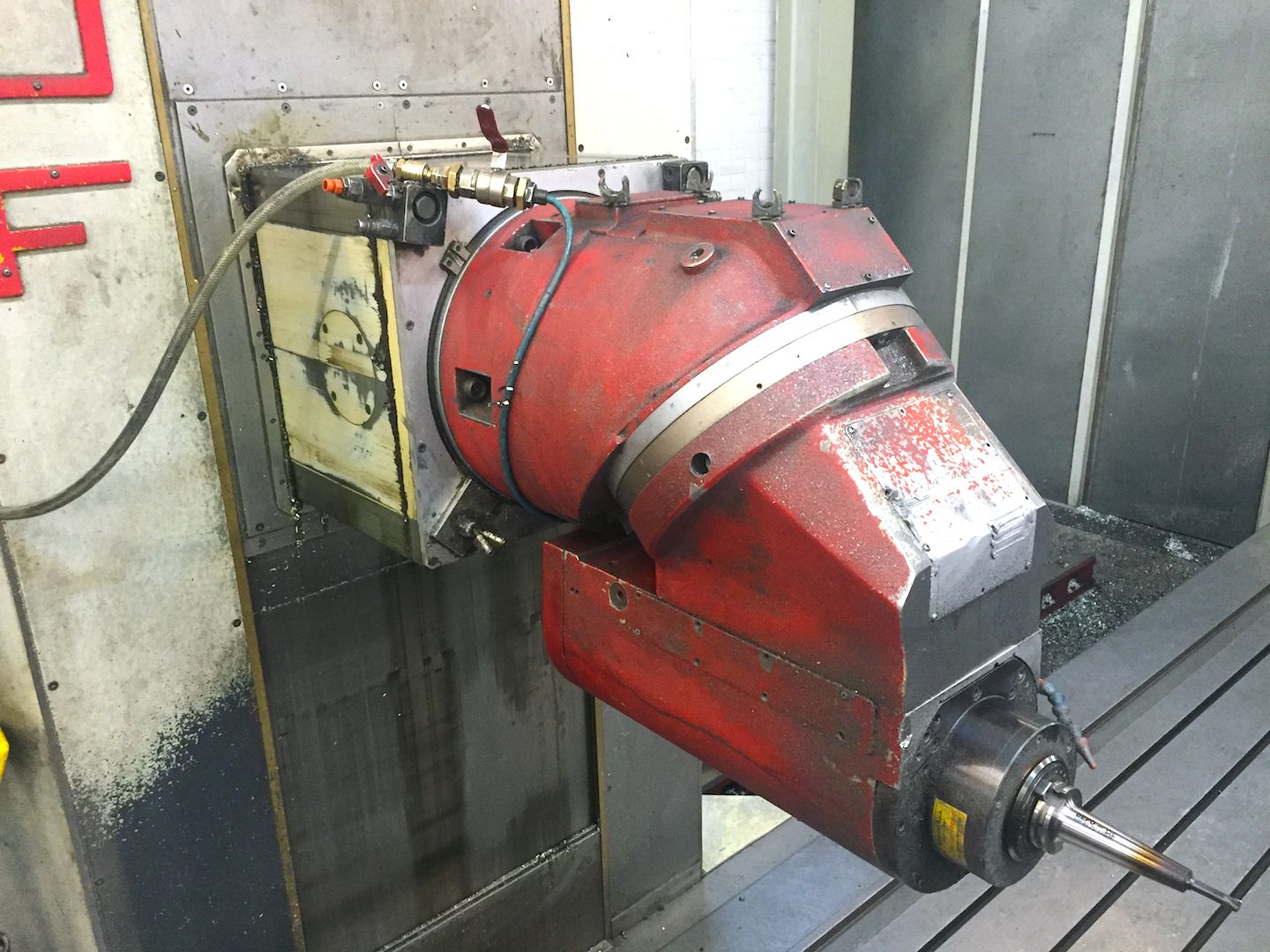

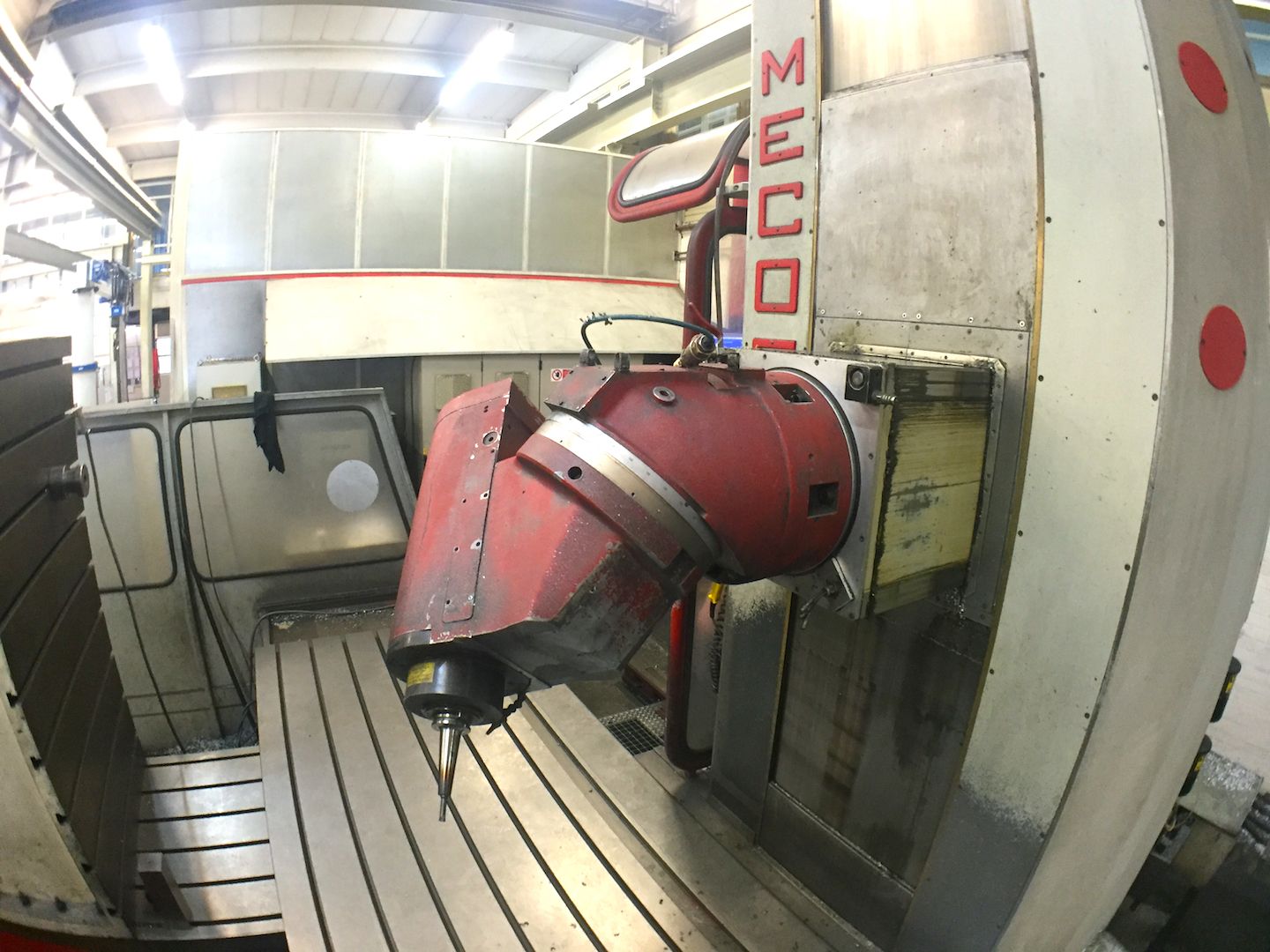

HEAD 1
Type
TWIN automatica birotativa
Spindle taper
ISO40
A axis
360x1 °
C axis
360x1 °
Max torque
72 Nm
Max speed
12000 Rpm
Max power
15 Kw
Coolant
esterno
Notes
Elettromandrino GAMFIOR E11
FEEDS
Rapid X
20 m/min787,40 ipm
Rapid Y
20 m/min787,40 ipm
Rapid Z
20 m/min787,40 ipm
SPINDLE
Spindle power
25 Kw
Gearbox
2 gamme
Rotating speed
10-3000 Rpm
Taper
ISO50
EXTRA

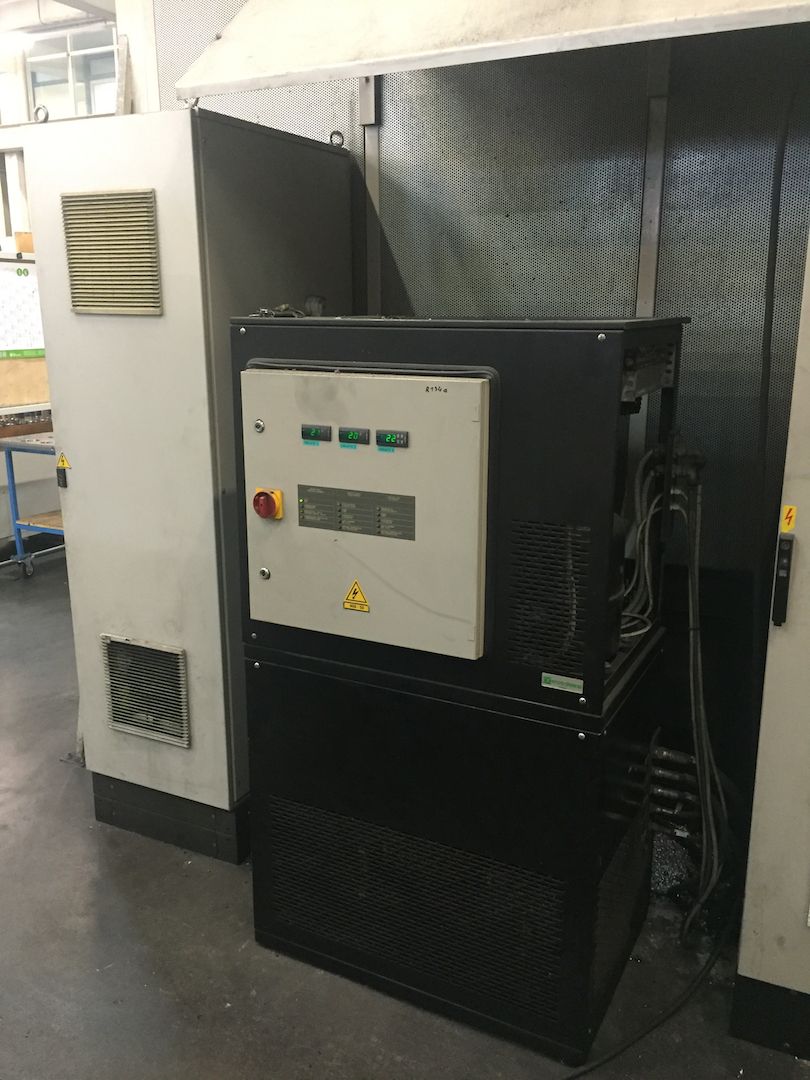

Filtration unit
si
Housing
perimetrale
Availability
pronta
