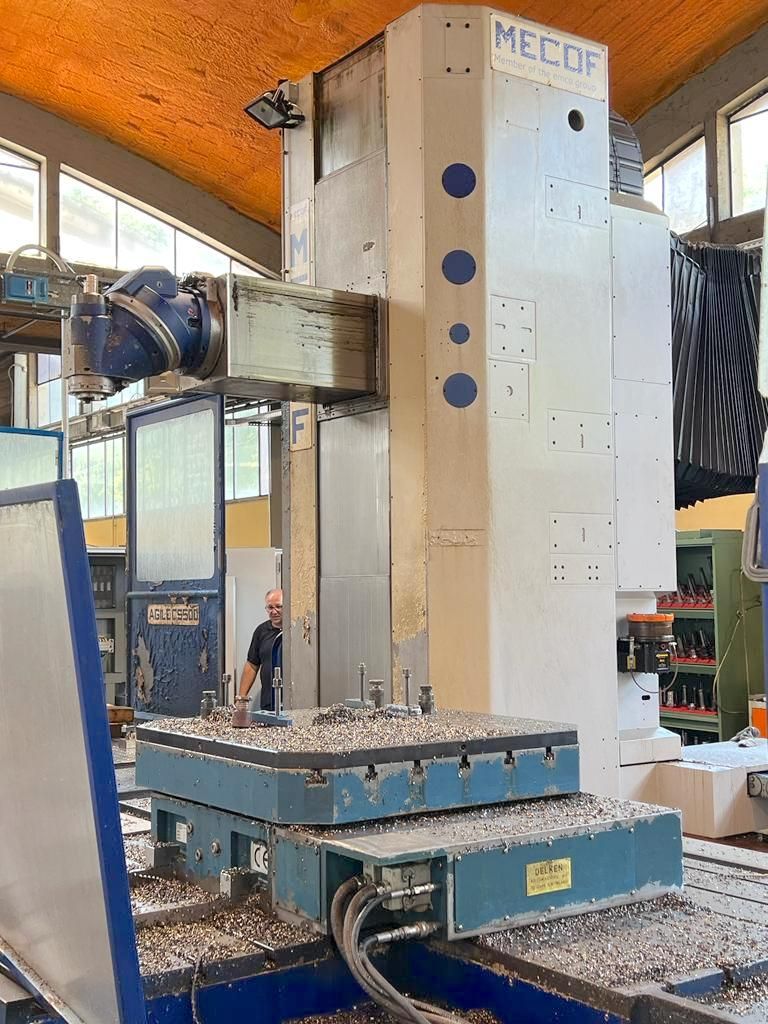

Category
Milling machine
Type
mobile column
Made
Model

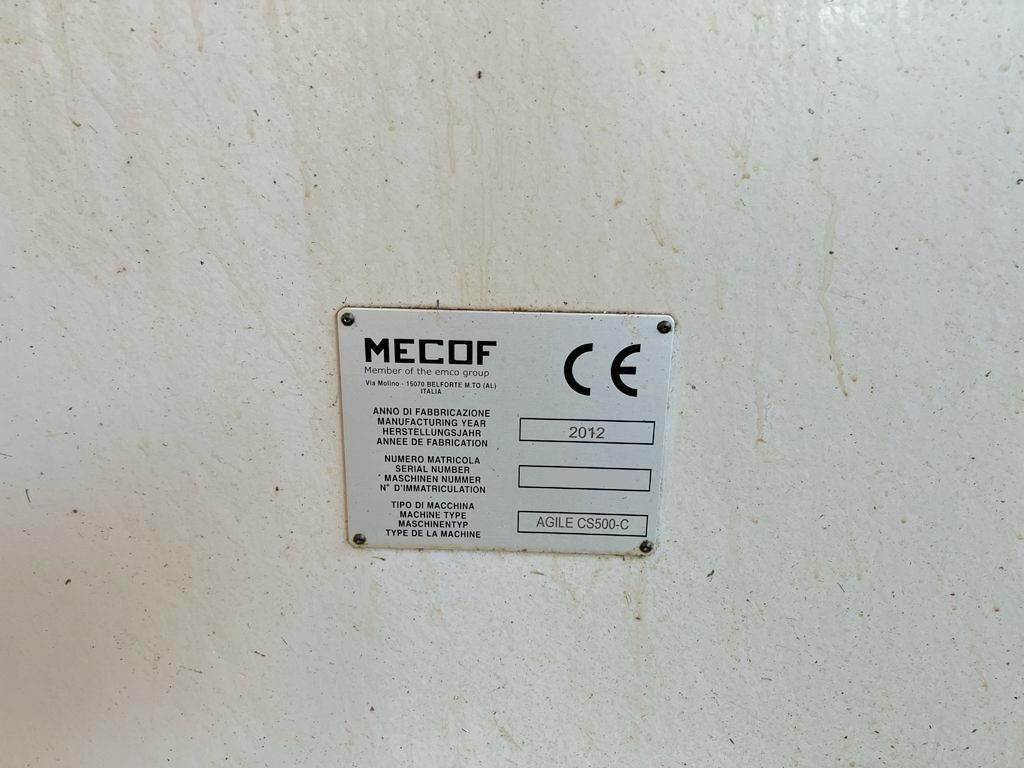

CS500 AGILE
Capacity
4000x2000x1250 mm157,48x78,74x49,21 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
4000 mm157,48 in
Vertical (Y)
2000 mm78,74 in
Cross RAM (Z)
1250 mm49,21 in

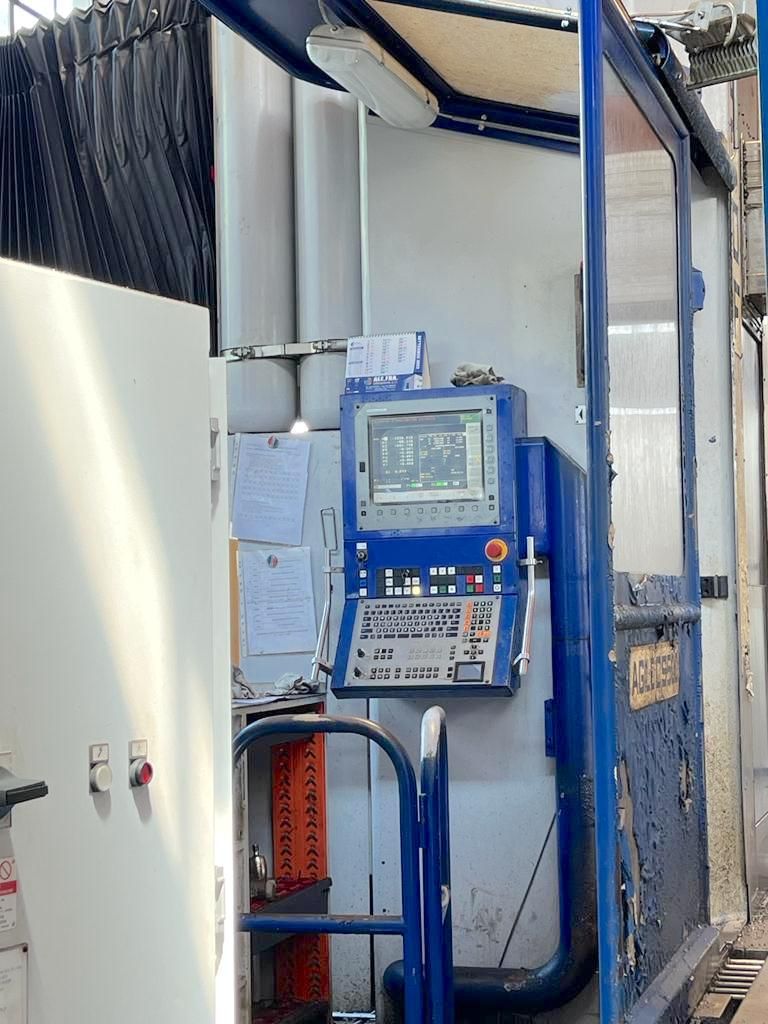

CNC
CNC
Heidenhain iTNC530
SPINDLE
Spindle power
30 Kw
RAM section
450x450 mm17,72x17,72 in
Notes
asse C 360.000 posizoni
FEEDS
Rapid X
20 m/min787,40 ipm
Rapid Y
20 m/min787,40 ipm
Rapid Z
20 m/min787,40 ipm

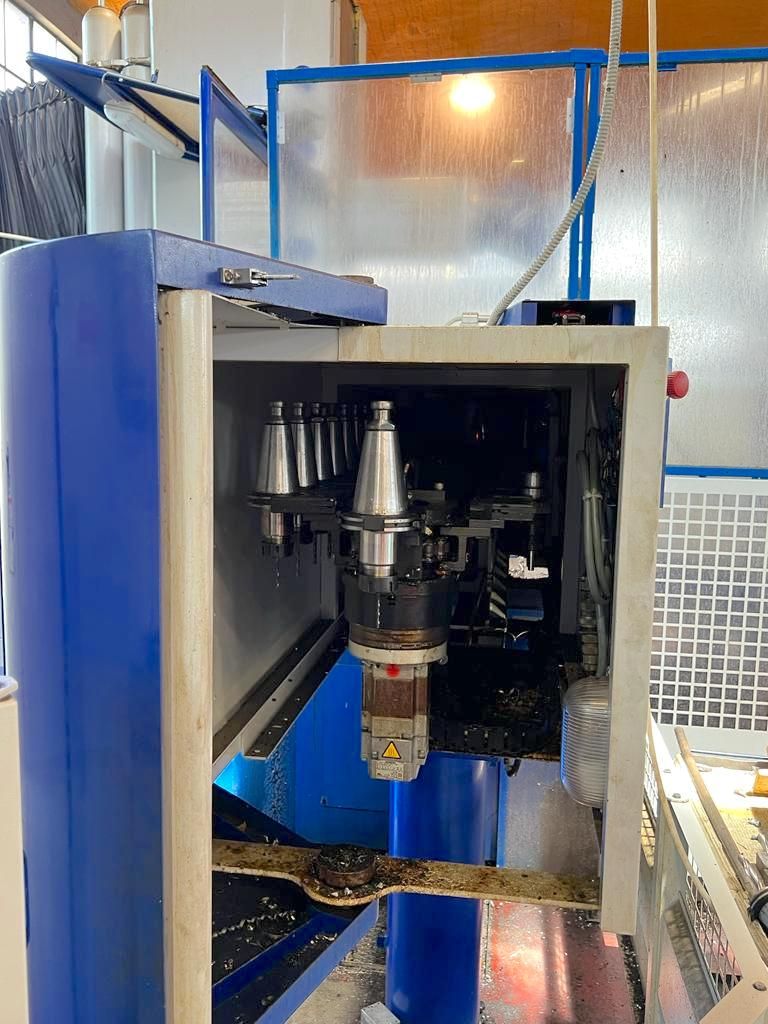

ATC
Positions
24
Max tool diameter
120 mm4,72 in
Max tool lenght
400 mm15,75 in
Max tool weight
15 Kg
Tool taper
ISO50
FIXING TABLE
Floorspace (LxWxH)
5300x1090x900 mm208,66x42,91x35,43 in
Capacity
(47 Ton) 8.000 Kg/mq
T slots number
6x22
Notes
2 cubi 1520x1000x900

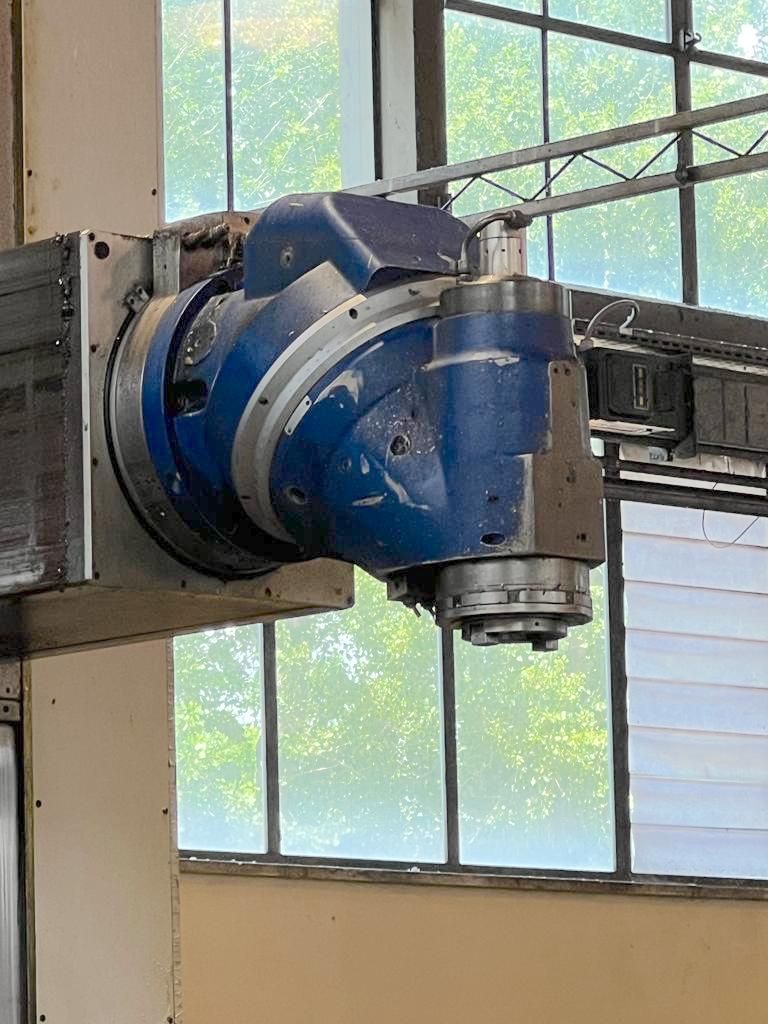

HEAD 1
Type
TCB6 birotativa a posizionamento millesimale automatico
Spindle taper
ISO50 DIN69871
A axis
360.000x0,001 °
C axis
360.000x0,001 °
Max torque
S1 780 Nm
Max speed
6000 Rpm
Max power
S1 30 Kw
Coolant
20 bar interno al mandrino 7 6 Bar esterno al mandrino
EXTRA
High Pressure
20Bar CTS - 1000Lt.

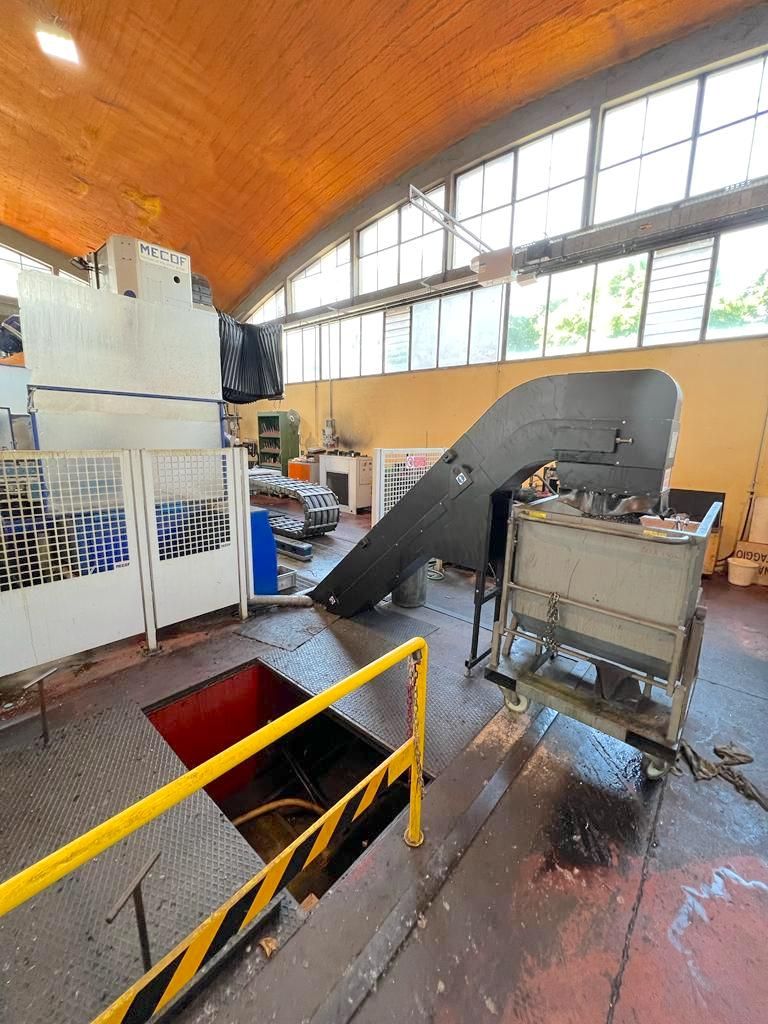

Chip conveyor
Si
