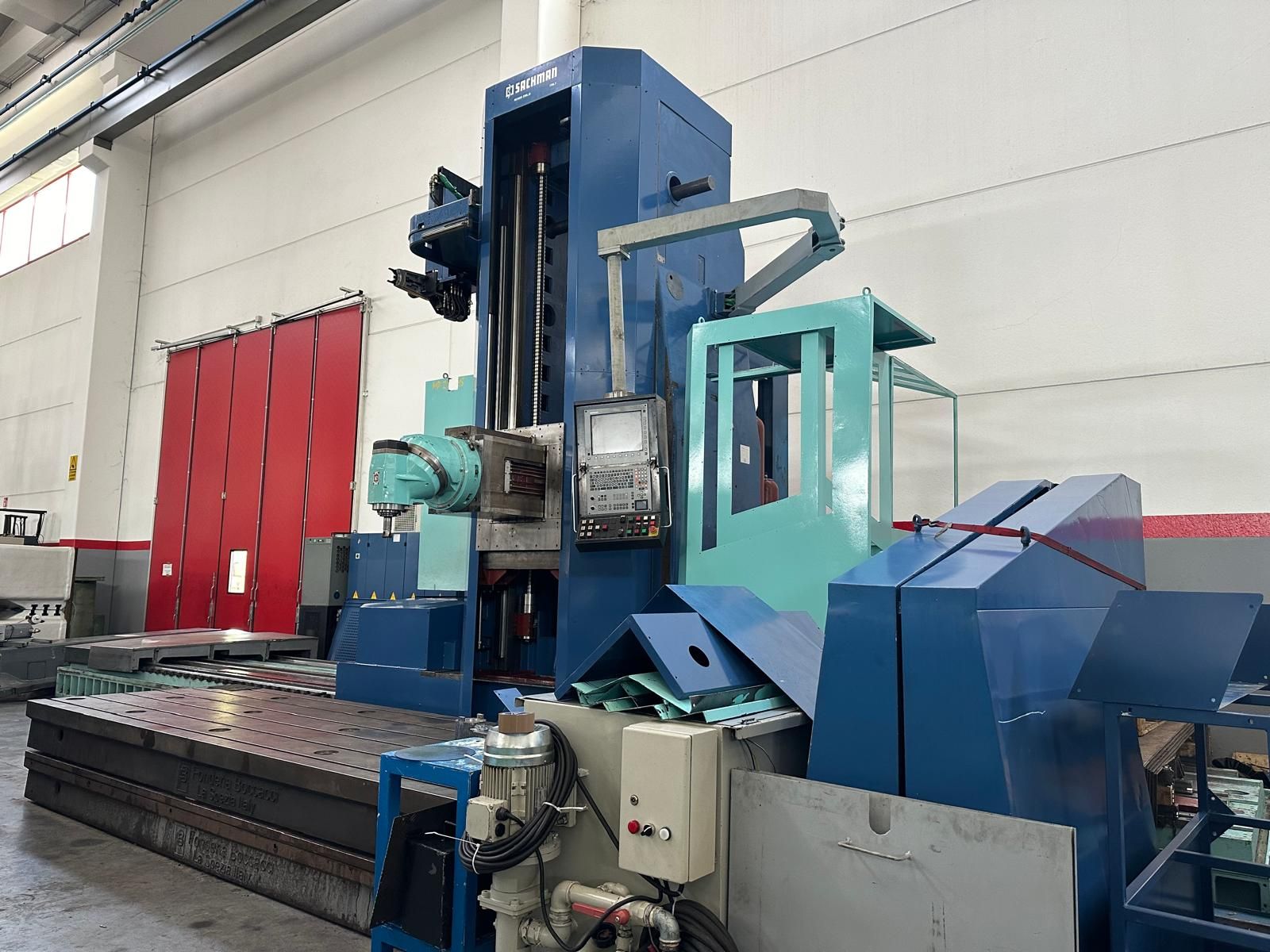

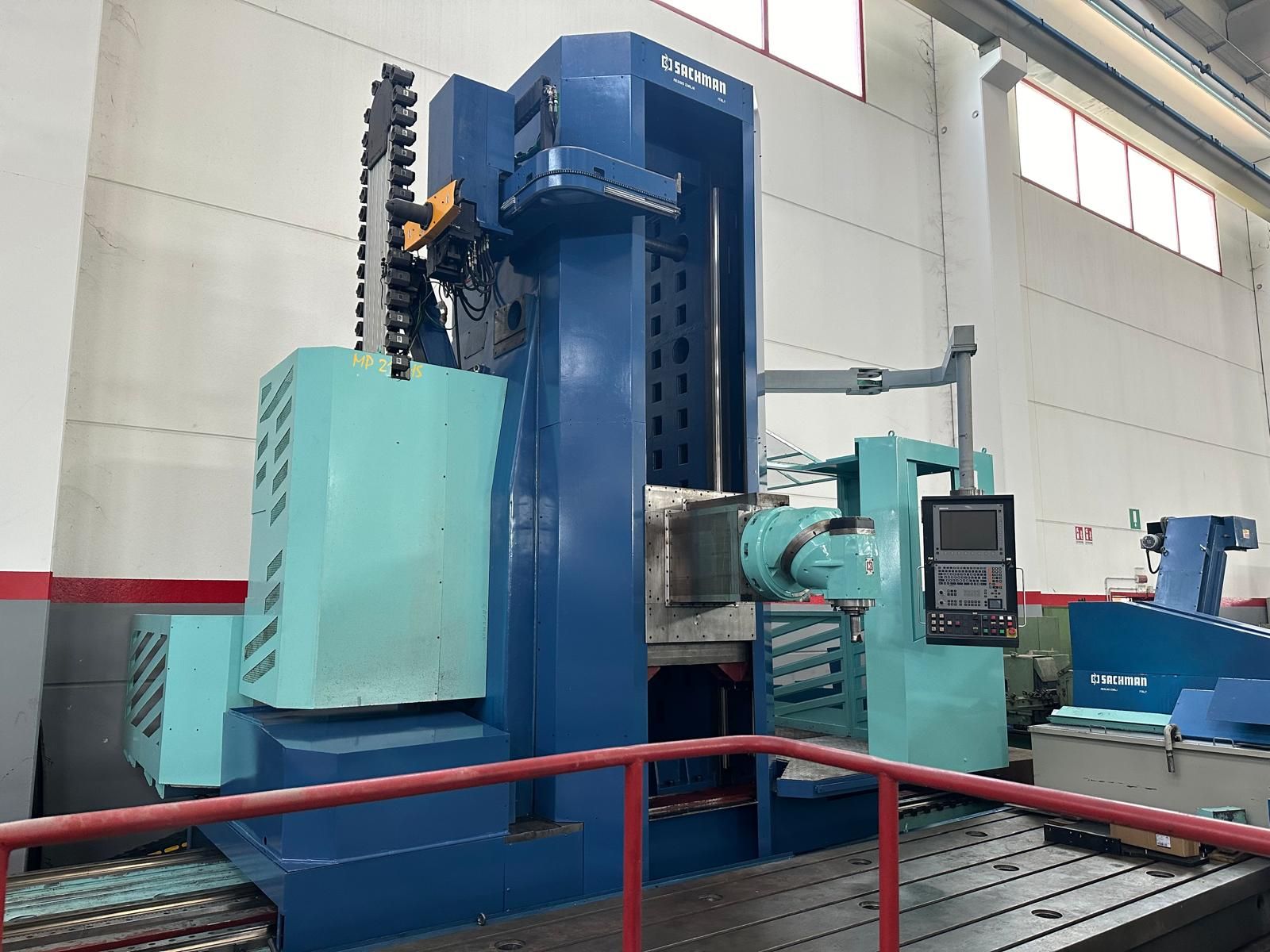

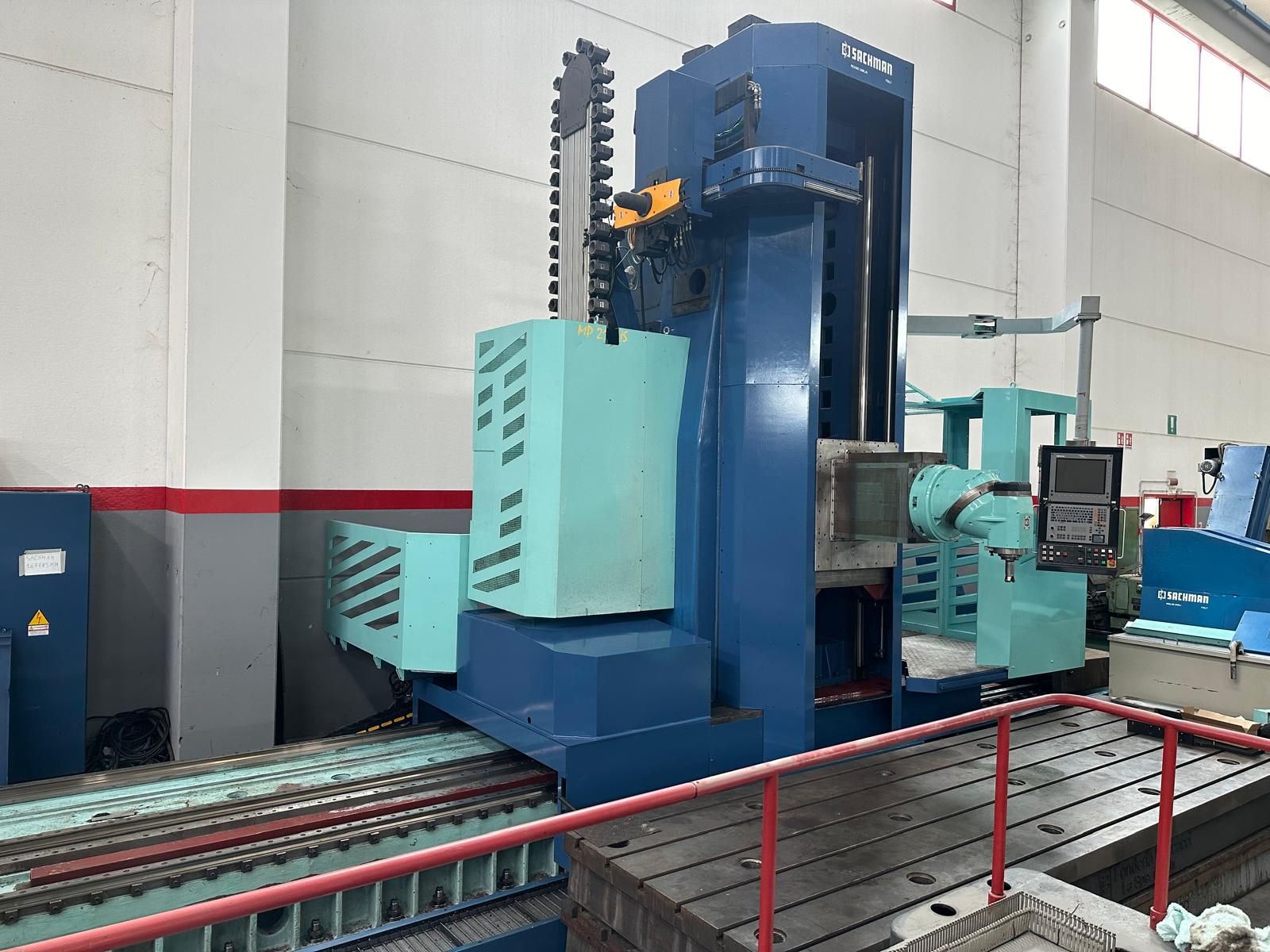

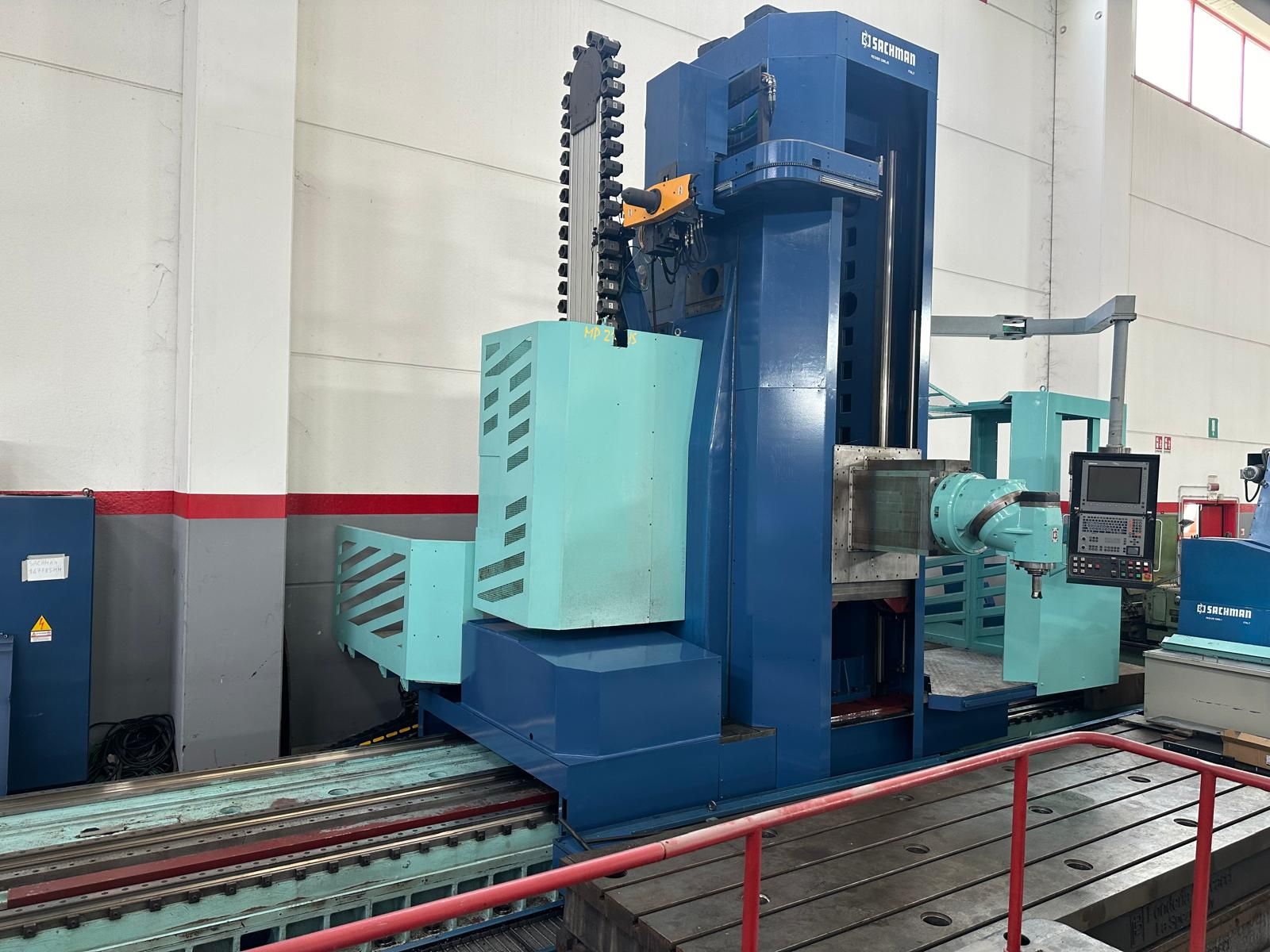

Category

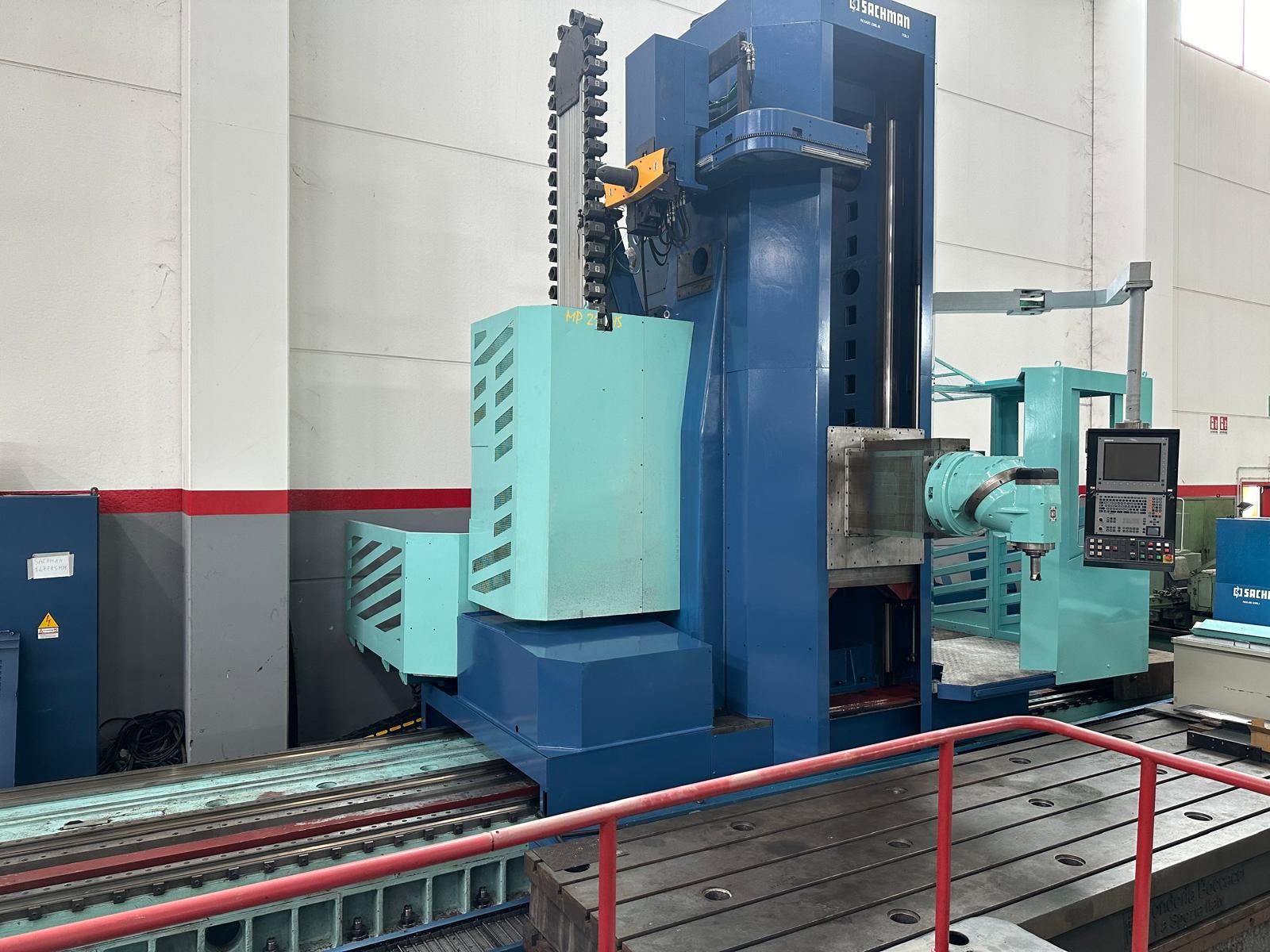

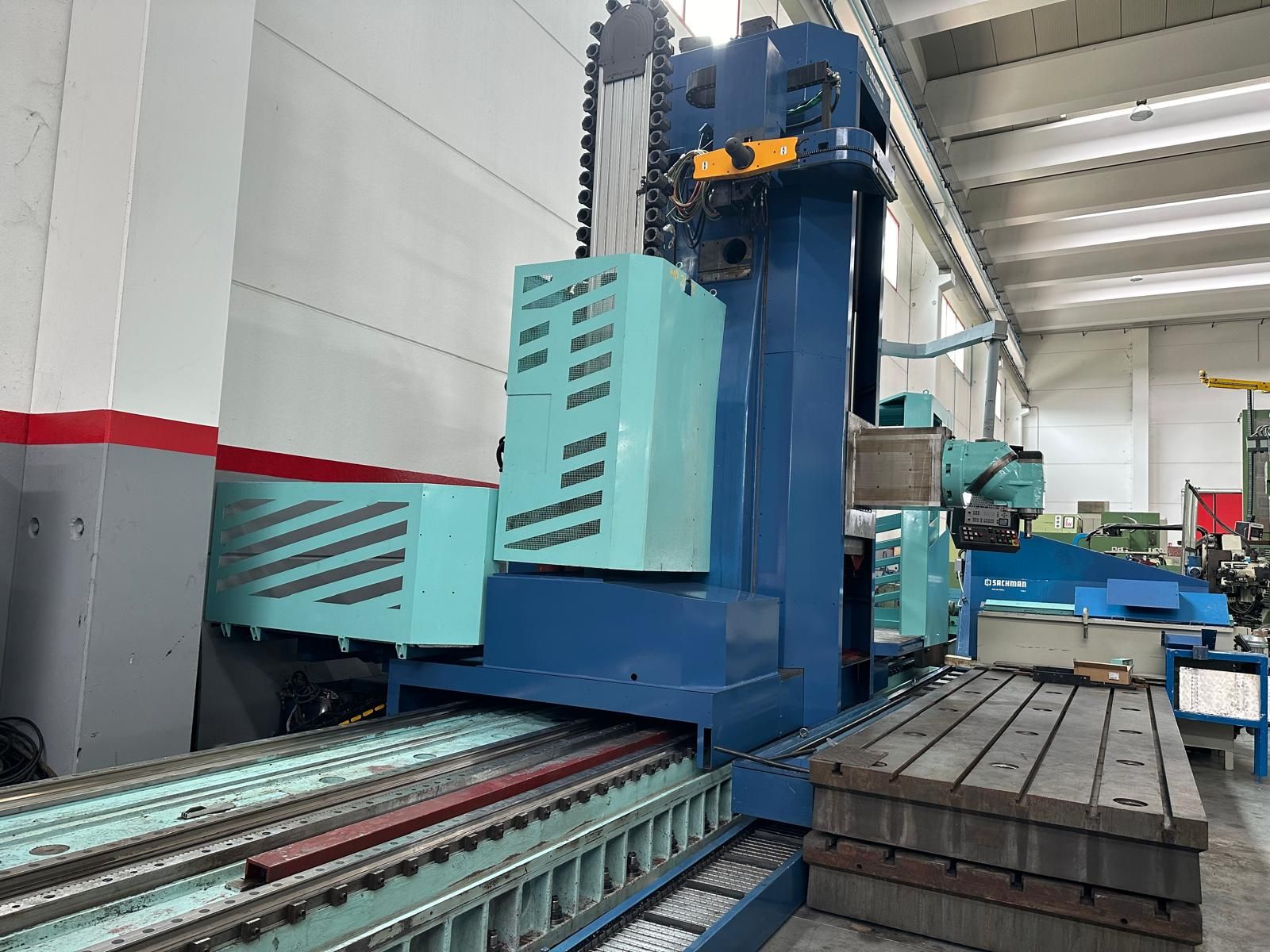

Milling machine
Type
mobile column
Made
Model
MP212HS
Capacity
8000x2500x1400 mm314,96x98,43x55,12 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
8000 mm314,96 in
Vertical (Y)
2500 mm98,43 in
Cross RAM (Z)
1400 mm55,12 in
Axes support
guide a ricircolo di rulli su asse longitudinale e verticale, pattini su asse slittone

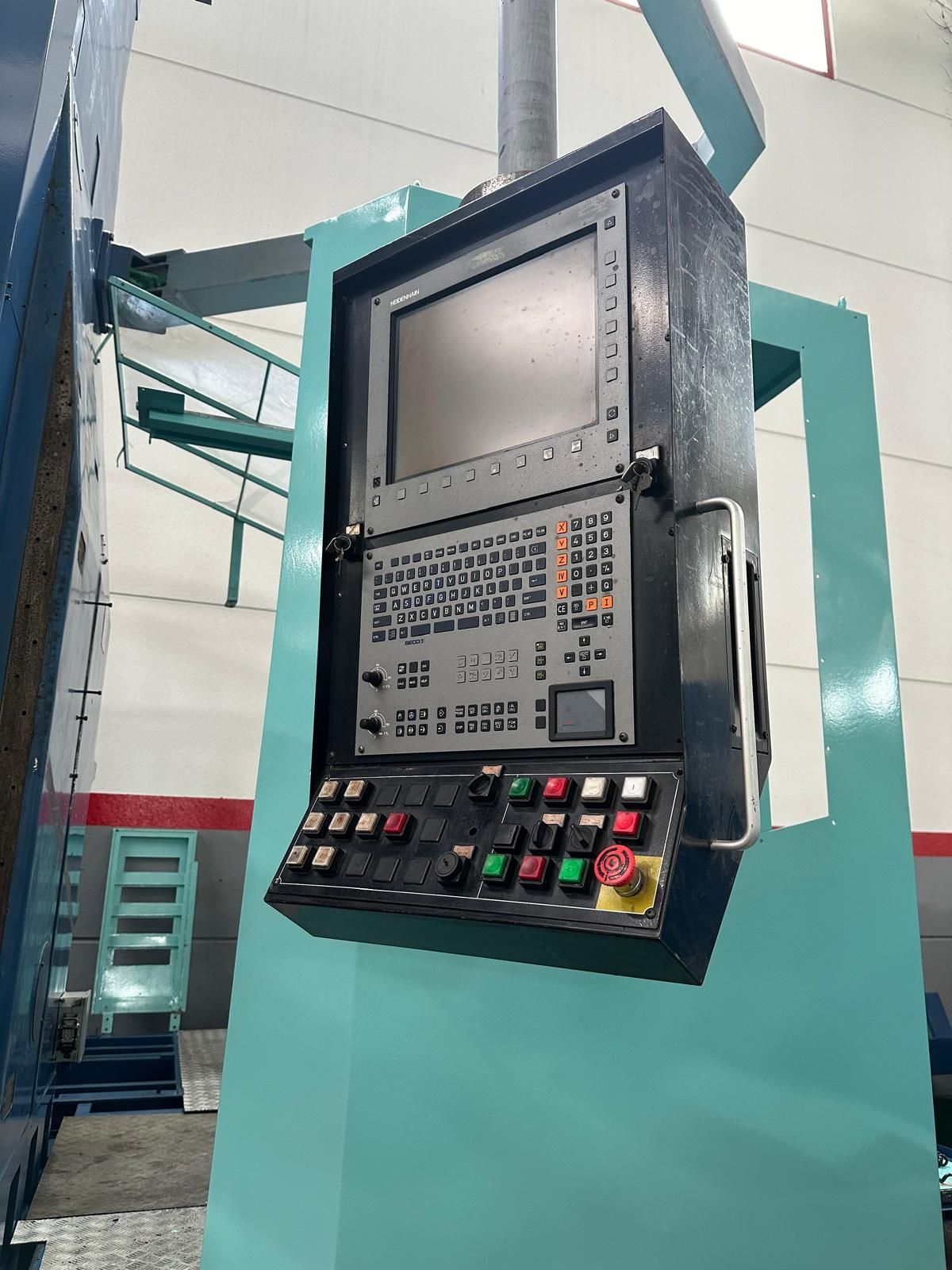

CNC
CNC
Heidenhain TNC530
Notes
Volantino HR410
FEEDS
Rapid X
30 m/min1.181,10 ipm
Rapid Y
30 m/min1.181,10 ipm
Rapid Z
30 m/min1.181,10 ipm
ATC
Positions
60
Tool taper
ISO50
Max tool diameter
125 mm4,92 in
Max diam with free adiacent space
220 mm8,66 in
Max tool lenght
300 mm11,81 in
Max tool weight
20 Kg

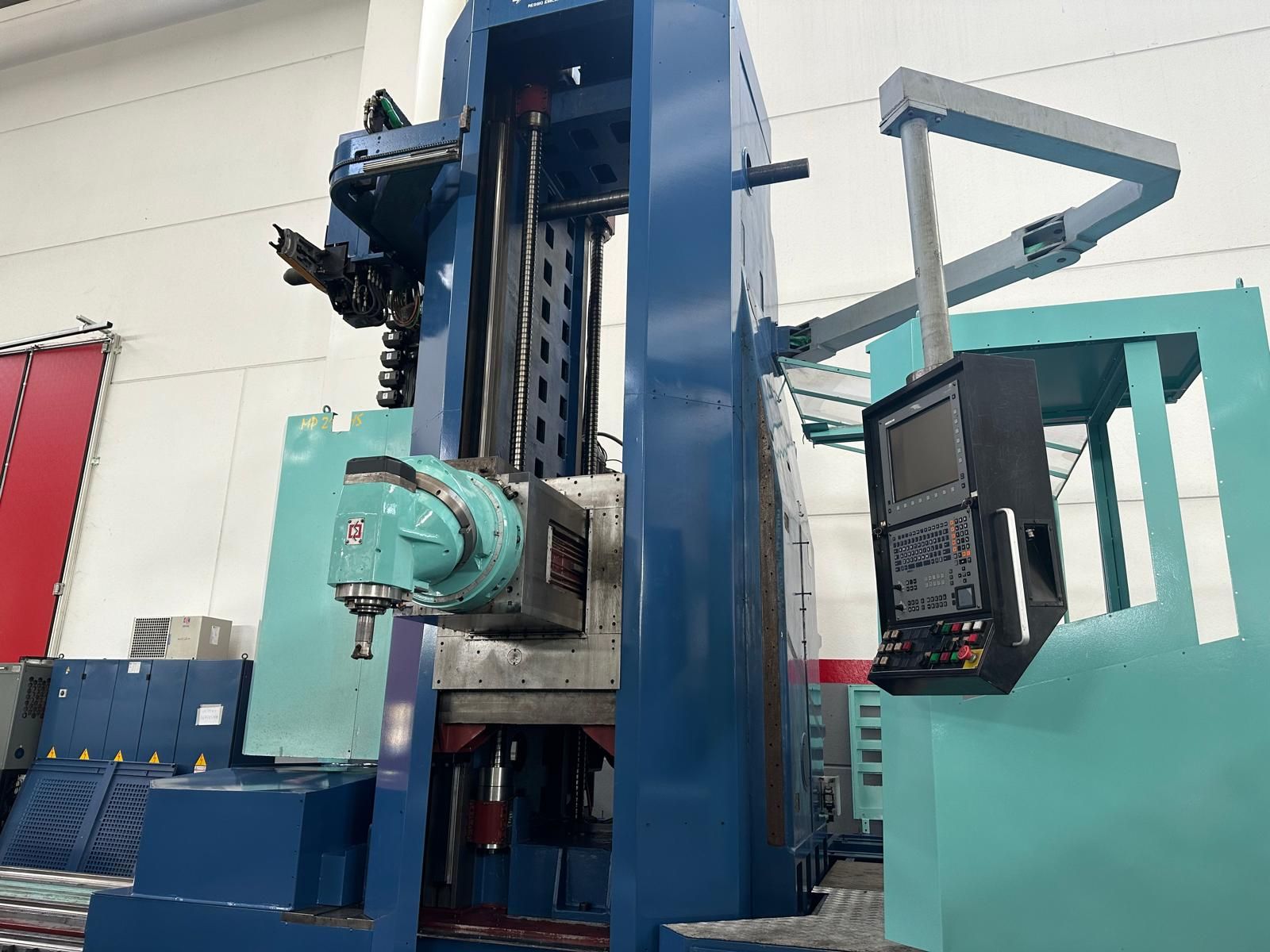

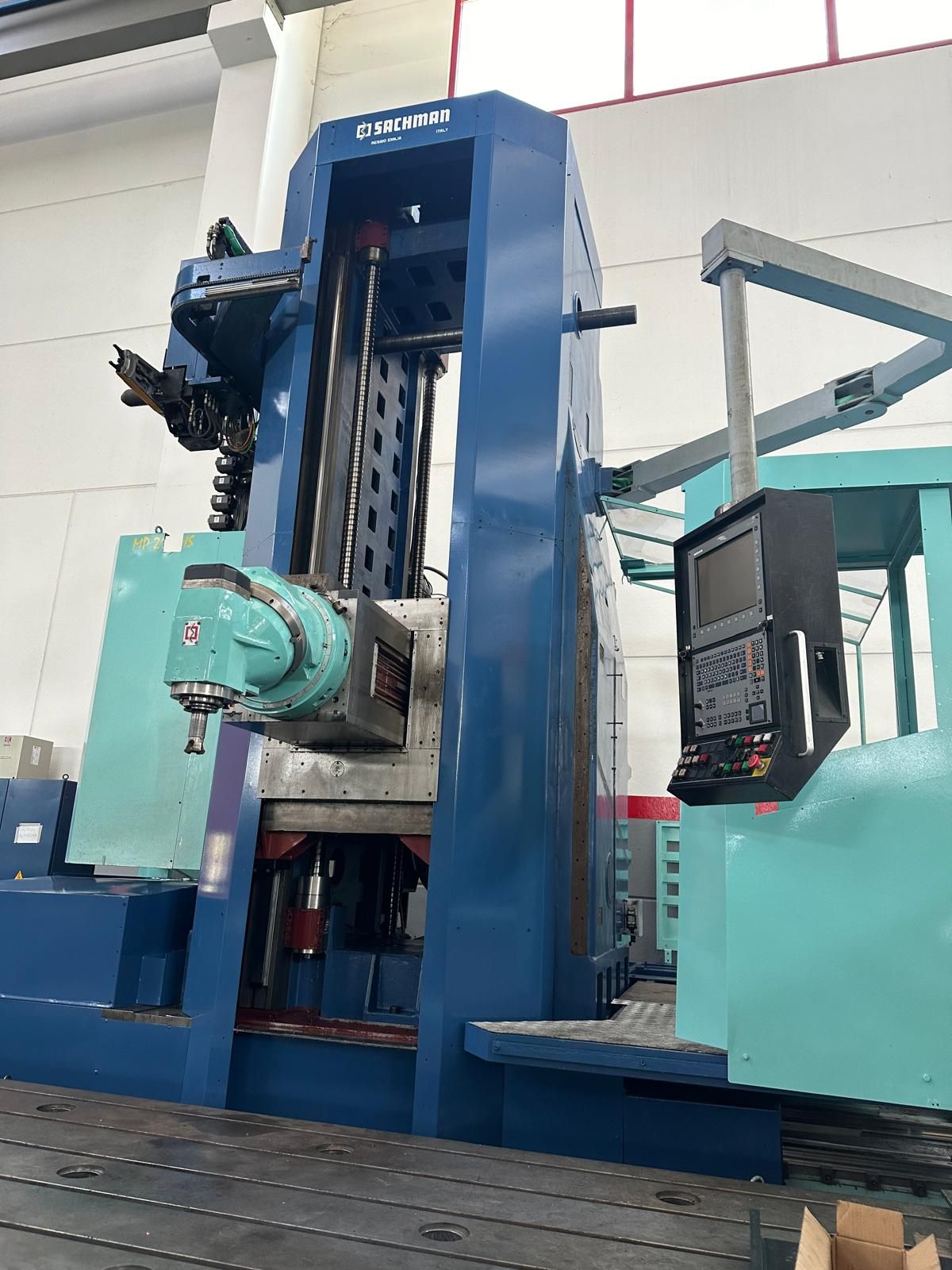

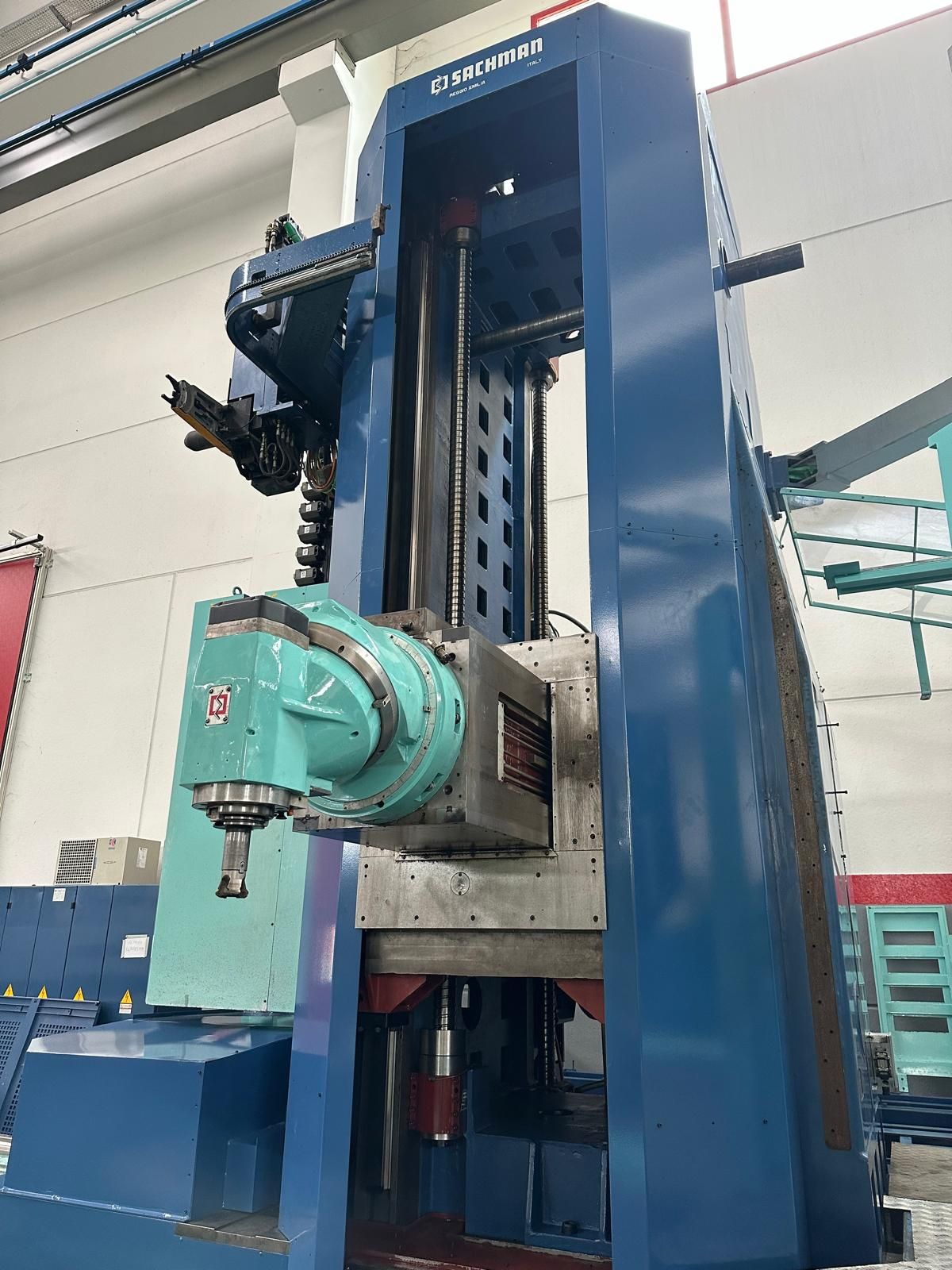

HEAD 1
Type
KOSMO3
Spindle taper
ISO50
A axis
0,02 °
C axis
0,02 °
Coolant
15Bar CTS
Max speed
5000 Rpm
Max power
46 Kw
Max torque
1453 Nm
FIXING TABLE
Floorspace (LxWxH)
10000x1500 mm393,70x59,06 in
SPINDLE
Spindle power
46 Kw
Rotating speed
5000 Rpm
Torque
1453 Nm
Taper
ISO50
EXTRA
Floor space
14000x5850x4815 mm551,18x230,31x189,57 in
Chip conveyor
Si
