Category
Milling machine
Type
mobile column
Made
Model
CS500 Agile
Capacity
6000x1700x1250 mm236,22x66,93x49,21 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
6000 mm236,22 in
Vertical (Y)
1700 mm66,93 in
Cross RAM (Z)
1250 mm49,21 in

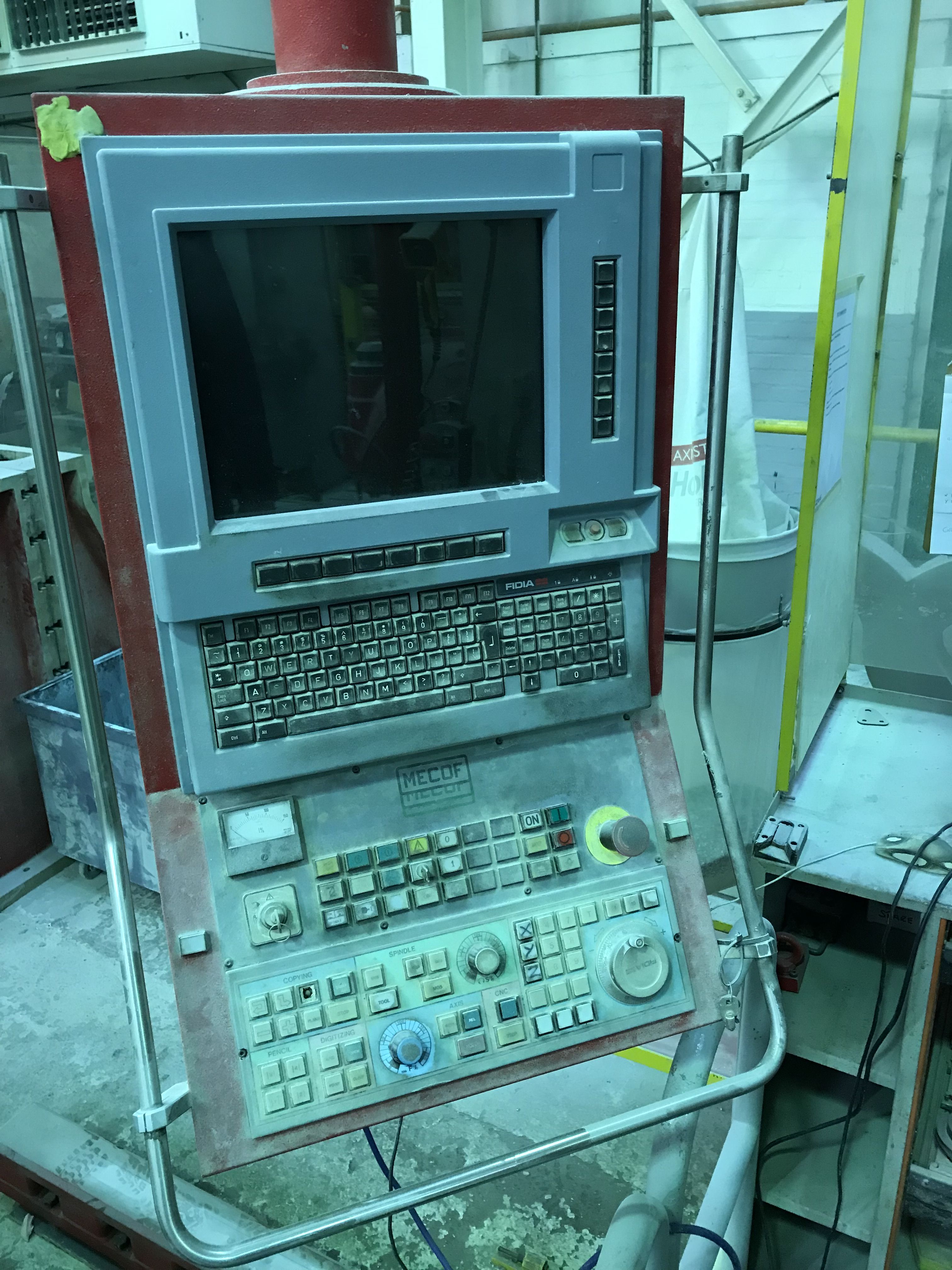

CNC
CNC
FIDIA

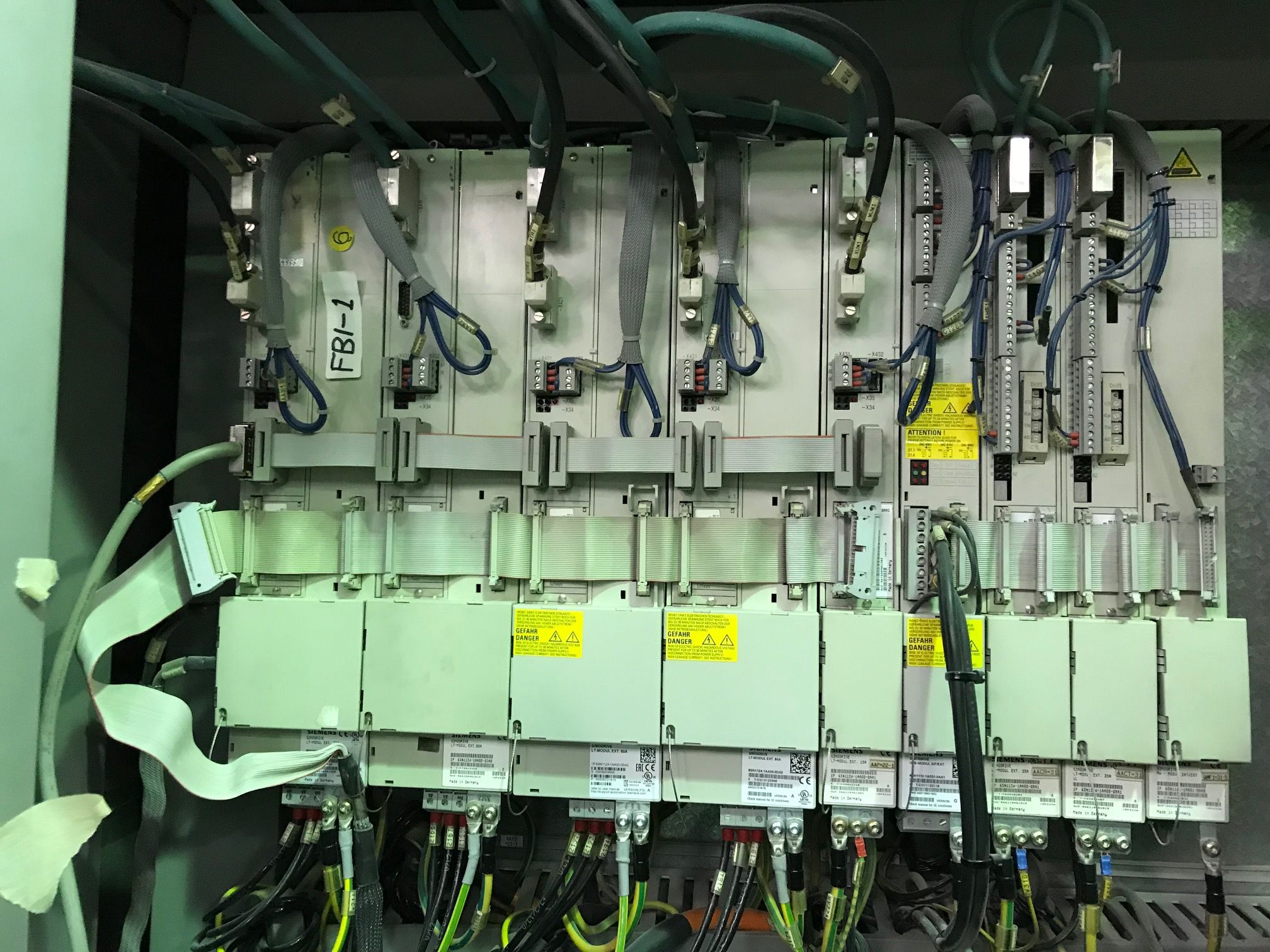

Drives
SIEMENS SIMODRIVE

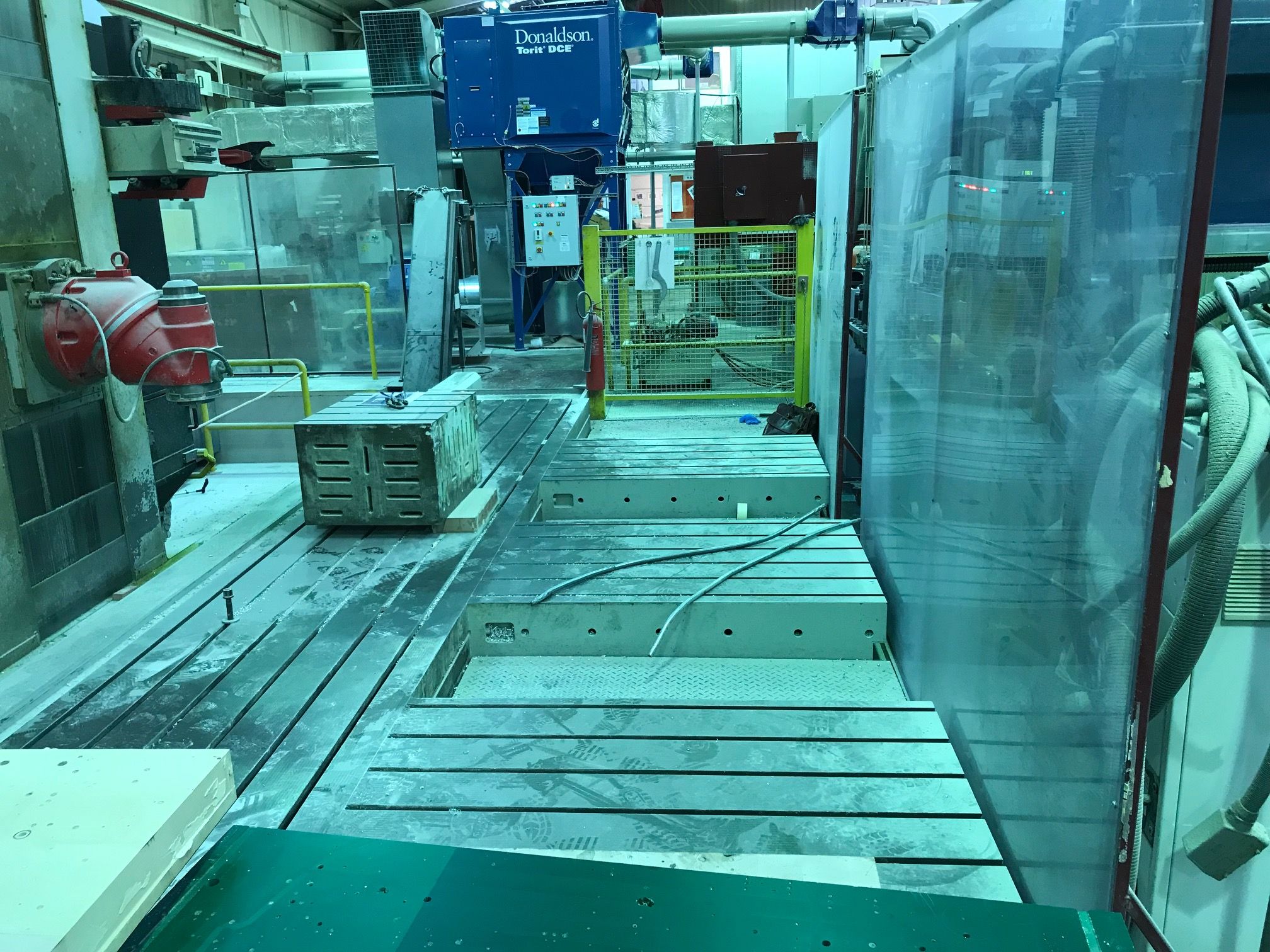

FIXING TABLE
Floorspace (LxWxH)
7300x1090x900 mm287,40x42,91x35,43 in
T slots number
22mm H7
Capacity
8000 Kg/mq

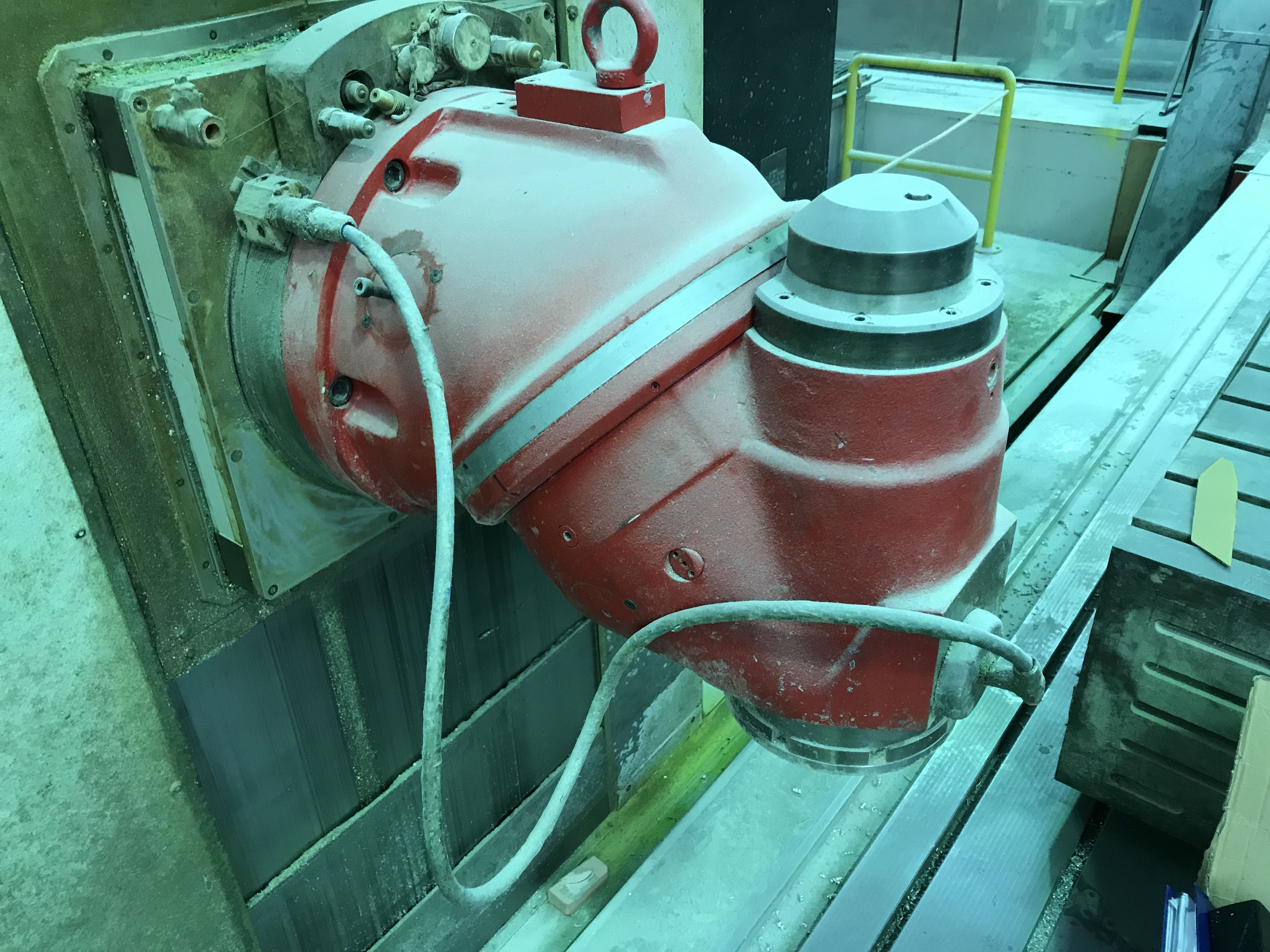

HEAD 1
Type
TBA4
Spindle taper
ISO50 DIN69871
A axis
360x1 °
C axis
120x3 °
Max torque
780 Nm
Max speed
4000 Rpm
Max power
30 Kw
FEEDS
Rapid X
20 m/min787,40 ipm
Rapid Y
20 m/min787,40 ipm
Rapid Z
20 m/min787,40 ipm
SPINDLE
Spindle power
30 Kw
Gearbox
2 gamme
Rotating speed
I: 15-370 / II: 370-4000 Rpm
Taper
ISO50 DIN69871
Torque
780 Nm
ATC
Positions
40
Tool taper
ISO50
Position
a catena, sul montante
EXTRA
Tooling included

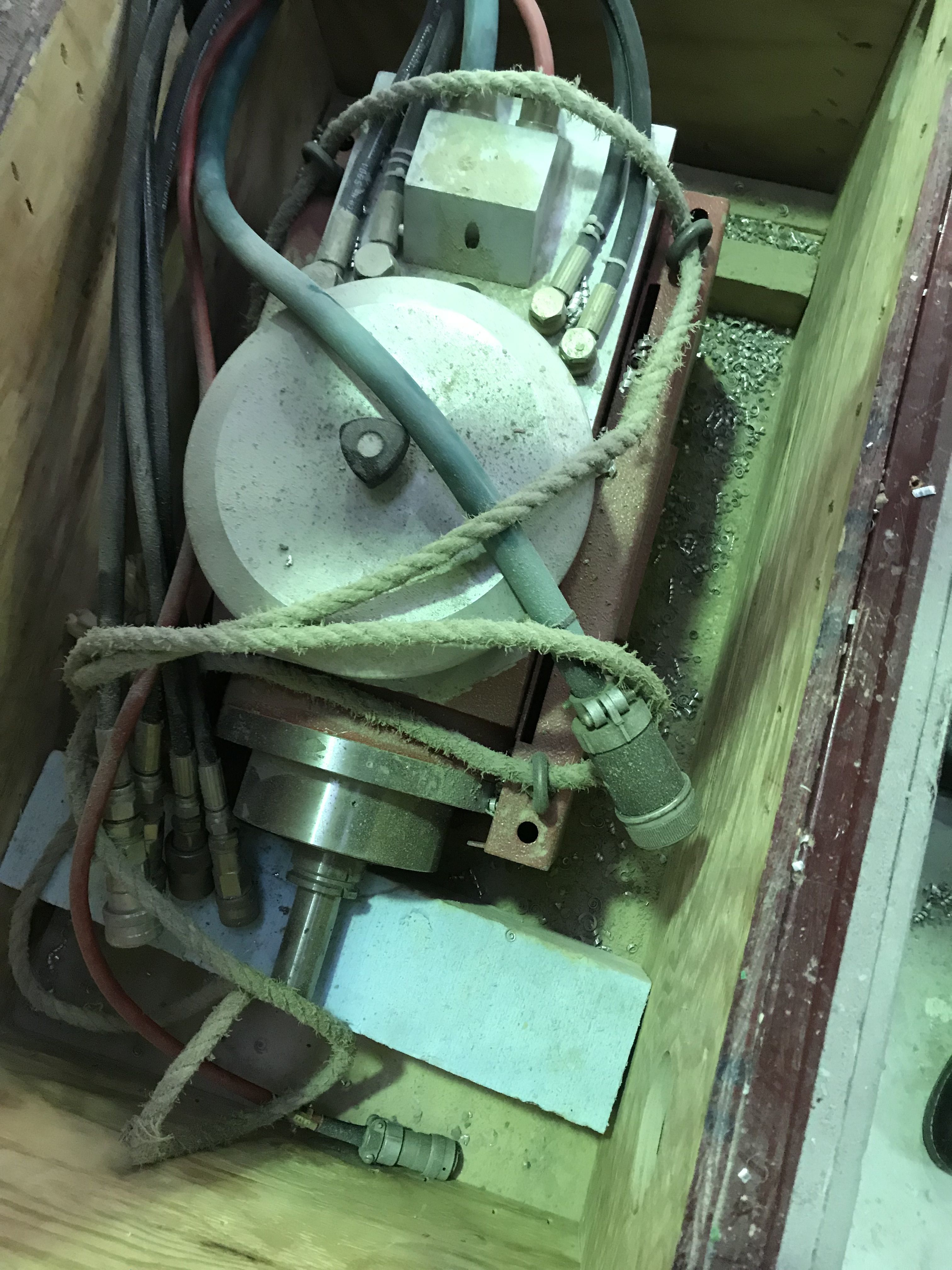

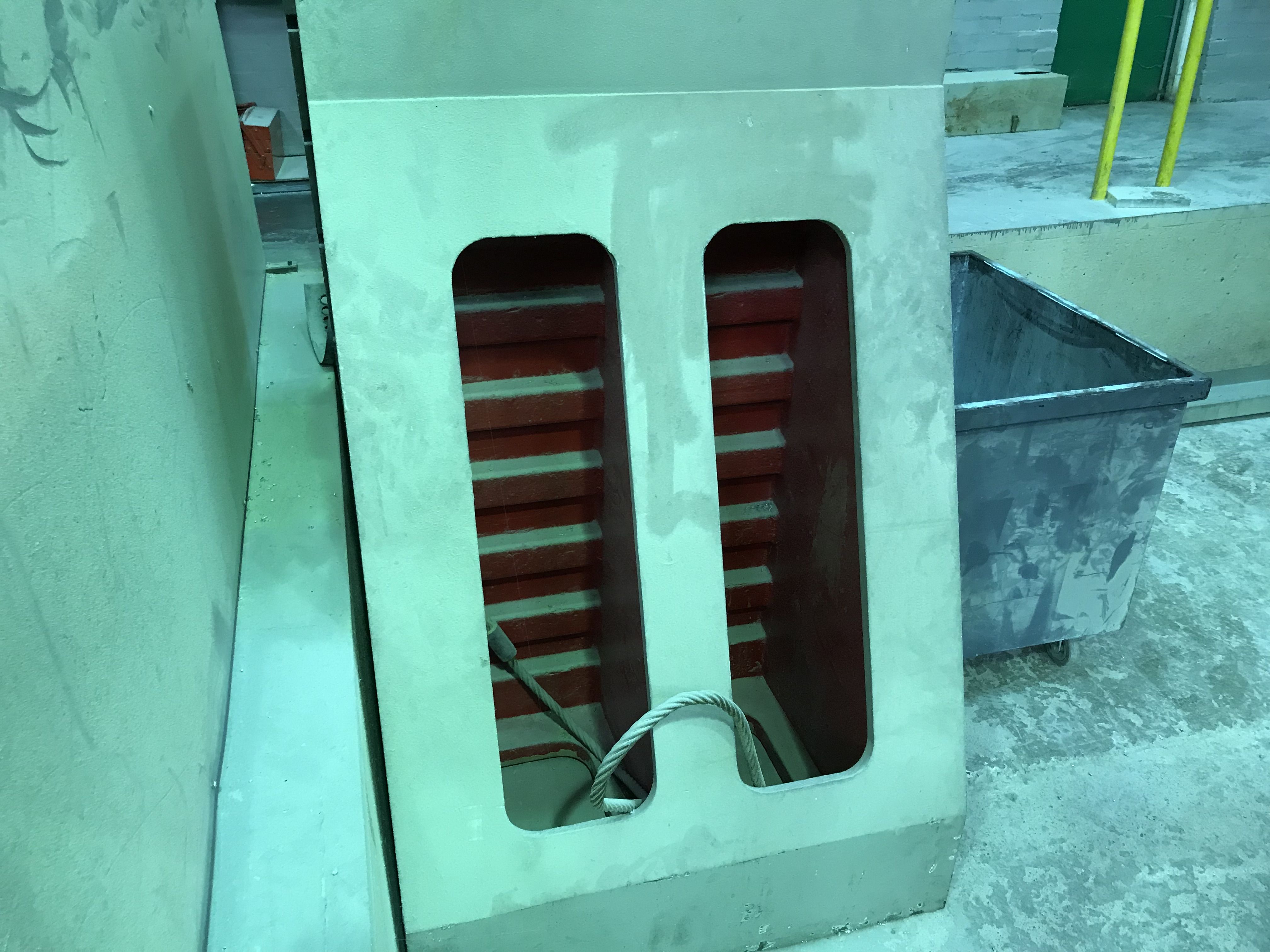

Opzionali 3 cubi + 2 squadre, testa elettromandrino
Availability
pronta

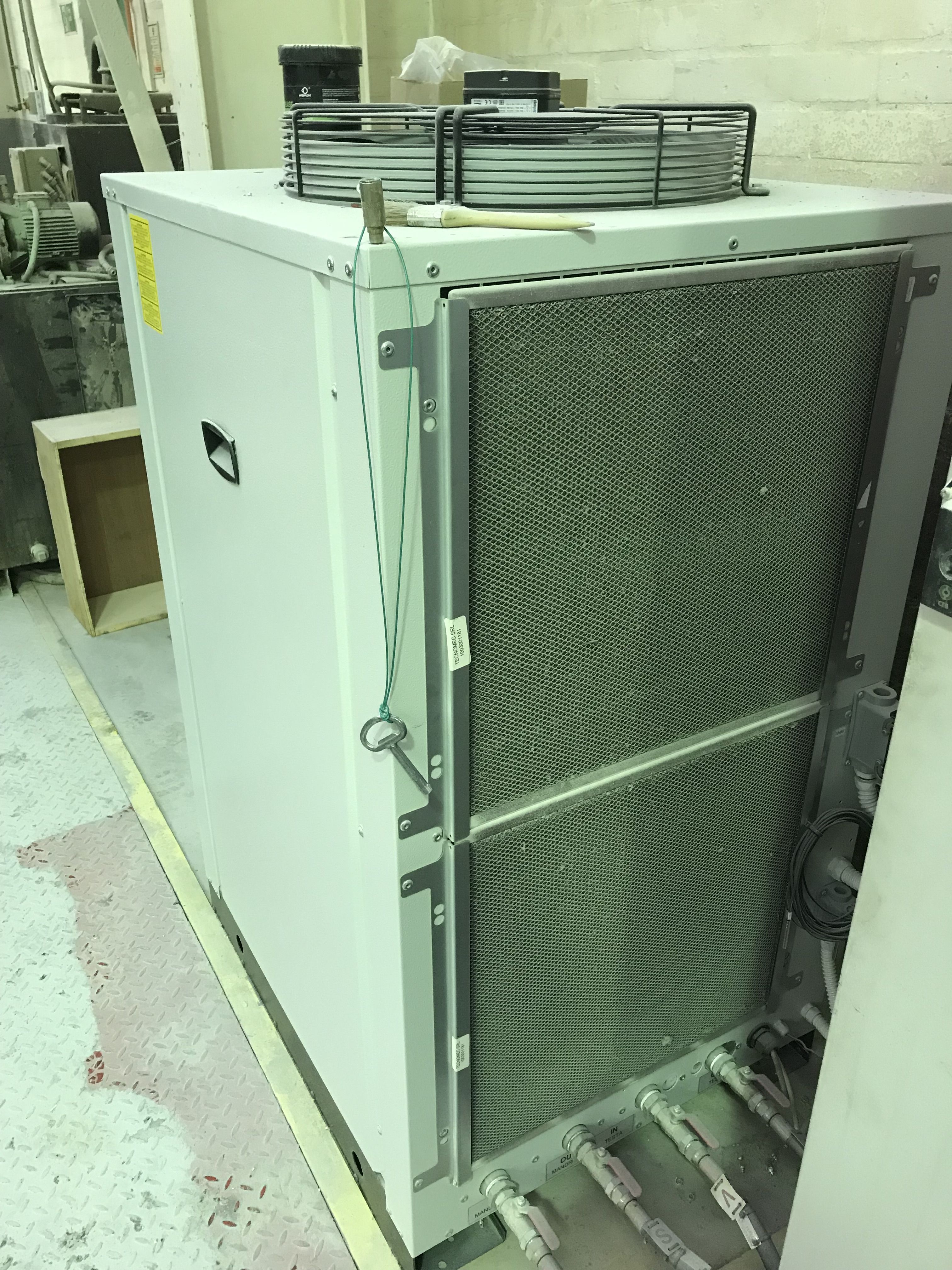

Chiller
si
