Category
Milling machine
Type
mobile column
Made
Model
SIRIO M60
Capacity
6000x2590x1200 mm236,22x101,97x47,24 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
6000 mm236,22 in
Vertical (Y)
2000 mm78,74 in
Cross RAM (Z)
1200 mm47,24 in
CNC

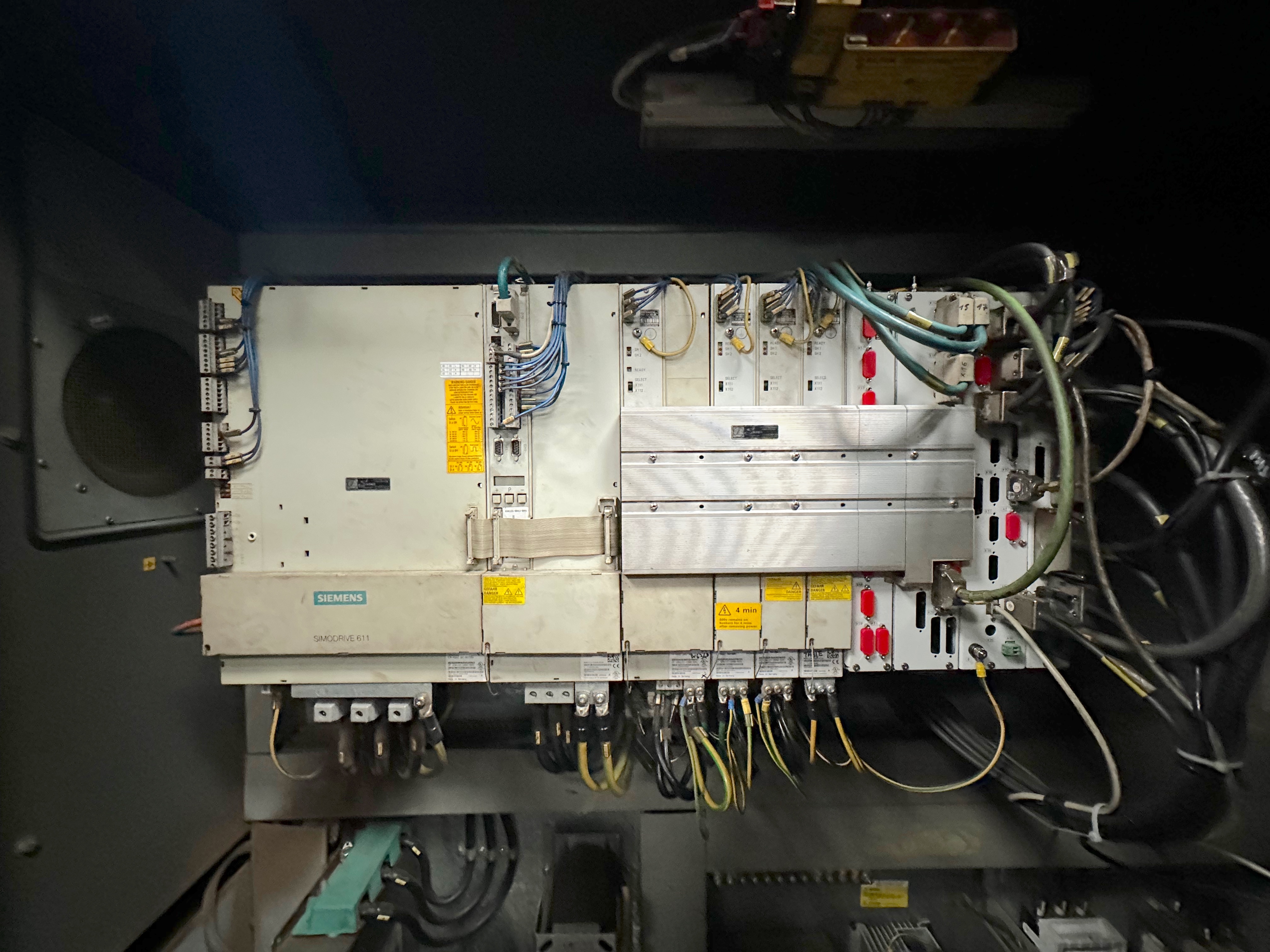

Drives
SIMENS SINUMERIK

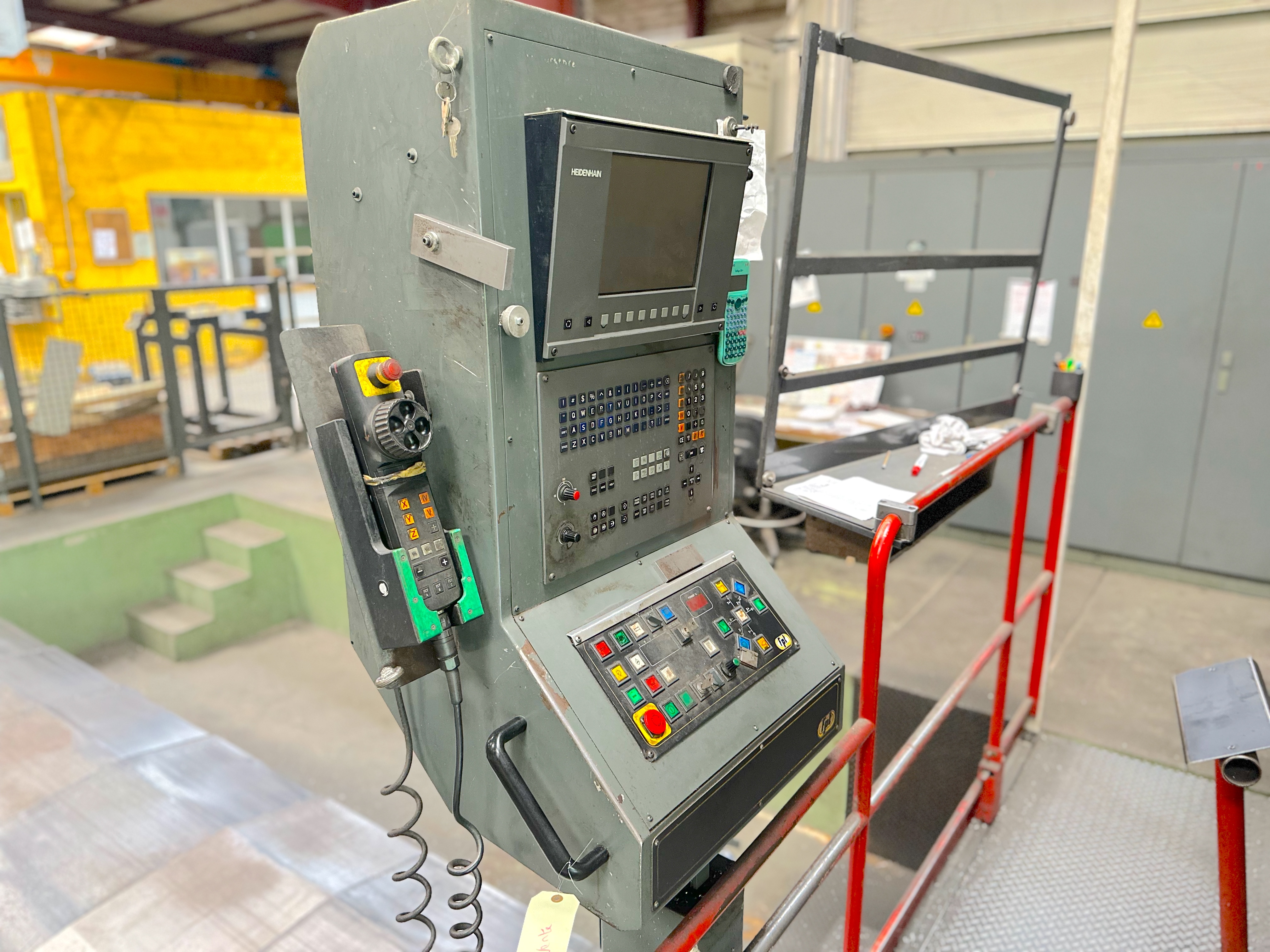

CNC
Heidenhain TNC430
SPINDLE
Spindle power
28/35 Kw
Rotating speed
187-4000 Rpm
Torque
1337 Nm
Taper
ISO50 DIN69871
FEEDS
Rapid X
15 m/min590,55 ipm
Rapid Y
15 m/min590,55 ipm
Rapid Z
15 m/min590,55 ipm

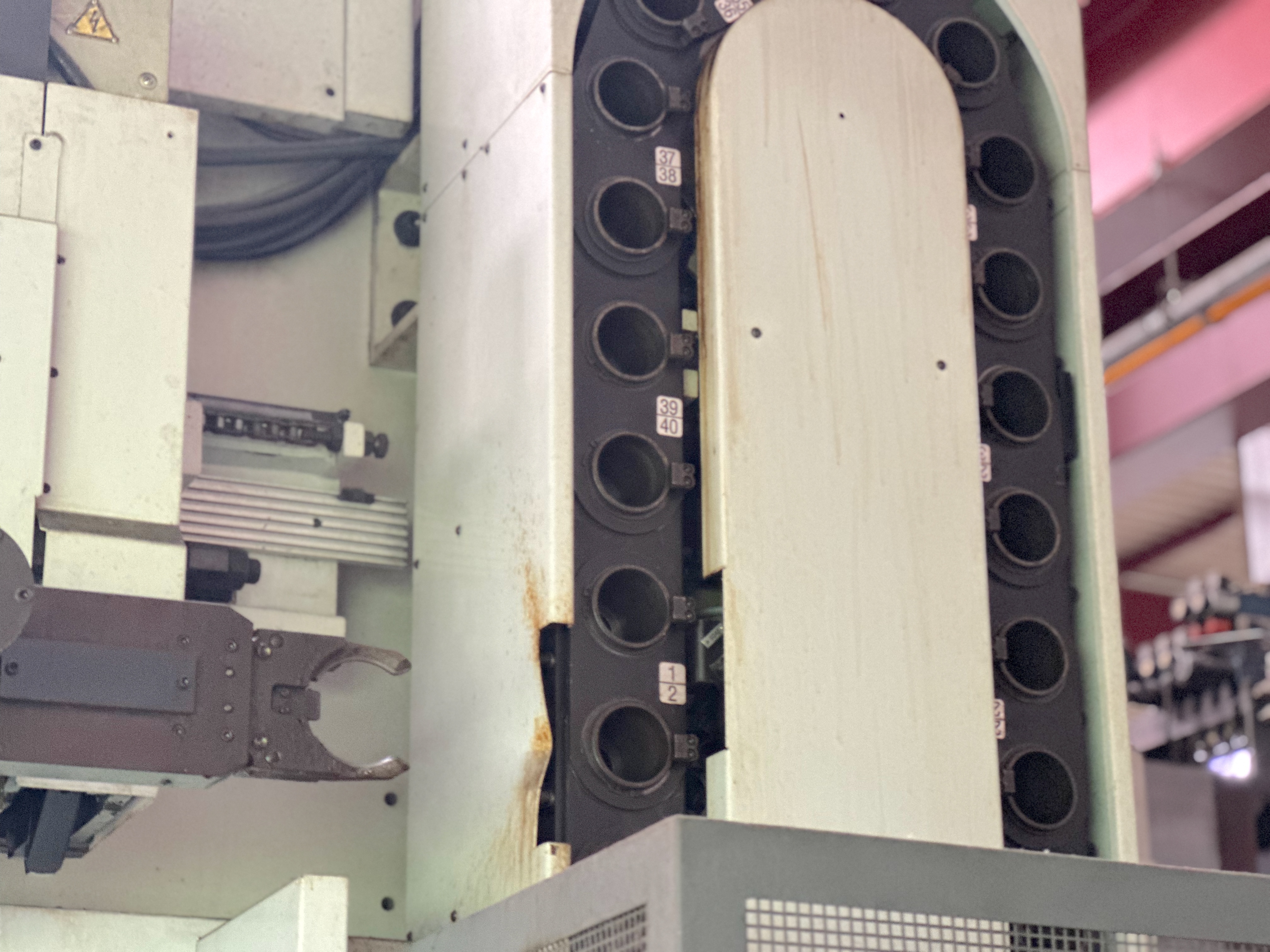

ATC
Positions
40
Max tool diameter
125 mm4,92 in
Max diam with free adiacent space
230 mm9,06 in
Max tool lenght
400 mm15,75 in
Max tool weight
20 Kg
FIXING TABLE
Floorspace (LxWxH)
3500x2500x300 mm137,80x98,43x11,81 in
Capacity
15.000 Kg/mq

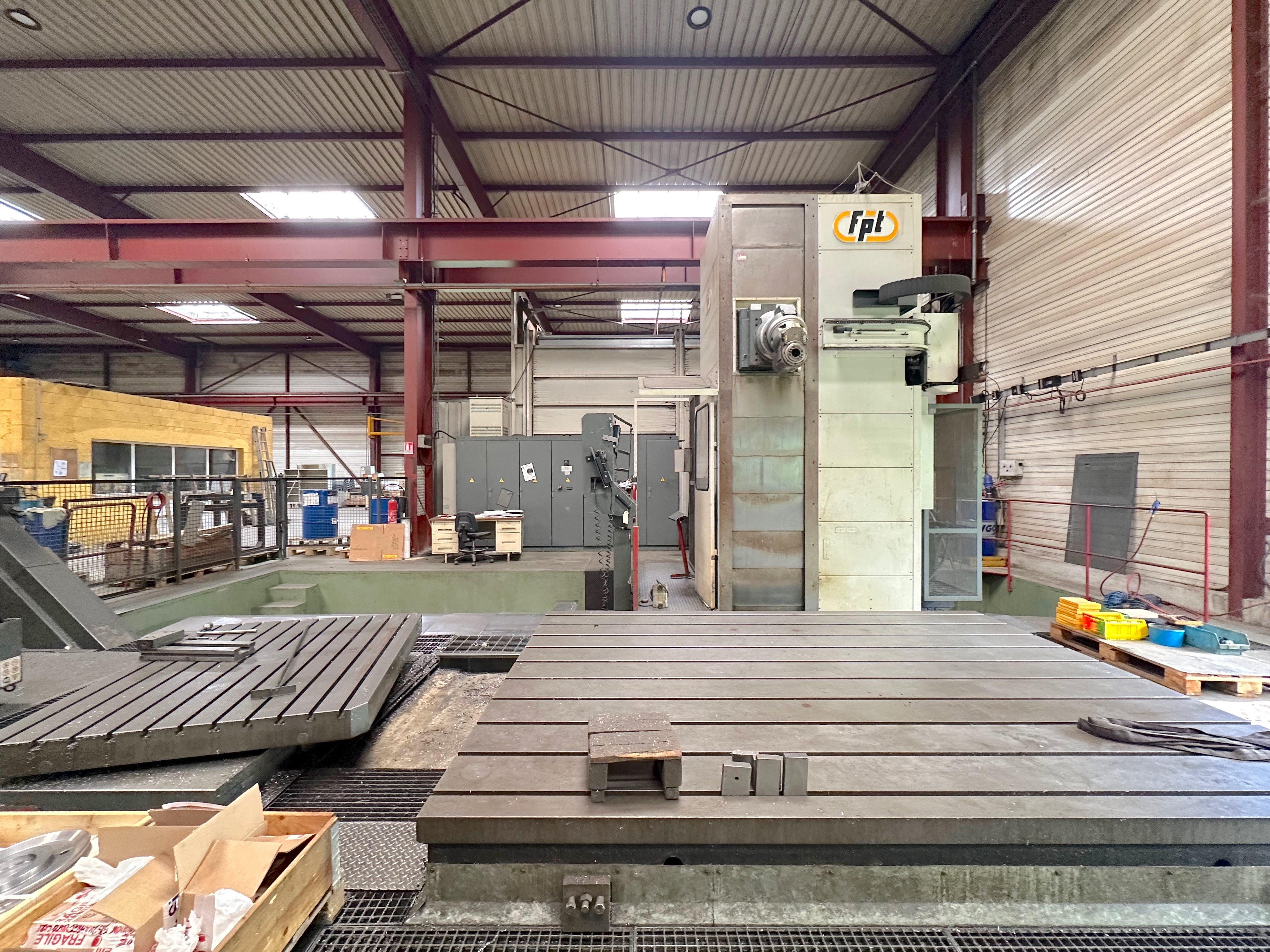

TABLE 1
Surface
1750x1550 (ø2240) mm68,90x61,02 (ø88,19) in
Accuracy (B axis)
0,001 °
Capacity
9000 Kg

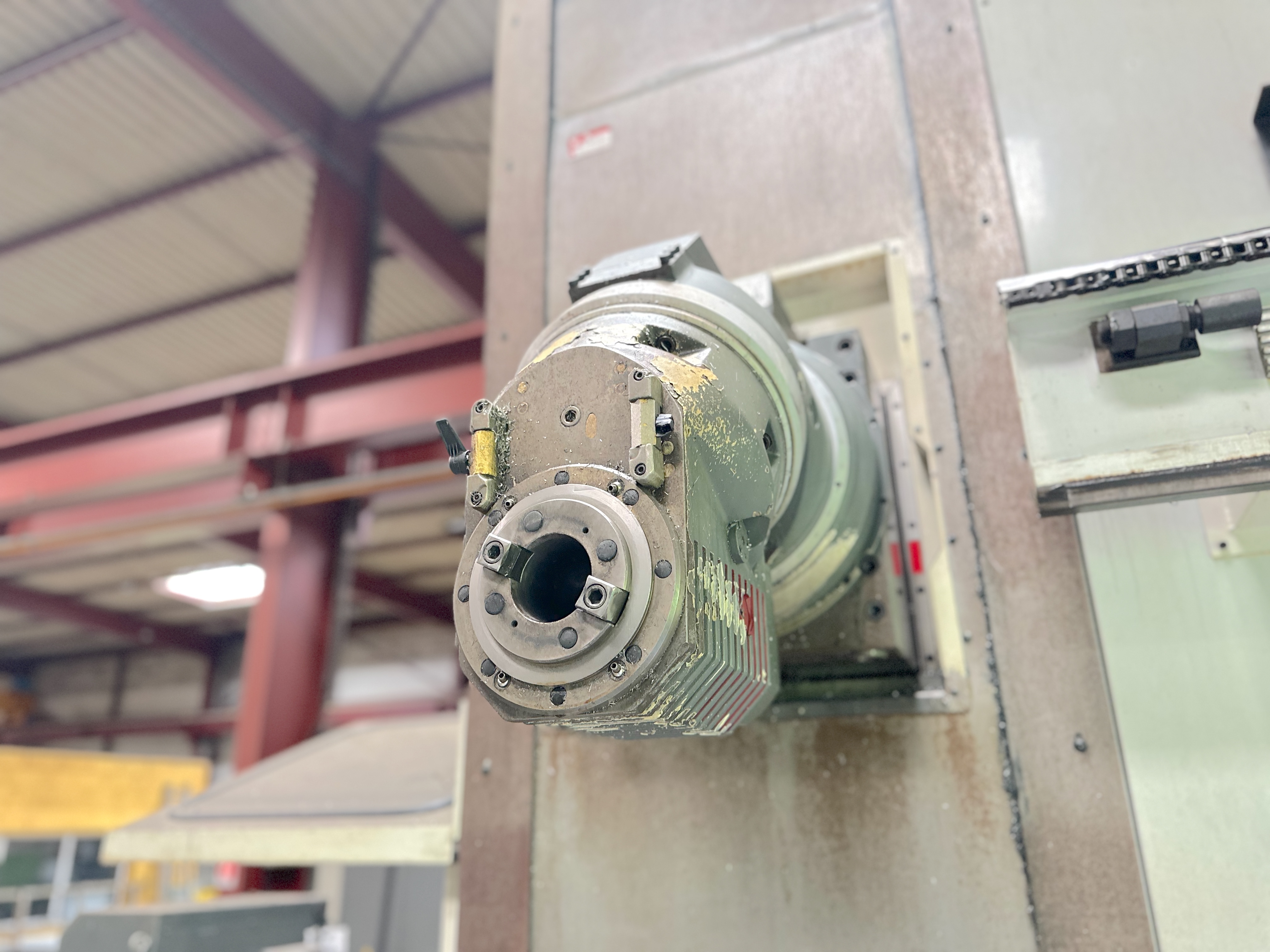

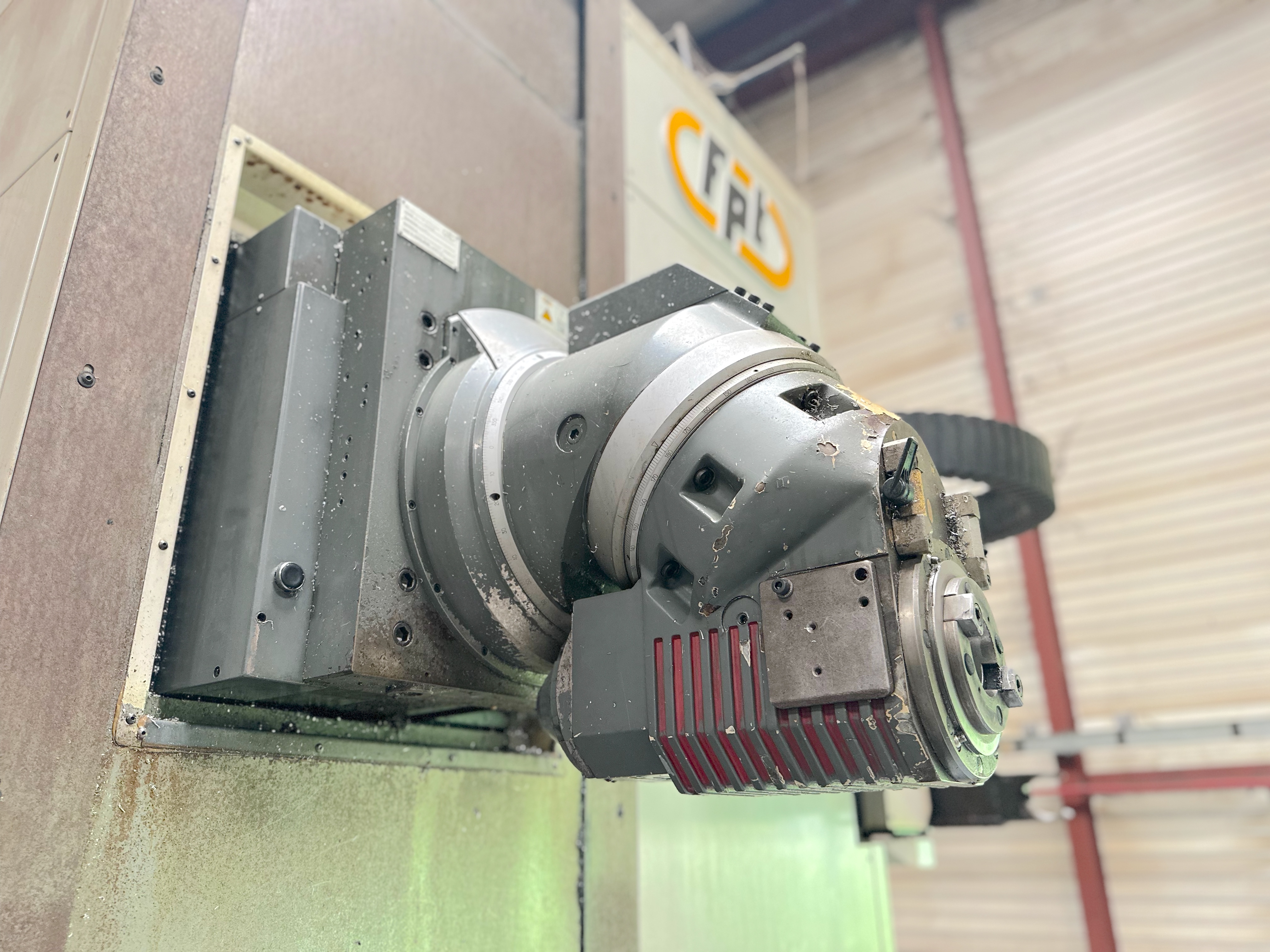

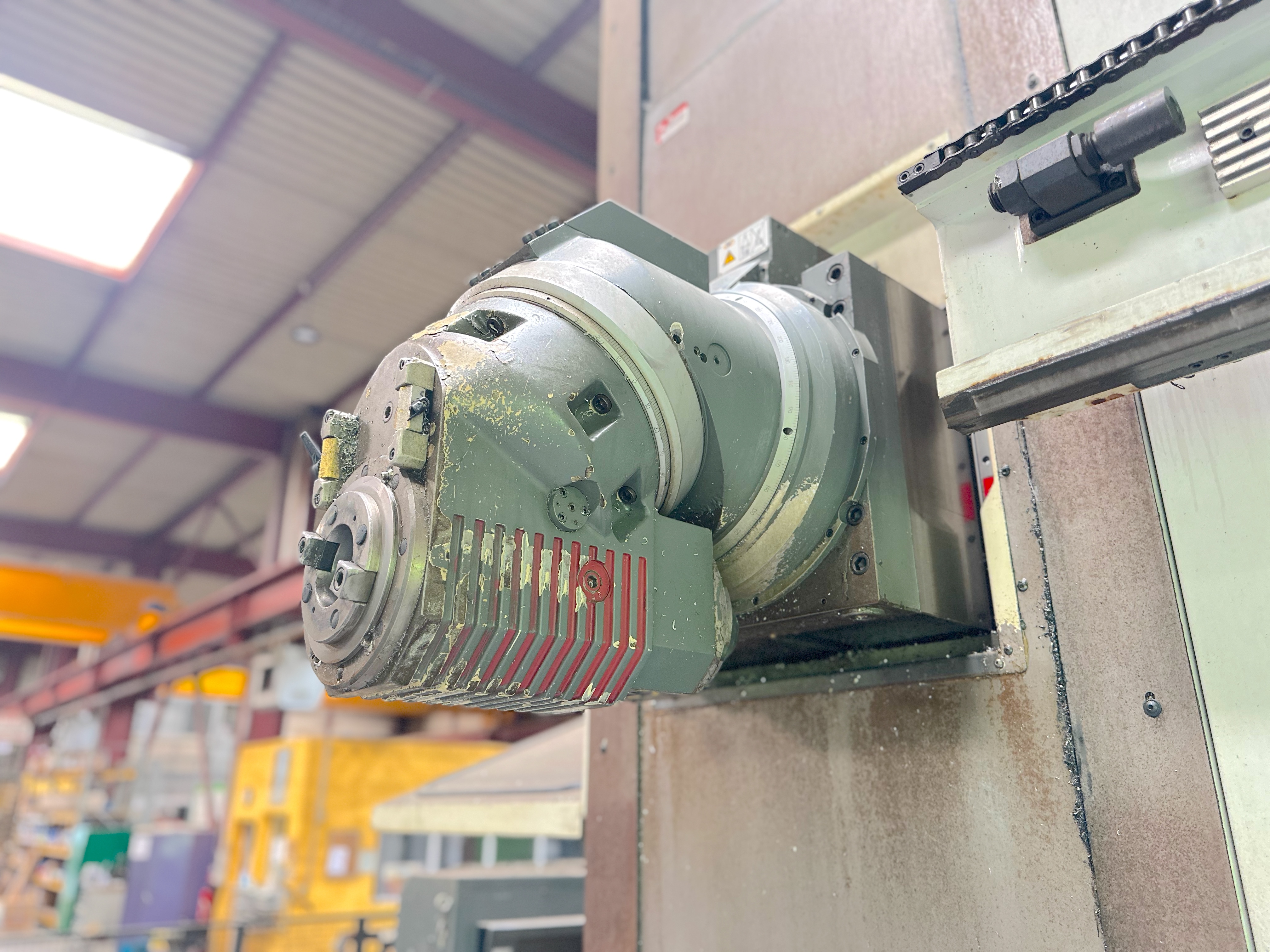

HEAD 1
Type
TU144G
Spindle taper
BT50
A axis
144x2,5 °
C axis
144x2,5 °
Max torque
1400 Nm
Max speed
4000 Rpm
Max power
28 Kw
Coolant
CTS 16 Bar
EXTRA
Total power supply
56,9 Kw
Machine total weight
27000 Kg
Floor space
10800x8500x4300 mm425,20x334,65x169,29 in
High Pressure
CTS 16 Bar
Filtration unit
tank 1200lt - filtrer 10 µm
Chiller
SI

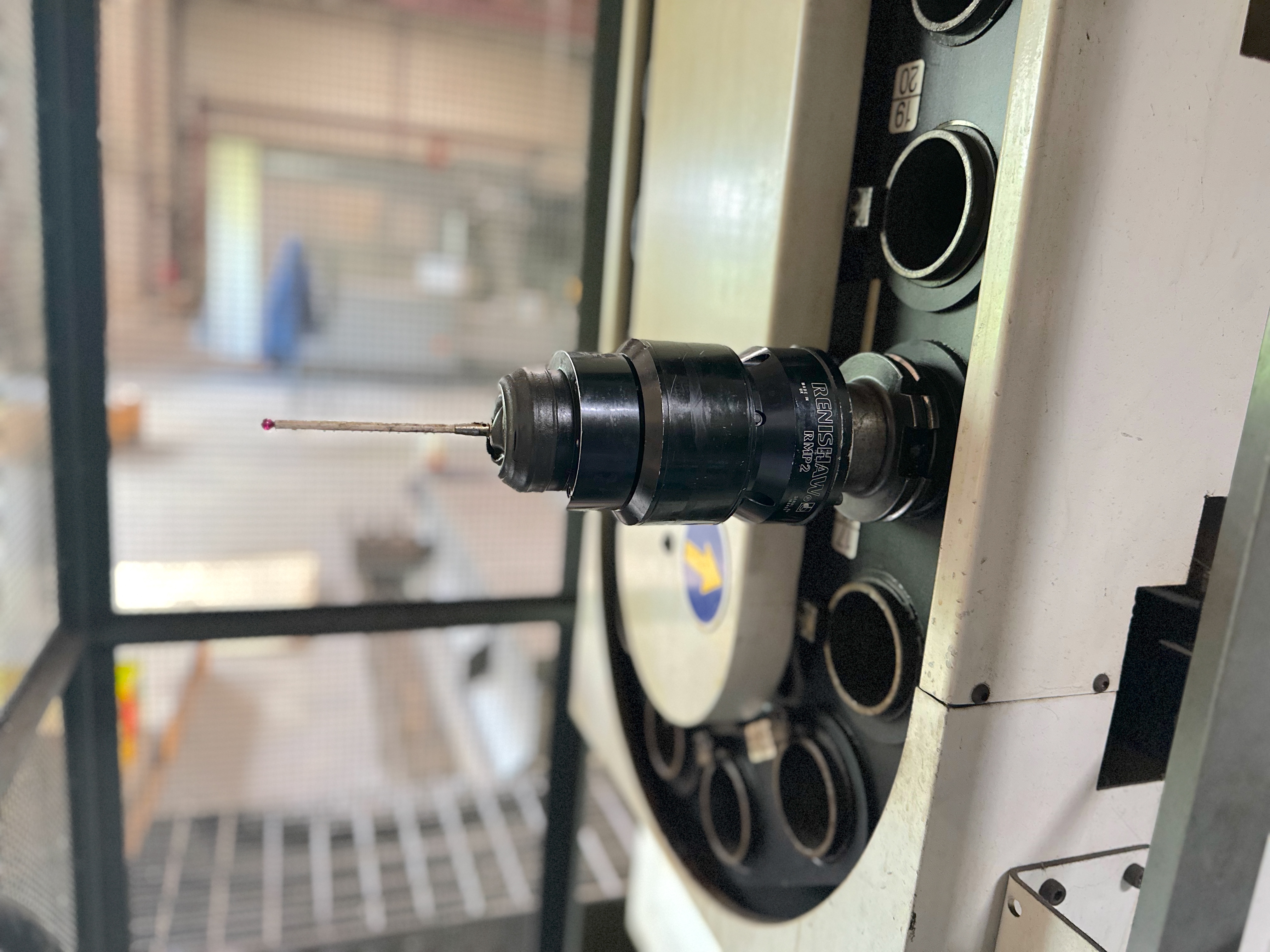

Workpiece touch probe
Heidenhain TT130
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes
Chip conveyor
6000 mm236,22 in
