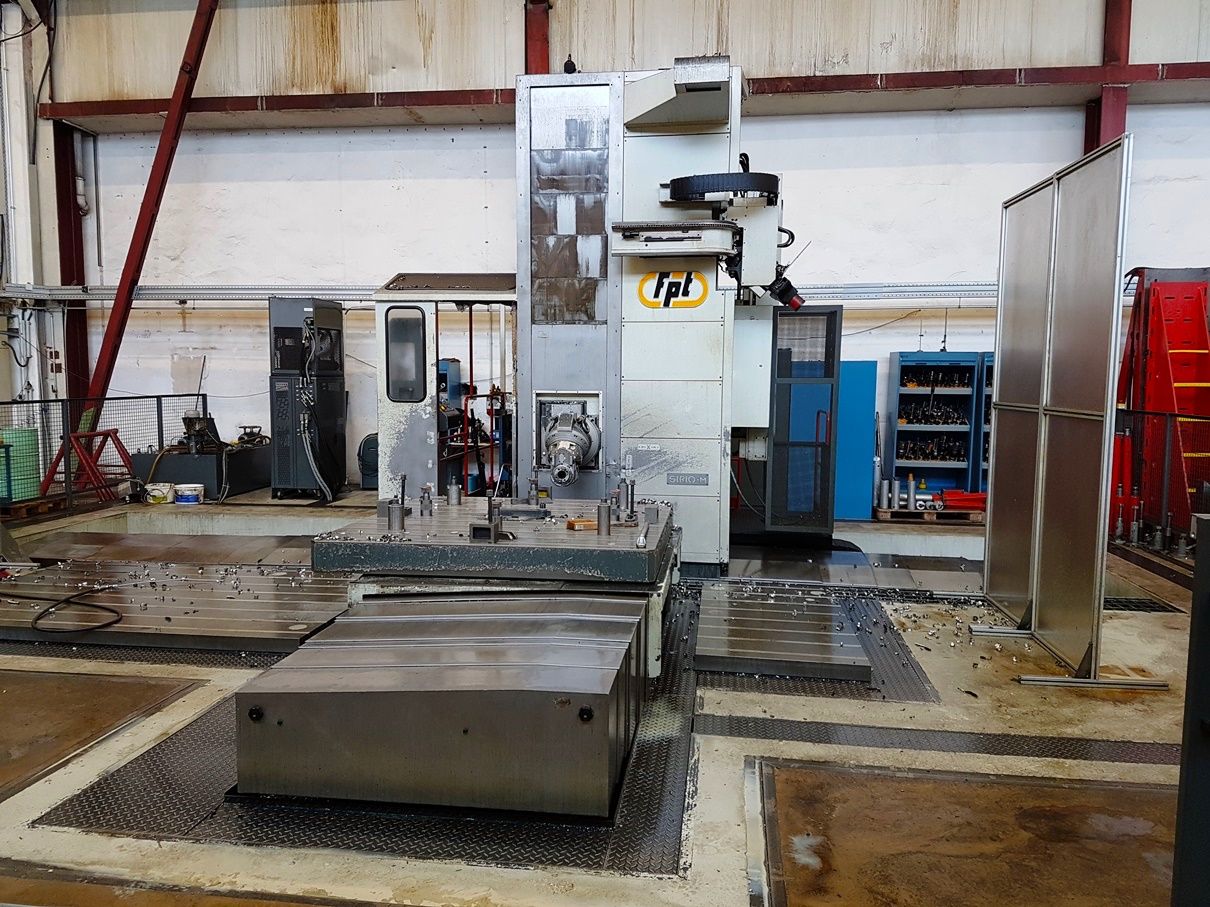

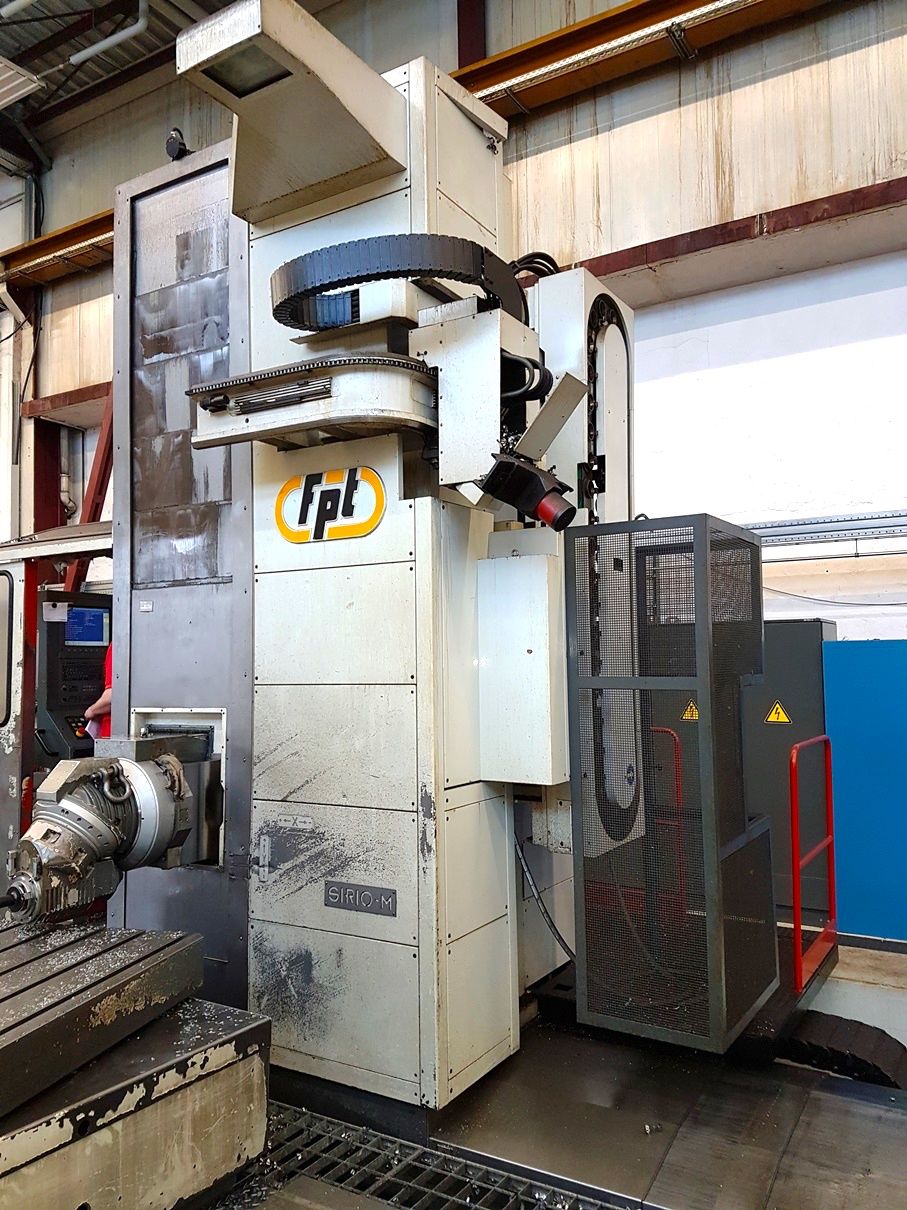

Category
Milling machine
Type
mobile column
Made
Model
SIRIO M60
Capacity
6000x2000x1200 mm236,22x78,74x47,24 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
6000 mm236,22 in
Vertical (Y)
2000 mm78,74 in
Cross RAM (Z)
1200 mm47,24 in
Table (V)
1500 mm59,06 in

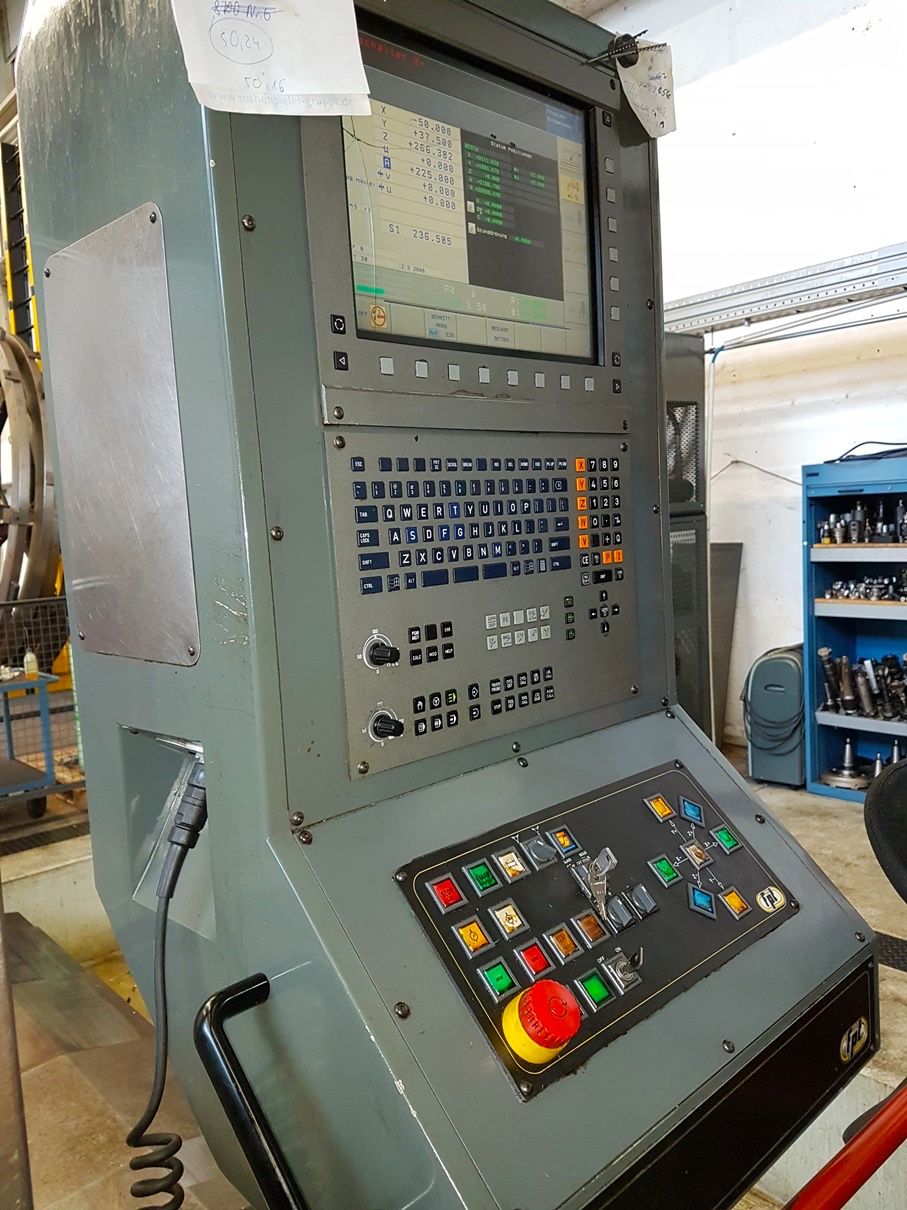

CNC
CNC
Heidenhain iTNC530SP+HR
Drives
Siemens
SPINDLE
Spindle power
28/35 Kw
Gearbox
gearbox, 2 mechanical gears
Rotating speed
310-5000 Rpm
Torque
1070/1340 Nm
Taper
ISO50
FEEDS
Rapid X
15 m/min590,55 ipm
Rapid Y
15 m/min590,55 ipm
Rapid Z
15 m/min590,55 ipm
Rapid V
15 m/min590,55 ipm
X
6 m/min236,22 ipm
Y
6 m/min236,22 ipm
Z
6 m/min236,22 ipm

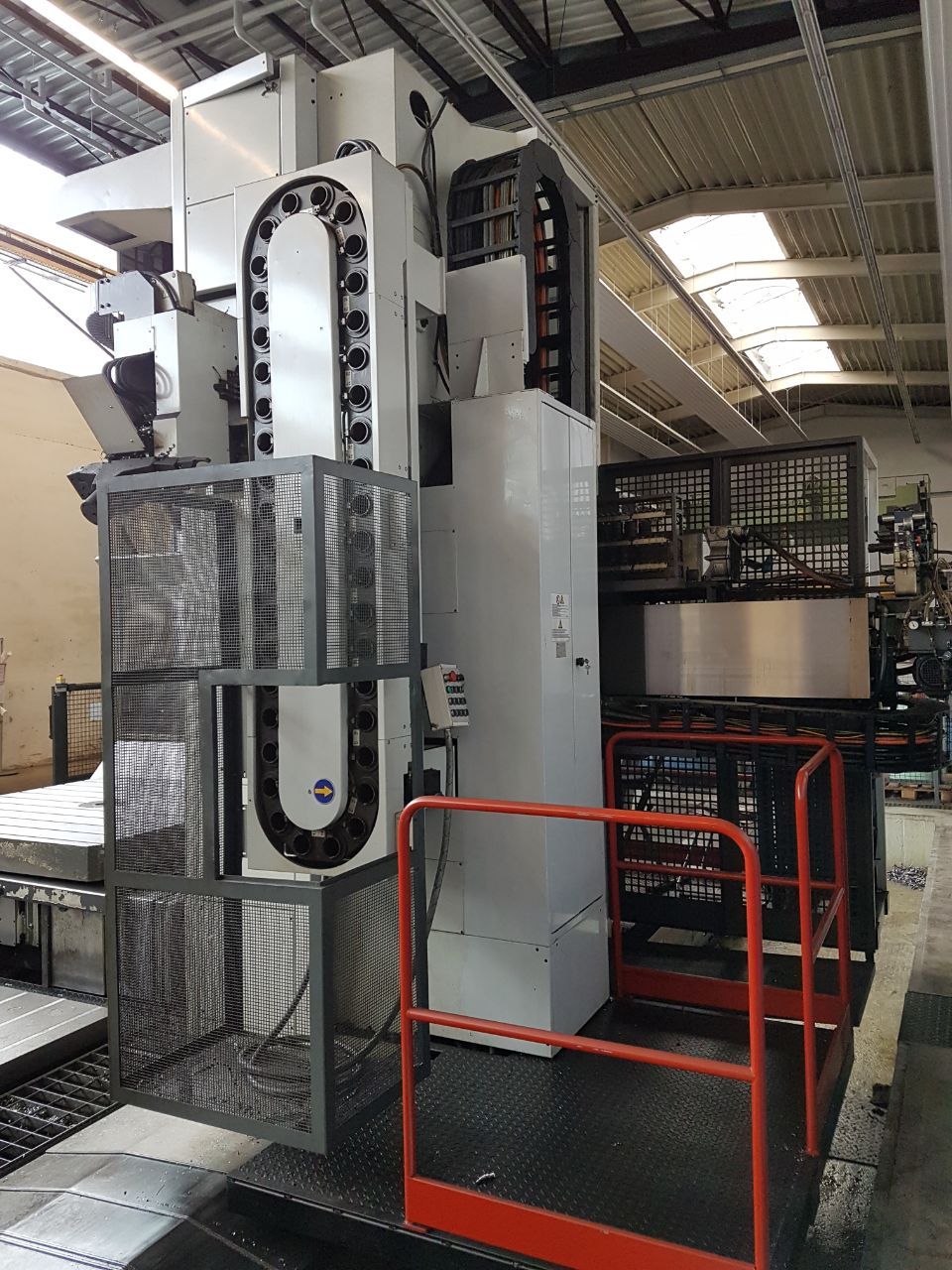

ATC
Positions
40
Max tool diameter
125 mm4,92 in
Max diam with free adiacent space
230 mm9,06 in
Max tool lenght
400 mm15,75 in
Max tool weight
25 Kg
Tool taper
ISO50

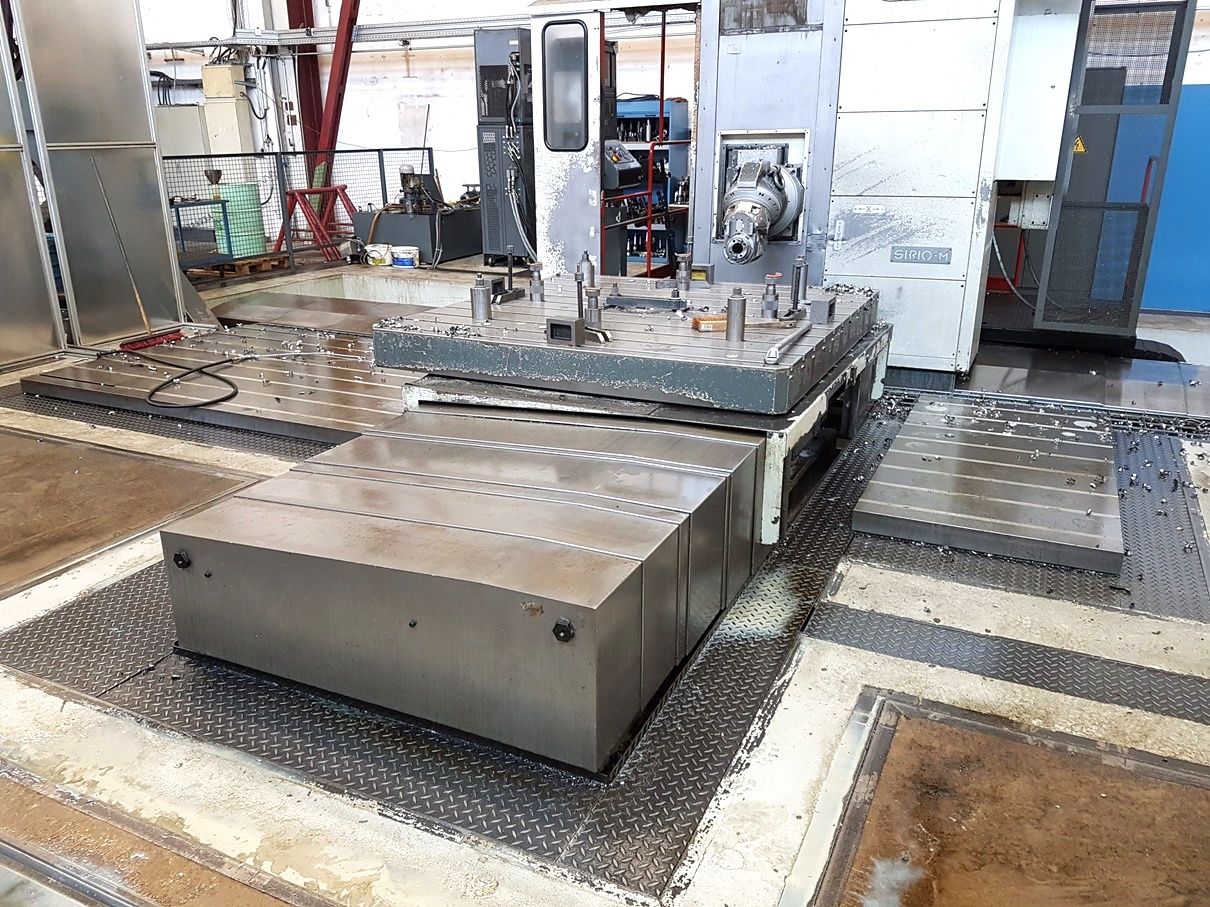

FIXING TABLE
Quantity
2
Floorspace (LxWxH)
1000x2000mm + 3000x2000 mm39,37x78,74mm + 118,11x78,74 in
TABLE 1
Surface
2000x2000 mm78,74x78,74 in
Translation
1500 mm59,06 in
Accuracy (B axis)
0,001 °
Capacity
15.000 Kg
Support
Hydrostatic

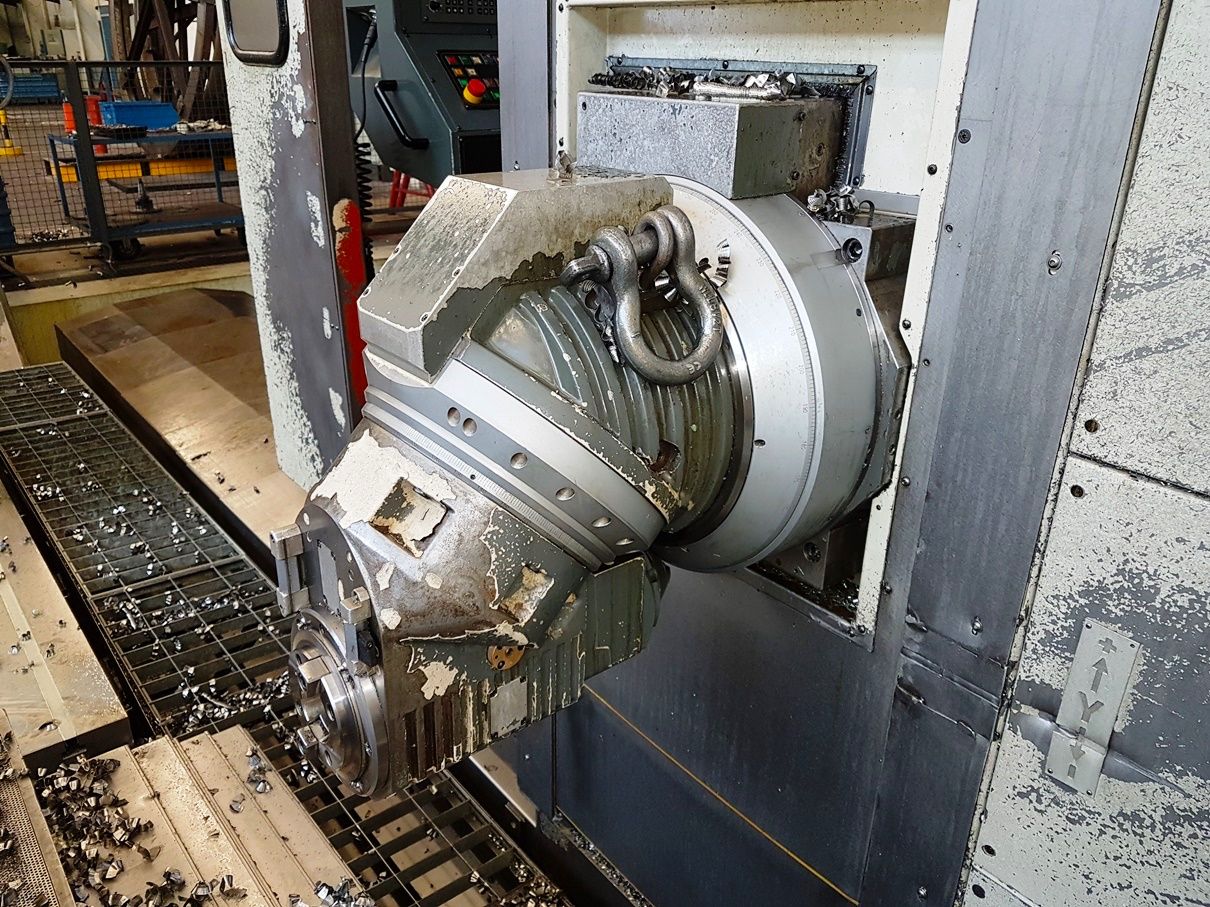

HEAD 1
Type
FPT TUPCG5 CSA
Spindle taper
ISO50
A axis
360.000x0,001 °
C axis
360.000x0,001 °
Max torque
1340 Nm
Max speed
5000 Rpm
Max power
35 Kw
Coolant
Int/ext
EXTRA
Total power supply
≈60 Kw
Machine total weight
≈35.000 Kg
Tooling included
Tastatore Renishaw, Testa millesimale automatica, refrigerante attraverso il mandrino, evacuatore trucioli, guide idrostatiche
High Pressure
20 Bar attraverso il mandrino
Chiller
si
Workpiece touch probe
Renishaw
Maintenance & Use books
No
Chip conveyor
si
Availability
pronta
Available under power
si
