Category
Milling machine
Type
mobile column
Made
Model
SIRIO M40
Capacity
4000x2000x1200 mm157,48x78,74x47,24 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
4000 mm157,48 in
Vertical (Y)
2000 mm78,74 in
Cross RAM (Z)
1200 mm47,24 in

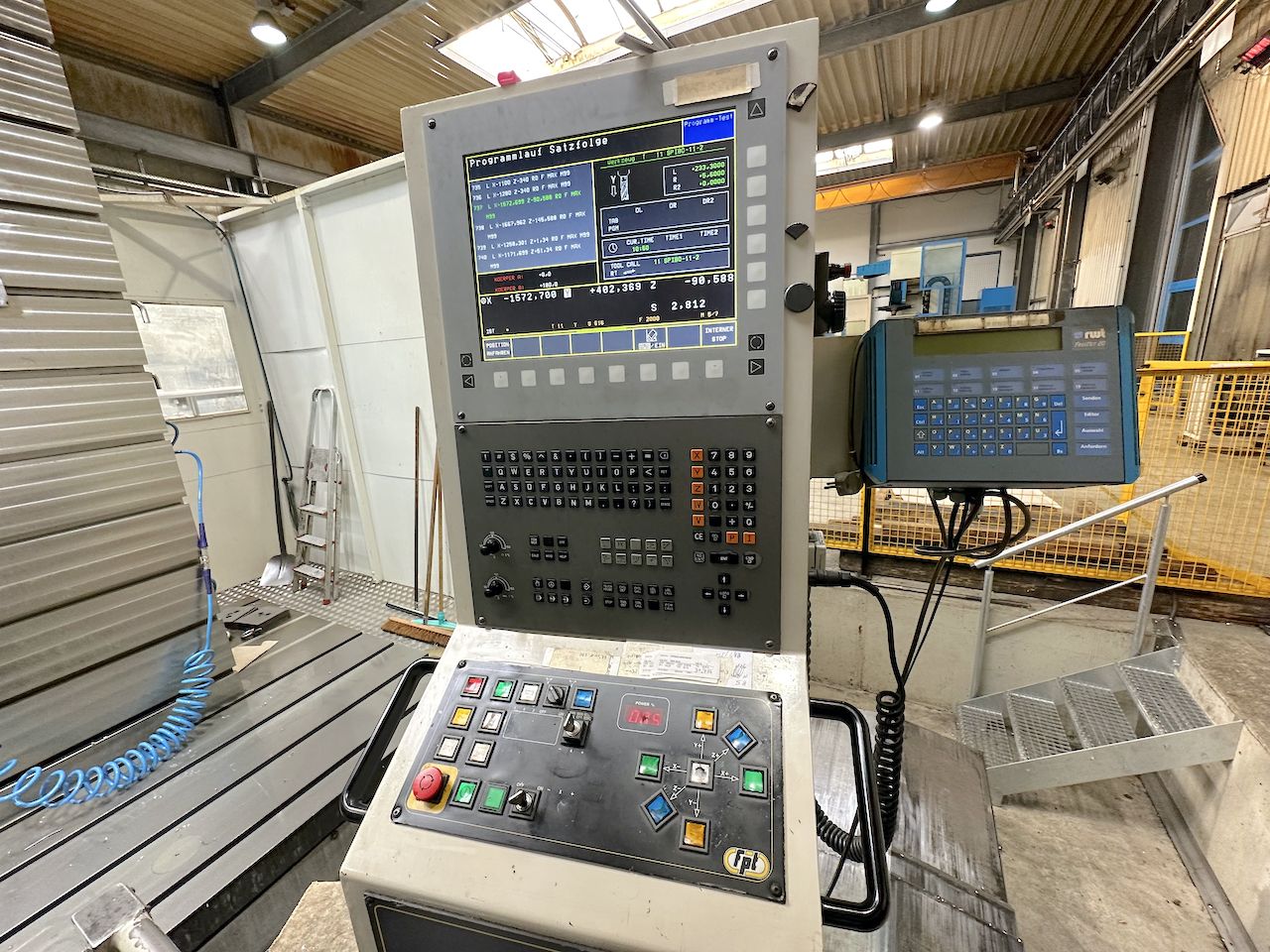

CNC
CNC
Heidenhain TNC426CB
SPINDLE
Spindle power
37,5 Kw
Rotating speed
4000 Rpm
Taper
ISO50
FEEDS
Rapid X
12 m/min472,44 ipm
Rapid Y
12 m/min472,44 ipm
Rapid Z
12 m/min472,44 ipm
ATC
Positions
30
FIXING TABLE
Floorspace (LxWxH)
5000x2000 mm196,85x78,74 in
HEAD 1
Type
TU360
Spindle taper
ISO50
A axis
360x1 °
C axis
360x1 °
Max speed
4000 Rpm
Max power
37,5 Kw
The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy cannot be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
