Category
Milling machine
Type
mobile column
Made
Model

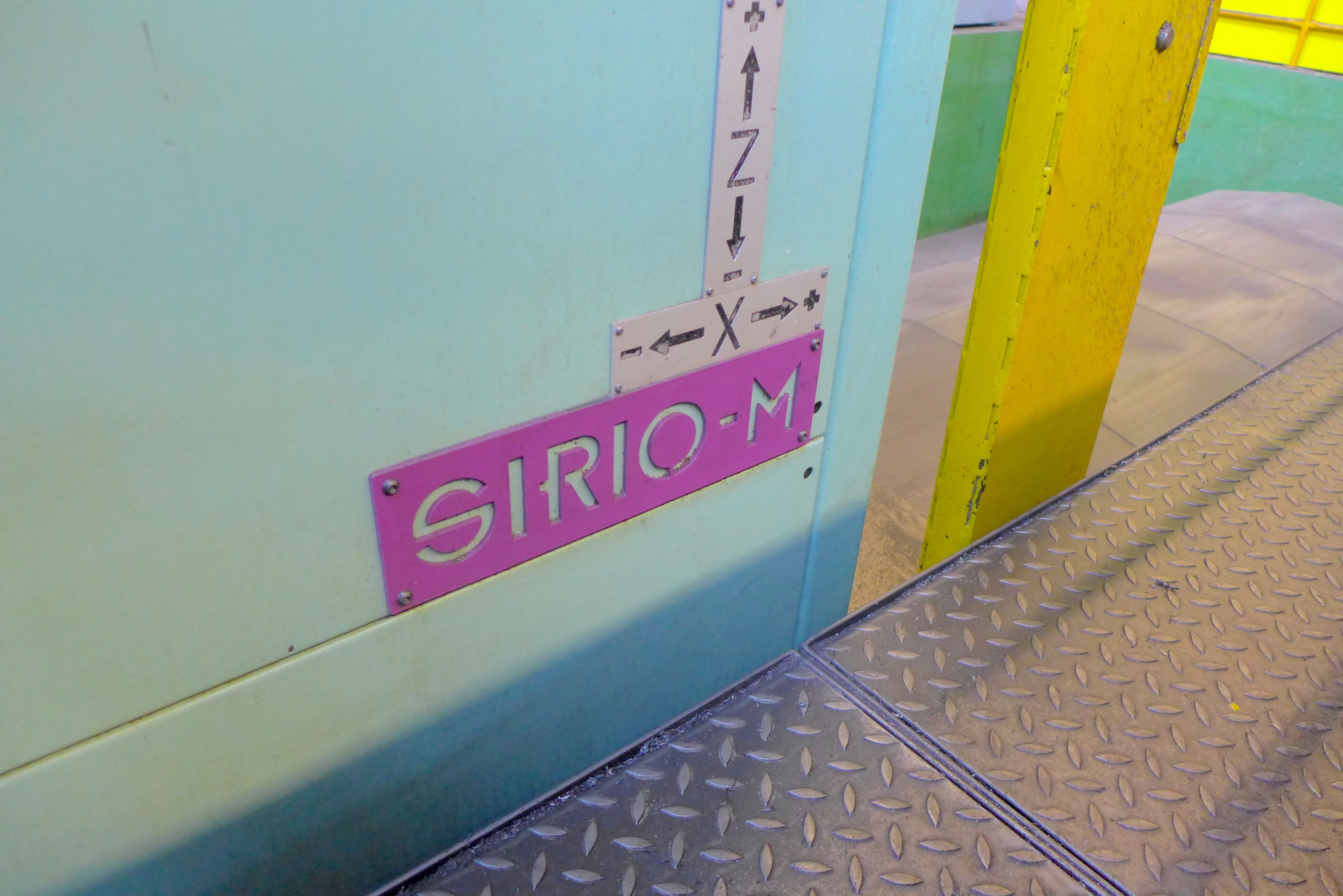

SIRIO M40
Capacity
4000x2000x1200 mm157,48x78,74x47,24 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
4000 mm157,48 in
Vertical (Y)
2000 mm78,74 in
Cross RAM (Z)
1200 mm47,24 in

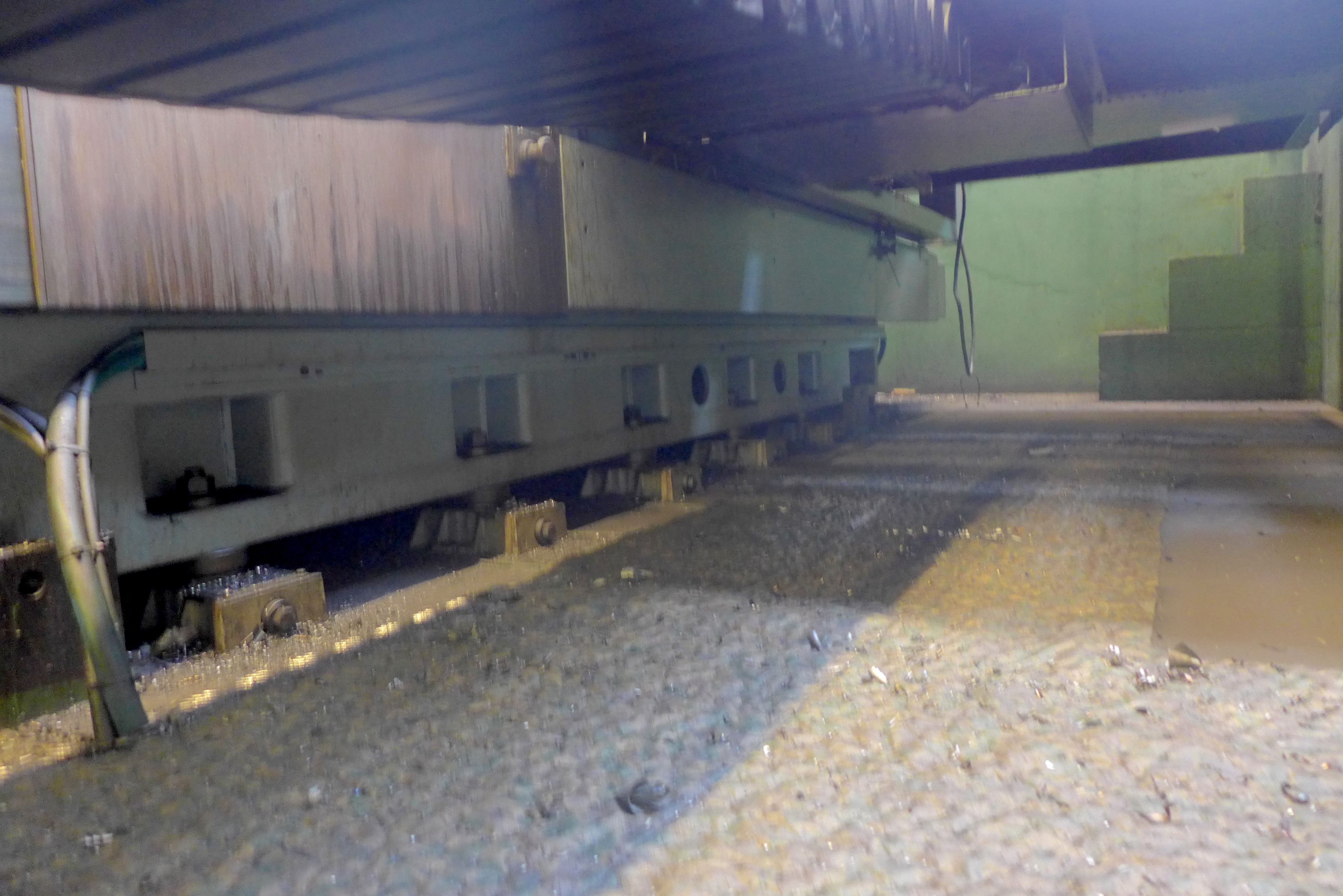

Axes support
Hydrostatic

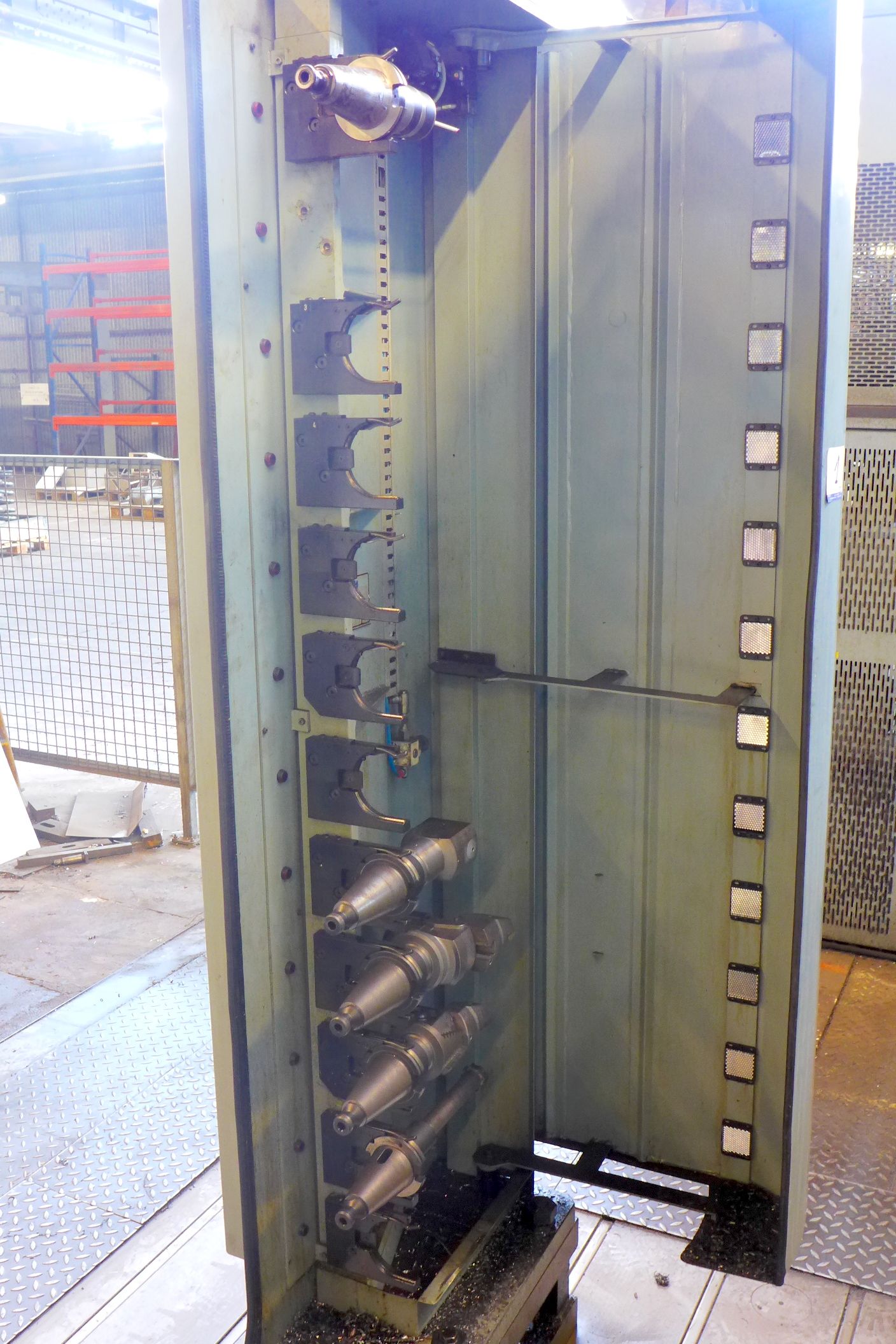

ATC
Max tool lenght
400 mm15,75 in
Max tool weight
35 Kg
Positions
12
Tool taper
ISO50
Max tool diameter
220 mm8,66 in

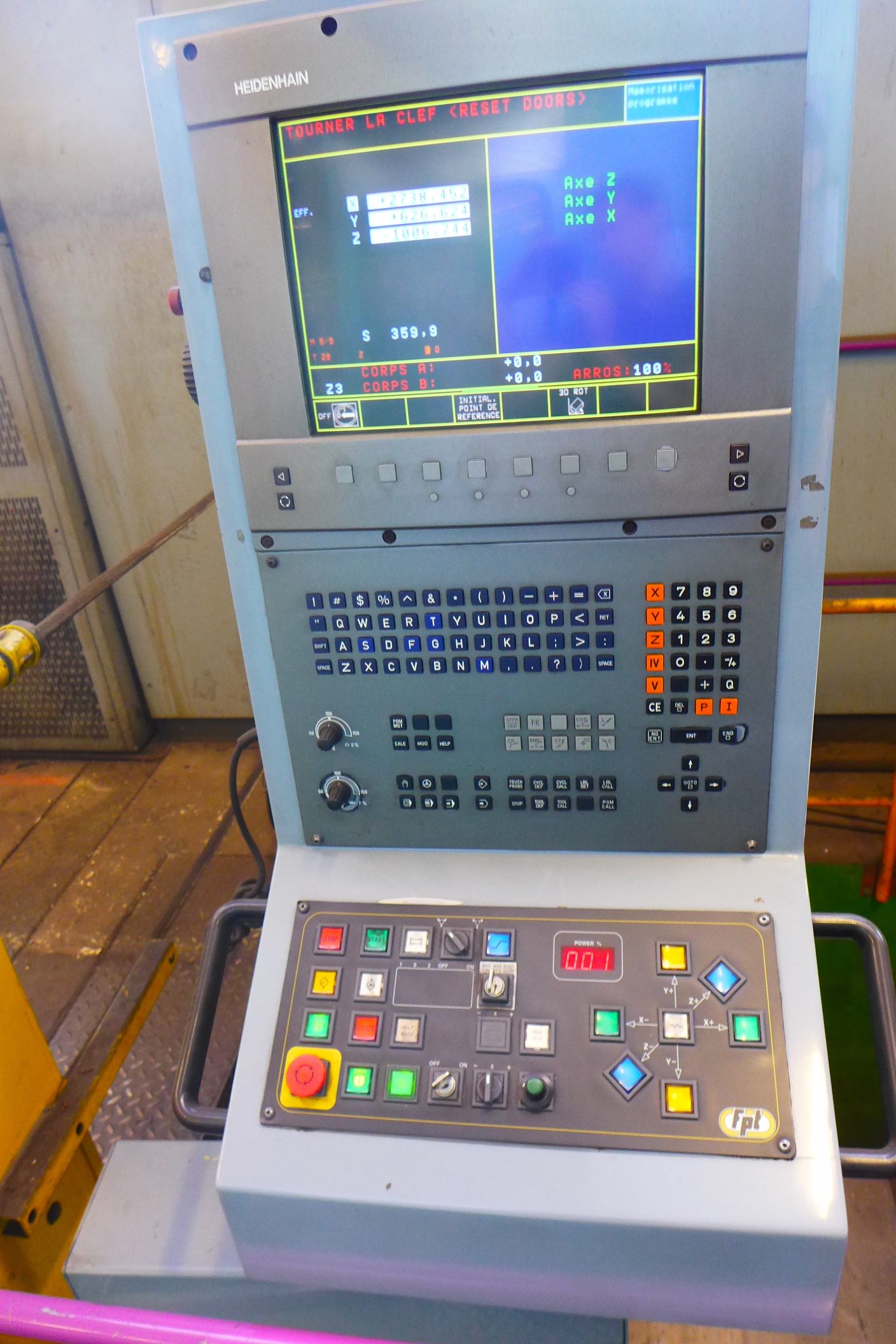

CNC
CNC
Heidenhain TNC430M

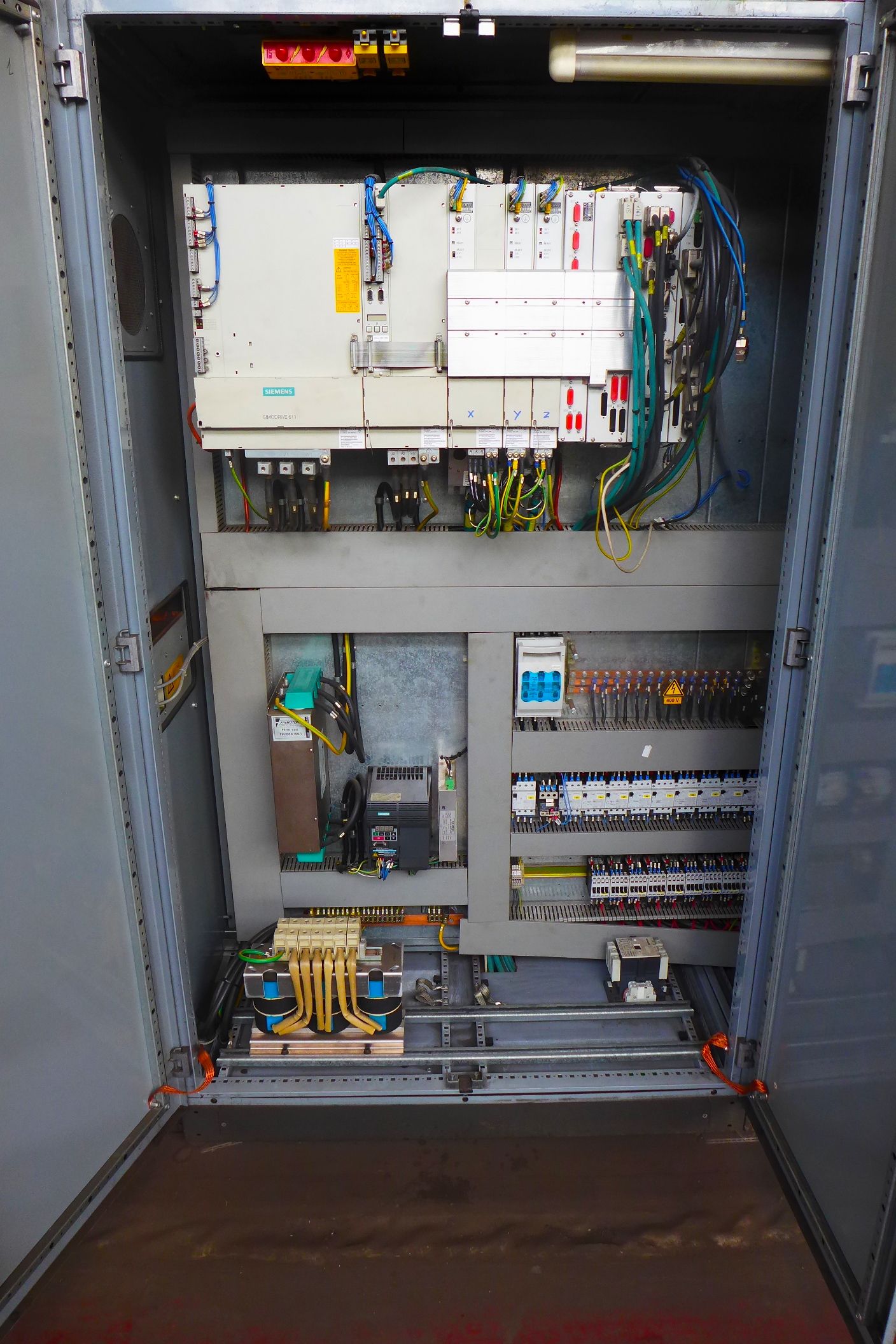

Drives
Siemens
SPINDLE
Spindle power
22/27,5 Kw
Gearbox
2 gears, mechanical gearbox
Rotating speed
187-4000 Rpm
Torque
1400 Nm
Taper
ISO50
FEEDS
Rapid X
15 m/min590,55 ipm
Rapid Y
15 m/min590,55 ipm
Rapid Z
15 m/min590,55 ipm
X
6 m/min236,22 ipm
Y
6 m/min236,22 ipm
Z
6 m/min236,22 ipm

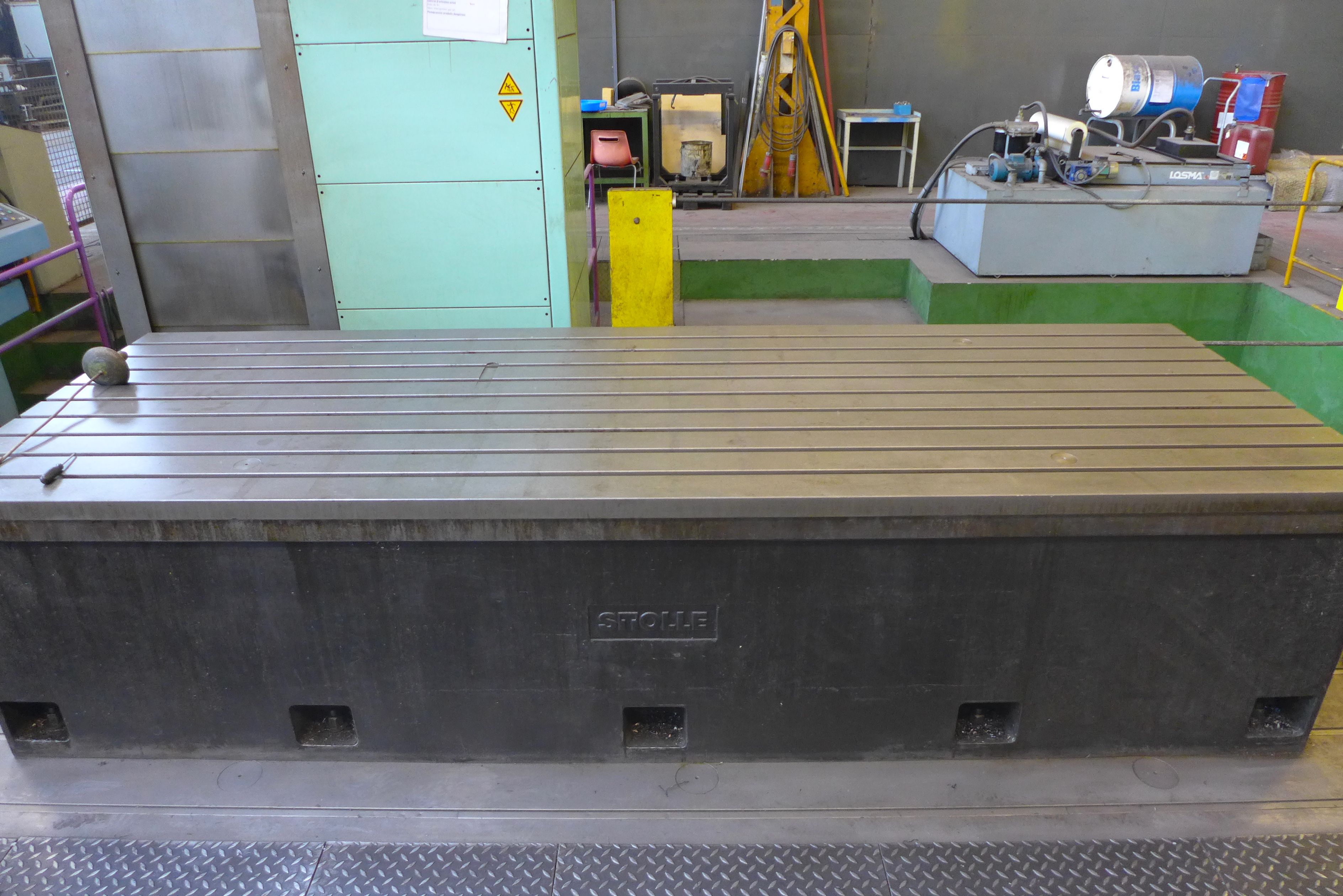

FIXING TABLE
Quantity
1
Floorspace (LxWxH)
6000x1600x300 mm236,22x62,99x11,81 in
Capacity
15000 Kg/mq
T slots number
6

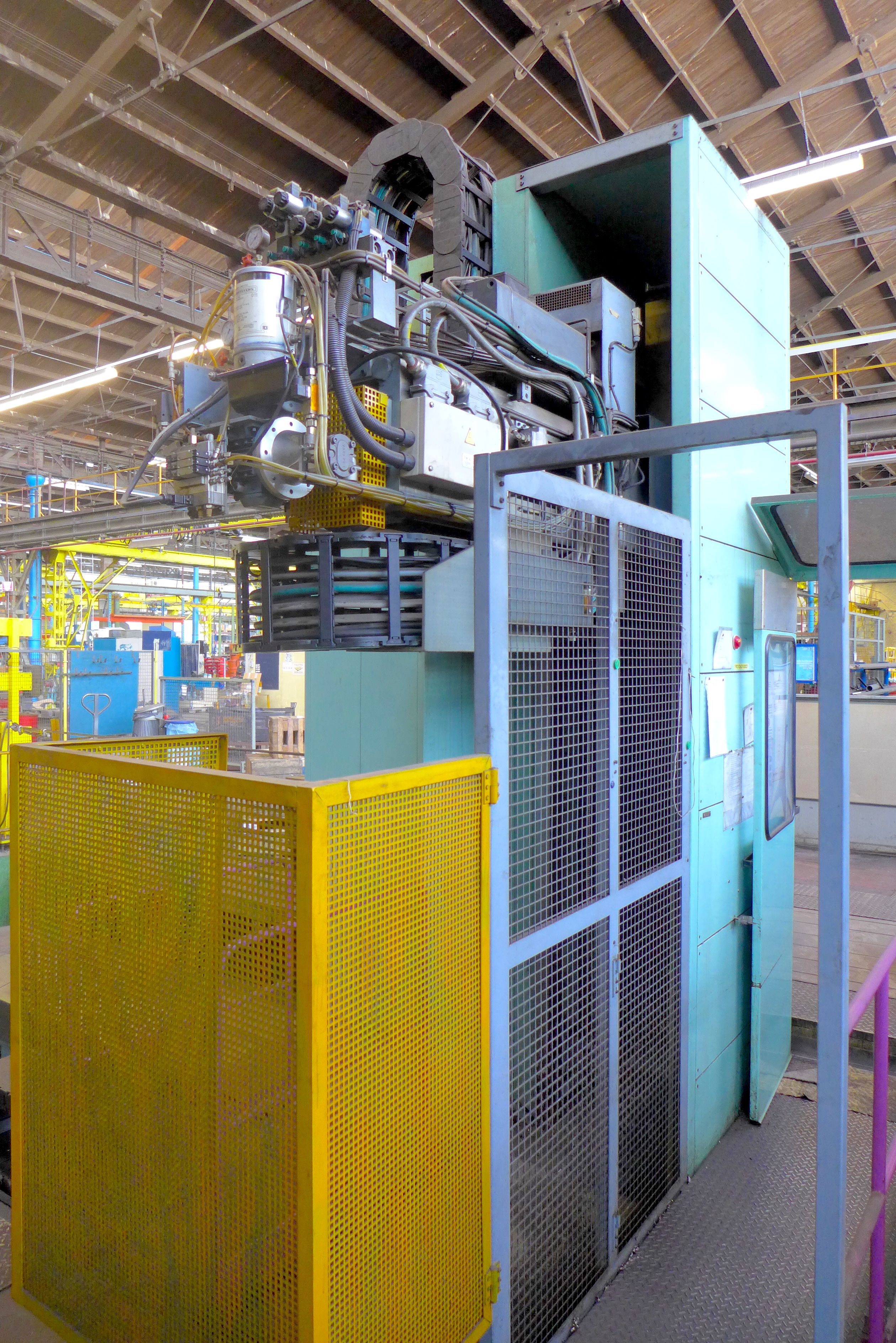

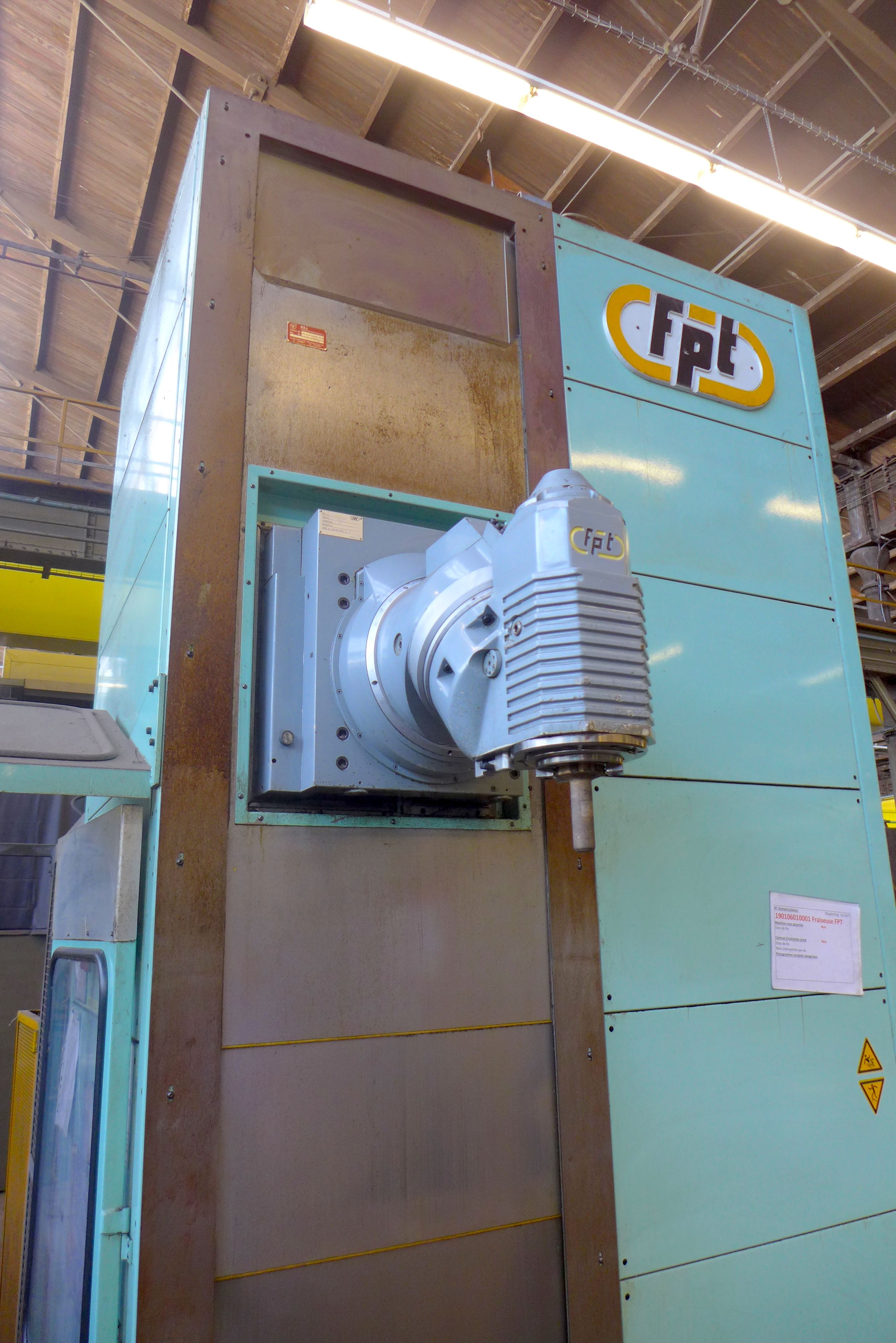

HEAD 1
Type
FPT TUPCG CSA
Spindle taper
ISO50
A axis
144x2,5 °
Max torque
1340 Nm
Max speed
4000 Rpm
Max power
28/35 Kw
Coolant
Int/ext
C axis
144x2,5 °
EXTRA
Workpiece touch probe
Renishaw MP3 radio
Floor space
11000x8060x4100 mm433,07x317,32x161,42 in
Total power supply
53 Kw
Machine total weight
30200 Kg
High Pressure
1200
CE Certification
Yes

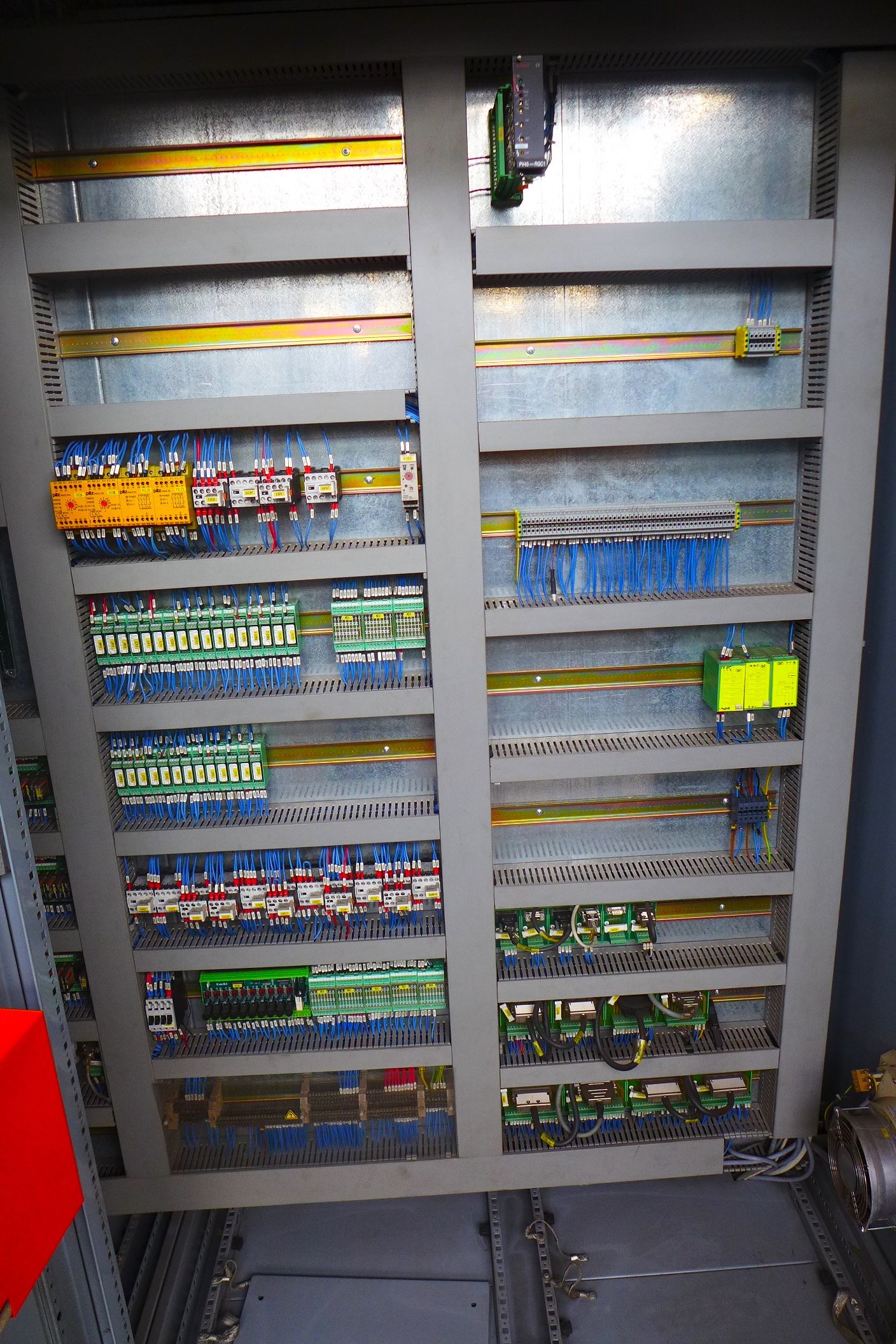

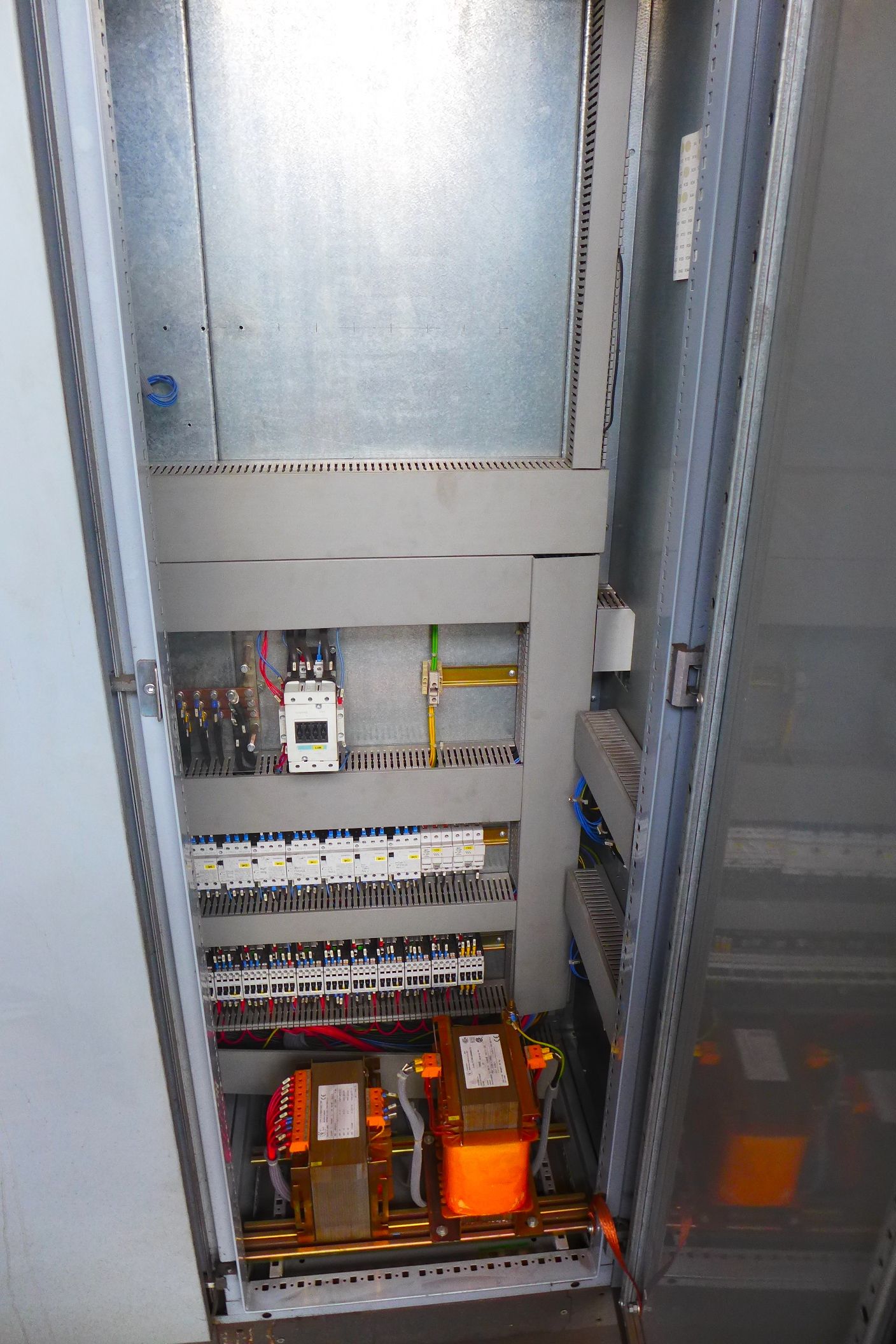

Electrical drawings
Yes

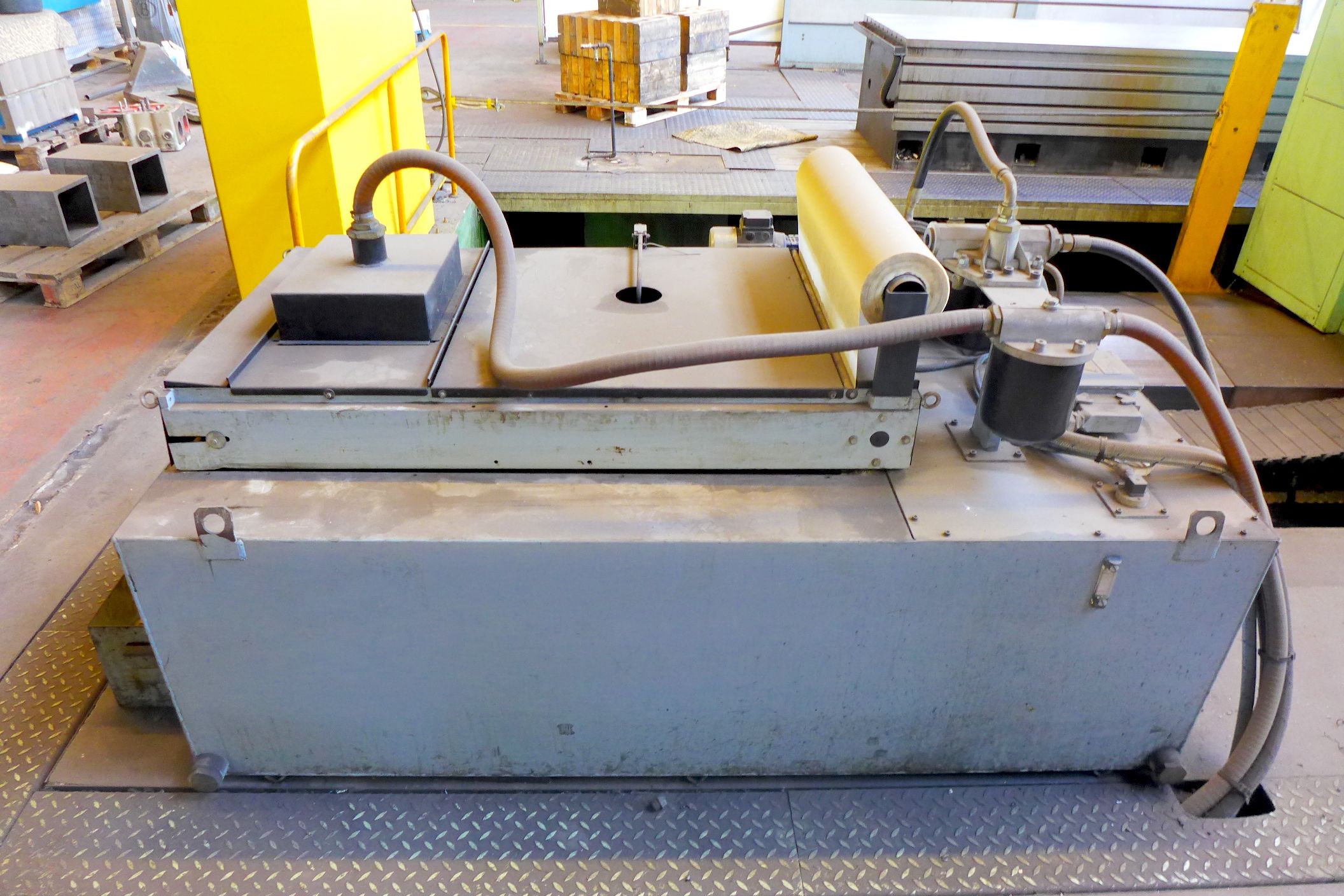

Filtration unit
vasca filtro a carta
Chiller
si
Tooling included
pickup station for special tools
Chip conveyor
si
Maintenance & Use books
Yes
