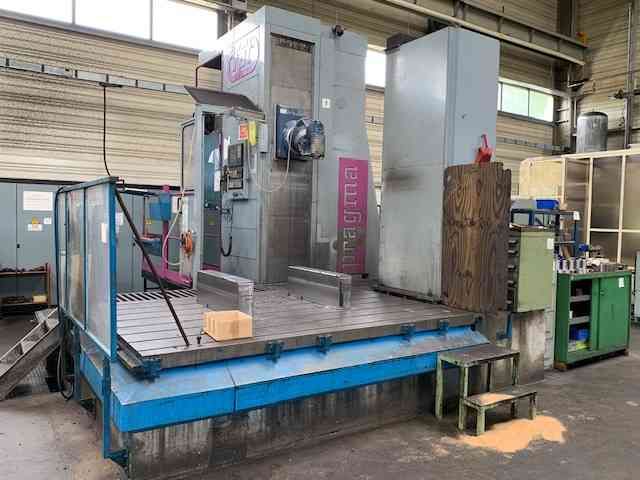

Category
Milling machine
Type
mobile column
Made
Model
PRAGMA SU30
Capacity
3000x1600x1250 mm118,11x62,99x49,21 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
3000 mm118,11 in
Vertical (Y)
1600 mm62,99 in
Cross RAM (Z)
1250 mm49,21 in

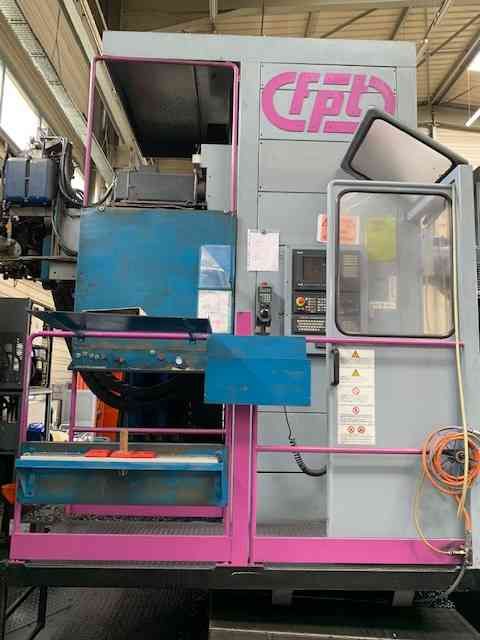

CNC
CNC
Siemens 840D
Drives
Siemens Sinumerik
SPINDLE
RAM section
450x530 mm17,72x20,87 in
Spindle power
24/27,5 Kw
Gearbox
I: 0-235 / II: 235-5000Rpm
Rotating speed
0-5000 Rpm
Torque
1120 Nm
Taper
ISO50
FEEDS
Rapid X
30 m/min1.181,10 ipm
Rapid Y
30 m/min1.181,10 ipm
Rapid Z
30 m/min1.181,10 ipm
X
15 m/min590,55 ipm
Y
15 m/min590,55 ipm
Z
15 m/min590,55 ipm

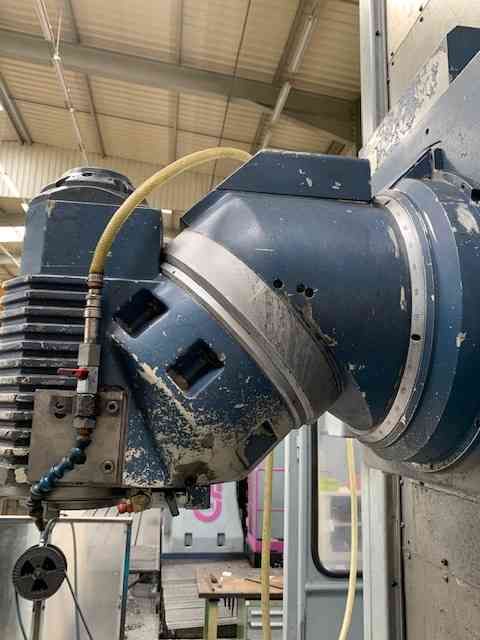

HEAD 1
Type
FPT TUPC
Spindle taper
ISO50
Max torque
1120 Nm
Max speed
5000 Rpm
Max power
27.5 Kw
HEAD 2
Available upon request
No
A axis
144x2.5 °
C axis
144x2.5 °
Max speed
14.000 Rpm

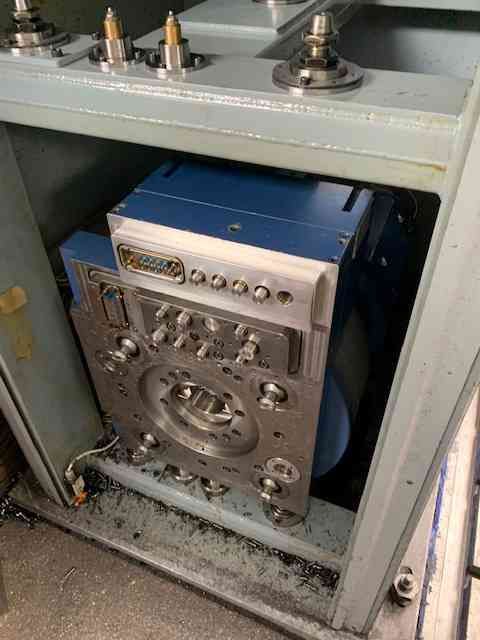

PICK UP STATION FOR HEADS
Positions
3
