Category
Milling machine
Type
mobile column
Made
Model

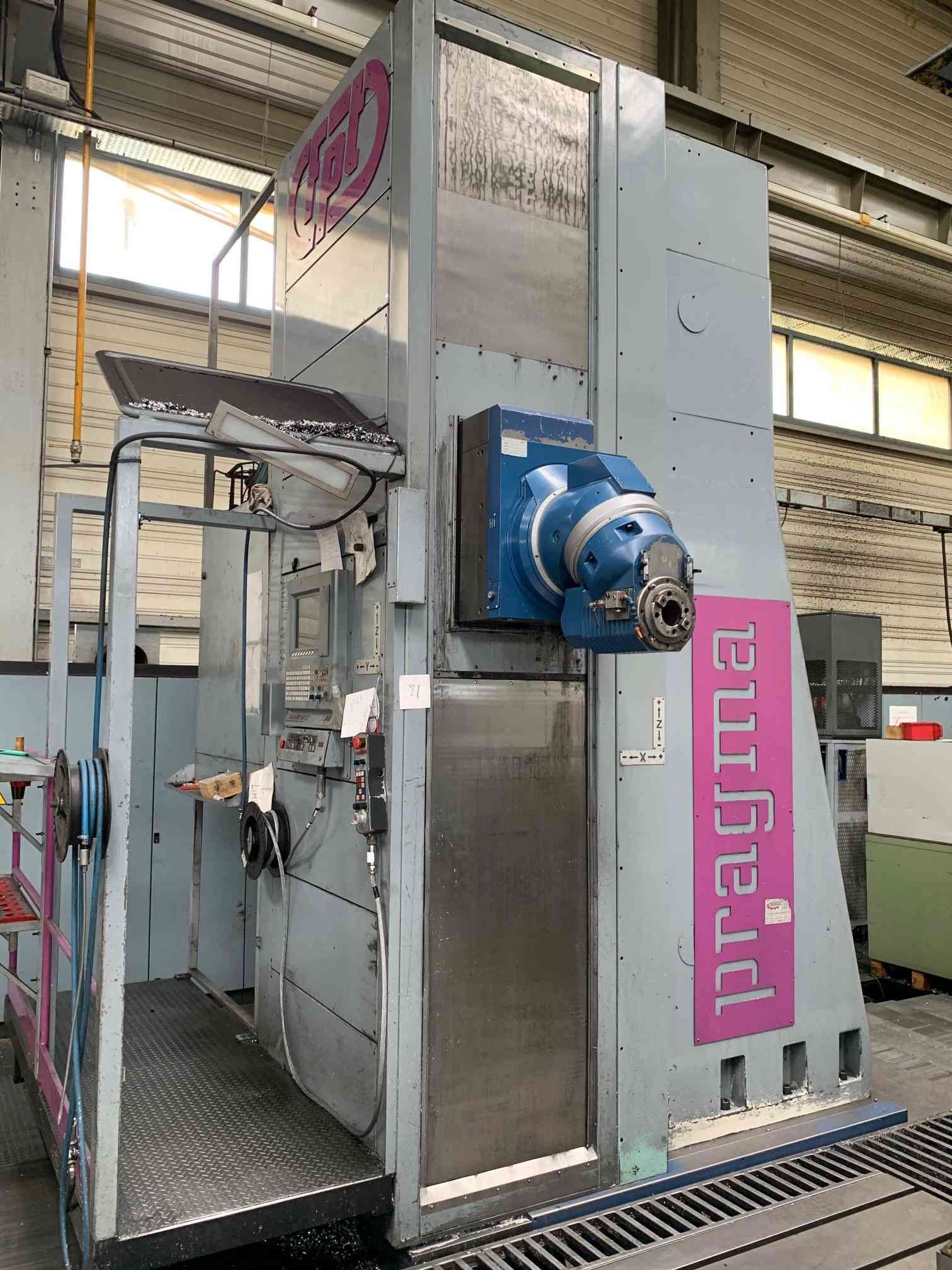

PRAGMA M60
Capacity
6000x2000x1200 mm236,22x78,74x47,24 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
6000 mm236,22 in
Vertical (Y)
2000 mm78,74 in
Cross RAM (Z)
1200 mm47,24 in

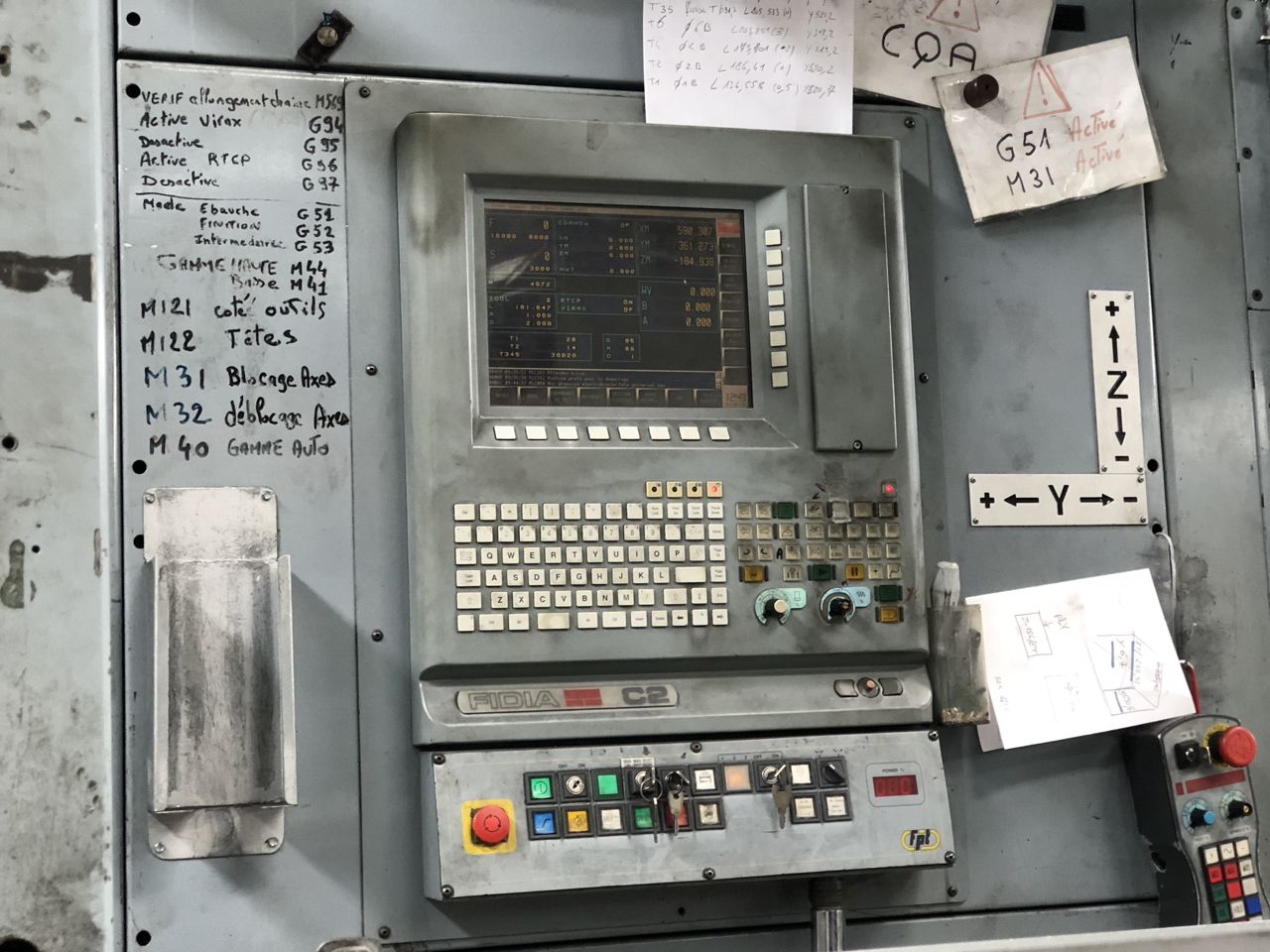

CNC
CNC
Fidia C2/4F
Drives
SIEMENS Sinumerik
SPINDLE
RAM section
450x530 mm17,72x20,87 in
Spindle power
24/27,5 Kw
Gearbox
I: 0-235 / II: 235-5000Rpm
Rotating speed
0-5000 Rpm
Torque
1120 Nm
Taper
ISO50
FEEDS
Rapid X
30 m/min1.181,10 ipm
Rapid Y
30 m/min1.181,10 ipm
Rapid Z
30 m/min1.181,10 ipm
X
15 m/min590,55 ipm
Y
15 m/min590,55 ipm
Z
15 m/min590,55 ipm

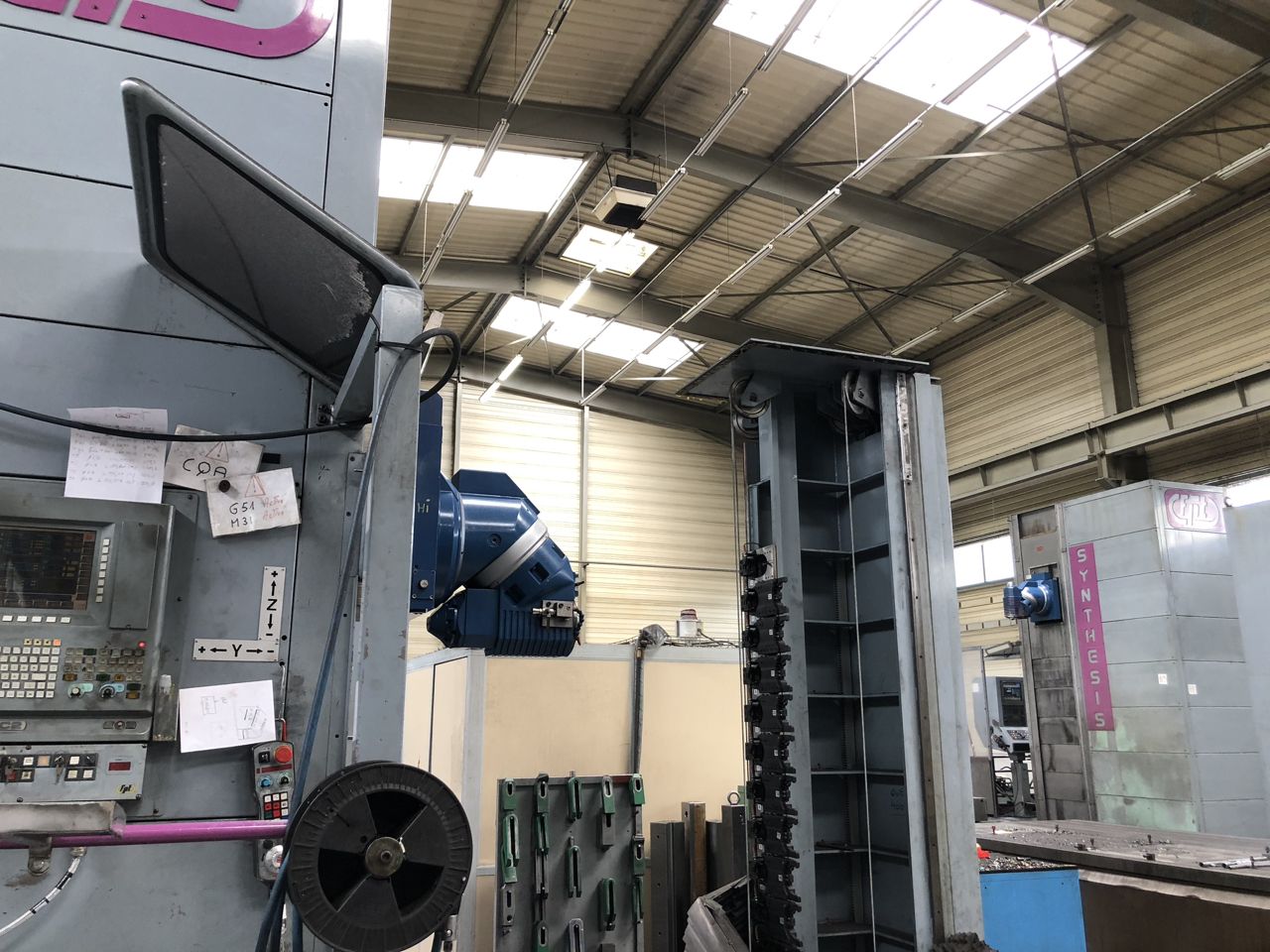

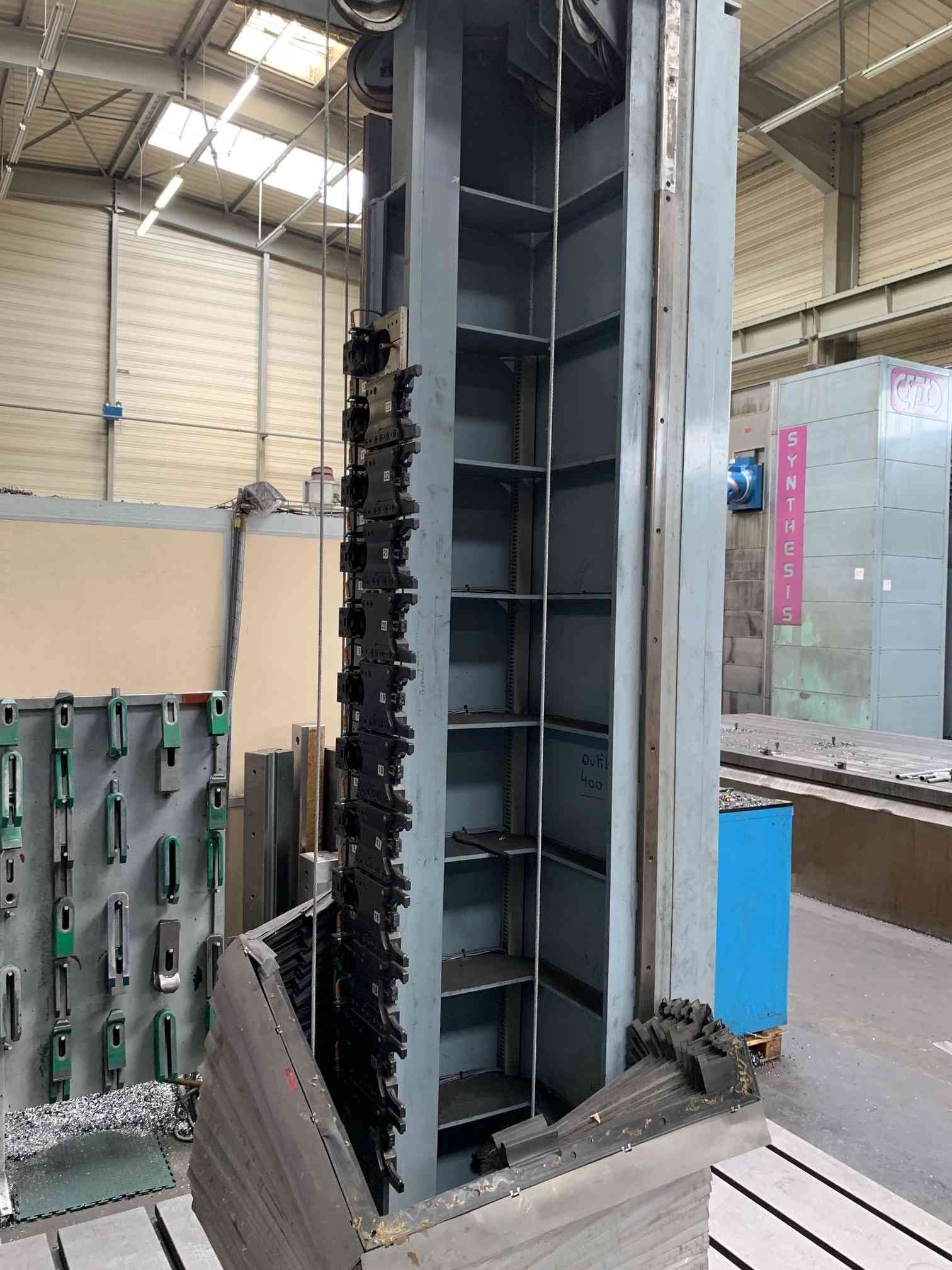

ATC
Positions
24 (12 HSK63+12 ISO50)
Max tool weight
20 Kg
Tool taper
ISO50 / HSK63
Position
Pickup station
PICK UP STATION FOR HEADS
Positions
3

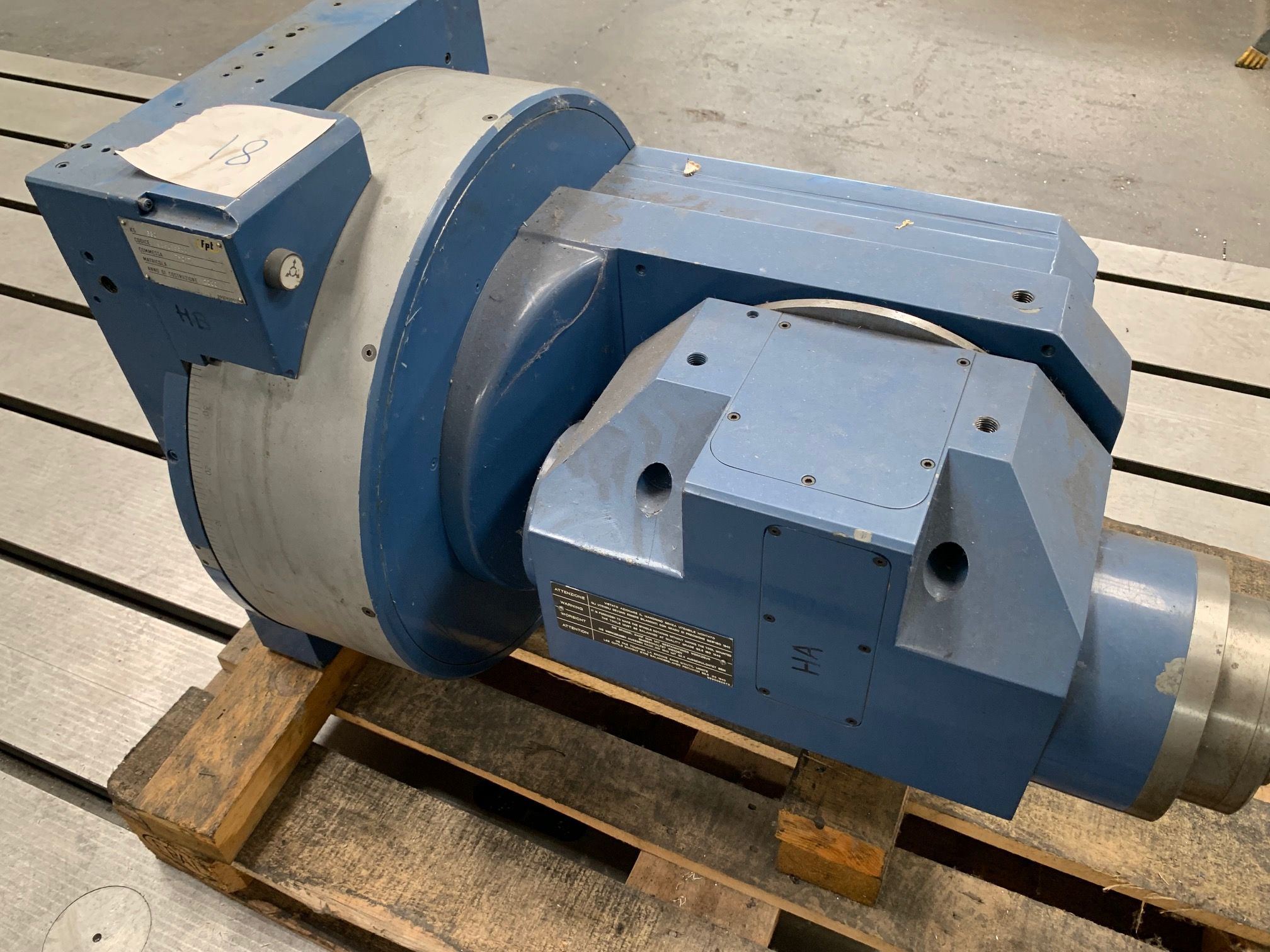

HEAD 1
Type
FPT TUPC
Spindle taper
ISO50
A axis
144x2,5 °
C axis
144x2,5 °
Max torque
1120 Nm
Max speed
5000 Rpm
Max power
27,5 Kw
Available upon request
No
HEAD 2
Available upon request
No
A axis
144x2,5 °
C axis
144x2,5 °
Max speed
18.000 Rpm
HEAD 3
Available upon request
No
A axis
144x2,5 °
C axis
144x2,5 °
Max speed
24.000 Rpm
FIXING TABLE
Available upon request
No
EXTRA
Total power supply
62 Kw
Machine total weight
≈50.000 Kg
Filtration unit
Vasca filtro
Chiller
si
CE Certification
Yes
Chip conveyor
si
Availability
pronta
Available in stock
si
