Category
Milling machine
Type
mobile column
Made
Model
PRAGMA M40
Capacity
4000x2000x1200 mm157,48x78,74x47,24 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
4000 mm157,48 in
Vertical (Y)
2000 mm78,74 in
Cross RAM (Z)
1200 mm47,24 in

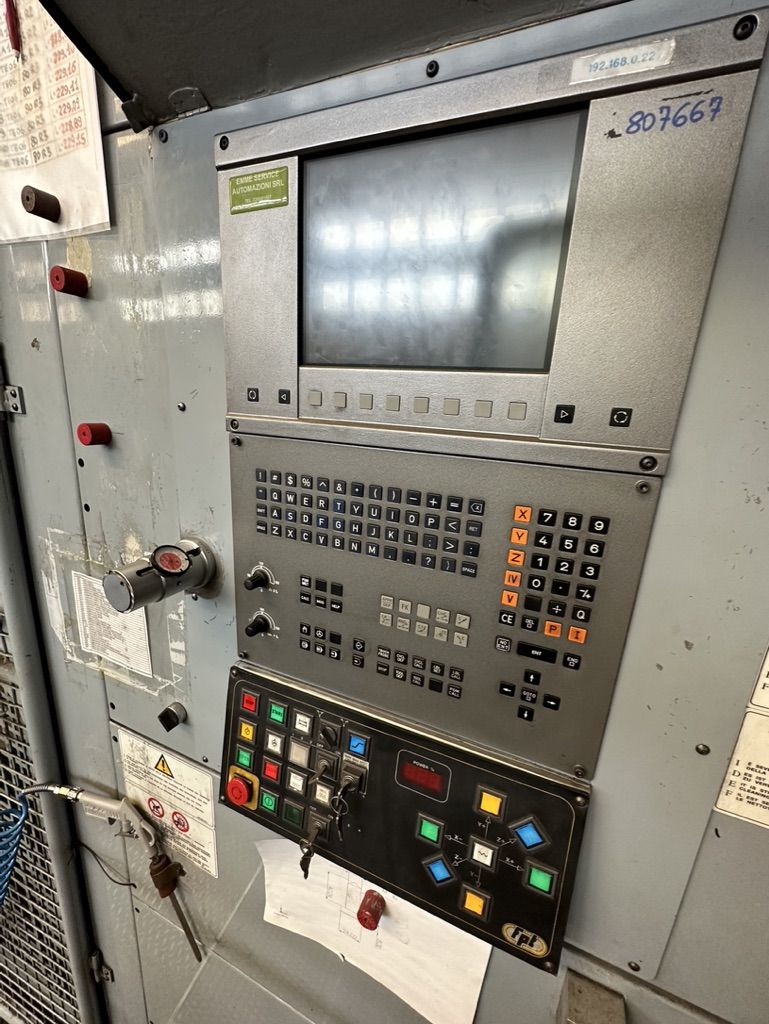

CNC
CNC

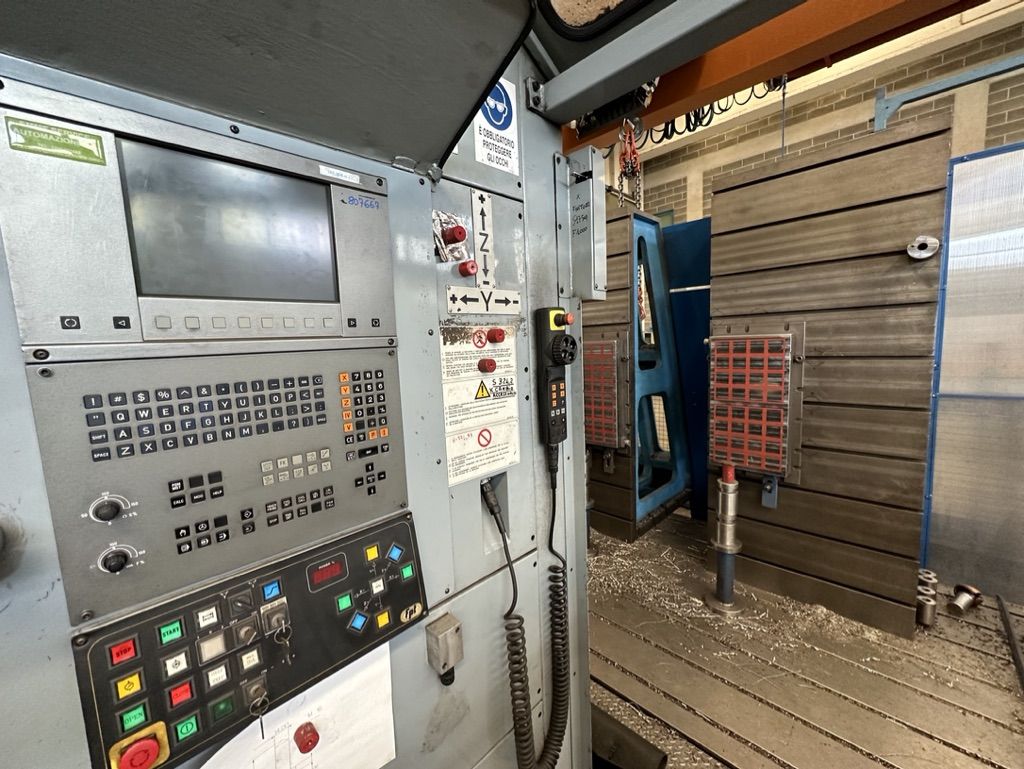

Heidenhain TNC430

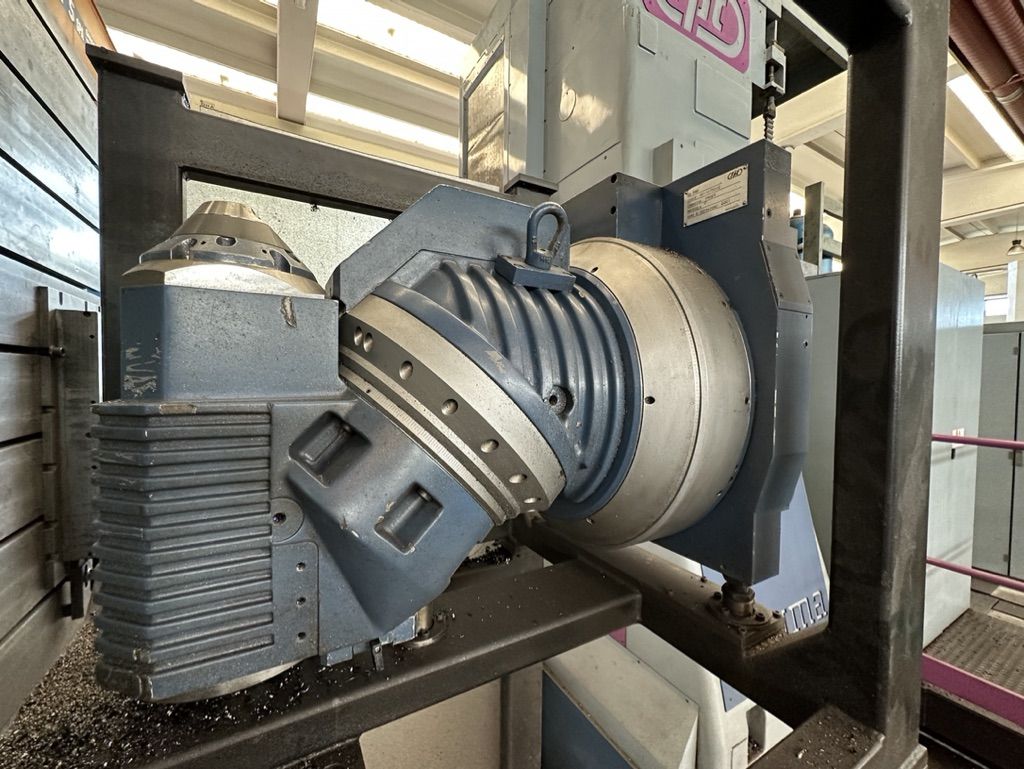

HEAD 1
Type
TUPC
Spindle taper
ISO50
A axis
360.000x0,001 °
C axis
360.000x0,001 °
Max speed
5000 Rpm
Max power
27,5 Kw
Max torque
1120 Nm
Notes
revisionata 07/2022
ATC
Positions
12
Max tool diameter
220 mm8,66 in
Max tool lenght
400 mm15,75 in
Max tool weight
35 Kg
SPINDLE
Spindle power
27,5 Kw
Rotating speed
5000 Rpm
Torque
1120 Nm
Taper
ISO50
FIXING TABLE
Floorspace (LxWxH)
5000x2000x330 mm196,85x78,74x12,99 in
HEAD 2
Available upon request
No
Max torque
1120 Nm
Max speed
5000 Rpm

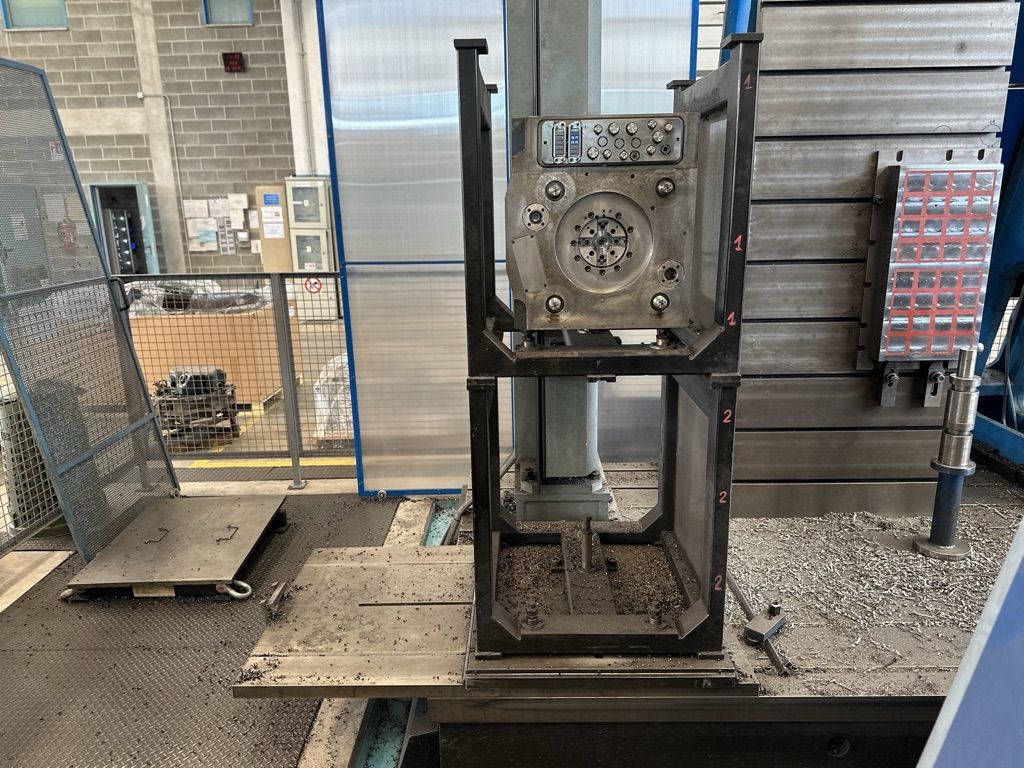

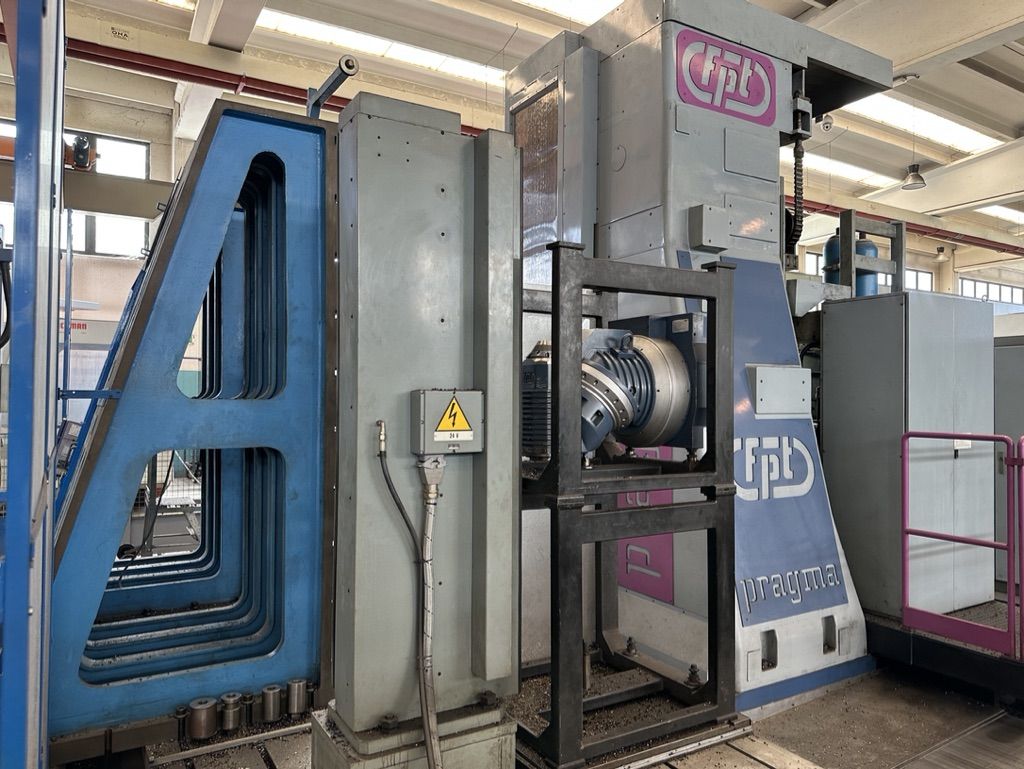

PICK UP STATION FOR HEADS
Positions
2 (con aggancio automatico)
EXTRA
Floor space
≈ 8900x8000x4200 mm≈ 350,39x314,96x165,35 in
Housing
perimetrale
Chip conveyor
si
Electrical drawings
Yes
Maintenance & Use books
Yes
Total power supply
61,6 Kw
