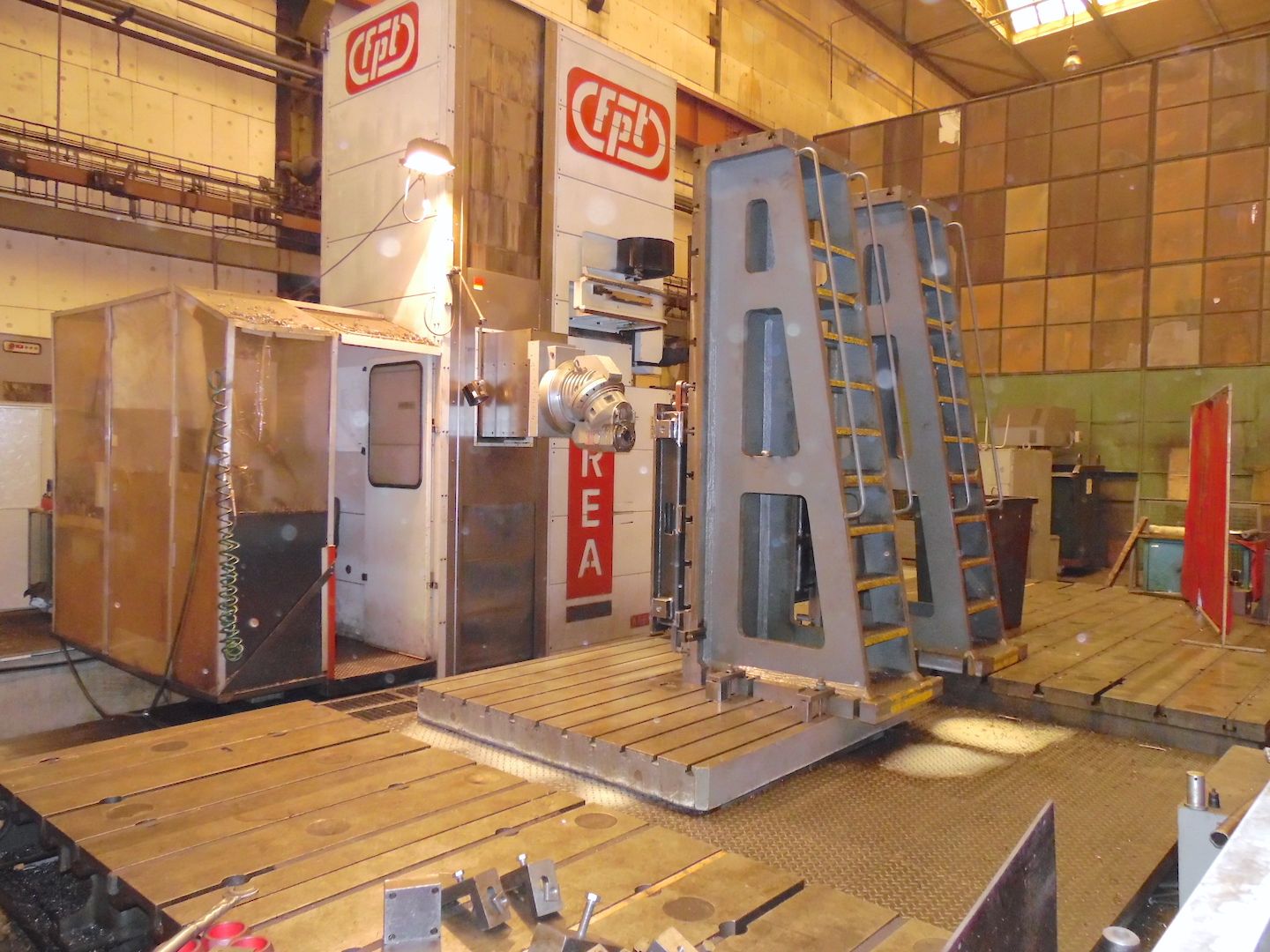

Category
Milling machine
Type
mobile column
Made
Model

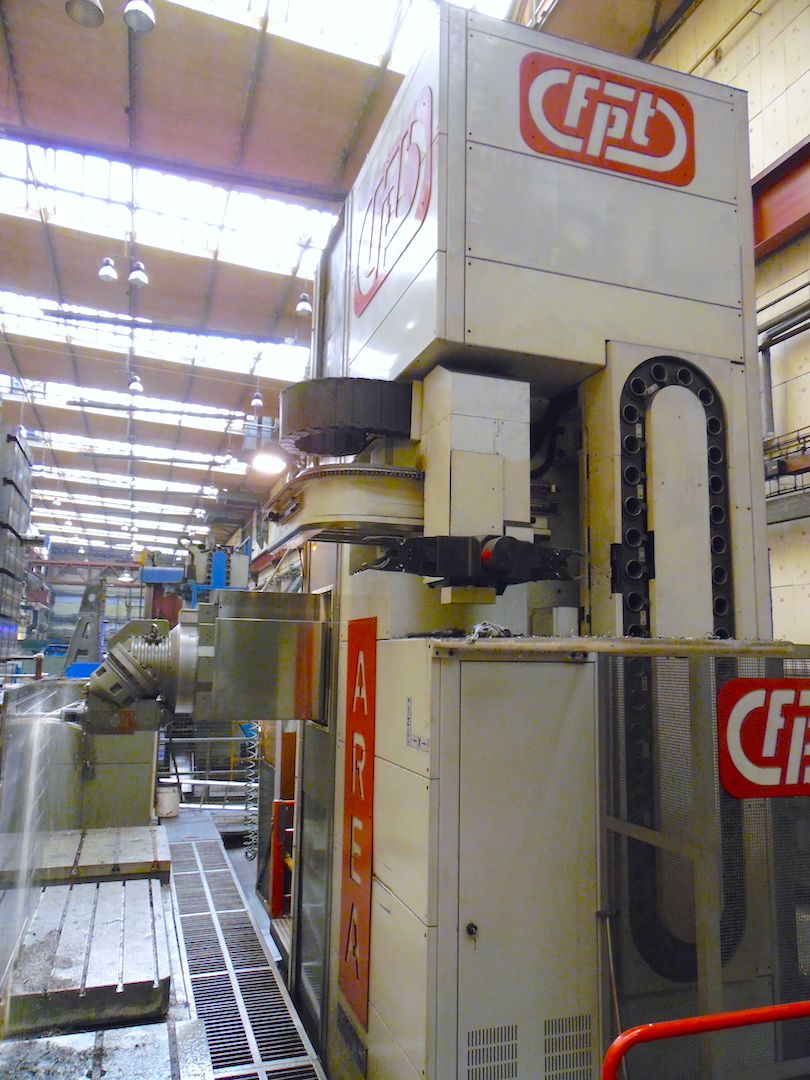

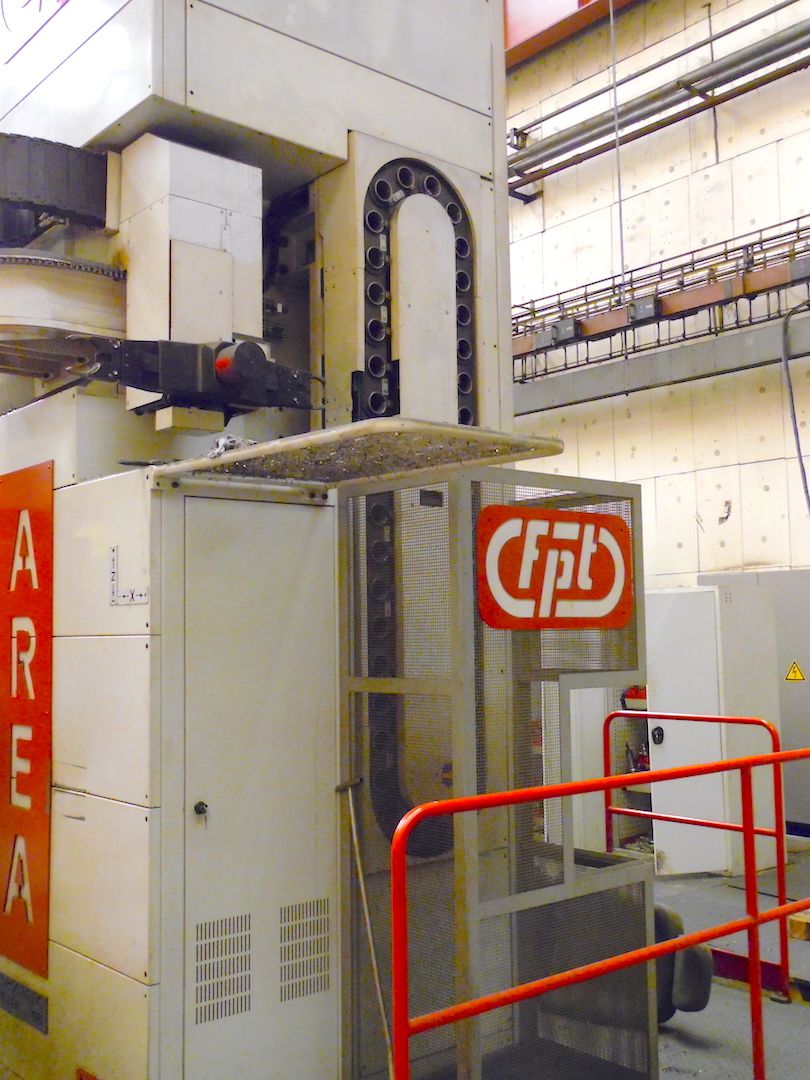

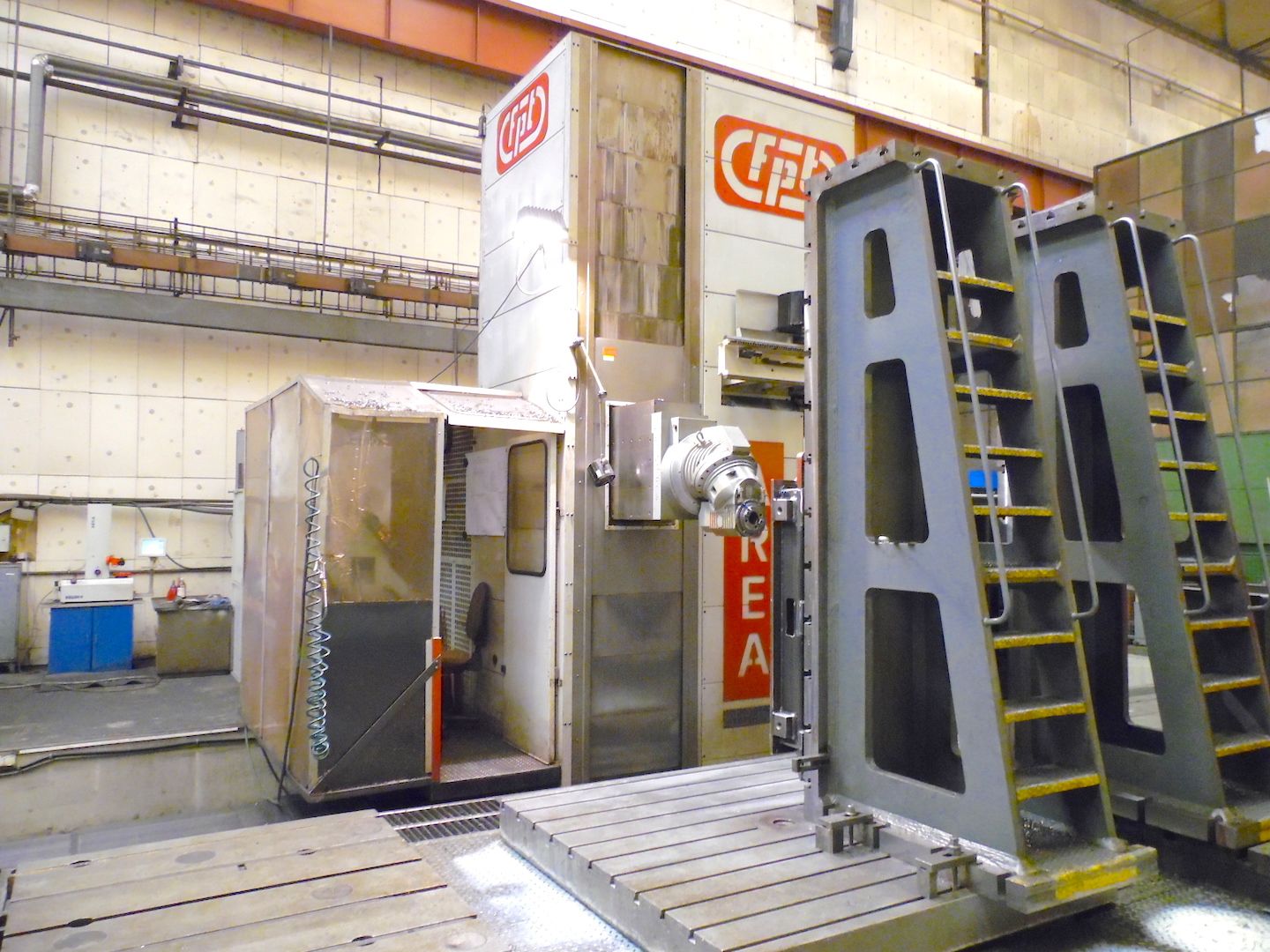

AREA M80
Capacity
8000x3000x1250 mm314,96x118,11x49,21 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
8000 mm314,96 in
Vertical (Y)
3000 mm118,11 in
Cross RAM (Z)
1250 mm49,21 in

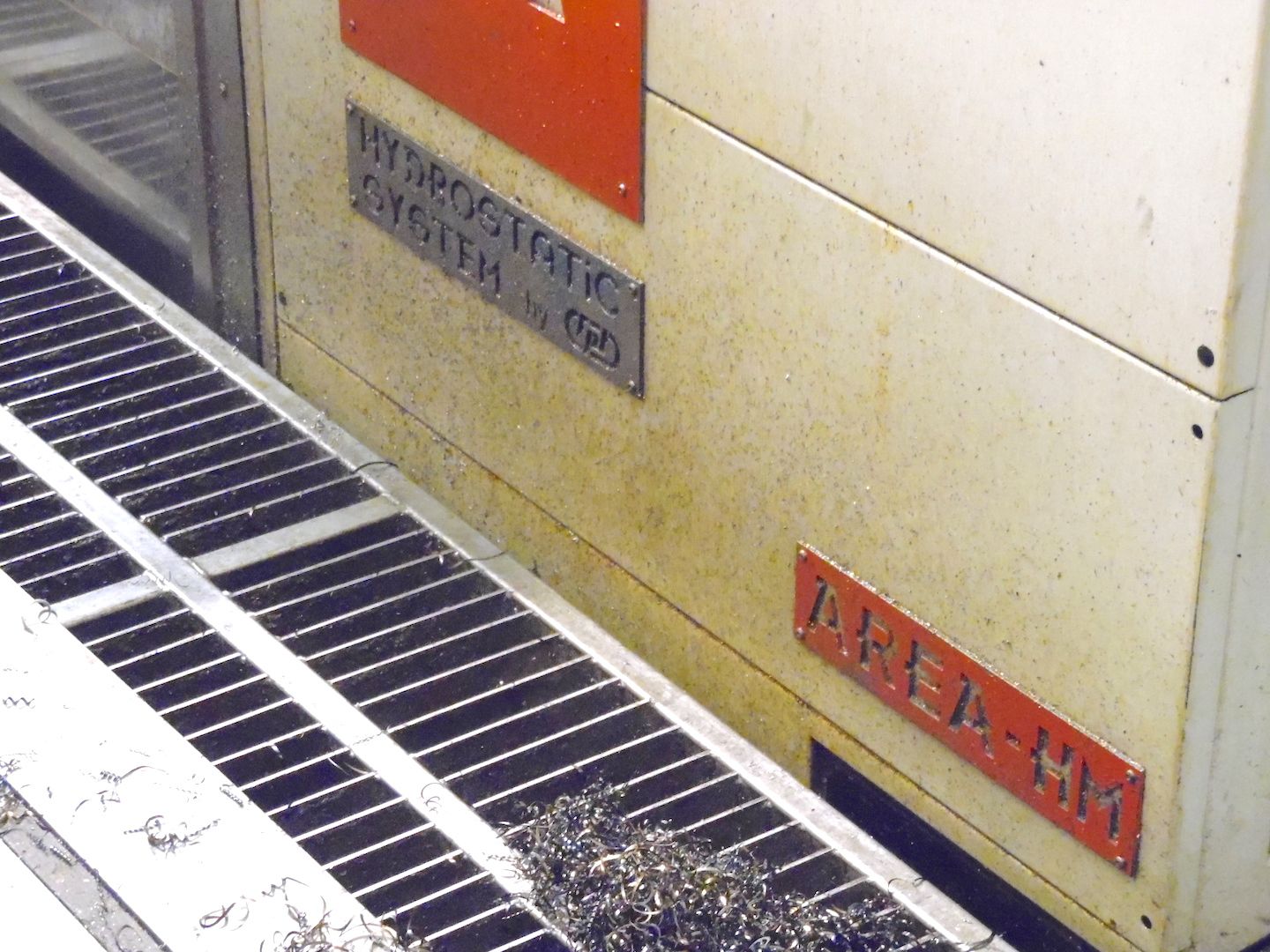

Axes support
Idrostatico
CNC
CNC

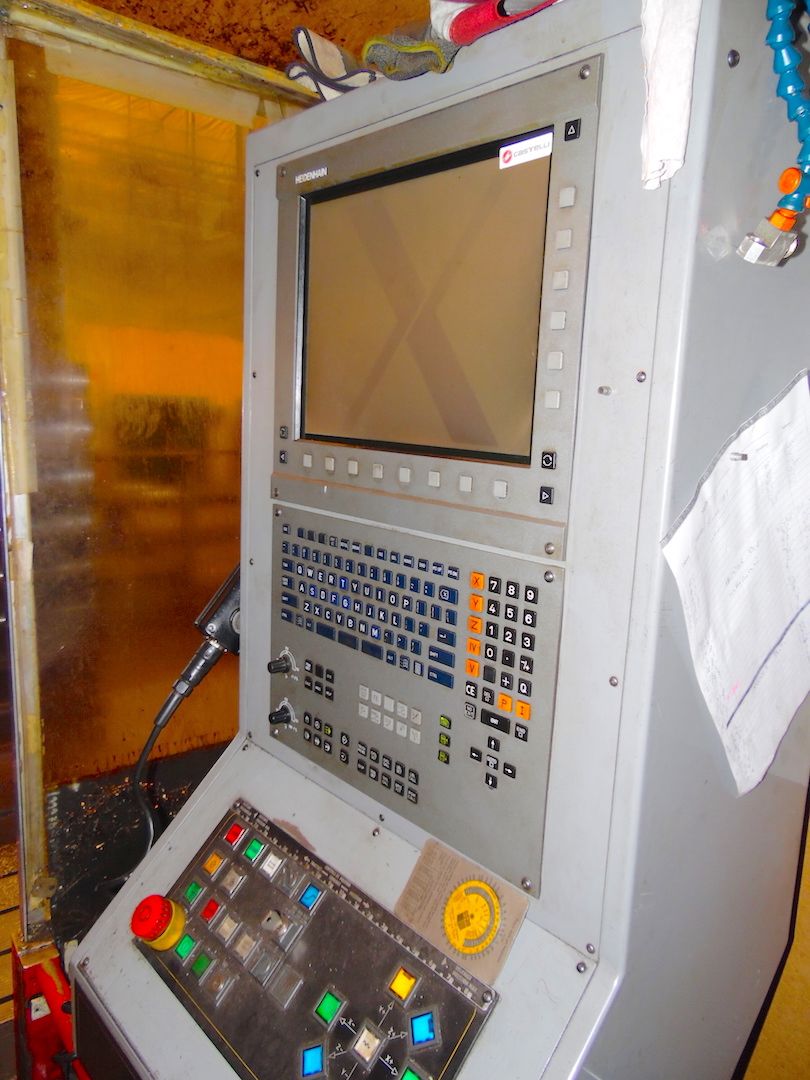

Heidenhain iTNC530 + HR410
Drives
SIEMENS
Measuring system
Righe ottiche Heidenhain
SPINDLE
Spindle power
46/37 Kw
Rotating speed
5000 Rpm
Torque
1691-2045 Nm
Taper
ISO50
RAM section
500x430 mm19,69x16,93 in
FEEDS
Rapid X
25 m/min984,25 ipm
Rapid Y
25 m/min984,25 ipm
Rapid Z
25 m/min984,25 ipm
ATC
Positions
40
Max tool diameter
125 mm4,92 in
Max diam with free adiacent space
230 mm9,06 in
Max tool lenght
400 mm15,75 in
Tool taper
ISO50
TABLE 1
Surface
2000x2000 mm78,74x78,74 in
Accuracy (B axis)
360.000x0,001 °
Capacity
15.000 Kg
Notes
FPT TRF15

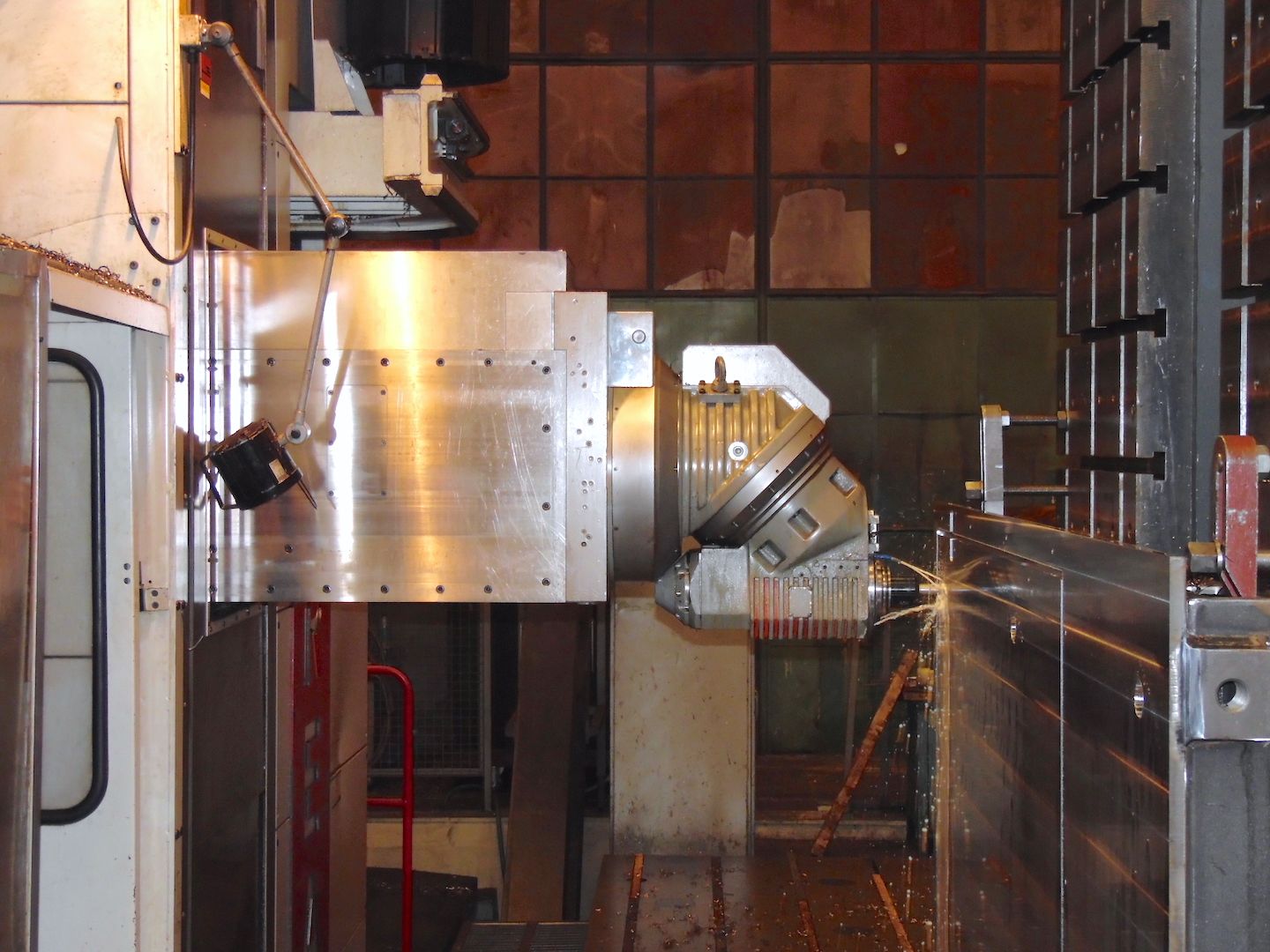

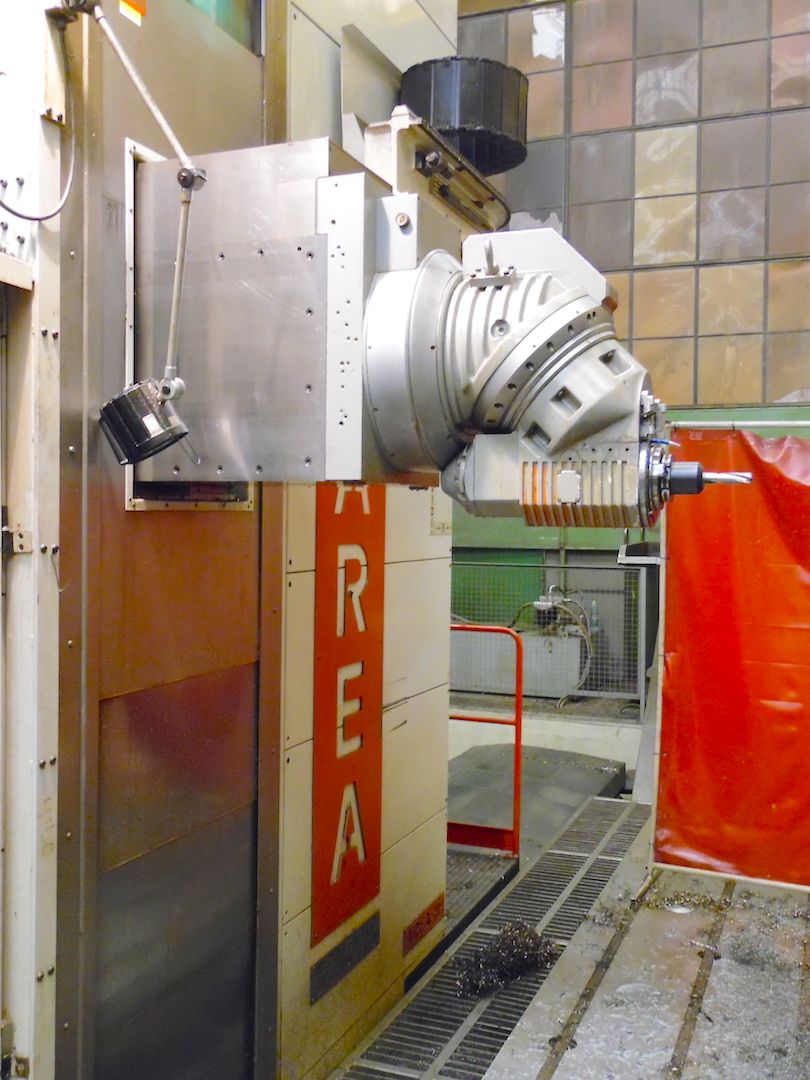

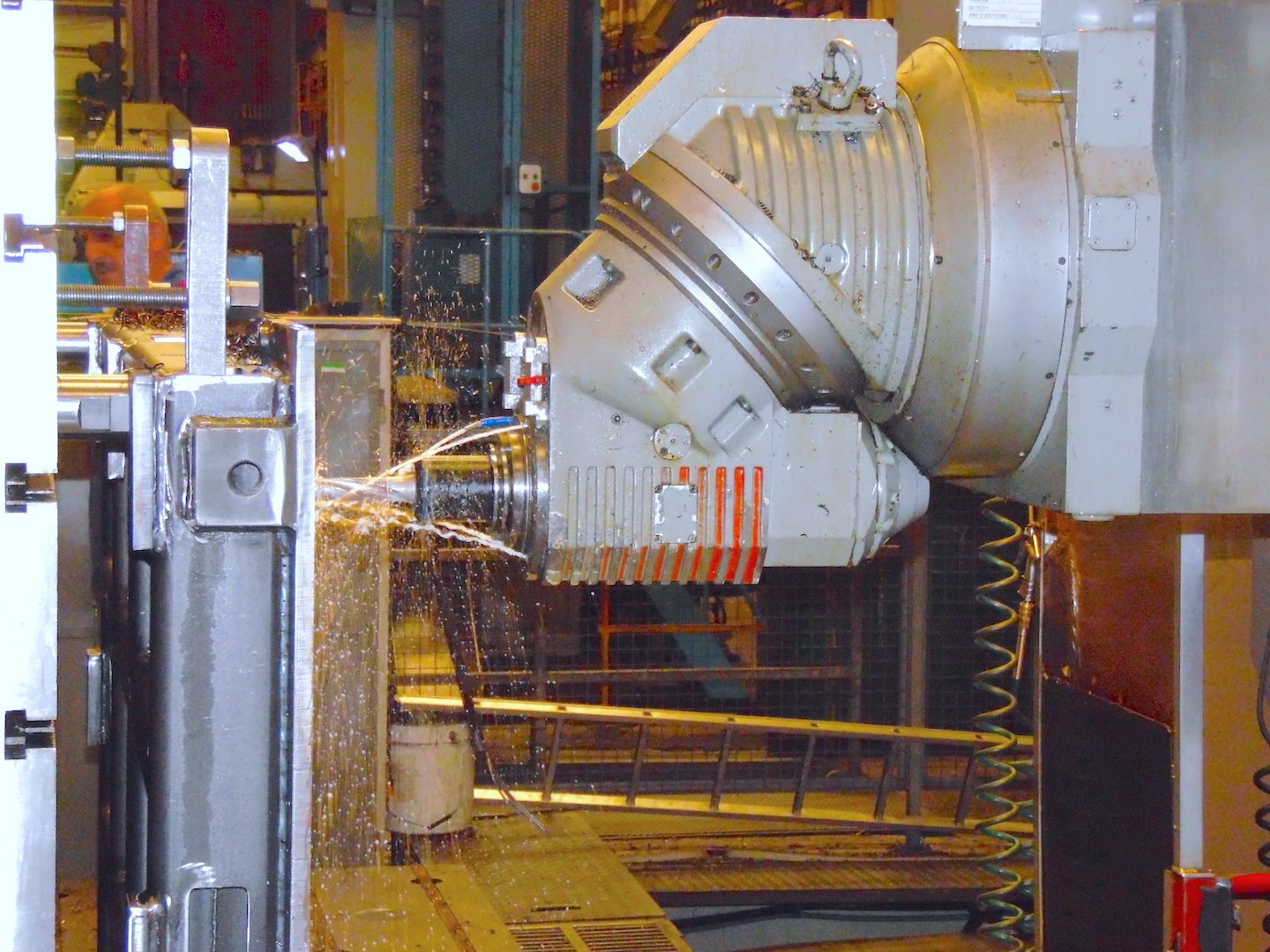

HEAD 1
Type
FPT TUPC
Spindle taper
ISO50
A axis
360.000x0,001 °
C axis
360.000x0,001 °
Max torque
1210 Nm
Max speed
5000 Rpm
Max power
46/37 Kw
Coolant
interno 20 Bar
HEAD 2
Available upon request
No
Max speed
5000 Rpm
Max power
46 Kw

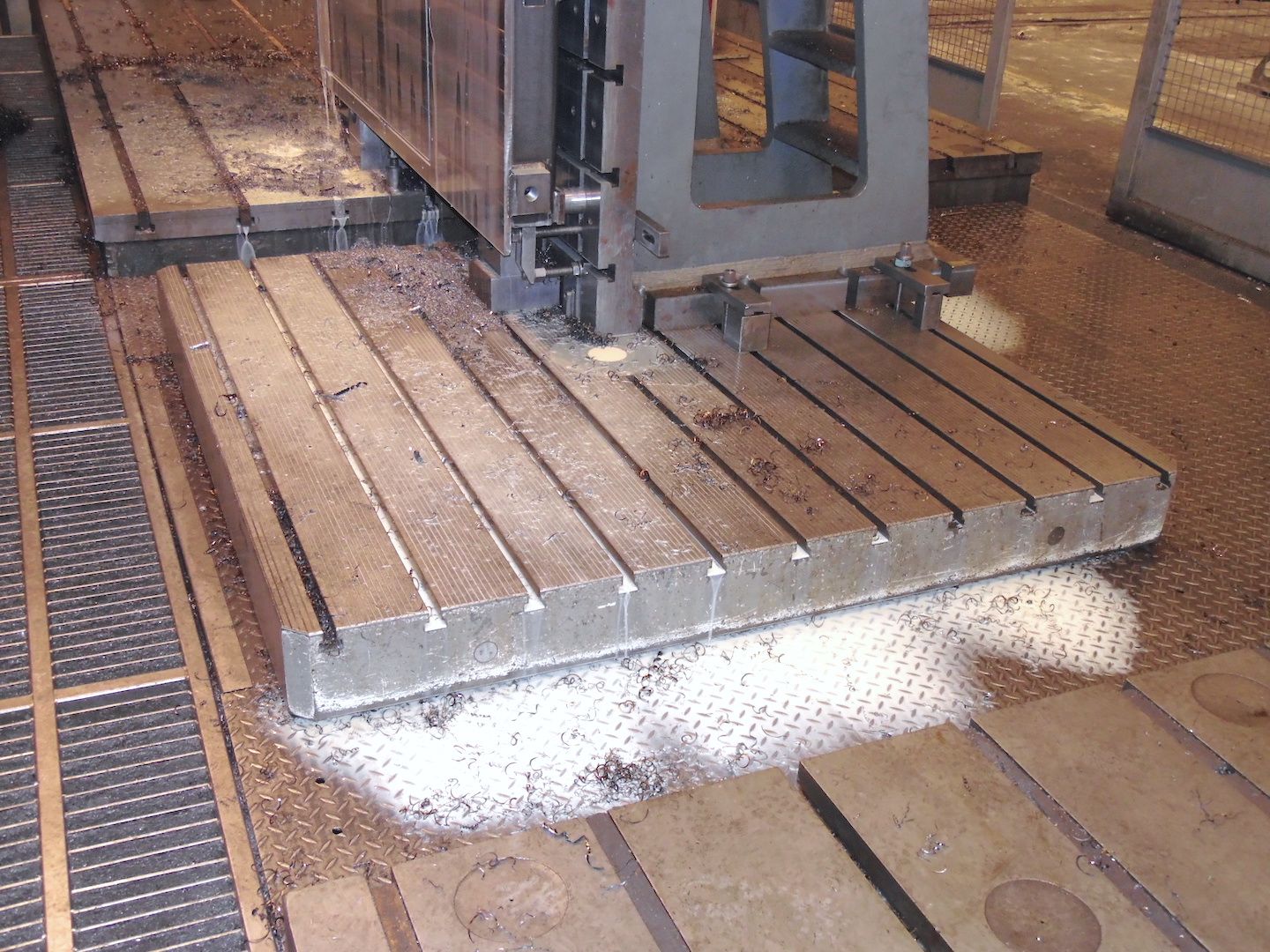

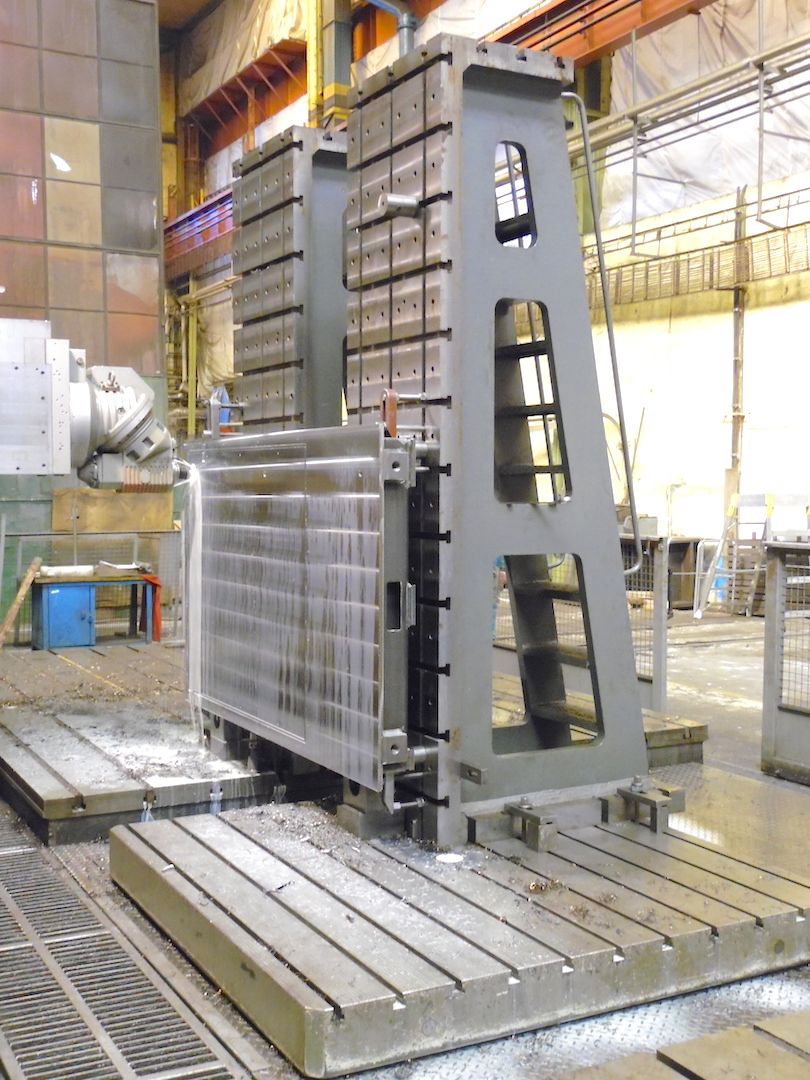

FIXING TABLE
Quantity
2
Floorspace (LxWxH)
4900x3750 + 1400x3750 mm192,91x147,64 + 55,12x147,64 in
PICK UP STATION FOR HEADS
Positions
2
EXTRA
High Pressure
20bar
Chiller
Si
Chip conveyor
Si
Maintenance & Use books
Yes
CE Certification
Yes
Electrical drawings
Yes
Floor space
14000x7655(con piani profondi 3750mm)x5389 mm551,18x301,38(con piani profondi 147,64mm)x212,16 in

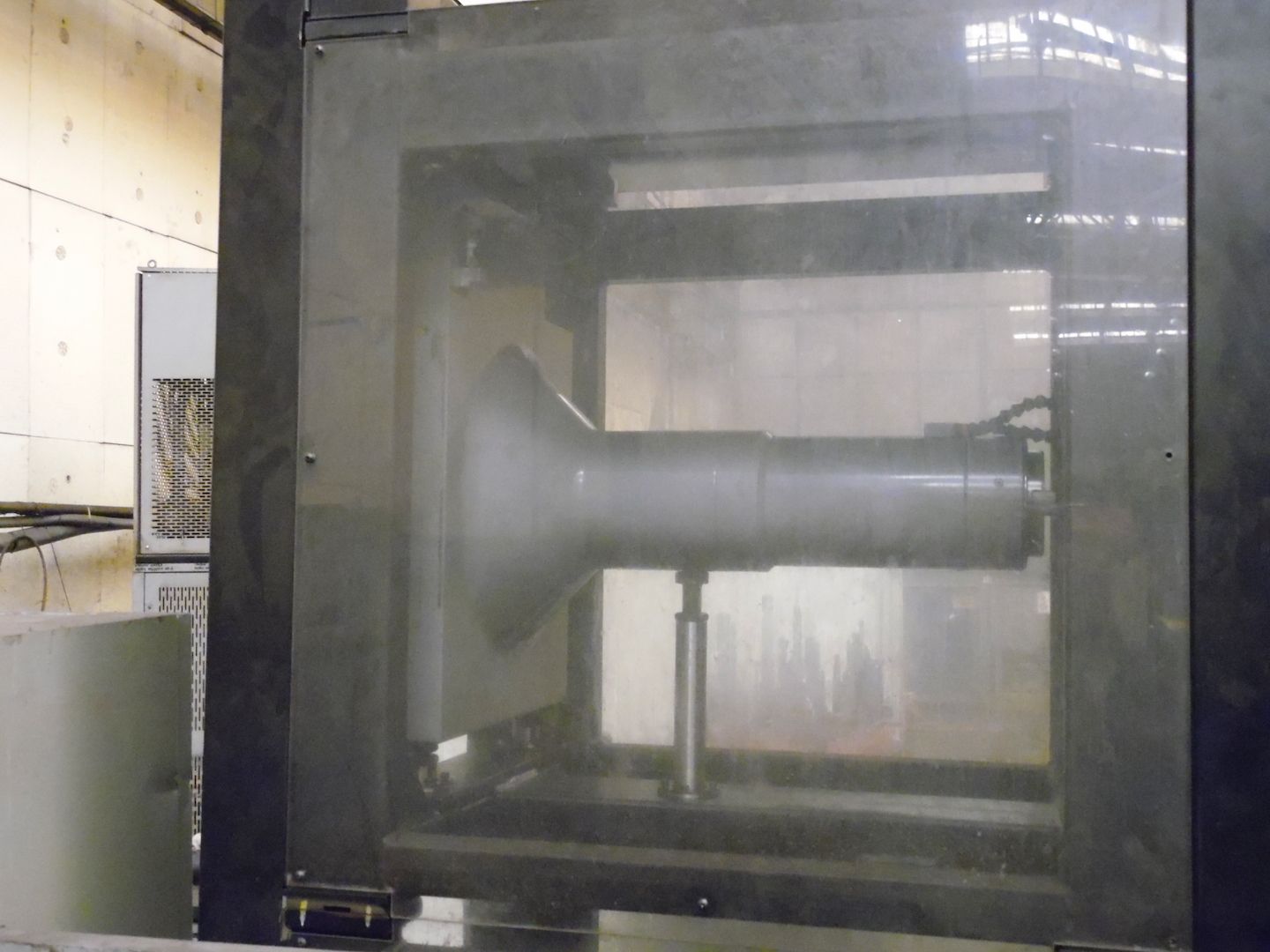

Tooling included
testa FPT TUPCG5, prolunga SELS6 600mm, 1 piano 1400x3750, 1 piano 4900x3750
