Category

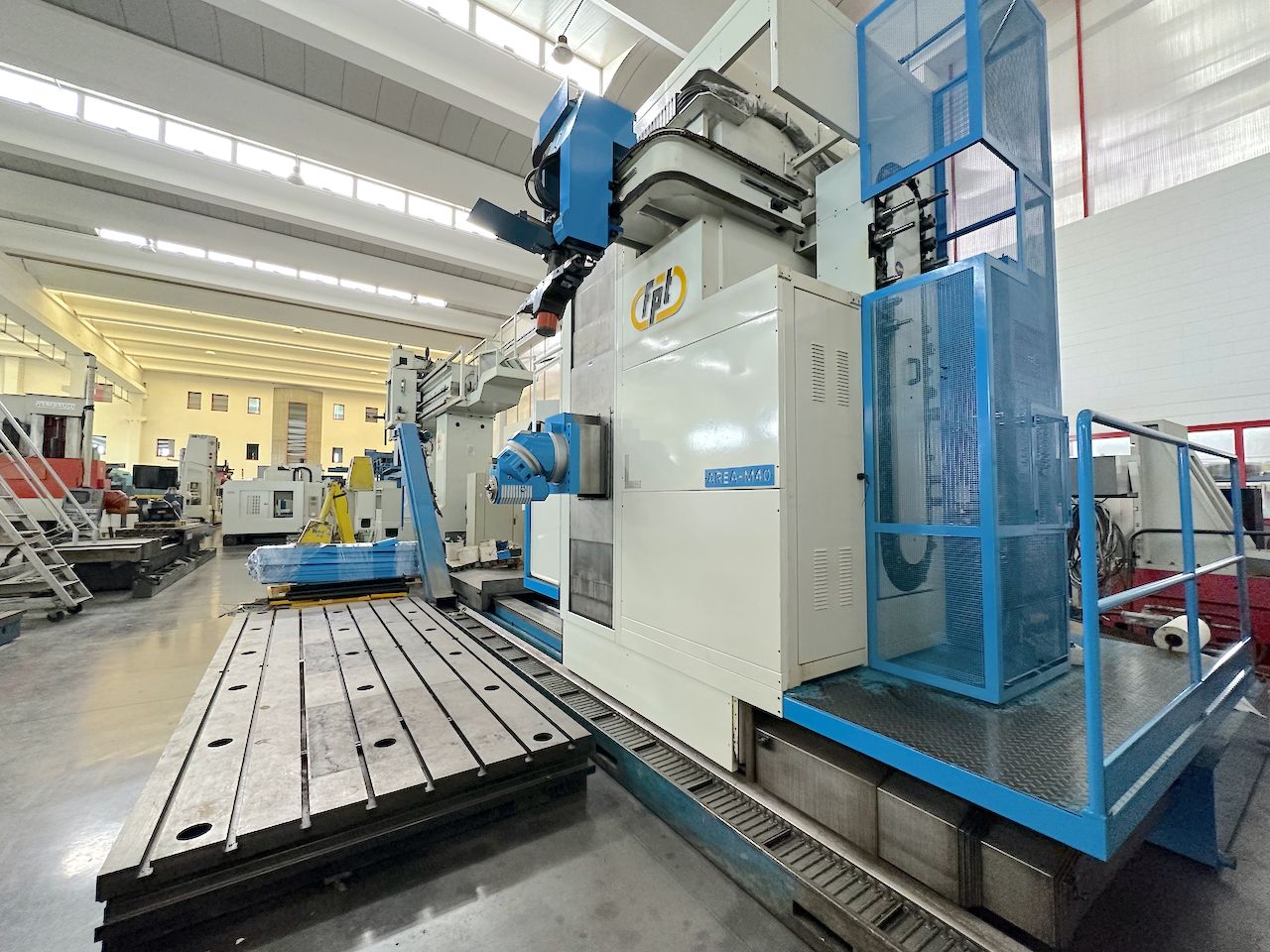

Milling machine
Type
mobile column
Made
Model

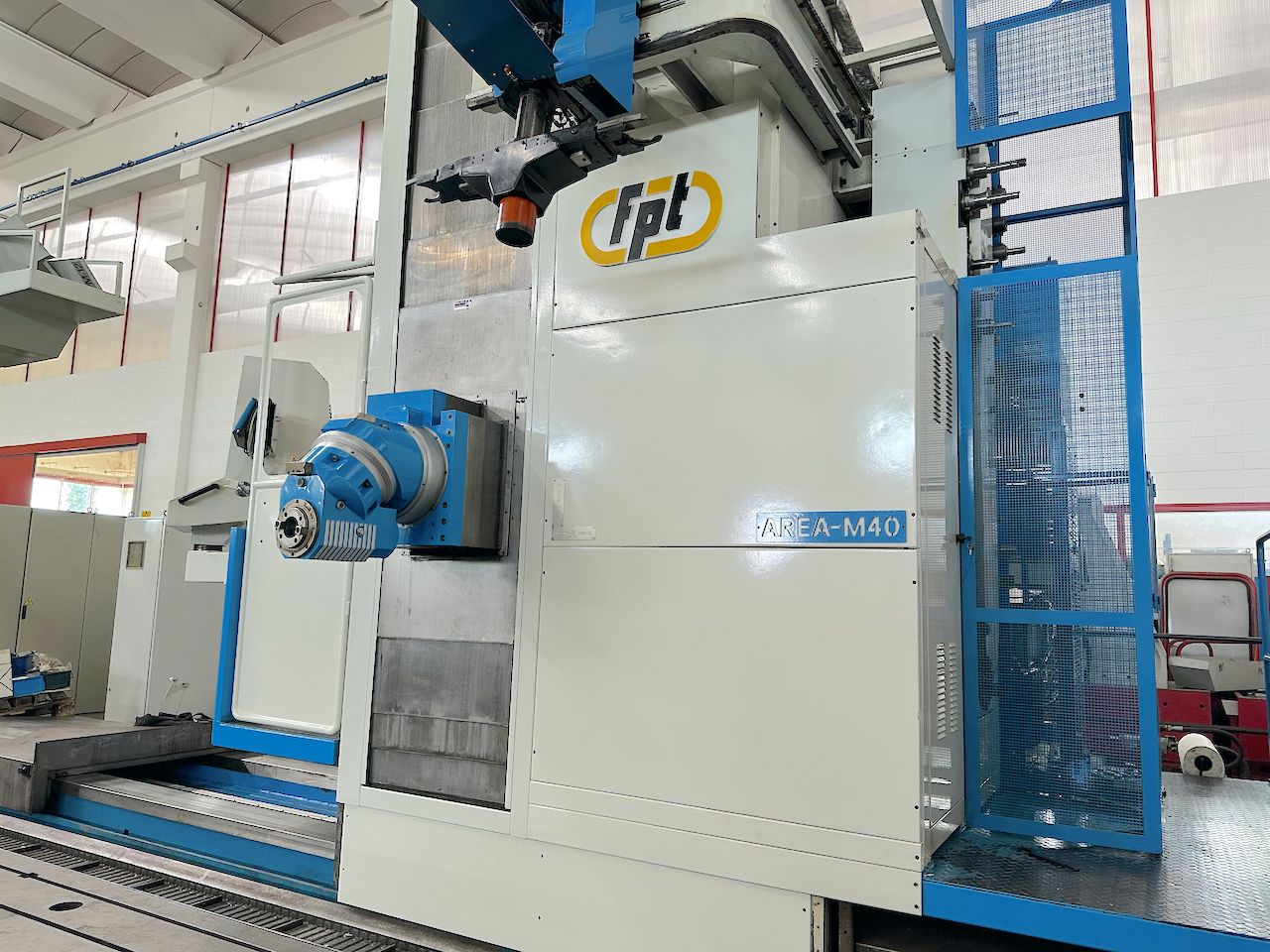

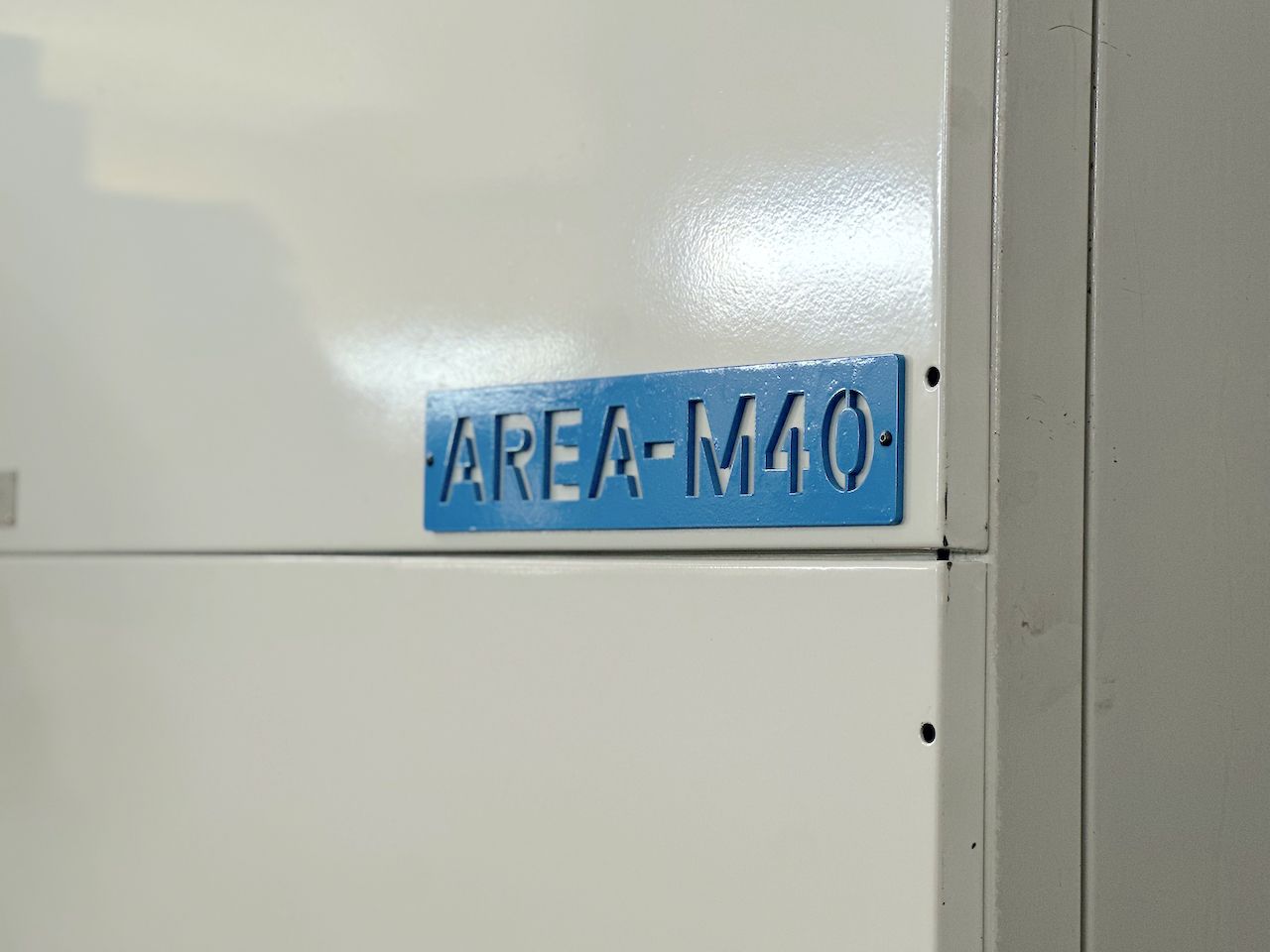

AREA M40
Capacity
4000x2000x1250 mm157,48x78,74x49,21 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
4000 mm157,48 in
Vertical (Y)
2000 mm78,74 in
Cross RAM (Z)
1250 mm49,21 in
CNC
CNC

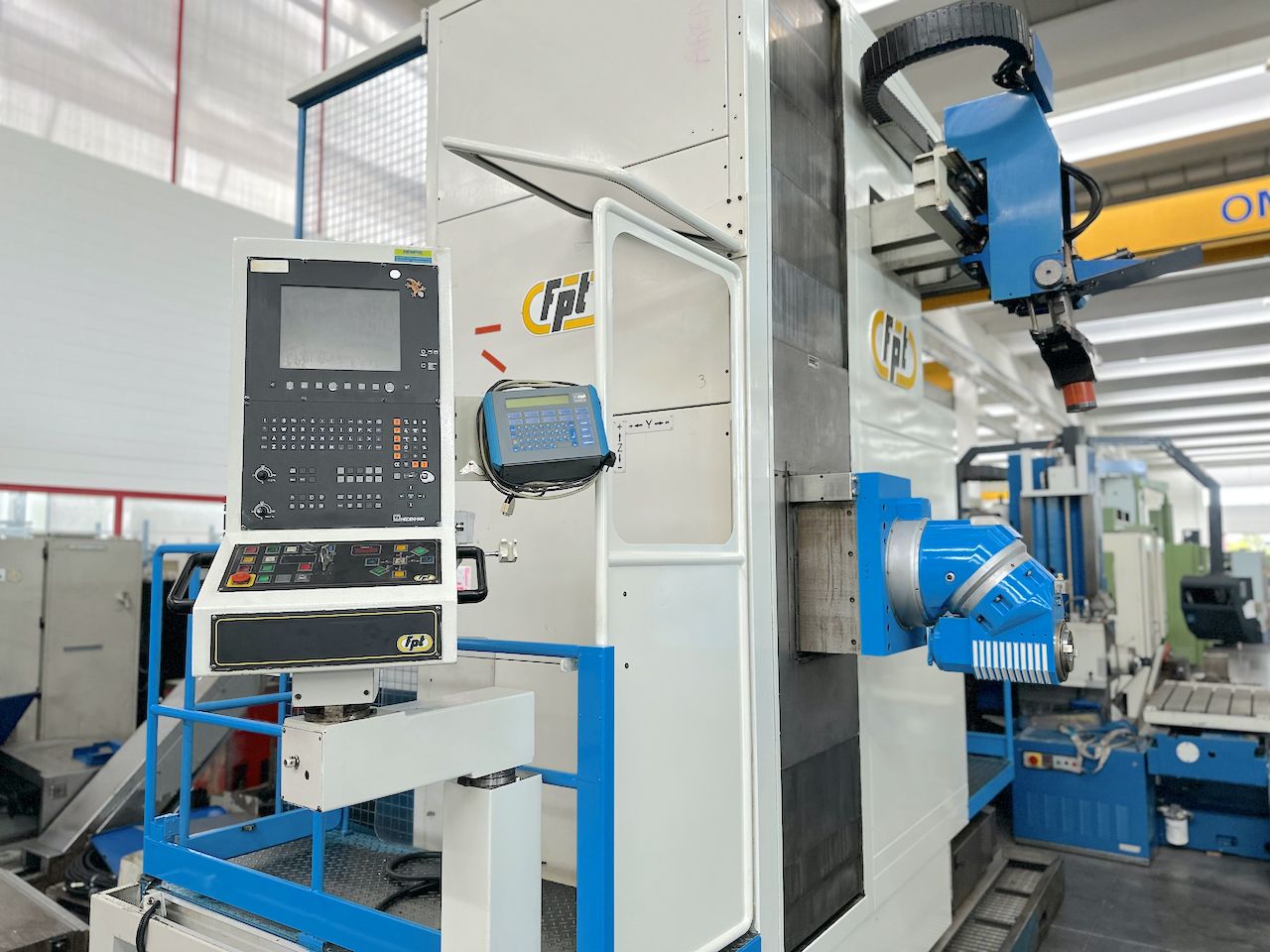

Heidenhain TNC426CA
Drives
SIEMENS SIMODRIVE
SPINDLE
Spindle power
37,5 Kw
Rotating speed
4000 Rpm
Torque
1500 Nm
Taper
ISO50
Notes
refrigerante interno/esterno al mandrino
FEEDS
Rapid X
12 m/min472,44 ipm
Rapid Y
12 m/min472,44 ipm
Rapid Z
12 m/min472,44 ipm
ATC
Positions
40
FIXING TABLE
Floorspace (LxWxH)
5000x2000 mm196,85x78,74 in

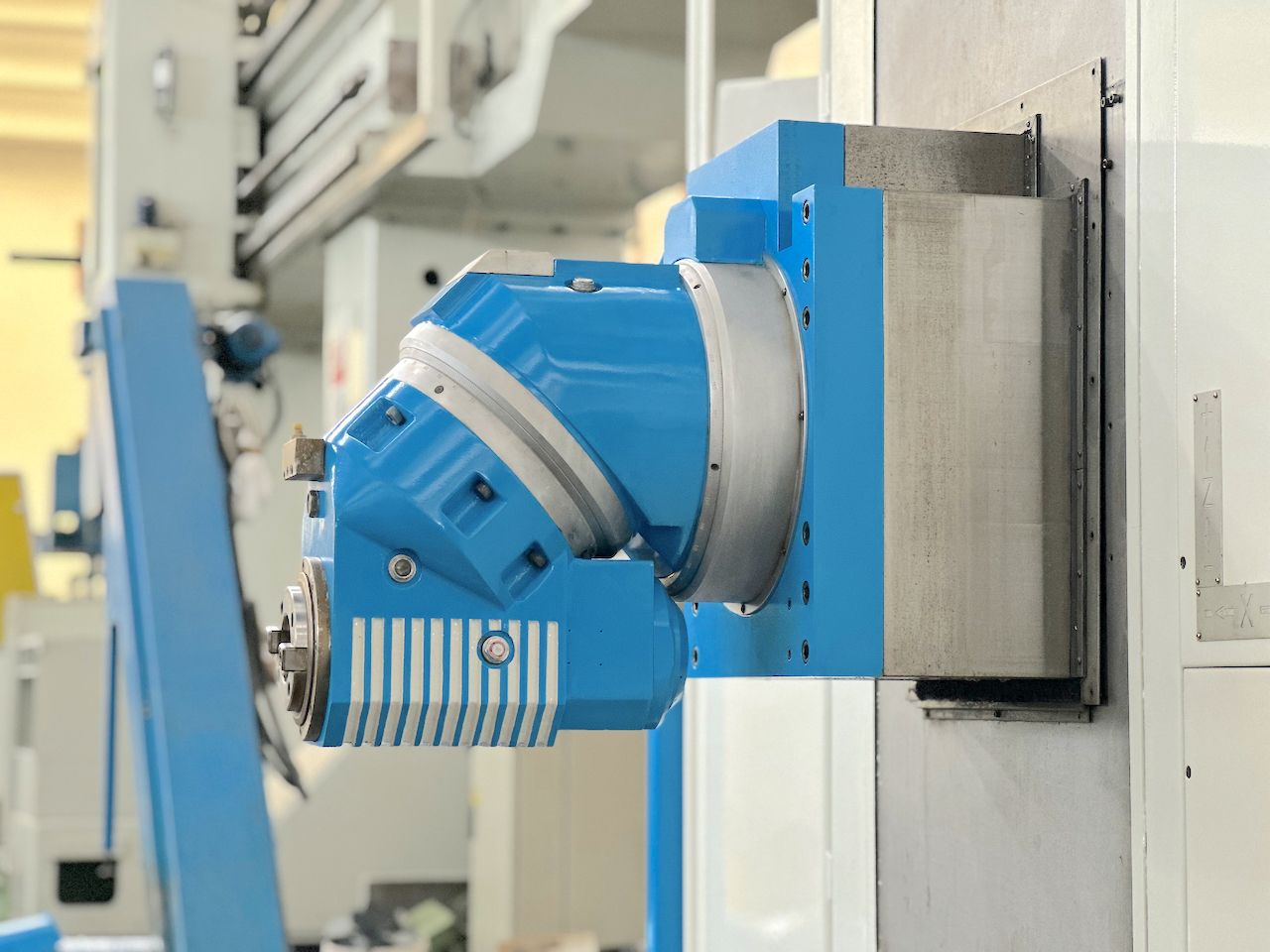

HEAD 1
Type
TU144
Spindle taper
ISO50
A axis
144x2,5 °
C axis
144x2,5 °
Max torque
1500 Nm
Max speed
4000 Rpm
Max power
37,5 Kw
EXTRA
Machine total weight
36000 Kg
Total power supply
55 Kw
Filtration unit
si
High Pressure
Refrigerante attraverso il mandrino
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes

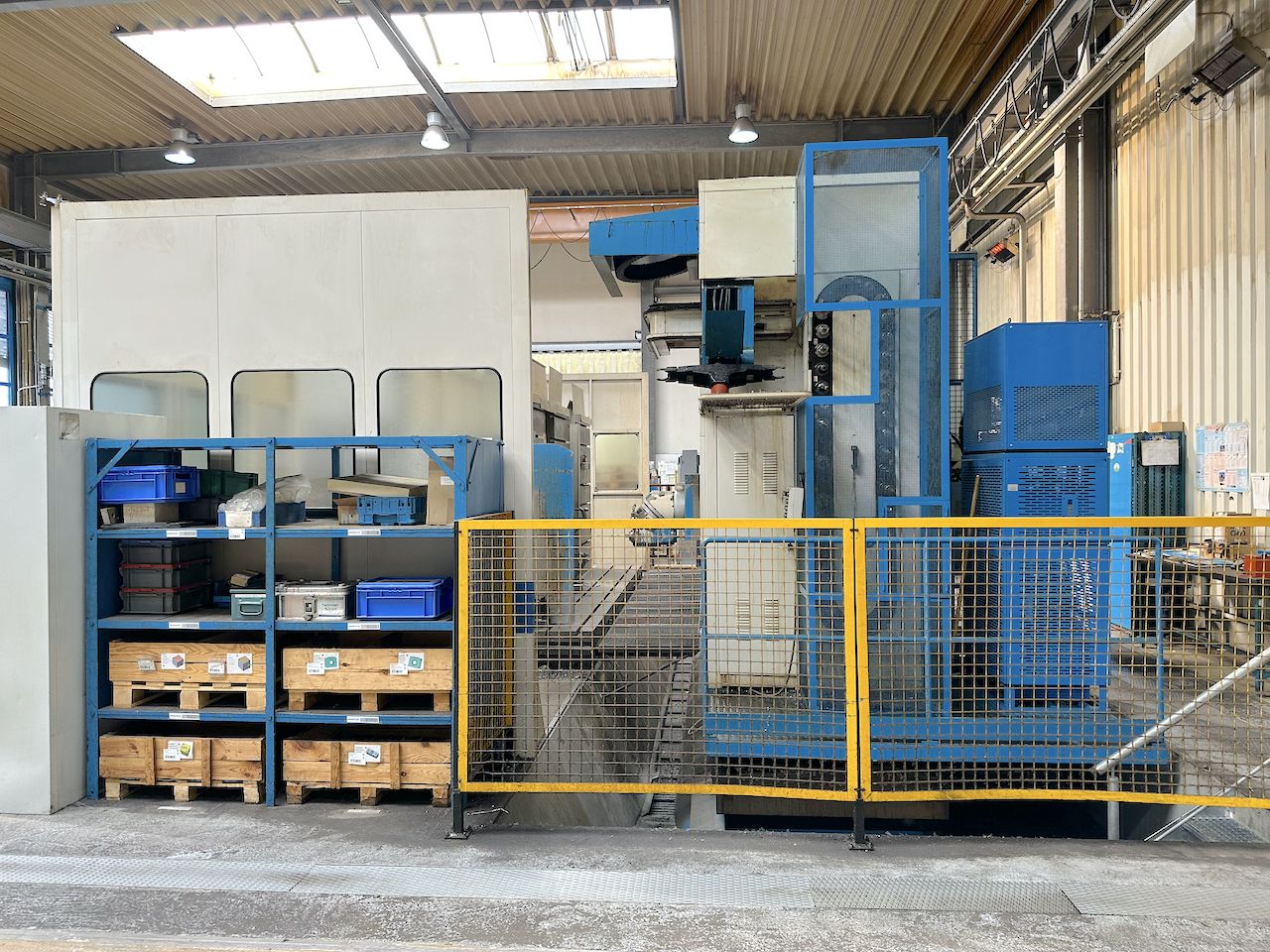

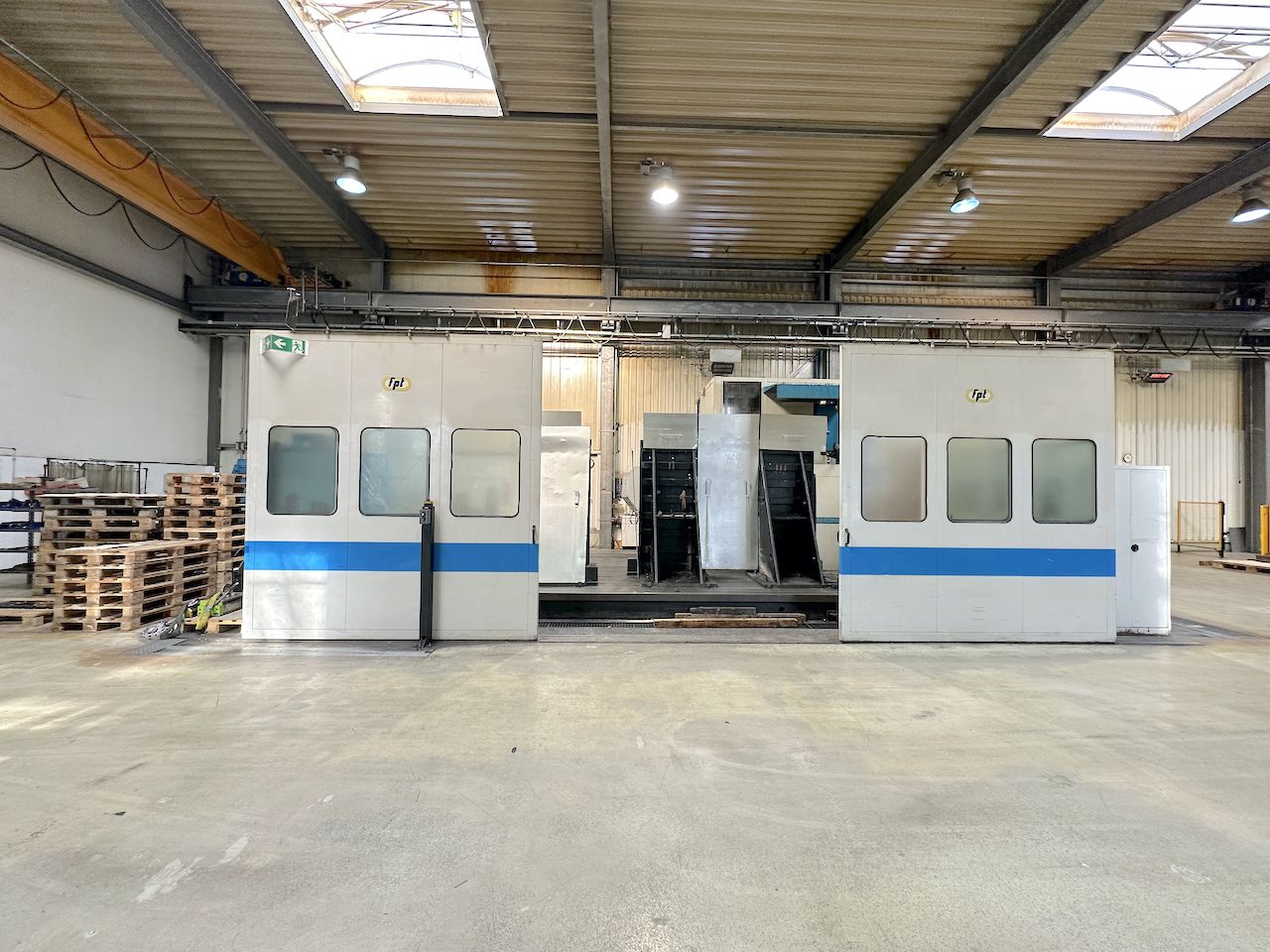

Housing
perimetrale area di lavoro
Chip conveyor
si
