Category
Milling machine
Type
Bed type
Made
Model
RAMMILL 10
Capacity
1600x510 mm62,99x20,08 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
1200 mm47,24 in
Vertical (Y)
570 mm22,44 in
Table (V)
500 mm19,69 in
SPINDLE
Spindle power
10 Kw
Rotating speed
40-3000 Rpm
Taper
iso 50
Notes
diametro canotto 140 mm
FEEDS
Rapid X
2500 m/min98.425,00 ipm
Rapid Y
2500 m/min98.425,00 ipm
X
24-1000 m/min944,88-39.370,00 ipm
Y
24-1000 m/min944,88-39.370,00 ipm
HEAD 1
Notes
discesa automatica e manuale canotto
A axis
+/- 45 °
EXTRA
Machine total weight
5000 Kg

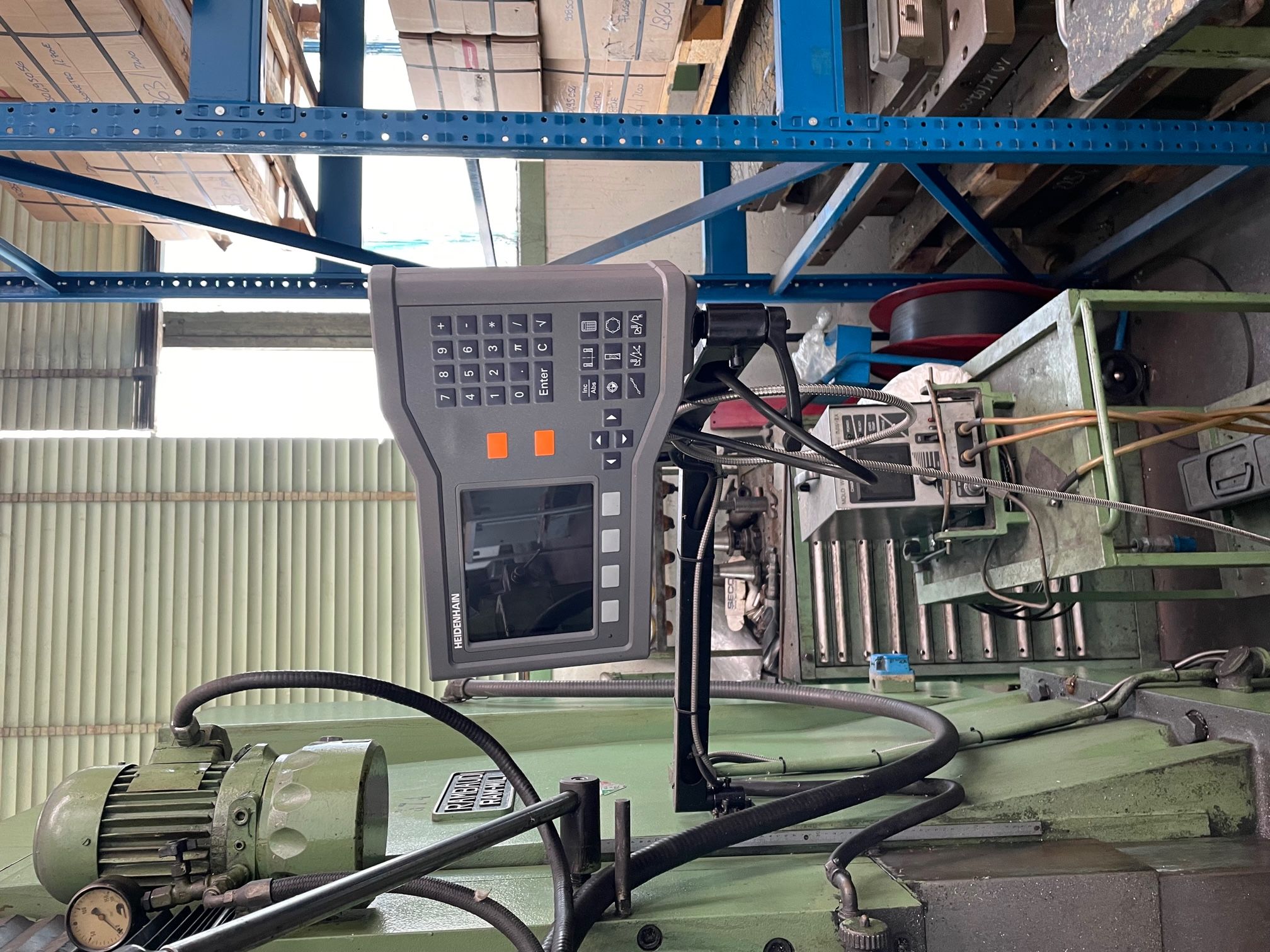

Digital read out (DRO)
HEIDENHAIN
Tooling included
presa idraulica mandrino
Maintenance & Use books
Yes
Electrical drawings
Yes
Availability
pronta
Available in stock
si
Available under power
si
Floor space
2100x2200x2400 mm82,68x86,61x94,49 in
