Category

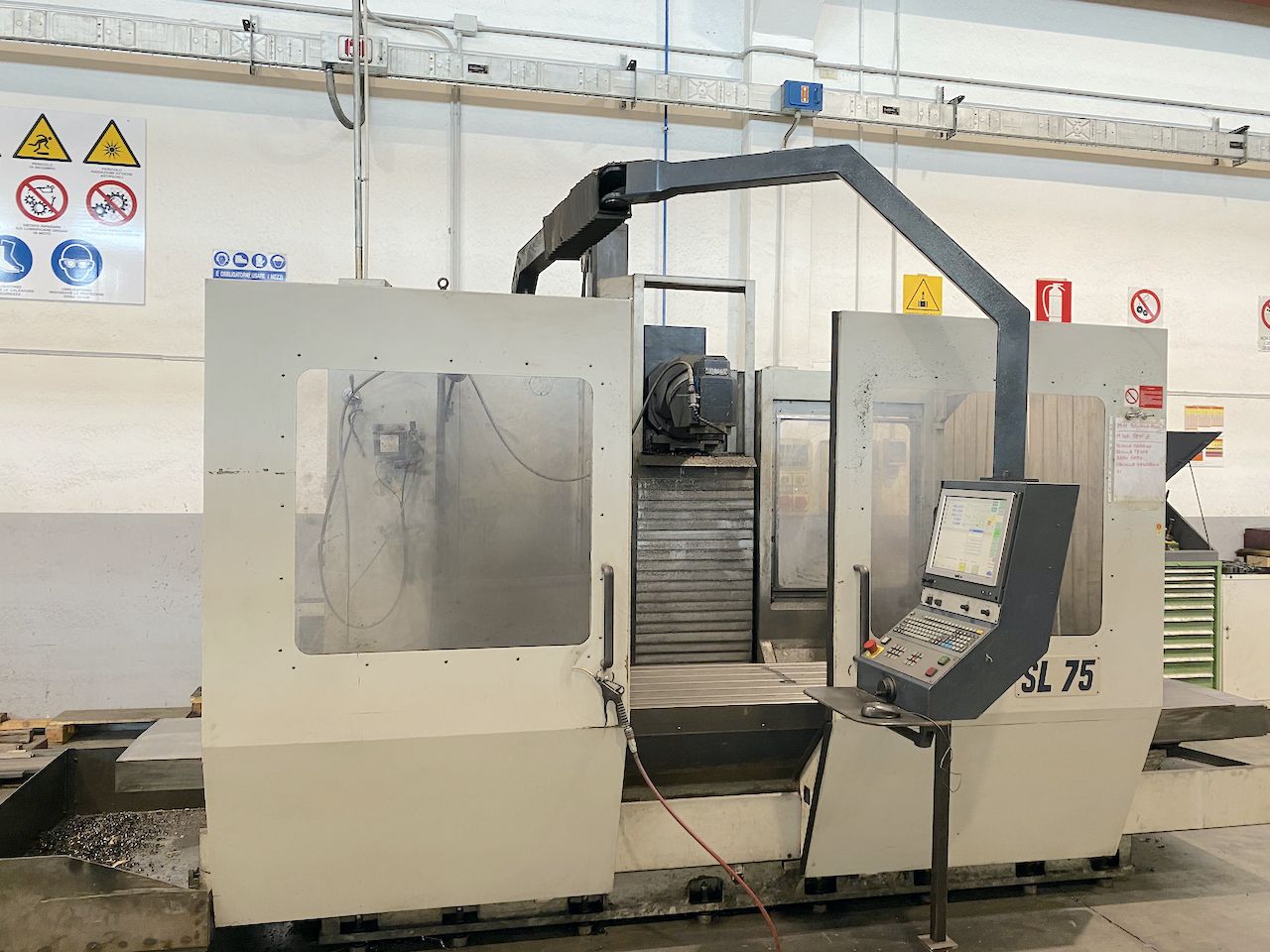

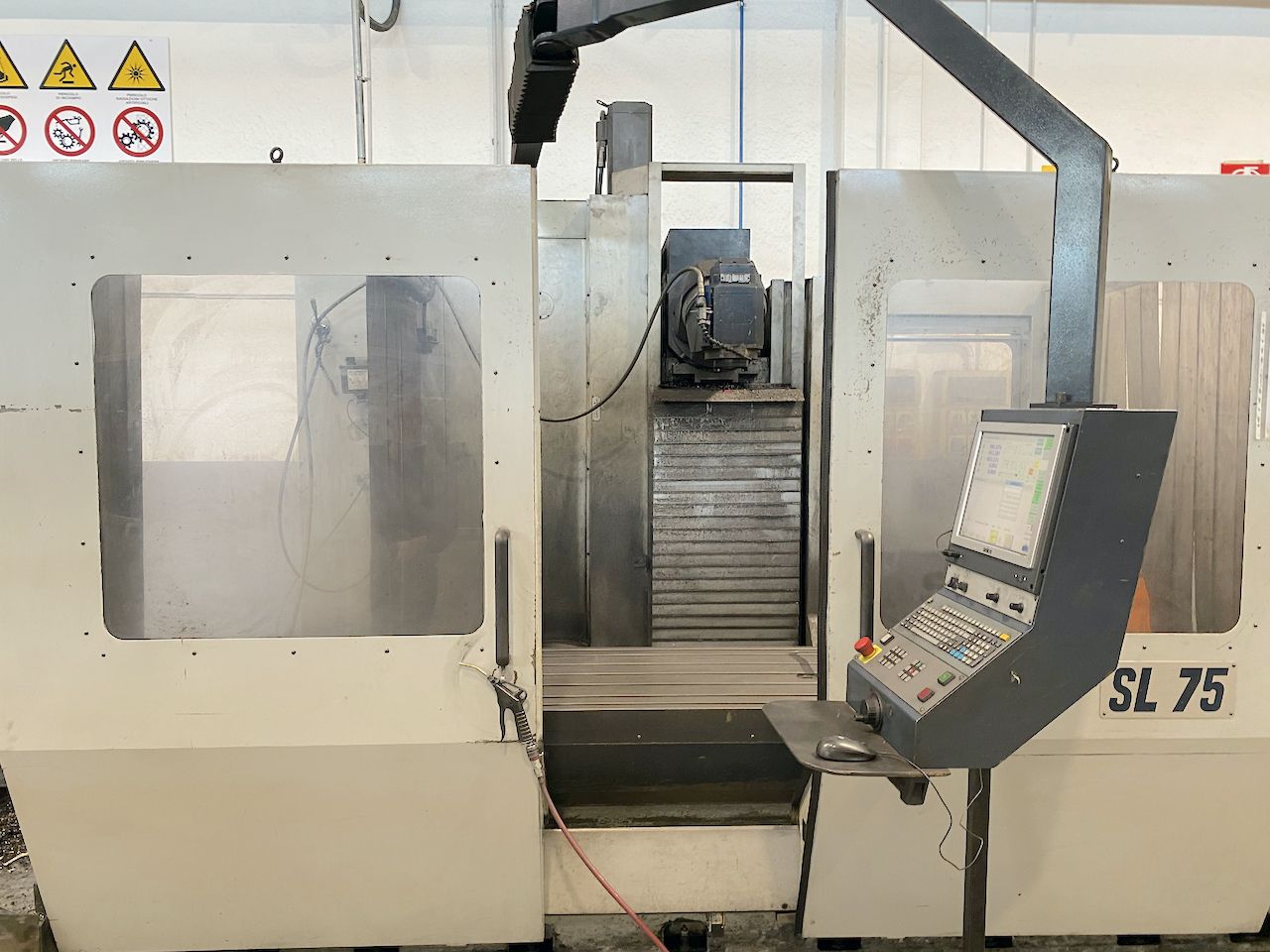

Milling machine
Type
Bed type
Made
Model
SL75/2000
Capacity
2000x1200x750 mm78,74x47,24x29,53 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
2000 mm78,74 in
Vertical (Y)
1200 mm47,24 in
Cross RAM (Z)
750 mm29,53 in
CNC
CNC

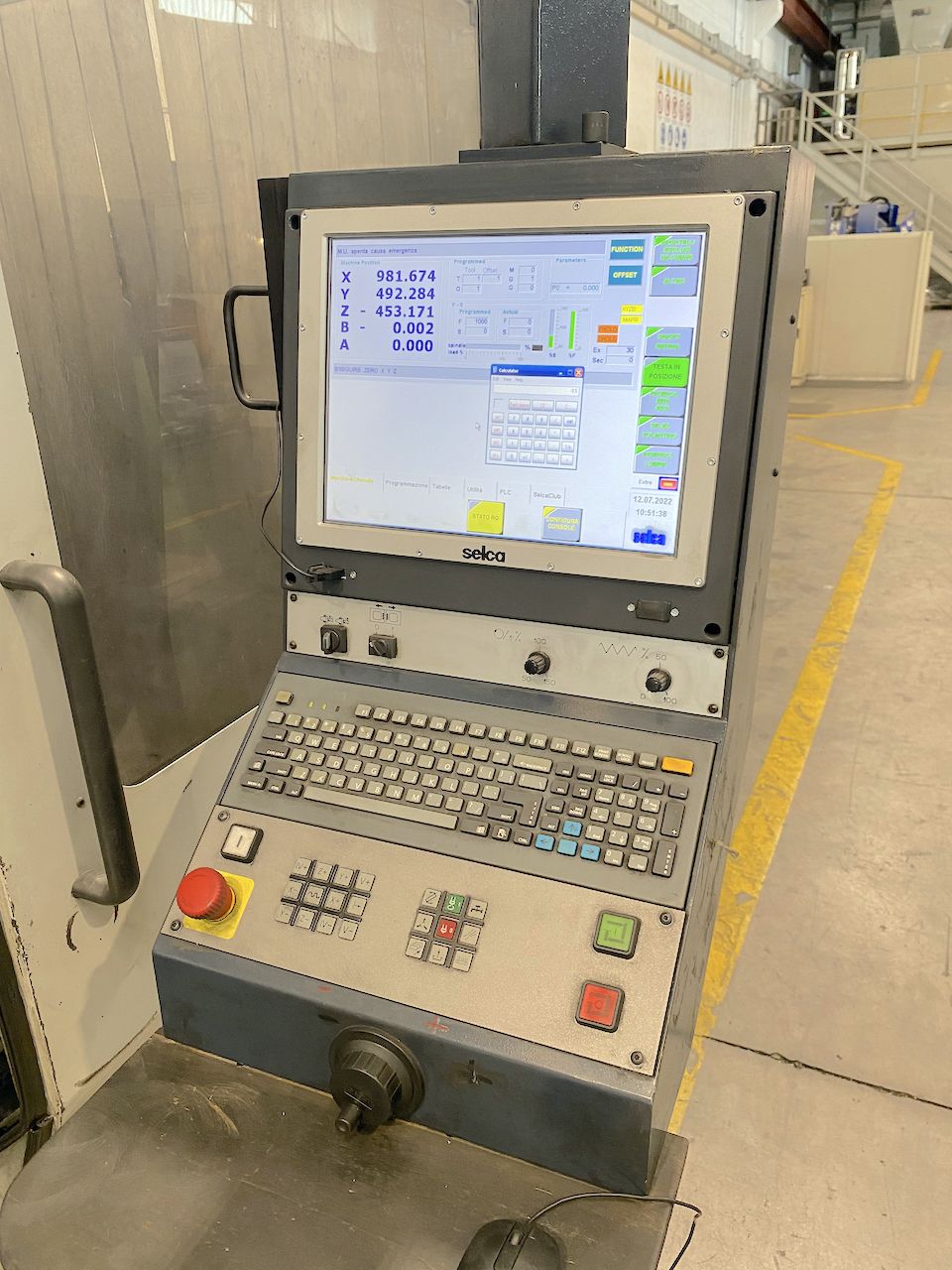

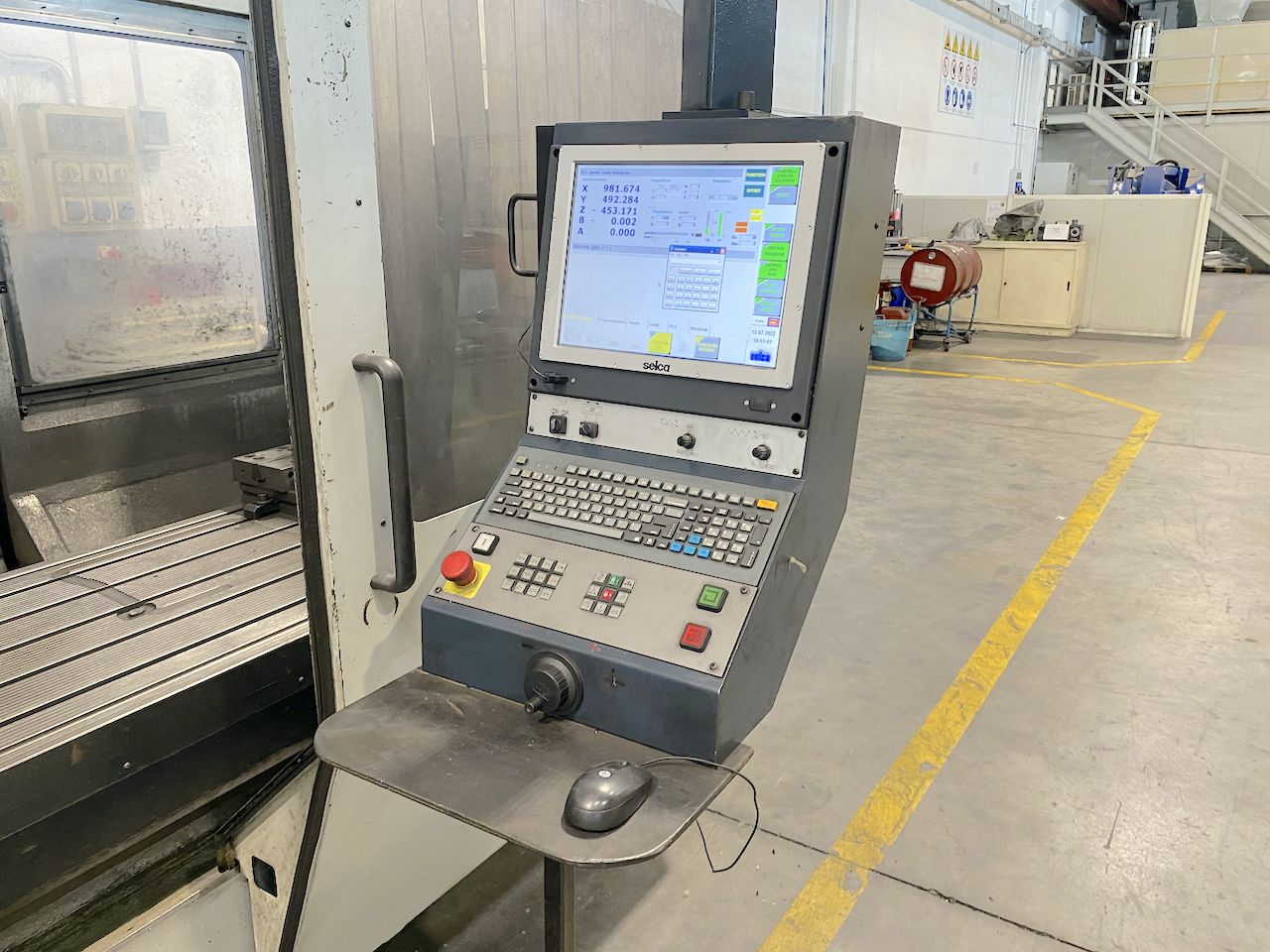

SELCA S4000
SPINDLE
Rotating speed
5000 Rpm
Spindle power
22 Kw
Taper
ISO50
FEEDS
Rapid X
10 m/min393,70 ipm
Rapid Y
10 m/min393,70 ipm
Rapid Z
10 m/min393,70 ipm

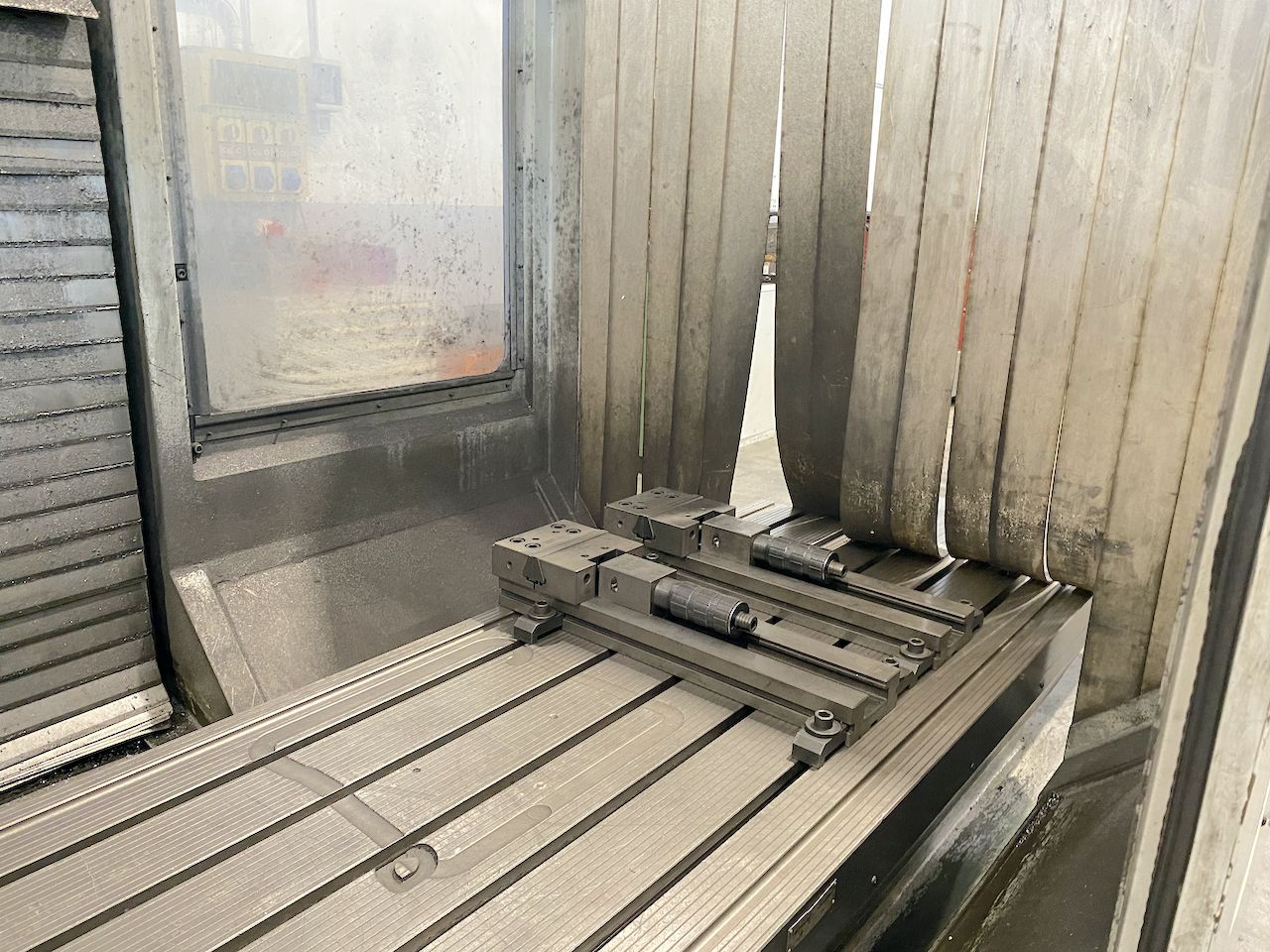

TABLE 1
Surface
2250x750 mm88,58x29,53 in

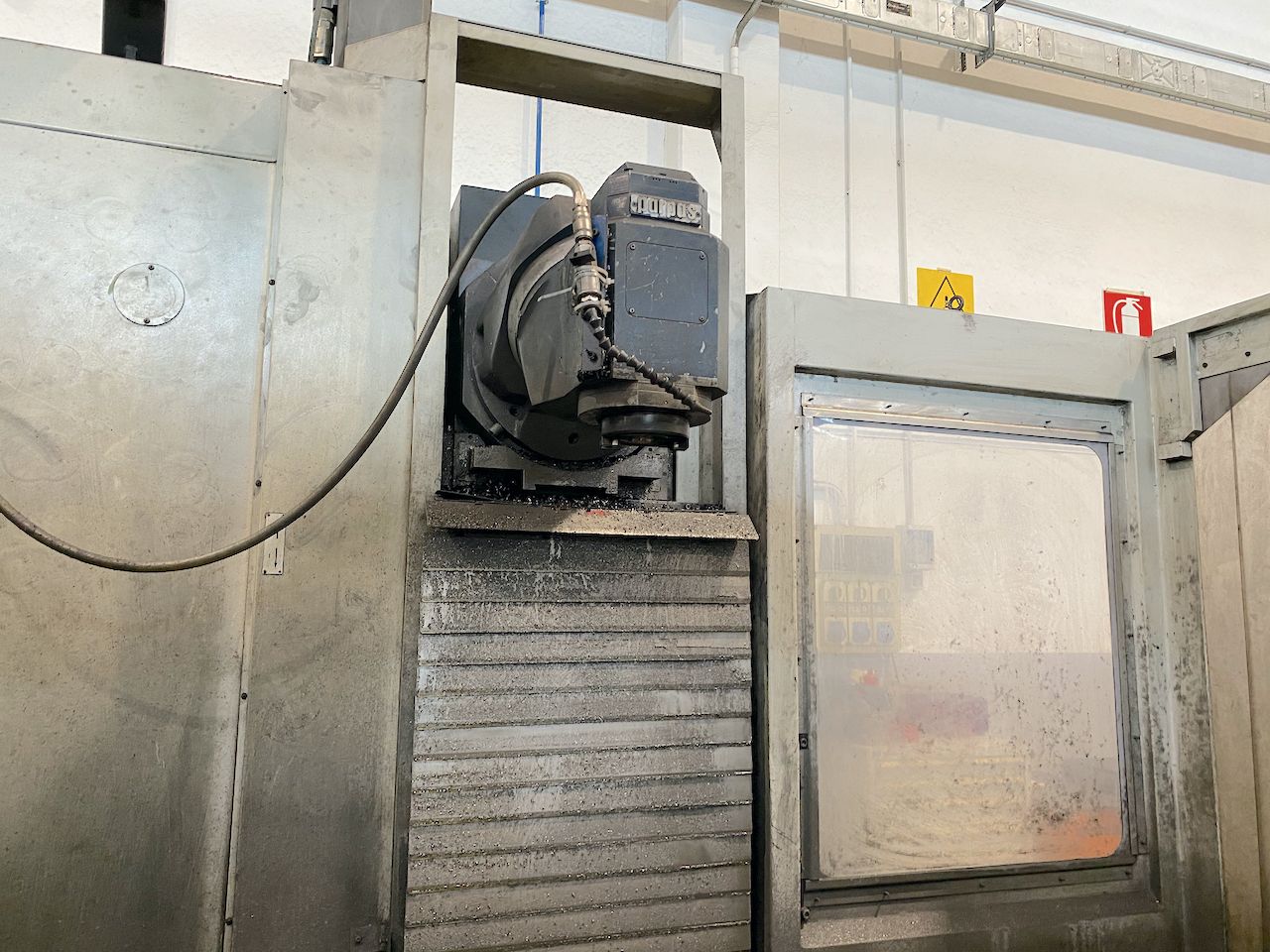

HEAD 1
Type
Birotativa Automatica
Spindle taper
ISO50
A axis
144x2,5 °
C axis
360x1 °
Max speed
5000 Rpm
Max power
22 Kw
