Milling machine
Type
Bed type
Made

FIL

Model
FA 160
Capacity
1600x700x850+700 mm62,99x27,56x33,46+27,56 in
FIL FA 160
All the machines are available subject to prior sale
Gallery - 6 photos
Gallery - 6 photos
Gallery - 6 photos
Gallery - 6 photos
Gallery - 6 photos
Gallery - 6 photos
Data sheet
Enable notifications

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
1600 mm62,99 in
Vertical (Y)
850 mm33,46 in
Table (V)
700 mm27,56 in
Cross RAM (Z)
700 mm27,56 in
TABLE 1
Surface
1950x650 mm76,77x25,59 in
Capacity
2000 Kg
FEEDS
Rapid X
6 m/min236,22 ipm
Rapid Y
6 m/min236,22 ipm
Rapid Z
6 m/min236,22 ipm
X
1 m/min39,37 ipm
Y
1 m/min39,37 ipm
Z
1 m/min39,37 ipm
SPINDLE
Spindle power
15 Kw
Rotating speed
40-1535 Rpm
Taper
ISO50
Gearbox
3 gamme automatiche

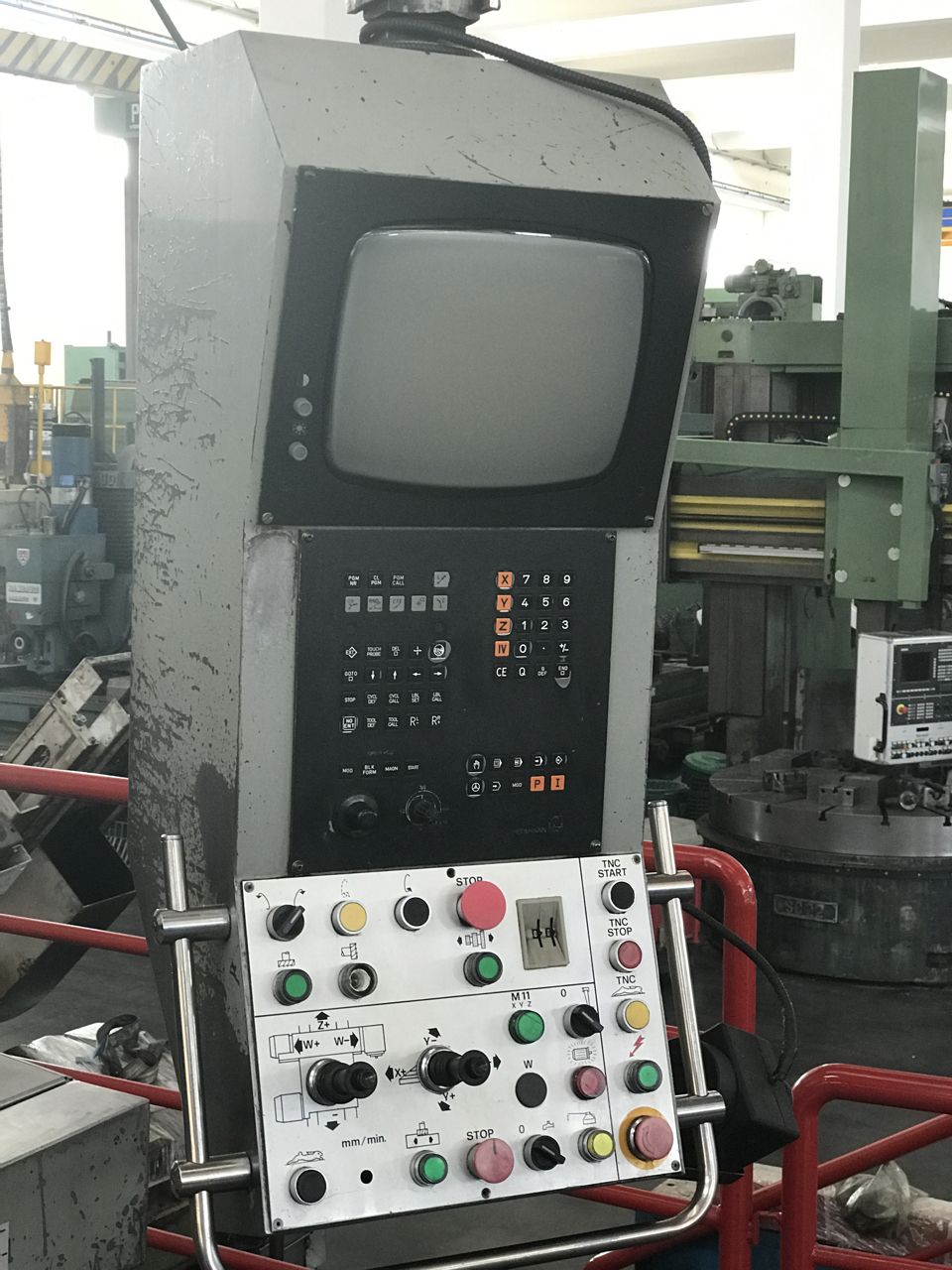

CNC
CNC
Heidenhain TNC355
EXTRA
Total power supply
25 Kw
Machine total weight
9000 Kg
Floor space
2470x3300x2915 mm97,24x129,92x114,76 in

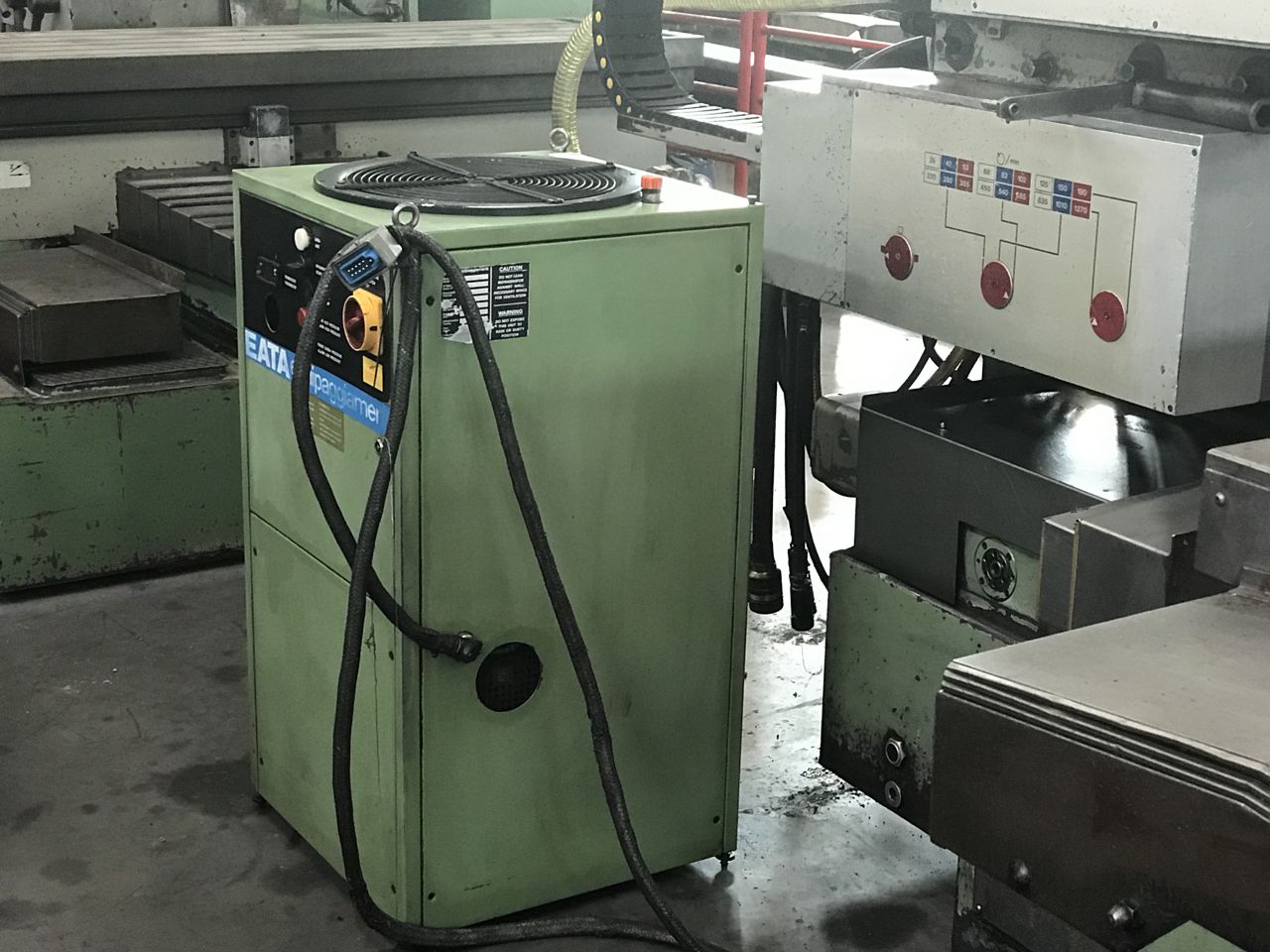

Chiller
si
Availability
pronta
Available in stock
si
