Category
Milling machine
Type
Bed type
Made
Model
SL90/2000
Capacity
2000x1000x920 mm78,74x39,37x36,22 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
2000 mm78,74 in
Vertical (Y)
1000 mm39,37 in
Cross RAM (Z)
920 mm36,22 in
ATC
Max tool lenght
350 mm13,78 in
Max diam with free adiacent space
250 mm9,84 in
Max tool diameter
125 mm4,92 in
Positions
40
CNC
CNC

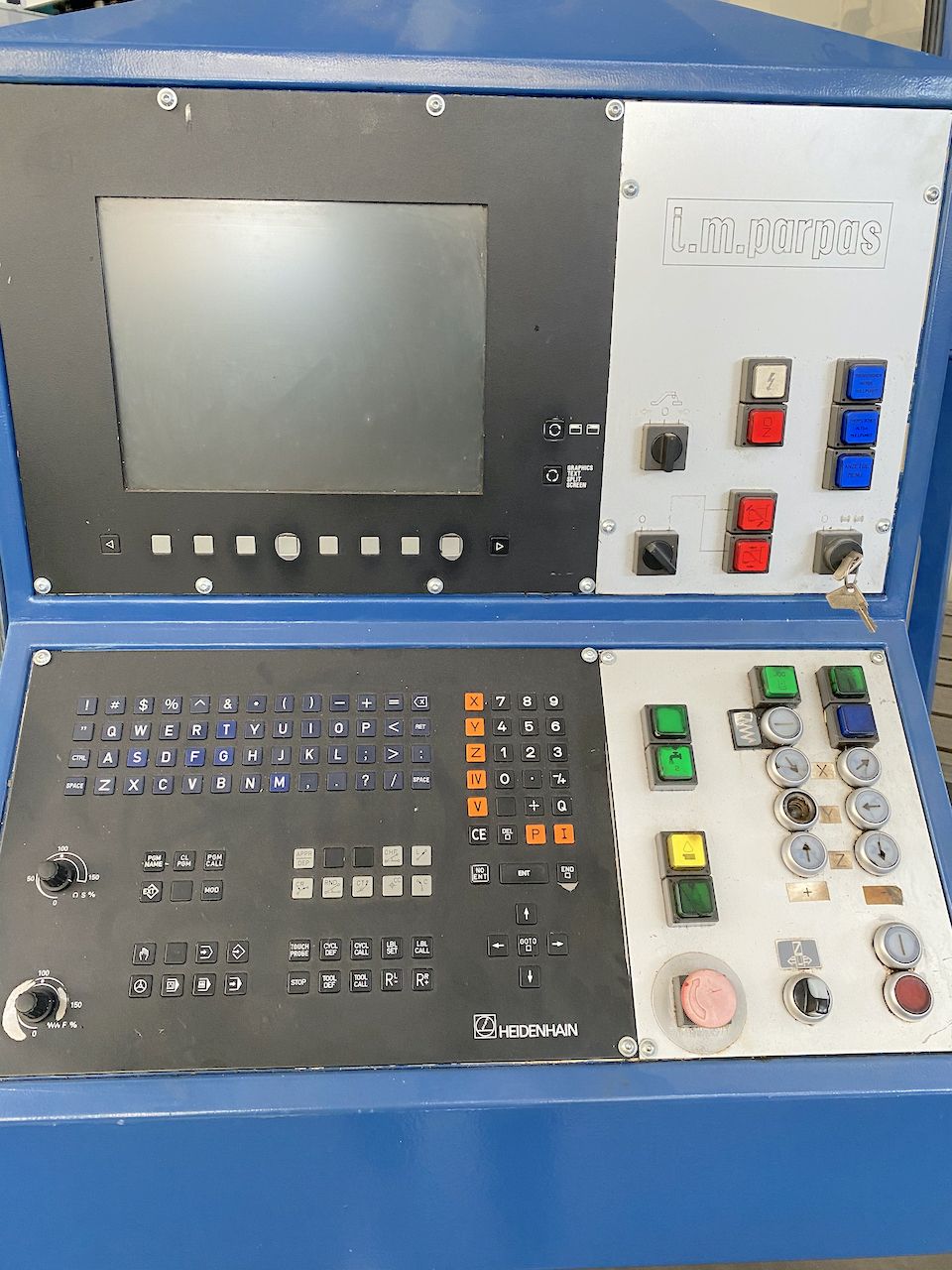

Heidenhain TNC425
SPINDLE
Spindle power
22/33 Kw
Rotating speed
4000 Rpm
Taper
ISO 50
FEEDS
Rapid X
10 m/min393,70 ipm
Rapid Y
10 m/min393,70 ipm
Rapid Z
10 m/min393,70 ipm
TABLE 1
Surface
2400x820 mm94,49x32,28 in
Capacity
7.000 Kg
Accuracy (B axis)
360.000 °
Available upon request
No

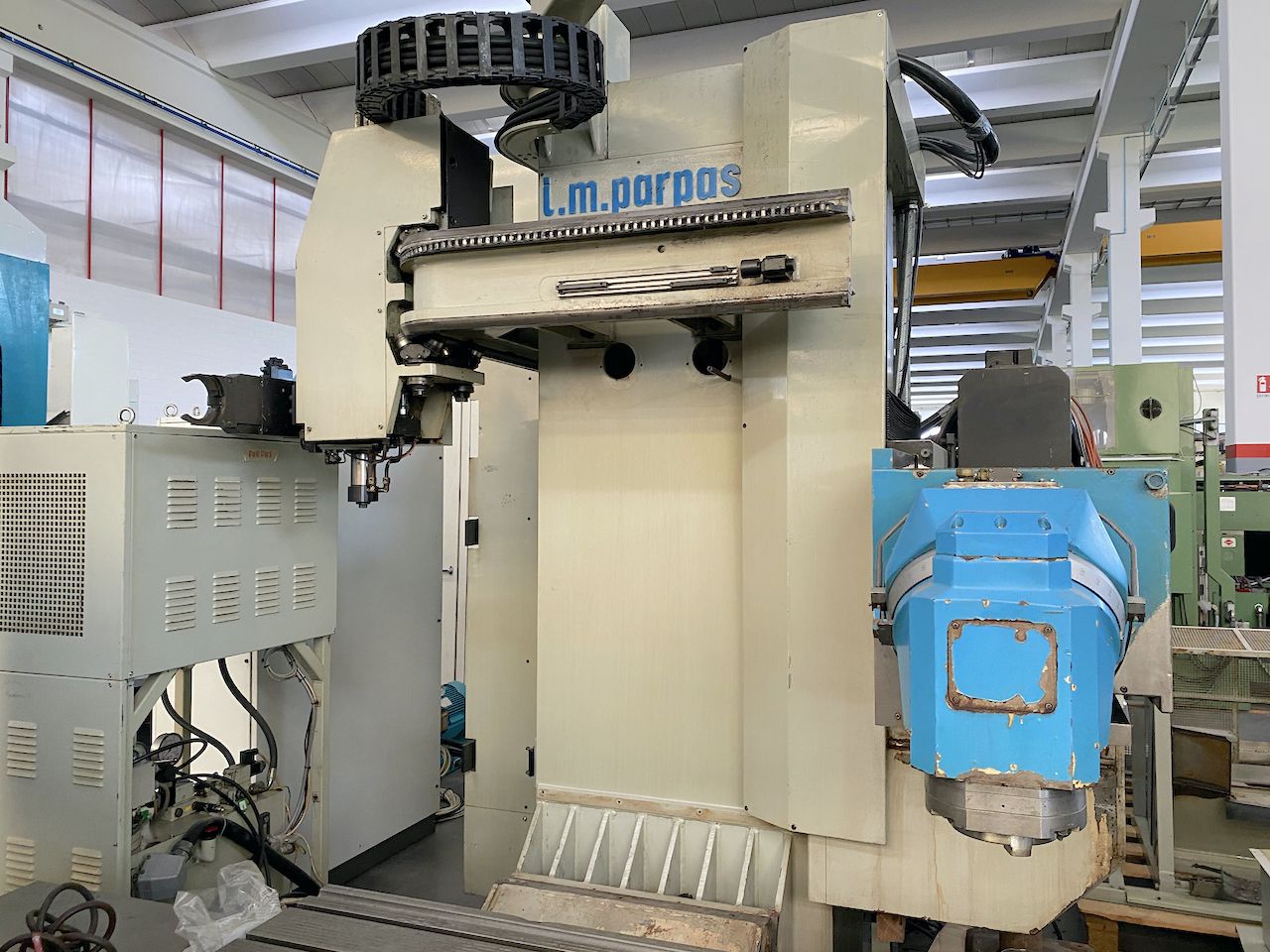

HEAD 1
Type
birotativa automatica
Spindle taper
ISO50
A axis
2x180 °
C axis
144x2,5 °
Max speed
4000 Rpm
Max power
33 Kw
Available upon request
No
Notes
lubrificata ad olio
FIXING TABLE
Available upon request
No
EXTRA
Availability
pronta
Filtration unit
coolant tank with paper filter
Workpiece touch probe
si

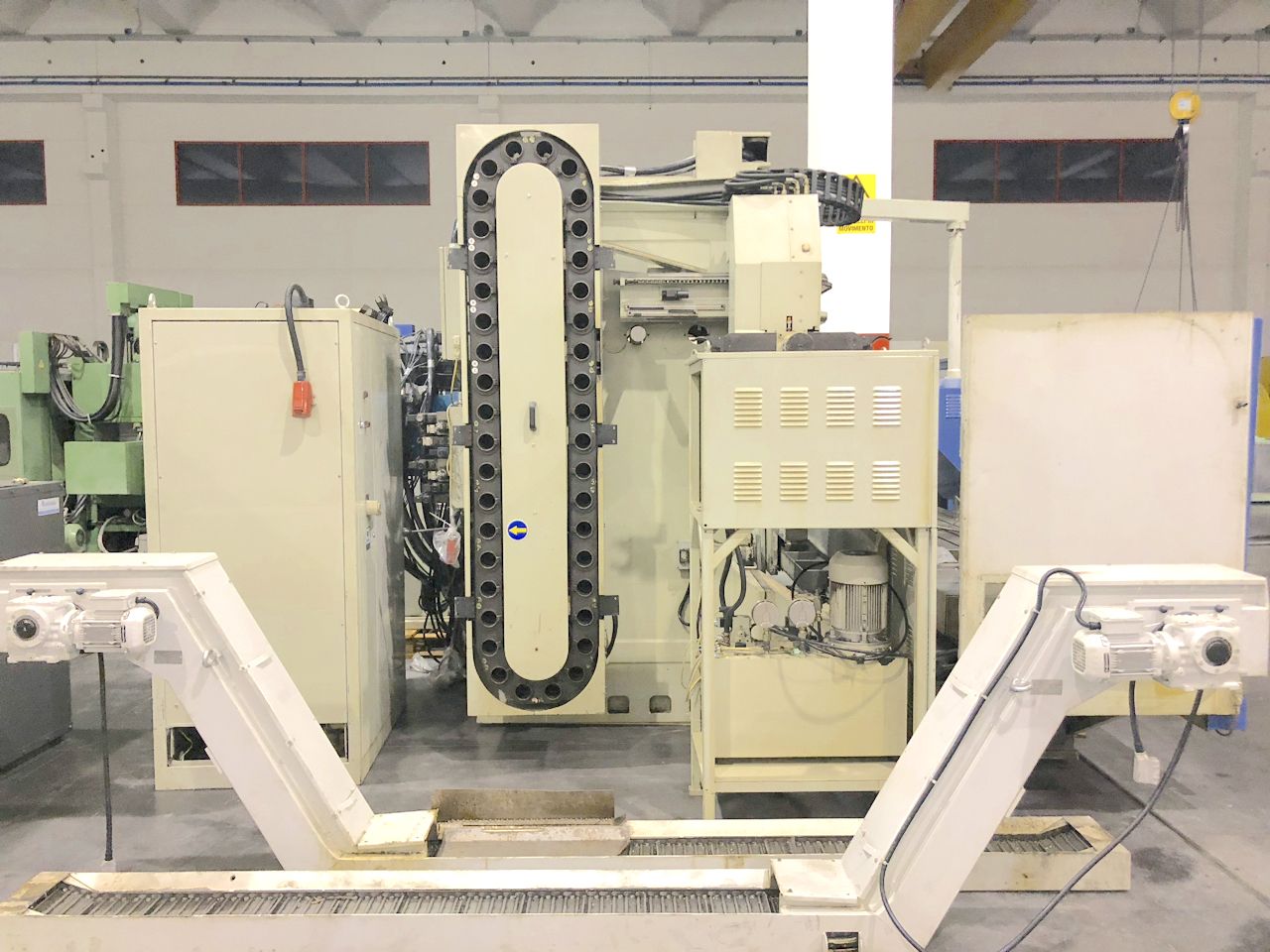

Chip conveyor
2
Floor space
5800x3900x2740 mm228,35x153,54x107,87 in
Machine total weight
15000 Kg
Housing
protezioni frontali scorrevoli
Chiller
si
CE Certification
No
Maintenance & Use books
Yes
Available in stock
SI
Tooling included
volantino remotato
