Category
Milling machine
Type
Bed type
Made
Model
LEM 935
Capacity
2500x1500x1200 mm98,43x59,06x47,24 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
2500 mm98,43 in
Vertical (Y)
1500 mm59,06 in
Cross RAM (Z)
1200 mm47,24 in

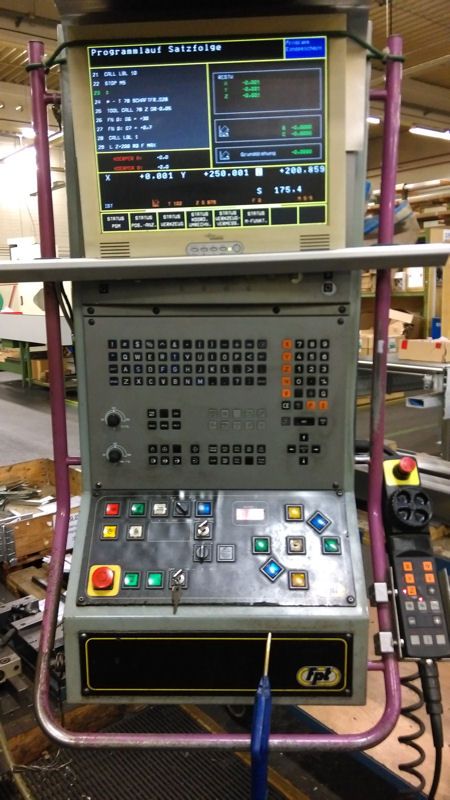

CNC
CNC
Heidenhain TNC430
SPINDLE
Spindle power
27 Kw
Rotating speed
0-4000 Rpm
Taper
ISO50
FEEDS
Rapid X
12 m/min472,44 ipm
Rapid Y
12 m/min472,44 ipm
Rapid Z
12 m/min472,44 ipm

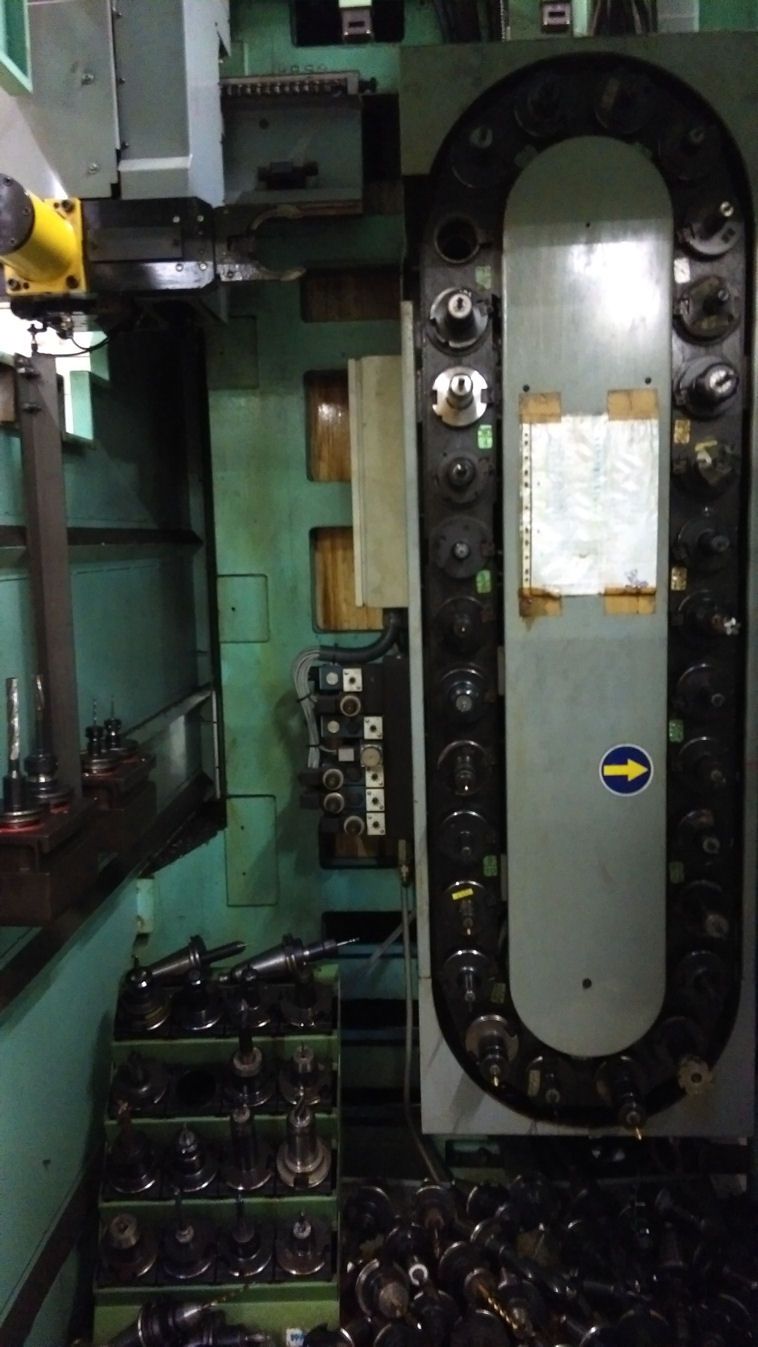

ATC
Positions
30

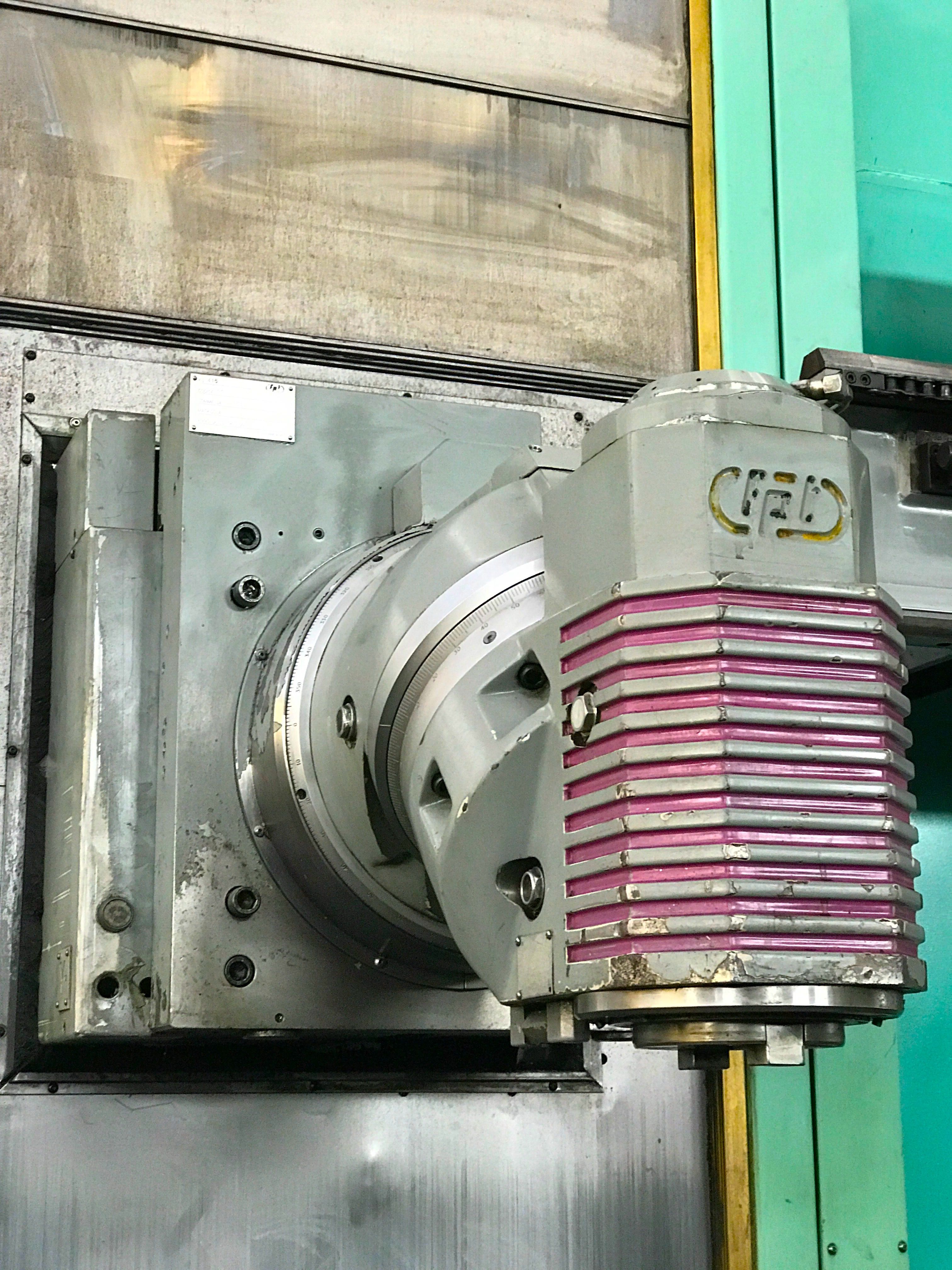

HEAD 1
Type
Auto indexed 2.5x2.5°
Spindle taper
ISO50
A axis
144x2,5 °
C axis
144x2,5 °
Max speed
4000 Rpm
Max power
27 Kw
FIXING TABLE
Floorspace (LxWxH)
3000x1000 mm118,11x39,37 in
EXTRA
Machine total weight
11000 Kg
Floor space
6600x3295 mm259,84x129,72 in
Tooling included

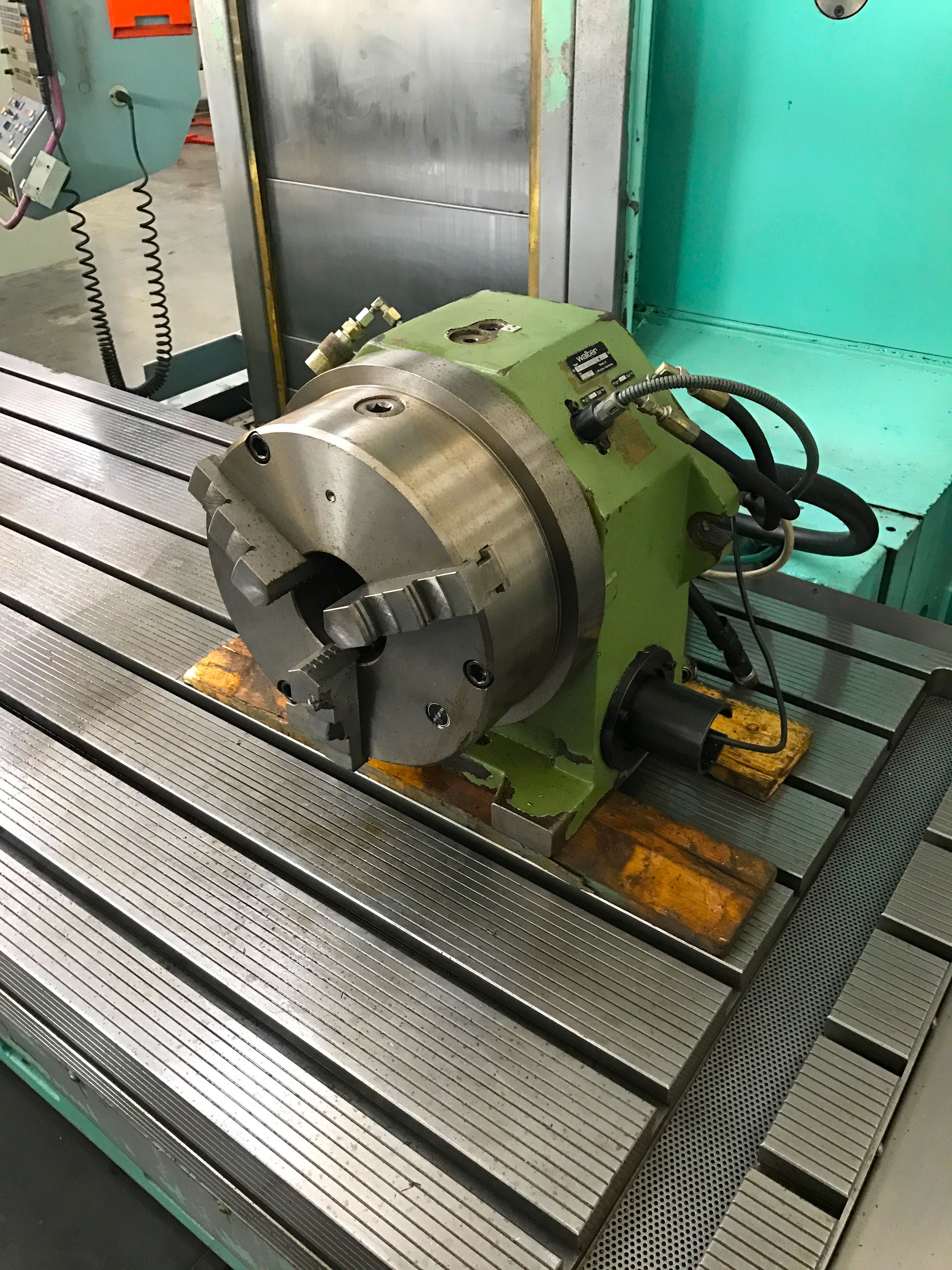

4th Axes on the table
Housing
Frontale
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes
Chip conveyor
si
Available in stock
si
The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy cannot be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
