Category
Drilling machine
Type
for deep holes for moulds
Made
Model
IX3000
Capacity
3000x1500x700+2100 mm118,11x59,06x27,56+82,68 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
3000 mm118,11 in
Vertical (Y)
1500 mm59,06 in
Cross (Z)
700 mm27,56 in
Profondità di foratura (V)
2100 mm82,68 in
Inclinazione Testa di foratura ( C)
-15/+25 °
Table rotation (B)
360.000x0,001 °
CNC
CNC
FAGOR 8065
Measuring system
righe ottiche, encoder

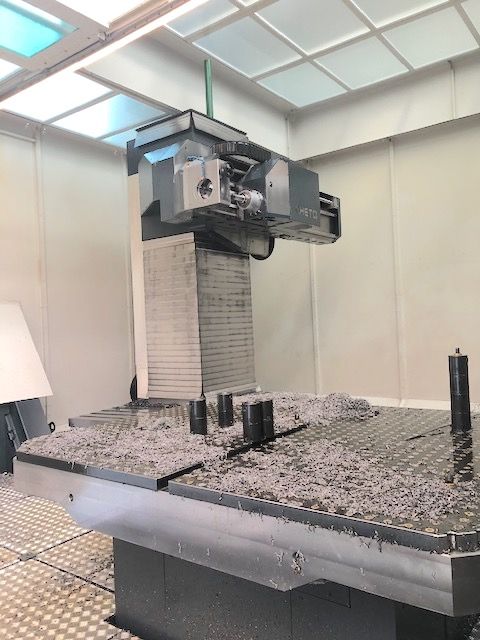

UNITà DI FORATURA
Diametro min-max dal pieno
Gundrill ø5-40mm, Insert tool ø50 mmGundrill ø0,20-1,57mm, Insert tool ø1,97 in
Spindle power
22/33 Kw
Rotating speed
4500 Rpm
Torque
315 Nm
Inclinazione Testa di foratura ( C)
-15/+25 °
Notes

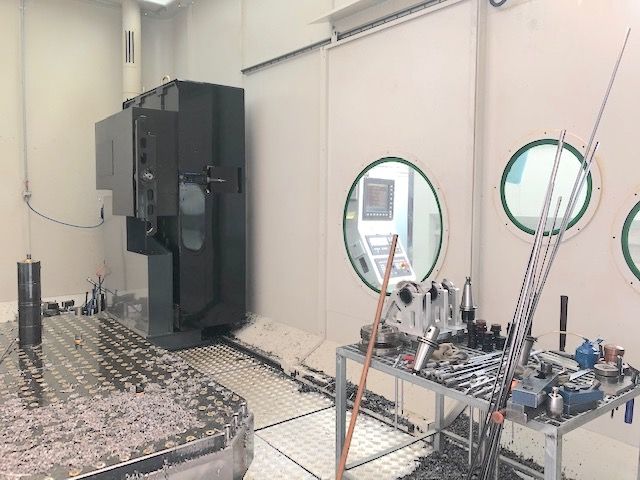

WISE System
ATC FRESATURA
Positions
40

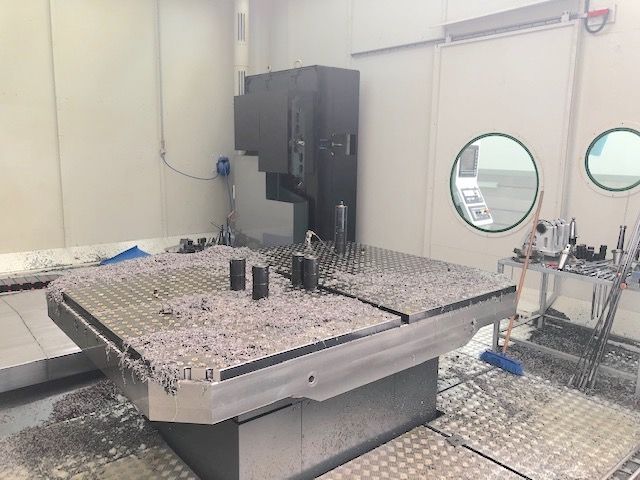

TABLE
Surface
2100x1600 mm82,68x62,99 in
Capacity
20.000 Kg
Accuracy (B axis)
continuo °
Notes
11T stots 18H12
SISTEMA REFRIGERANTE
Pressione
80 Bar
Capacity
100 l/min
Capacità vasca
2500 l
Filtration unit
a carta
FEEDS
Rapid X
10 m/min393,70 ipm
Rapid Y
10 m/min393,70 ipm
Rapid Z
10 m/min393,70 ipm
EXTRA
Machine weight
34000 kg
