Category
Drilling machine
Type
for deep holes for moulds
Made
Model
MF1500
Capacity
ø 5-25 mm - 2350x1150x300 mm mmø 0,20-0,98 mm - 92,52x45,28x11,81 mm in

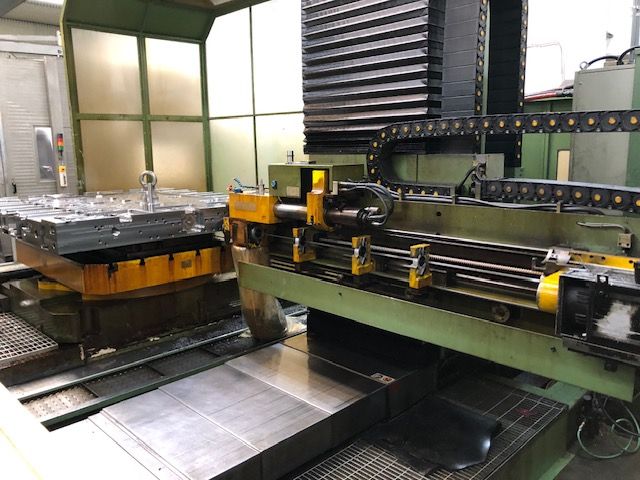

IMSA MF1500
All the machines are available subject to prior sale
Enable notifications

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
2350 mm92,52 in
Vertical (Y)
1150 mm45,28 in
Cross (Z)
300 mm11,81 in
Profondità di foratura (V)
1500 mm59,06 in
UNITà DI FORATURA
Spindle power
7,5 Kw
Rotating speed
4200 Rpm
TABLE
Surface
1500x1200 mm59,06x47,24 in
Capacity
20000 Kg
Rotating speed
2000 Rpm
CNC
CNC

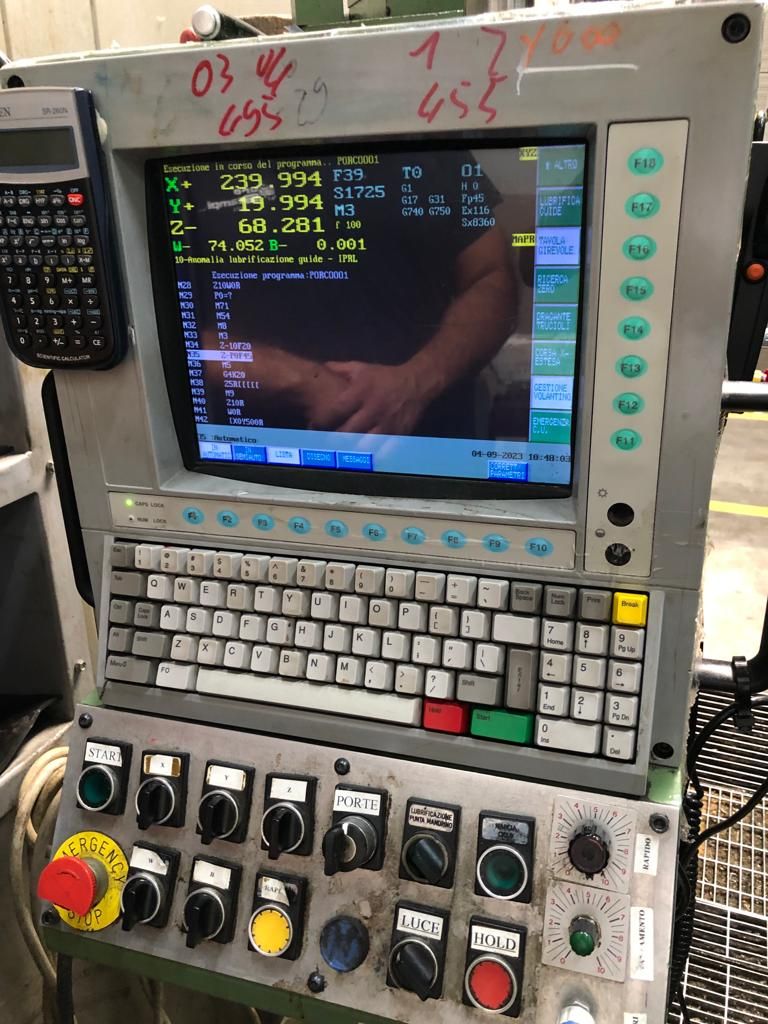

Selca S3045
ATC FRESATURA
Tool taper
ISO40 corsa 300 mm
EXTRA
Total power supply
7,5 Kw
Note
Marcatura CE
